Model Maytag WU701 DISHWASHER – Common Parts & Diagrams
01 - BLOWER/AIR INLET & WATER LEVEL FLOAT
02 - CONTROL PANEL & COMPONENTS

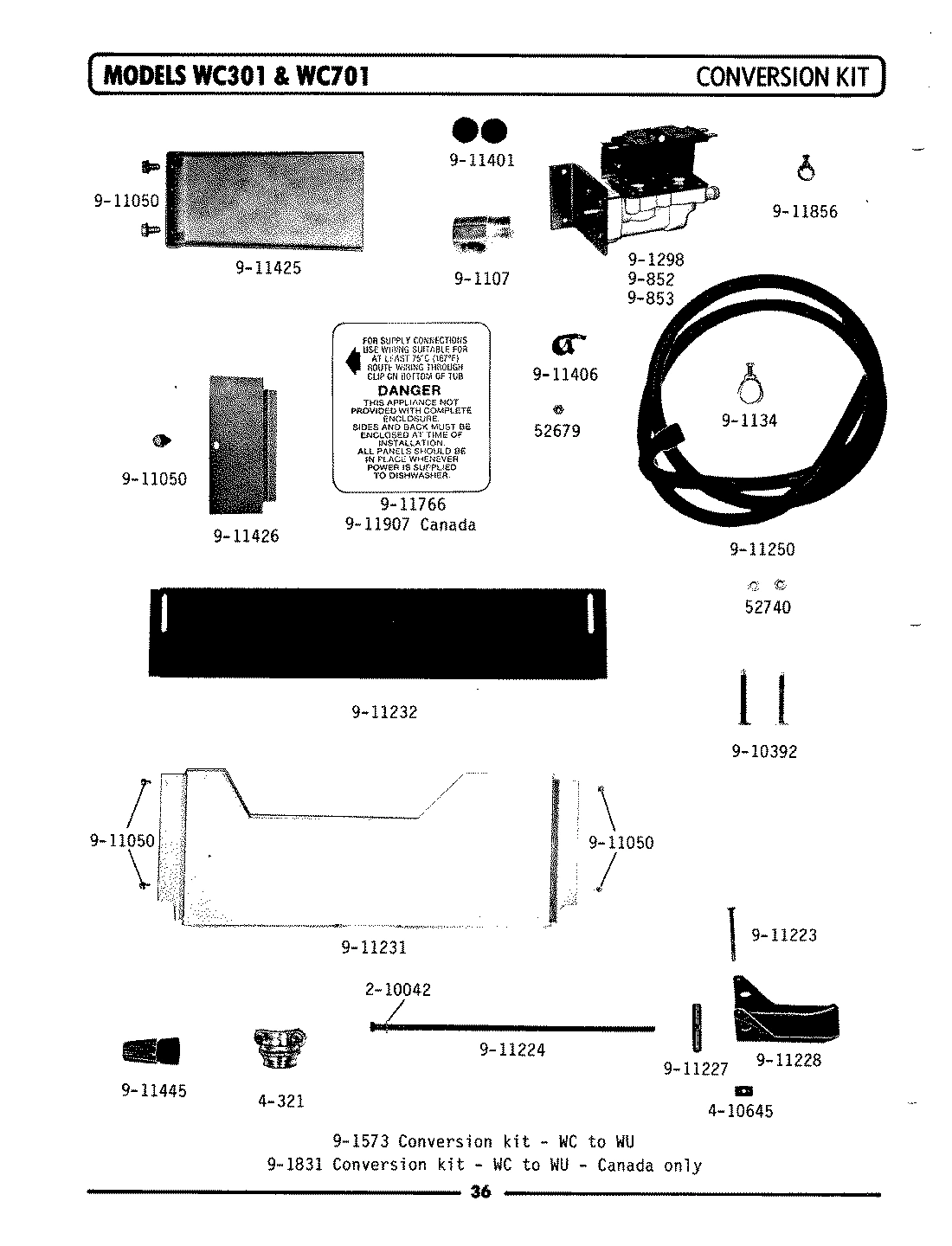

03 - CONVERSION KIT (WC701)

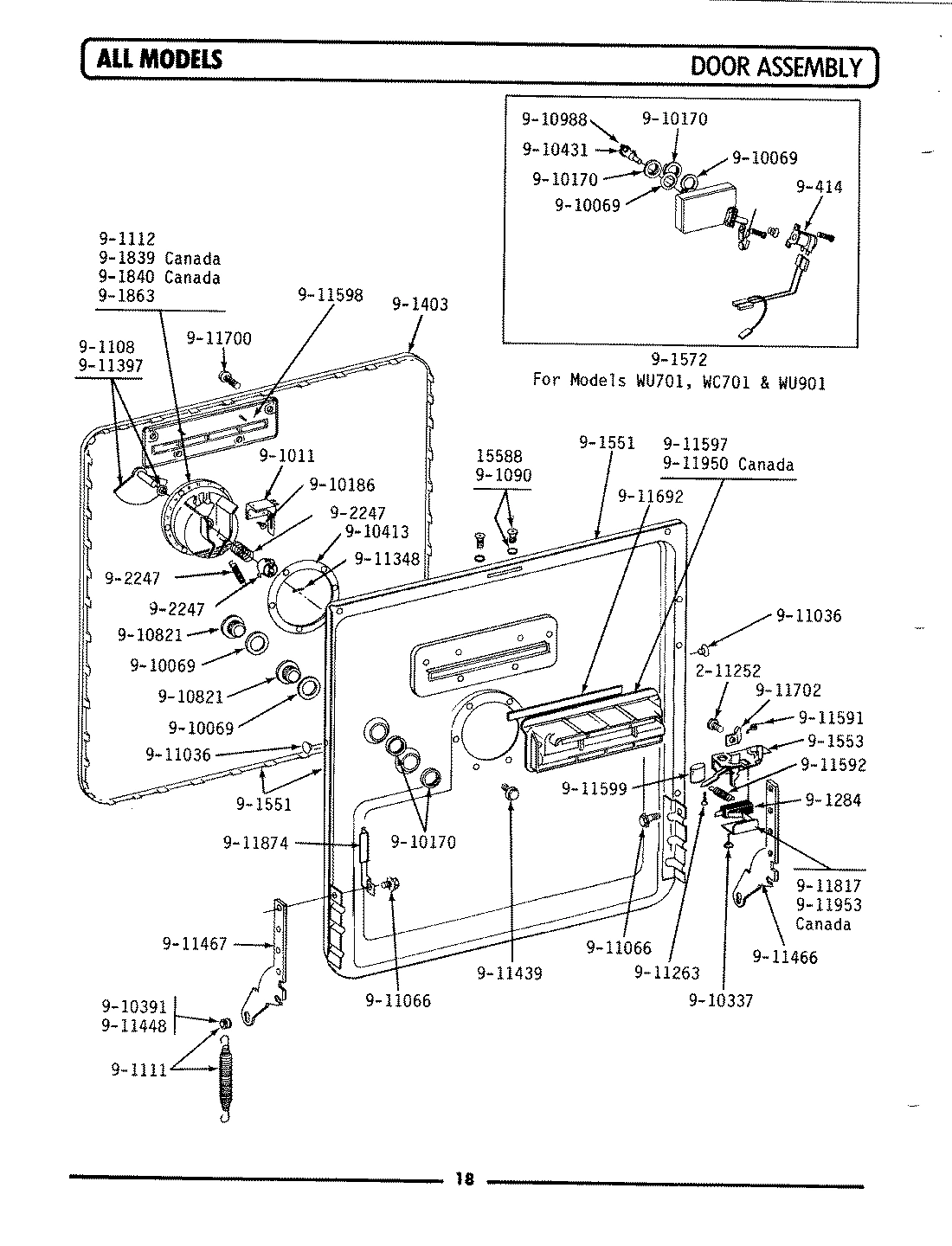

04 - DOOR ASSEMBLY

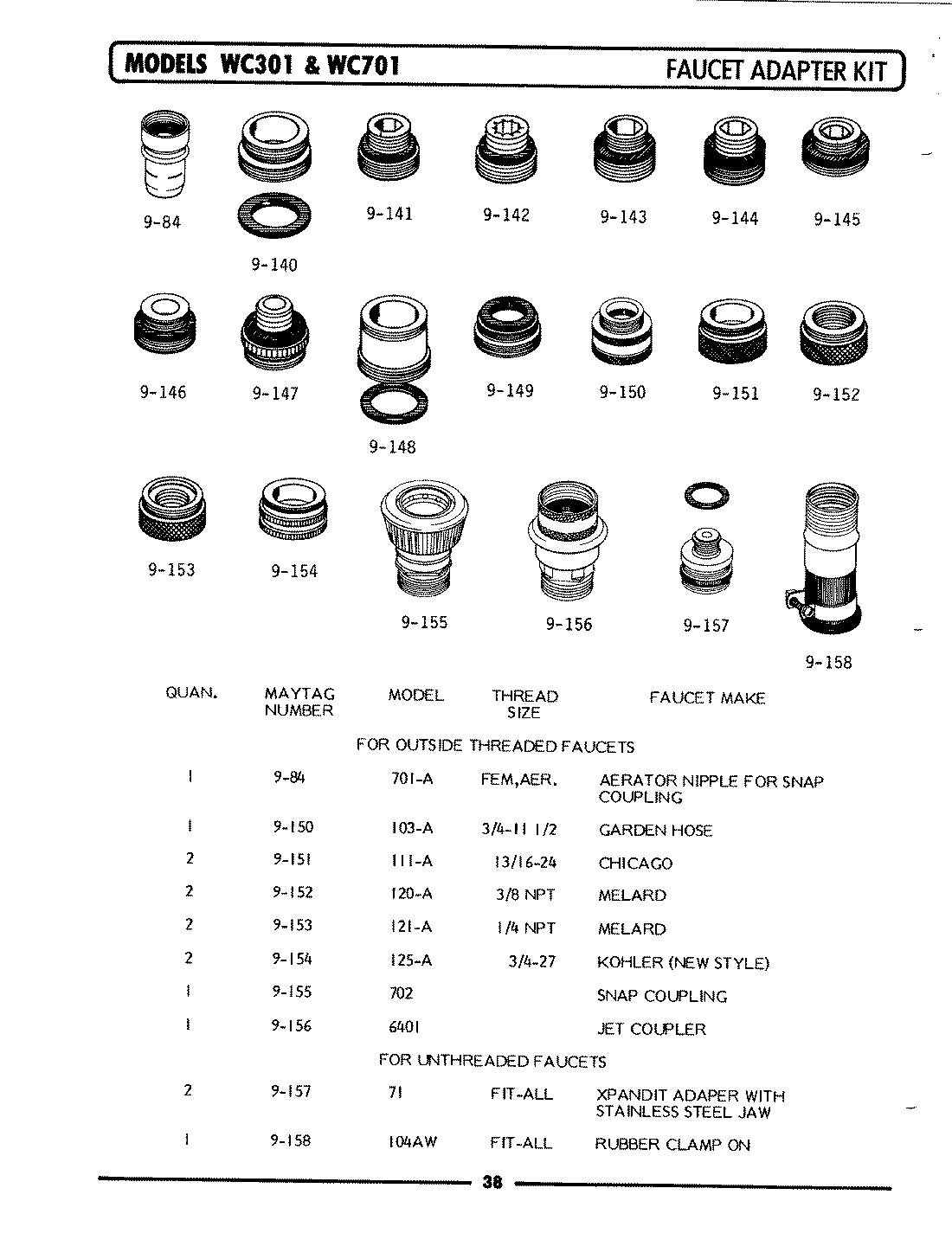

05 - FAUCET ADAPT KIT (INSIDE THREAD)(WC701)
06 - FAUCET ADAPT KIT (OUTSIDE THREAD)(WC701)
07 - FAUCET ADAPT KIT (UNTHREADED)(WC701)

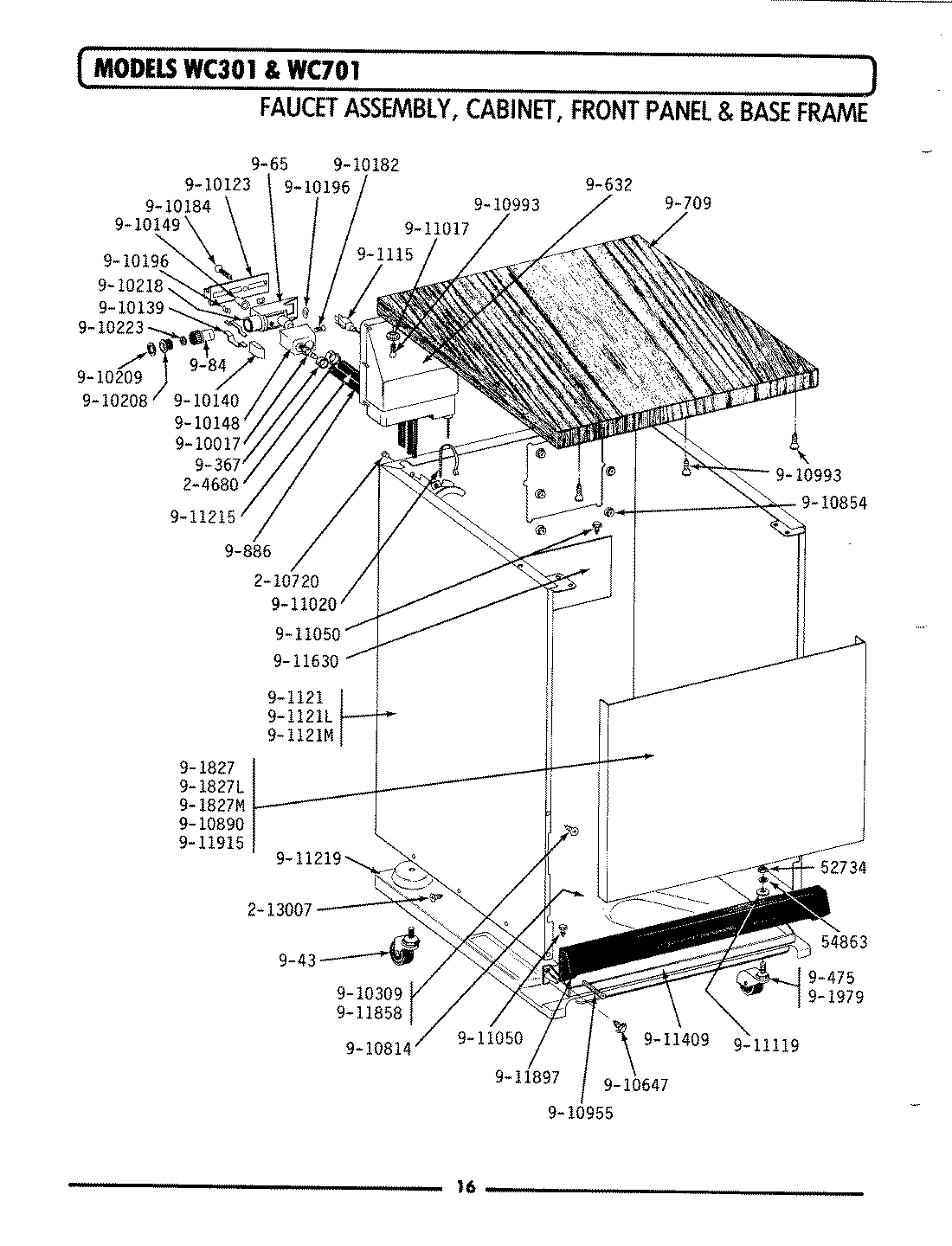

08 - FAUCET ASSY,CBNT,FRT PANEL,BASE (WC701)

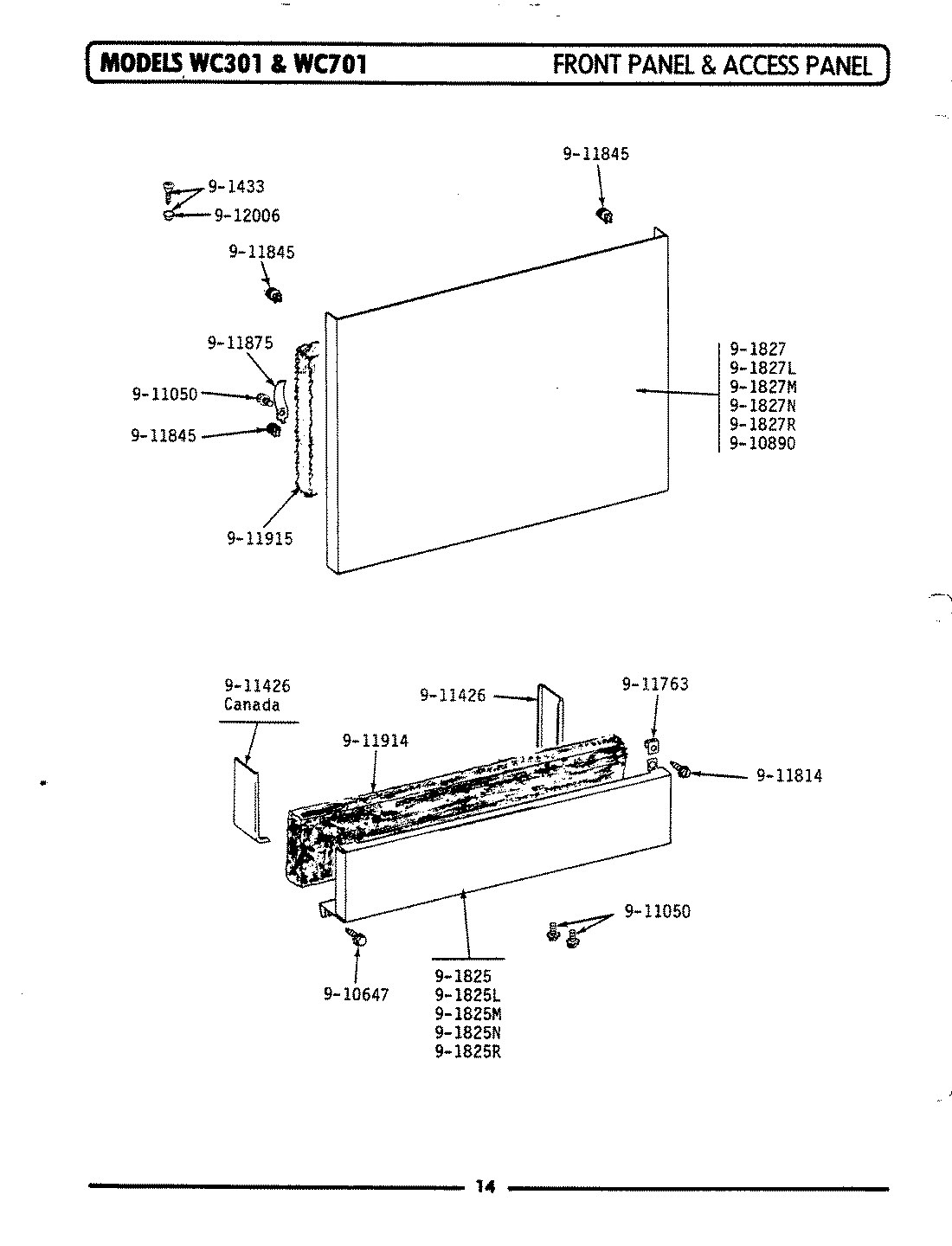

09 - FRONT PANEL & ACCESS PANEL (WC701)

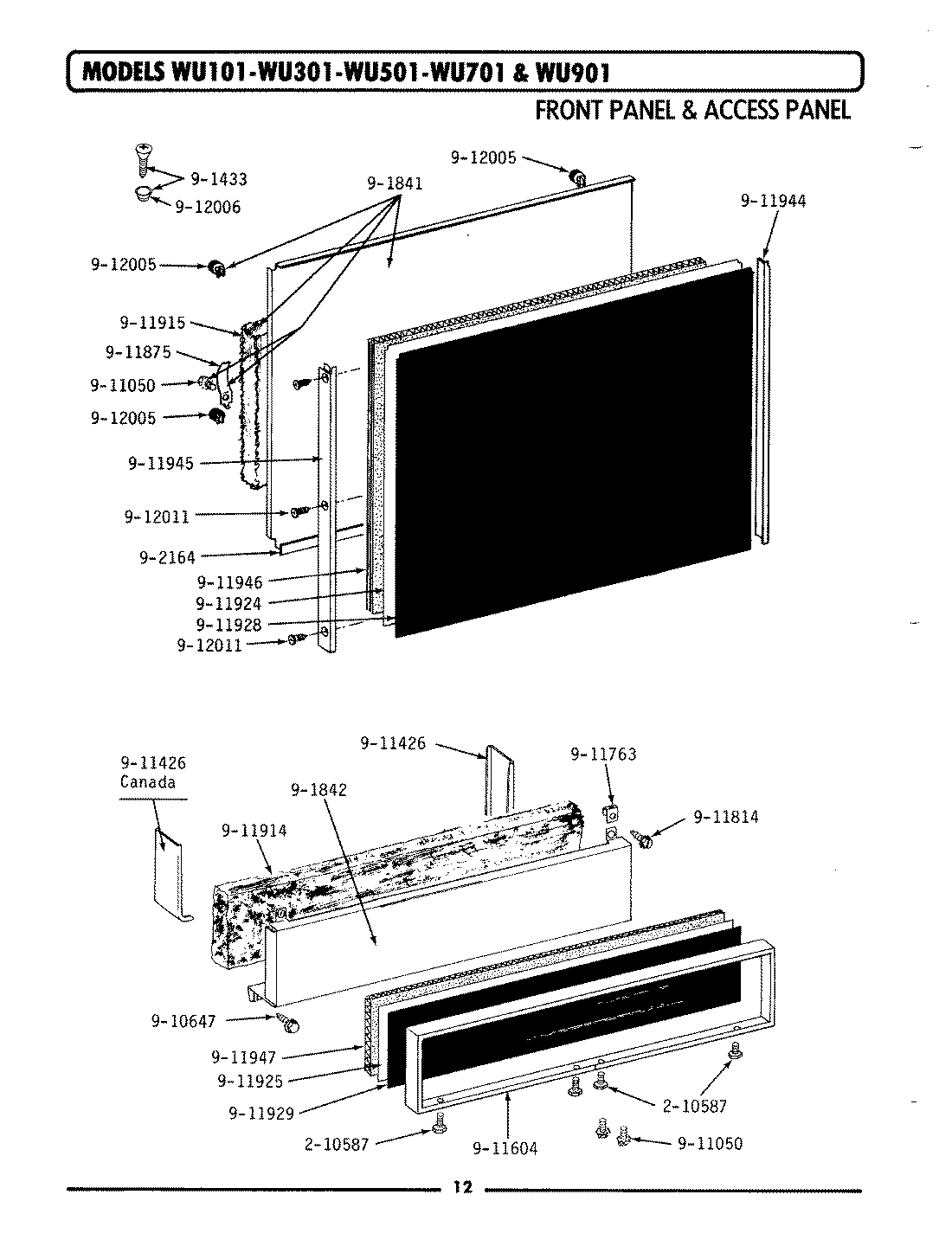

10 - FRONT PANEL & ACCESS PANEL (WU701)
11 - INSTALLATION ACCESSORIES

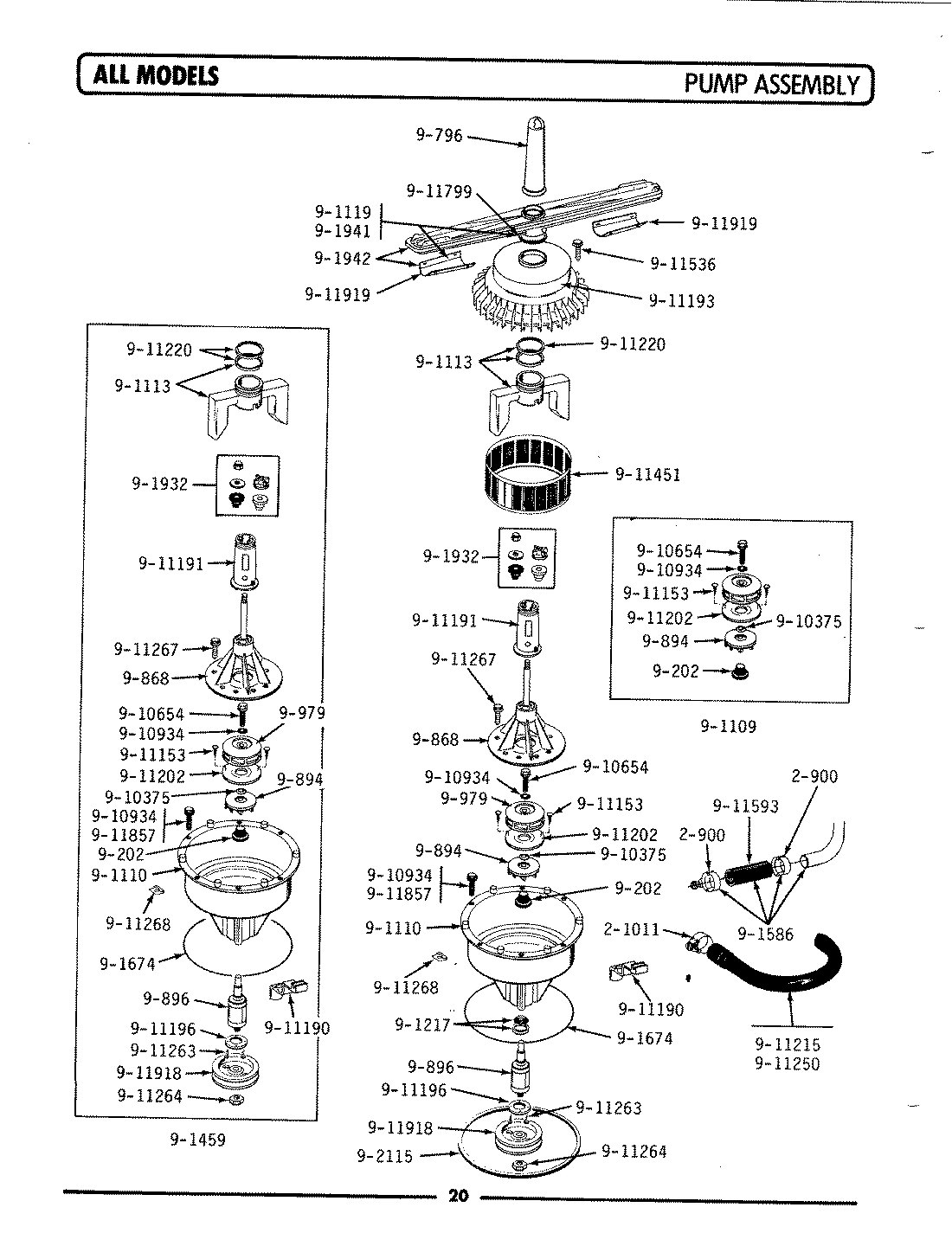

12 - PUMP ASSEMBLY

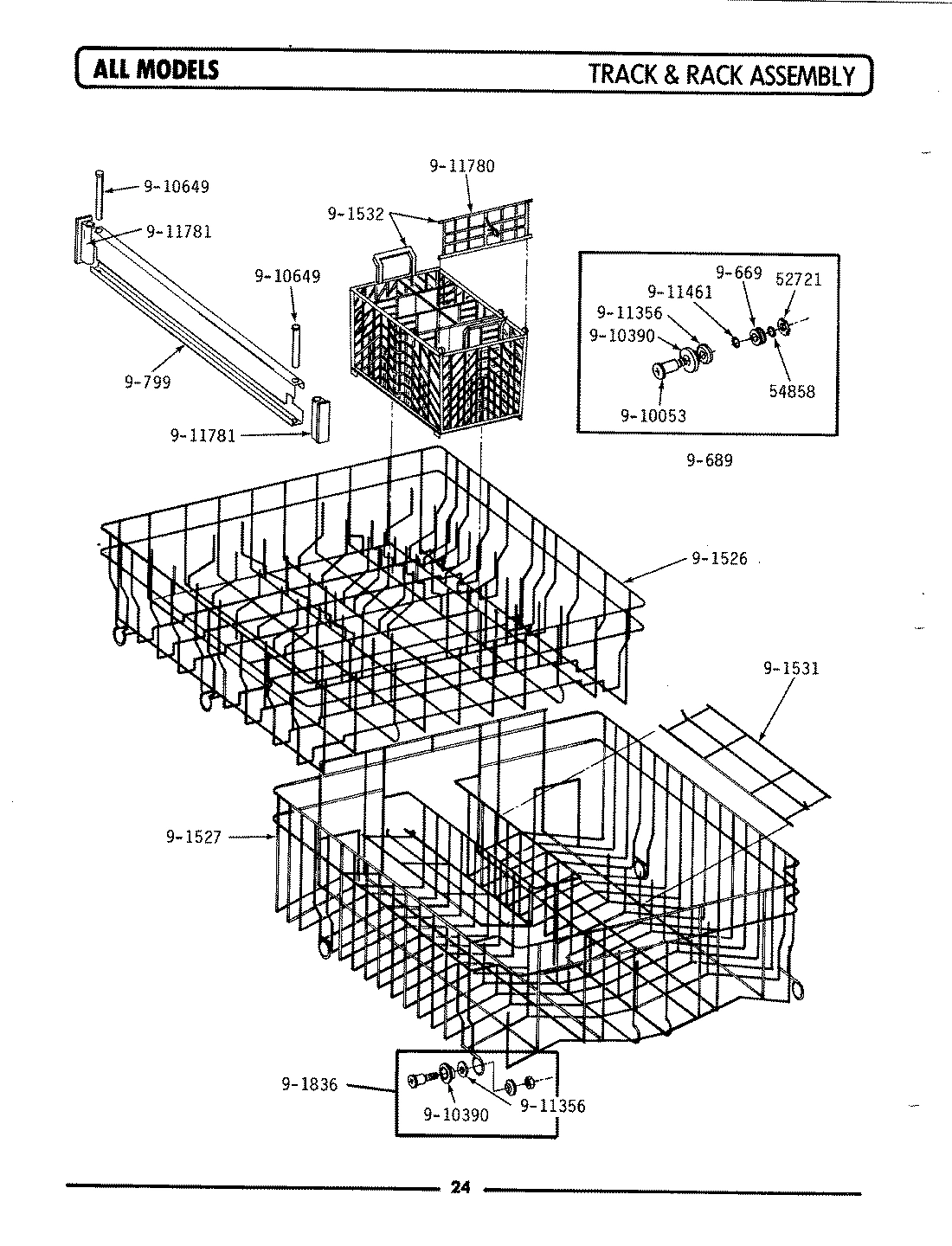

13 - TRACK & RACK ASSEMBLY

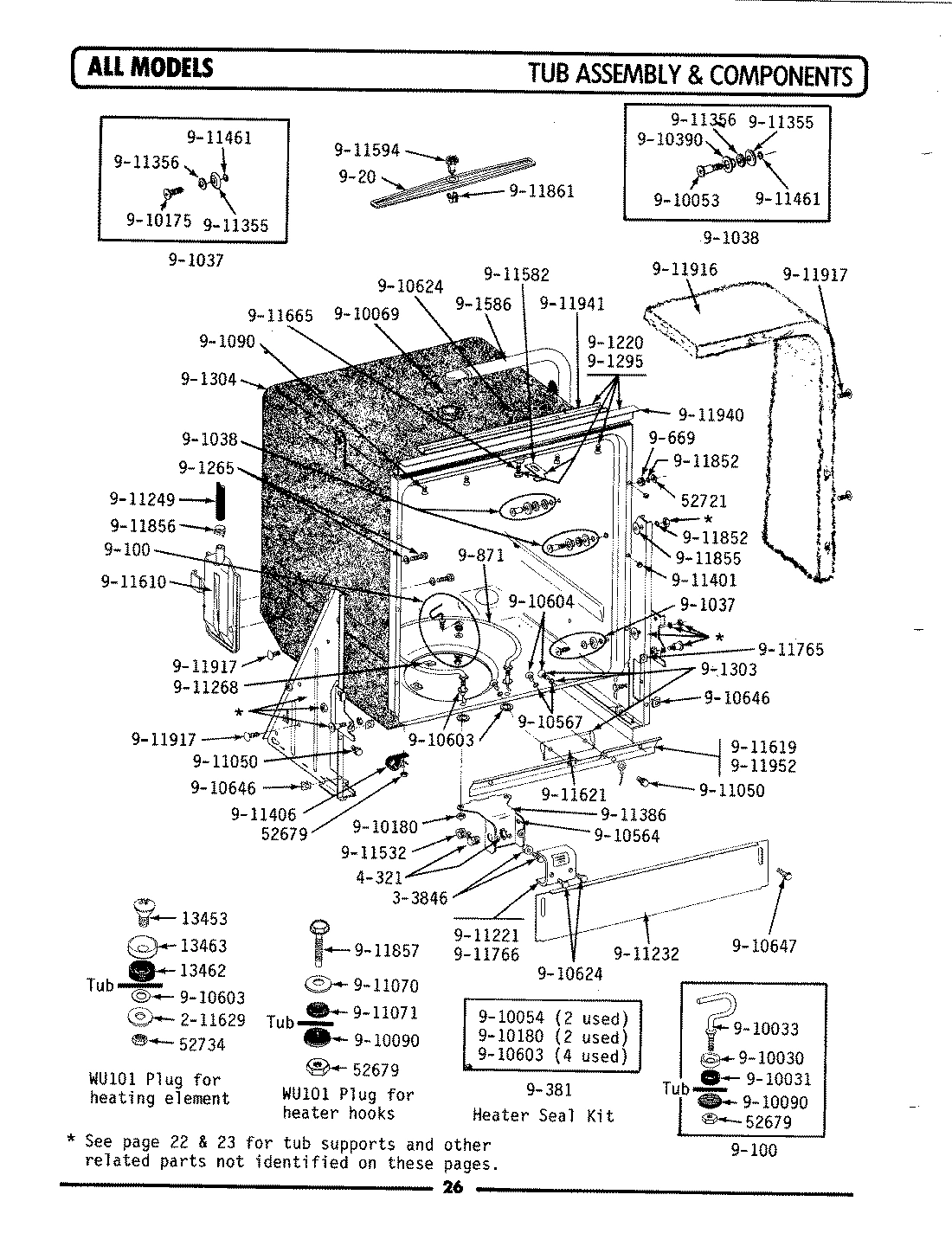

14 - TUB ASSEMBLY & COMPONENTS

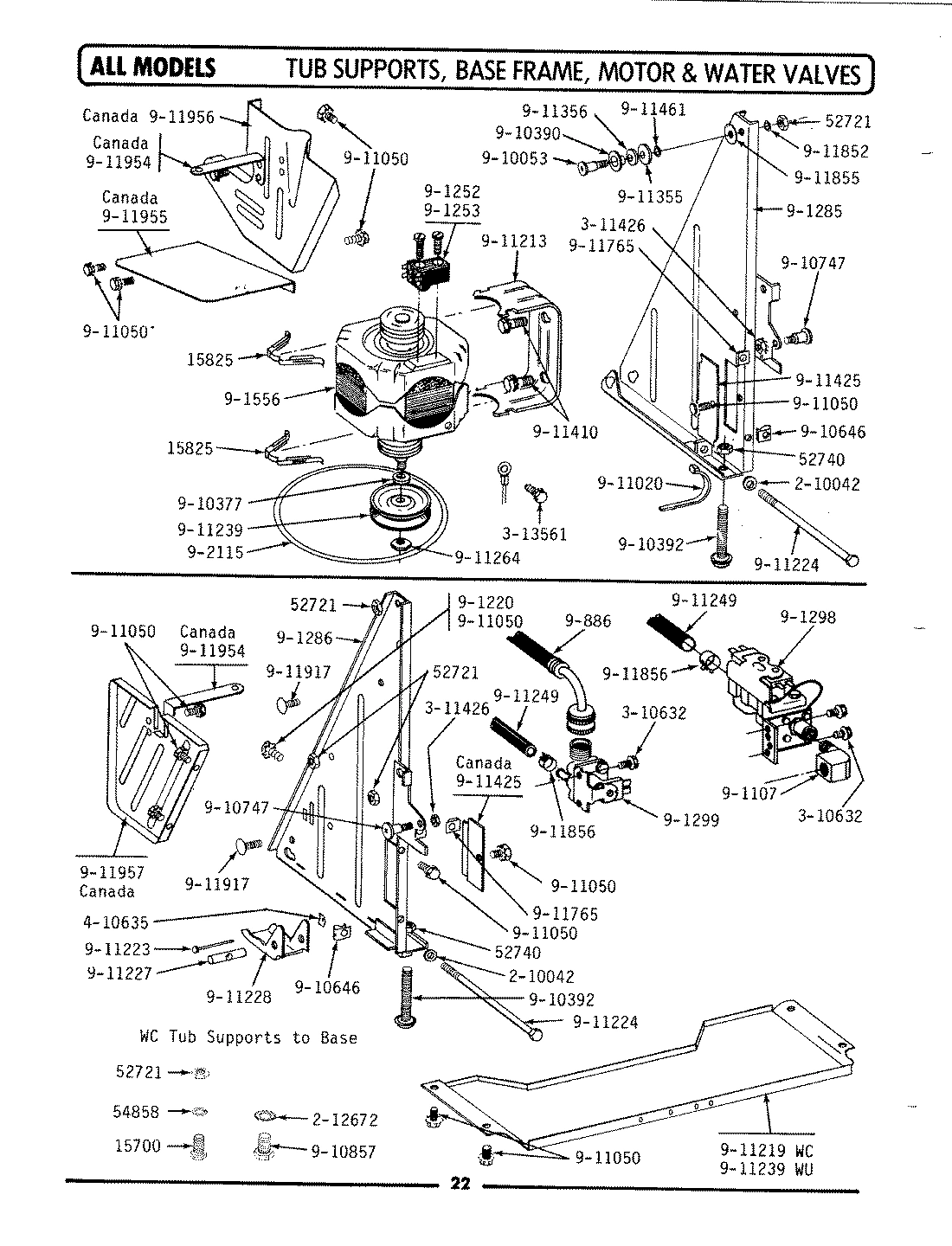

15 - TUB SUPPORTS, BASE FRAME, MOTOR & VALVES
Common parts from model Maytag WU701 DISHWASHER
1
MAY Y013783 MAY Y013783 Contact Us For Availability
1
MAY 210186 MAY 210186 Contact Us For Availability
1
MAY 015588 MAY 015588 Contact Us For Availability
1
MAY 900140 MAY 900140 Contact Us For Availability
1
MAY 900157 MAY 900157 Contact Us For Availability
1
MAY Y052734 MAY Y052734 Contact Us For Availability
1
MAY 210587 MAY 210587 Contact Us For Availability
1
MAY 200900 MAY 200900 Contact Us For Availability
1
MAY 015700 MAY 015700 Contact Us For Availability
2
MAY 900141 MAY 900141 Contact Us For Availability
2
MAY 900150 MAY 900150 Contact Us For Availability
2
MAY 900158 MAY 900158 Contact Us For Availability
2
MAY 054863 MAY 054863 Contact Us For Availability
2
MAY 901433 MAY 901433 Contact Us For Availability
2
MAY 901825 MAY 901825 Contact Us For Availability
2
MAY 056188 MAY 056188 Contact Us For Availability
2
MAY Y054858 MAY Y054858 Contact Us For Availability
3
MAY 210042 MAY 210042 Contact Us For Availability
3
MAY 900414 MAY 900414 Contact Us For Availability
3
MAY 900142 MAY 900142 Contact Us For Availability
3
MAY 900151 MAY 900151 Contact Us For Availability
3
MAY 901825L MAY 901825L Contact Us For Availability
3
MAY 900202 MAY 900202 Contact Us For Availability
3
MAY 303846 MAY 303846 Contact Us For Availability
4
MAY 900796 MAY 900796 Contact Us For Availability
4
MAY 901293 MAY 901293 Contact Us For Availability
4
MAY 400321 MAY 400321 Contact Us For Availability
4
MAY 901011 MAY 901011 Contact Us For Availability
4
MAY 900143 MAY 900143 Contact Us For Availability
4
MAY 900152 MAY 900152 Contact Us For Availability
4
MAY 901825M MAY 901825M Contact Us For Availability
4
MAY 901841 MAY 901841 Contact Us For Availability
4
MAY 200681 MAY 200681 Contact Us For Availability
4
MAY 900689 MAY 900689 Contact Us For Availability
4
MAY 900020 MAY 900020 Contact Us For Availability
5
MAY 901296 MAY 901296 Contact Us For Availability
5
MAY 900144 MAY 900144 Contact Us For Availability
5
MAY 900153 MAY 900153 Contact Us For Availability
5
MAY 901827 MAY 901827 Contact Us For Availability
5
MAY 901842 MAY 901842 Contact Us For Availability
5
MAY 900868 MAY 900868 Contact Us For Availability
5
MAY 900669 MAY 900669 Contact Us For Availability
5
MAY 900799 MAY 900799 Contact Us For Availability
6
MAY 901391 MAY 901391 Contact Us For Availability
6
MAY 900852 MAY 900852 Contact Us For Availability
6
MAY 901108 MAY 901108 Contact Us For Availability
6
MAY 900145 MAY 900145 Contact Us For Availability
6
MAY 900154 MAY 900154 Contact Us For Availability
6
MAY 900043 MAY 900043 Contact Us For Availability
6
MAY 901827L MAY 901827L Contact Us For Availability
6
MAY 200757 MAY 200757 Contact Us For Availability
6
MAY 900894 MAY 900894 Contact Us For Availability
6
MAY 901526 MAY 901526 Contact Us For Availability
6
MAY 901037 MAY 901037 Contact Us For Availability
7
MAY 901289 MAY 901289 Contact Us For Availability
7
MAY 901401 MAY 901401 Contact Us For Availability
7
MAY 900853 MAY 900853 Contact Us For Availability
7
MAY 900146 MAY 900146 Contact Us For Availability
7
MAY 900155 MAY 900155 Contact Us For Availability
7
MAY 900065 MAY 900065 Contact Us For Availability
7
MAY 901827M MAY 901827M Contact Us For Availability
7
MAY 902164 MAY 902164 Contact Us For Availability
7
MAY 201486 MAY 201486 Contact Us For Availability
7
MAY 900896 MAY 900896 Contact Us For Availability
7
MAY 901527 MAY 901527 Contact Us For Availability
7
MAY 901038 MAY 901038 Contact Us For Availability
8
MAY 901404 MAY 901404 Contact Us For Availability
8
MAY 901090 MAY 901090 Contact Us For Availability
8
MAY 901112 MAY 901112 Contact Us For Availability
8
MAY 900147 MAY 900147 Contact Us For Availability
8
MAY 900084 MAY 900084 Contact Us For Availability
8
MAY 900156 MAY 900156 Contact Us For Availability
8
MAY 204680 MAY 204680 Contact Us For Availability
8
MAY 900979 MAY 900979 Contact Us For Availability
8
MAY 901531 MAY 901531 Contact Us For Availability
9
MAY 901434 MAY 901434 Contact Us For Availability
9
MAY 901134 MAY 901134 Contact Us For Availability
9
MAY 901284 MAY 901284 Contact Us For Availability
9
MAY 900148 MAY 900148 Contact Us For Availability
9
MAY 900367 MAY 900367 Contact Us For Availability
9
MAY 910890 MAY 910890 Contact Us For Availability
9
MAY 204681 MAY 204681 Contact Us For Availability
9
MAY 901109 MAY 901109 Contact Us For Availability
9
MAY 901532 MAY 901532 Contact Us For Availability
9
MAY Y310632 MAY Y310632 Contact Us For Availability
10
MAY 901298 MAY 901298 Contact Us For Availability
10
MAY 901547 MAY 901547 Contact Us For Availability
10
MAY 900149 MAY 900149 Contact Us For Availability
10
MAY 900475 MAY 900475 Contact Us For Availability
10
MAY 901110 MAY 901110 Contact Us For Availability
10
MAY 901836 MAY 901836 Contact Us For Availability
10
MAY 901265 MAY 901265 Contact Us For Availability
11
MAY 901636 MAY 901636 Contact Us For Availability
11
MAY 901573 MAY 901573 Contact Us For Availability
11
MAY 911426 MAY 911426 Contact Us For Availability
11
MAY 901551 MAY 901551 Contact Us For Availability
11
MAY 900632 MAY 900632 Contact Us For Availability
11
MAY 212458 MAY 212458 Contact Us For Availability
11
MAY 901113 MAY 901113 Contact Us For Availability
11
MAY 901295 MAY 901295 Contact Us For Availability
11
MAY Y313561 MAY Y313561 Contact Us For Availability
12
MAY 901831 MAY 901831 Contact Us For Availability
12
MAY 901553 MAY 901553 Contact Us For Availability
12
MAY 900709 MAY 900709 Contact Us For Availability
12
MAY 911604 MAY 911604 Contact Us For Availability
12
MAY 800093 MAY 800093 Contact Us For Availability
12
MAY 901119 MAY 901119 Contact Us For Availability
12
MAY 901303 MAY 901303 Contact Us For Availability
13
MAY 910392 MAY 910392 Contact Us For Availability
13
MAY 901572 MAY 901572 Contact Us For Availability
13
MAY 900886 MAY 900886 Contact Us For Availability
13
MAY 911763 MAY 911763 Contact Us For Availability
13
MAY 810158 MAY 810158 Contact Us For Availability
13
MAY 901217 MAY 901217 Contact Us For Availability
13
MAY 910649 MAY 910649 Contact Us For Availability
13
MAY 901304 MAY 901304 Contact Us For Availability
14
MAY 901115 MAY 901115 Contact Us For Availability
14
MAY 901107 MAY 901107 Contact Us For Availability
14
MAY 901839 MAY 901839 Contact Us For Availability
14
MAY 911814 MAY 911814 Contact Us For Availability
14
MAY 911845 MAY 911845 Contact Us For Availability
14
MAY 900042 MAY 900042 Contact Us For Availability
14
MAY 901459 MAY 901459 Contact Us For Availability
15
MAY 911602 MAY 911602 Contact Us For Availability
15
MAY 901840 MAY 901840 Contact Us For Availability
15
MAY 901121 MAY 901121 Contact Us For Availability
15
MAY 911875 MAY 911875 Contact Us For Availability
15
MAY 900317 MAY 900317 Contact Us For Availability
15
MAY 901220 MAY 901220 Contact Us For Availability
16
MAY 901863 MAY 901863 Contact Us For Availability
16
MAY 901121L MAY 901121L Contact Us For Availability
16
MAY 911914 MAY 911914 Contact Us For Availability
16
MAY 900380 MAY 900380 Contact Us For Availability
16
MAY 901674 MAY 901674 Contact Us For Availability
16
MAY 911780 MAY 911780 Contact Us For Availability
16
MAY 910054 MAY 910054 Contact Us For Availability
16
MAY 901252 MAY 901252 Contact Us For Availability
17
MAY 911805 MAY 911805 Contact Us For Availability
17
MAY 901121M MAY 901121M Contact Us For Availability
17
MAY 911915 MAY 911915 Contact Us For Availability
17
MAY 900434 MAY 900434 Contact Us For Availability
17
MAY 901932 MAY 901932 Contact Us For Availability
17
MAY 911781 MAY 911781 Contact Us For Availability
17
MAY 901253 MAY 901253 Contact Us For Availability
18
MAY 912002 MAY 912002 Contact Us For Availability
18
MAY 910170 MAY 910170 Contact Us For Availability
18
MAY 900456 MAY 900456 Contact Us For Availability
18
MAY 901941 MAY 901941 Contact Us For Availability
18
MAY 910175 MAY 910175 Contact Us For Availability
19
MAY 911468 MAY 911468 Contact Us For Availability
19
MAY 911231 MAY 911231 Contact Us For Availability
19
MAY 910186 MAY 910186 Contact Us For Availability
19
MAY 911927 MAY 911927 Contact Us For Availability
19
MAY 900673 MAY 900673 Contact Us For Availability
19
MAY 901285 MAY 901285 Contact Us For Availability
20
MAY 911469 MAY 911469 Contact Us For Availability
20
MAY 911232 MAY 911232 Contact Us For Availability
20
MAY 910337 MAY 910337 Contact Us For Availability
20
MAY 911928 MAY 911928 Contact Us For Availability
20
MAY 900674 MAY 900674 Contact Us For Availability
20
MAY 910564 MAY 910564 Contact Us For Availability
20
MAY 901286 MAY 901286 Contact Us For Availability
21
MAY 911250 MAY 911250 Contact Us For Availability
21
MAY 910391 MAY 910391 Contact Us For Availability
21
MAY 901979 MAY 901979 Contact Us For Availability
21
MAY 911929 MAY 911929 Contact Us For Availability
21
MAY 900685 MAY 900685 Contact Us For Availability
21
MAY 910375 MAY 910375 Contact Us For Availability
21
MAY 910567 MAY 910567 Contact Us For Availability
22
MAY 911575 MAY 911575 Contact Us For Availability
22
MAY 911401 MAY 911401 Contact Us For Availability
22
MAY 910413 MAY 910413 Contact Us For Availability
22
MAY 910017 MAY 910017 Contact Us For Availability
22
MAY 911944 MAY 911944 Contact Us For Availability
22
MAY 900686 MAY 900686 Contact Us For Availability
22
MAY 910654 MAY 910654 Contact Us For Availability
22
MAY 910604 MAY 910604 Contact Us For Availability
23
MAY 910934 MAY 910934 Contact Us For Availability
23
MAY 911576 MAY 911576 Contact Us For Availability
23
MAY 910431 MAY 910431 Contact Us For Availability
23
MAY 910123 MAY 910123 Contact Us For Availability
23
MAY 911945 MAY 911945 Contact Us For Availability
23
MAY 900706 MAY 900706 Contact Us For Availability
23
MAY 910624 MAY 910624 Contact Us For Availability
24
MAY 911577 MAY 911577 Contact Us For Availability
24
MAY 910139 MAY 910139 Contact Us For Availability
24
MAY 911946 MAY 911946 Contact Us For Availability
24
MAY 900714 MAY 900714 Contact Us For Availability
24
MAY 911153 MAY 911153 Contact Us For Availability
24
MAY 901556 MAY 901556 Contact Us For Availability
25
MAY 911578 MAY 911578 Contact Us For Availability
25
MAY 910988 MAY 910988 Contact Us For Availability
25
MAY 910140 MAY 910140 Contact Us For Availability
25
MAY 911947 MAY 911947 Contact Us For Availability
25
MAY 900715 MAY 900715 Contact Us For Availability
25
MAY 911190 MAY 911190 Contact Us For Availability
26
MAY 911445 MAY 911445 Contact Us For Availability
26
MAY 911036 MAY 911036 Contact Us For Availability
26
MAY 910148 MAY 910148 Contact Us For Availability
26
MAY 912005 MAY 912005 Contact Us For Availability
26
MAY 900774 MAY 900774 Contact Us For Availability
26
MAY 911191 MAY 911191 Contact Us For Availability
27
MAY 911579 MAY 911579 Contact Us For Availability
27
MAY 912006 MAY 912006 Contact Us For Availability
27
MAY 911066 MAY 911066 Contact Us For Availability
27
MAY 910149 MAY 910149 Contact Us For Availability
27
MAY 900775 MAY 900775 Contact Us For Availability
27
MAY 911193 MAY 911193 Contact Us For Availability
27
MAY 911221 MAY 911221 Contact Us For Availability
28
MAY 911580 MAY 911580 Contact Us For Availability
28
MAY 910182 MAY 910182 Contact Us For Availability
28
MAY 912011 MAY 912011 Contact Us For Availability
28
MAY 900776 MAY 900776 Contact Us For Availability
28
MAY Y911196 MAY Y911196 Contact Us For Availability
28
MAY 910053 MAY 910053 Contact Us For Availability
29
MAY 911595 MAY 911595 Contact Us For Availability
29
MAY 911907 MAY 911907 Contact Us For Availability
29
MAY 911348 MAY 911348 Contact Us For Availability
29
MAY 910184 MAY 910184 Contact Us For Availability
29
MAY 900900 MAY 900900 Contact Us For Availability
29
MAY Y911202 MAY Y911202 Contact Us For Availability
29
MAY 910377 MAY 910377 Contact Us For Availability
30
MAY 911775 MAY 911775 Contact Us For Availability
30
MAY 911397 MAY 911397 Contact Us For Availability
30
MAY 910196 MAY 910196 Contact Us For Availability
30
MAY 910692 MAY 910692 Contact Us For Availability
30
MAY 910390 MAY 910390 Contact Us For Availability
31
MAY 910208 MAY 910208 Contact Us For Availability
31
MAY 911439 MAY 911439 Contact Us For Availability
31
MAY 911813 MAY 911813 Contact Us For Availability
31
MAY 910982 MAY 910982 Contact Us For Availability
31
MAY 911220 MAY 911220 Contact Us For Availability
32
MAY 910994 MAY 910994 Contact Us For Availability
32
MAY 910646 MAY 910646 Contact Us For Availability
33
MAY 911903 MAY 911903 Contact Us For Availability
33
MAY Y911263 MAY Y911263 Contact Us For Availability
33
MAY 911466 MAY 911466 Contact Us For Availability
33
MAY 910995 MAY 910995 Contact Us For Availability
33
MAY 910747 MAY 910747 Contact Us For Availability
34
MAY 911958 MAY 911958 Contact Us For Availability
34
MAY 911467 MAY 911467 Contact Us For Availability
34
MAY 910223 MAY 910223 Contact Us For Availability
34
MAY 910996 MAY 910996 Contact Us For Availability
35
MAY 912012 MAY 912012 Contact Us For Availability
35
MAY 911591 MAY 911591 Contact Us For Availability
35
MAY 910309 MAY 910309 Contact Us For Availability
35
MAY 911020 MAY 911020 Contact Us For Availability
35
MAY 910997 MAY 910997 Contact Us For Availability
35
MAY 911267 MAY 911267 Contact Us For Availability
36
MAY 912013 MAY 912013 Contact Us For Availability
36
MAY 911050 MAY 911050 Contact Us For Availability
36
MAY 911592 MAY 911592 Contact Us For Availability
36
MAY 911268 MAY 911268 Contact Us For Availability
37
MAY 912014 MAY 912014 Contact Us For Availability
37
MAY 911597 MAY 911597 Contact Us For Availability
37
MAY 910814 MAY 910814 Contact Us For Availability
37
MAY 911451 MAY 911451 Contact Us For Availability
37
MAY 911213 MAY 911213 Contact Us For Availability
38
MAY 911536 MAY 911536 Contact Us For Availability
38
MAY 912015 MAY 912015 Contact Us For Availability
38
MAY 911598 MAY 911598 Contact Us For Availability
38
MAY 910854 MAY 910854 Contact Us For Availability
39
MAY 912016 MAY 912016 Contact Us For Availability
39
MAY 911223 MAY 911223 Contact Us For Availability
39
MAY 911599 MAY 911599 Contact Us For Availability
39
MAY 911593 MAY 911593 Contact Us For Availability
40
MAY 911224 MAY 911224 Contact Us For Availability
40
MAY 911692 MAY 911692 Contact Us For Availability
40
MAY 911799 MAY 911799 Contact Us For Availability
41
MAY 911857 MAY 911857 Contact Us For Availability
41
MAY 911227 MAY 911227 Contact Us For Availability
41
MAY 911700 MAY 911700 Contact Us For Availability
41
MAY 910993 MAY 910993 Contact Us For Availability
42
MAY 911702 MAY 911702 Contact Us For Availability
42
MAY 911228 MAY 911228 Contact Us For Availability
42
MAY 911017 MAY 911017 Contact Us For Availability
42
MAY 911918 MAY 911918 Contact Us For Availability
43
MAY 911817 MAY 911817 Contact Us For Availability
44
MAY 911874 MAY 911874 Contact Us For Availability
44
MAY 911239 MAY 911239 Contact Us For Availability
45
MAY 911950 MAY 911950 Contact Us For Availability
45
MAY 911119 MAY 911119 Contact Us For Availability
45
MAY 911249 MAY 911249 Contact Us For Availability
46
MAY 911953 MAY 911953 Contact Us For Availability
46
MAY Y911215 MAY Y911215 Contact Us For Availability
46
MAY Y911264 MAY Y911264 Contact Us For Availability
47
MAY Y911219 MAY Y911219 Contact Us For Availability
47
MAY Y911355 MAY Y911355 Contact Us For Availability
48
MAY 911409 MAY 911409 Contact Us For Availability
48
MAY 911356 MAY 911356 Contact Us For Availability
49
MAY 911630 MAY 911630 Contact Us For Availability
49
MAY 911410 MAY 911410 Contact Us For Availability
50
MAY 911425 MAY 911425 Contact Us For Availability
50
MAY 911386 MAY 911386 Contact Us For Availability
51
MAY 911897 MAY 911897 Contact Us For Availability
51
MAY 911461 MAY 911461 Contact Us For Availability
52
MAY 911406 MAY 911406 Contact Us For Availability
55
MAY 911582 MAY 911582 Contact Us For Availability
55
MAY 911765 MAY 911765 Contact Us For Availability
56
MAY 911594 MAY 911594 Contact Us For Availability
56
MAY 911852 MAY 911852 Contact Us For Availability
57
MAY 911610 MAY 911610 Contact Us For Availability
57
MAY 911855 MAY 911855 Contact Us For Availability
58
MAY 911619 MAY 911619 Contact Us For Availability
59
MAY 911621 MAY 911621 Contact Us For Availability
59
MAY 911917 MAY 911917 Contact Us For Availability
60
MAY 911954 MAY 911954 Contact Us For Availability
61
MAY 911955 MAY 911955 Contact Us For Availability
62
MAY 911766 MAY 911766 Contact Us For Availability
62
MAY 911956 MAY 911956 Contact Us For Availability
63
MAY 911957 MAY 911957 Contact Us For Availability
67
MAY 911861 MAY 911861 Contact Us For Availability
70
MAY 911940 MAY 911940 Contact Us For Availability
71
MAY 911941 MAY 911941 Contact Us For Availability
72
MAY 911952 MAY 911952 Contact Us For Availability
NI
MAY 901829 MAY 901829 Contact Us For Availability
NI
MAY 410635 MAY 410635 Contact Us For Availability
NI
MAY 901838 MAY 901838 Contact Us For Availability
NI
MAY 902163 MAY 902163 Contact Us For Availability
NI
MAY 902233 MAY 902233 Contact Us For Availability
NI
MAY 911926 MAY 911926 Contact Us For Availability
NI
MAY 912096 MAY 912096 Contact Us For Availability
NI
MAY 912097 MAY 912097 Contact Us For Availability
NI
MAY 901586 MAY 901586 Contact Us For Availability
NI
MAY 251193 MAY 251193 Contact Us For Availability
NI
MAY 901283 MAY 901283 Contact Us For Availability
NI
MAY 901523 MAY 901523 Contact Us For Availability
NI
MAY 911503 MAY 911503 Contact Us For Availability
NI
MAY 911504 MAY 911504 Contact Us For Availability
NI
MAY 911660 MAY 911660 Contact Us For Availability
× ![]()
