Model Whirlpool WU6850V0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
06 - WIRING HARNESS
03 - DOOR

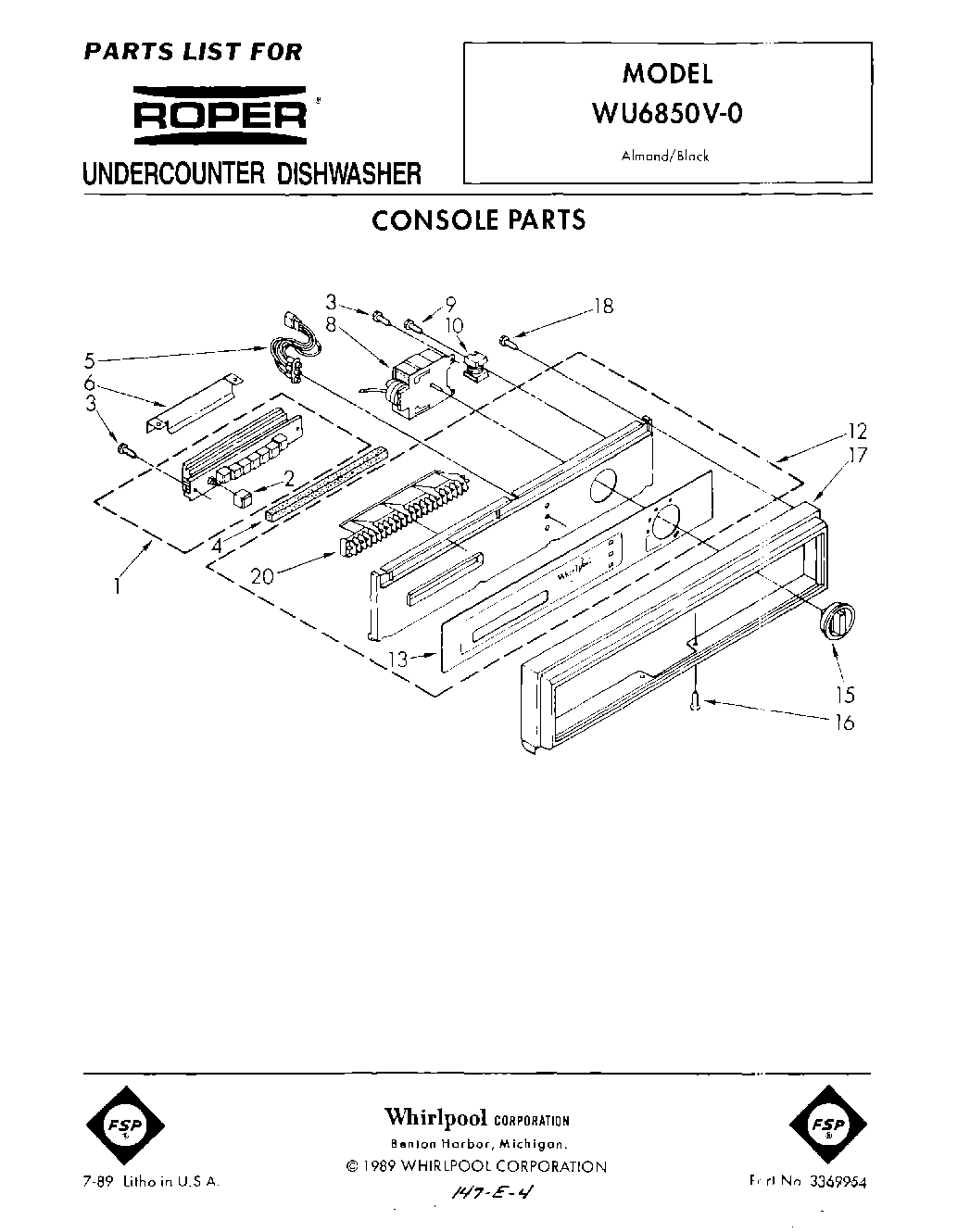

01 - CONSOLE

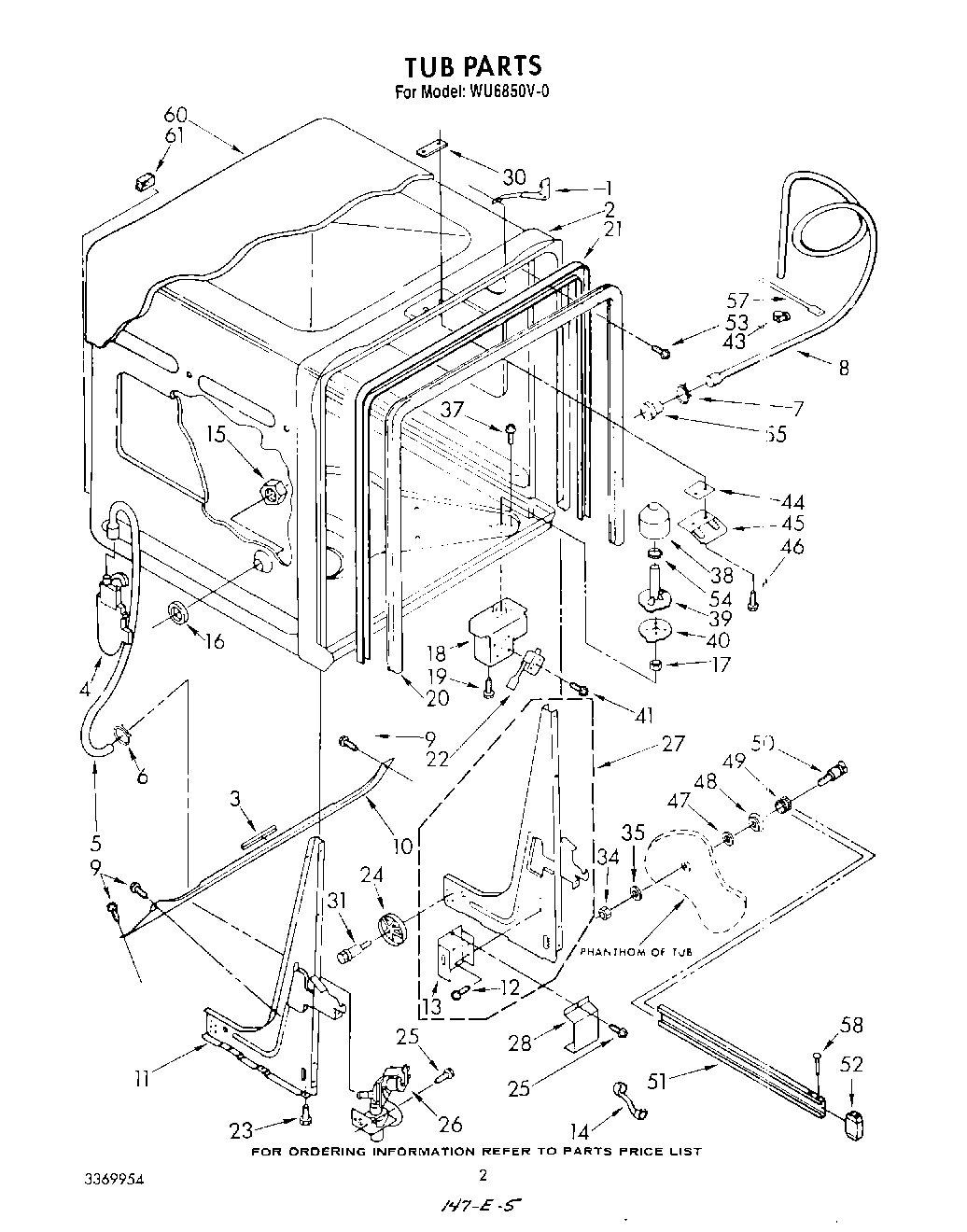

02 - TUB , LITERATURE AND OPTIONAL
04 - DISHRACK

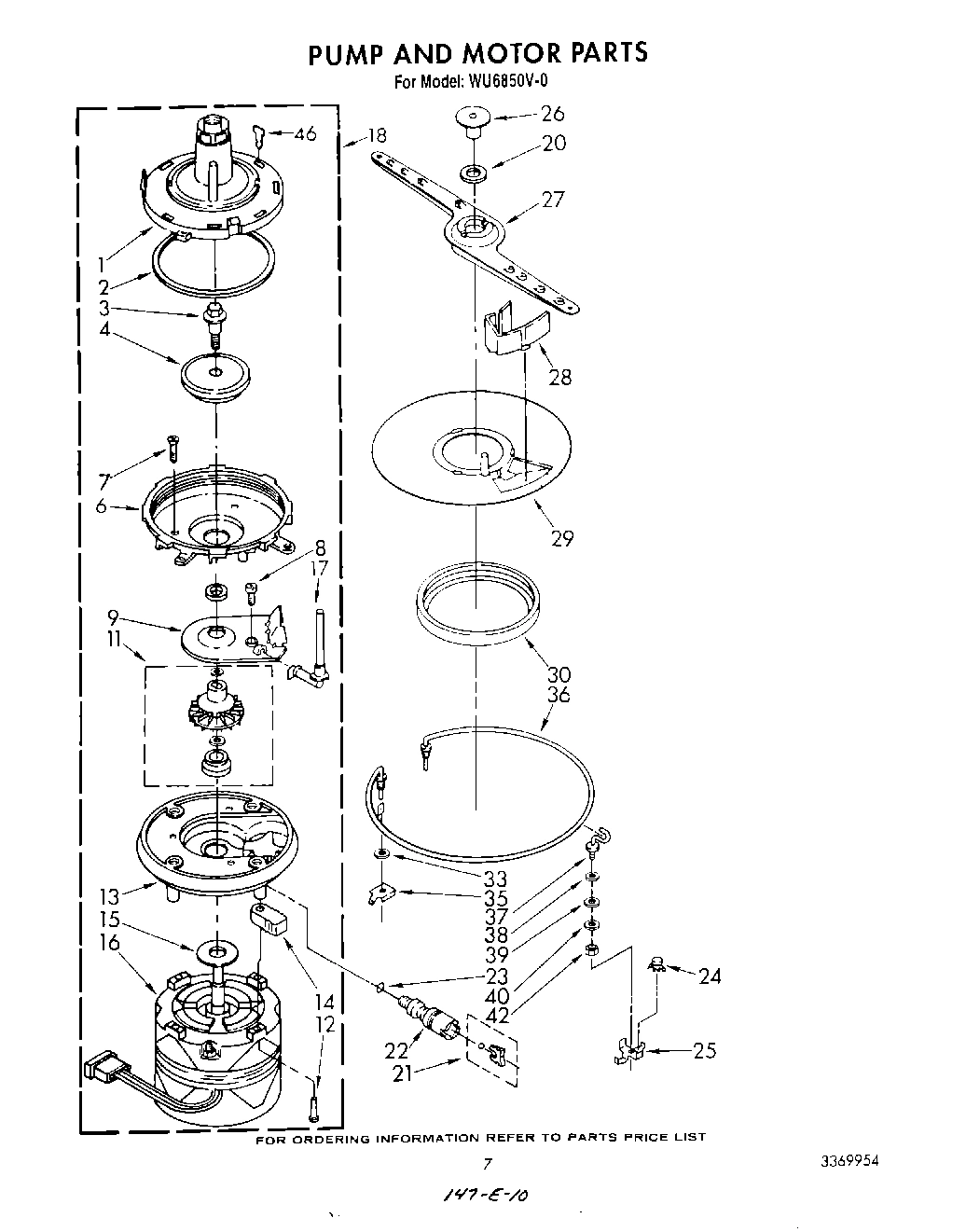

05 - PUMP AND MOTOR
Common parts from model Whirlpool WU6850V0 UNDERCOUNTER DISHWASHER
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3369941 WPL LIT3369941 Contact Us For Availability
WPL LIT3369943 WPL LIT3369943 Contact Us For Availability
WPL LIT3369948 WPL LIT3369948 Contact Us For Availability
WPL LIT3369949 WPL LIT3369949 Contact Us For Availability
WPL LIT3369954 WPL LIT3369954 Contact Us For Availability
1
Switch, Pushbutton WPL 3368541 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Pump Housing, Upper WPL 3367439 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Button (8) WPL 304456 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Baffle WPL 3368537 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
5
Light, Indicator (For Electrical Connector On WPL 304423 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Shield, Sound WPL 3368547 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
8
Timer (For Electrical Connector Only, See Wir WPL 3367794 Contact Us For Availability
8
Hose, Drain WPL 303452 Contact Us For Availability
9
Spray Arm Assembly WPL 304204 Contact Us For Availability
9
Screw, 7-18 x 1-3/8 (2) WPL 304232 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Relay, Start WPL 304409 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
11
Kit, Drain Impeller WPL 303555 Contact Us For Availability
12
Console WPL 3369924 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 718178 Contact Us For Availability
12
Screw, 13-16 (4) WPL 3369331 Contact Us For Availability
13
Insert, Decorative WPL 3369923 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
13
Base, Pump WPL 3367203 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
14
Bumper WPL 717970 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Knob, Timer WPL 3367843 Contact Us For Availability
15
Nut, 7/8-16 WPL 713799 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Panel, Reversible Side WPL ARI136026A Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
17
Nut, 1/8 WPL 717488 Contact Us For Availability
17
Bezel, Console WPL 304396 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Screw, 6-19 x 3/8 (4) WPL 3367296 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
18
Panel, Lower Side WPL 3367549 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Screw (2) WPL 9419621 Contact Us For Availability
20
Grill, Vent WPL 304602 Contact Us For Availability
21
Retainer WPL 3368002 Contact Us For Availability
21
Check Ball & Retainer WPL 675488 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Wheel, Leg WPL 302819 Contact Us For Availability
24
Thermostat WPL 661504 Contact Us For Availability
25
Bracket, Thermostat WPL 3368272 Contact Us For Availability
26
Cap, Nozzle WPL 3367910 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
28
Cover, Terminal Box WPL 300068 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
36
Heater WPL 660318 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 302203 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Panel, Edging (Door) WPL 304047 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Panel, Front (Almond/Black) WPL 304668 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Trim, Door R.H. WPL 3367201 Contact Us For Availability
49
Trim, Door L.H. WPL 3367202 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 303297 Contact Us For Availability
52
End Cap, Track (4) WPL 303299 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability
54
Gasket (2) WPL 301662 Contact Us For Availability
55
Insert, Cup-Hose WPL 301656 Contact Us For Availability
58
Pin, Track (4) WPL 303298 Contact Us For Availability
61
WPL 799344 WPL 799344 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
61
Golden Harvest WPL 261890 Contact Us For Availability
61
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
61
Toast WPL 285365 Contact Us For Availability
61
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
61
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
61
Platinum (Uncut) WPL 285368 Contact Us For Availability
61
Block, Foam WPL 3368107 Contact Us For Availability
61
Leveler (Thinner) WPL 350941 Contact Us For Availability
61
WPL 675506 WPL 675506 Contact Us For Availability
61
WPL 72112 WPL 72112 Contact Us For Availability
61
WPL 799640 WPL 799640 Contact Us For Availability
61
WPL 978883 WPL 978883 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Panel, Access (Almond/Black) WPL 3367012 Contact Us For Availability
70
Plate, Toe WPL 3367671 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
82
Shield, Sound (Toe Panel) WPL 303809 Contact Us For Availability
84
Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
90
Spacer, Corrugated WPL 3368569 Contact Us For Availability
91
Clip, Wire (2) WPL 301857 Contact Us For Availability
92
Screw, 8 - 18 (4) WPL 3367288 Contact Us For Availability
93
Shield, Harness WPL 303362 Contact Us For Availability
94
Retainer, Clip WPL 3367720 Contact Us For Availability
95
Screw, 8 x 3/8 WPL 303090 Contact Us For Availability
96
Spacer, Corrugated WPL 303755 Contact Us For Availability
97
Trim, Toe Panel WPL 303753 Contact Us For Availability
98
Trim, Access Panel Top WPL 303754 Contact Us For Availability
× ![]()
