Model Whirlpool WSGS7530RV0 RANGE/OVEN, GAS – Common Parts &amp; Diagrams

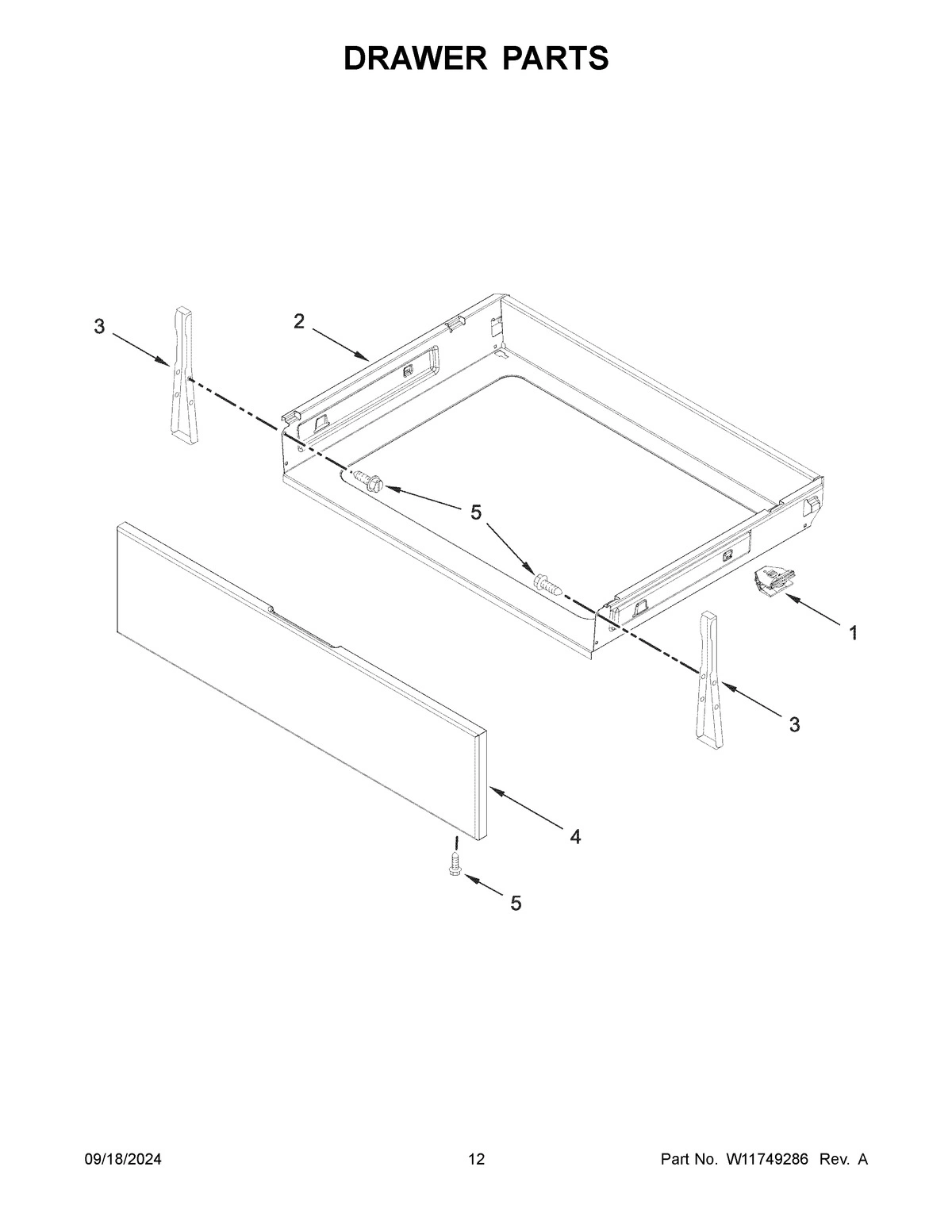

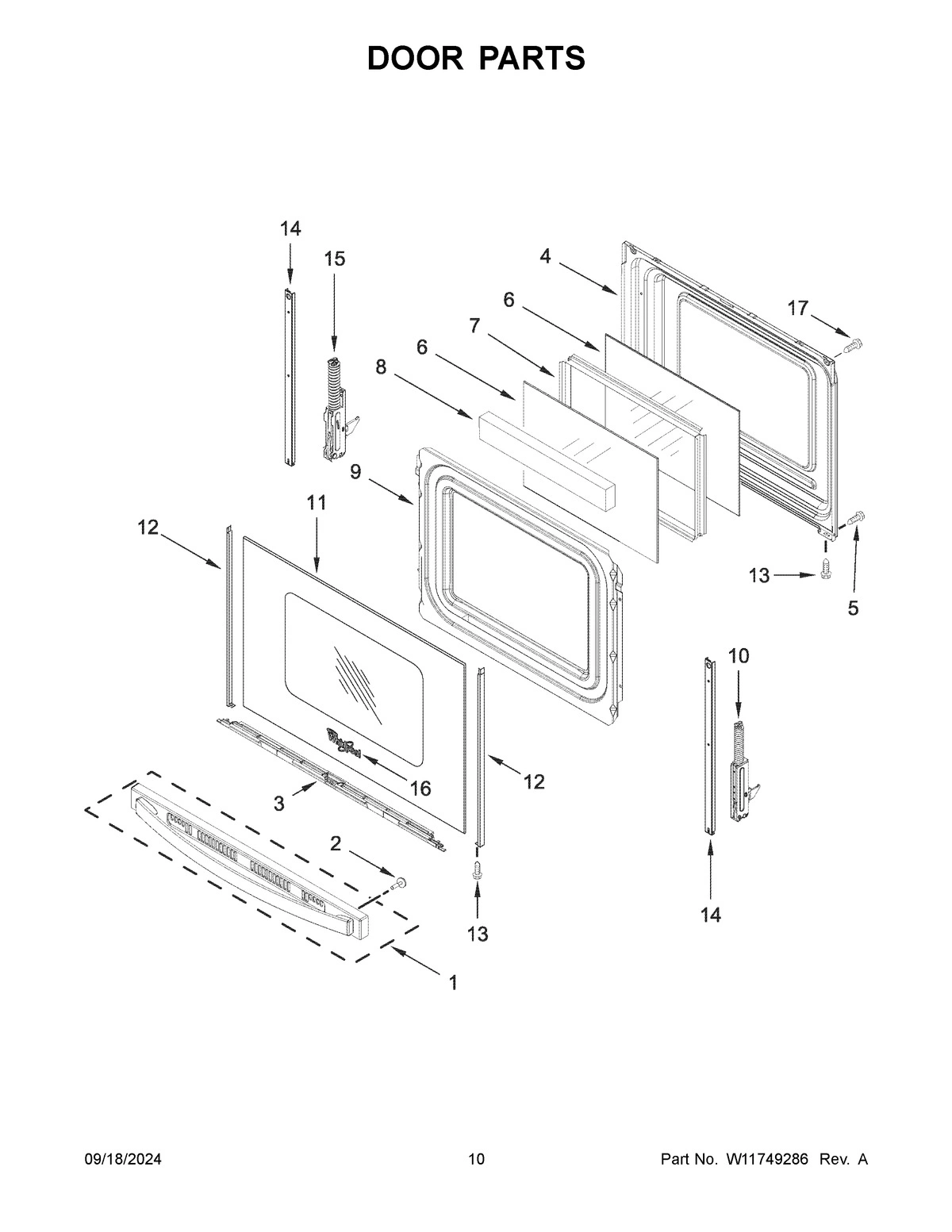

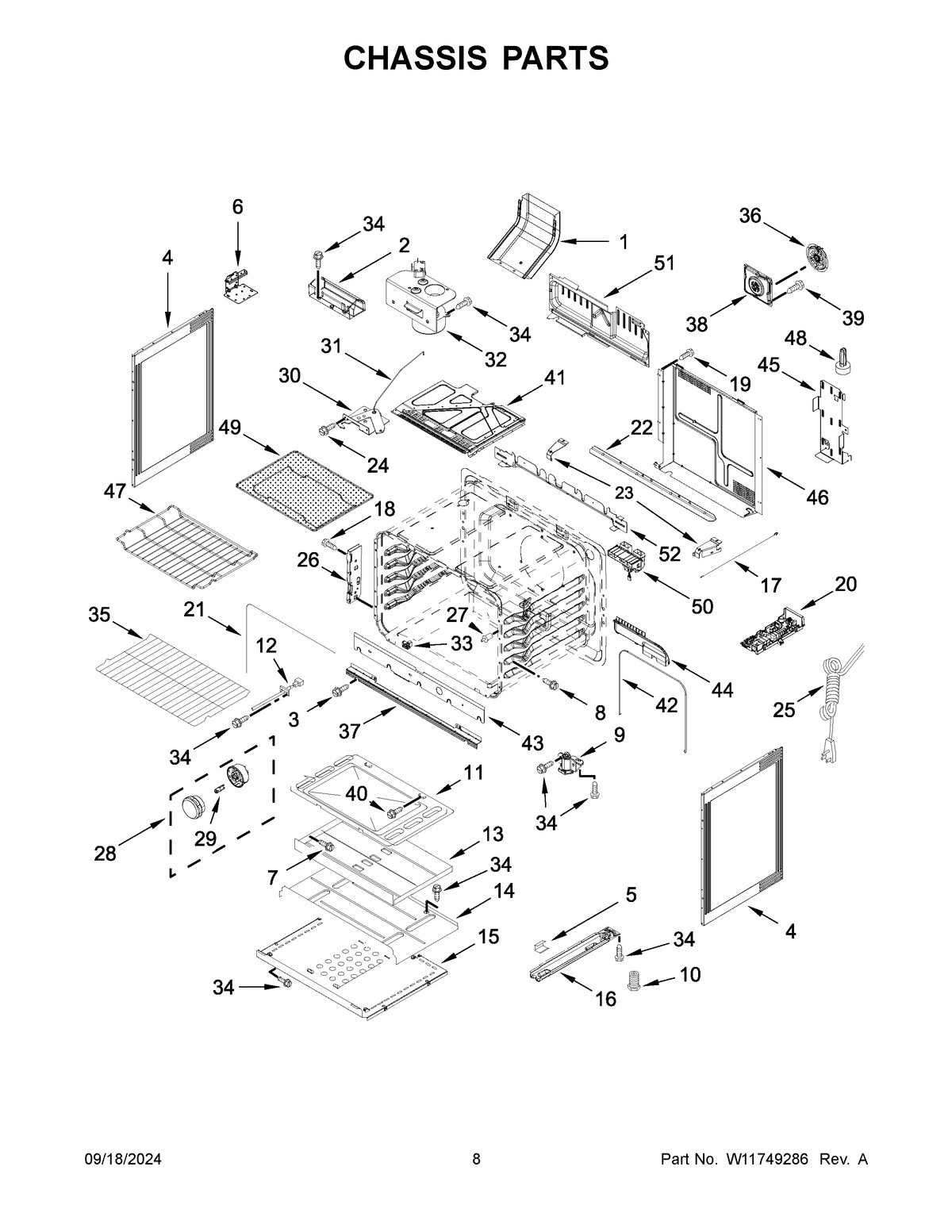

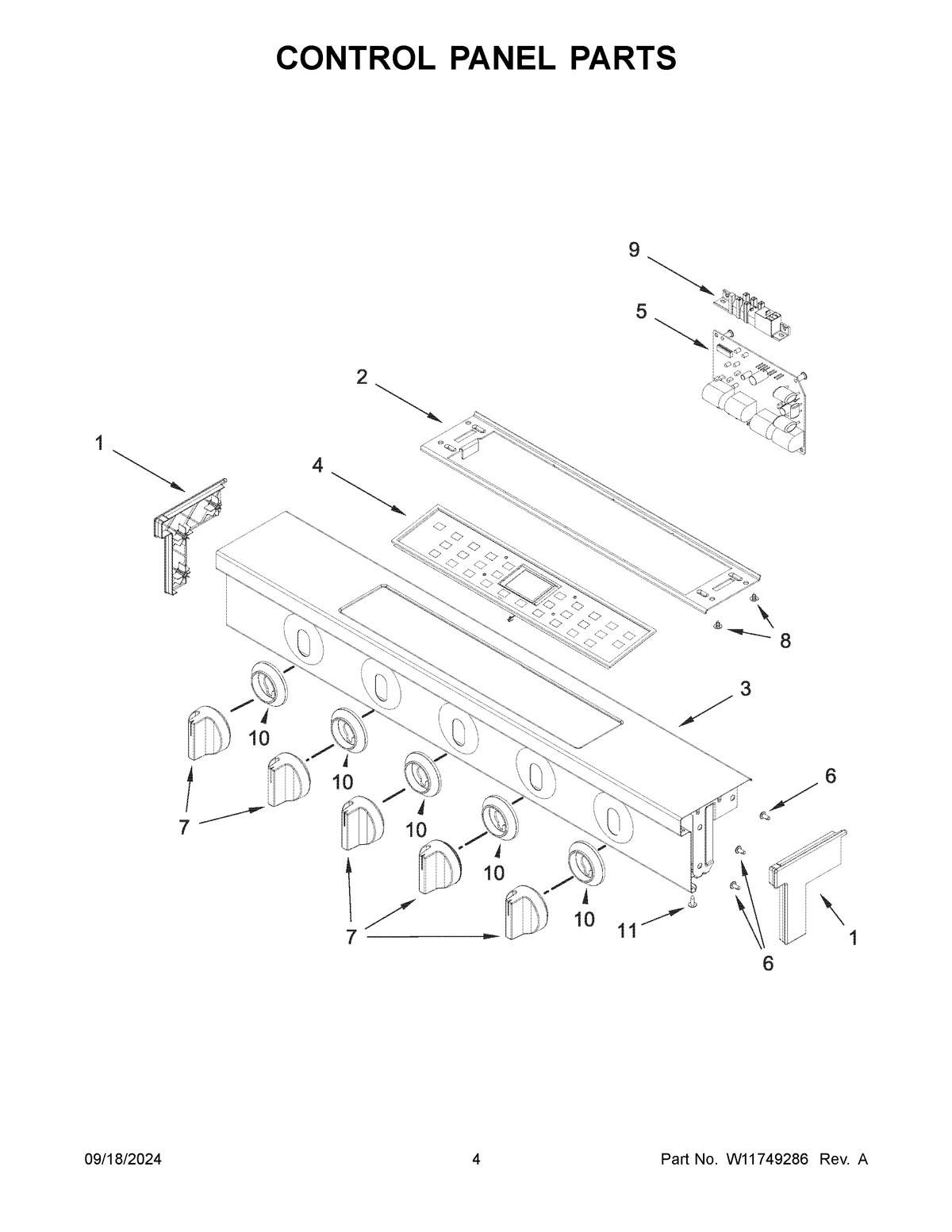

1

W11726508 Whirlpool Door Handle Backorder WPL W11726508 $120.51

1

BOX, FLUE WPL W11366116 Contact Us For Availability

2

W10813962 Whirlpool Utility Drawer In Stock WPL W10813962 $59.84

2

W10896982 Whirlpool Compactor Screw In Stock WPL W10896982 $2.95

2

W11684564 Whirlpool Clip Assembly Backorder WPL W11684564 $4.48

2

SHIELD, FLUE WPL W11279866 Contact Us For Availability

3

W11569689 Whirlpool Door Trim Backorder WPL W11569689 $20.29

3

W11759228 Whirlpool Mounting Bracket Backorder WPL W11759228 $11.02

3

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

3A

ORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) WPL W11300868 Contact Us For Availability

3B

ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) WPL W11300884 Contact Us For Availability

3C

ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) WPL W11300872 Contact Us For Availability

3D

ORIFICE HOLDER ASSEMBLY (12K) (CENTER) WPL W11634400 Contact Us For Availability

4

W11165138 Whirlpool Drawer Panel Backorder WPL W11165138 $113.19

4

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

4

WP9761344 Whirlpool Door Liner In Stock WPL WP9761344 $135.17

4

TUBING (MANIFOLD TO REGULATOR) WPL W11384792 Contact Us For Availability

5

W10137382 Whirlpool Clip Backorder WPL W10137382 $27.12

5

W11727166 Whirlpool Wire Harness Backorder WPL W11727166 $50.03

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

5

WPW10031790 Whirlpool Screw In Stock WPL WPW10031790 $2.51

6

W11524031 Whirlpool Range Igniter In Stock WPL W11524031 $29.32

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

6

BRACKET, COOKTOP CONSOLE WPL W11287215 Contact Us For Availability

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

7

MANIFOLD WPL W11279817 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

VALVE, SINGLE (RIGHT FRONT AND CENTER) WPL W11279839 Contact Us For Availability

8A

VALVE, SINGLE (LEFT REAR) WPL W11279838 Contact Us For Availability

8B

VALVE, SINGLE (RIGHT REAR) WPL W11279837 Contact Us For Availability

8C

VALVE, SINGLE (CENTER) WPL W11629949 Contact Us For Availability

9

W10224921 Whirlpool Bracket Mounting Backorder WPL W10224921 $26.21

9

W10530626 Whirlpool Screw Backorder WPL W10530626 $6.44

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

WPW10341186 Whirlpool Range Front Levelling L In Stock WPL WPW10341186 $10.80

W11502257 Whirlpool Anchor Tip In Stock WPL W11502257 $11.11

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10388635 Whirlpool Door Hinge Backorder WPL WPW10388635 $36.65

11

W11741357 Whirlpool Door Glass Backorder WPL W11741357 $75.10

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

11

BOTTOM, OVEN WPL W11602073 Contact Us For Availability

12

W10714060 Whirlpool Broiler Burner Backorder WPL W10714060 $80.87

12

W10761018 Whirlpool Dishwasher Left Door Trim In Stock WPL W10761018 $27.91

12

SENSOR WPL W11633068 Contact Us For Availability

12A

W10761014 Whirlpool Right Door Trim In Stock WPL W10761014 $27.91

13

8053967 Whirlpool Range Heat Baffle Backorder WPL 8053967 $106.98

13

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

13

WPW10184491 Whirlpool Burner Baffle Backorder WPL WPW10184491 $85.58

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

14

W11502236 Whirlpool Door Trim In Stock WPL W11502236 $9.28

14

WP9758078 Whirlpool Range Burner In Stock WPL WP9758078 $94.99

15

W10898290 Whirlpool Gas Valve In Stock WPL W10898290 $130.55

15

WPW10440013 Whirlpool Door Hinge In Stock WPL WPW10440013 $29.79

15

SHIELD, LOWER WPL W11640074 Contact Us For Availability

16

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

16

W11453940 Whirlpool Surface Igniter In Stock WPL W11453940 $22.66

16A

W11453920 Whirlpool Surface Igniter In Stock WPL W11453920 $19.16

16A

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

16B

ELECTRODE (CENTER) WPL W11581944 Contact Us For Availability

17

9757239 Whirlpool Oven Door Rod Backorder WPL 9757239 $31.59

17

WPW10200660 Whirlpool Range Oven Door Handle In Stock WPL WPW10200660 $2.51

18

3196265 Whirlpool Range Screw Backorder WPL 3196265 $9.59

18

W10777162 Whirlpool Screw In Stock WPL W10777162 $2.51

19

SCREW WPL 3400080 Contact Us For Availability

19

ORIFICE (18K) (LEFT FRONT, RIGHT FRONT AND CE WPL W10849722 Contact Us For Availability

19A

W11677633 Whirlpool Spud Orifice Backorder WPL W11677633 $36.47

19B

W10907868 Whirlpool Spud Orifice Backorder WPL W10907868 $33.43

19C

ORIFICE (12K) (CENTER) WPL W11642835 Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

22

W10435470 Whirlpool Brace Backorder WPL W10435470 $26.21

23

CORNER, BRACE (LEFT) WPL W11673746 Contact Us For Availability

23A

CORNER, BRACE (RIGHT) WPL W11673745 Contact Us For Availability

24

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

25

CORD, POWER WPL W11661976 Contact Us For Availability

26

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $2.51

27

W11620712 Whirlpool Light Switch Backorder WPL W11620712 $18.92

28

W11707255 Whirlpool Light Backorder WPL W11707255 $14.04

29

WPW10571723 Whirlpool Light Bulb In Stock WPL WPW10571723 $9.52

30

FRONT DOOR LATCH ASSEMBLY WPL W11612000 Contact Us For Availability

31

ROD, LATCH WPL W11616635 Contact Us For Availability

32

REAR DOOR LATCH ASSEMBLY WPL W11612001 Contact Us For Availability

33

W10807823 Whirlpool Drawer Glide Backorder WPL W10807823 $8.55

34

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

35

W11520287 Whirlpool Rack Assembly In Stock WPL W11520287 $31.31

36

FAN, CONVECTION WPL W11635909 Contact Us For Availability

37

W11464547 Whirlpool Support Bracket Backorder WPL W11464547 $23.30

38

COVER, CONV FAN WPL W11373155 Contact Us For Availability

39

W10516115 Whirlpool Screw Backorder WPL W10516115 $9.59

40

W10379120 Whirlpool Screw Backorder WPL W10379120 $26.21

41

VENTILATION ASSEMBLY, DUCT AND FRAME WPL W11617265 Contact Us For Availability

42

INSULATION, STRAP WPL 4820F01559 Contact Us For Availability

43

DEFLECTOR, BRACKET WPL W11619830 Contact Us For Availability

44

REAR, DUCT ASSEMBLY WPL W11637749 Contact Us For Availability

45

BRACKET, ACU WPL W11365827 Contact Us For Availability

46

SIDE, COVER WPL W11633165 Contact Us For Availability

47

RACK, OVEN (GULL-WING) WPL W11607819 Contact Us For Availability

48

GLIDE, MAIN TOP WPL 8016P02260 Contact Us For Availability

49

W11692811 Whirlpool Fryer Basket In Stock WPL W11692811 $54.30

50

DUAL, BLOWER WPL W11616407 Contact Us For Availability

51

CONVECTION, REAR COVER WPL W11361778 Contact Us For Availability

52

DEFLECTOR, PANEL WPL W11615396 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $149.59

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W11161831 Whirlpool Insulation Backorder WPL W11161831 $38.69

W11763416 Whirlpool Orifice Backorder WPL W11763416 $20.70

WPW10182767 Whirlpool Wire Tie Backorder WPL WPW10182767 $2.51

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

LP CONVERSION KIT WPL W11370714 Contact Us For Availability

INSULATION, BACK WPL W11632432 Contact Us For Availability

ACCESSORIES, GAS RANGE CONNECTOR KIT WPL 3048KITRC Contact Us For Availability
