Model Electrolux WRT21NRCW2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

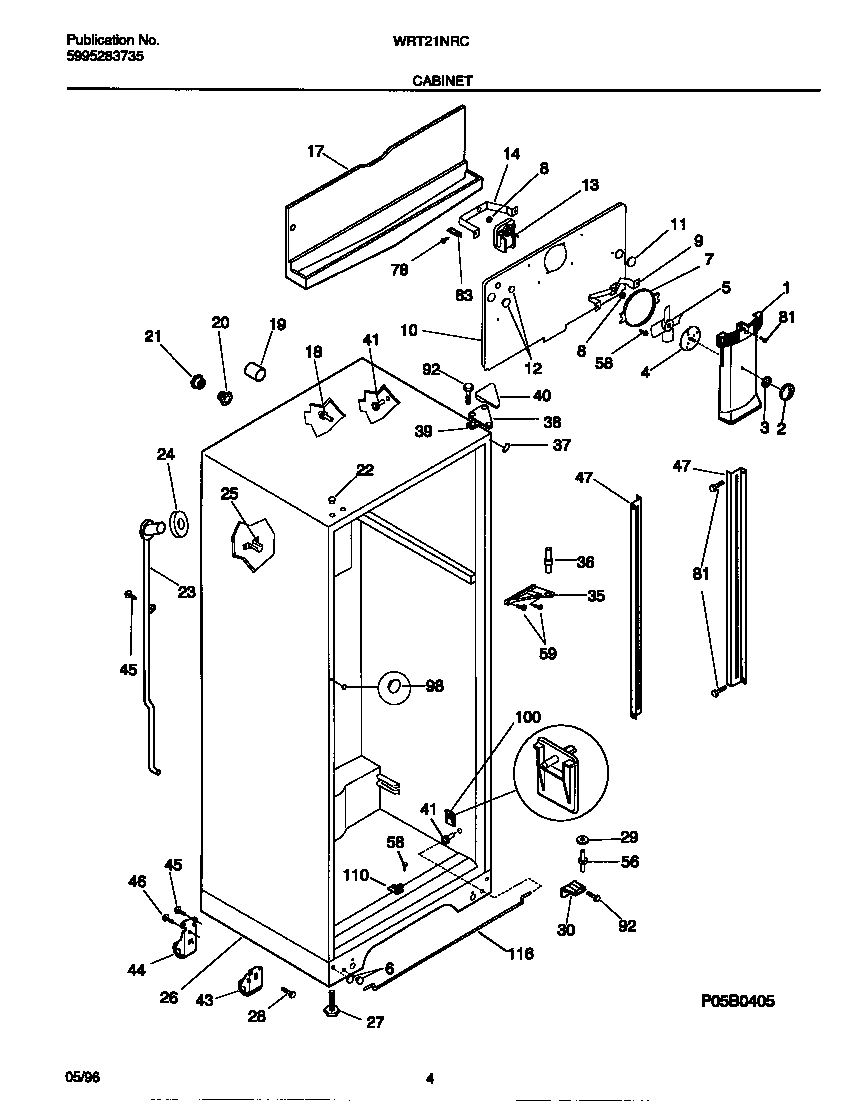

03 - CABINET

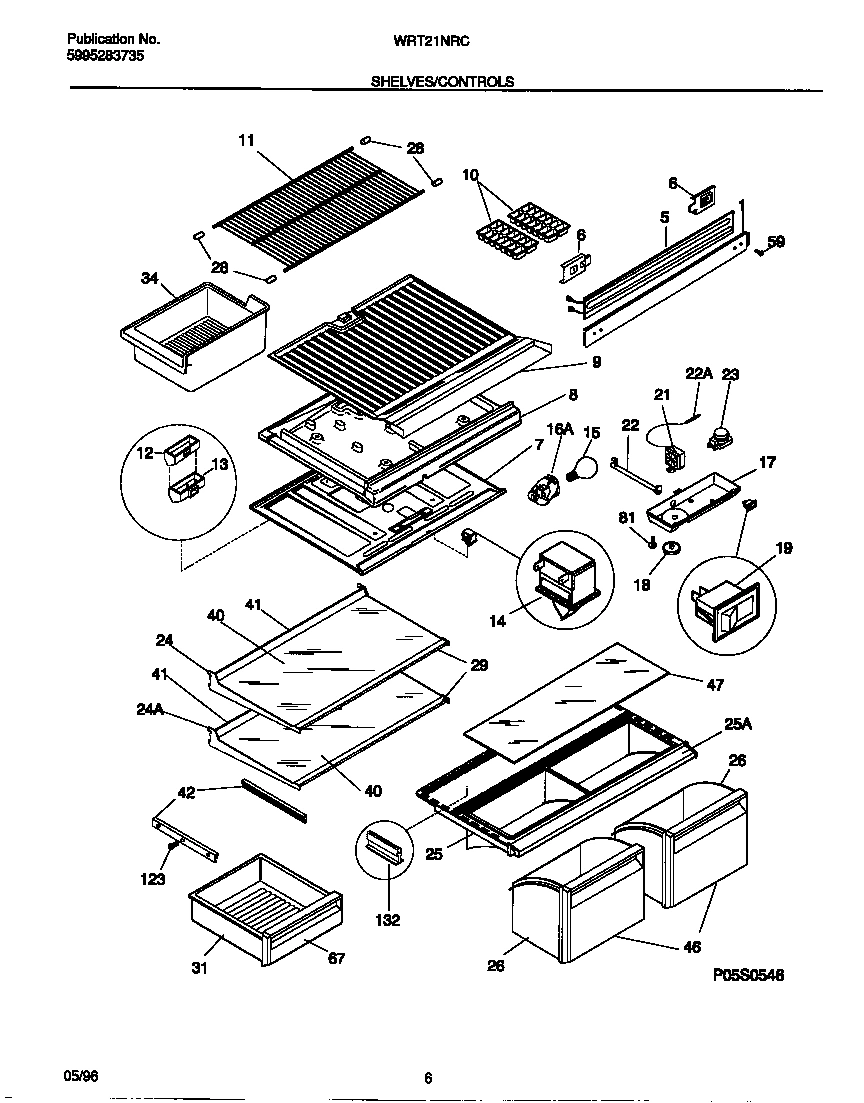

04 - SHELVES/CONTROLS

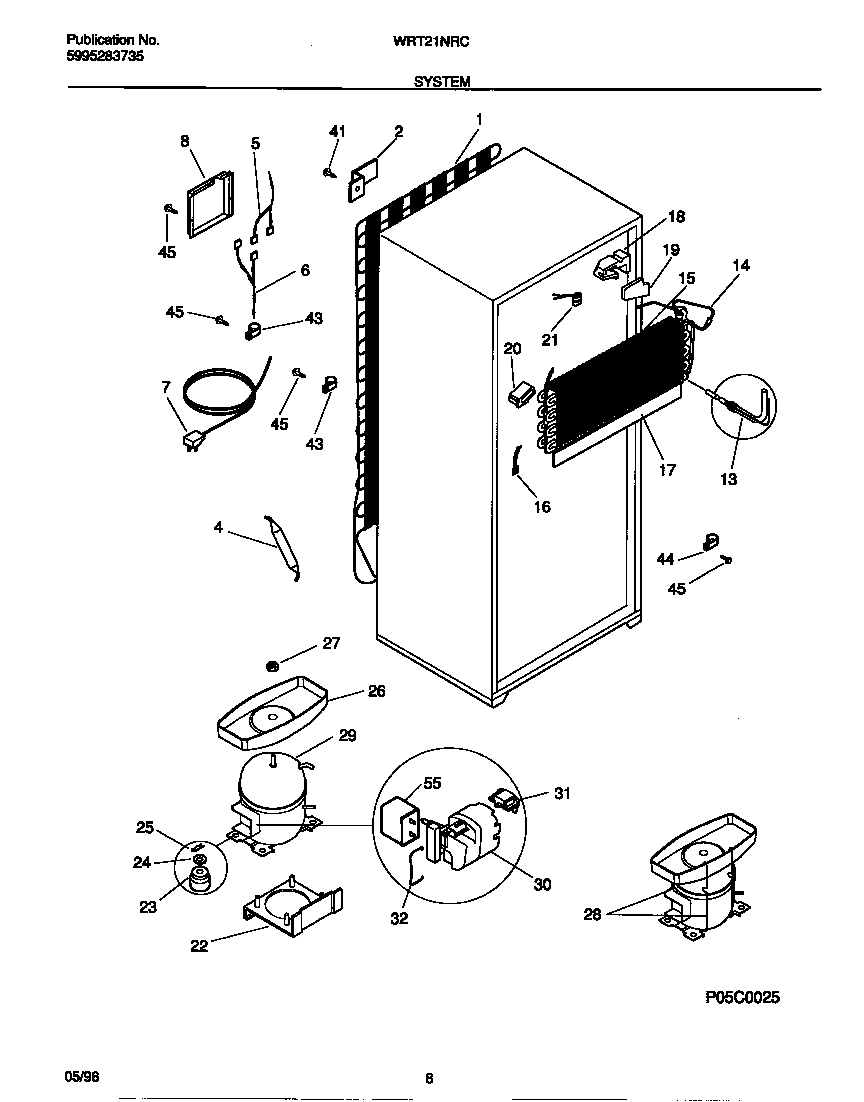

05 - SYSTEM

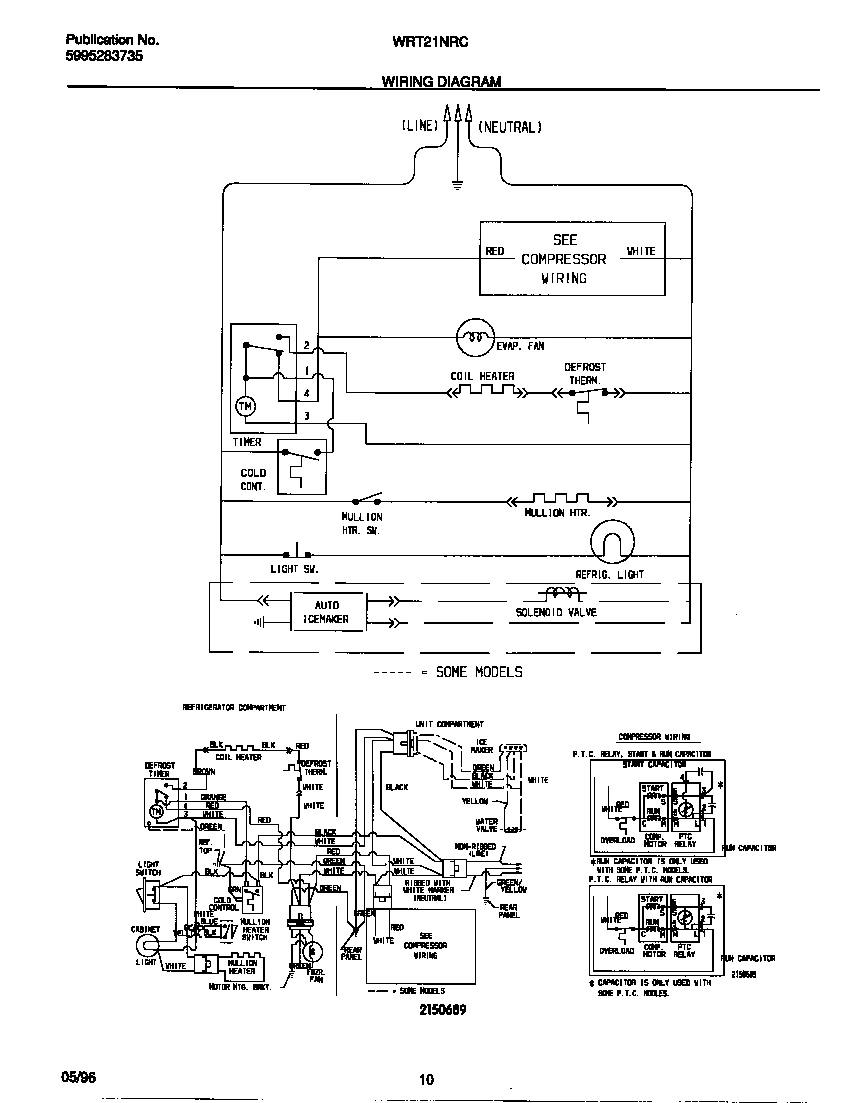

06 - WIRING DIAGRAM
Common parts from model Electrolux WRT21NRCW2 REFRIGERATOR
*20000
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*20001
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*20006
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218651900 WCI 218651900 Contact Us For Availability
1A
WCI 218657100 WCI 218657100 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 3019038 WCI 3019038 Contact Us For Availability
8A
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8A
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11A
WCI 5303288243 WCI 5303288243 Contact Us For Availability
12
WCI 218630800 WCI 218630800 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076402 WCI 215076402 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17A
CONTROL BOX WCI 5303307349 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303303674 WCI 5303303674 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919117 WCI 215919117 Contact Us For Availability
24
WCI 215919122 WCI 215919122 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 215363203 WCI 215363203 Contact Us For Availability
25
TRIM - CRISPER COVER WCI 5303299975 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215363301 WCI 215363301 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 215919459 WCI 215919459 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
40
WCI 218390547 WCI 218390547 Contact Us For Availability
41
WCI 215919805 WCI 215919805 Contact Us For Availability
43A
WCI 218703001 WCI 218703001 Contact Us For Availability
44
WCI 218713600 WCI 218713600 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 0. WCI 5308009762 Contact Us For Availability
46
WCI 215363410 WCI 215363410 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 218390554 WCI 218390554 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
67
WCI 5303309866 WCI 5303309866 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
110
WCI 215363501 WCI 215363501 Contact Us For Availability
116
WCI 215426703 WCI 215426703 Contact Us For Availability
132
WCI 215426600 WCI 215426600 Contact Us For Availability
NI
WCI 215079100 WCI 215079100 Contact Us For Availability
NI
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
NI
WCI 218605200 WCI 218605200 Contact Us For Availability
NI
WCI 218605300 WCI 218605300 Contact Us For Availability
NI
PIN-MOUNTING, PUSH-IN, PLASTIC (NOT ILLUSTRAT WCI 5303001361 Contact Us For Availability
NI
NUT, ``U`` TYPE, 8-15(A), FAN MOTOR MOUNT (NO WCI 5303209814 Contact Us For Availability
NI
SPRING-ROLLER ADJ (NOT ILLUSTRATED) WCI 5308009790 Contact Us For Availability
NI
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
NI
WCI 5303001260 WCI 5303001260 Contact Us For Availability
NI
WCI 5303001380 WCI 5303001380 Contact Us For Availability
NI
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
NI
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILL WCI 5308003607 Contact Us For Availability
NI
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
× ![]()
