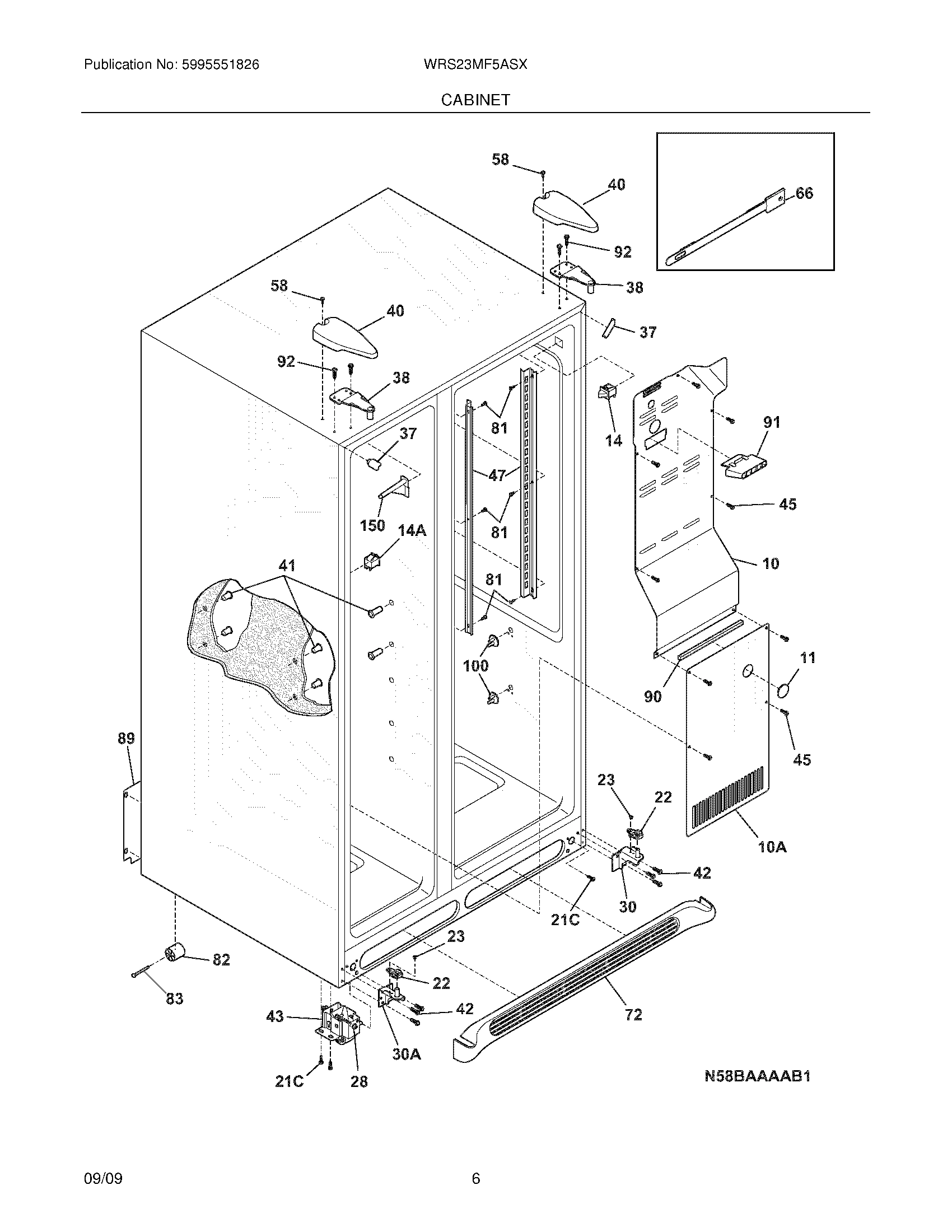

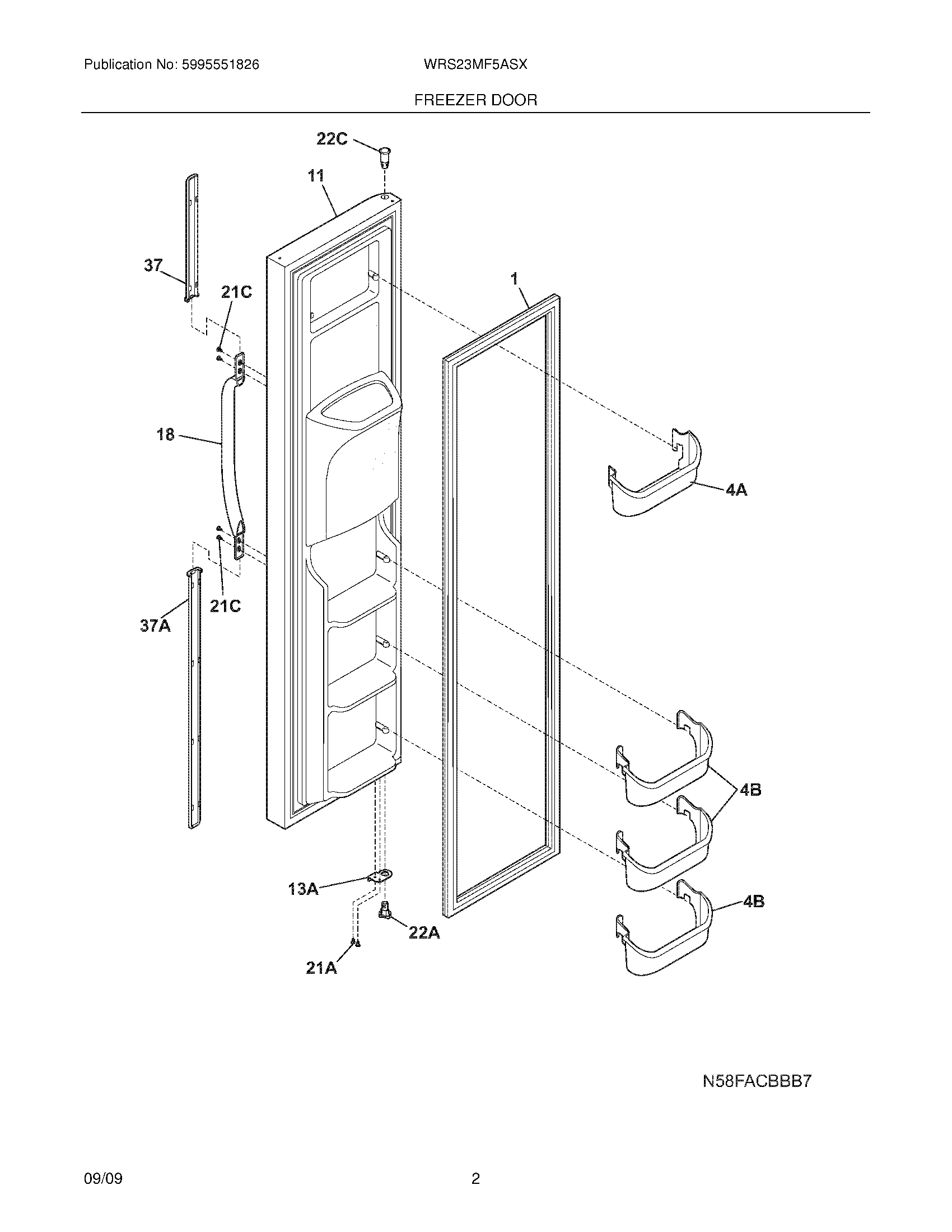

Model Electrolux WRS23MF5ASX REFRIGERATOR – Common Parts &amp; Diagrams

1

241786008 Frigidaire Refrigerator Gasket Backorder WCI 241786008 $56.07

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

241786015 Frigidaire Door Gasket In Stock WCI 241786015 $57.01

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

4

WCI 241678703 No Longer Available

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

WCI 241586801 WCI 241586801 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

WCI 241680507 WCI 241680507 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $11.32

10

240435911 Frigidaire Refrigerator Cover Backorder WCI 240435911 $63.45

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $13.57

10

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

10A

241719710 Frigidaire Refrigerator Evaporator Backorder WCI 241719710 $71.09

11

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $50.26

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11A

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $32.80

12

5304456664 Frigidaire Refrigerator Wiring Har Backorder WCI 5304456664 $79.31

13

240581905 Frigidaire Refrigerator Door Stop In Stock WCI 240581905 $38.11

13

5304456665 Frigidaire Refrigerator Thermostat Backorder WCI 5304456665 $79.31

13

808602602 Frigidaire Refrigerator Motor In Stock WCI 808602602 $118.23

13A

240581906 Frigidaire Refrigerator Door Stop In Stock WCI 240581906 $46.16

14

240505801 Frigidaire Light Switch In Stock WCI 240505801 $42.13

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $10.86

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $185.71

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

16

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

16

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241679801 Frigidaire Screw Backorder WCI 241679801 $9.06

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

18

WCI 218762703 WCI 218762703 Contact Us For Availability

18

WCI 240360801 WCI 240360801 Contact Us For Availability

20

241734802 Frigidaire Refrigerator Cover Backorder WCI 241734802 $90.32

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $14.53

21A

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

22

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $9.52

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $36.22

22

242015302 Frigidaire Refrigerator Bearing Hin In Stock WCI 242015302 $6.34

22A

242000502 Frigidaire Hinge Bearing In Stock WCI 242000502 $4.59

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $14.61

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241649003 Frigidaire Refrigerator Drip Tray In Stock WCI 241649003 $38.99

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

WCI 240402702 WCI 240402702 Contact Us For Availability

24

241682003 Frigidaire Refrigerator Black Water In Stock WCI 241682003 $35.82

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24A

241681903 Frigidaire Refrigerator Ice Dispens In Stock WCI 241681903 $52.87

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $38.18

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

25

WCI 240491503 WCI 240491503 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram In Stock WCI 240354602 $53.20

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $31.71

30

241707709 Frigidaire Refrigerator Starter Backorder WCI 241707709 $51.56

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $33.84

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $39.94

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $24.59

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $12.67

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

WCI 241689301 No Longer Available

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

WCI 241680301 WCI 241680301 Contact Us For Availability

37

WCI 240337610 WCI 240337610 Contact Us For Availability

37A

WCI 215782300 No Longer Available

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37A

WCI 218676004 WCI 218676004 Contact Us For Availability

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $36.72

38

WCI 241708201 WCI 241708201 Contact Us For Availability

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $5.10

38C

WCI 241708303 WCI 241708303 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $27.62

39

WCI 240430705 WCI 240430705 Contact Us For Availability

39A

WCI 240430701 WCI 240430701 Contact Us For Availability

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $34.43

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $37.63

41

241689001 Frigidaire Refrigerator Actuator Sp In Stock WCI 241689001 $14.03

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $18.56

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $36.26

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42A

240349701 Frigidaire Refrigerator Left Hand M In Stock WCI 240349701 $36.75

42A

WCI 240349901 WCI 240349901 Contact Us For Availability

42A

WCI 240350001 WCI 240350001 Contact Us For Availability

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

241716002 Frigidaire Refrigerator Control Rod Backorder WCI 241716002 $28.07

47

241731801 Frigidaire Refrigerator Control Rod Backorder WCI 241731801 $9.06

47

WCI 240349402 WCI 240349402 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $83.71

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

49

241734401 Frigidaire Refrigerator Rail Assemb Backorder WCI 241734401 $124.20

49B

WCI 240530501 WCI 240530501 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $38.55

51

WCI 241676301 WCI 241676301 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger In Stock WCI 240343102 $41.24

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $46.30

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

WCI 241689201 WCI 241689201 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $9.97

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

61

240524102 Frigidaire Refrigerator Condenser F In Stock WCI 240524102 $15.86

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $30.80

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $12.67

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $12.67

88

WCI 241686101 WCI 241686101 Contact Us For Availability

89

WCI 241733901 WCI 241733901 Contact Us For Availability

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $44.37

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

97

240545308 Frigidaire Refrigerator Tank Backorder WCI 240545308 $72.16

100

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $5.55

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $3.46

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $8.58

101

241637202 Frigidaire Refrigerator Screw Backorder WCI 241637202 $3.16

115

241600902 Frigidaire Refrigerator Damper Cont In Stock WCI 241600902 $109.16

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

138

WCI 240397301 WCI 240397301 Contact Us For Availability

139

240396002 Frigidaire Refrigerator Primary Bas In Stock WCI 240396002 $61.79

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $61.86

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $37.63

199

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $35.32

199

WCI 240397501 WCI 240397501 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $9.04

218976418 Frigidaire Refrigerator Water Inlet Backorder WCI 218976418 $40.80

218976419 Frigidaire Refrigerator Tube Backorder WCI 218976419 $14.50

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $19.01

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $12.24

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $28.07

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

240507202 Frigidaire Refrigerator Deflector Backorder WCI 240507202 $39.43

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $10.41

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $13.13

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $10.85

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

241806601 Frigidaire Refrigerator Water Conne In Stock WCI 241806601 $43.45

241850615 Frigidaire Ice Maker Fill Tube Asse In Stock WCI 241850615 $22.19

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

5303321321 Frigidaire Refrigerator Black Touc Backorder WCI 5303321321 $13.61

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $342.79

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $213.23

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $50.64

WCI 5303918222 WCI 5303918222 Contact Us For Availability

WCI 241578401 WCI 241578401 Contact Us For Availability

WCI 241686201 WCI 241686201 Contact Us For Availability
