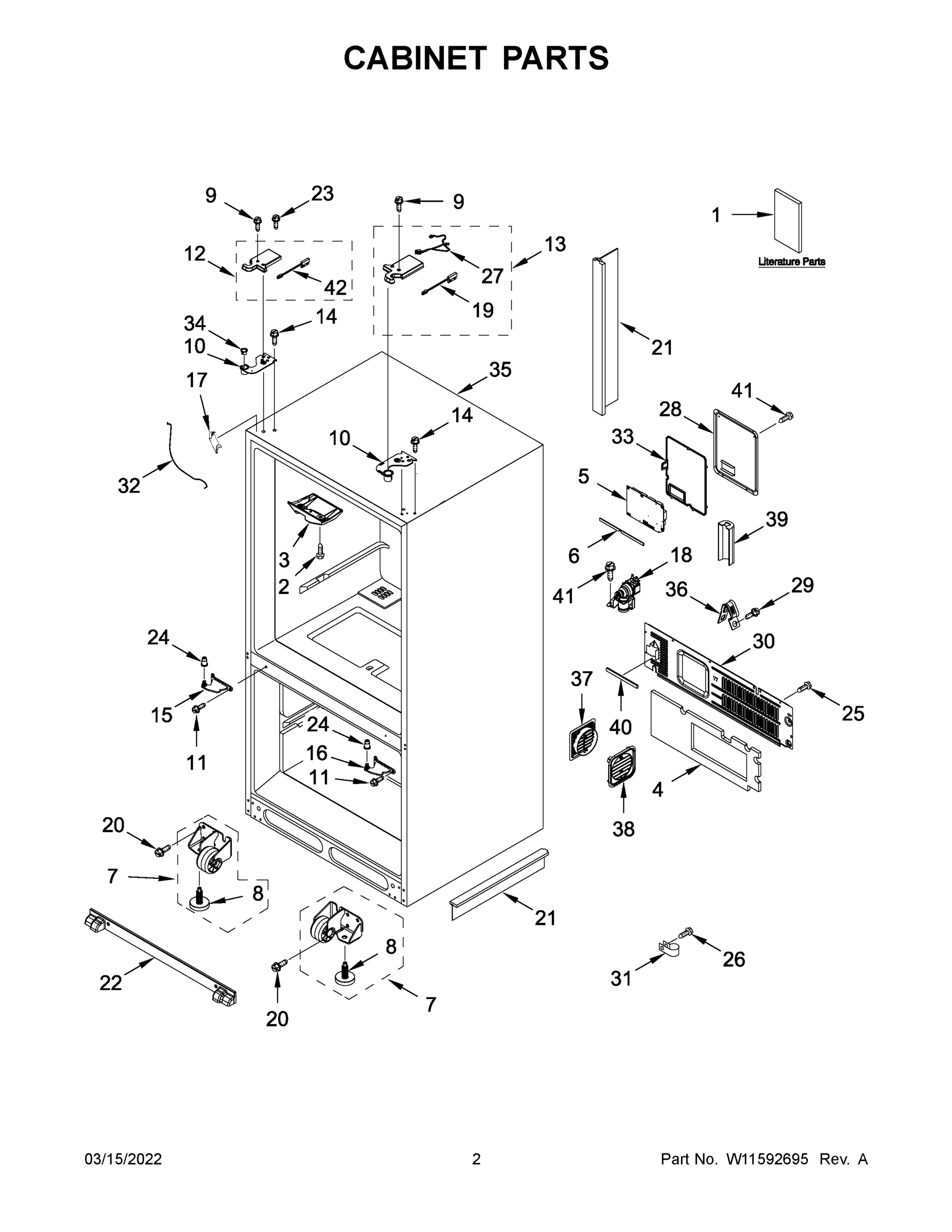

Model Whirlpool WRF954CIHZ04 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

1

BASE, PANTRY WPL W10794287 Contact Us For Availability

2

W10682175 Whirlpool Refrigerator Plate Backorder WPL W10682175 $30.21

2

W10708473 Whirlpool Refrigerator Housing In Stock WPL W10708473 $38.41

2

W10717577 Whirlpool Pan Handle Backorder WPL W10717577 $107.05

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

2

W11594194-includeCORE Whirlpool W11594194 Ref Backorder WPL W11594194-includeCORE $186.37

2B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $16.85

3

W10717109 Whirlpool Refrigerator Shield Backorder WPL W10717109 $75.59

3

W10840310 Whirlpool Refrigerator PIV Block Backorder WPL W10840310 $48.71

3

W11347066 Whirlpool Refrigerator Housing Backorder WPL W11347066 $77.16

3

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

4

W10678156 Whirlpool Refrigerator Pad Backorder WPL W10678156 $39.35

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

4

COVER, WIRING HARNESS WPL W10834719 Contact Us For Availability

4

ASSEMBLY, ICE CONTAINER WPL W11476067 Contact Us For Availability

5

W11114790 Whirlpool Refrigerator Bracket Backorder WPL W11114790 $82.12

5

W11228132 Whirlpool Refrigerator Shaft In Stock WPL W11228132 $10.87

5

W11243377 Whirlpool Refrigerator Door Stop Backorder WPL W11243377 $26.55

5

W11244274 Whirlpool Refrigerator Ice Door Backorder WPL W11244274 $58.50

5

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

5

ASSEMBLY, DRAIN EXTENSION WPL W10860180 Contact Us For Availability

5A

W11114789 Whirlpool Refrigerator Right Hand W Backorder WPL W11114789 $84.78

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10795850 Whirlpool Refrigerator Freezer Bin Backorder WPL W10795850 $124.44

6

W10822606 Whirlpool Dishwasher Dispenser Moto In Stock WPL W10822606 $96.04

6

W11099737 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099737 $187.02

6

W11209885 Whirlpool Refrigerator Drip Tray Backorder WPL W11209885 $34.66

6B

W11506625 Whirlpool Refrigerator Coupler In Stock WPL W11506625 $10.98

7

W10772527 Whirlpool Refrigerator Tray Backorder WPL W10772527 $36.09

7

W10900010 Whirlpool Refrigerator Cover Backorder WPL W10900010 $40.74

7

W11251739 Whirlpool Refrigerator Glass Shelf Backorder WPL W11251739 $168.99

7

ROLLER-CAB Backorder WPL W11769880 $15.35

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

W11763410 Whirlpool Cabinet Roller Backorder WPL W11763410 $15.35

8

W10757512 Whirlpool Refrigerator Trim Backorder WPL W10757512 $99.44

8

W10846099 Whirlpool Refrigerator Leveler Backorder WPL W10846099 $15.59

8

W11099777 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099777 $205.04

8

W11557000 Whirlpool Refrigerator Icemaker In Stock WPL W11557000 $103.30

9

W10672575 Whirlpool Refrigerator Pad Backorder WPL W10672575 $41.98

9

W10718061 Whirlpool Refrigerator Cover Backorder WPL W10718061 $38.83

9

W10753430 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753430 $9.99

9

W11163783 Whirlpool Refrigerator Closer In Stock WPL W11163783 $30.47

9

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

9A

W10753431 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753431 $9.99

9A

W11188796 Whirlpool Refrigerator Closer In Stock WPL W11188796 $16.01

W10798308 Whirlpool Refrigerator Door Bumper Backorder WPL W10798308 $15.63

W11032616 Whirlpool Refrigerator Door Hinge Backorder WPL W11032616 $26.55

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $14.15

W11099778 Whirlpool Refrigerator Utility Pan Backorder WPL W11099778 $78.34

W11573594 Whirlpool Refrigerator Axle In Stock WPL W11573594 $6.90

10A

W11032620 Whirlpool Refrigerator Door Hinge Backorder WPL W11032620 $26.55

W10672578 Whirlpool Refrigerator Spring Backorder WPL W10672578 $9.13

W11099779 Whirlpool Refrigerator Shelf Backorder WPL W11099779 $127.00

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11677723 Whirlpool Support Backorder WPL W11677723 $56.16

12

W11109505 Whirlpool Refrigerator Spring Backorder WPL W11109505 $7.58

12

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

12

GLIDE, PLATTER (LEFT HAND) WPL W10881160 Contact Us For Availability

12A

W10668198 Whirlpool Refrigerator Evaporator B Backorder WPL W10668198 $29.77

12A

W10881121 Whirlpool Refrigerator Glide Backorder WPL W10881121 $44.58

W10704135 Whirlpool Refrigerator Wire Harness Backorder WPL W10704135 $10.60

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $34.44

W10895492 Whirlpool Refrigerator Cover Backorder WPL W10895492 $95.24

W11188797 Whirlpool Refrigerator Trivet Backorder WPL W11188797 $54.85

W11189600 Whirlpool Refrigerator Bracket Backorder WPL W11189600 $25.27

W11744510 Whirlpool Wire Harness Backorder WPL W11744510 $39.89

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W10757499 Whirlpool Refrigerator Bracket Backorder WPL W10757499 $26.32

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $9.59

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $27.87

GLASS, CRISPER COVER WPL W10878598 Contact Us For Availability

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $27.87

W10696713 Whirlpool Refrigerator Door Gasket Backorder WPL W10696713 $27.23

W10720065 Whirlpool Refrigerator Retainer Backorder WPL W10720065 $30.14

W10816322 Whirlpool Refrigerator Door Hinge Backorder WPL W10816322 $40.30

W10892559 Whirlpool Refrigerator Glide Backorder WPL W10892559 $44.58

15A

W10892561 Whirlpool Refrigerator Glide Backorder WPL W10892561 $44.58

W10816323 Whirlpool Refrigerator Door Hinge Backorder WPL W10816323 $42.62

W11189145 Whirlpool Refrigerator Ice Door In Stock WPL W11189145 $55.19

W11625084 Whirlpool Refrigerator Gasket Backorder WPL W11625084 $36.33

SUPPORT, SIDE (LEFT HAND) WPL W10794252 Contact Us For Availability

16A

SUPPORT, SIDE (RIGHT HAND) WPL W10794258 Contact Us For Availability

17

W10663699 Whirlpool Refrigerator Gasket Backorder WPL W10663699 $10.50

17

W11099781 Whirlpool Refrigerator Crisper Pan Backorder WPL W11099781 $78.34

17A

W11099786 Whirlpool Refrigerator Crisper Pan Backorder WPL W11099786 $78.34

W10752689 Whirlpool Refrigerator Heater Backorder WPL W10752689 $44.71

W10770923 Whirlpool Refrigerator Gasket Backorder WPL W10770923 $12.02

W11401419 Whirlpool Refrigerator Module Backorder WPL W11401419 $65.96

COVER, HOUSING WPL W11198954 Contact Us For Availability

W10720073 Whirlpool Refrigerator Gasket Backorder WPL W10720073 $30.82

W10882291 Whirlpool Refrigerator Gasket Backorder WPL W10882291 $10.76

W11090564 Whirlpool Refrigerator Shield In Stock WPL W11090564 $37.17

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

SCREW WPL W10141645 Contact Us For Availability

W10680037 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10680037 $32.83

W10878157 Whirlpool Refrigerator Frame Backorder WPL W10878157 $73.97

W11189114 Whirlpool Refrigerator Cap Filter In Stock WPL W11189114 $26.88

FILTER, EMI WPL W10738041 Contact Us For Availability

21

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $9.59

21

W11506421 Whirlpool Inverter Box Backorder WPL W11506421 $178.87

21

FOIL, DISPENSER WELL WPL W10864907 Contact Us For Availability

W10917313 Whirlpool Refrigerator Door Gasket In Stock WPL W10917313 $107.74

W11099787 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099787 $127.18

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

GASKET, DISPENSER TRIM WPL W10831765 Contact Us For Availability

22B

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $13.58

23

W11567410 Whirlpool Tube Backorder WPL W11567410 $33.56

23

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

W10840922 Whirlpool Refrigerator Knob Backorder WPL W10840922 $28.75

W11223833 Whirlpool Refrigerator Hinge Bushin In Stock WPL W11223833 $6.11

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11440595 Whirlpool Wire Harness Backorder WPL W11440595 $39.77

25

W10880762 Whirlpool Refrigerator Support Backorder WPL W10880762 $119.90

25

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

25A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

25B

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

26

W11578031 Whirlpool Compressor Backorder WPL W11578031 $412.09

26

W11724692 Whirlpool Thermistor Backorder WPL W11724692 $11.93

26A

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

26B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

26C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

26D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

27

W10858468 Whirlpool Refrigerator Wire Harness Backorder WPL W10858468 $51.86

27

W11084829 Whirlpool Refrigerator Insulation Backorder WPL W11084829 $12.99

27

W11574308 Whirlpool Fan Backorder WPL W11574308 $79.02

28

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $32.50

28

W10794289 Whirlpool Refrigerator Support Backorder WPL W10794289 $107.51

29

W10818463 Whirlpool Refrigerator Gasket Backorder WPL W10818463 $14.60

29

W10878186 Whirlpool Cover Assembly Backorder WPL W10878186 $66.19

29

WPL 2223913 WPL 2223913 Contact Us For Availability

30

BAR, SUPPORT WPL W10758351 Contact Us For Availability

33

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $39.49

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $29.44

39

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $31.93

41

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
