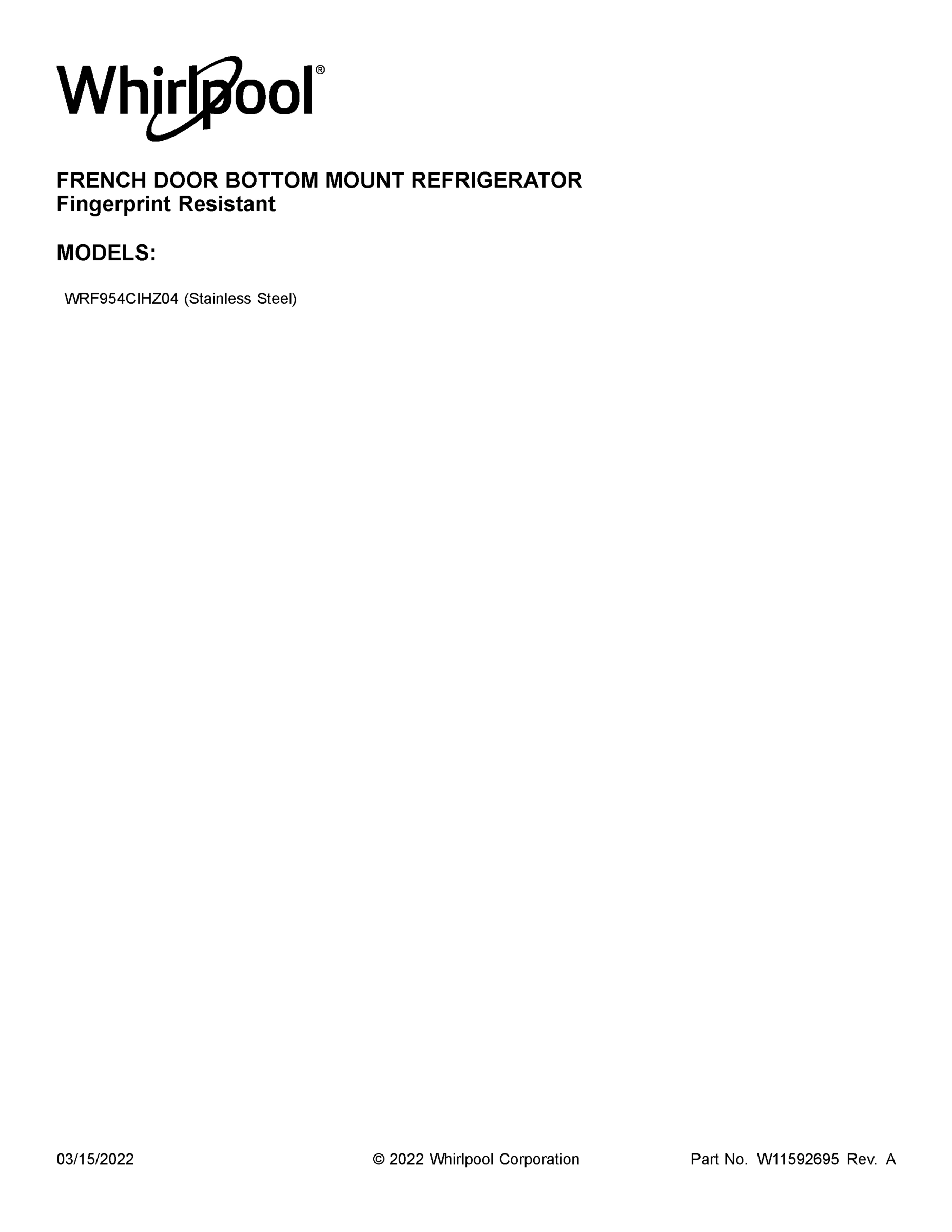

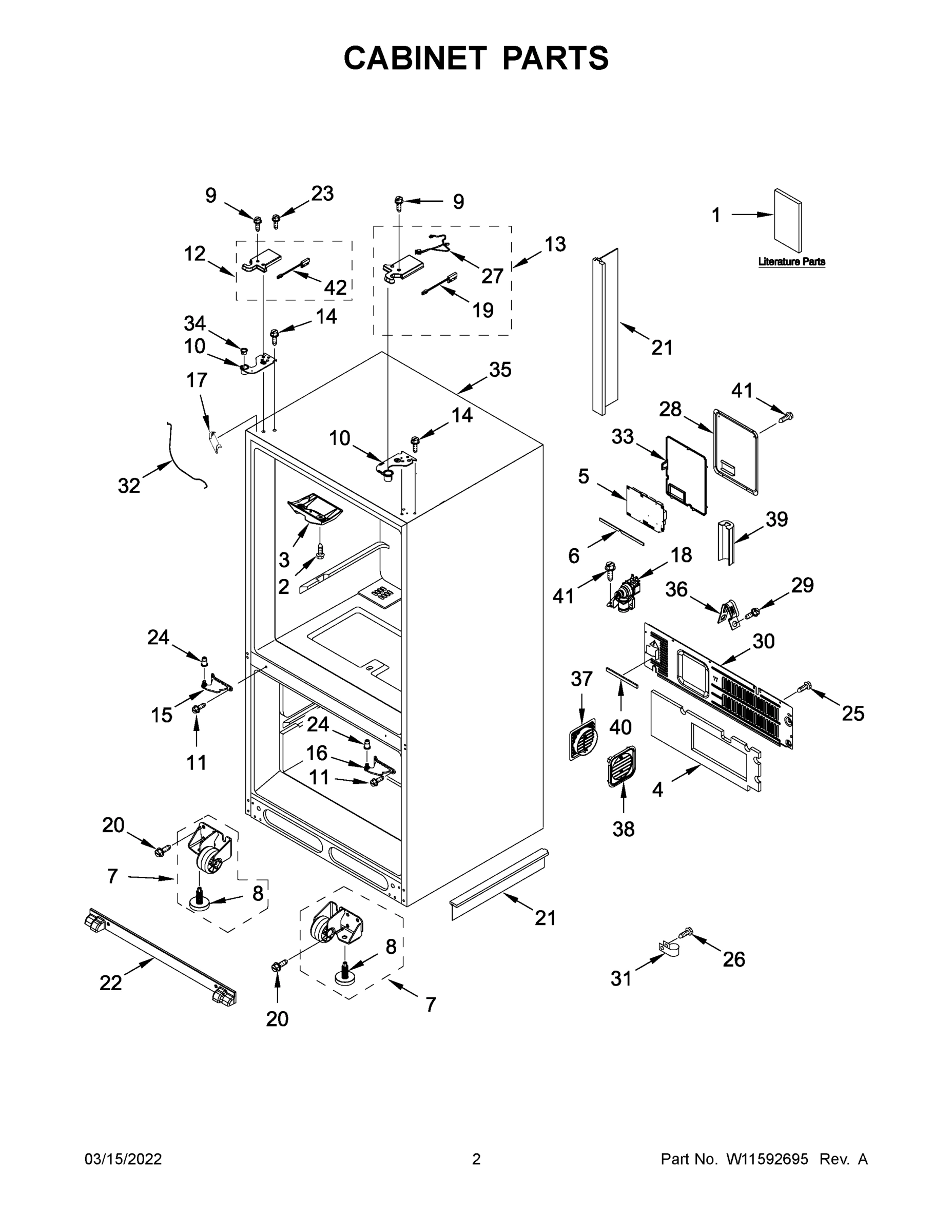

Model Whirlpool WRF954CIHZ04 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

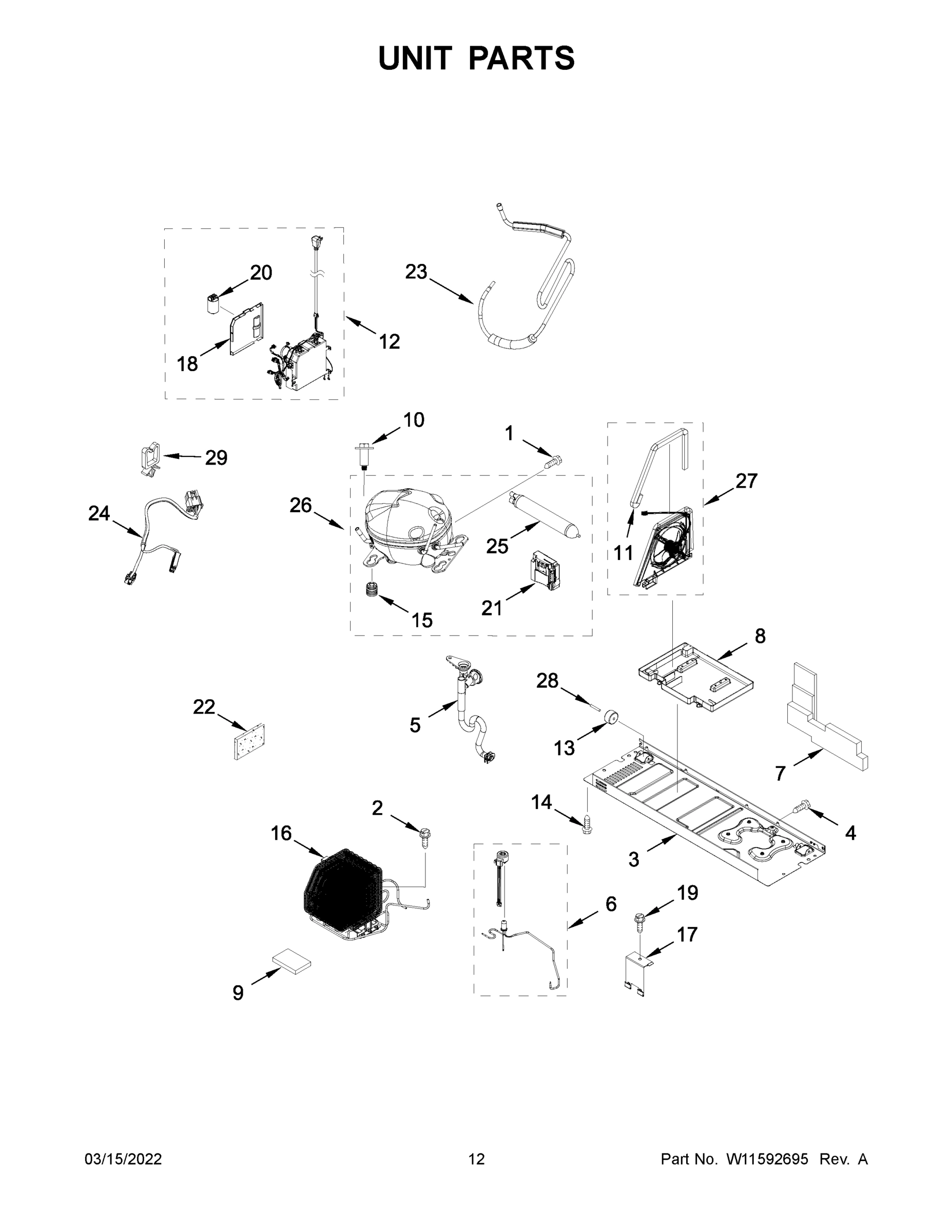

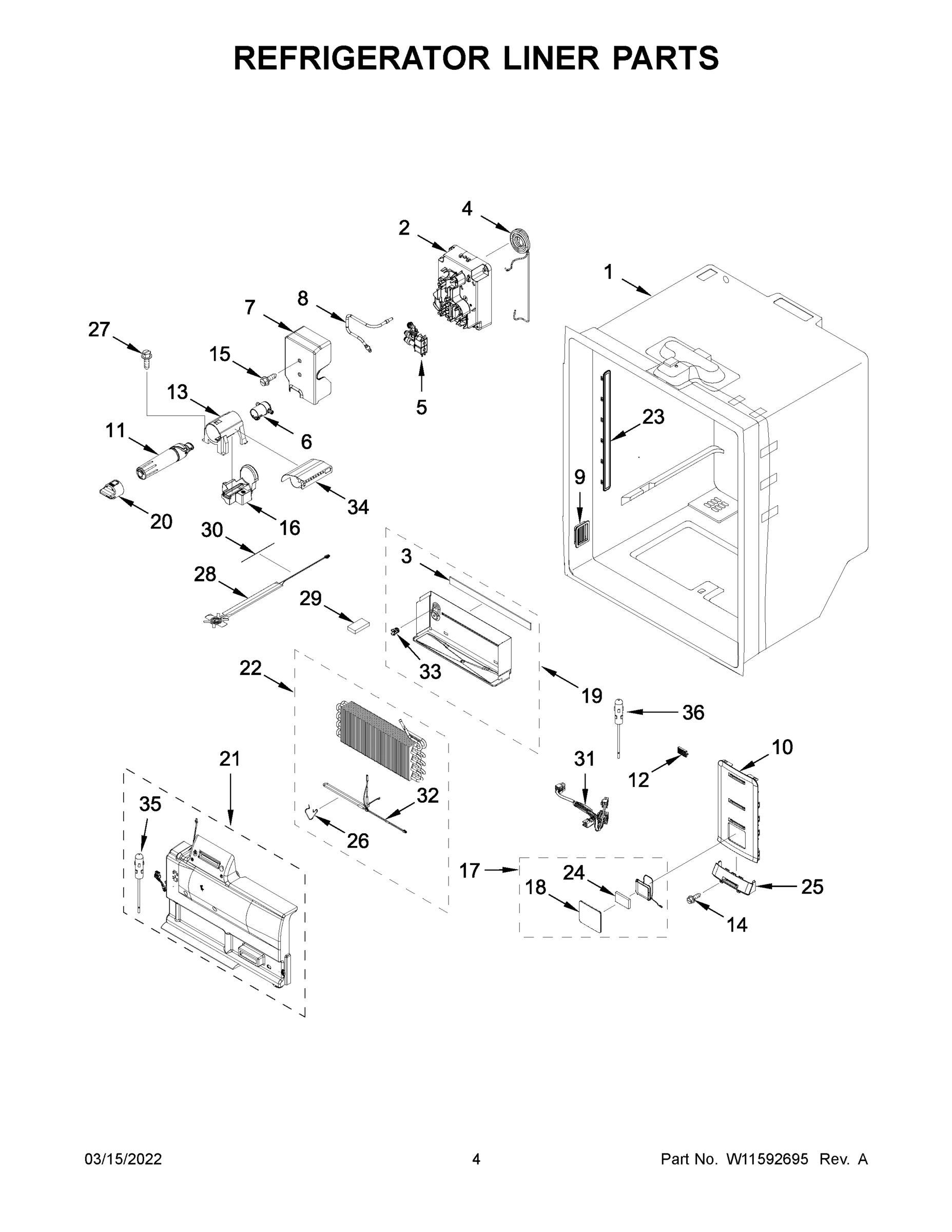

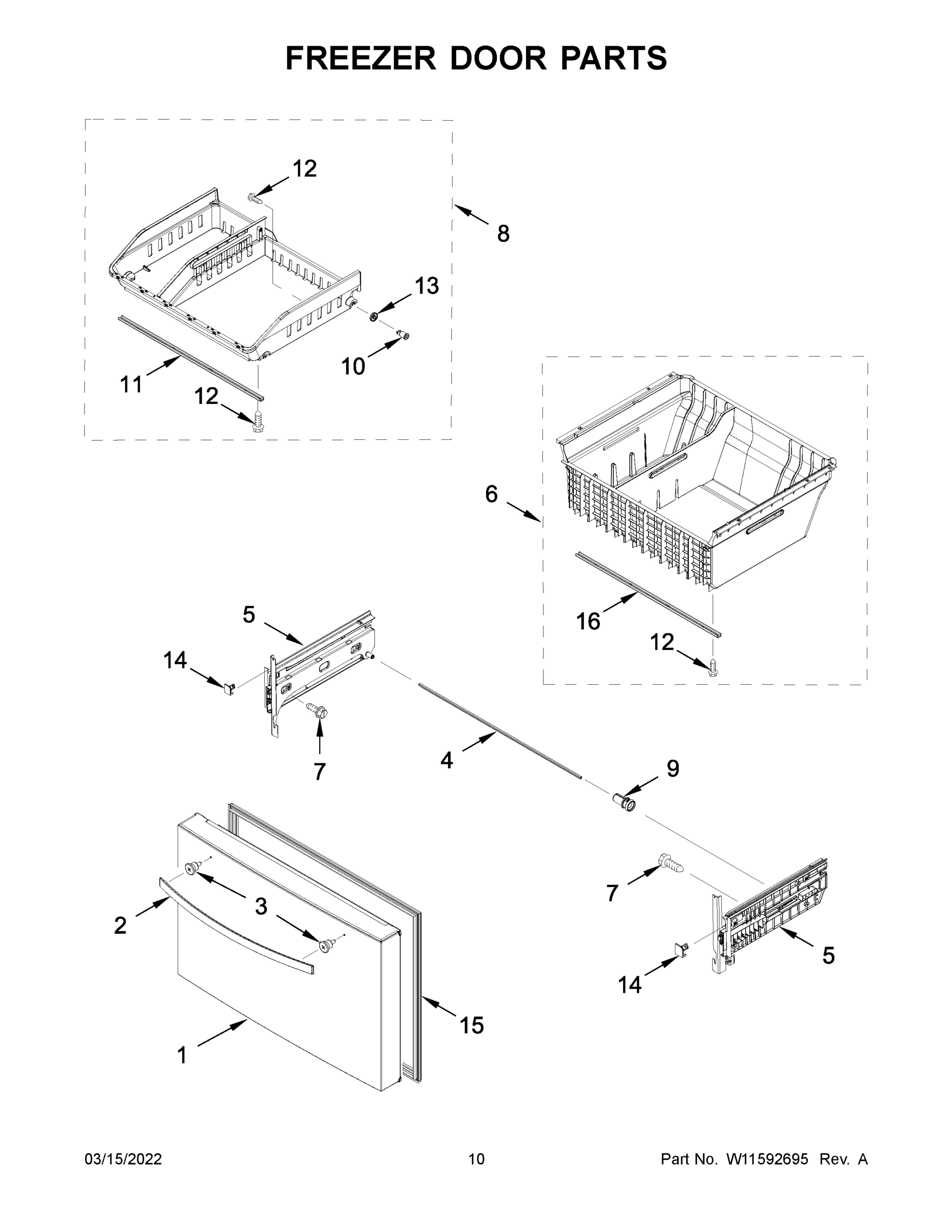

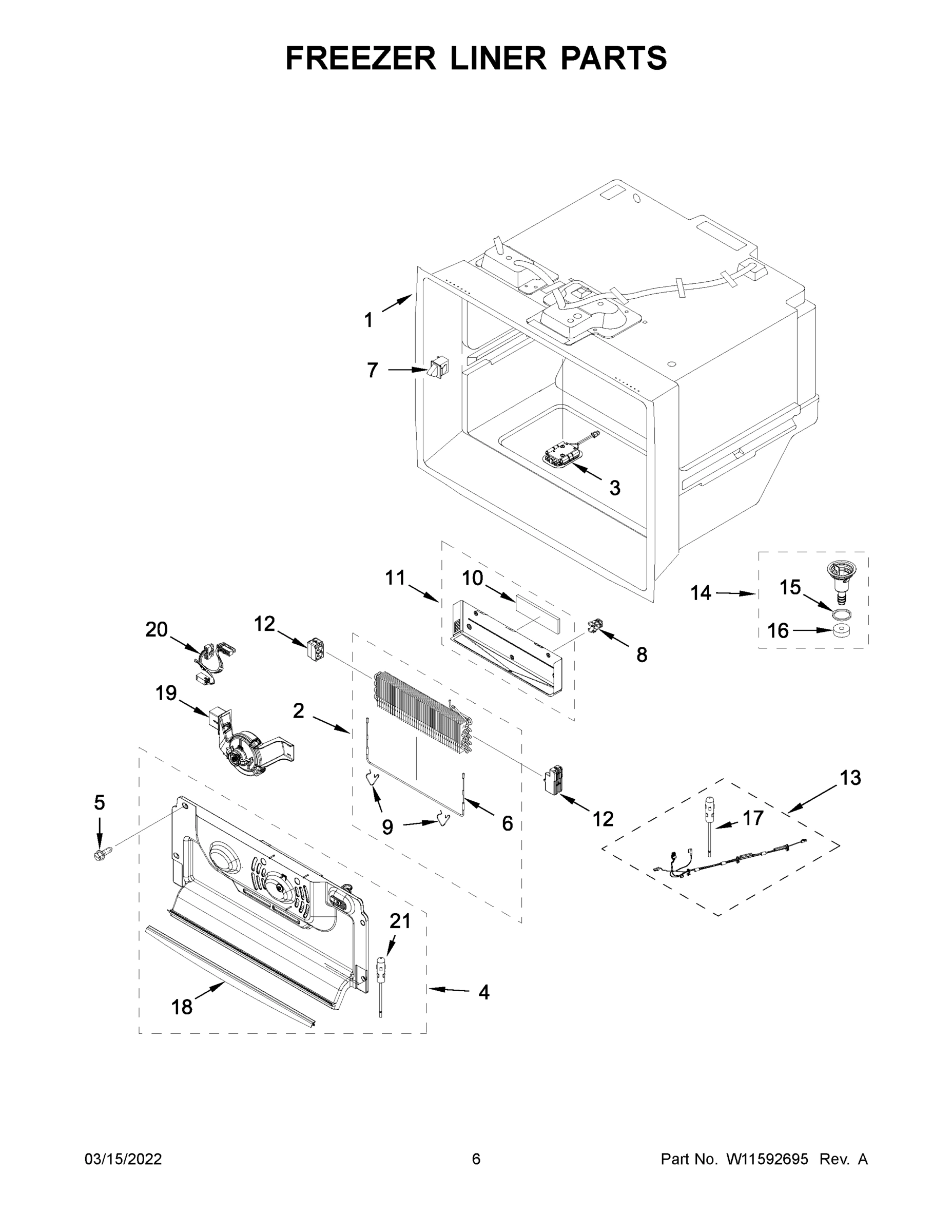

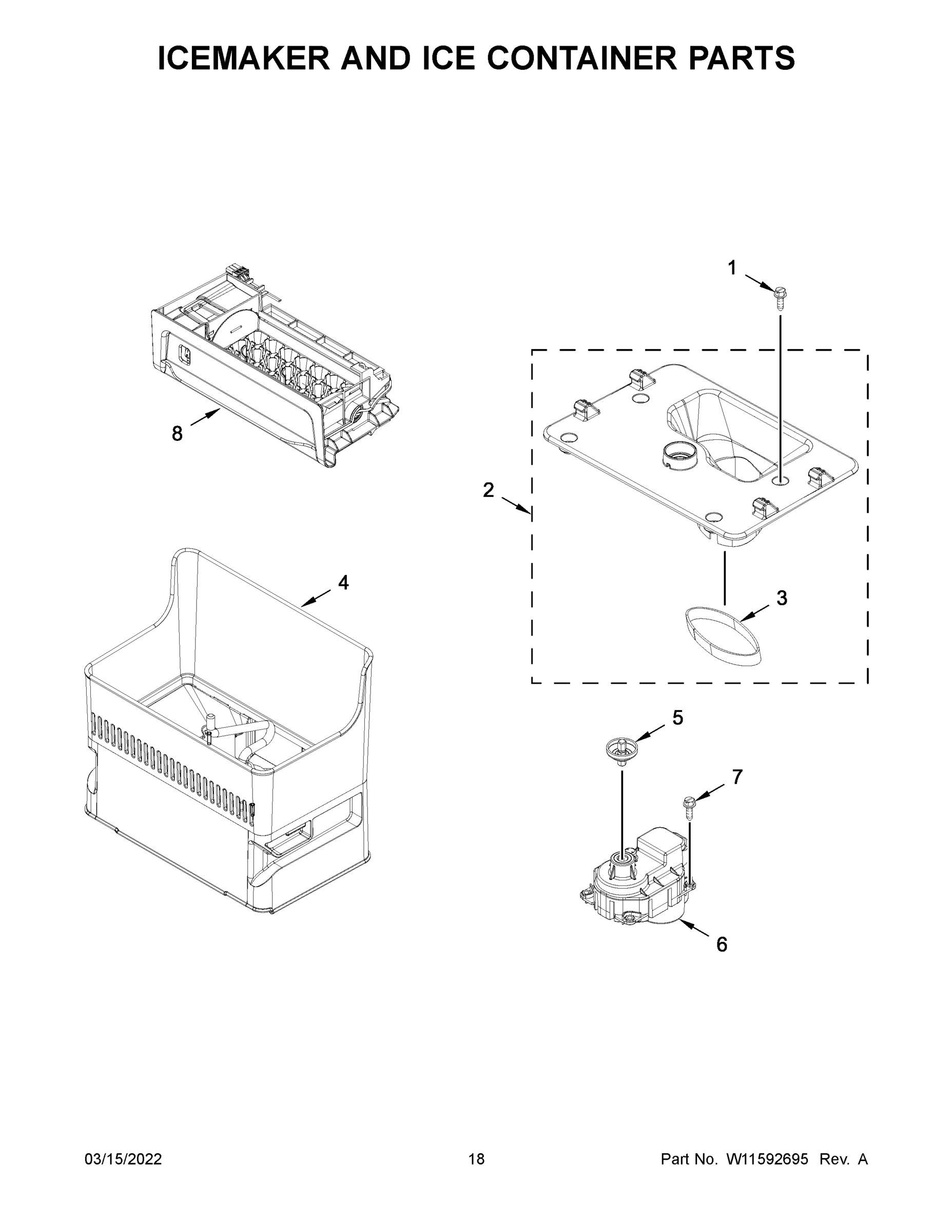

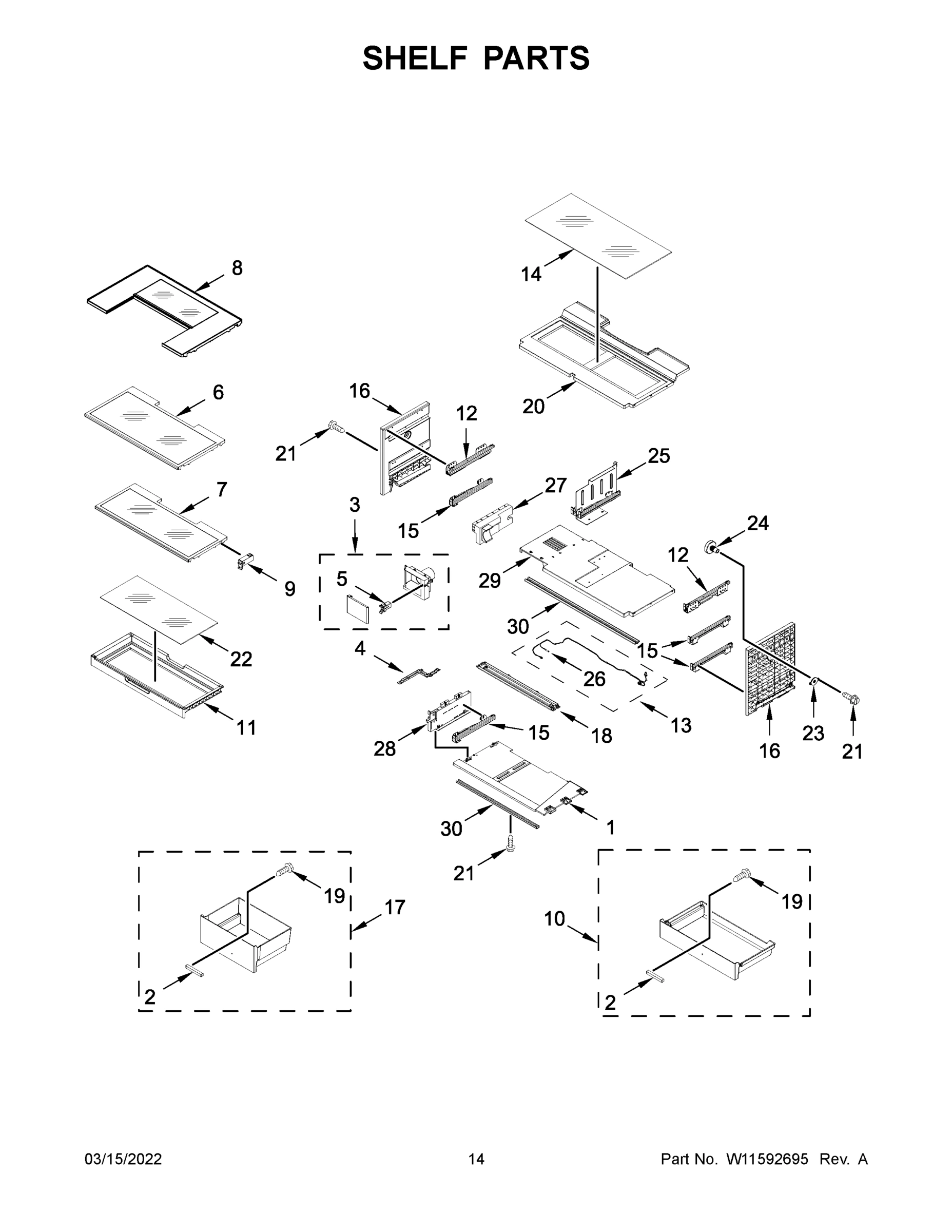

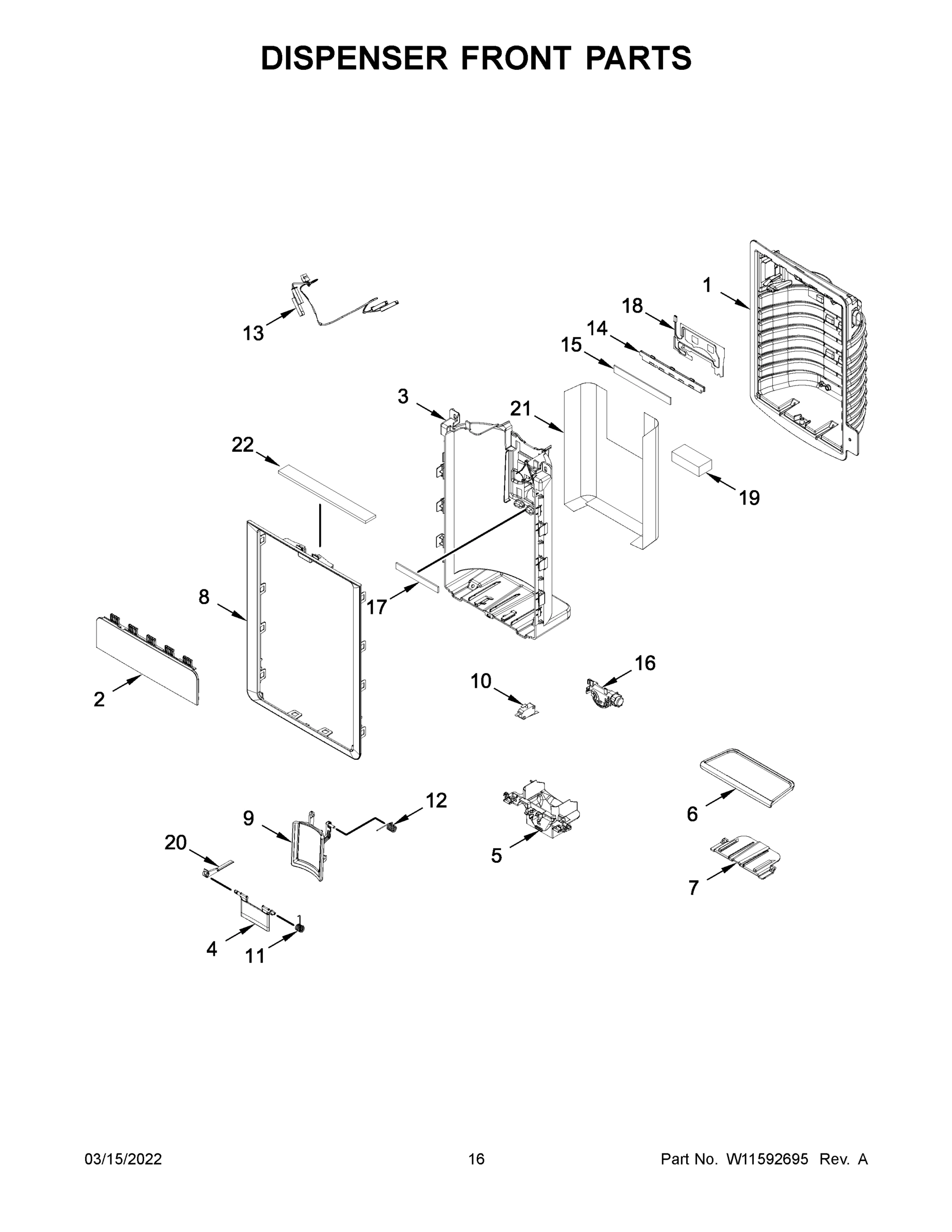

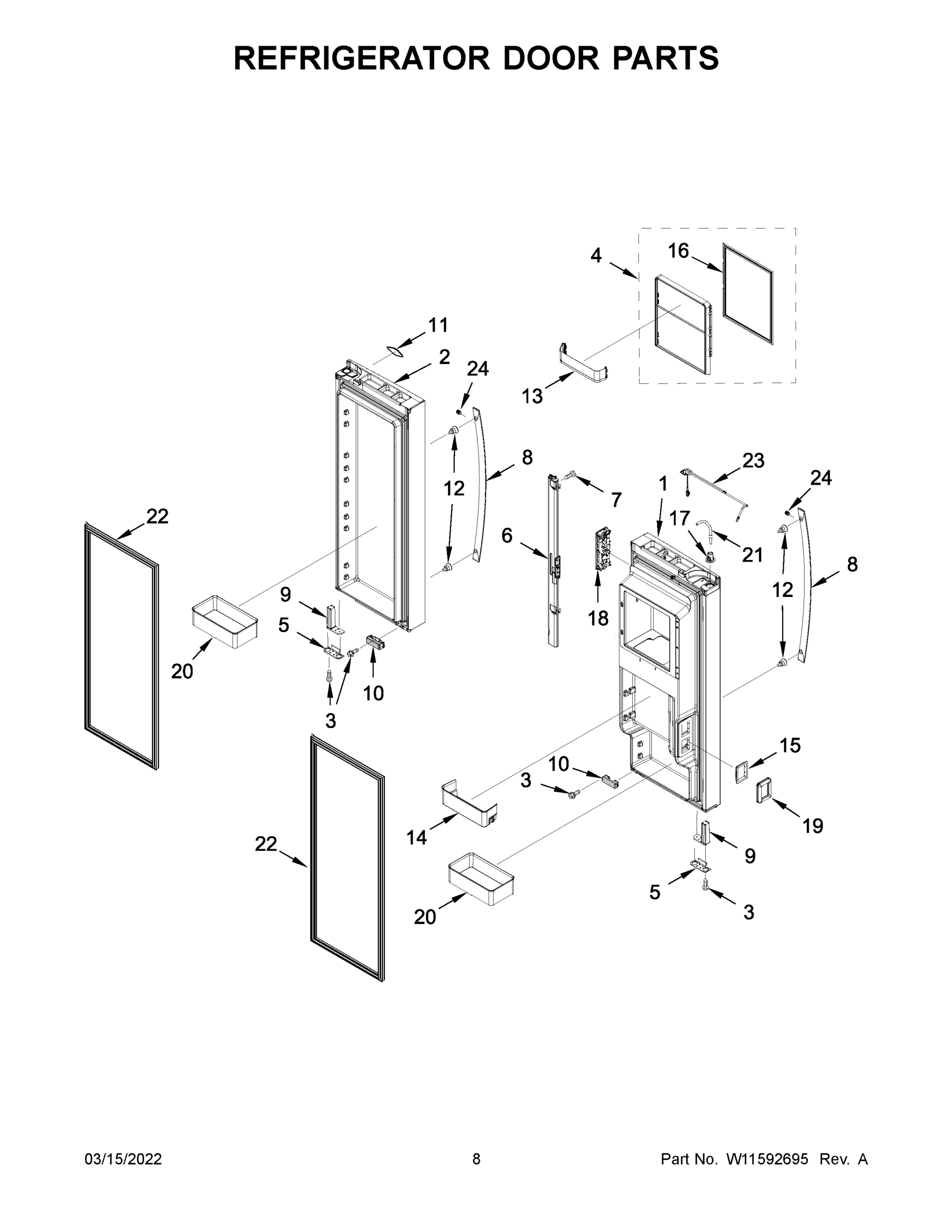

1

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

1

BASE, PANTRY WPL W10794287 Contact Us For Availability

2

W10682175 Whirlpool Refrigerator Plate Backorder WPL W10682175 $31.73

2

W10708473 Whirlpool Refrigerator Housing Backorder WPL W10708473 $40.33

2

W10717577 Whirlpool Pan Handle Backorder WPL W10717577 $112.41

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

2

W11594194-includeCORE Whirlpool W11594194 Ref Backorder WPL W11594194-includeCORE $186.37

2B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $17.70

3

W10717109 Whirlpool Refrigerator Shield Backorder WPL W10717109 $79.37

3

W10840310 Whirlpool Refrigerator PIV Block Backorder WPL W10840310 $51.15

3

W11347066 Whirlpool Refrigerator Housing Backorder WPL W11347066 $81.02

3

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

4

W10678156 Whirlpool Refrigerator Pad Backorder WPL W10678156 $41.32

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

4

COVER, WIRING HARNESS WPL W10834719 Contact Us For Availability

4

ASSEMBLY, ICE CONTAINER WPL W11476067 Contact Us For Availability

5

W11114790 Whirlpool Refrigerator Bracket Backorder WPL W11114790 $86.23

5

W11228132 Whirlpool Refrigerator Shaft In Stock WPL W11228132 $10.99

5

W11243377 Whirlpool Refrigerator Door Stop Backorder WPL W11243377 $27.89

5

W11244274 Whirlpool Refrigerator Ice Door Backorder WPL W11244274 $61.43

5

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $49.89

5

ASSEMBLY, DRAIN EXTENSION WPL W10860180 Contact Us For Availability

5A

W11114789 Whirlpool Refrigerator Right Hand W Backorder WPL W11114789 $89.02

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10795850 Whirlpool Refrigerator Freezer Bin Backorder WPL W10795850 $130.67

6

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $100.84

6

W11099737 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099737 $187.02

6

W11209885 Whirlpool Refrigerator Drip Tray Backorder WPL W11209885 $36.40

6B

W11506625 Whirlpool Refrigerator Coupler Backorder WPL W11506625 $10.98

7

W10772527 Whirlpool Refrigerator Tray Backorder WPL W10772527 $37.90

7

W10900010 Whirlpool Refrigerator Cover Backorder WPL W10900010 $42.77

7

W11251739 Whirlpool Refrigerator Glass Shelf Backorder WPL W11251739 $177.45

7

W11769880 Whirlpool Roller-Cab Backorder WPL W11769880 $16.12

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

W11763410 Whirlpool Cabinet Roller In Stock WPL W11763410 $16.12

8

W10757512 Whirlpool Refrigerator Trim Backorder WPL W10757512 $104.42

8

W10846099 Whirlpool Refrigerator Leveler Backorder WPL W10846099 $16.38

8

W11099777 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099777 $205.04

8

W11557000 Whirlpool Refrigerator Icemaker In Stock WPL W11557000 $103.30

9

W10672575 Whirlpool Refrigerator Pad Backorder WPL W10672575 $44.08

9

W10718061 Whirlpool Refrigerator Cover Backorder WPL W10718061 $40.77

9

W10753430 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753430 $9.99

9

W11163783 Whirlpool Refrigerator Closer In Stock WPL W11163783 $25.08

9

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

9A

W10753431 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753431 $9.99

9A

W11188796 Whirlpool Refrigerator Closer In Stock WPL W11188796 $16.82

W10798308 Whirlpool Refrigerator Door Bumper Backorder WPL W10798308 $16.42

W11032616 Whirlpool Refrigerator Door Hinge Backorder WPL W11032616 $26.55

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $14.15

W11099778 Whirlpool Refrigerator Utility Pan Backorder WPL W11099778 $82.25

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $6.90

10A

W11032620 Whirlpool Refrigerator Door Hinge Backorder WPL W11032620 $26.55

W11099779 Whirlpool Refrigerator Shelf Backorder WPL W11099779 $127.00

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

SPRING, TORSION WPL W10672578 Contact Us For Availability

12

W11109505 Whirlpool Refrigerator Spring In Stock WPL W11109505 $7.58

12

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

12

GLIDE, PLATTER (LEFT HAND) WPL W10881160 Contact Us For Availability

12A

W10668198 Whirlpool Refrigerator Evaporator B Backorder WPL W10668198 $31.26

12A

W10881121 Whirlpool Refrigerator Glide Backorder WPL W10881121 $46.81

W10704135 Whirlpool Refrigerator Wire Harness Backorder WPL W10704135 $10.60

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $34.44

W10895492 Whirlpool Refrigerator Cover Backorder WPL W10895492 $100.00

W11188797 Whirlpool Refrigerator Trivet In Stock WPL W11188797 $56.96

W11189600 Whirlpool Refrigerator Bracket Backorder WPL W11189600 $26.54

W11744510 Whirlpool Wire Harness Backorder WPL W11744510 $41.89

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W10757499 Whirlpool Refrigerator Bracket Backorder WPL W10757499 $27.63

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $9.59

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

GLASS, CRISPER COVER WPL W10878598 Contact Us For Availability

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

W10696713 Whirlpool Refrigerator Door Gasket Backorder WPL W10696713 $28.58

W10720065 Whirlpool Refrigerator Retainer In Stock WPL W10720065 $31.64

W10816322 Whirlpool Refrigerator Door Hinge Backorder WPL W10816322 $42.31

W10892559 Whirlpool Refrigerator Glide Backorder WPL W10892559 $46.81

15A

W10892561 Whirlpool Refrigerator Glide Backorder WPL W10892561 $46.81

W10816323 Whirlpool Refrigerator Door Hinge Backorder WPL W10816323 $44.74

W11189145 Whirlpool Refrigerator Ice Door In Stock WPL W11189145 $65.29

W11567329 Whirlpool Condenser Assembly Backorder WPL W11567329 $87.06

W11625084 Whirlpool Refrigerator Gasket Backorder WPL W11625084 $38.14

SUPPORT, SIDE (LEFT HAND) WPL W10794252 Contact Us For Availability

16A

SUPPORT Backorder WPL W10794258 $111.02

17

W10391376 Whirlpool Bracket Assembly In Stock WPL W10391376 $12.19

17

W10663699 Whirlpool Refrigerator Gasket Backorder WPL W10663699 $10.50

17

W11099781 Whirlpool Refrigerator Crisper Pan Backorder WPL W11099781 $82.25

17A

W11099786 Whirlpool Refrigerator Crisper Pan Backorder WPL W11099786 $82.25

W10752689 Whirlpool Refrigerator Heater Backorder WPL W10752689 $46.94

W10770923 Whirlpool Refrigerator Gasket Backorder WPL W10770923 $12.02

W11401419 Whirlpool Refrigerator Module Backorder WPL W11401419 $69.25

COVER, HOUSING WPL W11198954 Contact Us For Availability

W10720073 Whirlpool Refrigerator Gasket Backorder WPL W10720073 $30.82

W10882291 Whirlpool Refrigerator Gasket Backorder WPL W10882291 $10.76

W11090564 Whirlpool Refrigerator Shield Backorder WPL W11090564 $39.03

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

SCREW WPL W10141645 Contact Us For Availability

W10680037 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10680037 $34.48

EMI-FILTER Backorder WPL W10738041 $35.56

W10878157 Whirlpool Refrigerator Frame Backorder WPL W10878157 $77.67

W11189114 Whirlpool Refrigerator Cap Filter In Stock WPL W11189114 $28.22

21

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $9.59

21

FOIL Backorder WPL W10864907 $11.68

21

W11506421 Whirlpool Inverter Box Backorder WPL W11506421 $178.87

GASKET Backorder WPL W10831765 $10.25

W10917313 Whirlpool Refrigerator Door Gasket In Stock WPL W10917313 $113.09

W11099787 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099787 $127.18

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

22B

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $13.58

23

W11567410 Whirlpool Tube Backorder WPL W11567410 $35.25

23

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

W10840922 Whirlpool Refrigerator Knob Backorder WPL W10840922 $30.20

W11223833 Whirlpool Refrigerator Hinge Bushin In Stock WPL W11223833 $6.11

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11440595 Whirlpool Wire Harness Backorder WPL W11440595 $41.76

25

W10880762 Whirlpool Refrigerator Support Backorder WPL W10880762 $125.90

25

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

25A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $16.34

25B

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

26

W11578031 Whirlpool Compressor Backorder WPL W11578031 $412.09

26

THERMISTOR In Stock WPL W11724692 $11.93

26A

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

26B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

26C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

26D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

27

W10858468 Whirlpool Refrigerator Wire Harness Backorder WPL W10858468 $54.46

27

W11084829 Whirlpool Refrigerator Insulation Backorder WPL W11084829 $12.99

27

W11574308 Whirlpool Fan Backorder WPL W11574308 $82.97

28

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $34.13

28

W10794289 Whirlpool Refrigerator Support Backorder WPL W10794289 $111.02

29

W10818463 Whirlpool Refrigerator Gasket In Stock WPL W10818463 $14.60

29

W10878186 Whirlpool Cover Assembly Backorder WPL W10878186 $69.50

29

WPL 2223913 WPL 2223913 Contact Us For Availability

30

BAR, SUPPORT WPL W10758351 Contact Us For Availability

33

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $41.47

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $30.91

39

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $33.53

41

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $7.85

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
