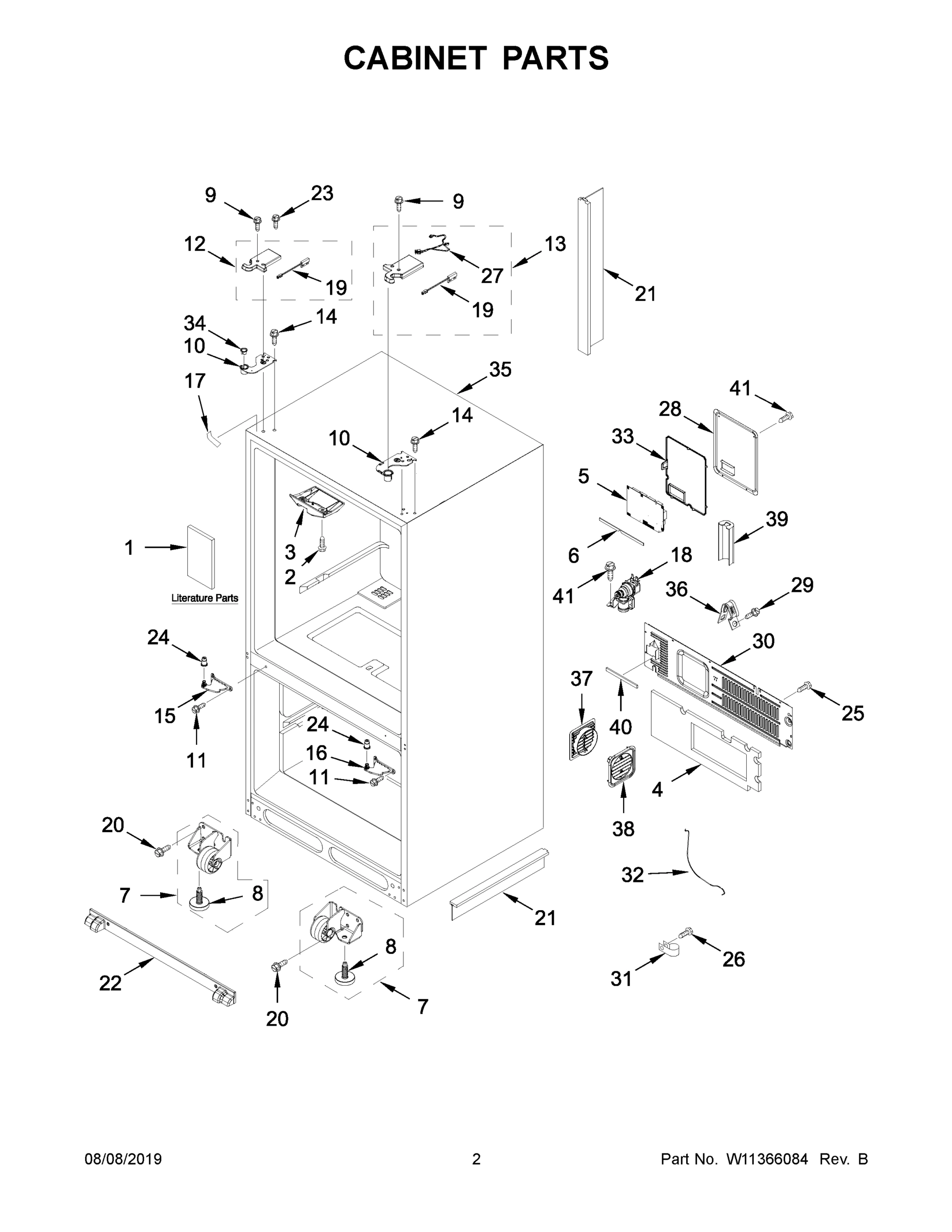

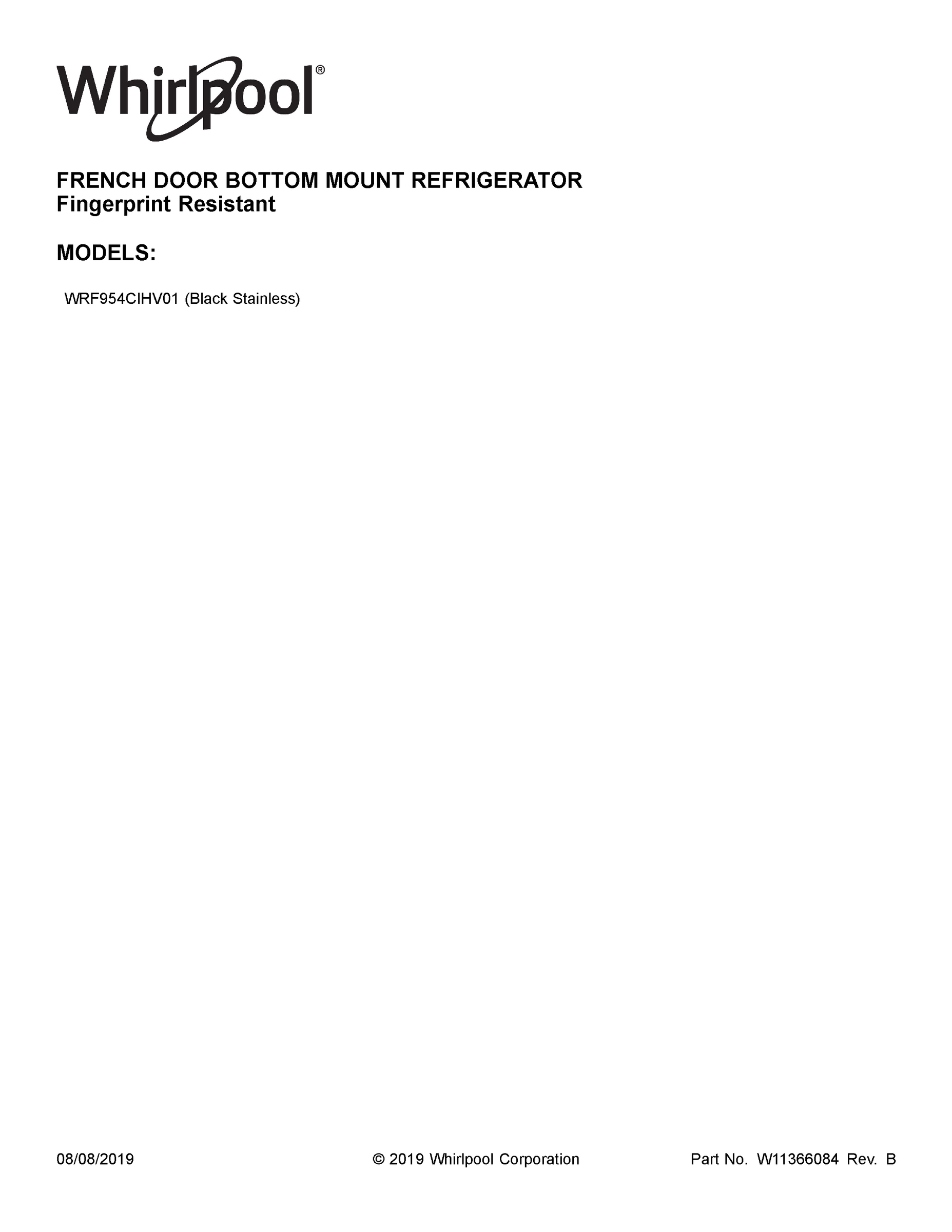

Model Whirlpool WRF954CIHV01 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

1

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

2

W10682175 Whirlpool Refrigerator Plate Backorder WPL W10682175 $31.73

2

W10708473 Whirlpool Refrigerator Housing Backorder WPL W10708473 $40.33

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

2

W11533212-includeCORE Whirlpool W11533212 Ref Backorder WPL W11533212-includeCORE $370.69

3

W10658357 Whirlpool Refrigerator Plate Backorder WPL W10658357 $42.77

3

W10840310 Whirlpool Refrigerator PIV Block Backorder WPL W10840310 $51.15

3

W11347066 Whirlpool Refrigerator Housing Backorder WPL W11347066 $81.02

3

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $10.80

3

WALL, DISPENSER FALSE (BLACK) WPL W11085969 Contact Us For Availability

4

W10911314 Whirlpool Refrigerator Ice Containe In Stock WPL W10911314 $185.39

4

W11024082 Whirlpool Refrigerator Reservoir Backorder WPL W11024082 $77.43

4

PAD Backorder WPL W11102429 $33.07

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

5

W11086000 Whirlpool Refrigerator Separator Backorder WPL W11086000 $14.26

5

W11114790 Whirlpool Refrigerator Bracket Backorder WPL W11114790 $86.23

5

W11228132 Whirlpool Refrigerator Shaft In Stock WPL W11228132 $10.99

5

W11243377 Whirlpool Refrigerator Door Stop Backorder WPL W11243377 $27.89

5

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

5

ASSEMBLY, DRAIN EXTENSION WPL W10860180 Contact Us For Availability

5A

W11114789 Whirlpool Refrigerator Right Hand W Backorder WPL W11114789 $89.02

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10795850 Whirlpool Refrigerator Freezer Bin Backorder WPL W10795850 $130.67

6

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $101.65

6

W11024083 Whirlpool Refrigerator Housing Backorder WPL W11024083 $85.03

6

W11209885 Whirlpool Refrigerator Drip Tray Backorder WPL W11209885 $36.40

7

W10900010 Whirlpool Refrigerator Cover Backorder WPL W10900010 $42.77

7

W11026725 Whirlpool Tray Backorder WPL W11026725 $36.40

7

W11769880 Whirlpool Roller-Cab Backorder WPL W11769880 $16.12

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

W11763410 Whirlpool Cabinet Roller In Stock WPL W11763410 $16.12

8

W10757512 Whirlpool Refrigerator Trim Backorder WPL W10757512 $104.42

8

W10846099 Whirlpool Refrigerator Leveler Backorder WPL W10846099 $16.38

8

W10877573 Whirlpool Refrigerator Evaporator T Backorder WPL W10877573 $58.64

8

W11223013 Whirlpool Refrigerator Water Tube Backorder WPL W11223013 $45.71

8

W11557000 Whirlpool Refrigerator Icemaker In Stock WPL W11557000 $104.11

9

W10683507 Whirlpool Refrigerator Clip Backorder WPL W10683507 $10.80

9

W10718061 Whirlpool Refrigerator Cover Backorder WPL W10718061 $40.77

9

W10753430 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753430 $9.99

9

W11102448 Whirlpool Refrigerator Pad Backorder WPL W11102448 $33.07

9

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

9A

W10753431 Whirlpool Refrigerator Shelf Stud Backorder WPL W10753431 $9.99

W10407187 Whirlpool Refrigerator Door Bumper In Stock WPL W10407187 $27.76

W11032616 Whirlpool Refrigerator Door Hinge Backorder WPL W11032616 $26.55

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $14.97

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $6.90

10A

W11032620 Whirlpool Refrigerator Door Hinge Backorder WPL W11032620 $26.55

11

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

11

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

11

SPRING, TORSION WPL W10672578 Contact Us For Availability

W10668201 Whirlpool Refrigerator Duct Backorder WPL W10668201 $30.65

W11109505 Whirlpool Refrigerator Spring In Stock WPL W11109505 $7.58

W11225850 Whirlpool Refrigerator Cover Backorder WPL W11225850 $100.00

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $10.41

12A

W10668198 Whirlpool Refrigerator Evaporator B Backorder WPL W10668198 $31.26

W10704135 Whirlpool Refrigerator Wire Harness Backorder WPL W10704135 $10.60

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $34.44

W11188797 Whirlpool Refrigerator Trivet In Stock WPL W11188797 $56.96

W11189600 Whirlpool Refrigerator Bracket Backorder WPL W11189600 $26.54

W11744510 Whirlpool Wire Harness Backorder WPL W11744510 $41.89

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W10757499 Whirlpool Refrigerator Bracket Backorder WPL W10757499 $27.63

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $10.41

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

W10691674 Whirlpool Refrigerator Door Hinge Backorder WPL W10691674 $32.23

W10696713 Whirlpool Refrigerator Door Gasket Backorder WPL W10696713 $28.58

W10720065 Whirlpool Refrigerator Retainer In Stock WPL W10720065 $31.64

W10836504 Whirlpool Refrigerator Grommet Backorder WPL W10836504 $8.67

W10892559 Whirlpool Refrigerator Glide Backorder WPL W10892559 $46.81

W10691700 Whirlpool Refrigerator Door Hinge Backorder WPL W10691700 $32.23

W10839501 Whirlpool Refrigerator Insulation Backorder WPL W10839501 $28.27

W11189145 Whirlpool Refrigerator Ice Door In Stock WPL W11189145 $65.29

W11625084 Whirlpool Refrigerator Gasket Backorder WPL W11625084 $38.14

17

W10663699 Whirlpool Refrigerator Gasket Backorder WPL W10663699 $10.50

18

W10752689 Whirlpool Refrigerator Heater Backorder WPL W10752689 $46.94

18

W10770923 Whirlpool Refrigerator Gasket Backorder WPL W10770923 $12.02

W10720073 Whirlpool Refrigerator Gasket Backorder WPL W10720073 $30.82

W10882291 Whirlpool Refrigerator Gasket Backorder WPL W10882291 $10.76

W11090564 Whirlpool Refrigerator Shield Backorder WPL W11090564 $39.03

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

20

W10680037 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10680037 $34.48

20

W10792503 Whirlpool Refrigerator EMI Filter Backorder WPL W10792503 $38.50

20

W11189114 Whirlpool Refrigerator Cap Filter In Stock WPL W11189114 $29.04

21

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $9.59

21

FOIL Backorder WPL W10864907 $11.68

21

W11592194 Whirlpool Refrigerator Terminal Cov Backorder WPL W11592194 $28.95

22

GASKET Backorder WPL W10831765 $10.25

22

W10917312 Whirlpool Refrigerator Door Gasket Backorder WPL W10917312 $113.94

22

W11099787 Whirlpool Refrigerator Glass Shelf Backorder WPL W11099787 $127.18

23

W11366500 Whirlpool Refrigerator Water Tube In Stock WPL W11366500 $42.29

23

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

24

W10840922 Whirlpool Refrigerator Knob Backorder WPL W10840922 $30.20

24

W11223833 Whirlpool Refrigerator Hinge Bushin In Stock WPL W11223833 $6.94

24

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

25

W10880762 Whirlpool Refrigerator Support Backorder WPL W10880762 $125.90

25

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.99

25

W11163783 Whirlpool Refrigerator Closer In Stock WPL W11163783 $25.08

25A

W11188796 Whirlpool Refrigerator Closer In Stock WPL W11188796 $17.64

26

W10909562 Whirlpool Refrigerator Clip Backorder WPL W10909562 $14.55

26

W11592010 Whirlpool Refrigerator Compressor In Stock WPL W11592010 $750.27

26

BAR, SUPPORT WPL W10758351 Contact Us For Availability

27

W10858468 Whirlpool Refrigerator Wire Harness Backorder WPL W10858468 $54.46

27

W11084829 Whirlpool Refrigerator Insulation Backorder WPL W11084829 $12.99

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $34.13

28

W10794289 Whirlpool Refrigerator Support Backorder WPL W10794289 $111.02

29

W10818463 Whirlpool Refrigerator Gasket In Stock WPL W10818463 $14.60

29

W10878186 Whirlpool Cover Assembly Backorder WPL W10878186 $69.50

29

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $75.30

30

W10669259 Whirlpool Refrigerator Back Cover Backorder WPL W10669259 $76.27

32

W10853597 Whirlpool Refrigerator Water Tube In Stock WPL W10853597 $47.54

32A

W10853599 Whirlpool Refrigerator Water Tube Backorder WPL W10853599 $47.54

33

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $41.47

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $30.91

39

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $33.53

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $39.63

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

W10871610 Whirlpool Refrigerator Wire Harness Backorder WPL W10871610 $56.07

NLA:TOUCH-UP Backorder WPL W10917540 $6.57

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
