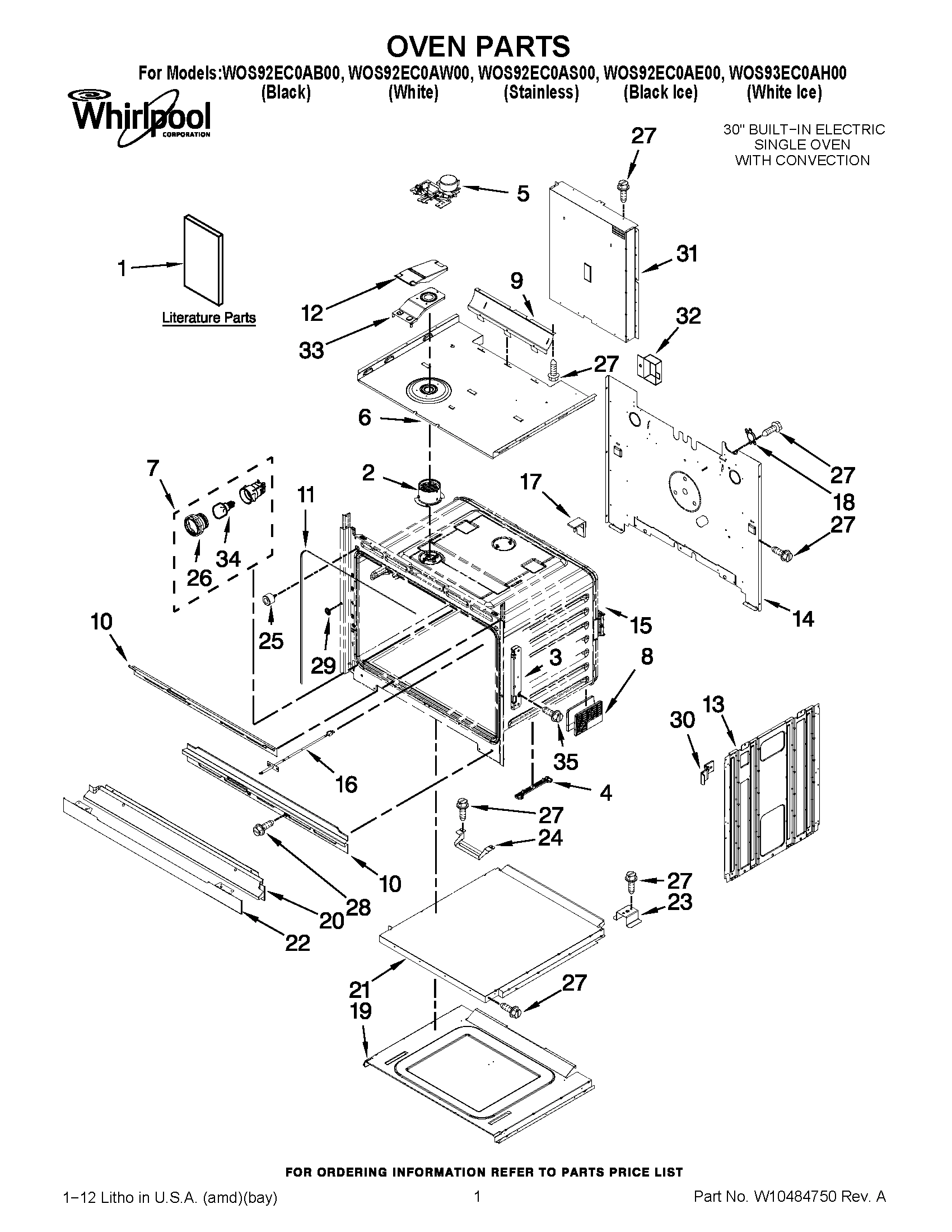

Model Whirlpool WOS92EC0AW00 30`` BUILT-IN ELECTRIC SINGLE OVEN WITH CONVECTION – Common Parts &amp; Diagrams

1

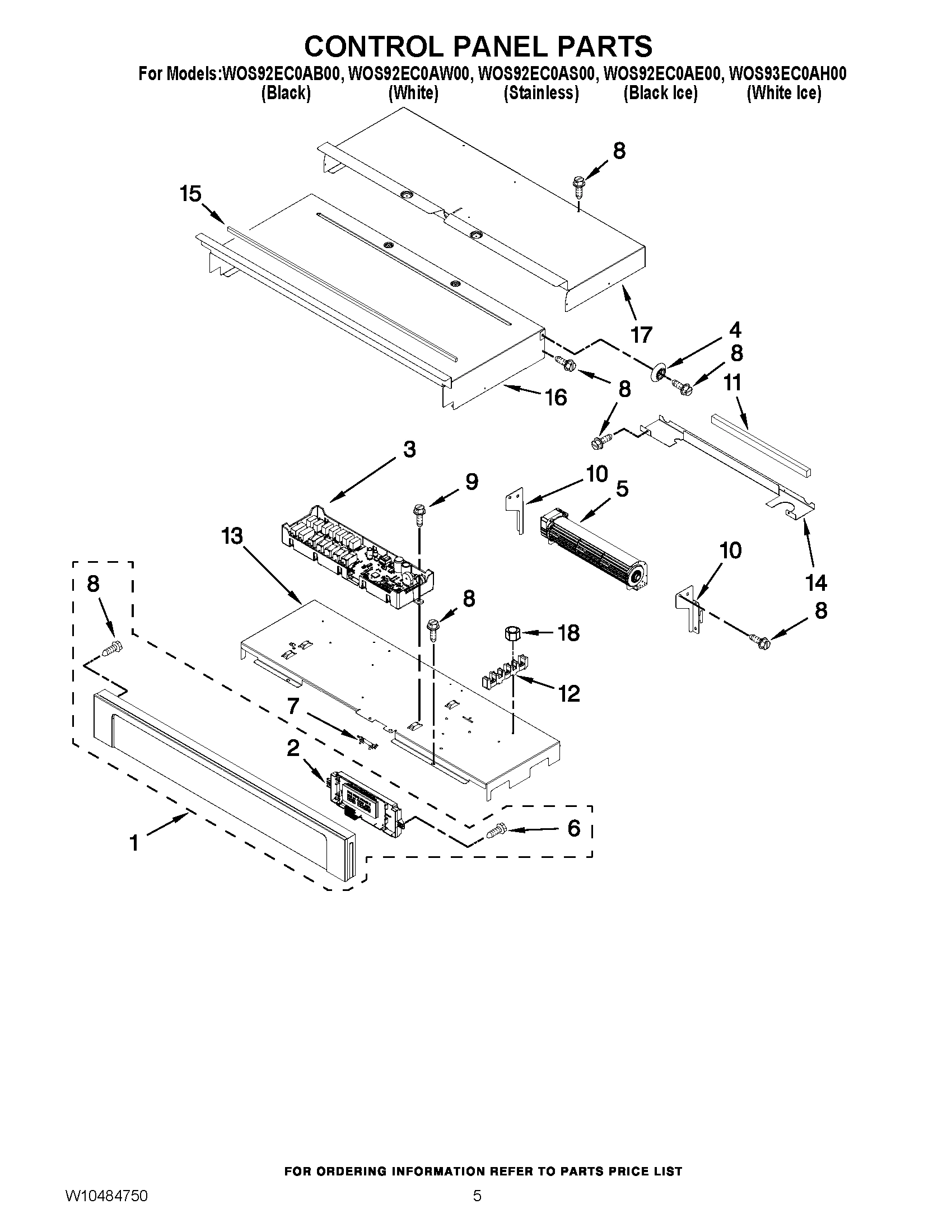

W10861492 Whirlpool Control Panel Backorder WPL W10861492 $301.98

1

W10861493 Whirlpool Control Panel Backorder WPL W10861493 $366.66

1

W10861494 Whirlpool Control Panel Backorder WPL W10861494 $301.98

1

WPW10260252 Whirlpool Broil Element In Stock WPL WPW10260252 $70.54

1

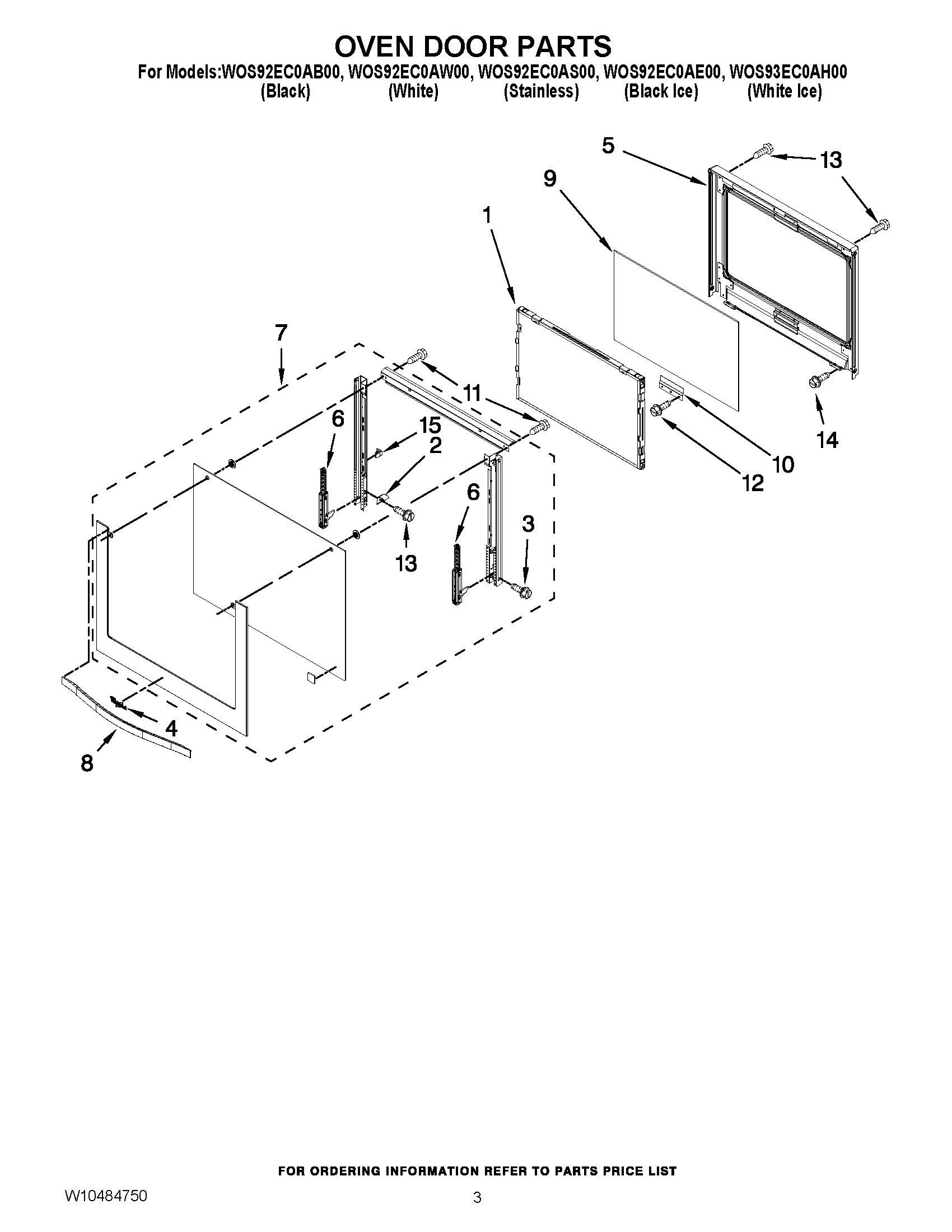

WPW10347596 Whirlpool Stove Middle Door Glass In Stock WPL WPW10347596 $146.08

1

ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (W WPL W10329413 Contact Us For Availability

2

W11218798 Whirlpool Rack Backorder WPL W11218798 $180.40

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W10550510 Whirlpool Blower Backorder WPL W10550510 $346.93

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

4

W10363824 Whirlpool Spacer Backorder WPL W10363824 $5.64

4

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

5

W10883049 Whirlpool Door Latch Backorder WPL W10883049 $134.29

5

BLOWER WPL W10286217 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W10825778 Whirlpool Door Hinge In Stock WPL W10825778 $38.45

6

SCREW WPL 7101P40360 Contact Us For Availability

7

WPW10545255 Whirlpool Thermal Fuse In Stock WPL WPW10545255 $12.02

7

ASSEMBLY, DOOR GLASS (BLACK SHADOW) WPL W10416019 Contact Us For Availability

7

ASSEMBLY, DOOR GLASS (WHITE CHROMIUM) WPL W10416020 Contact Us For Availability

8

W10327379 Whirlpool Door Handle Backorder WPL W10327379 $82.37

8

W10327380 Whirlpool Handle Door Backorder WPL W10327380 $81.90

8

W10577911 Whirlpool Door Glass Backorder WPL W10577911 $398.15

8

W10821321 Whirlpool Leveling Foot Backorder WPL W10821321 $12.33

8

SCREW WPL 7101P42660 Contact Us For Availability

9

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

9

WPW10618107 Whirlpool Door Glass Assembly In Stock WPL WPW10618107 $119.42

9

Screw WPL 7101P43460 Contact Us For Availability

W10283078 Whirlpool Mounting Bracket Backorder WPL W10283078 $11.62

W10853628 Whirlpool Oven Range Glass Bracket Backorder WPL W10853628 $54.68

VENT, TOP 30`` WPL W10283036 Contact Us For Availability

BRACKET, BLOWER LEFT WPL W10351257 Contact Us For Availability

11

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

11

W11623080 Whirlpool Gasket In Stock WPL W11623080 $37.39

11

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

12

W10359278 Whirlpool Baffle Conv Backorder WPL W10359278 $83.28

12

BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability

W10347650 Whirlpool Mounting Bracket Backorder WPL W10347650 $40.92

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

SIDE, CHASSIS WPL W10318190 Contact Us For Availability

SCREW WPL 7101P65360 Contact Us For Availability

14

W10282990 Whirlpool Rear Cover Backorder WPL W10282990 $60.98

14

WPW10318191 Whirlpool Mounting Bracket Backorder WPL WPW10318191 $26.21

14

SCREW WPL 7101P63560 Contact Us For Availability

15

WPW10392683 Whirlpool Bumper Backorder WPL WPW10392683 $3.51

15

WPW10657548 Whirlpool Foam Seal Backorder WPL WPW10657548 $34.18

16

W10318192 Whirlpool Cabinet Top Backorder WPL W10318192 $51.99

17

W10904156 Whirlpool Cabinet Top Backorder WPL W10904156 $62.92

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

18

Nut, Terminal Block WPL 7103P02760 Contact Us For Availability

20

WPW10327373 Whirlpool Oven Vent Backorder WPL WPW10327373 $241.21

20

WPW10351279 Whirlpool Oven Vent In Stock WPL WPW10351279 $183.20

22

WPW10327377 Whirlpool Trim Kit Backorder WPL WPW10327377 $72.35

22

WPW10351236 Whirlpool Trim Backorder WPL WPW10351236 $86.25

26

WPW10412722 Whirlpool Light Lens In Stock WPL WPW10412722 $8.38

28

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

30

W10347649 Whirlpool Spacer Backorder WPL W10347649 $5.78

31

W10318196 Whirlpool BA Chassis Backorder WPL W10318196 $81.72

34

WPW10412711 Whirlpool Light Bulb In Stock WPL WPW10412711 $13.60

35

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10284933 Whirlpool Wire Harness Backorder WPL W10284933 $11.75

W11157775 Whirlpool Wire Harness Backorder WPL W11157775 $112.26

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
