Model Whirlpool WOS72EC7HV21 WALL OVEN, ELECTRIC – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

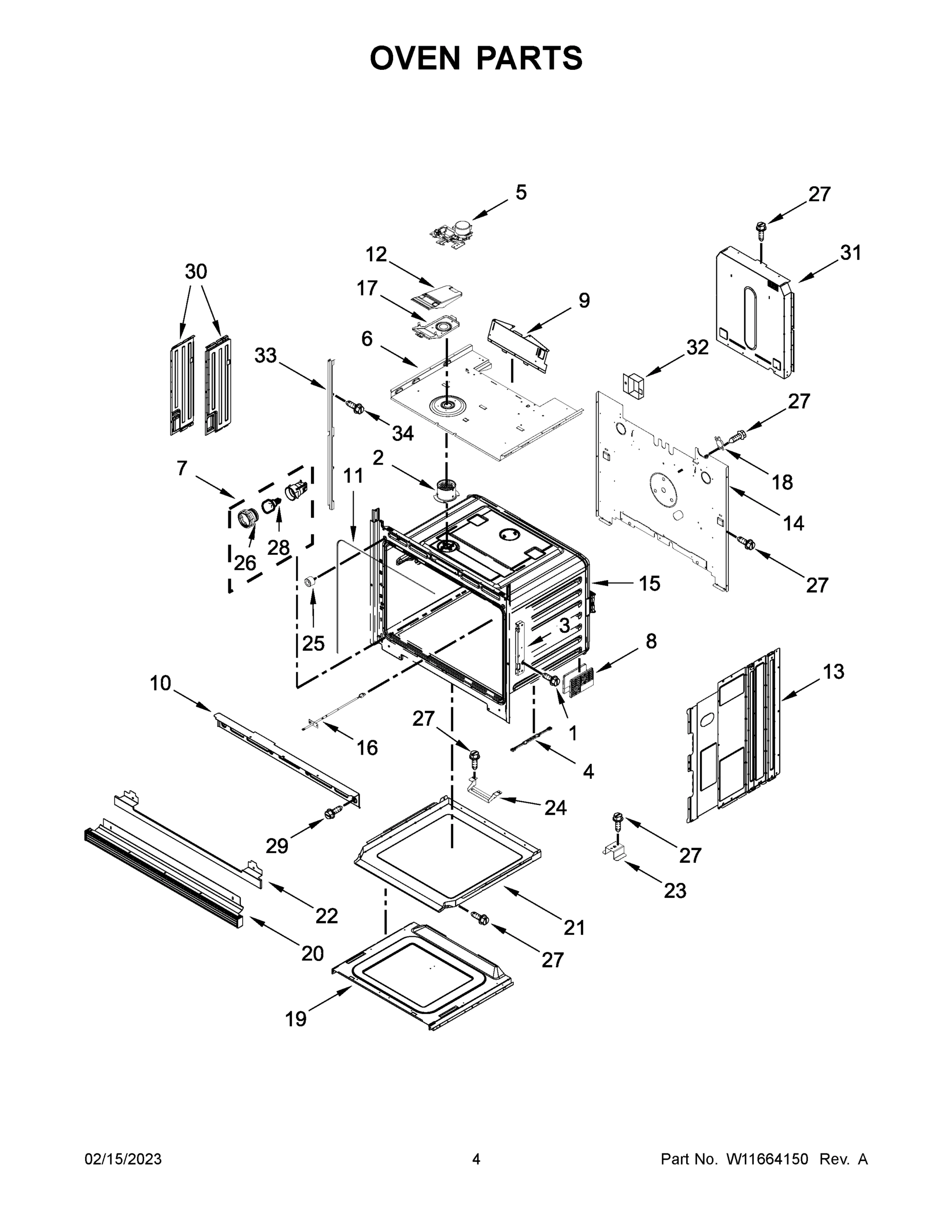

03 - OVEN PARTS

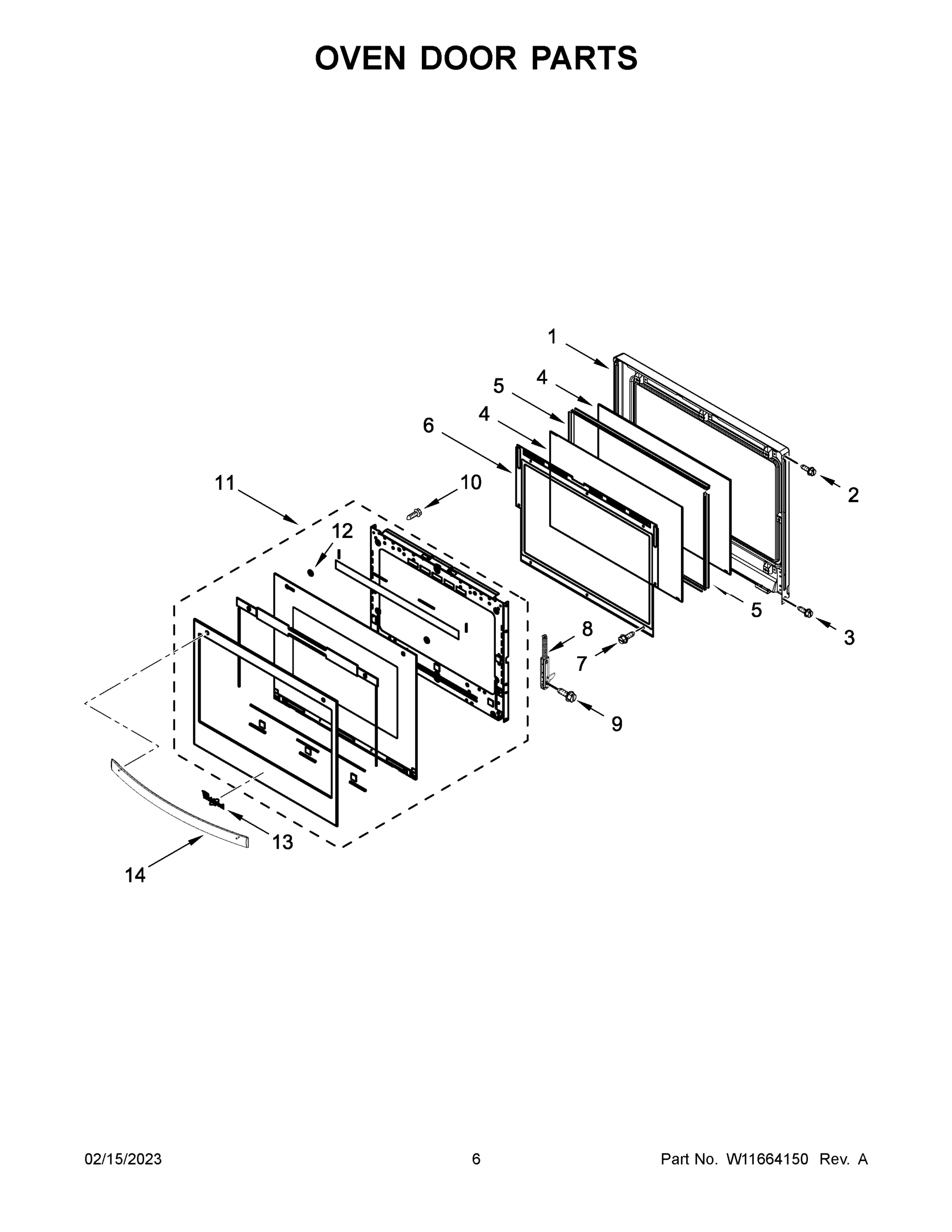

04 - OVEN DOOR PARTS

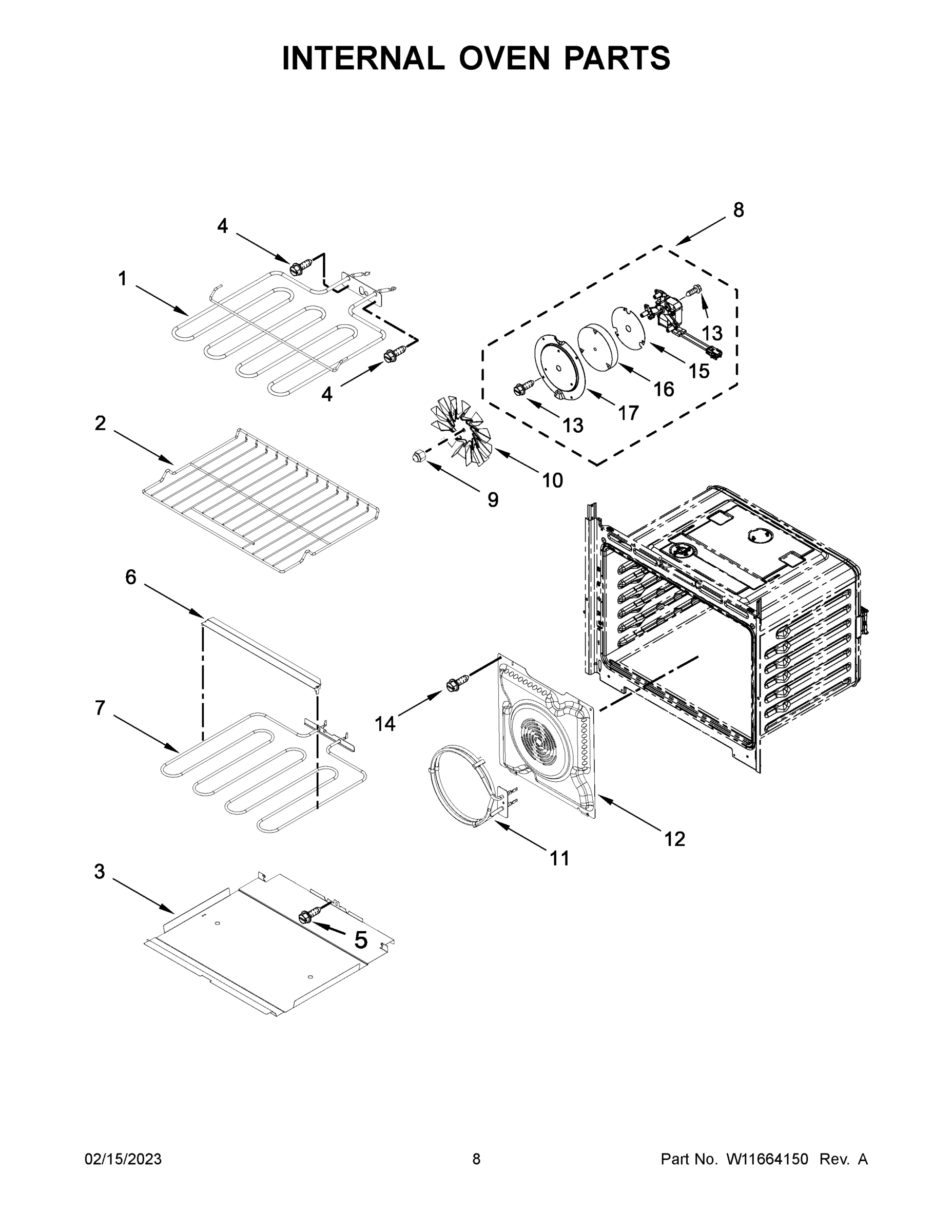

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WOS72EC7HV21 WALL OVEN, ELECTRIC
2
SCREW WPL 7101P37560 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
TOP, CHASSIS WPL W11244456 Contact Us For Availability
8
HINGE, DOOR (LEFT) WPL W11296098 Contact Us For Availability
8A
HINGE, DOOR (RIGHT) WPL W11296099 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
10
VENT, TOP 27 IN WPL W11334858 Contact Us For Availability
11
GASKET, CAVITY WPL W11608109 Contact Us For Availability
11
DOOR ASSEMBLY (BLACK STAINLESS) WPL W11286342 Contact Us For Availability
12
BAFFLE, CONVECTION WPL W10359278 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability
13
SIDE, CHASSIS WPL W11165274 Contact Us For Availability
14
DIVIDER, CHASSIS BACK WPL W11166802 Contact Us For Availability
14
HANDLE ASSEMBLY (BLACK STAINLESS) WPL W10903344 Contact Us For Availability
15
PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability
16
INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability
17
BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability
17
COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability
19
BASE, CHASSIS WPL W11244454 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (BLACK) WPL W11369893 Contact Us For Availability
21
DUCT, BOTTOM CHASSIS WPL W11244446 Contact Us For Availability
23
SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability
31
DUCT, CHASSIS BACK (UPPER) WPL W11165250 Contact Us For Availability
32
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
33
COVER, SIDE TRIM (BLACK (LEFT)) WPL W11235463 Contact Us For Availability
33A
COVER, SIDE TRIM (BLACK (RIGHT)) WPL W11235462 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
NI
ACCESSORY PARTS, BUILT-IN OVEN SIDE TRIM KIT WPL W10536160 Contact Us For Availability
NI
HARNESS, CONSOLE WPL W11233570 Contact Us For Availability
NI
BRACKET, HARNESS WPL W10655464 Contact Us For Availability
NI
CLAMP, CONDUIT WPL 4448664 Contact Us For Availability
NI
SCREW, GROUNDING WPL 4450800 Contact Us For Availability
NI
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
NI
CLIP, HARNESS WPL W10487999 Contact Us For Availability
NI
HARNESS, MAIN WPL W11256623 Contact Us For Availability
NI
HARNESS, SIGNAL WPL W11256626 Contact Us For Availability
NI
BAG, HARDWARE WPL W11547720 Contact Us For Availability
NI
INSULATION, WRAP WPL W11244474 Contact Us For Availability
NI
INSULATION, BACK WPL W11244475 Contact Us For Availability
NI
ACCESSORY PARTS, AIR FRY BASKET WPL W11548747 Contact Us For Availability
NI
ACCESSORIES, TRIM, TALL VENT (STAINLESS) WPL W11570324 Contact Us For Availability
NI
ACCESSORIES, TRIM, TALL VENT (BLACK) WPL W11570326 Contact Us For Availability
× ![]()
