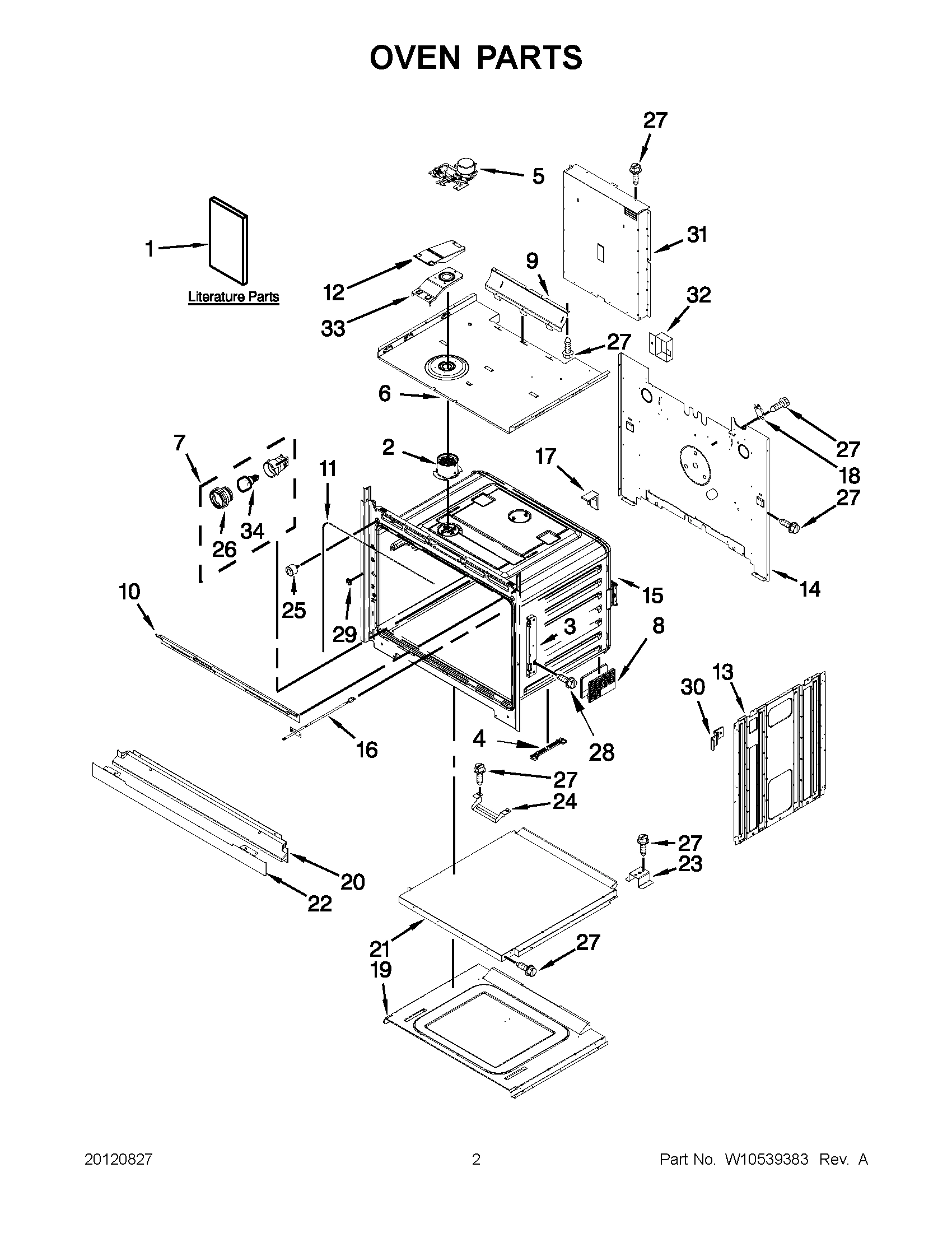

Model Whirlpool WOS51EC7AB01 27`` BUILT-IN ELECTRIC SINGLE OVEN NON-CONVECTION – Common Parts & Diagrams

4
SPACER, LATERAL
SPACER, LATERAL WPL W10363824 Contact Us For Availability
View on Model
6
SCREW
SCREW WPL 7101P40360 Contact Us For Availability
View on Model
7

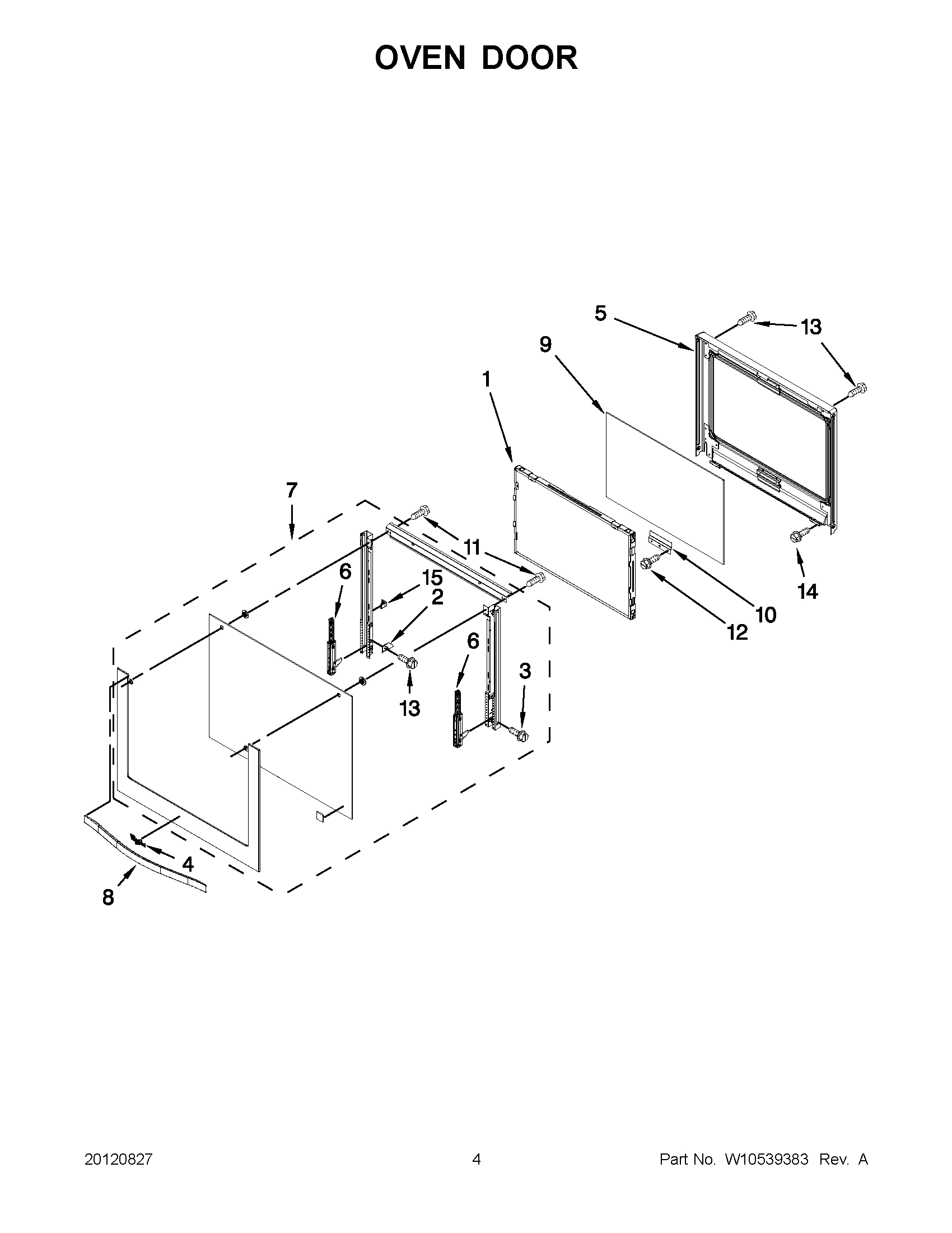

ASSEMBLY, DOOR GLASS (STAINLESS)
ASSEMBLY, DOOR GLASS (STAINLESS) WPL W10329435 Contact Us For Availability
View on Model
7
ASSEMBLY, DOOR GLASS (BLACK)
ASSEMBLY, DOOR GLASS (BLACK) WPL W10363085 Contact Us For Availability
View on Model
8
DOOR HANDLE (WHITE)
DOOR HANDLE (WHITE) WPL W10344486 Contact Us For Availability
View on Model
8
DOOR HANDLE (BLACK)
DOOR HANDLE (BLACK) WPL W10344485 Contact Us For Availability
View on Model
8
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
9
Screw
Screw WPL 7101P43460 Contact Us For Availability
View on Model
10
VENT, TOP 27``
VENT, TOP 27`` WPL W10283037 Contact Us For Availability
View on Model
10
BRACKET, BLOWER RIGHT
BRACKET, BLOWER RIGHT WPL W10283078 Contact Us For Availability
View on Model
10
BRACKET, BLOWER LEFT
BRACKET, BLOWER LEFT WPL W10351257 Contact Us For Availability
View on Model
12
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
View on Model
13
SIDE, CHASSIS
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P65360 Contact Us For Availability
View on Model
13
TRAY, ELECTRONIC
TRAY, ELECTRONIC WPL W10283005 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 7101P63560 Contact Us For Availability
View on Model
14
CHASSIS, DIVIDER BACK
CHASSIS, DIVIDER BACK WPL W10509164 Contact Us For Availability
View on Model
16
CHASSIS, COVER TOP FRONT 27``
CHASSIS, COVER TOP FRONT 27`` WPL W10318193 Contact Us For Availability
View on Model
17
CHASSIS, COVER TOP BACK 27``
CHASSIS, COVER TOP BACK 27`` WPL W10318195 Contact Us For Availability
View on Model
18
Nut
Nut WPL 7103P02760 Contact Us For Availability
View on Model
19
BASE, CHASSIS
BASE, CHASSIS WPL W10282901 Contact Us For Availability
View on Model
30
SPACERS, FRONT
SPACERS, FRONT WPL W10347649 Contact Us For Availability
View on Model
31
CHASSIS, BACK DUCT UPPER
CHASSIS, BACK DUCT UPPER WPL W10318196 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
ACCESSORIES, SS CLEANER
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R WPL W10123240 Contact Us For Availability
View on Model
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (Citrine White)
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10520716 Contact Us For Availability
View on Model
NI
WIRING HARNESS PARTS, HARNESS, DOOR LATCH
WIRING HARNESS PARTS, HARNESS, DOOR LATCH WPL W10284933 Contact Us For Availability
View on Model
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP
WIRING HARNESS PARTS, LEAD, GROUND STRAP WPL 4452400 Contact Us For Availability
View on Model
