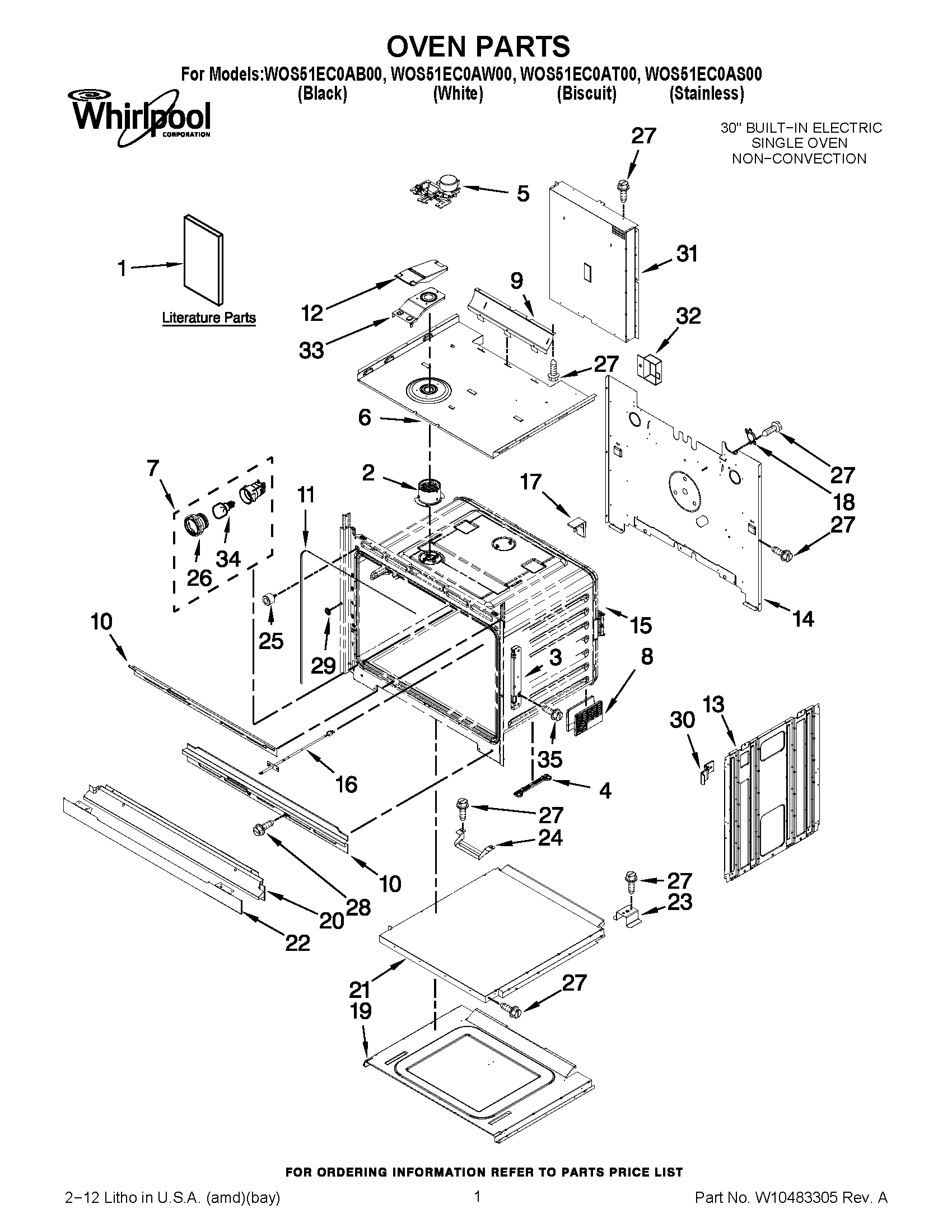

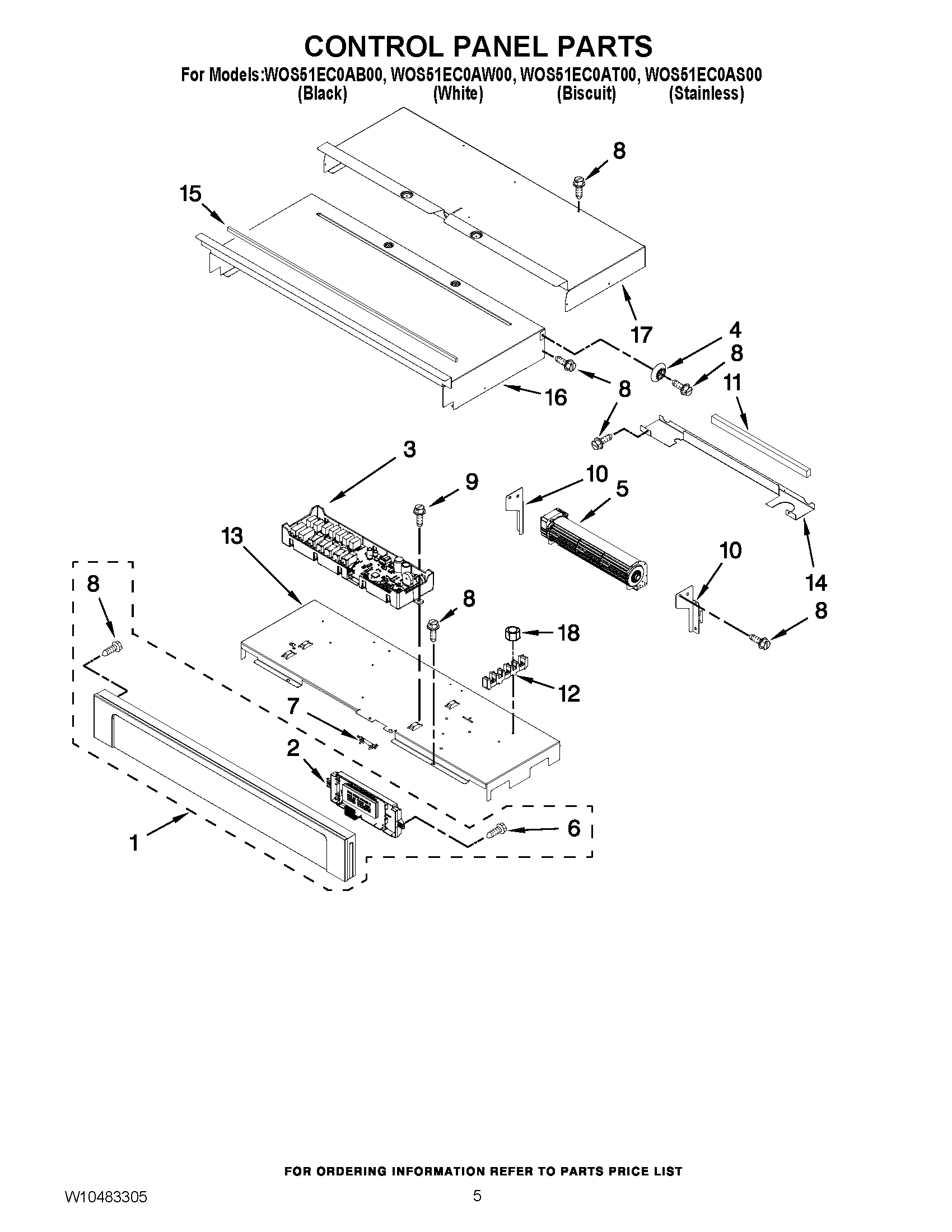

Model Whirlpool WOS51EC0AT00 30`` BUILT-IN ELECTRIC SINGLE OVEN NON-CONVECTION – Common Parts & Diagrams

4
Screw
Screw WPL 7101P37660 Contact Us For Availability
View on Model
5
BLOWER
BLOWER WPL W10286217 Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
7
ASSEMBLY, DOOR GLASS (BLACK)
ASSEMBLY, DOOR GLASS (BLACK) WPL W10352597 Contact Us For Availability
View on Model
7
ASSEMBLY, DOOR GLASS (WHITE)
ASSEMBLY, DOOR GLASS (WHITE) WPL W10352598 Contact Us For Availability
View on Model
7
ASSEMBLY, DOOR GLASS (BISCUIT)
ASSEMBLY, DOOR GLASS (BISCUIT) WPL W10352599 Contact Us For Availability
View on Model
8
DOOR HANDLE (BLACK)
DOOR HANDLE (BLACK) WPL W10327379 Contact Us For Availability
View on Model
8
DOOR HANDLE (WHITE)
DOOR HANDLE (WHITE) WPL W10327380 Contact Us For Availability
View on Model
8
DOOR HANDLE (BISCUIT)
DOOR HANDLE (BISCUIT) WPL W10317138 Contact Us For Availability
View on Model
10
VENT, TOP 30``
VENT, TOP 30`` WPL W10283036 Contact Us For Availability
View on Model
13
SIDE, CHASSIS
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P65360 Contact Us For Availability
View on Model
14
BACK, CHASSIS
BACK, CHASSIS WPL W10282990 Contact Us For Availability
View on Model
14
SCREW
SCREW WPL 7101P63560 Contact Us For Availability
View on Model
15
LINER, OVEN (NOT SERVICEABLE)
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
View on Model
16
CHASSIS, COVER TOP FRONT 30``
CHASSIS, COVER TOP FRONT 30`` WPL W10318192 Contact Us For Availability
View on Model
16
SENSOR
SENSOR WPL 7430P04360 Contact Us For Availability
View on Model
23
SUPPORT, AIR CHANNEL
SUPPORT, AIR CHANNEL WPL W10213759 Contact Us For Availability
View on Model
24
CHASSIS, BOTTOM DUCT SPACER
CHASSIS, BOTTOM DUCT SPACER WPL W10351308 Contact Us For Availability
View on Model
30
SPACERS, FRONT
SPACERS, FRONT WPL W10347649 Contact Us For Availability
View on Model
31
CHASSIS, BACK DUCT UPPER
CHASSIS, BACK DUCT UPPER WPL W10318196 Contact Us For Availability
View on Model
32
Cover, Connector
Cover, Connector WPL 8285593 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
ALL PURPOSE APPLIANCE CLEANER
ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (Citrine White)
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
View on Model
NI
HARNESS, DOOR LATCH
HARNESS, DOOR LATCH WPL W10284933 Contact Us For Availability
View on Model
NI
Lead, Ground Strap
Lead, Ground Strap WPL 4452400 Contact Us For Availability
View on Model
NI
STAINLESS STEEL, CLEANER & POLISH
STAINLESS STEEL, CLEANER & POLISH WPL 31462 Contact Us For Availability
View on Model
NI
Clamp
Clamp WPL 4448664 Contact Us For Availability
View on Model
NI
Screw, Ground
Screw, Ground WPL 4450800 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN WPL W10286225 Contact Us For Availability
View on Model
NI
BRACKET, HARNESS
BRACKET, HARNESS WPL W10318214 Contact Us For Availability
View on Model
