Model Whirlpool WOEC3030LS00 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts & Diagrams

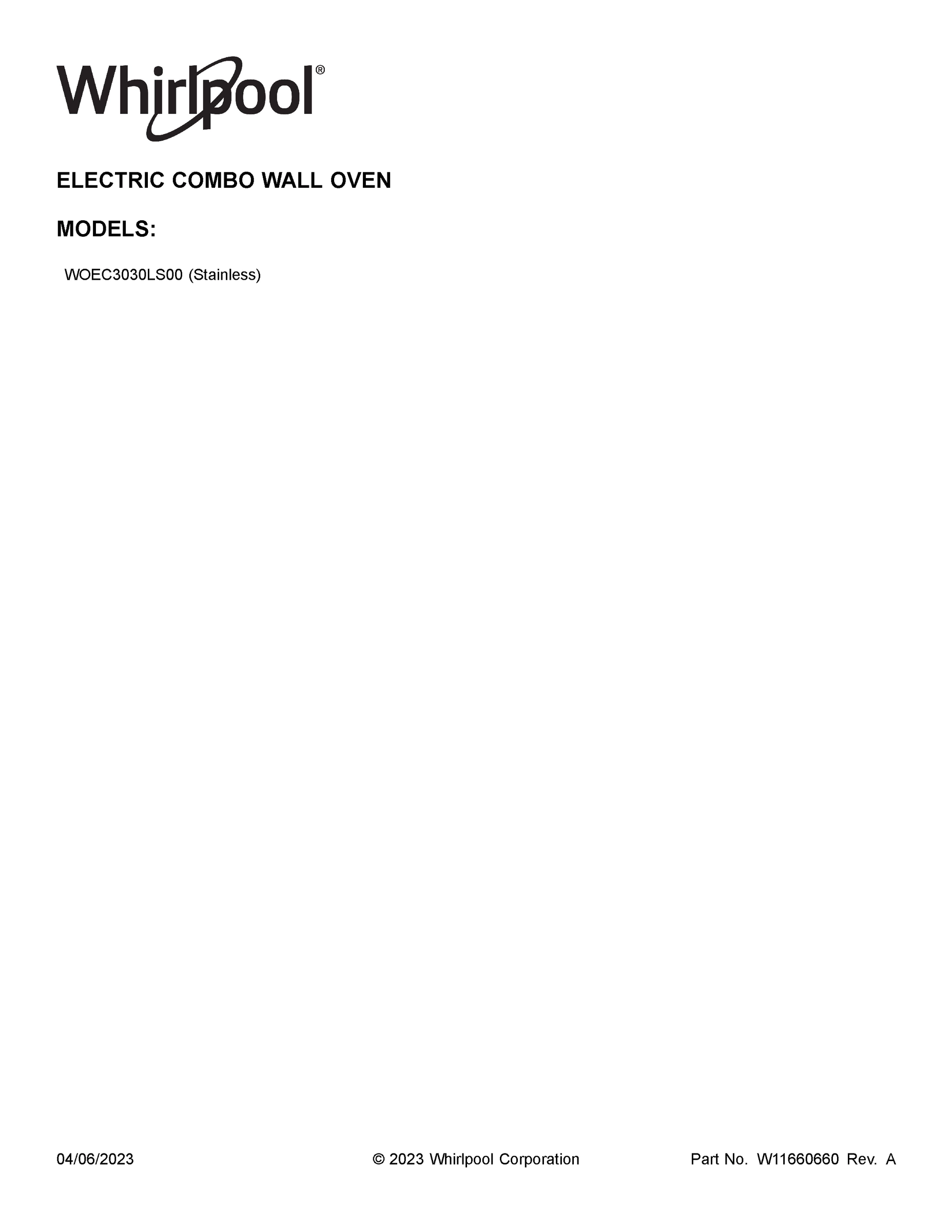

01 - COVER SHEET

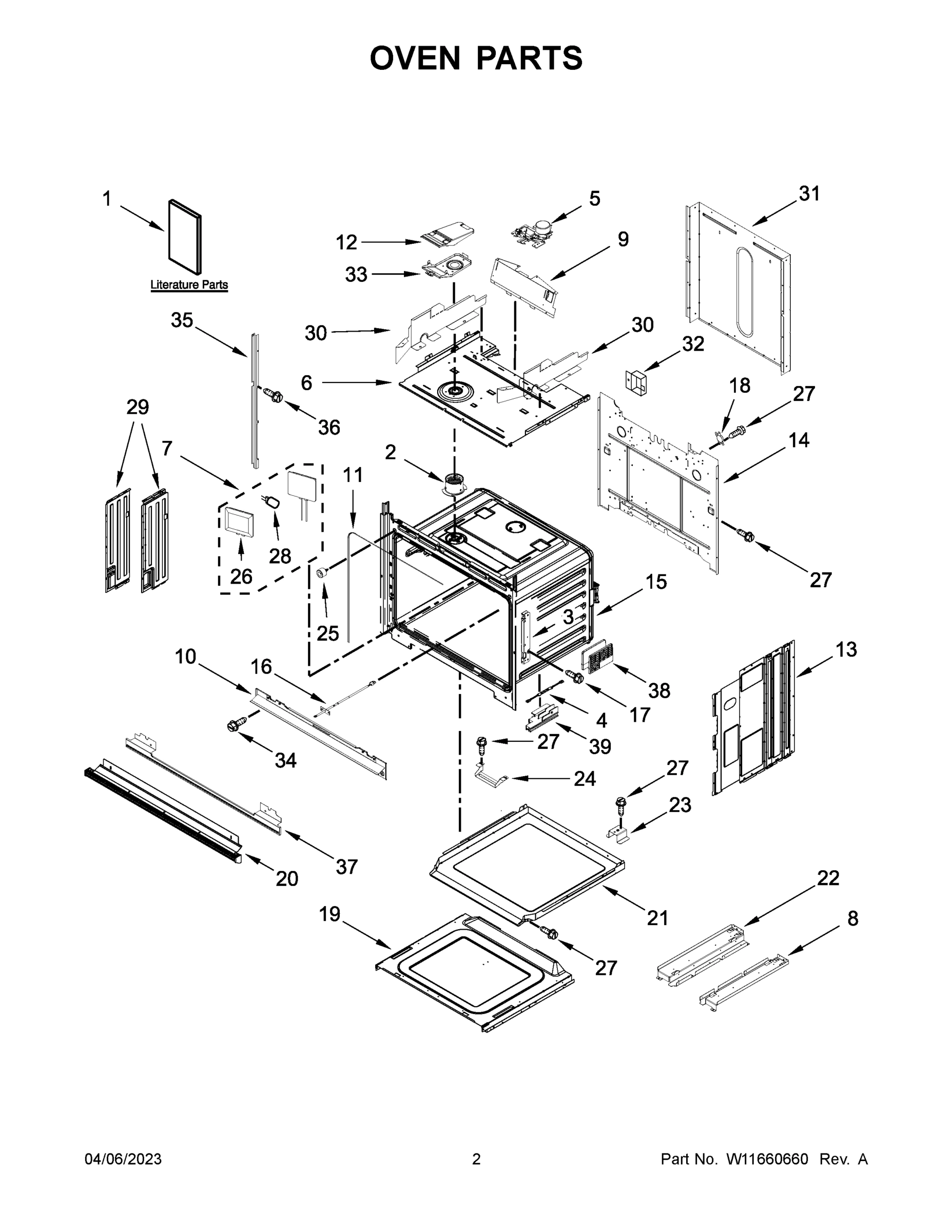

02 - OVEN PARTS
03 - CONTROL PANEL PARTS
04 - OVEN DOOR PARTS
05 - INTERNAL OVEN PARTS
06 - CABINET AND STIRRER PARTS
07 - INTERNAL MICROWAVE PARTS
08 - TOP VENTING PARTS
09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WOEC3030LS00 WALL OVEN, ELECTRIC, MICRO COMBO
1
CAP, SCREW WPL 8304588BL Contact Us For Availability
1
SIDE, BRACKET WPL W10283024 Contact Us For Availability
2
SCREW WPL 7101P37560 Contact Us For Availability
2
SUPPORT, CROSSBAR WPL W10283022 Contact Us For Availability
2
SCREW WPL 7101P33860 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
3
SCREW WPL 7101P42660 Contact Us For Availability
3
TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability
4
FOAM, DOOR HANDLE WPL W10359769 Contact Us For Availability
4
CHASSIS, COMBO SIDE WPL W10655467 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
4
VENT, TOP MICROWAVE WPL W11334716 Contact Us For Availability
4
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
5
SUPPORT, MICROWAVE MODULE WPL W10356644 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
SCREW WPL 7101P40360 Contact Us For Availability
7
COVER, COMBO CHASSIS BACK DUCT WPL W11171004 Contact Us For Availability
8
STEAMER, MICROWAVE WPL 8205262RB Contact Us For Availability
8
SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability
8A
SIDE, COMBO CHASSIS (RIGHT) WPL W11171919 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
9
SCREW WPL 7101P42760 Contact Us For Availability
9
COVER, SLOT MODULE WPL W10356437 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) WPL W10655463 Contact Us For Availability
10
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) WPL W10655462 Contact Us For Availability
11
SPRING, LAMP WPL W10465869 Contact Us For Availability
11
SIDERAIL, COMBO (LEFT) WPL W11627410 Contact Us For Availability
12
DIVIDER, CHASSIS BACK WPL W11166802 Contact Us For Availability
12
SIDERAIL, COMBO (RIGHT) WPL W11627411 Contact Us For Availability
13
CHASSIS, COVER TOP FRONT 30 IN WPL W10318158 Contact Us For Availability
14
CHASSIS, COVER TOP BACK 30 IN WPL W10588732 Contact Us For Availability
15
COVER, COMBO BLOWER WPL W10681157 Contact Us For Availability
17
REFLECTOR WPL 423107022541 Contact Us For Availability
18
COVER, WIFI WPL W11533682 Contact Us For Availability
19
CLIP, SPRING WPL W11440819 Contact Us For Availability
25
SCREW WPL 461967825971 Contact Us For Availability
33
SEALING, LAMP WPL W10769147 Contact Us For Availability
34
SCREW WPL 461967825321 Contact Us For Availability
37
HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability
38
HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) WPL 350956 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI WPL W10123240 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
NI
INSULATION, WRAP WPL W11188284 Contact Us For Availability
NI
STRAP, GROUND WPL W11226264 Contact Us For Availability
NI
INSULATION, CAVITY WPL W11234758 Contact Us For Availability
NI
HARNESS, COMMUNI WPL W11249930 Contact Us For Availability
NI
WPL W11356991 WPL W11356991 Contact Us For Availability
NI
WPL W11659374 WPL W11659374 Contact Us For Availability
NI
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
NI
HARNESS, INVERTER WPL W11539494 Contact Us For Availability
NI
HARNESS, INTERLOCK WPL W11555169 Contact Us For Availability
NI
HARNESS, INPUT WPL W11555848 Contact Us For Availability
NI
ACCESSORIES, VENT, DEFLECTOR (STAINLESS) WPL W11551866 Contact Us For Availability
NI
ACCESSORIES, TRIM, BOTTOM VENT (STAINLESS) WPL W11570321 Contact Us For Availability
NI
ACCESSORIES, TRIM, TALL VENT (STAINLESS) WPL W11570323 Contact Us For Availability
NI
ACCESSORIES, TRIM, TALL VENT (BLACK) WPL W11570325 Contact Us For Availability
× ![]()
