Model Whirlpool WOD51EC7AS00 27`` BUILT-IN ELECTRIC DOUBLE OVEN NON-CONVECTION – Common Parts & Diagrams
07 - OPTIONAL PARTS

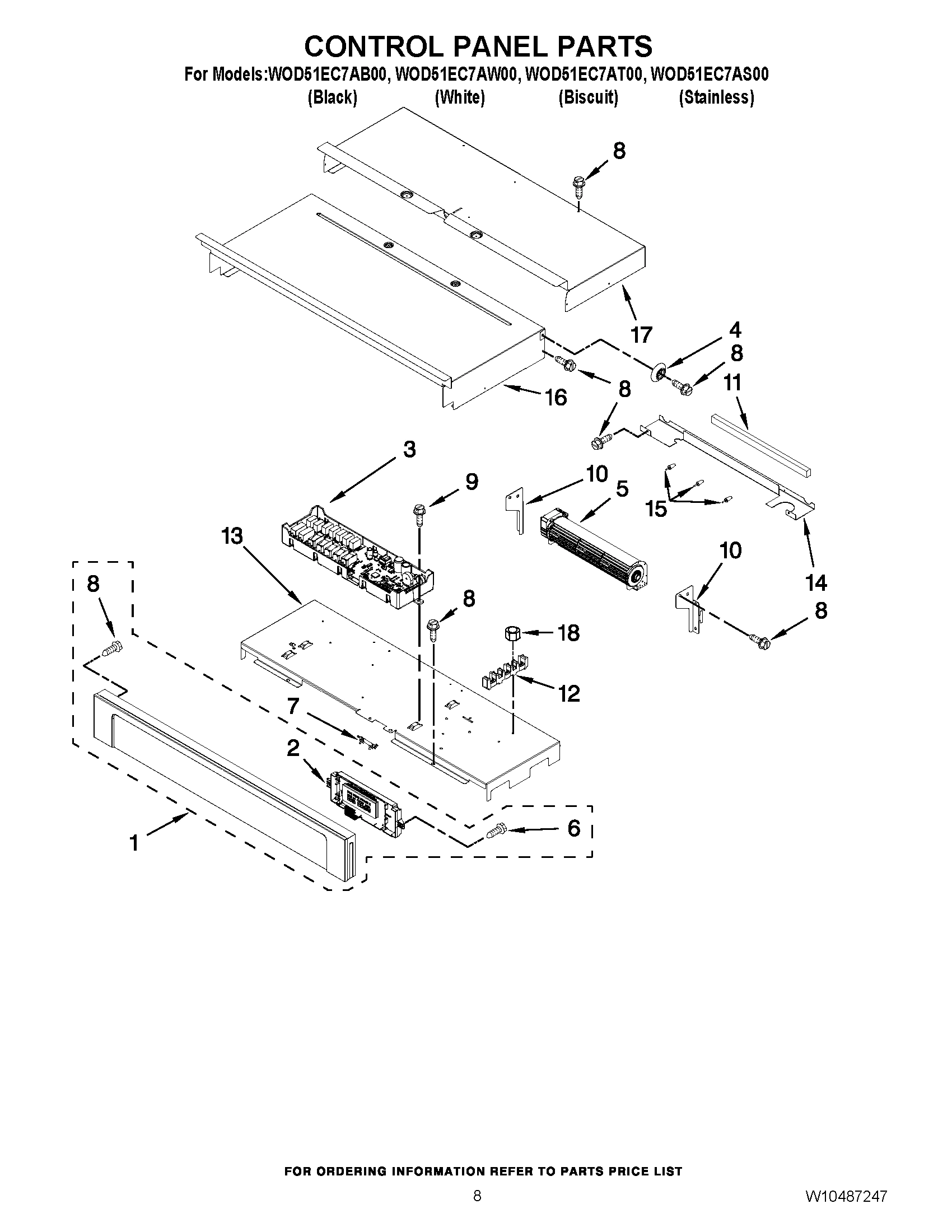

06 - CONTROL PANEL PARTS
04 - UPPER OVEN DOOR PARTS
02 - UPPER OVEN PARTS
01 - LOWER OVEN PARTS
03 - LOWER OVEN DOOR PARTS
05 - INTERNAL OVEN PARTS
Common parts from model Whirlpool WOD51EC7AS00 27`` BUILT-IN ELECTRIC DOUBLE OVEN NON-CONVECTION
1
SPACERS, FRONT WPL W10347649 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (FRENCH) WPL W10075750 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS (ENGLISH) WPL W10351242 Contact Us For Availability
1
USE & CARE GUIDE WPL W10354186 Contact Us For Availability
1
TECH SHEET (ENGLISH) WPL W10425193 Contact Us For Availability
1
TECH SHEET (FRENCH) WPL W10425194 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK WPL W10357597 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
4
Screw WPL 7101P37660 Contact Us For Availability
5
BLOWER WPL W10286217 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
6
TRAY, HIDDEN BAKE CROSSBAR WPL W10282957 Contact Us For Availability
6
TOP, CHASSIS WPL W10282981 Contact Us For Availability
6
HINGE, DOOR WPL W10352613 Contact Us For Availability
7
ASSEMBLY, DOOR GLASS (STAINLESS) WPL W10329435 Contact Us For Availability
7
ASSEMBLY, DOOR GLASS (BLACK) WPL W10363085 Contact Us For Availability
7
ASSEMBLY, DOOR GLASS (BISCUIT) WPL W10363087 Contact Us For Availability
8
DOOR HANDLE (WHITE) WPL W10344486 Contact Us For Availability
8
DOOR HANDLE (BLACK) WPL W10344485 Contact Us For Availability
8
DOOR HANDLE (BISCUIT) WPL W10317142 Contact Us For Availability
9
BRACKET, BLOWER DEFLECTOR WPL W10351258 Contact Us For Availability
10
VENT, TOP 27`` DOUBLE WPL W10283037 Contact Us For Availability
10
VENT, CENTER 27`` DOUBLE WPL W10283041 Contact Us For Availability
13
CHASSIS, SIDE WPL W10318190 Contact Us For Availability
13
SCREW WPL 7101P65360 Contact Us For Availability
14
BACK, CHASSIS WPL W10282991 Contact Us For Availability
14
SCREW WPL 7101P63560 Contact Us For Availability
15
BUMPER (LOWER MODEL ONLY) WPL W10351295 Contact Us For Availability
15
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
16
CHASSIS, COVER TOP FRONT 30`` WPL W10318193 Contact Us For Availability
16
SENSOR WPL 7430P04360 Contact Us For Availability
19
CHASSIS, BASE WPL W10282901 Contact Us For Availability
23
SUPPORT, AIR CHANNEL WPL W10213759 Contact Us For Availability
24
CHASSIS, BOTTOM DUCT SPACER WPL W10351308 Contact Us For Availability
25
BRACKET, U-SHAPE WPL W10351283 Contact Us For Availability
25
FEET, FRONT (LEFT) WPL W10471952 Contact Us For Availability
26
Connector, Cover WPL 8285593 Contact Us For Availability
31
CHASSIS, BACK DUCT UPPER WPL W10318196 Contact Us For Availability
32
CHASSIS, BACK DUCT WPL W10283000 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
HARNESS, DOOR LATCH WPL W10284933 Contact Us For Availability
NI
HARNESS, SIGNAL WPL W10284931 Contact Us For Availability
NI
Conduit, Double WPL 4450953 Contact Us For Availability
NI
Lead, Ground Strap WPL 4452400 Contact Us For Availability
NI
INSULATION, WRAP WPL W10282943 Contact Us For Availability
× ![]()
