Model Whirlpool WOD51EC0AS01 30`` BUILT-IN ELECTRIC DOUBLE OVEN NON-CONVECTION – Common Parts & Diagrams

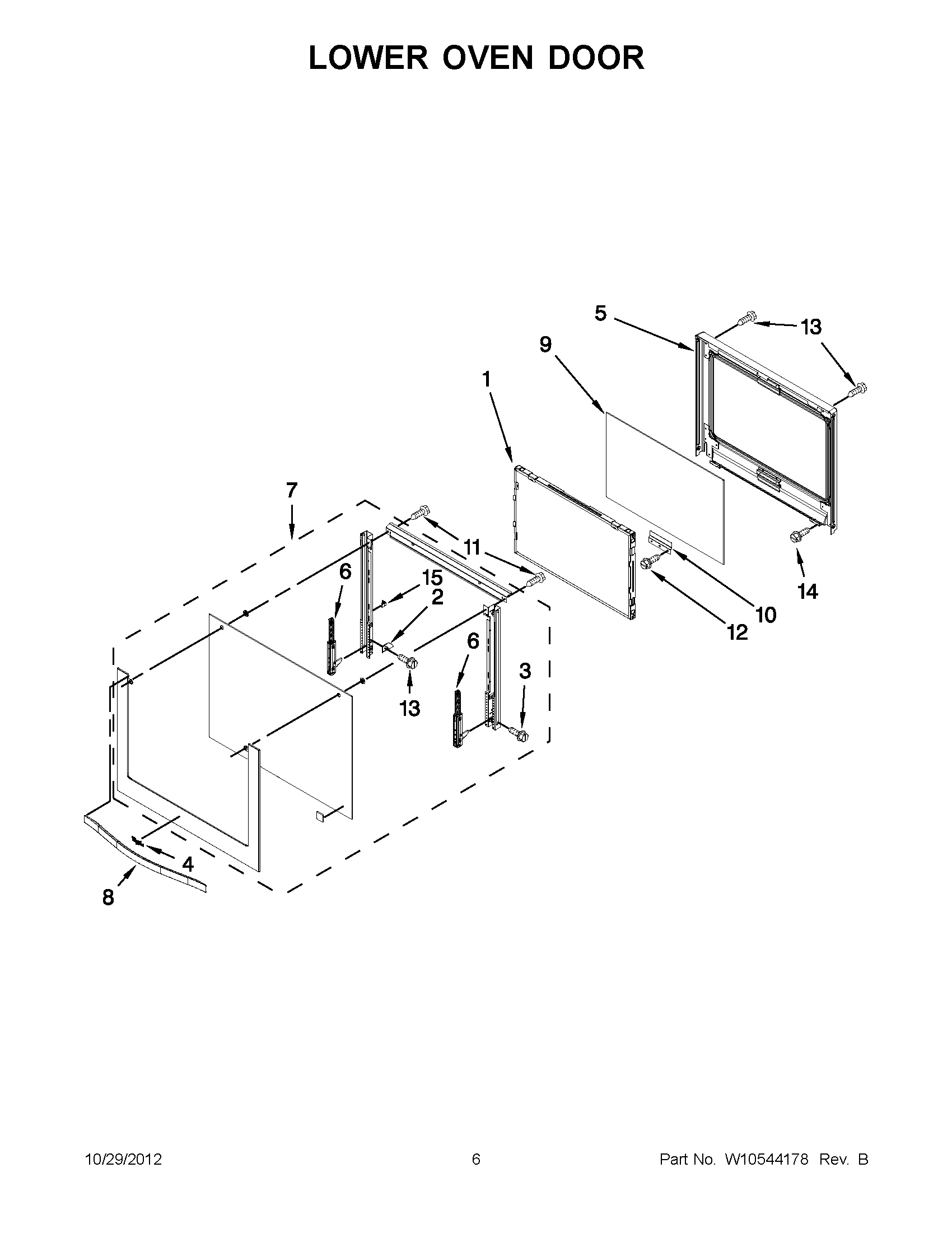

03 - LOWER OVEN DOOR

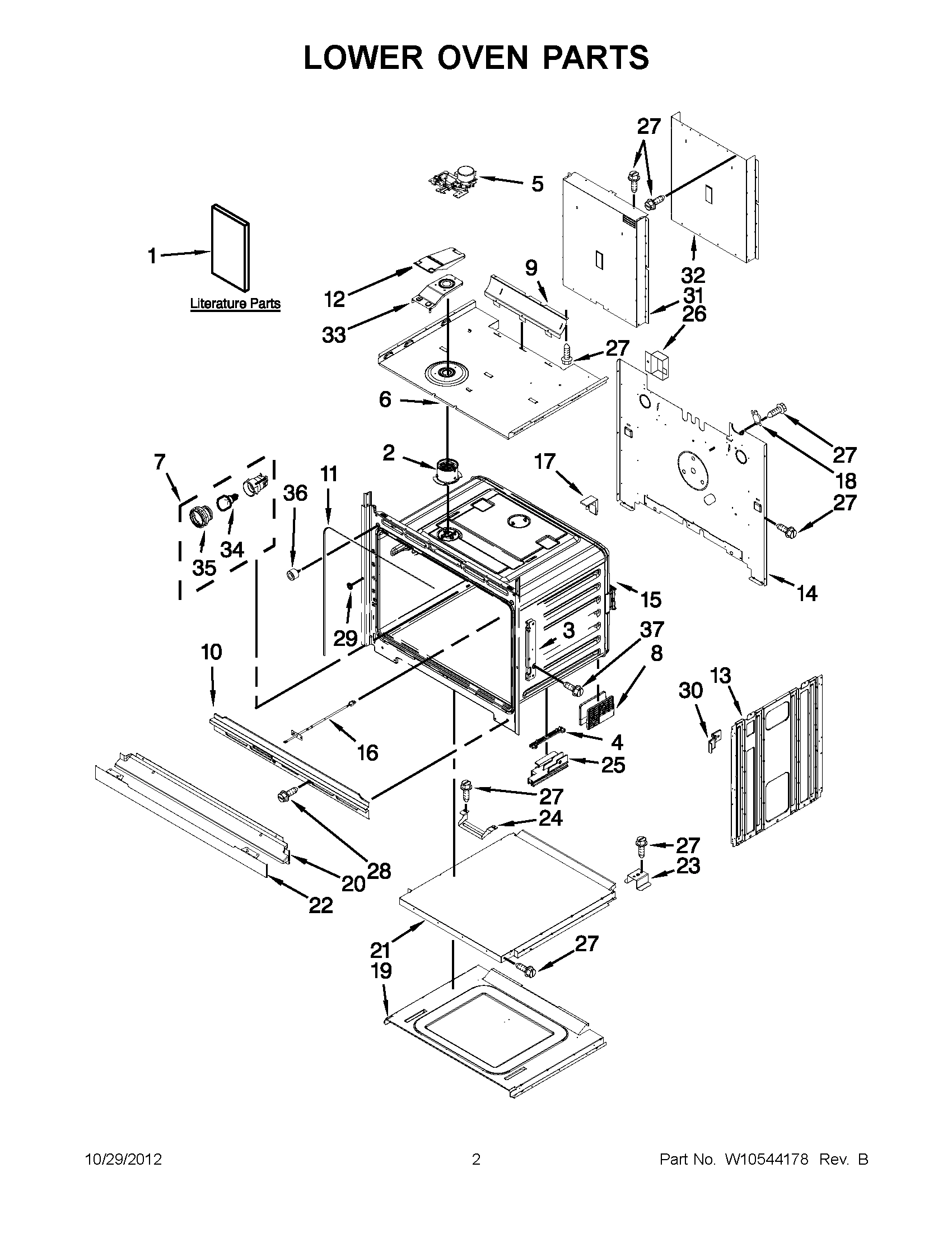

01 - LOWER OVEN PARTS
02 - UPPER OVEN PARTS
07 - OPTIONAL PARTS
05 - INTERNAL OVEN PARTS
04 - UPPER OVEN DOOR
06 - CONTROL PANEL PARTS
Common parts from model Whirlpool WOD51EC0AS01 30`` BUILT-IN ELECTRIC DOUBLE OVEN NON-CONVECTION
1
SPACERS, FRONT WPL W10347649 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
5
BLOWER (LOWER) WPL W10286217 Contact Us For Availability
6
TRAY, HIDDEN BAKE CROSSBAR WPL W10282957 Contact Us For Availability
8
HANDLE, DOOR (BLACK) WPL W10327379 Contact Us For Availability
8
HANDLE, DOOR (WHITE) WPL W10327380 Contact Us For Availability
9
Screw WPL 7101P43460 Contact Us For Availability
10
VENT, CENTER 30`` DOUBLE WPL W10283040 Contact Us For Availability
10
BRACKET, BLOWER (RIGHT SIDE) WPL W10283078 Contact Us For Availability
10
BRACKET, BLOWER (LEFT SIDE) WPL W10351257 Contact Us For Availability
12
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
13
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
13
TRAY, ELECTRONIC WPL W10347650 Contact Us For Availability
14
BACK, CHASSIS WPL W10282990 Contact Us For Availability
14
CHASSIS, DIVIDER BACK WPL W10509164 Contact Us For Availability
15
BUMPER (LOWER MODEL ONLY) WPL W10351295 Contact Us For Availability
16
CHASSIS, COVER TOP FRONT 30`` WPL W10318192 Contact Us For Availability
18
Nut WPL 7103P02760 Contact Us For Availability
22
TRIM, BOTTOM VENT (BISCUIT) WPL W10504024 Contact Us For Availability
31
CHASSIS, BACK DUCT UPPER WPL W10318196 Contact Us For Availability
32
DUCT, CHASSIS BACK WPL W10542857 Contact Us For Availability
35
VENT, TOP 30`` WPL W10283036 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) WPL 4392901 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) WPL 350956 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R WPL W10123240 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
CORD, 4` 40 AMP 3 WIRE RANGE WPL PT220 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
CORD, 4` 40 AMP 4 WIRE RANGE WPL PT400 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
CORD, 4` 50 AMP 4 WIRE RANGE WPL PT500 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) WPL 350942 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR LATCH WPL W10284933 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SIGNAL WPL W10284931 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, DOUBLE WPL 4450953 Contact Us For Availability
NI
WIRING HARNESS PARTS, LEAD, GROUND STRAP WPL 4452400 Contact Us For Availability
NI
CORD, 6` 40 AMP 4 WIRE RANGE WPL PT600 Contact Us For Availability
× ![]()
