Model Whirlpool WOC95EC0AB01 MICROWAVE – Common Parts & Diagrams

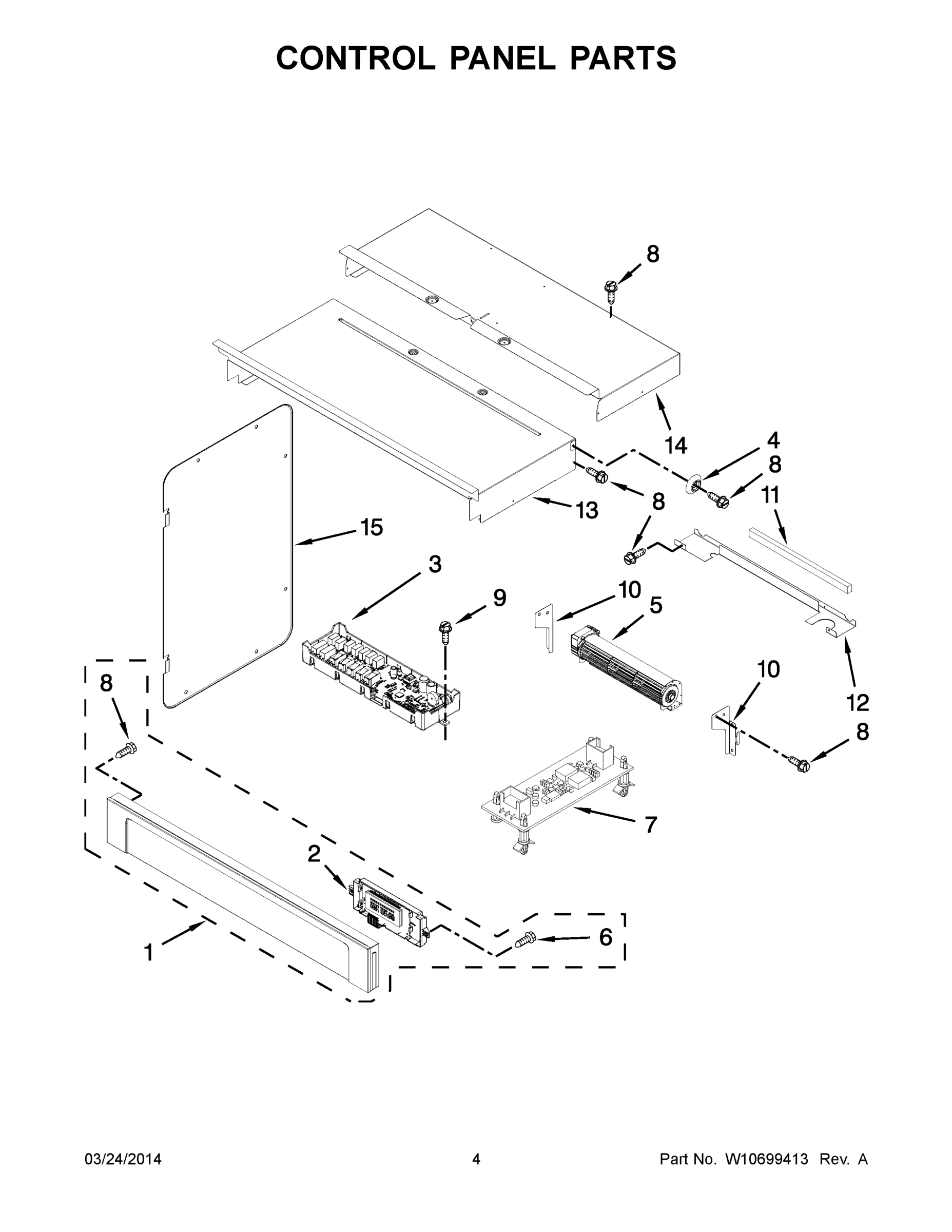

03 - CONTROL PANEL PARTS

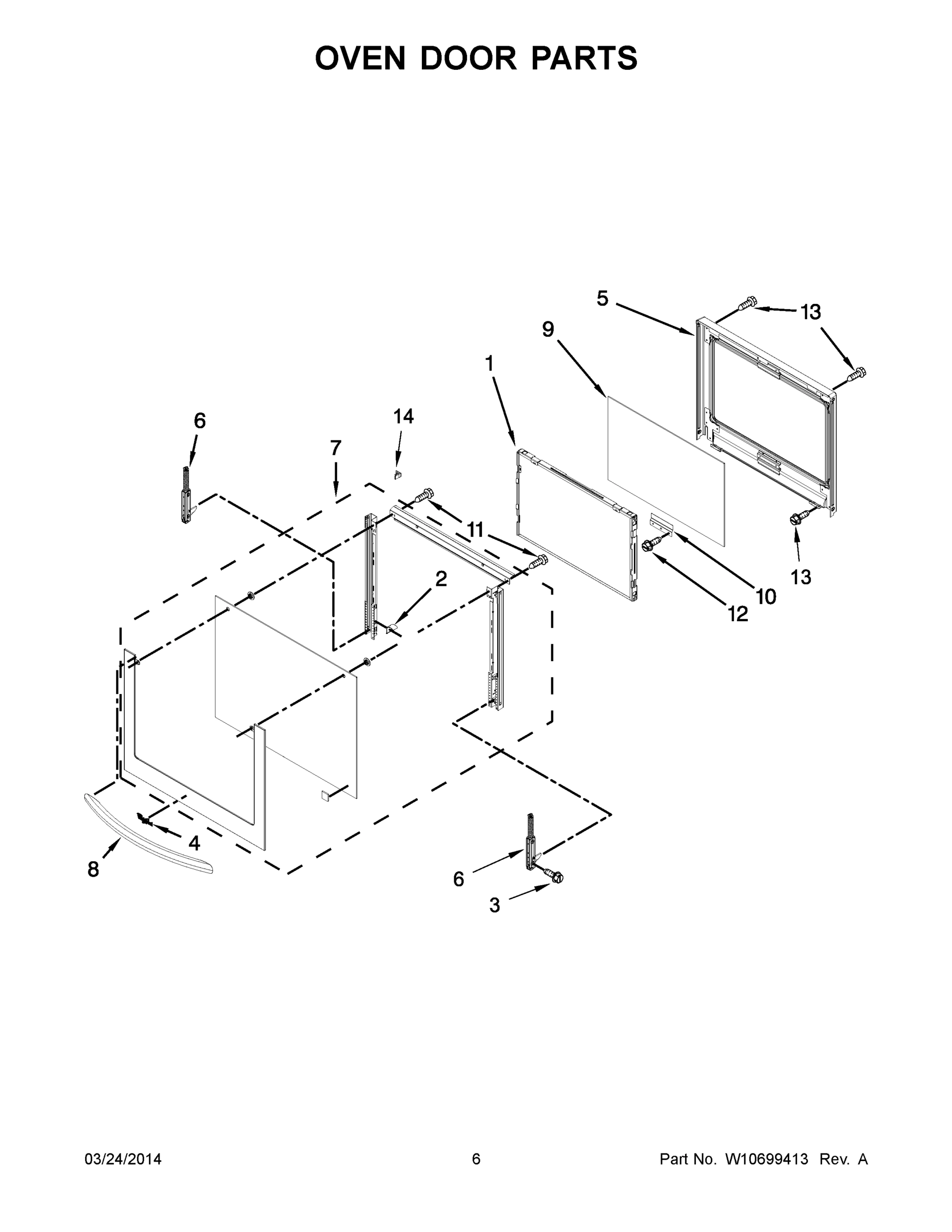

04 - OVEN DOOR PARTS

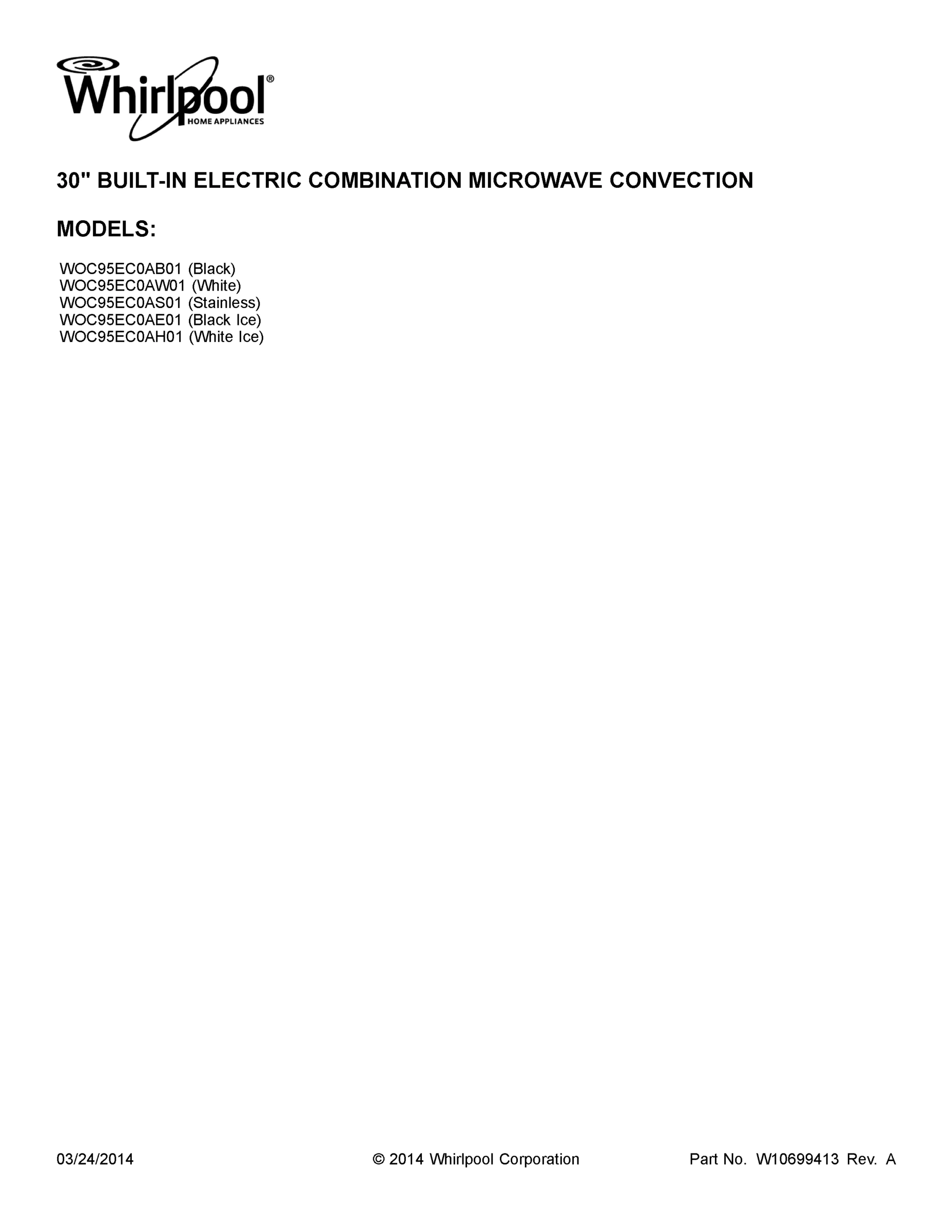

01 - COVER SHEET

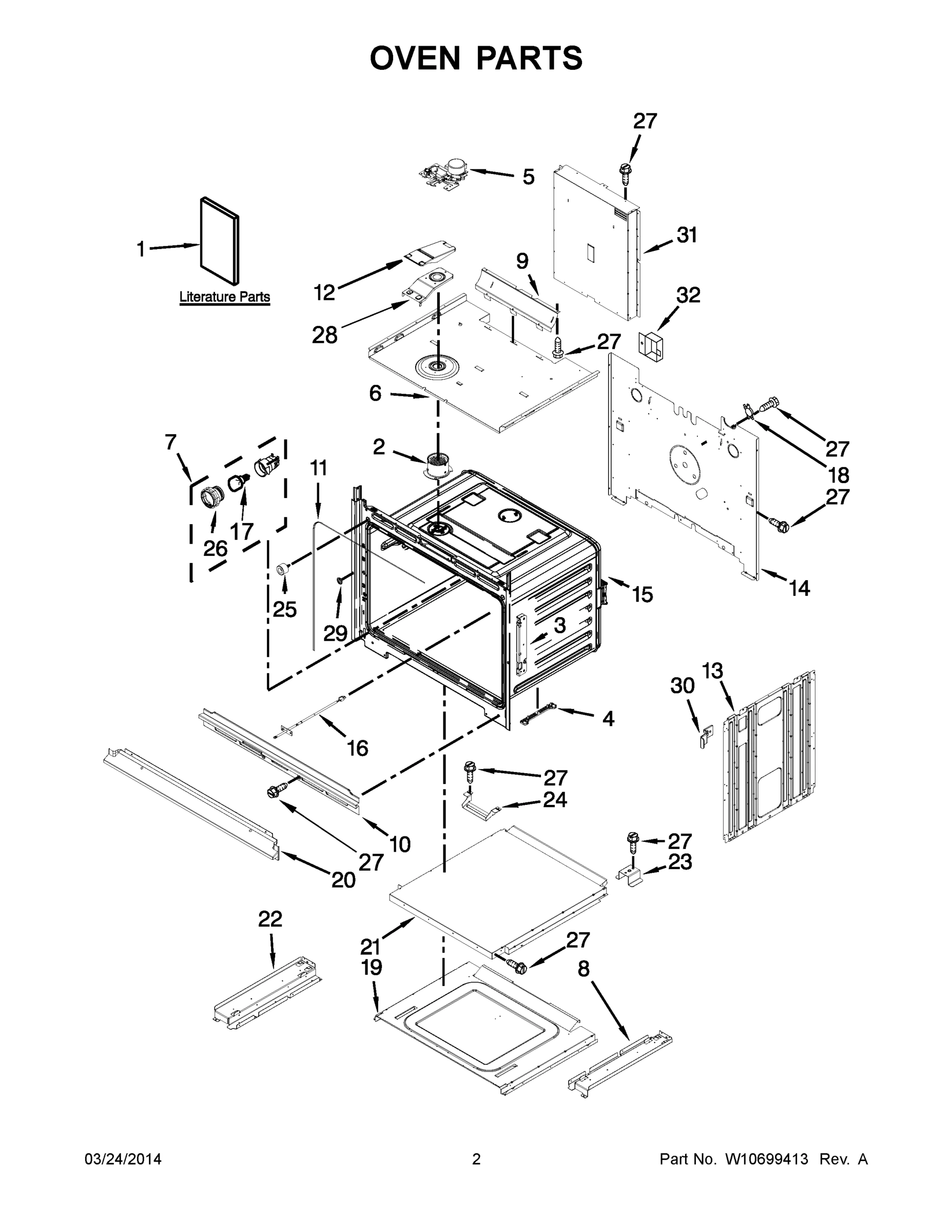

02 - OVEN PARTS

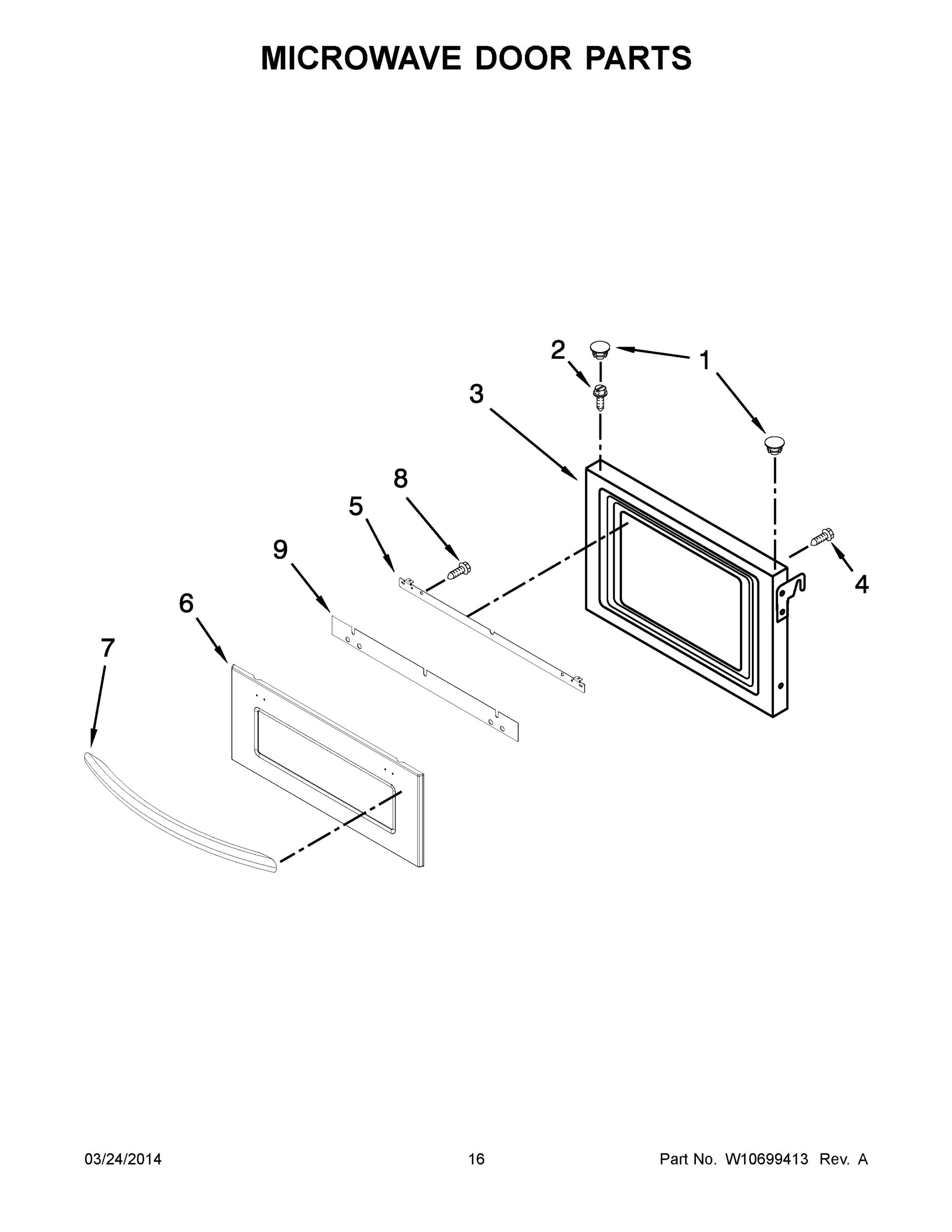

09 - MICROWAVE DOOR PARTS

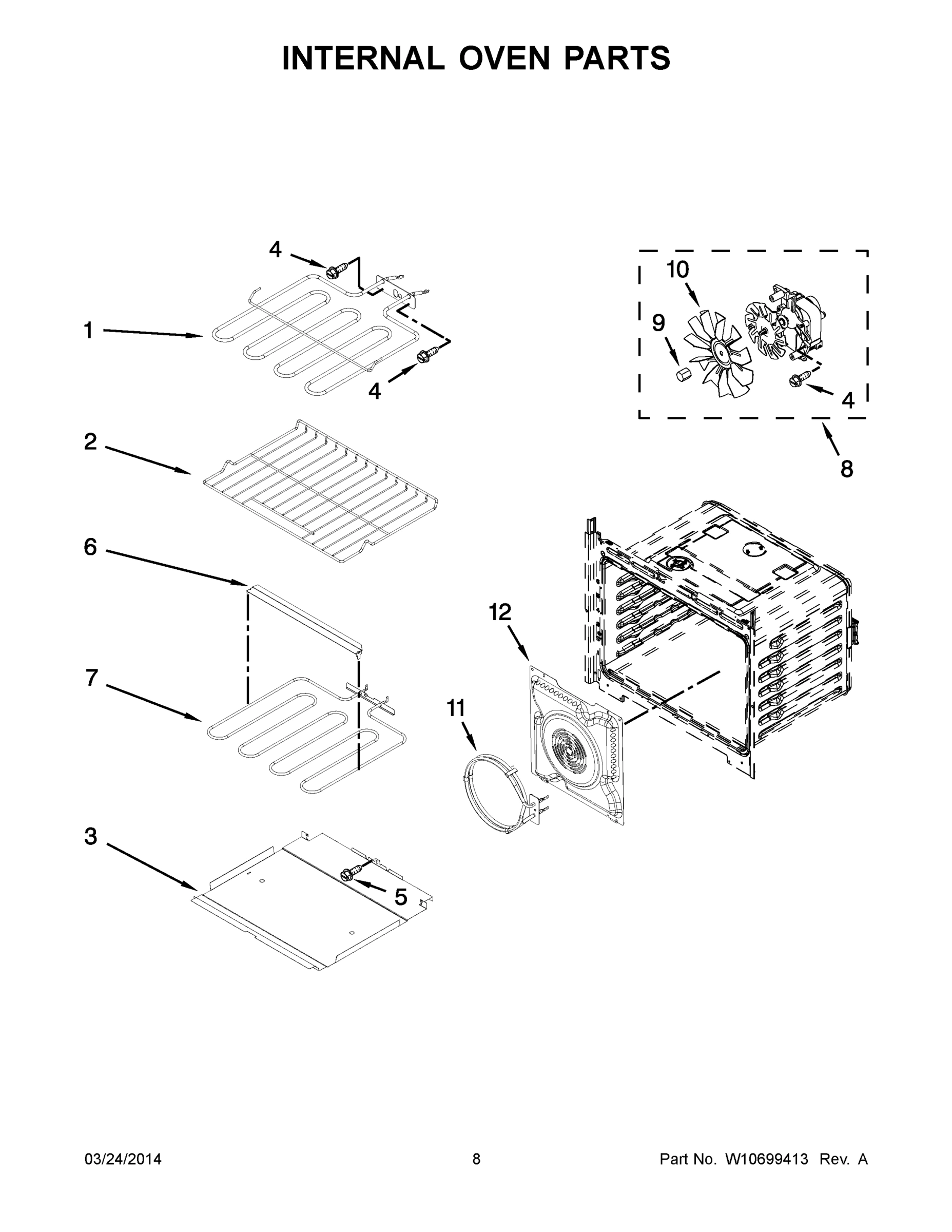

05 - INTERNAL OVEN PARTS

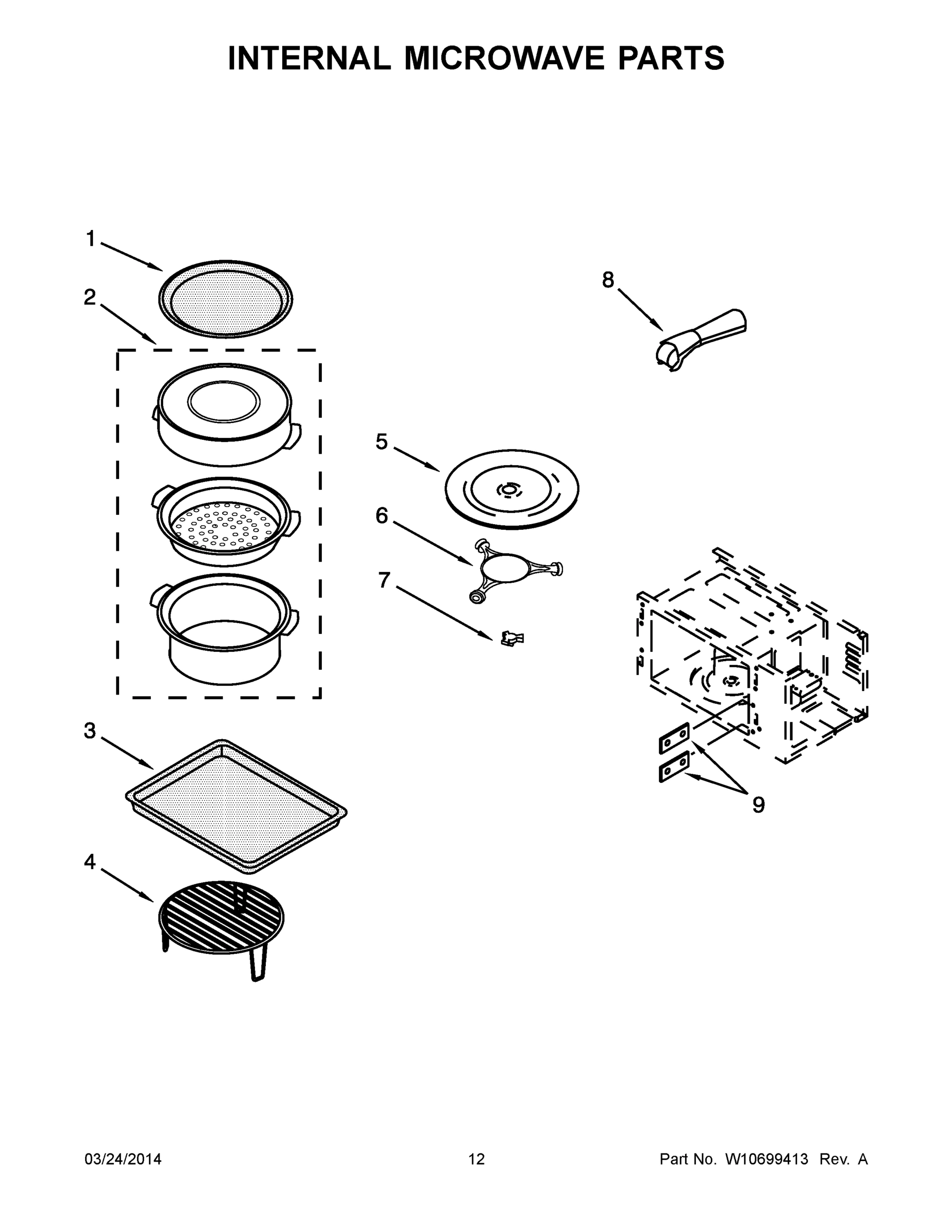

07 - INTERNAL MICROWAVE PARTS
10 - OPTIONAL PARTS

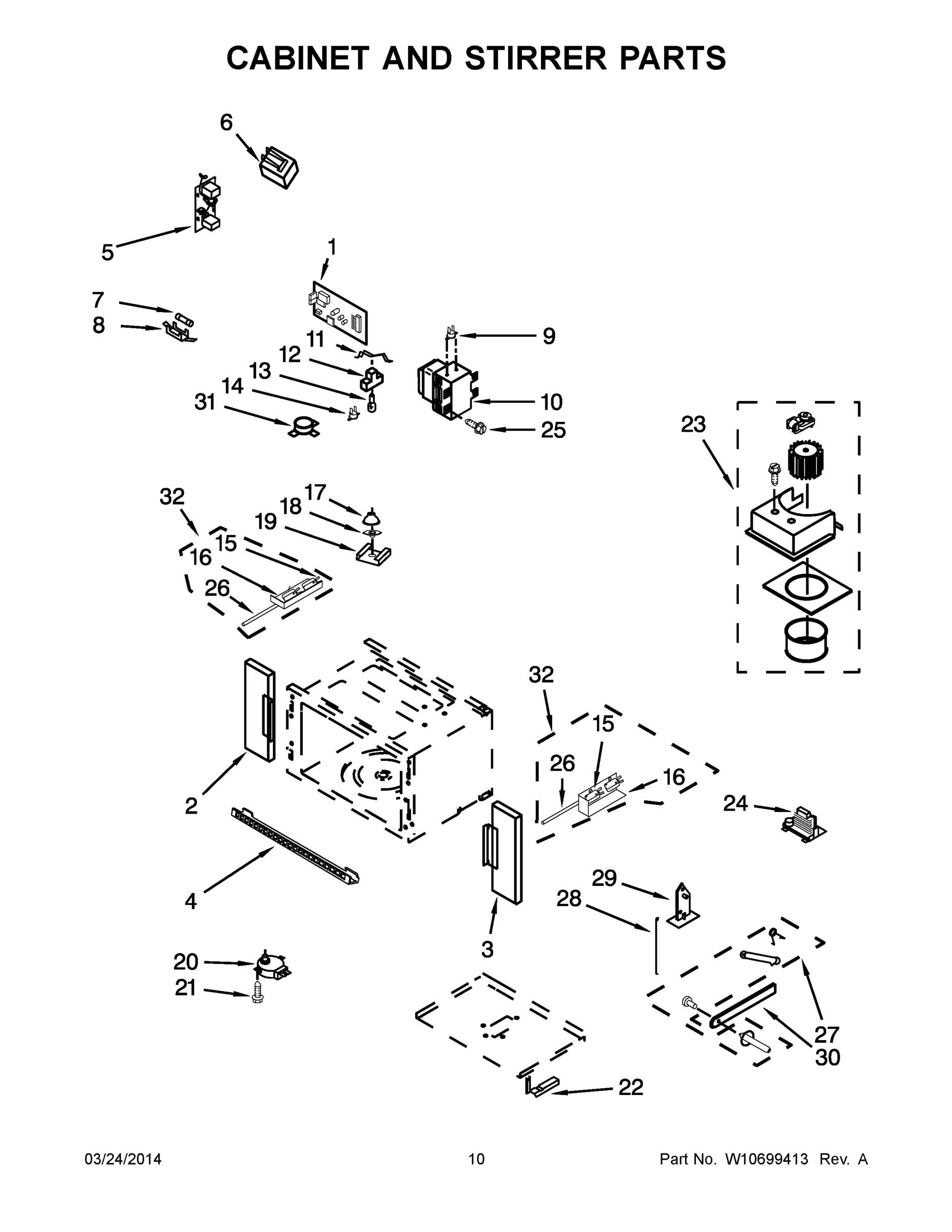

06 - CABINET AND STIRRER PARTS

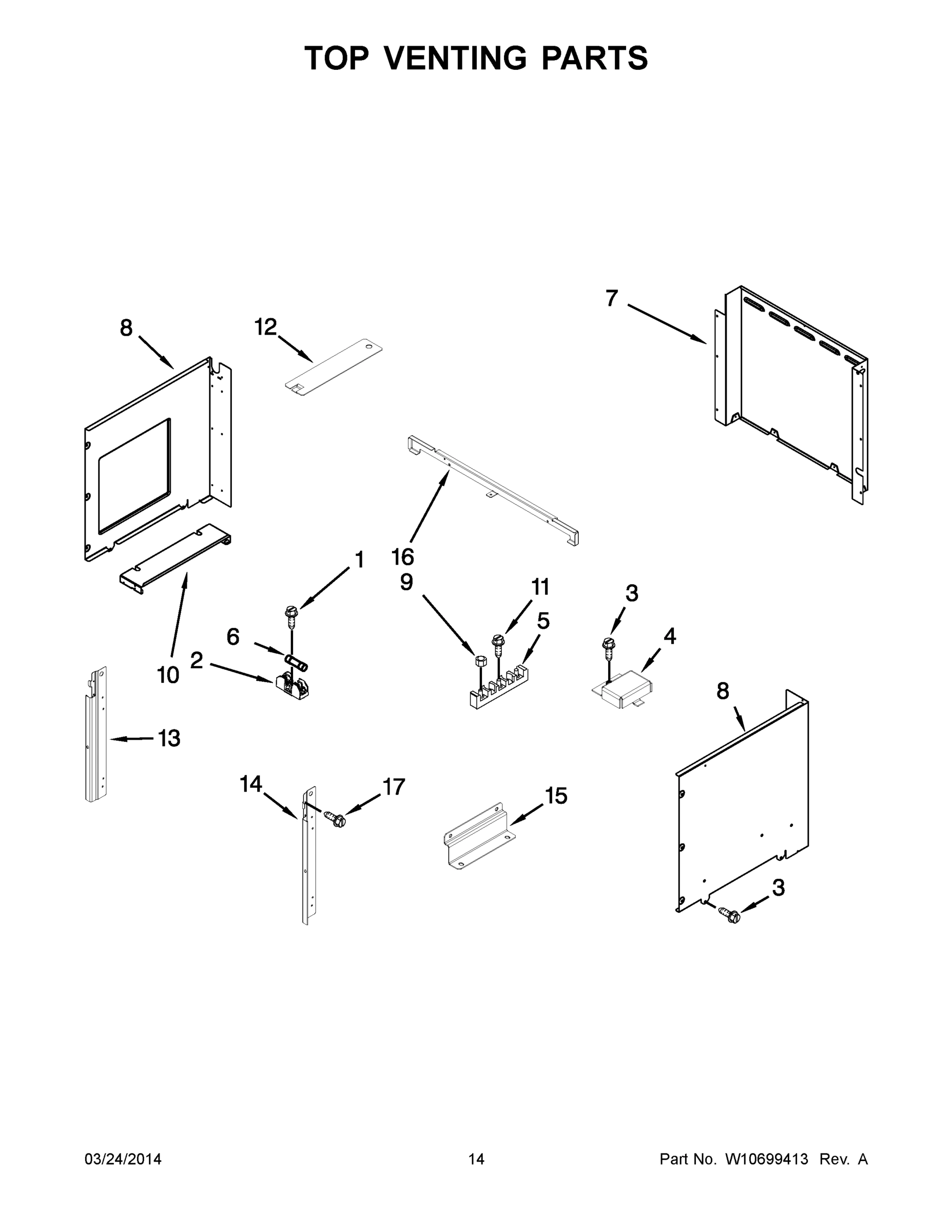

08 - TOP VENTING PARTS
Common parts from model Whirlpool WOC95EC0AB01 MICROWAVE
1
Cap, Screw WPL 8304588BL Contact Us For Availability
2
Holder, Fuse WPL 4454949 Contact Us For Availability
2
TRIM, SIDE LEFT WPL W10486208 Contact Us For Availability
2
Screw WPL 4449040 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
3
DOOR, INNER WPL W10486210 Contact Us For Availability
3
SCREW WPL 7101P42660 Contact Us For Availability
3
TRIM, SIDE RIGHT WPL W10486209 Contact Us For Availability
4
VENT, TOP MICROWAVE WPL W10486211 Contact Us For Availability
4
Screw WPL 7101P37660 Contact Us For Availability
4
Cover, Connector WPL 8285593 Contact Us For Availability
5
BRACKET, DOOR WPL W10407600 Contact Us For Availability
5
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
7
COVER, BACK DUCT WPL W10519707 Contact Us For Availability
8
HANDLE, DOOR (BLACK) WPL W10327379 Contact Us For Availability
8
HANDLE, DOOR (WHITE) WPL W10327380 Contact Us For Availability
8
CHASSIS, COMBO SIDE (LEFT) WPL W10283028 Contact Us For Availability
8
CHASSIS, COMBO SIDE (RIGHT) WPL W10283029 Contact Us For Availability
9
FOAM, HANDLE WPL W10359769 Contact Us For Availability
9
Nut WPL 7103P02760 Contact Us For Availability
10
VENT, COMBO CENTER WPL W10283042 Contact Us For Availability
10
SUPPORT, MICROWAVE MODULE WPL W10356644 Contact Us For Availability
11
Screw WPL 3400080 Contact Us For Availability
11
SPRING, LAMP WPL W10475855 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
12
BAFFLE, CONVECTION WPL W10359278 Contact Us For Availability
12
COVER, SLOT MODULE WPL W10356437 Contact Us For Availability
13
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
13
RAIL, SIDE (LEFT) WPL W10360516 Contact Us For Availability
14
RAIL, SIDE (RIGHT) WPL W10360518 Contact Us For Availability
14
BACK, CHASSIS WPL W10282990 Contact Us For Availability
15
SIDE, BRACKET WPL W10283024 Contact Us For Availability
16
SUPPORT, CROSSBAR WPL W10283022 Contact Us For Availability
28
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
30
SPACERS, FRONT WPL W10347649 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, DOOR LATCH WPL W10573327 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COMMUNICATION WPL W10286223 Contact Us For Availability
NI
WIRING HARNESS PARTS, CONDUIT, COMBO WPL 4450950 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP. CONDUIT WPL 4448664 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUNDING WPL 4450800 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, LATCH HARNESS WPL W10190263 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL W10601519 Contact Us For Availability
× ![]()
