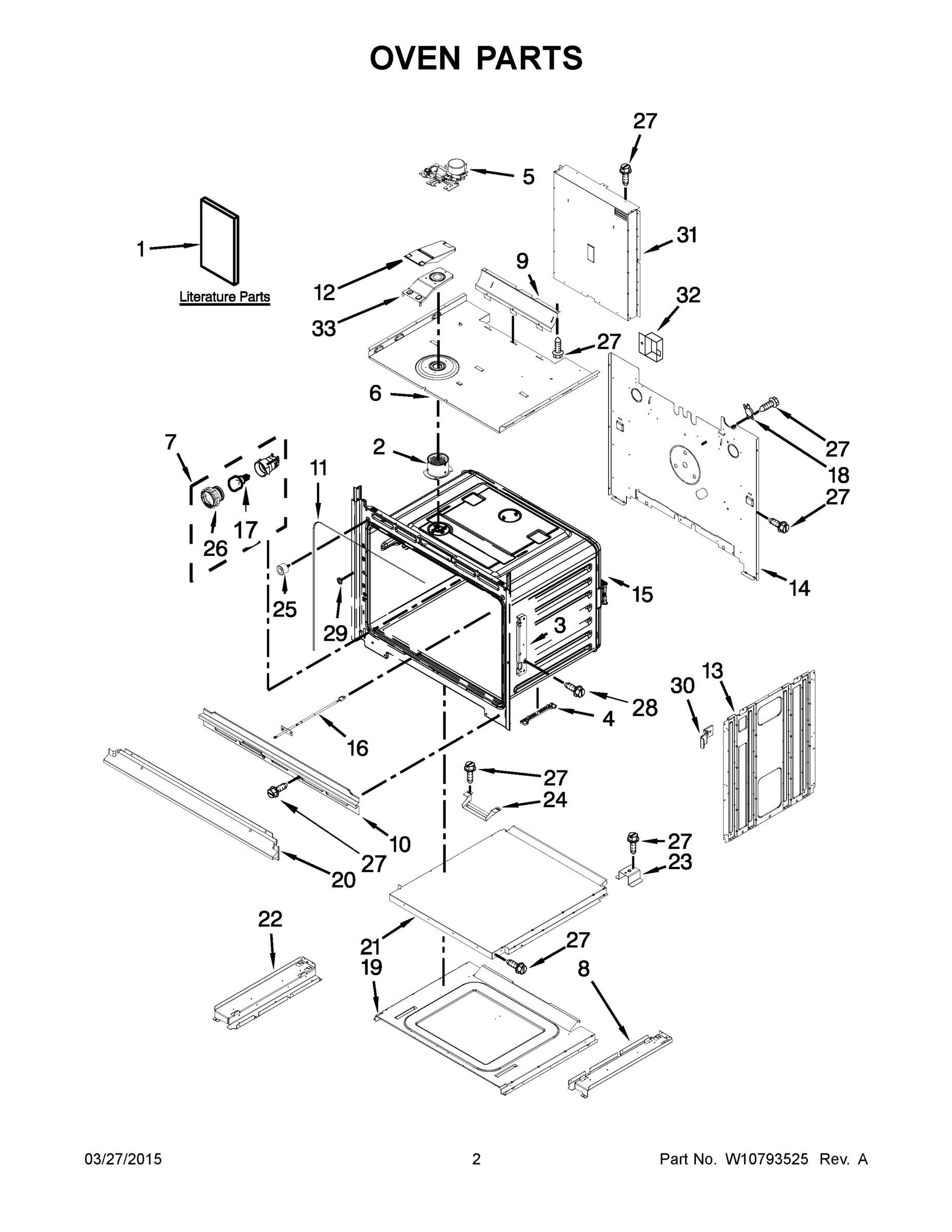

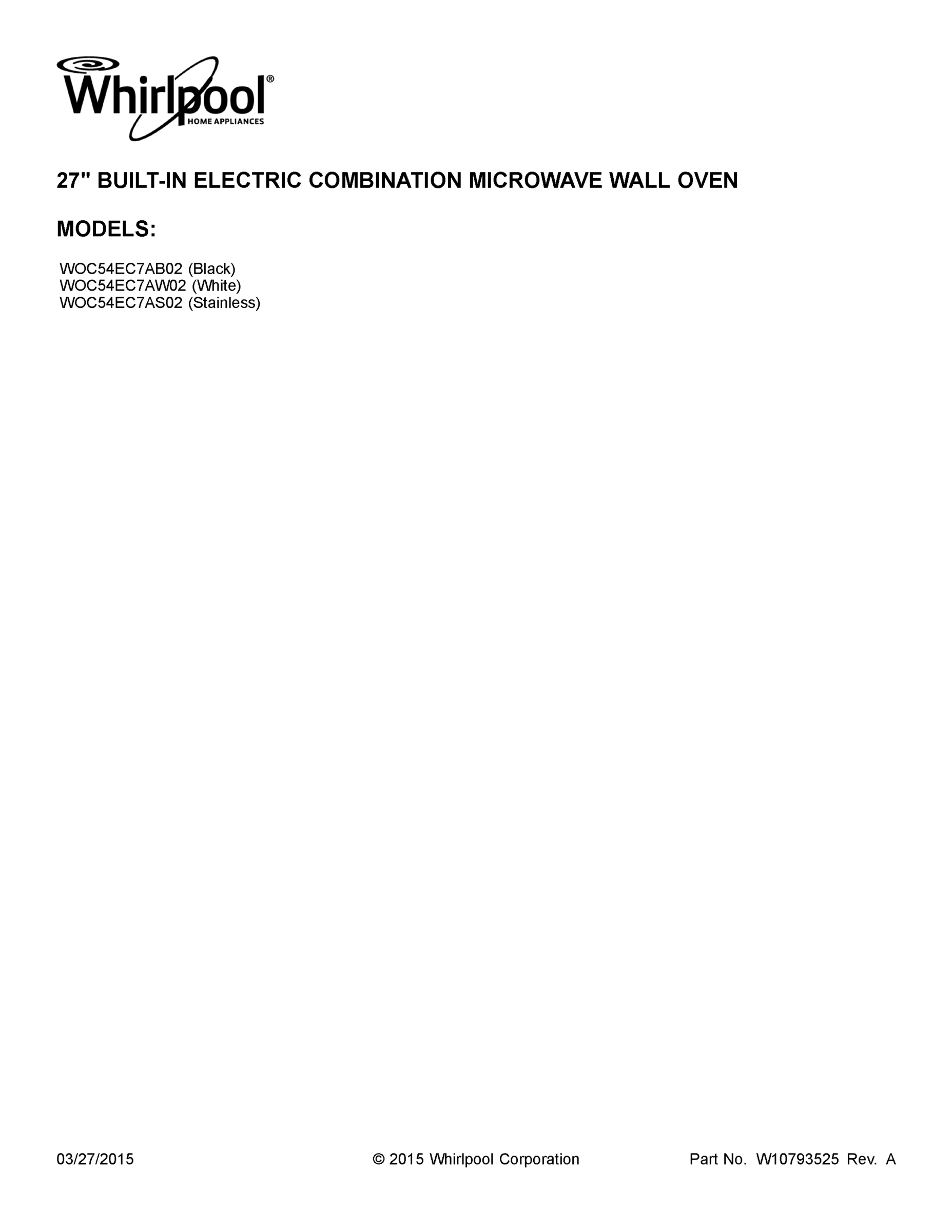

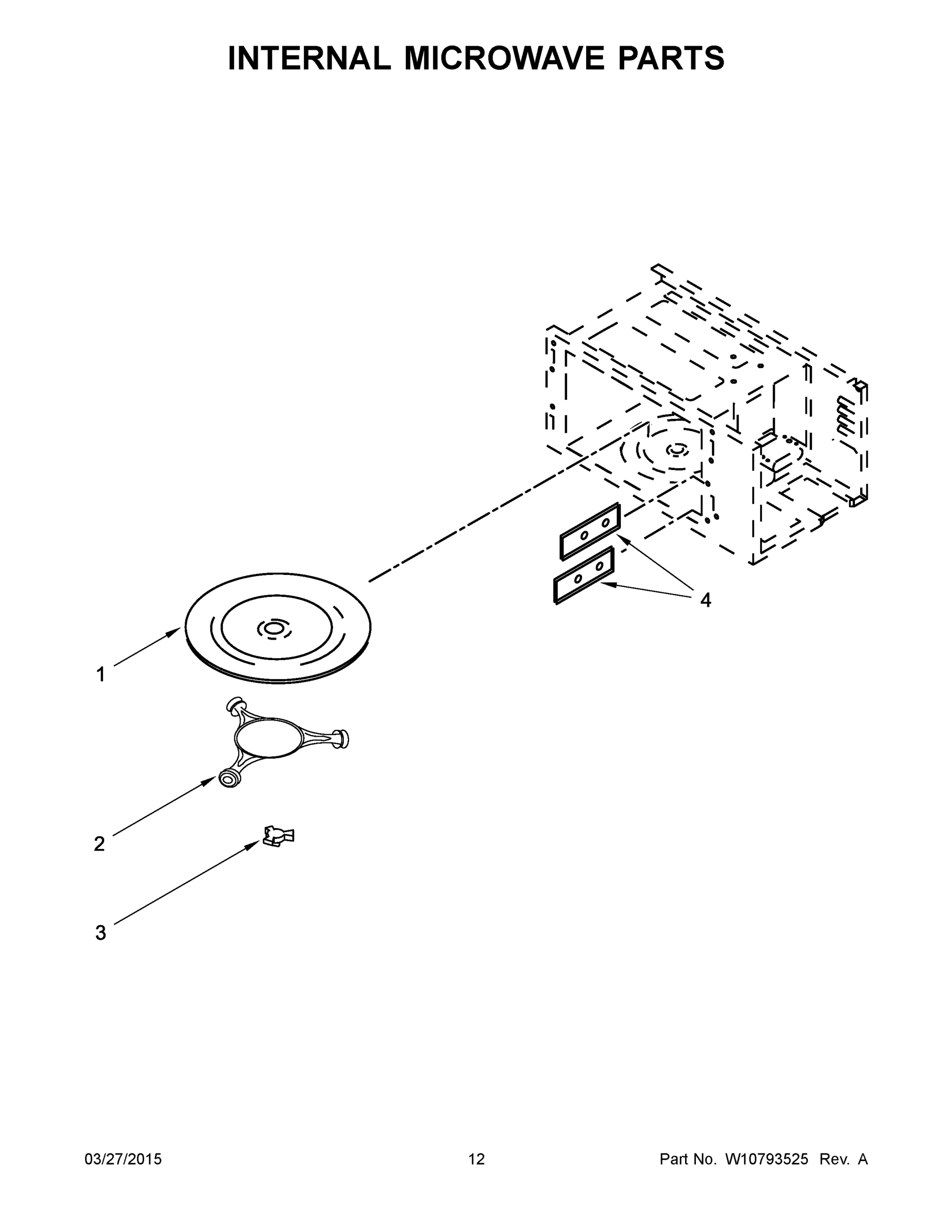

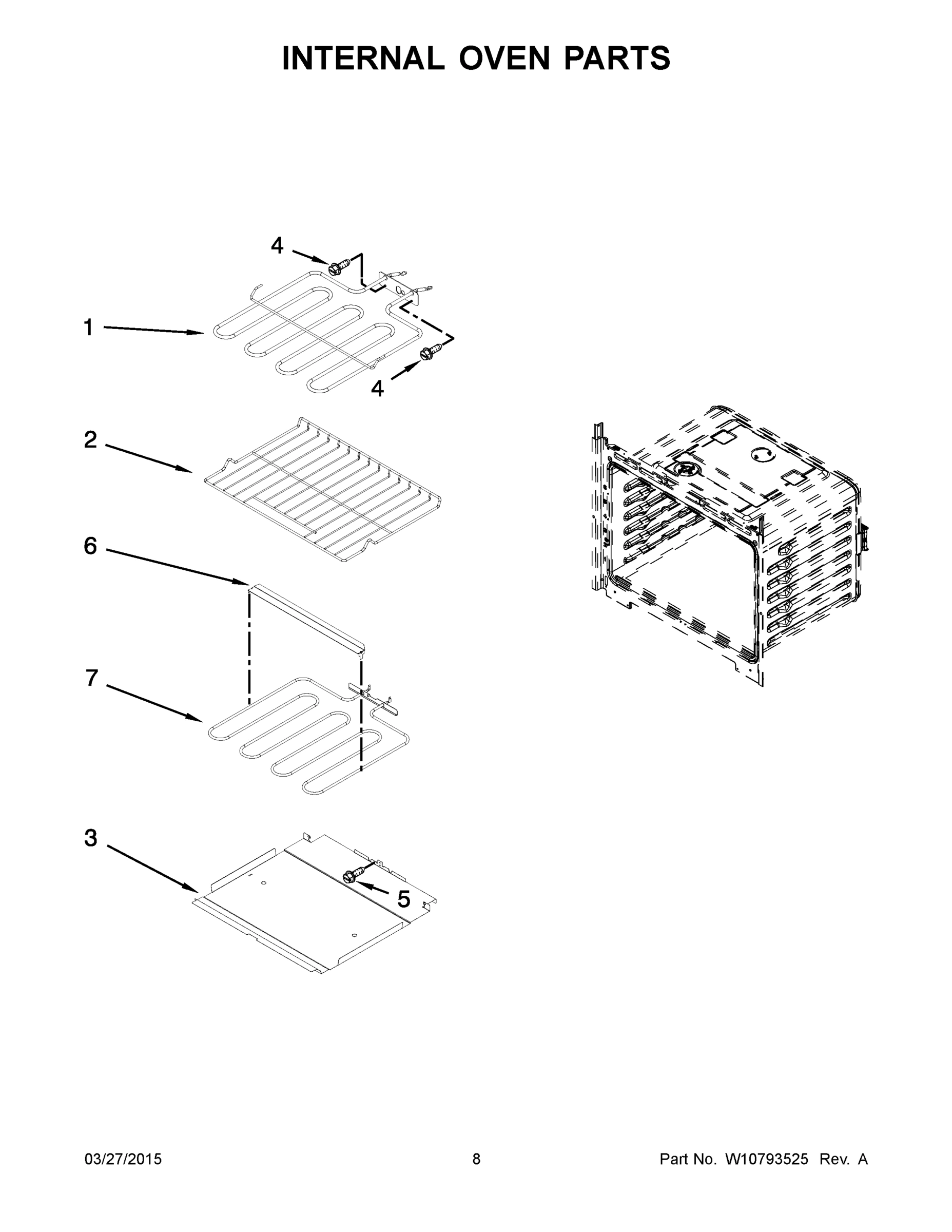

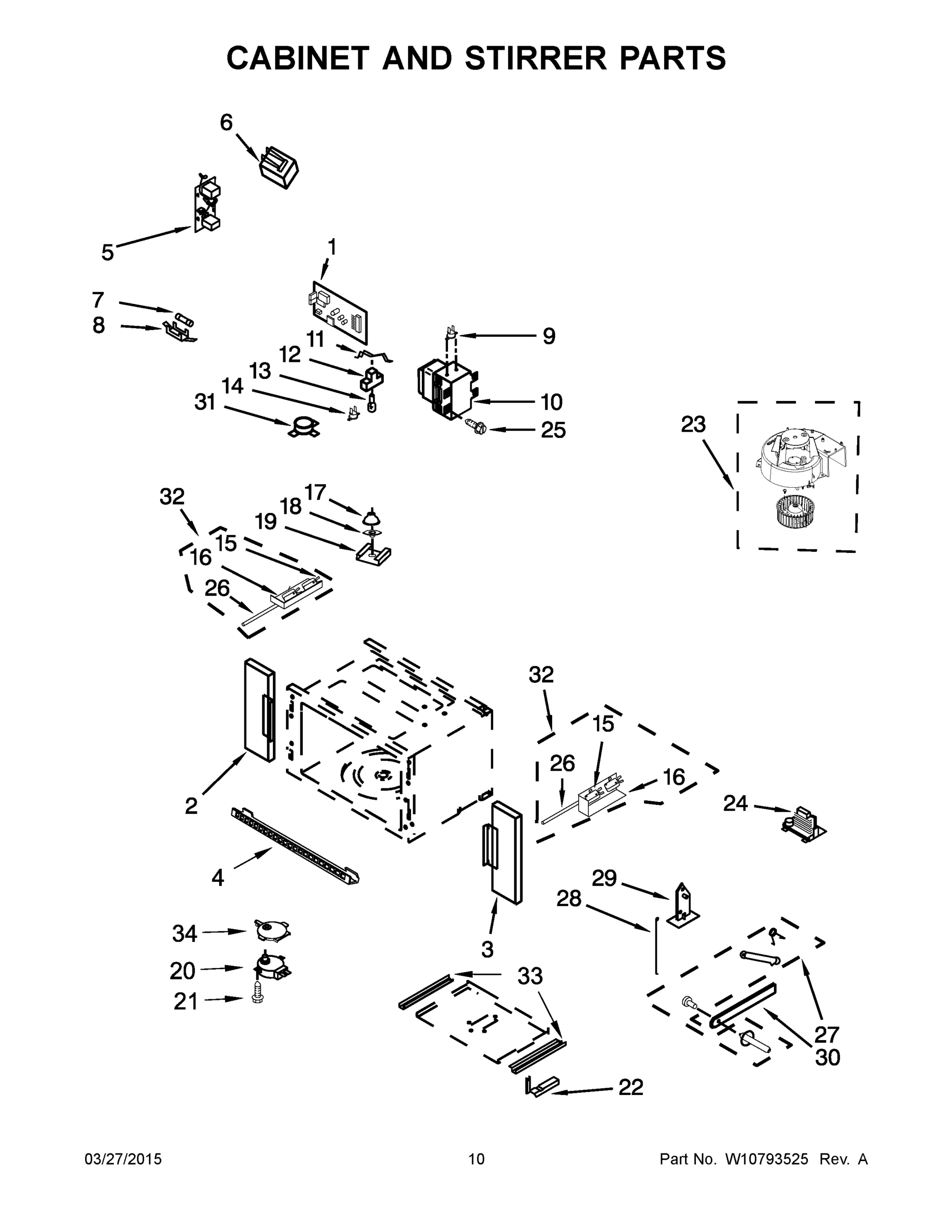

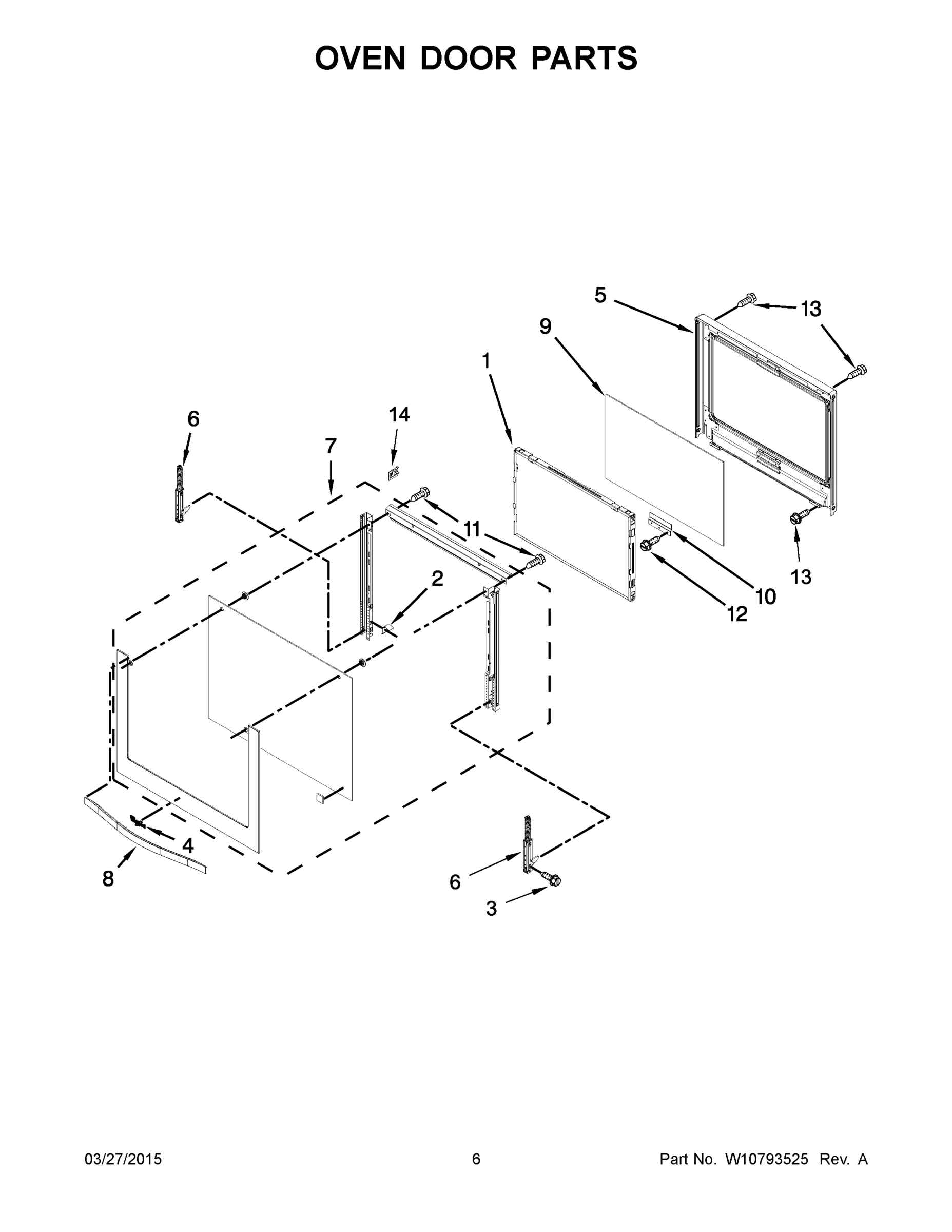

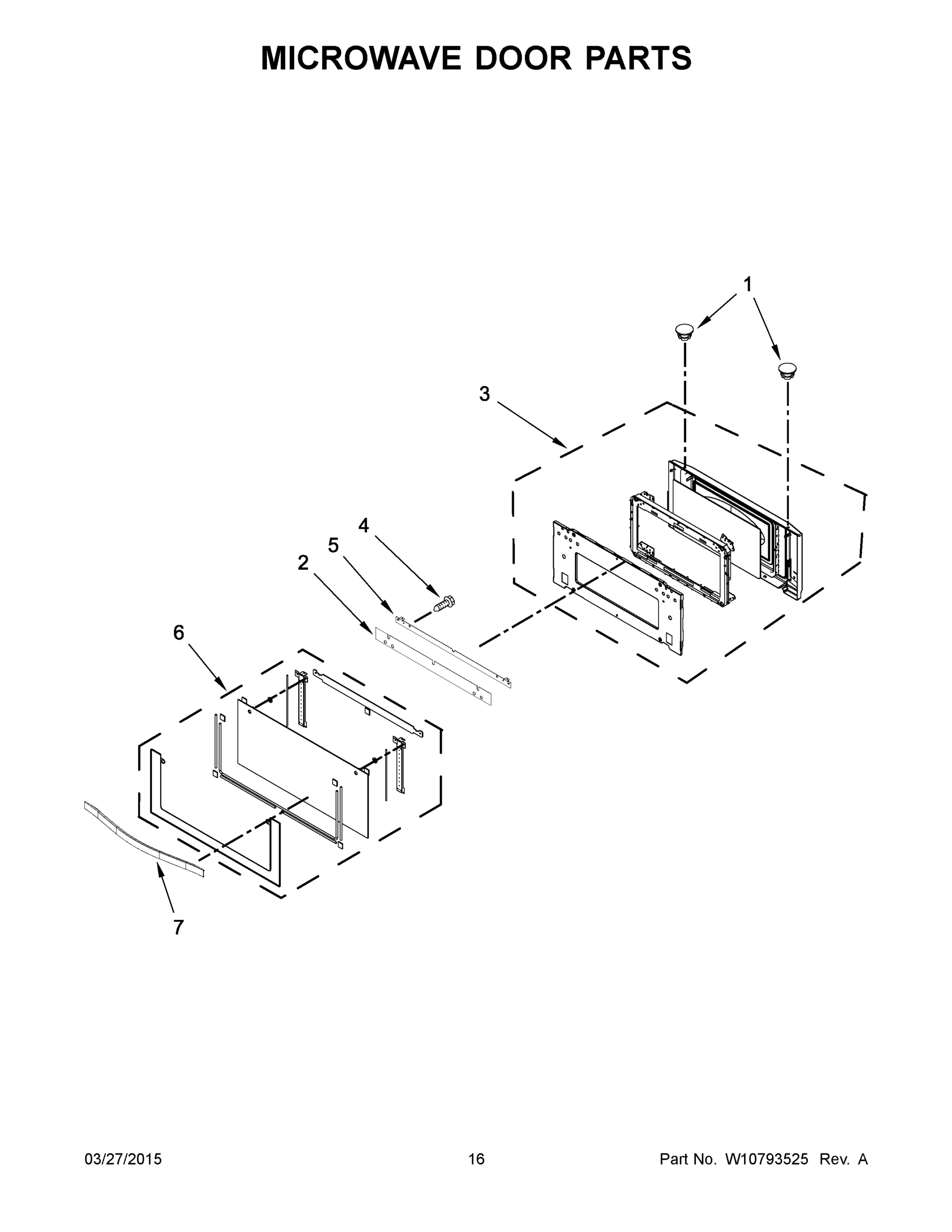

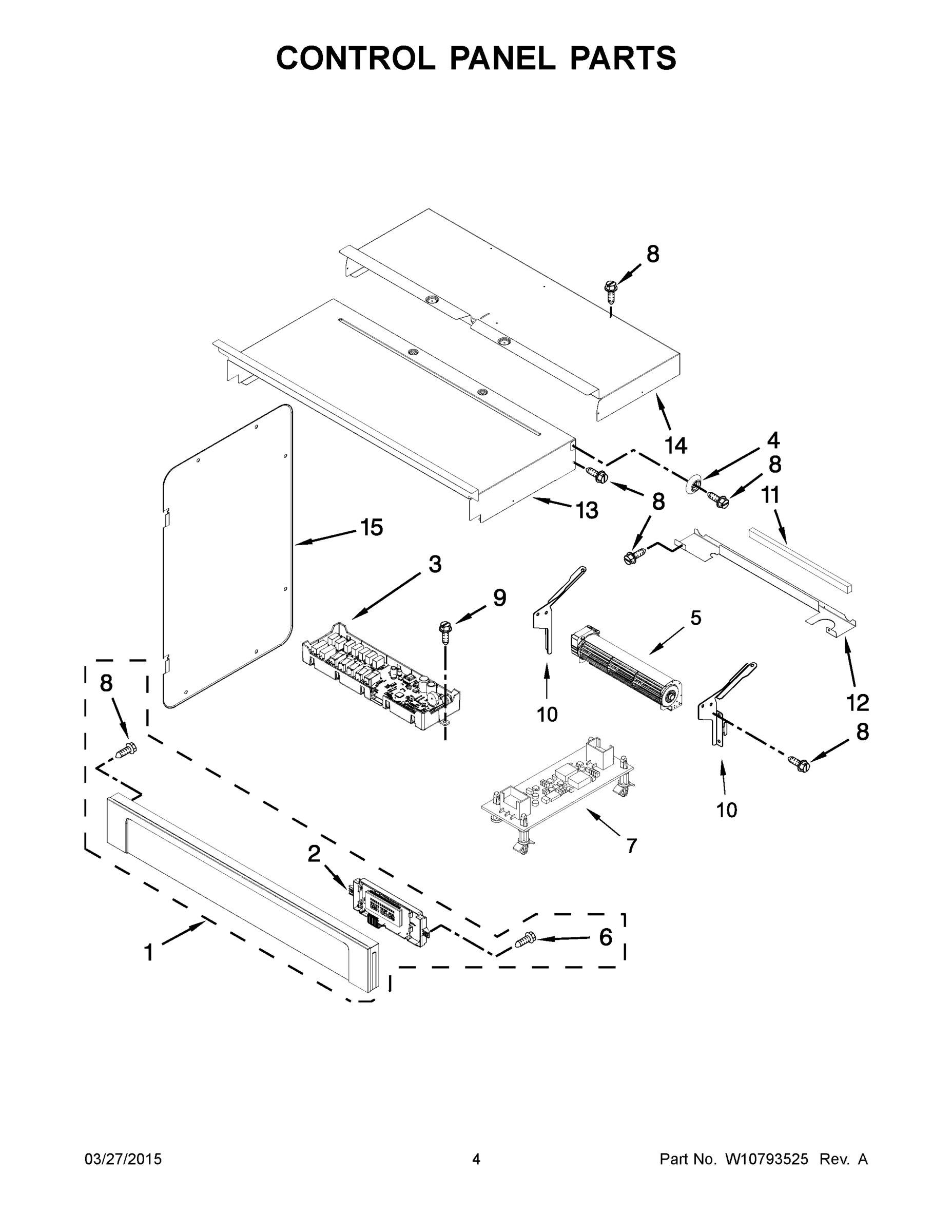

Model Whirlpool WOC54EC7AW02 ELECTRIC OVEN – Common Parts & Diagrams

1
CAP, SCREW
CAP, SCREW WPL 8304588BL Contact Us For Availability
View on Model
1
SCREW
SCREW WPL 7101P06060 Contact Us For Availability
View on Model
2
FOAM, HANDLE
FOAM, HANDLE WPL W10359769 Contact Us For Availability
View on Model
2
HOLDER, FUSE
HOLDER, FUSE WPL 4454949 Contact Us For Availability
View on Model
2
TRIM, SIDE (LEFT)
TRIM, SIDE (LEFT) WPL 461967017511 Contact Us For Availability
View on Model
3
ASSEMBLY, INNER DOOR
ASSEMBLY, INNER DOOR WPL W10737653 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
4

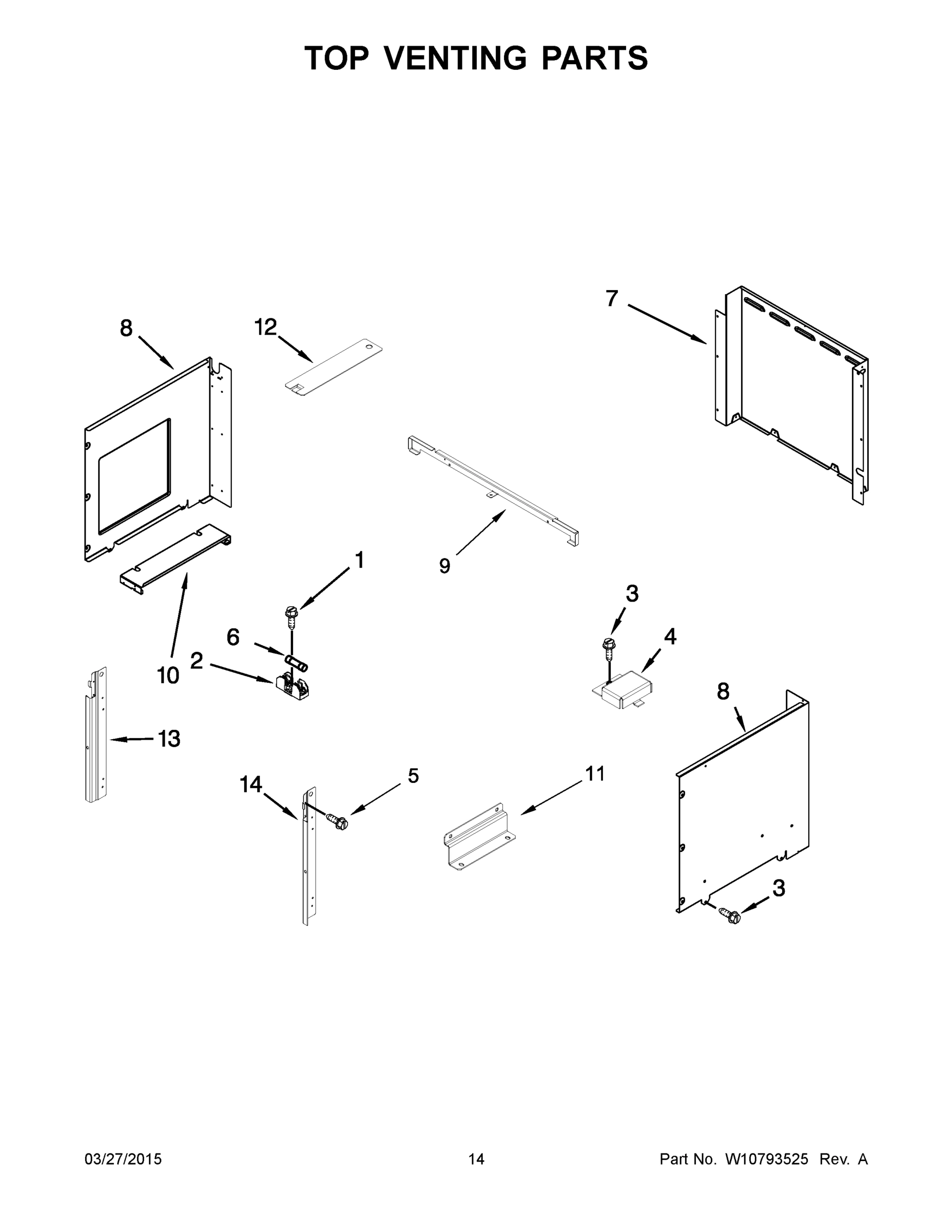

VENT, TOP
VENT, TOP WPL 461968973251 Contact Us For Availability
View on Model
4
COVER, CONNECTOR
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
View on Model
6
HINGE, DOOR
HINGE, DOOR WPL W10639070 Contact Us For Availability
View on Model
7
ASSEMBLY, DOOR (BLACK)
ASSEMBLY, DOOR (BLACK) WPL W10587547 Contact Us For Availability
View on Model
7
COVER, BACK DUCT
COVER, BACK DUCT WPL W10519703 Contact Us For Availability
View on Model
7B
ASSEMBLY, DOOR (STAINLESS)
ASSEMBLY, DOOR (STAINLESS) WPL W10587546 Contact Us For Availability
View on Model
8
HANDLE, DOOR (BLACK)
HANDLE, DOOR (BLACK) WPL W10344485 Contact Us For Availability
View on Model
8
CHASSIS, COMBO SIDE (LEFT)
CHASSIS, COMBO SIDE (LEFT) WPL W10655466 Contact Us For Availability
View on Model
8A
HANDLE, DOOR (WHITE)
HANDLE, DOOR (WHITE) WPL W10344486 Contact Us For Availability
View on Model
8A
CHASSIS, COMBO SIDE (RIGHT)
CHASSIS, COMBO SIDE (RIGHT) WPL W10655467 Contact Us For Availability
View on Model
9
SUPPORT, CROSSBAR
SUPPORT, CROSSBAR WPL W10283023 Contact Us For Availability
View on Model
10
SUPPORT, MICROWAVE MODULE
SUPPORT, MICROWAVE MODULE WPL W10356644 Contact Us For Availability
View on Model
11
SPRING, LAMP
SPRING, LAMP WPL W10465869 Contact Us For Availability
View on Model
11
SIDE, BRACKET
SIDE, BRACKET WPL W10283025 Contact Us For Availability
View on Model
12
COVER, VENT EXHAUST
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
View on Model
12
CHASSIS, BACK DIVIDER
CHASSIS, BACK DIVIDER WPL W10655465 Contact Us For Availability
View on Model
12
COVER, SLOT MODULE
COVER, SLOT MODULE WPL W10356437 Contact Us For Availability
View on Model
13
SIDE, CHASSIS
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
View on Model
13
RAIL, SIDE (LEFT)
RAIL, SIDE (LEFT) WPL W10360516 Contact Us For Availability
View on Model
13
SCREW (BLACK)
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
View on Model
14
RAIL, SIDE (RIGHT)
RAIL, SIDE (RIGHT) WPL W10360518 Contact Us For Availability
View on Model
17
REFLECTOR
REFLECTOR WPL 423107022541 Contact Us For Availability
View on Model
19
BASE, CHASSIS
BASE, CHASSIS WPL W10282901 Contact Us For Availability
View on Model
33
BASE, VENT EXHAUST
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (CITRINE WHITE)
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
View on Model
NI
HARNESS, DOOR LATCH
HARNESS, DOOR LATCH WPL W10573327 Contact Us For Availability
View on Model
NI
HARNESS, COMMUNICATION
HARNESS, COMMUNICATION WPL W10286223 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10520716 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN WPL W10601518 Contact Us For Availability
View on Model
NI
SCREW, GROUNDING
SCREW, GROUNDING WPL 4450800 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
View on Model
NI
CLIP, LATCH HARNESS
CLIP, LATCH HARNESS WPL W10190263 Contact Us For Availability
View on Model
NI
HARNESS, FAN & TURNTABLE
HARNESS, FAN & TURNTABLE WPL W10389372 Contact Us For Availability
View on Model
