Model Whirlpool WMH2175XVQ1 MICROWAVE – Common Parts & Diagrams

1

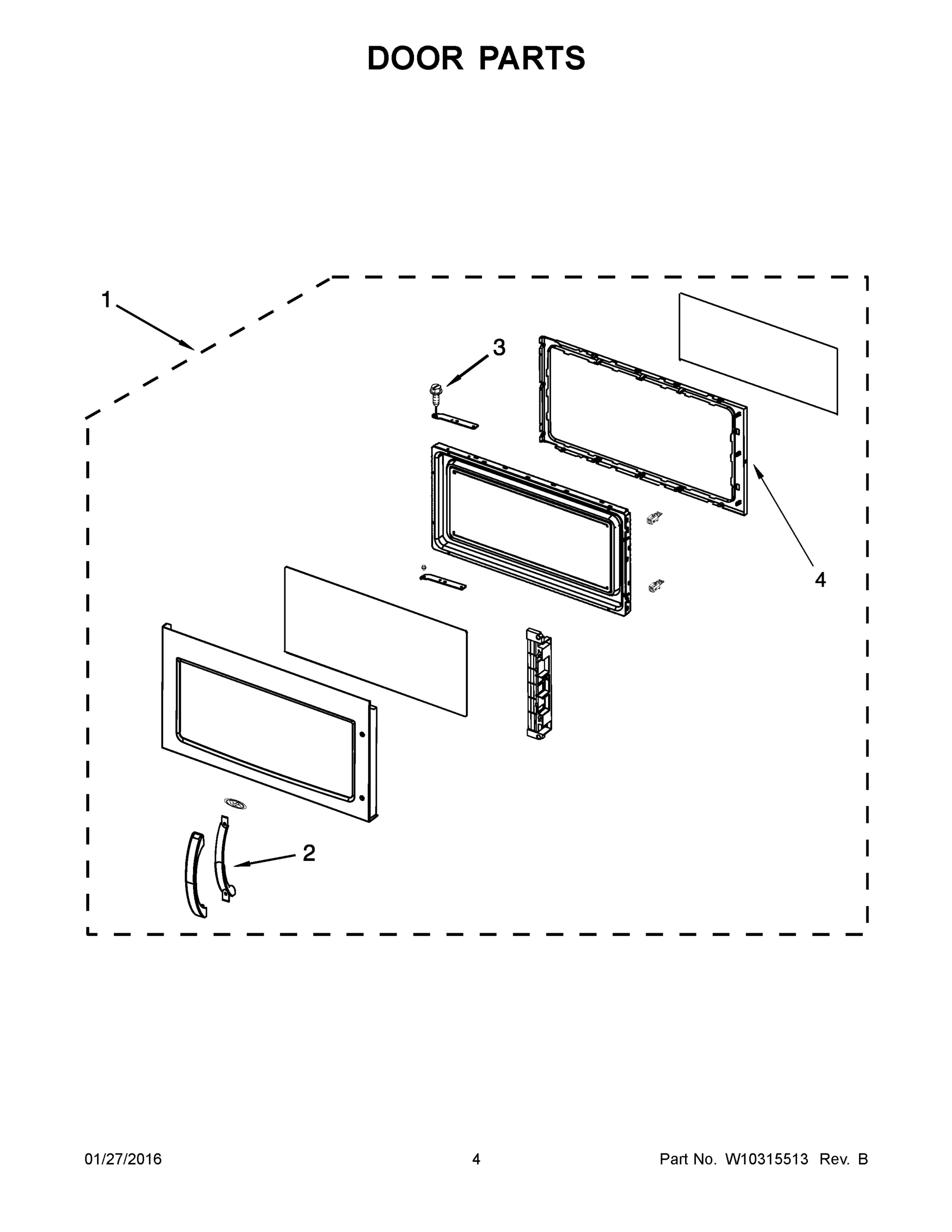

COMPLETE DOOR (WHITE)
COMPLETE DOOR (WHITE) WPL W10247772 Contact Us For Availability
View on Model
1
COVER, INLET (INCLUDES NAILS AND BUSHINGS)
COVER, INLET (INCLUDES NAILS AND BUSHINGS) WPL W10313272 Contact Us For Availability
View on Model
1
DEFLECTOR, AIR
DEFLECTOR, AIR WPL 8206340 Contact Us For Availability
View on Model
1A
COMPLETE DOOR (BLACK)
COMPLETE DOOR (BLACK) WPL W10247770 Contact Us For Availability
View on Model
1B
COMPLETE DOOR (BISCUIT)
COMPLETE DOOR (BISCUIT) WPL W10247774 Contact Us For Availability
View on Model
1C
COMPLETE DOOR (STAINLESS)
COMPLETE DOOR (STAINLESS) WPL W10247773 Contact Us For Availability
View on Model
2
HOLDER, LAMP
HOLDER, LAMP WPL W10210871 Contact Us For Availability
View on Model
2
COVER, LAMP
COVER, LAMP WPL 8206382 Contact Us For Availability
View on Model
2
SUPPORT, WIRE CLIP
SUPPORT, WIRE CLIP WPL 8206385 Contact Us For Availability
View on Model
2

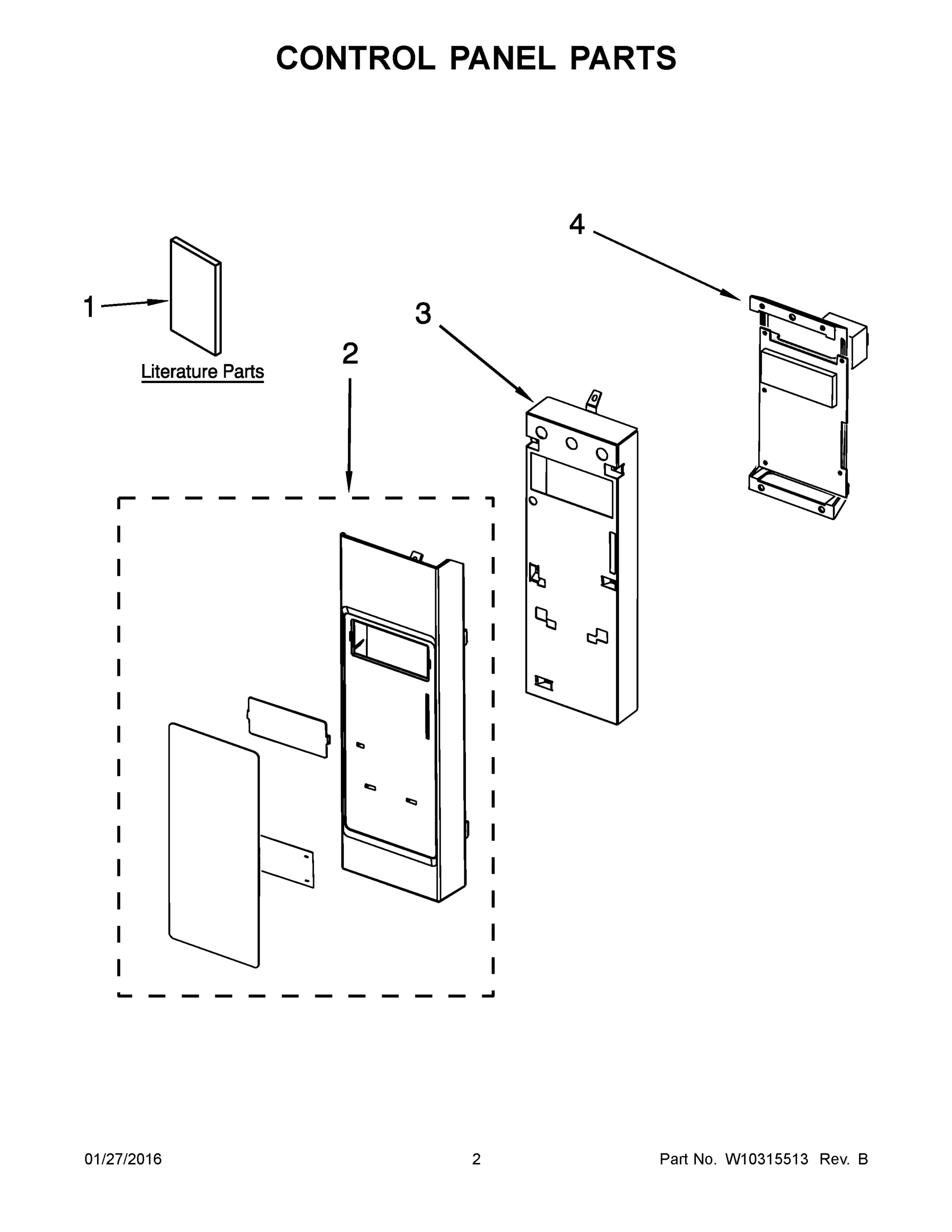

PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10247756 Contact Us For Availability
View on Model
2C
HANDLE (STAINLESS)
HANDLE (STAINLESS) WPL W10210887 Contact Us For Availability
View on Model
2C
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE
PANEL ASY, CONTROL INCLUDES LENS AND MEMBRANE WPL W10286605 Contact Us For Availability
View on Model
3
SENSOR, HUMIDITY
SENSOR, HUMIDITY WPL 8206626 Contact Us For Availability
View on Model
3
SCREW
SCREW WPL W10138802 Contact Us For Availability
View on Model
4

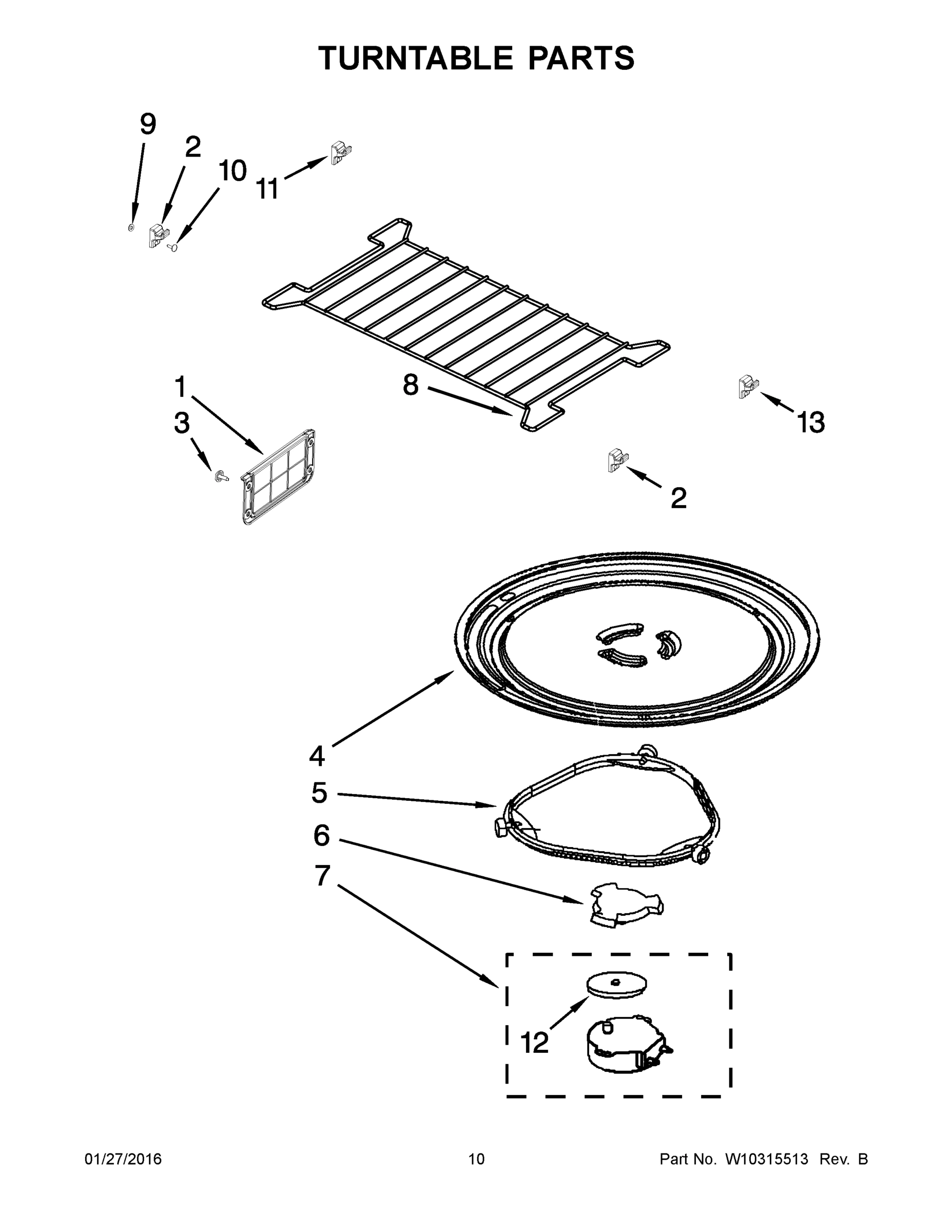

TURNTABLE
TURNTABLE WPL 4393799 Contact Us For Availability
View on Model
4
PLATE, BOTTOM
PLATE, BOTTOM WPL W10245196 Contact Us For Availability
View on Model
4
MICROCOMPUTER
MICROCOMPUTER WPL W10216347 Contact Us For Availability
View on Model
4
COVER, CHOKE
COVER, CHOKE WPL W10640812 Contact Us For Availability
View on Model
6
GRILLE, VENT (WHITE)
GRILLE, VENT (WHITE) WPL W10245217 Contact Us For Availability
View on Model
6
HOLDER, GLASS
HOLDER, GLASS WPL W10210873 Contact Us For Availability
View on Model
6A
GRILLE, VENT (BLACK)
GRILLE, VENT (BLACK) WPL W10245218 Contact Us For Availability
View on Model
6B
GRILLE, VENT (BISCUIT)
GRILLE, VENT (BISCUIT) WPL W10247768 Contact Us For Availability
View on Model
6C
GRILLE, VENT (STAINLESS)
GRILLE, VENT (STAINLESS) WPL W10245216 Contact Us For Availability
View on Model
7
SWITCH, MICRO
SWITCH, MICRO WPL W10211972 Contact Us For Availability
View on Model
7
COVER, HOOD FAN MOTOR
COVER, HOOD FAN MOTOR WPL W10210832 Contact Us For Availability
View on Model
9
SPRING, INTERLOCK
SPRING, INTERLOCK WPL W10156812 Contact Us For Availability
View on Model
9
WASHER
WASHER WPL W10107790 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 8206618 Contact Us For Availability
View on Model
12
SEAL, WATERPROOF
SEAL, WATERPROOF WPL 8184109 Contact Us For Availability
View on Model
12
ASSEMBLY, PISTON
ASSEMBLY, PISTON WPL W10197758 Contact Us For Availability
View on Model
13
BASE PLATE, AIR GUIDE
BASE PLATE, AIR GUIDE WPL W10269468 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 8206180 Contact Us For Availability
View on Model
15
THERMISTOR
THERMISTOR WPL W10163422 Contact Us For Availability
View on Model
18
SWITCH, MICRO
SWITCH, MICRO WPL W10211974 Contact Us For Availability
View on Model
19
HOLDER, FUSE
HOLDER, FUSE WPL W10117908 Contact Us For Availability
View on Model
21
BRACKET, NOISE FILTER
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
View on Model
22
TRANSFORMER, HIGH VOLTAGE
TRANSFORMER, HIGH VOLTAGE WPL W10269455 Contact Us For Availability
View on Model
29
BRACKET, TOP CAVITY
BRACKET, TOP CAVITY WPL W10313275 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION WPL 8205948 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER
MISCELLANEOUS PARTS, TEMPLATE, UPPER WPL 8205871 Contact Us For Availability
View on Model
