Model Whirlpool WKP85800 30`` ELECTRIC RANGE CERAN COOKTOP – Common Parts & Diagrams

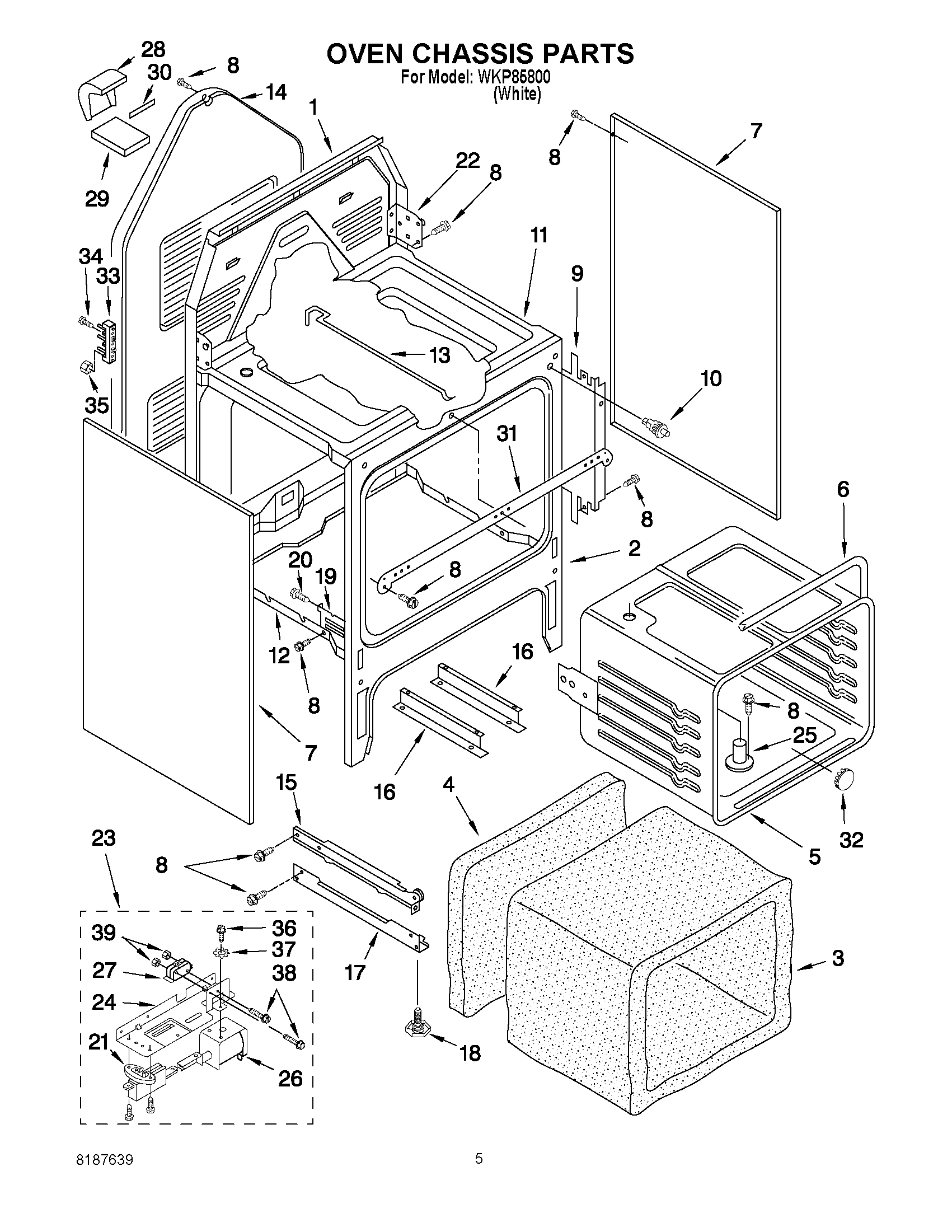

04 - OVEN CHASSIS PARTS

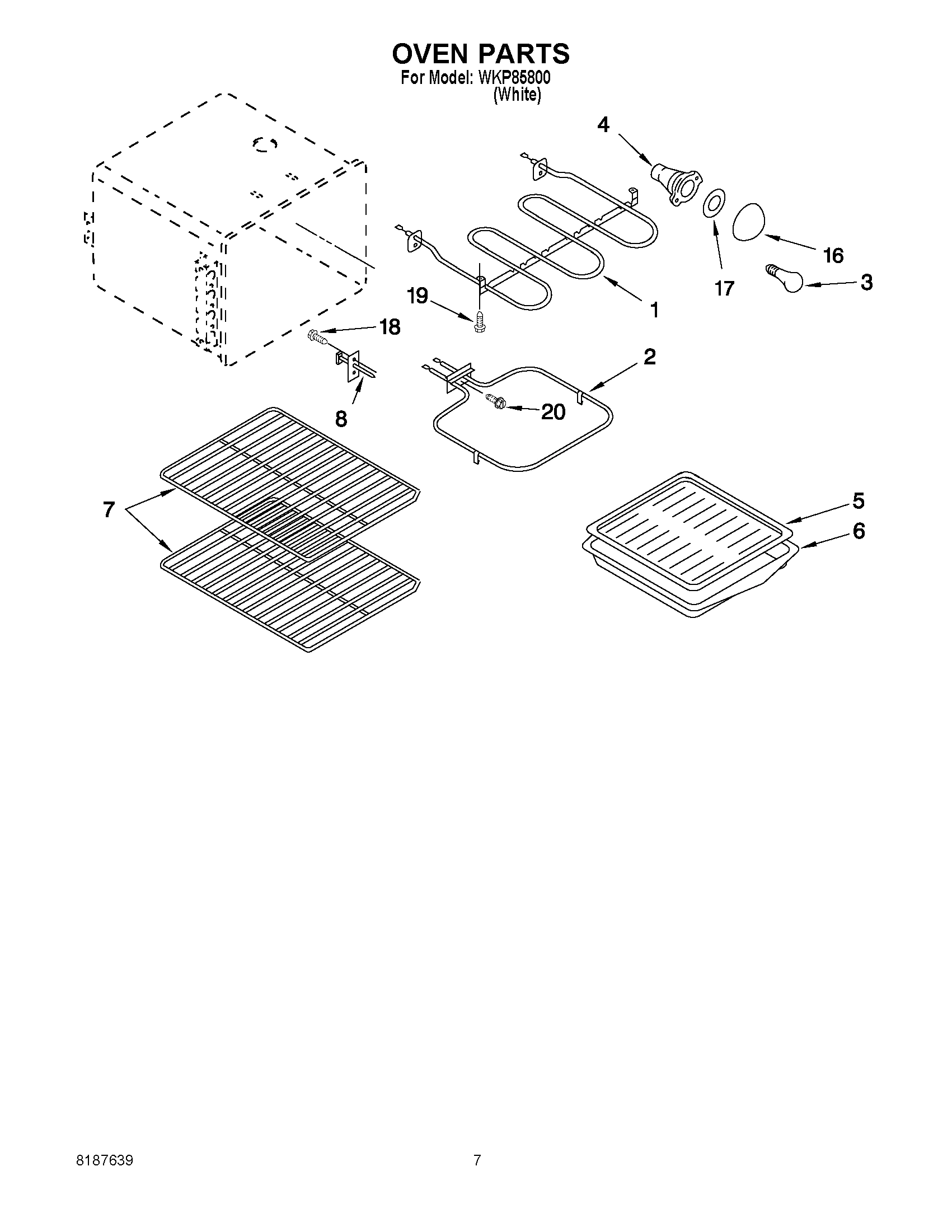

05 - OVEN PARTS
06 - MISCELLANEOUS PARTS

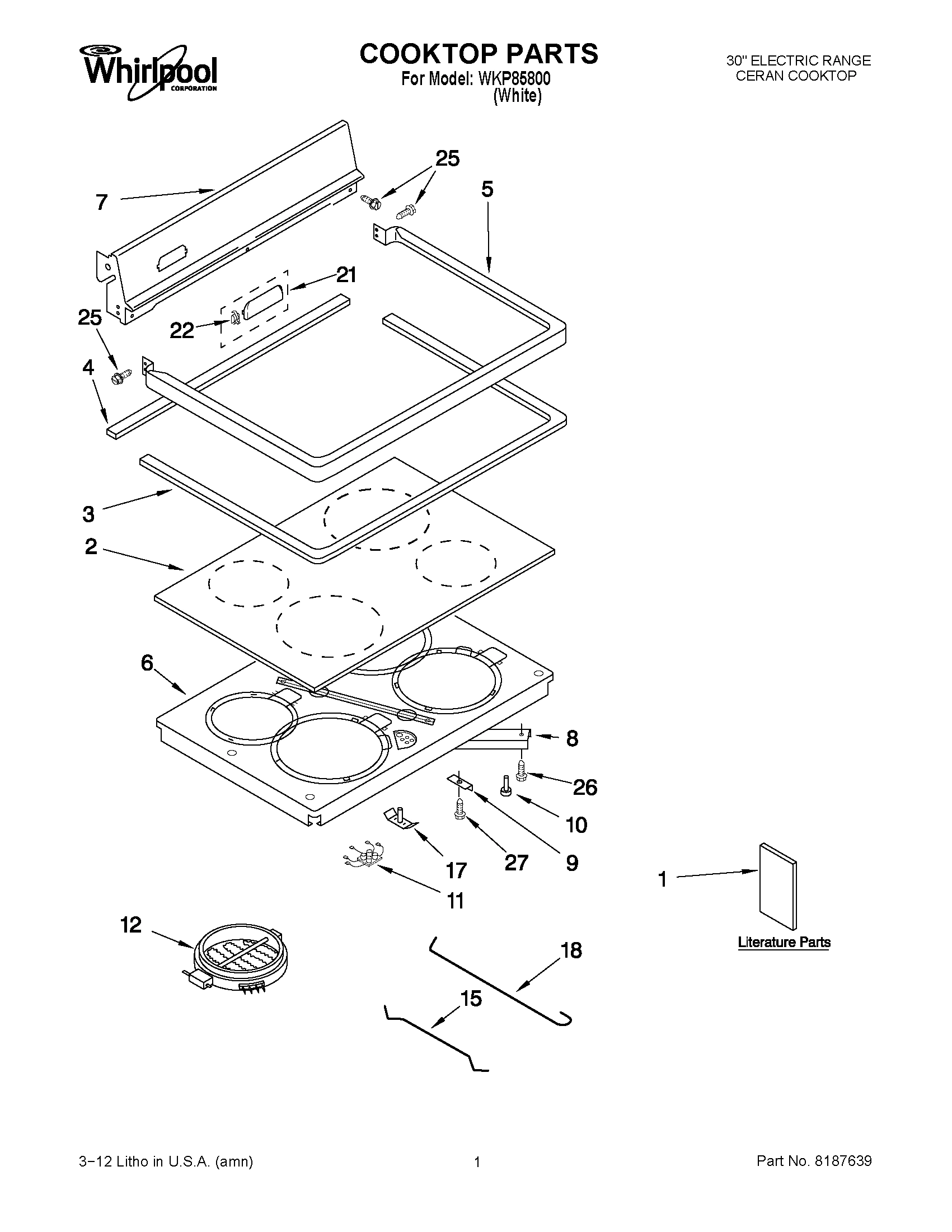

01 - COOKTOP PARTS

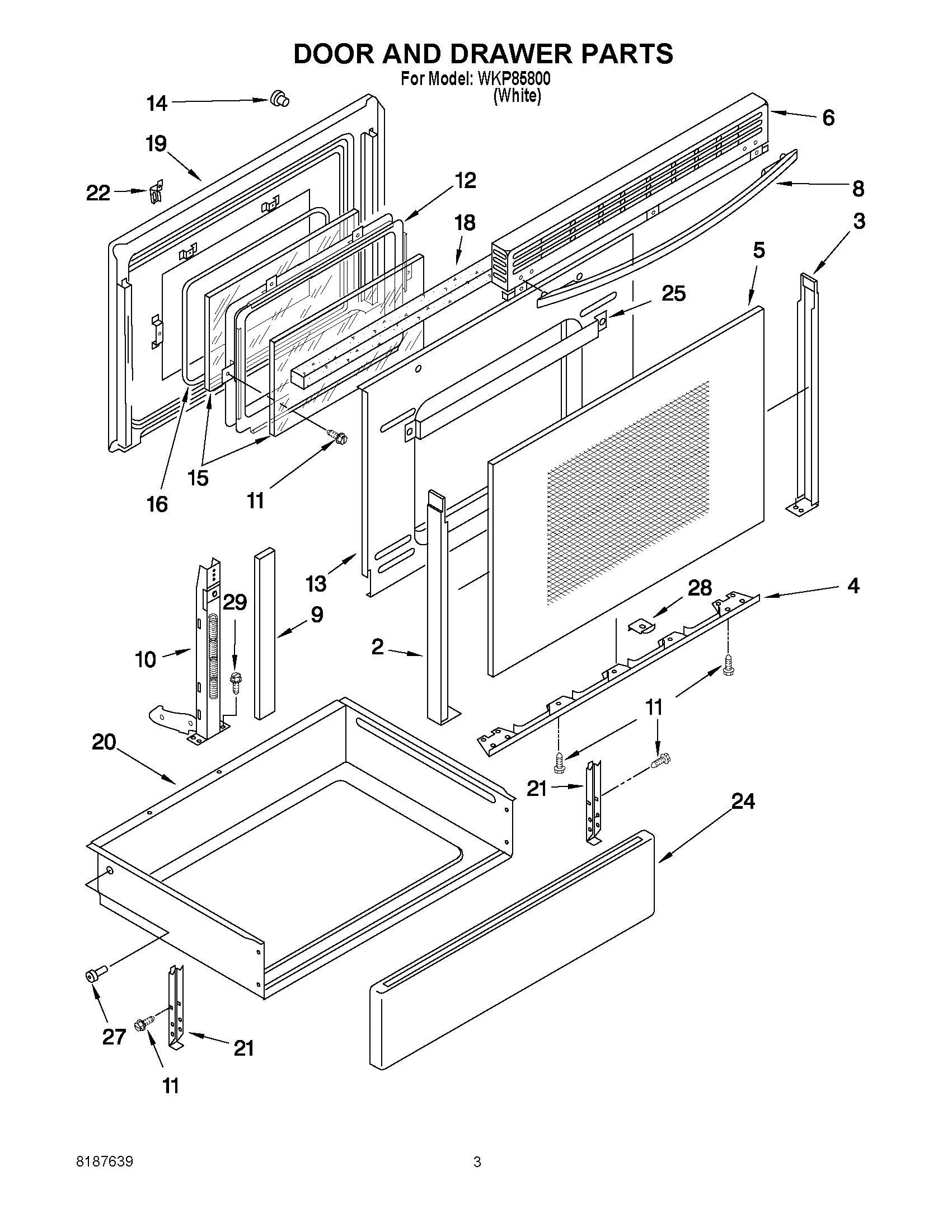

03 - DOOR AND DRAWER PARTS

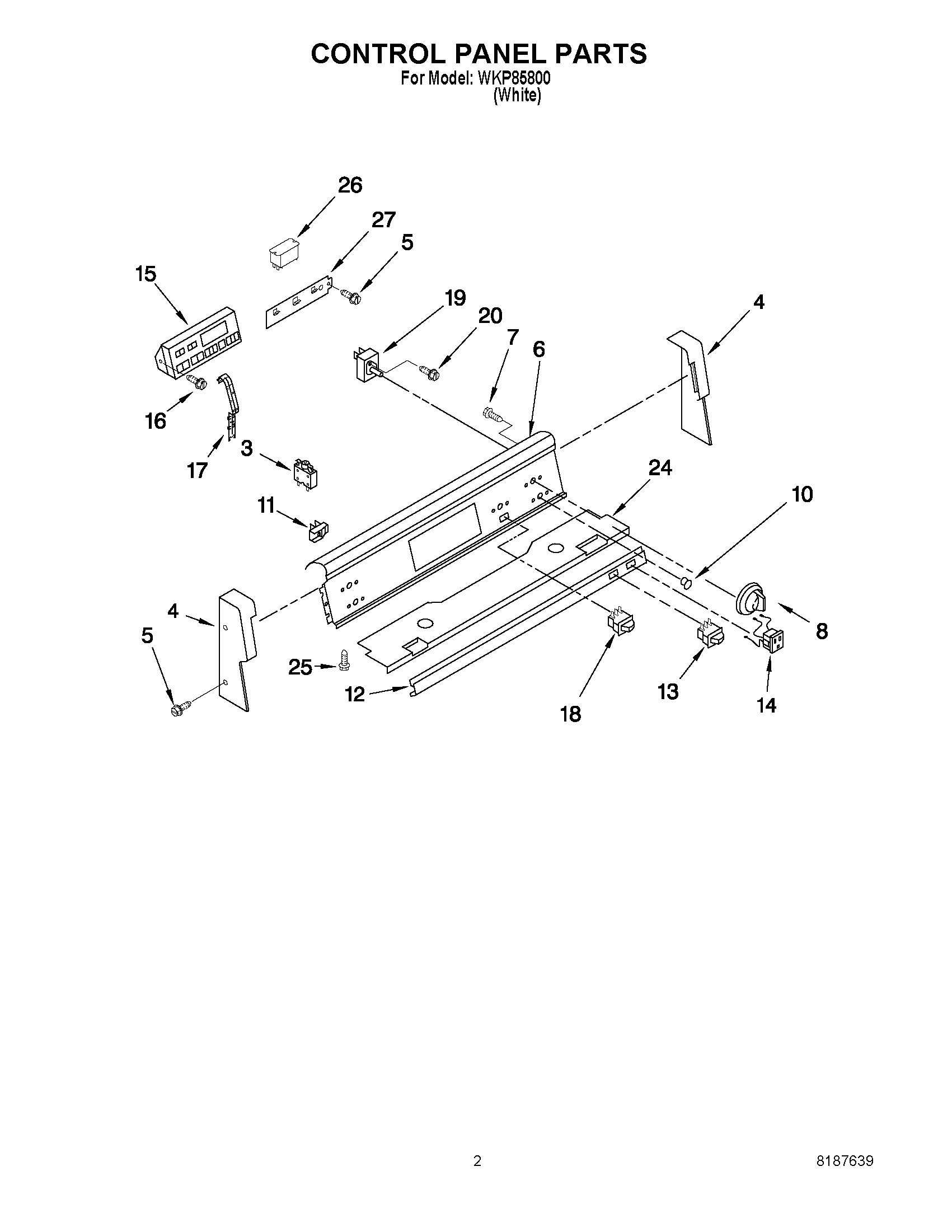

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool WKP85800 30`` ELECTRIC RANGE CERAN COOKTOP
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Template, Anti-Tip WPL LIT9752776 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL LIT9752777 Contact Us For Availability
1
USE & CARE GUIDE WPL LIT9754170 Contact Us For Availability
1
SERVICE INSTRUCTIONS WPL LIT9781875 Contact Us For Availability
1
WIRING DIAGRAM WPL LIT9782237 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Cooktop, Ceran WPL 9754255CW Contact Us For Availability
2
Trim, Door-Left WPL 9782003PW Contact Us For Availability
3
Trim, Door-Right WPL 9782004PW Contact Us For Availability
3
Breaker, 15 Amp WPL 3191073 Contact Us For Availability
4
Gasket, Rear WPL 9781614 Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PW Contact Us For Availability
4
End Cap (Left) WPL 9752422FW Contact Us For Availability
4
End Cap (Right) WPL 9752423FW Contact Us For Availability
5
Frame, Cooktop WPL 9750456PW Contact Us For Availability
5
Glass, Door WPL 9781781PW Contact Us For Availability
6
Support, Element WPL 9753941 Contact Us For Availability
6
Vent, Door WPL 9753498GW Contact Us For Availability
6
Gasket WPL 9781659 Contact Us For Availability
6
Panel, Control WPL 9755335 Contact Us For Availability
7
Rack, Standard (2) WPL 9750498 Contact Us For Availability
7
Back Splash WPL 9752337GW Contact Us For Availability
7
Screw, 8-18 x 3/8 WPL 9780852 Contact Us For Availability
8
Sensor WPL 9782081 Contact Us For Availability
8
Brace, Support WPL 9753675 Contact Us For Availability
8
Handle, Door-White WPL 9751136PW Contact Us For Availability
8
Knob, Control WPL 9750272FW Contact Us For Availability
9
Clip, Support (4) WPL 9753691 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
11
Light Indicator WPL 313102 Contact Us For Availability
11
Hot Light WPL 9781935 Contact Us For Availability
12
Element, Surface (1800/800W Right) WPL 9753999 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Trim Strip WPL 9752442PW Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Switch, Oven Light WPL 3191100FW Contact Us For Availability
14
Outlet, Untimed WPL 9751480FW Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small (2) Ceran Element WPL 9781460 Contact Us For Availability
15
Timer WPL 9753438 Contact Us For Availability
16
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
17
Bracket, Timer WPL 9781754 Contact Us For Availability
18
Rod, Large (2) Ceran Element WPL 9781459 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Switch, Rocker WPL 9753692FW Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Cover Vent WPL 9753040CW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Clip, Mounting WPL 3149190 Contact Us For Availability
22
Spring, Warm Zone WPL 9753677 Contact Us For Availability
22
Retainer, Door (2) WPL 9750676 Contact Us For Availability
24
Front, Drawer WPL 9782108PW Contact Us For Availability
24
Base, Console WPL 9752439 Contact Us For Availability
25
Screw, 10-16 x 1/2 WPL 3149333 Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
27
Screw, 10-16 X 3/4 WPL 423248 Contact Us For Availability
27
Support. Relay WPL 3191039 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
34
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
36
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
37
Washer, 10-32 WPL 424238 Contact Us For Availability
38
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
39
Nut WPL 9750888 Contact Us For Availability
NI
INSULATION, FOIL, ALUMINUM OVEN (18`` X 25 WPL 241430 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 14 WPL 242820 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 G WPL 242821 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242822 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 WPL 242823 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 WPL 242824 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA WPL 242825 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, WHITE 14 WPL 242826 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242827 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 WPL 242828 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, RED 12 GA WPL 242829 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 WPL 242830 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 WPL 242832 Contact Us For Availability
NI
REFINISHING MATERIAL (GREA WPL 261582 Contact Us For Availability
NI
WPL 799832 WPL 799832 Contact Us For Availability
NI
WPL 9750984 WPL 9750984 Contact Us For Availability
NI
WPL 9752612 WPL 9752612 Contact Us For Availability
NI
WPL 9752771 WPL 9752771 Contact Us For Availability
NI
WPL 9752848 WPL 9752848 Contact Us For Availability
NI
WPL 9753680 WPL 9753680 Contact Us For Availability
NI
WPL 9753682 WPL 9753682 Contact Us For Availability
NI
WPL 9754100 WPL 9754100 Contact Us For Availability
NI
WPL 9781096 WPL 9781096 Contact Us For Availability
NI
WPL 9781291 WPL 9781291 Contact Us For Availability
NI
WPL 9782133 WPL 9782133 Contact Us For Availability
NI
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
