Model Electrolux WGF337CBSB RANGE – Common Parts & Diagrams
01 - COVER

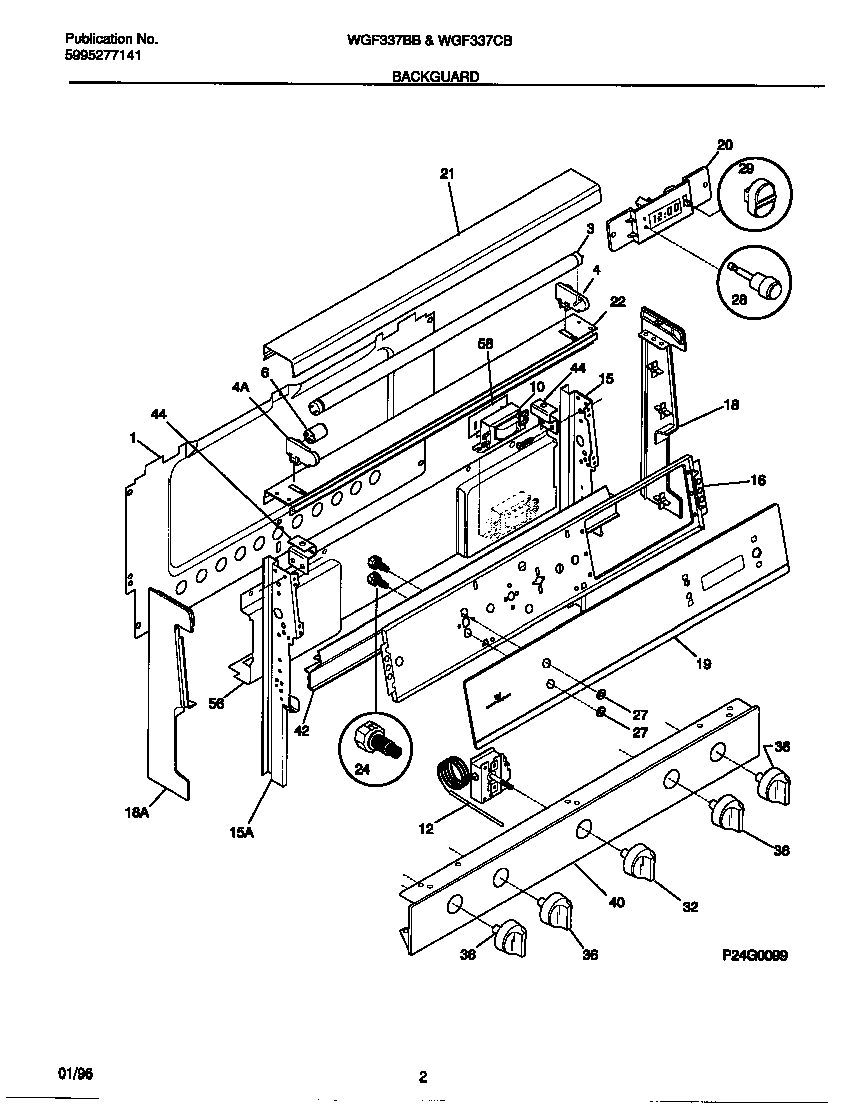

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
07 - WIRING DIAGRAM
Common parts from model Electrolux WGF337CBSB RANGE
*73805
WCI 316001627 WCI 316001627 Contact Us For Availability
*73806
WCI 5303281584 WCI 5303281584 Contact Us For Availability
*73808
WCI 5303288574 WCI 5303288574 Contact Us For Availability
*73810
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
*73811
WCI 5303269859 WCI 5303269859 Contact Us For Availability
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-BROILER WCI 3018608 Contact Us For Availability
2
LINER, BROILER DOOR WCI 3202803 Contact Us For Availability
3
LAMP-FLUORESCENT, BACKGUARD WCI 3131275 Contact Us For Availability
3
WCI 316081004 WCI 316081004 Contact Us For Availability
3
WCI 316081005 WCI 316081005 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
3A
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT I WCI 08067785 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
WCI 316011912 WCI 316011912 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
WCI 316089003 WCI 316089003 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5A
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
5B
WCI 3934058 WCI 3934058 Contact Us For Availability
5D
NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) WCI 5303288460 Contact Us For Availability
6
STARTER-LAMP WCI 3206218 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
GLIDE-BROILER WCI 3018610 No Longer Available
7
WCI 316059615 WCI 316059615 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
7A
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
NUT, PUSH-ON, (2) WCI 3131386 Contact Us For Availability
8A
PANEL-OVEN BOTTOM WCI 5303212540 Contact Us For Availability
9
PAN-BROILER WCI 5303013568 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81 WCI 316001002 No Longer Available
10
WCI 5303131356 WCI 5303131356 Contact Us For Availability
11
WCI 316066300 WCI 316066300 Contact Us For Availability
11
WCI 316066301 WCI 316066301 Contact Us For Availability
12
SPRING-BROILER, LH WCI 3018618 Contact Us For Availability
12
SPRING-BROILER, RH WCI 3018619 Contact Us For Availability
13
WCI 316065005 WCI 316065005 Contact Us For Availability
13
CHANNEL-BROILER WCI 3131153 Contact Us For Availability
14
PLUG-BUTTON, GLIDE WCI 3206216 Contact Us For Availability
16
WCI 5303301546 WCI 5303301546 Contact Us For Availability
16A
GUSSET-TOP MTG, RH (NOT ILLUSTRATED) WCI 5303271891 Contact Us For Availability
16B
GUSSET-TOP MTG, LH (NOT ILLUSTRATED) WCI 5303271892 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316011400 WCI 316011400 Contact Us For Availability
20
GRATE, (4) WCI 316088901 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
21
TRIM RING, BURNER, DARK GREY WCI 316035103 Contact Us For Availability
22
WCI 316011003 WCI 316011003 Contact Us For Availability
26
WCI 08067757 WCI 08067757 Contact Us For Availability
28
BUTTON-CLOCK, WHITE WCI 316017303 Contact Us For Availability
28
CLIP-WIRE WCI 3011813 Contact Us For Availability
29
WCI 316028402 WCI 316028402 Contact Us For Availability
29
WCI 3018614 WCI 3018614 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
30
INSULATION, BROILER DRAWER WCI 5303131258 Contact Us For Availability
33
WCI 316055601 WCI 316055601 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 5303273108 WCI 5303273108 Contact Us For Availability
39
WCI 316019506 WCI 316019506 Contact Us For Availability
39
WCI 316074001 WCI 316074001 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL, (4) WCI 5303210090 No Longer Available
45
WCI 316011100 WCI 316011100 Contact Us For Availability
46
WCI 316074700 WCI 316074700 Contact Us For Availability
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
49
BRACKET, SAFETY VALVE WCI 3131438 Contact Us For Availability
50
BURNER-TOP, SMALL, (4), INCLUDES 37 WCI 5303935026 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
55
WCI 5303273110 WCI 5303273110 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/ WCI 5303281651 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 5303281627 WCI 5303281627 Contact Us For Availability
93
WCI 316055501 WCI 316055501 Contact Us For Availability
× ![]()
