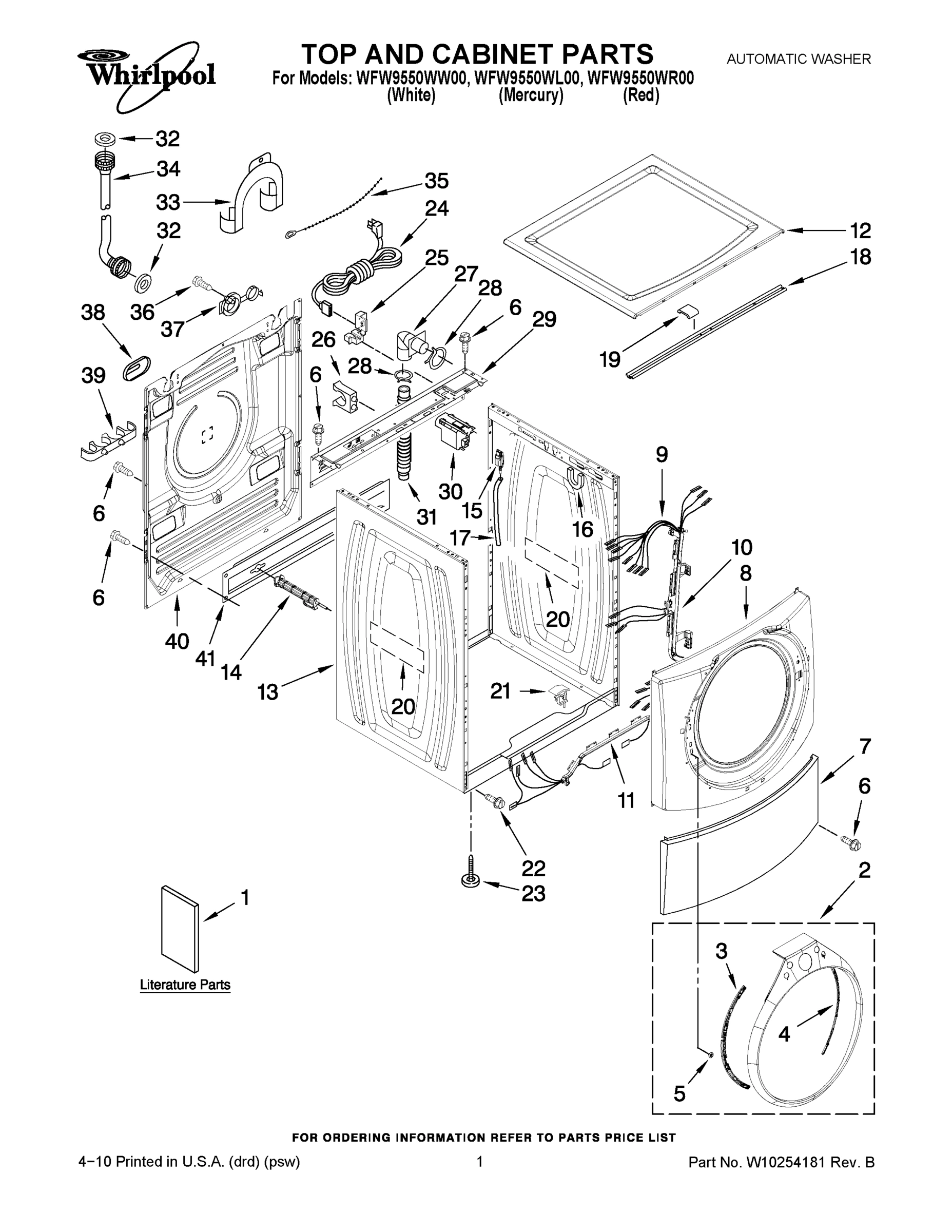

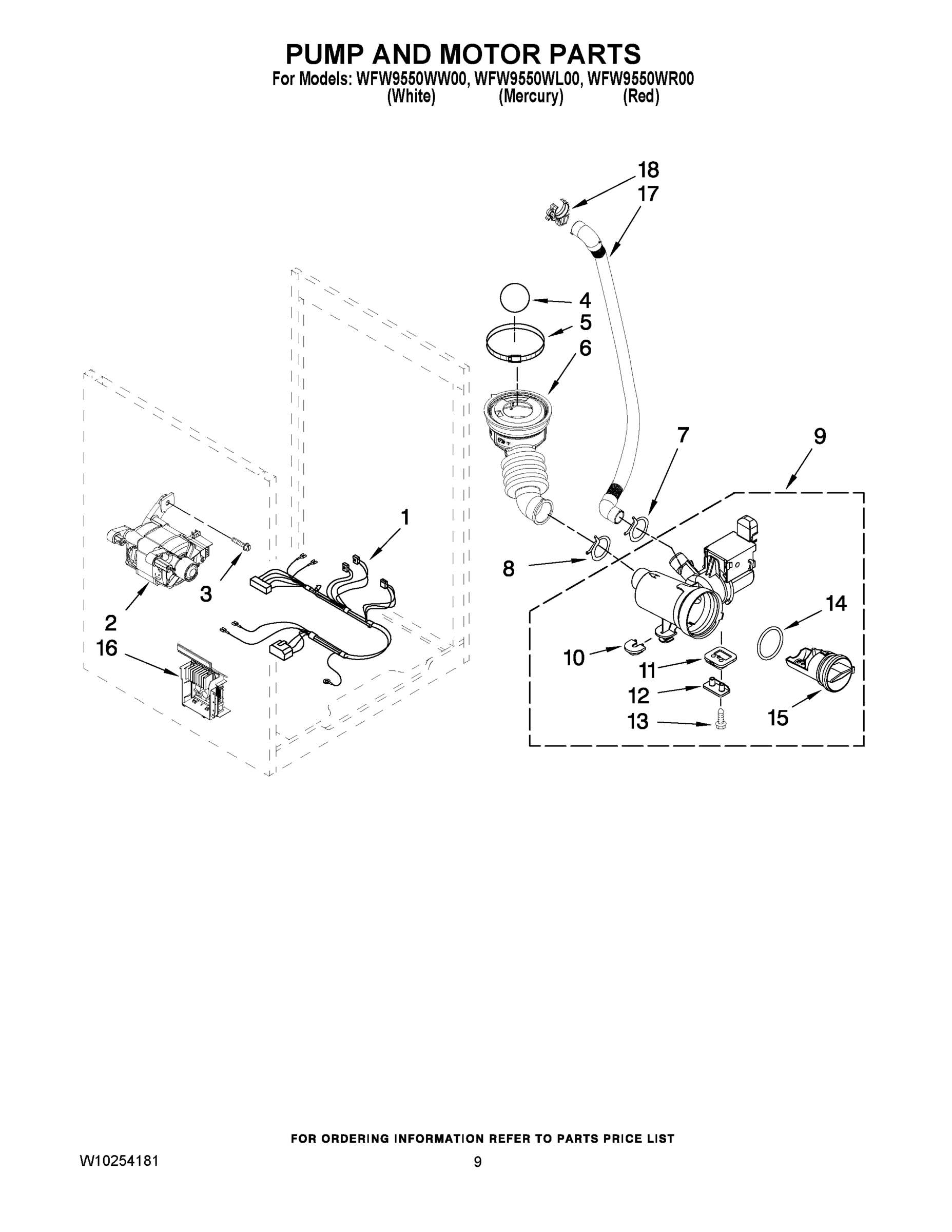

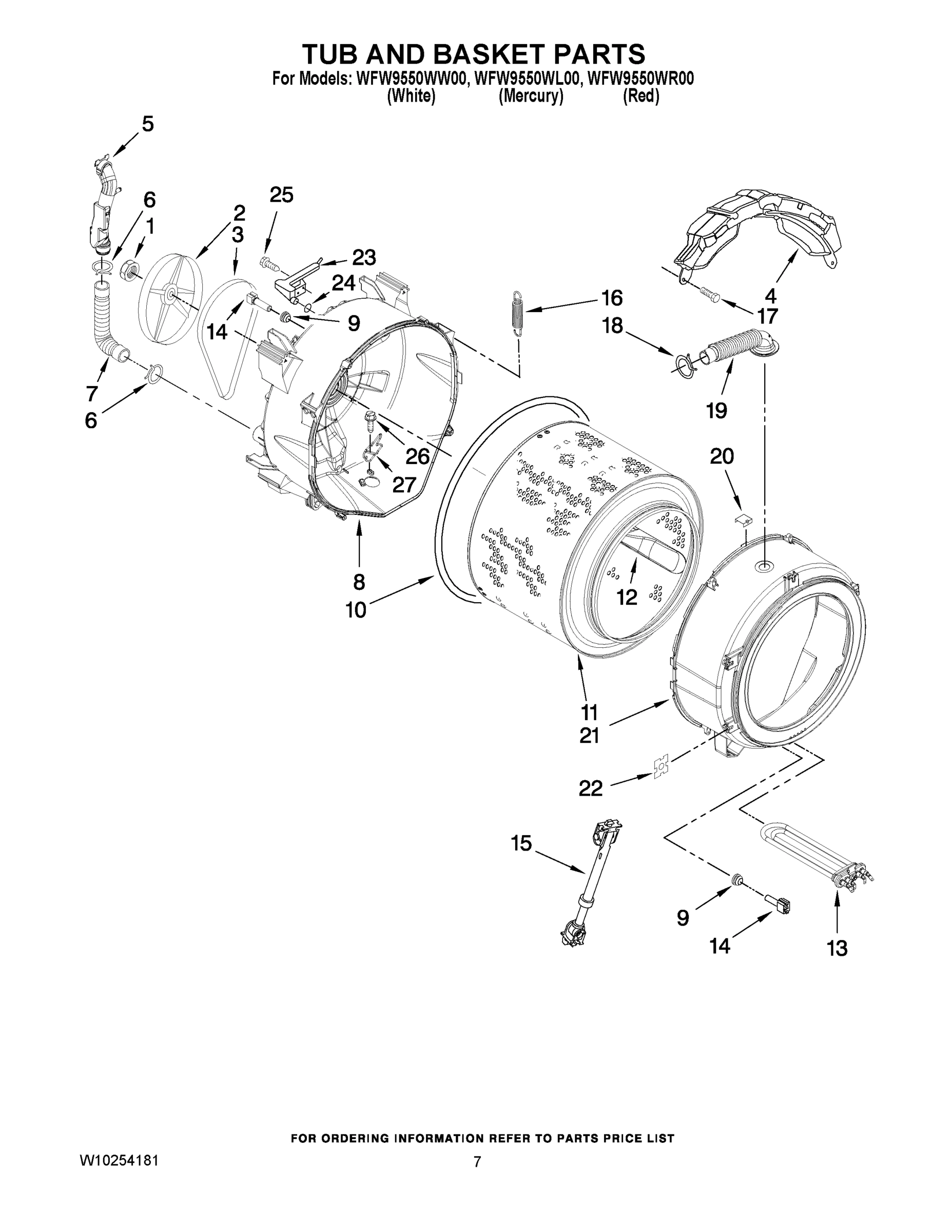

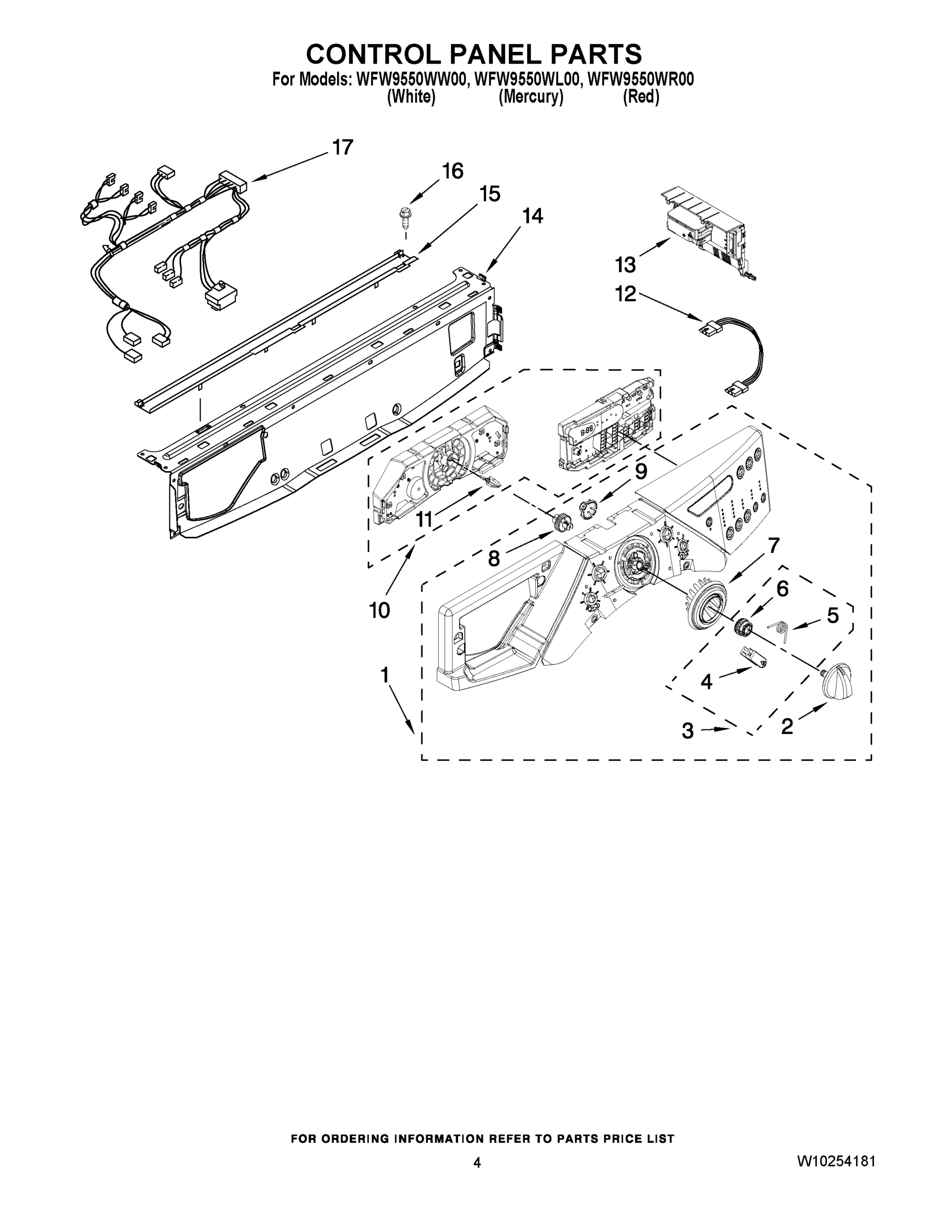

Model Whirlpool WFW9550WL00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

PANEL, CONTROL (RED) WPL W10221724 Contact Us For Availability

1

PANEL, CONTROL (MERCURY) WPL W10251280 Contact Us For Availability

1

PANEL, CONTROL (WHITE) WPL W10251428 Contact Us For Availability

1

Harness, Motor WPL W10004420 Contact Us For Availability

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $39.91

2

WPW10140583 Whirlpool Drive Motor Backorder WPL WPW10140583 $225.90

2

WPW10247305 Whirlpool Valve In Stock WPL WPW10247305 $114.03

3

8540134 Whirlpool Screw Backorder WPL 8540134 $9.59

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

4

WPW10110225 Whirlpool Flowmeter In Stock WPL WPW10110225 $69.71

4

Counterweight, Front (2) WPL W10163424 Contact Us For Availability

4

Wheel, Rast (2) (Service In Kit Only) WPL W10131661 Contact Us For Availability

5

W10249838 Whirlpool Vent Pipe Backorder WPL W10249838 $43.37

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $3.37

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $3.33

5

Spring, Knob (2) (Service In Kit Only) WPL W10131377 Contact Us For Availability

6

WPW10467168 Whirlpool Hose Assembly In Stock WPL WPW10467168 $20.57

6

Wheel, Detent (Service In Kit Only) WPL W10131378 Contact Us For Availability

7

TOE PANEL (MERCURY) WPL W10252795 Contact Us For Availability

7

Ring, Knob Light (Includes Item 9) WPL W10131376 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $30.25

8

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

8

Panel, Front (White) WPL W10015580 Contact Us For Availability

8

PANEL, FRONT (RED) WPL W10252788 Contact Us For Availability

8

PANEL, FRONT (MERCURY) WPL W10252793 Contact Us For Availability

9

W10115662 Whirlpool Wire Harness Backorder WPL W10115662 $179.85

9

W11590578 Whirlpool Seal Backorder WPL W11590578 $2.40

9

Retainer, Snap WPL W10131382 Contact Us For Availability

W10034820 Whirlpool Grommet Backorder WPL W10034820 $7.89

W10216383 Whirlpool Retainer In Stock WPL W10216383 $86.68

WPW10003370 Whirlpool Frame Backorder WPL WPW10003370 $109.83

WPW10036350 Whirlpool Gasket Backorder WPL WPW10036350 $30.20

USER INTERFACE, CENTER & RIGHT WPL W10282179 Contact Us For Availability

11

W10168549 Whirlpool Retainer Backorder WPL W10168549 $84.74

11

Adapter, Encoder Wheel WPL 8183177 Contact Us For Availability

11

Foot, Rubber (Lock) WPL W10034830 Contact Us For Availability

8540033 Whirlpool Cap Backorder WPL 8540033 $7.94

W10067000 Whirlpool Wire Harness Backorder WPL W10067000 $68.13

WPW10110114 Whirlpool Baffle Backorder WPL WPW10110114 $46.81

GLASS, DOOR WPL W10135912 Contact Us For Availability

Top (White) WPL W10003900 Contact Us For Availability

TOP (RED) WPL W10252789 Contact Us For Availability

TOP (MERCURY) WPL W10252796 Contact Us For Availability

8533964 Whirlpool Screw Backorder WPL 8533964 $7.32

W10171708 Whirlpool Cabinet Backorder WPL W10171708 $264.25

WPW10249844 Whirlpool Heater Assembly Backorder WPL WPW10249844 $182.72

CABINET (MERCURY) WPL W10252826 Contact Us For Availability

CABINET (RED) WPL W10252865 Contact Us For Availability

MICROCOMPUTER, MACHINE CONTROL WPL W10251767 Contact Us For Availability

W10059240 Whirlpool Bracket Assembly Backorder WPL W10059240 $75.50

W10289554A Whirlpool Bolt Kit In Stock WPL W10289554A $42.00

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $112.88

Bolt, Shipping (Lower (2)) WPL W10190007 Contact Us For Availability

15

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $36.80

15

WP8183204 Whirlpool Diverter Backorder WPL WP8183204 $71.86

15

WPW10249845 Whirlpool Washer Water Level Swit In Stock WPL WPW10249845 $145.14

W10003140 Whirlpool Cover Backorder WPL W10003140 $34.48

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

WP8181763 Whirlpool Bracket Assembly In Stock WPL WP8181763 $30.25

WPW10384846-includeCORE Whirlpool WPW10384846 Backorder WPL WPW10384846-includeCORE $291.64

W10210828 Whirlpool Wire Harness Backorder WPL W10210828 $111.32

WPW10003250 Whirlpool Hose In Stock WPL WPW10003250 $19.67

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

WPW10015190 Whirlpool Drawer Backorder WPL WPW10015190 $83.12

18

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

18

WP8540720 Whirlpool Brace Assembly Backorder WPL WP8540720 $30.89

18

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $36.36

19

WP8283273 Whirlpool Pad Backorder WPL WP8283273 $11.44

19

WP8540015 Whirlpool Hose Assembly Backorder WPL WP8540015 $17.20

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $4.52

20

Absorber, Sound WPL 3976348 Contact Us For Availability

21

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $10.58

22

8540479 Whirlpool Screw Backorder WPL 8540479 $5.65

22

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.89

23

W10862938 Whirlpool Leveling Feet In Stock WPL W10862938 $8.13

23

Hose, Inlet Nozzle WPL 8183180 Contact Us For Availability

24

8183182 Whirlpool Hose Backorder WPL 8183182 $14.18

24

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

24

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

25

8182635 Whirlpool Strain Relief Backorder WPL 8182635 $7.34

25

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $9.59

25

WP8181710 Whirlpool Hose Assembly Backorder WPL WP8181710 $9.77

26

Clip, Outer Hose Holder WPL W10022290 Contact Us For Availability

27

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

27

W11757170 Whirlpool Connector Backorder WPL W11757170 $2.29

28

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

29

Brace, Rear WPL W10110677 Contact Us For Availability

30

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $44.62

31

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $31.07

32

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

33

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $30.25

34

3805FF Supco 5' Reinforced Rubber Washer Fill In Stock SEA 3805FF $5.30

34

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

36

8182201 Whirlpool Screw Backorder WPL 8182201 $9.59

37

W11116978 Whirlpool Grommet Backorder WPL W11116978 $11.27

38

WP8540268 Whirlpool Cover Assembly Backorder WPL WP8540268 $3.70

39

8182701 Whirlpool Clip Backorder WPL 8182701 $34.18

40

WPL W10165713 WPL W10165713 Contact Us For Availability

41

WPW10003040 Whirlpool Brace Backorder WPL WPW10003040 $37.92

41

WPL W10165710 WPL W10165710 Contact Us For Availability

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $16.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $9.61

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (RED) WPL W10218245 Contact Us For Availability
