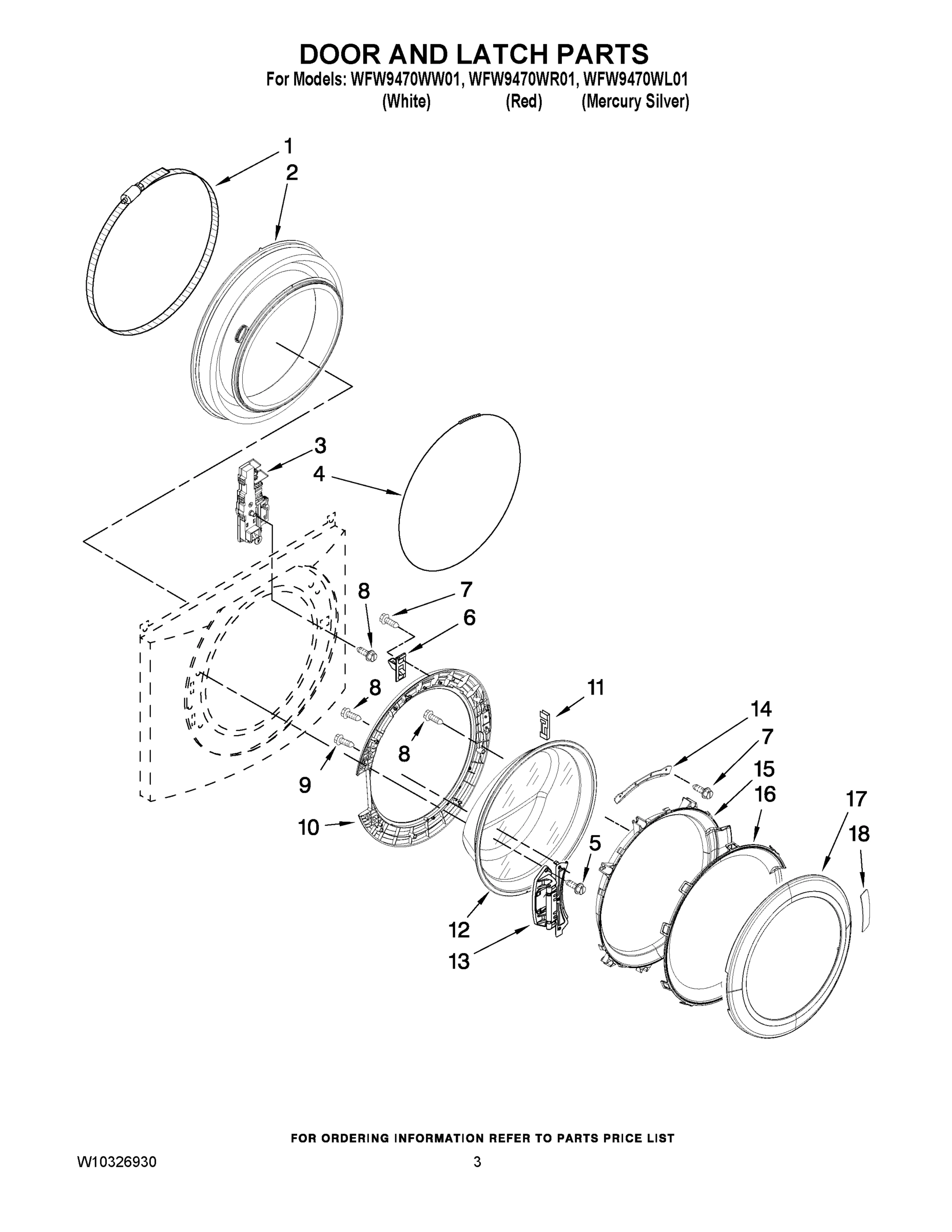

Model Whirlpool WFW9470WW01 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10283361 Whirlpool Nut Backorder WPL WPW10283361 $28.80

1

WPW10289387 Whirlpool Washer Valve In Stock WPL WPW10289387 $89.11

2

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

2

W10291582 Whirlpool Hose Assembly Backorder WPL W10291582 $10.07

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $107.85

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $79.12

3

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

3

WP8183270 Whirlpool Door Latch In Stock WPL WP8183270 $127.11

3

WPW10388414 Whirlpool Washer Drive Belt In Stock WPL WPW10388414 $35.47

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $11.27

4

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $32.50

4

WPW10283362 Whirlpool Fan Backorder WPL WPW10283362 $176.79

5

WPW10005300 Whirlpool Hose In Stock WPL WPW10005300 $7.06

5

PIPE, VENTILATION WPL W10283513 Contact Us For Availability

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $31.40

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $3.70

6

Clamp WPL W10208156 Contact Us For Availability

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $37.70

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $31.40

7

Bracket, Trim Fixation (Left) WPL 8183208 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $28.80

8

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

8

TUB, REAR (INCLUDES ITEMS 10, 22, 23 & 24) WPL W10283358 Contact Us For Availability

9

WP8183210 Whirlpool Clip In Stock WPL WP8183210 $3.70

9

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

9

SUPPORT,VENTILATION FAN WPL W10283366 Contact Us For Availability

WPW10352973 Whirlpool DIS Switch In Stock WPL WPW10352973 $63.21

Gasket, Tub WPL 8181673 Contact Us For Availability

USER INTERFACE, CENTER WPL W10283460 Contact Us For Availability

Seal, Filter Cap WPL 8181736 Contact Us For Availability

WPW10283352 Whirlpool Basket Assembly Backorder WPL WPW10283352 $344.48

Cap, Filter (Includes Item 10) WPL 8183027 Contact Us For Availability

Foot, Leveling WPL 8181636 Contact Us For Availability

Dispenser, Complete (Includes Item 8) WPL W10157886 Contact Us For Availability

12

WPW10283356 Whirlpool Washer Tub Baffle In Stock WPL WPW10283356 $40.15

12

Plate, Distribution WPL W10164400 Contact Us For Availability

12

Bolt, Motor WPL W10128585 Contact Us For Availability

W10852624 Whirlpool Wire Harness Backorder WPL W10852624 $64.83

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $30.93

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $94.55

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

Motor WPL 8182793 Contact Us For Availability

W10295703 Whirlpool Clamp Assembly Backorder WPL W10295703 $7.32

WP8181721 Whirlpool Retainer In Stock WPL WP8181721 $28.80

WPW10189680 Whirlpool Wire Harness Backorder WPL WPW10189680 $87.59

Airtrap WPL 8181731 Contact Us For Availability

MICROCOMPUTER, MACHINE CONTROL WPL W10326995 Contact Us For Availability

15

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

15

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $42.69

15

SCREW WPL 8181785 Contact Us For Availability

16

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $50.25

16

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $28.02

17

W10003140 Whirlpool Cover Backorder WPL W10003140 $32.83

17

BOLT, FRONT COUNTERWEIGHT WPL 8181647 Contact Us For Availability

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

W10283495 Whirlpool Wire Harness Backorder WPL W10283495 $101.94

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

WPW10015190 Whirlpool Drawer Backorder WPL WPW10015190 $79.15

19

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $15.59

19

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $34.62

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

WPW10271610 Whirlpool Washer Water Level Swit Backorder WPL WPW10271610 $73.09

HANDLE, DRAWER (INCLUDES ITEMS 19 & 21) (WHIT WPL W10296484 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 19 & 21) (RED) WPL W10296485 Contact Us For Availability

HANDLE, DRAWER (INCLUDES ITEMS 19 & 21) (MERC WPL W10296486 Contact Us For Availability

21

W10772607 Whirlpool Outer Tub Backorder WPL W10772607 $200.22

21

MEDALLION WPL 8183253 Contact Us For Availability

22

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

23

SCREW WPL 8182214 Contact Us For Availability

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

25

WPW10426377 Whirlpool Heater Assembly Backorder WPL WPW10426377 $124.92

25

Connector, Drain Hose WPL 8181738 Contact Us For Availability

26

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $28.80

26

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $18.45

27

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

28

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

28

COUNTERWEIGHT, FRONT WPL W10326457 Contact Us For Availability

29

COUNTERWEIGHT, REAR WPL W10326456 Contact Us For Availability

30

SCREW, REAR COUNTERWEIGHT WPL W10283359 Contact Us For Availability

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $57.29

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $14.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212526 Whirlpool Washer Water Leak Protectio In Stock WPL 8212526 $49.41

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $29.74

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (RED) WPL W10218245 Contact Us For Availability
