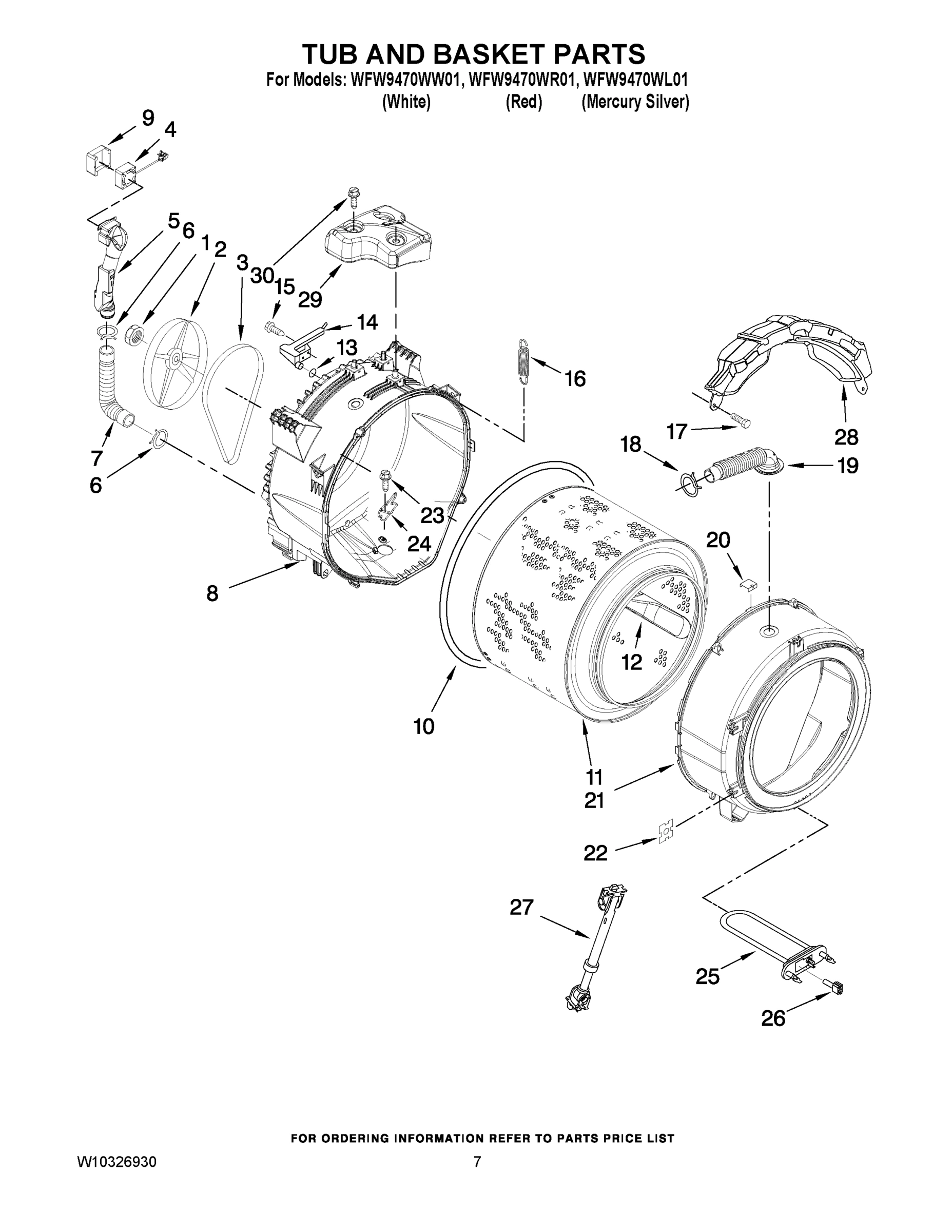

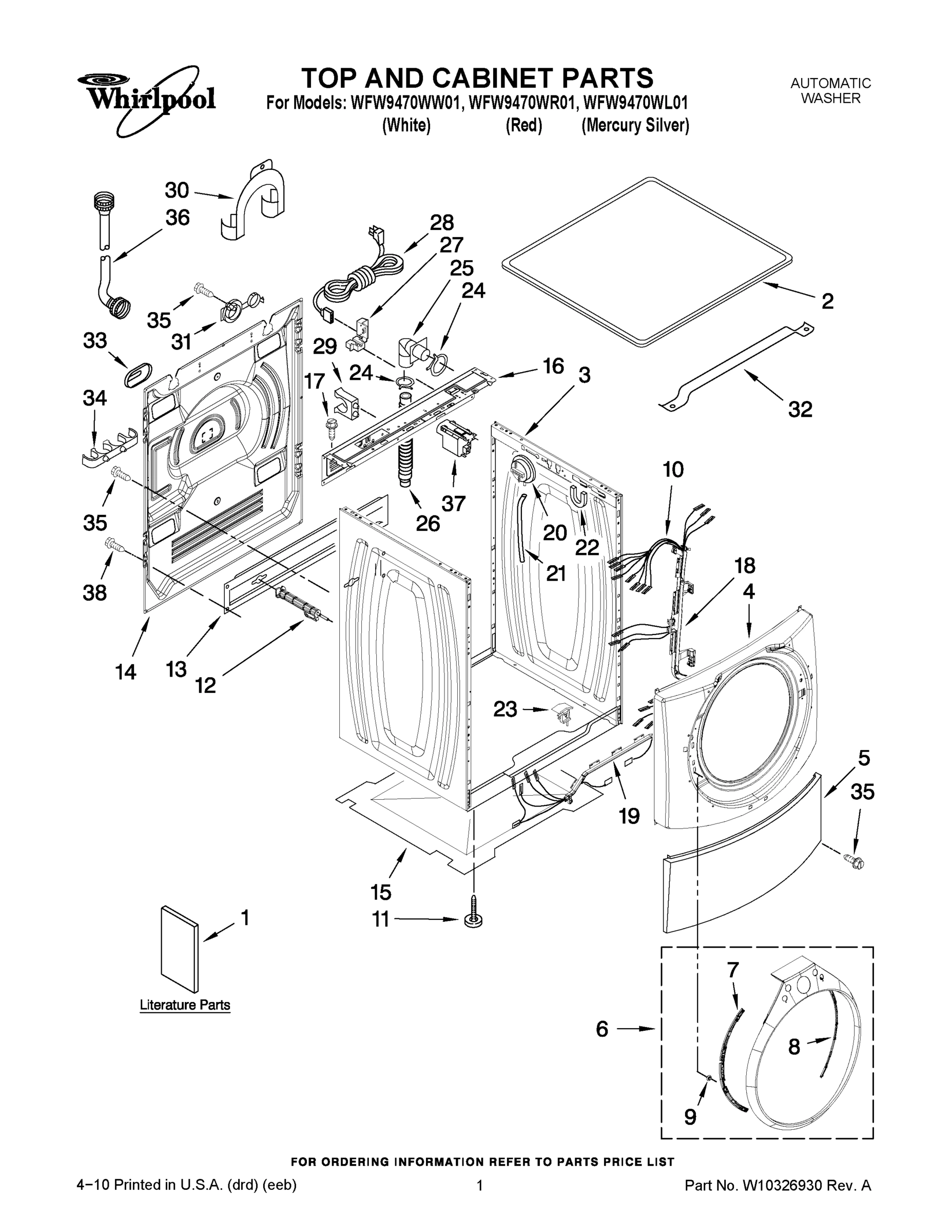

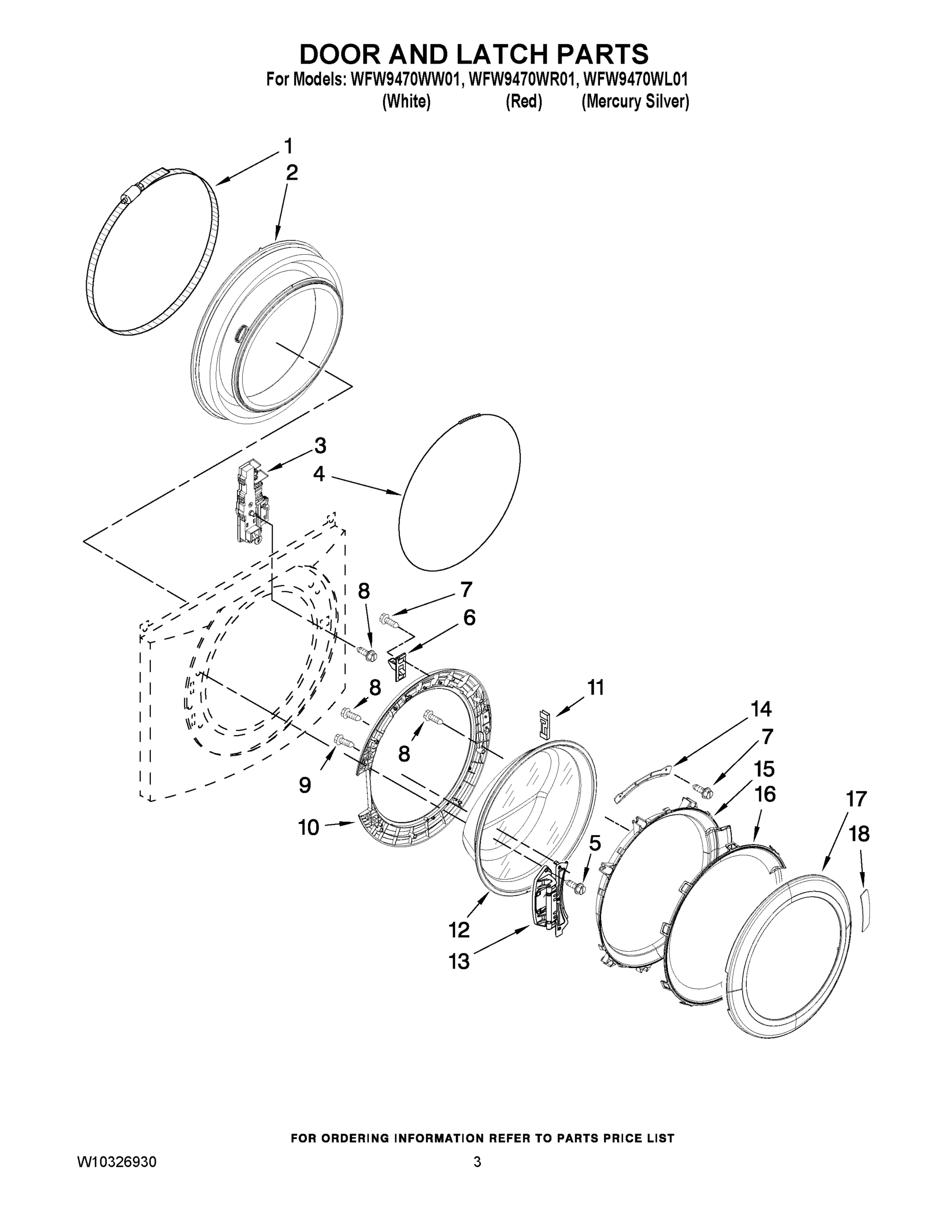

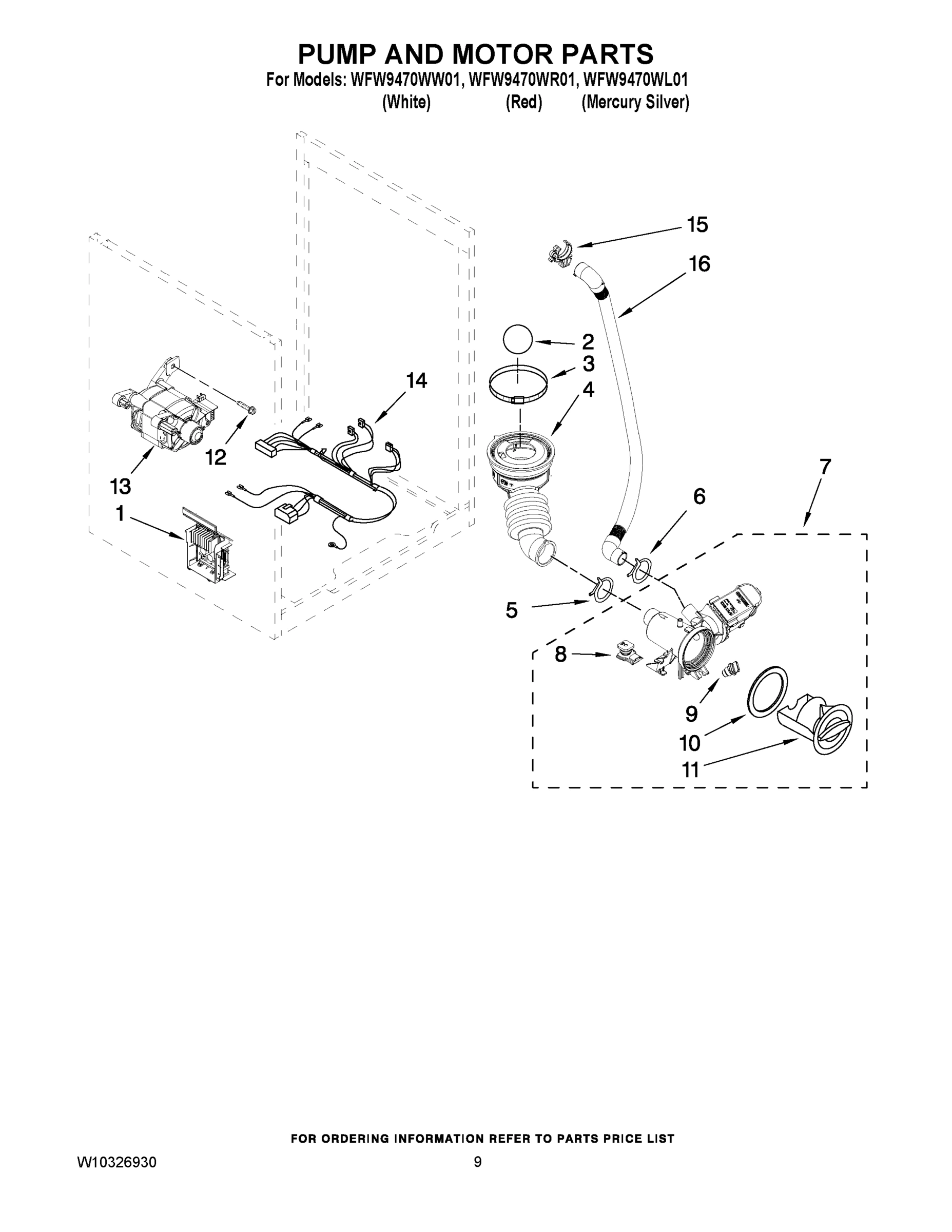

Model Whirlpool WFW9470WL01 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WPW10283361 Whirlpool Nut Backorder WPL WPW10283361 $28.80

1

WPW10289387 Whirlpool Washer Valve In Stock WPL WPW10289387 $89.11

2

W10121657 Whirlpool Ball Backorder WPL W10121657 $9.22

2

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

2

W10291582 Whirlpool Hose Assembly Backorder WPL W10291582 $10.07

2

WP8182119 Whirlpool Washer Door Boot Bellows In Stock WPL WP8182119 $107.85

2

WP8182650 Whirlpool Pulley In Stock WPL WP8182650 $79.12

3

WP8183270 Whirlpool Door Latch In Stock WPL WP8183270 $127.11

3

Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability

4

W10902779 Whirlpool Clamp Assembly In Stock WPL W10902779 $11.27

4

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $32.50

6

WP8183183 Whirlpool Lever Backorder WPL WP8183183 $31.40

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $3.70

6

TRIM RING, TEARDROP ASSEMBLY (MERCURY SILVER) WPL W10296489 Contact Us For Availability

7

WP8181743 Whirlpool Hose Assembly Backorder WPL WP8181743 $37.70

7

WP8183184 Whirlpool Actuator Cam Backorder WPL WP8183184 $31.40

7

Bracket, Trim Fixation (Left) WPL 8183208 Contact Us For Availability

8

W10131381 Whirlpool Wheel Backorder WPL W10131381 $28.80

8

WPW10161052 Whirlpool Dispenser Lever Connect Backorder WPL WPW10161052 $3.70

8

Bracket, Trim Fixation (Right) WPL 8183209 Contact Us For Availability

9

WP8183210 Whirlpool Clip In Stock WPL WP8183210 $3.70

9

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

WPW10283494 Whirlpool Wire Harness Backorder WPL WPW10283494 $185.31

Gasket, Tub WPL 8181673 Contact Us For Availability

USER INTERFACE, CENTER WPL W10283460 Contact Us For Availability

Seal, Filter Cap WPL 8181736 Contact Us For Availability

11

WPW10283352 Whirlpool Basket Assembly Backorder WPL WPW10283352 $344.48

11

Cap, Filter (Includes Item 10) WPL 8183027 Contact Us For Availability

11

Foot, Leveling WPL 8181636 Contact Us For Availability

W10289554A Whirlpool Bolt Kit In Stock WPL W10289554A $41.18

WPW10283356 Whirlpool Washer Tub Baffle In Stock WPL WPW10283356 $40.15

Plate, Distribution WPL W10164400 Contact Us For Availability

Bolt, Motor WPL W10128585 Contact Us For Availability

W10852624 Whirlpool Wire Harness Backorder WPL W10852624 $64.83

WP8181712 Whirlpool Nozzle Backorder WPL WP8181712 $30.93

WP8183202 Whirlpool Door Hinge In Stock WPL WP8183202 $94.55

WPW10003040 Whirlpool Brace Backorder WPL WPW10003040 $36.11

WPW10250553 Whirlpool O-Ring Backorder WPL WPW10250553 $2.51

Motor WPL 8182793 Contact Us For Availability

W10295703 Whirlpool Clamp Assembly Backorder WPL W10295703 $7.32

WP8181721 Whirlpool Retainer In Stock WPL WP8181721 $28.80

WPW10189680 Whirlpool Wire Harness Backorder WPL WPW10189680 $87.59

Airtrap WPL 8181731 Contact Us For Availability

MICROCOMPUTER, MACHINE CONTROL WPL W10326995 Contact Us For Availability

Panel, Rear WPL W10242507 Contact Us For Availability

8182209 Whirlpool Clip Backorder WPL 8182209 $8.99

WPW10121596 Whirlpool Divider Backorder WPL WPW10121596 $42.69

SCREW WPL 8181785 Contact Us For Availability

Pan, Bottom WPL 8181635 Contact Us For Availability

16

W10121598 Whirlpool Dispenser Assembly Backorder WPL W10121598 $50.25

16

W10135004 Whirlpool Spring Assembly In Stock WPL W10135004 $28.02

16

BRACE, REAR WPL W10289389 Contact Us For Availability

17

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

18

Channel, Harness (Side) WPL W10121609 Contact Us For Availability

19

WPW10156617 Whirlpool Bracket Backorder WPL WPW10156617 $34.62

19

Channel, Harness (Bottom) WPL W10121610 Contact Us For Availability

20

WPW10271610 Whirlpool Washer Water Level Swit Backorder WPL WPW10271610 $73.09

21

WPW10004260 Whirlpool Pressure Switch Hose In Stock WPL WPW10004260 $4.07

22

WP8181747 Whirlpool Seal Assembly In Stock WPL WP8181747 $9.57

22

WP8181763 Whirlpool Bracket Assembly Backorder WPL WP8181763 $28.80

22

WP8182512 Whirlpool Nut Assembly Backorder WPL WP8182512 $3.70

23

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $10.58

24

W10250558 Whirlpool Bracket Assembly Backorder WPL W10250558 $5.73

24

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

25

Connector, Drain Hose WPL 8181738 Contact Us For Availability

26

WP8181737 Whirlpool Hose In Stock WPL WP8181737 $28.80

27

8182635 Whirlpool Strain Relief Backorder WPL 8182635 $7.34

27

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $35.98

28

WP8183009 Whirlpool Power Cord Backorder WPL WP8183009 $52.78

28

COUNTERWEIGHT, FRONT WPL W10326457 Contact Us For Availability

29

COUNTERWEIGHT, REAR WPL W10326456 Contact Us For Availability

29

Clip, Outer Hose Holder WPL 8182702 Contact Us For Availability

30

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $28.80

30

SCREW, REAR COUNTERWEIGHT WPL W10283359 Contact Us For Availability

31

W11116978 Whirlpool Grommet Backorder WPL W11116978 $11.27

32

Brace, Top WPL 8181632 Contact Us For Availability

33

WP8540268 Whirlpool Cover Assembly Backorder WPL WP8540268 $3.70

34

8182701 Whirlpool Clip Backorder WPL 8182701 $32.56

36

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

37

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $43.79

38

WPL W10157885 WPL W10157885 Contact Us For Availability

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $57.29

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $14.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $19.37

8212526 Whirlpool Washer Water Leak Protectio In Stock WPL 8212526 $49.41

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $29.74

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $8.78

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (RED) WPL W10218245 Contact Us For Availability
