Model Whirlpool WFW9200SQA11 AUTOMATIC WASHER – Common Parts & Diagrams

1

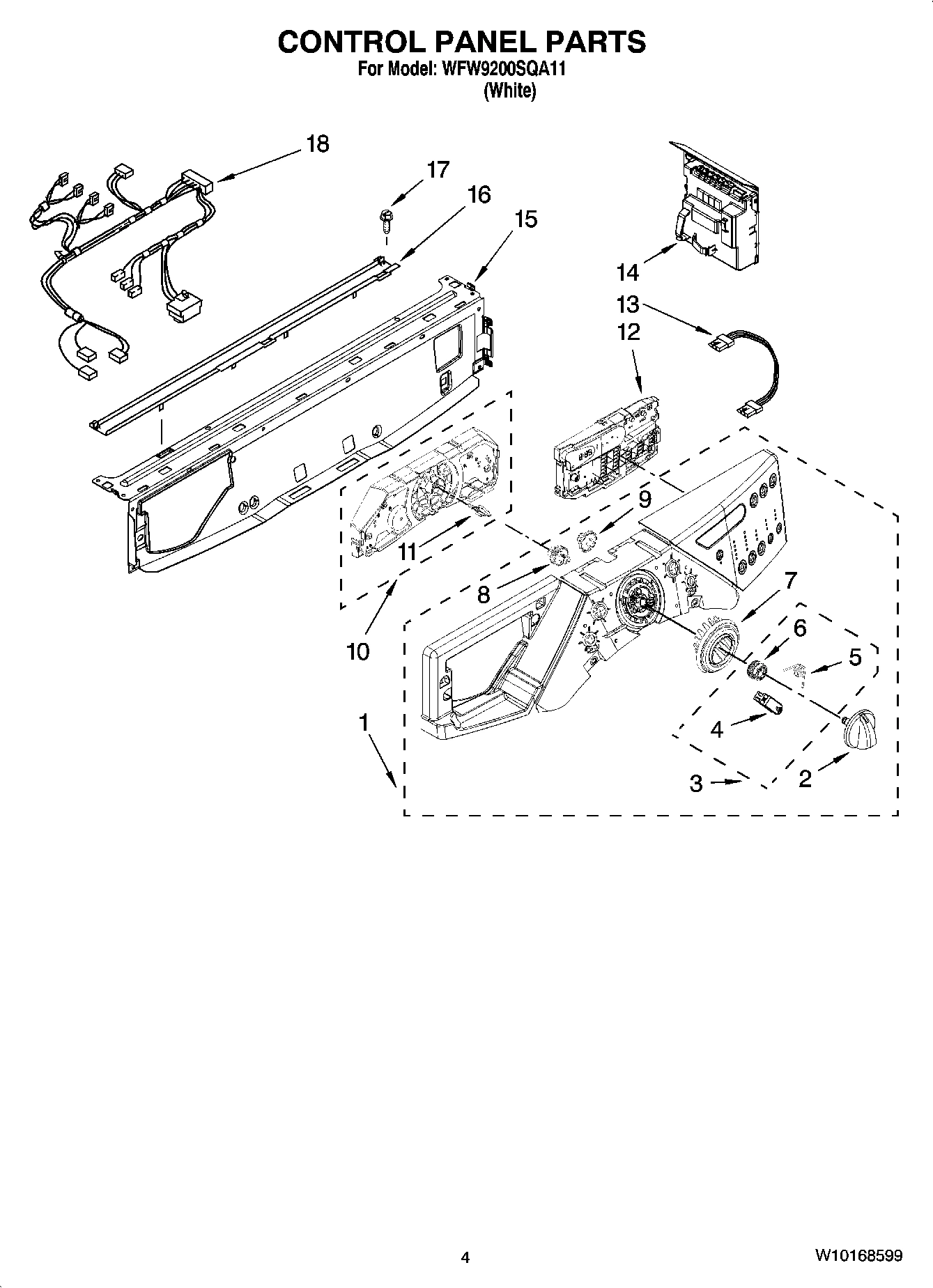

Panel, Control
Panel, Control WPL 8183228 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 8183011 Contact Us For Availability
View on Model
1
Quick Start Guide
Quick Start Guide WPL 8183017 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8183018 Contact Us For Availability
View on Model
1
Energy Guide
Energy Guide WPL W10128100 Contact Us For Availability
View on Model
2
Valve, Water Inlet
Valve, Water Inlet WPL WP8540751 No Longer Available
View on Model
2
Trim Ring, Teardrop Assembly
Trim Ring, Teardrop Assembly WPL W10015850 Contact Us For Availability
View on Model
2
Knob, Control (Includes Item 9)
Knob, Control (Includes Item 9) WPL W10131368 Contact Us For Availability
View on Model
3
Wheel, Detent Kit (Includes Item 9)
Wheel, Detent Kit (Includes Item 9) WPL W10133927 Contact Us For Availability
View on Model
3
Bracket, Trim Fixation (Left)
Bracket, Trim Fixation (Left) WPL W10015770 Contact Us For Availability
View on Model
4
Bracket, Trim Fixation (Right)
Bracket, Trim Fixation (Right) WPL W10015780 Contact Us For Availability
View on Model
4
Wheel, Rast (2) (Service In Kit Only)
Wheel, Rast (2) (Service In Kit Only) WPL W10131661 Contact Us For Availability
View on Model
5
Spring, Knob (2) (Service In Kit Only)
Spring, Knob (2) (Service In Kit Only) WPL W10131377 Contact Us For Availability
View on Model
6
Wheel, Detent (Service In Kit Only)
Wheel, Detent (Service In Kit Only) WPL W10131378 Contact Us For Availability
View on Model
7
Toe Panel
Toe Panel WPL W10003640 Contact Us For Availability
View on Model
7
Ring, Knob Light (Includes Item 9)
Ring, Knob Light (Includes Item 9) WPL W10131376 Contact Us For Availability
View on Model
8
Panel, Front
Panel, Front WPL W10015580 Contact Us For Availability
View on Model
9
Retainer, Snap
Retainer, Snap WPL W10131382 Contact Us For Availability
View on Model
10
User Interface, Center
User Interface, Center WPL W10168596 Contact Us For Availability
View on Model
11
Clamp, Support
Clamp, Support WPL W10003430 Contact Us For Availability
View on Model
11
Adapter, Encoder Wheel
Adapter, Encoder Wheel WPL 8183177 Contact Us For Availability
View on Model
12
Glass, Door
Glass, Door WPL W10003520 Contact Us For Availability
View on Model
12
Top
Top WPL W10003900 Contact Us For Availability
View on Model
12
User Interface, Right
User Interface, Right WPL W10168597 Contact Us For Availability
View on Model
13
Cabinet
Cabinet WPL W10002880 Contact Us For Availability
View on Model
14
Microcomputer, Machine Control
Microcomputer, Machine Control WPL W10161727 Contact Us For Availability
View on Model
17
Screen, Door
Screen, Door WPL W10008990 Contact Us For Availability
View on Model
18
Trim Ring, Outer Door (Includes Item 19)
Trim Ring, Outer Door (Includes Item 19) WPL W10015680 Contact Us For Availability
View on Model
19
Sleeve, Drain Hose
Sleeve, Drain Hose WPL W10004320 Contact Us For Availability
View on Model
26
Clip, Outer Hose Holder
Clip, Outer Hose Holder WPL W10022290 Contact Us For Availability
View on Model
29
Brace, Rear
Brace, Rear WPL W10110677 Contact Us For Availability
View on Model
