Model Whirlpool WFGS7530RZ1 RANGE/OVEN, GAS – Common Parts & Diagrams

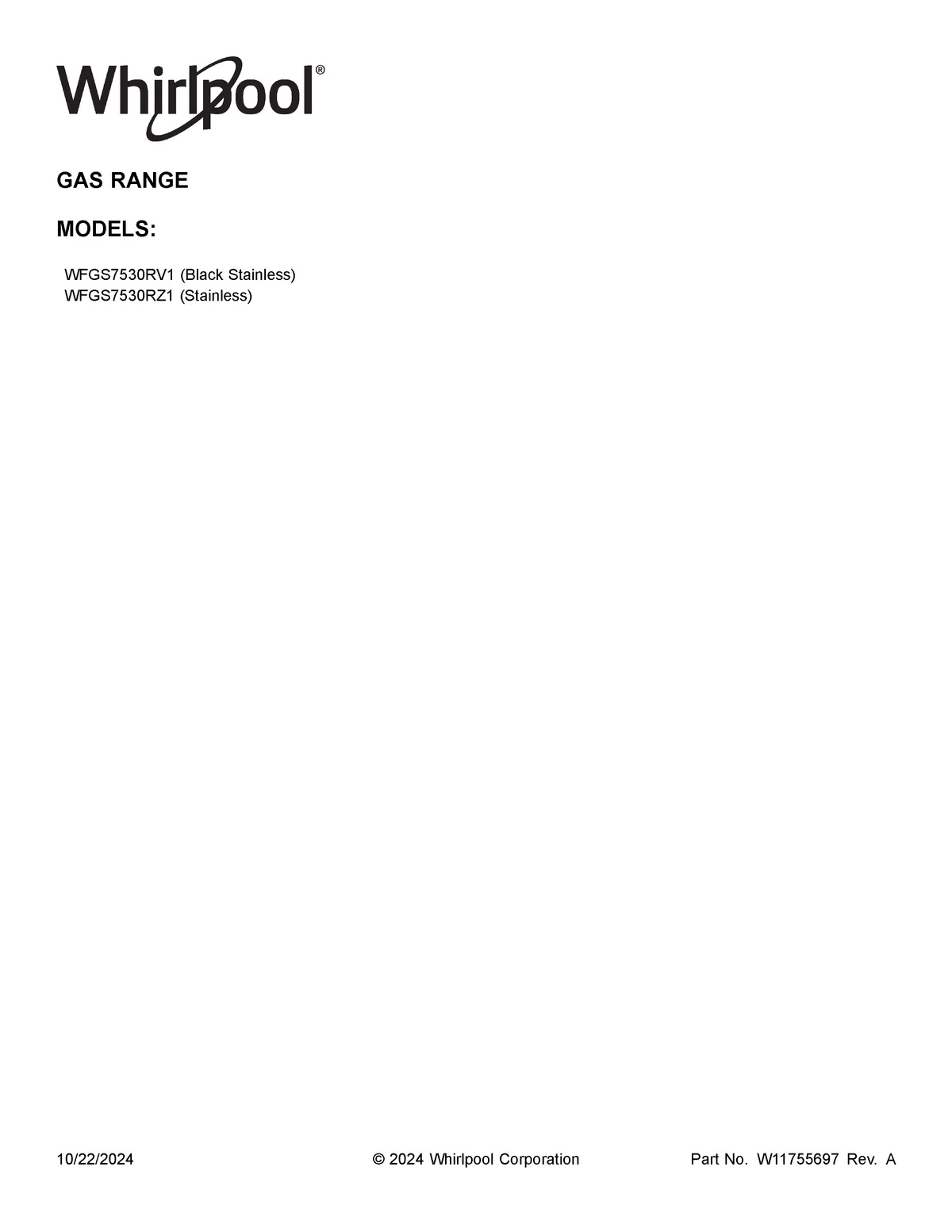

01 - COVER SHEET

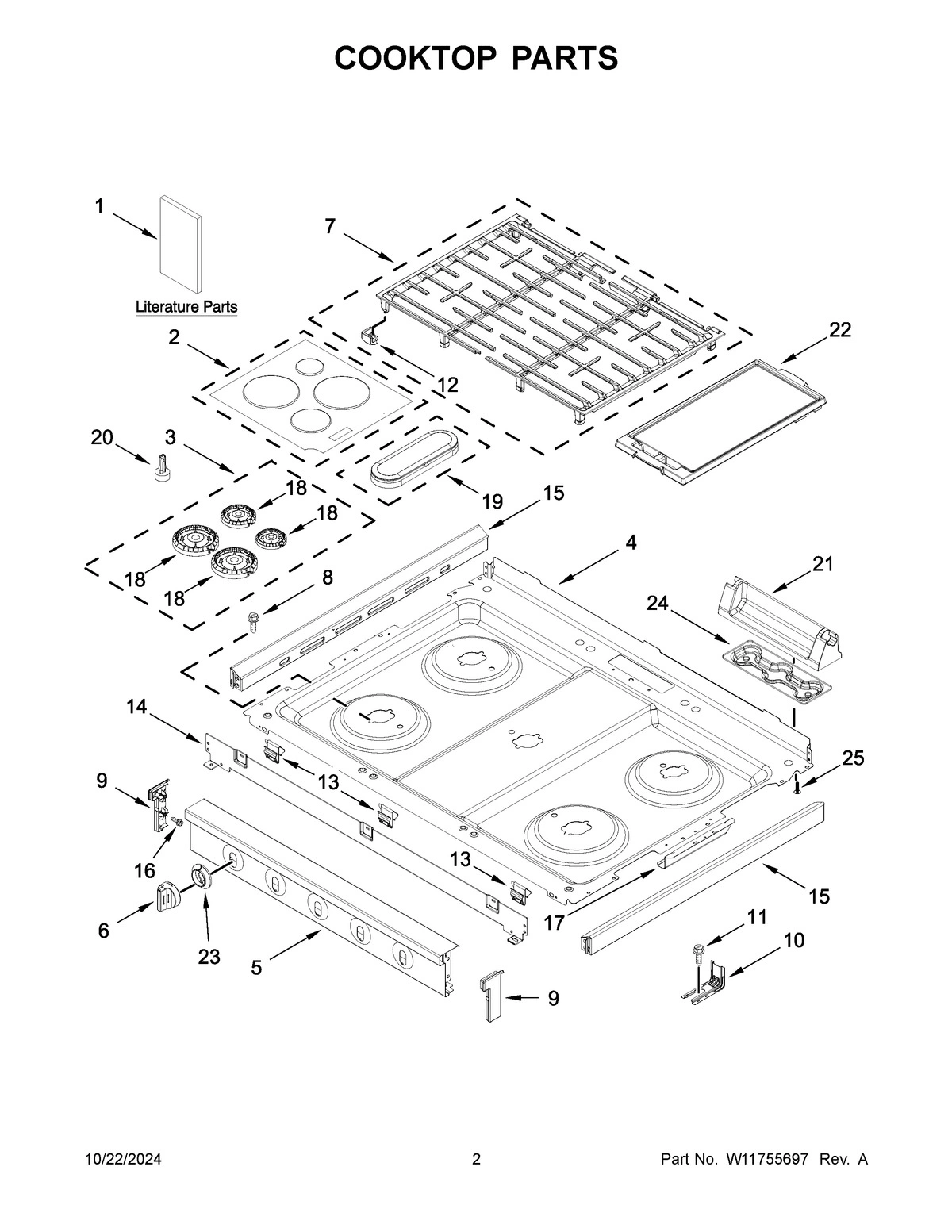

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - MANIFOLD PARTS
05 - CHASSIS PARTS
06 - DOOR PARTS
07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WFGS7530RZ1 RANGE/OVEN, GAS
1
ENDCAP (BLACK (LEFT)) WPL W11625423 Contact Us For Availability
1
SCREW WPL W11402213 Contact Us For Availability
1
BOX, FLUE WPL W11366110 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) WPL W11625420 Contact Us For Availability
2
SHIELD, HEAT WPL W11736649 Contact Us For Availability
2
SHIELD, FLUE WPL W11279866 Contact Us For Availability
3
PANEL, CONTROL (BLACK STAINLESS) WPL W11371989 Contact Us For Availability
3
ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT) (I WPL W11300870 Contact Us For Availability
3A
ORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) (IN WPL W11300871 Contact Us For Availability
3B
ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) ( WPL W11300879 Contact Us For Availability
3C
ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) (IN WPL W11300867 Contact Us For Availability
3D
ORIFICE HOLDER ASSEMBLY (12K) (CENTER) (INCLU WPL W11634398 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) WPL W11384792 Contact Us For Availability
5
CLIP, PANEL WPL W10137382 Contact Us For Availability
6
BRACKET, COOKTOP CONSOLE WPL W11287215 Contact Us For Availability
7
PANEL, LOWER (BLACK STAINLESS) WPL W11299317 Contact Us For Availability
7
MANIFOLD ASSEMBLY WPL W11279816 Contact Us For Availability
8
VALVE, SINGLE (LEFT FRONT, RIGHT FRONT) WPL W11279839 Contact Us For Availability
8A
VALVE, SINGLE (LEFT REAR) WPL W11279838 Contact Us For Availability
8B
VALVE, SINGLE (RIGHT REAR) WPL W11279837 Contact Us For Availability
8C
VALVE, SINGLE (CENTER) WPL W11629949 Contact Us For Availability
9
BRACKET, AEGIS WPL W10224921 Contact Us For Availability
10
COVER, UPPER REAR WPL W11393669 Contact Us For Availability
11
BOTTOM, OVEN WPL W11602073 Contact Us For Availability
12
ELEMENT, BROILER WPL W10714060 Contact Us For Availability
12
SENSOR WPL W11633068 Contact Us For Availability
13
BAFFLE, BURNER OVEN WPL 8053967 Contact Us For Availability
14
SHIELD, HEAT WPL 8053969 Contact Us For Availability
15
SHIELD, LOWER WPL W11640074 Contact Us For Availability
16B
ELECTRODE (CENTER) WPL W11581944 Contact Us For Availability
17
ROD, DOOR SWITCH WPL 9757239 Contact Us For Availability
18
SCREW WPL 3196265 Contact Us For Availability
19
SCREW WPL 3400080 Contact Us For Availability
19
ORIFICE (18K) (LEFT FRONT) ORIFICE, NOT SERVI WPL W10849722 Contact Us For Availability
19B
ORIFICE (10K) (CENTER) ORIFICE, NOT SERVICED WPL W10907868 Contact Us For Availability
22
BRACE, MAIN BACK WPL W10435470 Contact Us For Availability
23
RETAINER, INSULATION (LEFT) WPL W11379353 Contact Us For Availability
23A
RETAINER, INSULATION (RIGHT) WPL W11379943 Contact Us For Availability
25
SCREW WPL W10530626 Contact Us For Availability
25
CORD, POWER WPL W11661976 Contact Us For Availability
31
ROD, PUSH LATCH WPL W10078370 Contact Us For Availability
36
FAN, CONVECTION WPL W11644425 Contact Us For Availability
37
BRACKET, FRONT FRAME WPL W11464547 Contact Us For Availability
38
COVER, CONV FAN WPL W11373155 Contact Us For Availability
39
SCREW WPL W10516115 Contact Us For Availability
40
SCREW WPL W10379120 Contact Us For Availability
41
VENTILATION ASSEMBLY, CONSOLE WPL W11625914 Contact Us For Availability
43
BLOWER, TUBE WPL W11411632 Contact Us For Availability
44
TUBE, CLAMP WPL W11642475 Contact Us For Availability
45
BRACKET, ACU WPL W11365827 Contact Us For Availability
46
COVER, SIDE FAN WPL W11596199 Contact Us For Availability
47
RACK, OVEN (GULL-WING) WPL W11607819 Contact Us For Availability
48
GLIDE, MAIN TOP WPL 8016P02260 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE WPL 4396096RB Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
HARNESS, MAIN WPL W11334462 Contact Us For Availability
NI
HARNESS, COOKTOP WPL W11334489 Contact Us For Availability
NI
HARNESS, BAKE WPL W11454086 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
NI
LP CONVERSION KIT WPL W11370714 Contact Us For Availability
NI
INSULATION, BACK WPL W11407376 Contact Us For Availability
NI
ACCESSORY PARTS, GAS RANGE CONNECTOR KIT WPL 3048KITRC Contact Us For Availability
× ![]()
