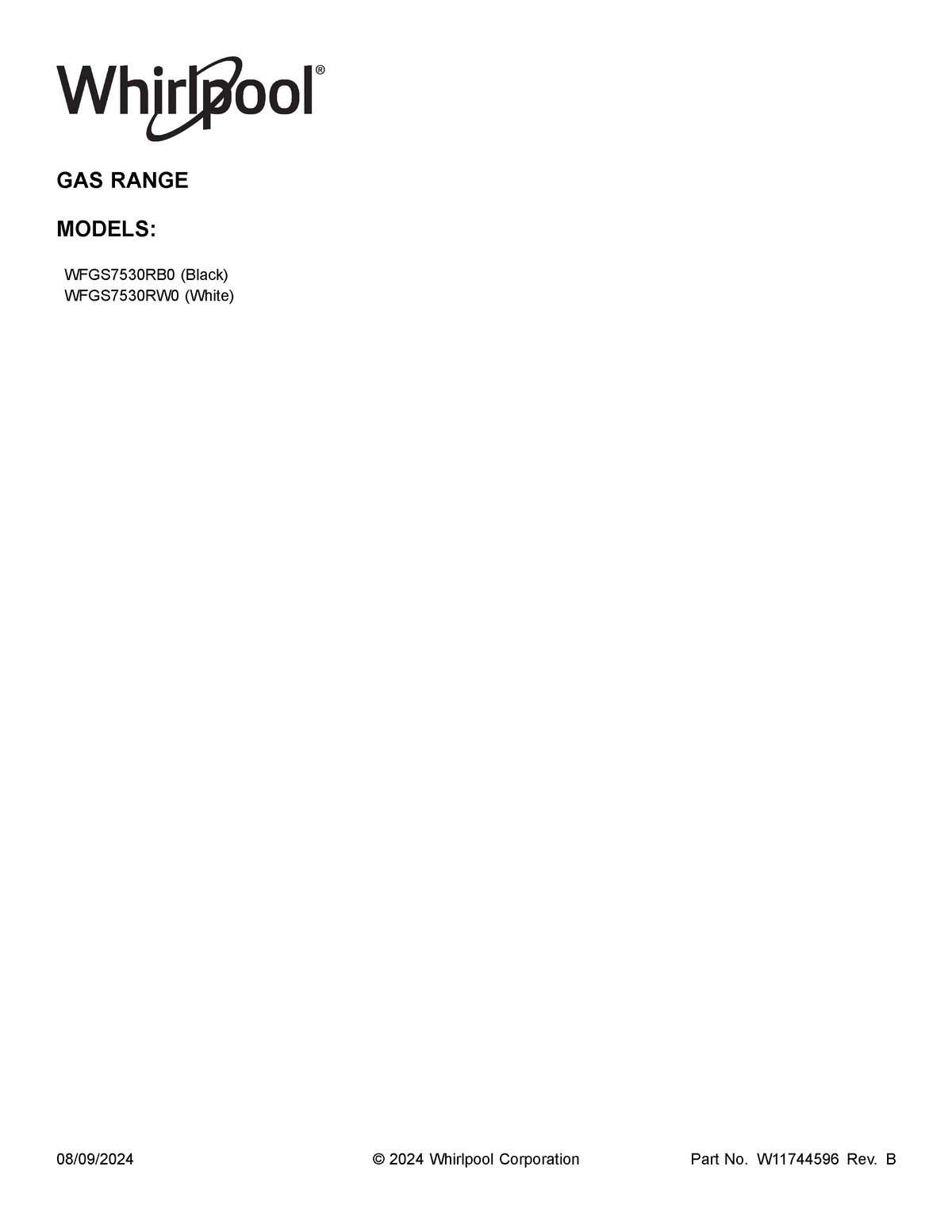

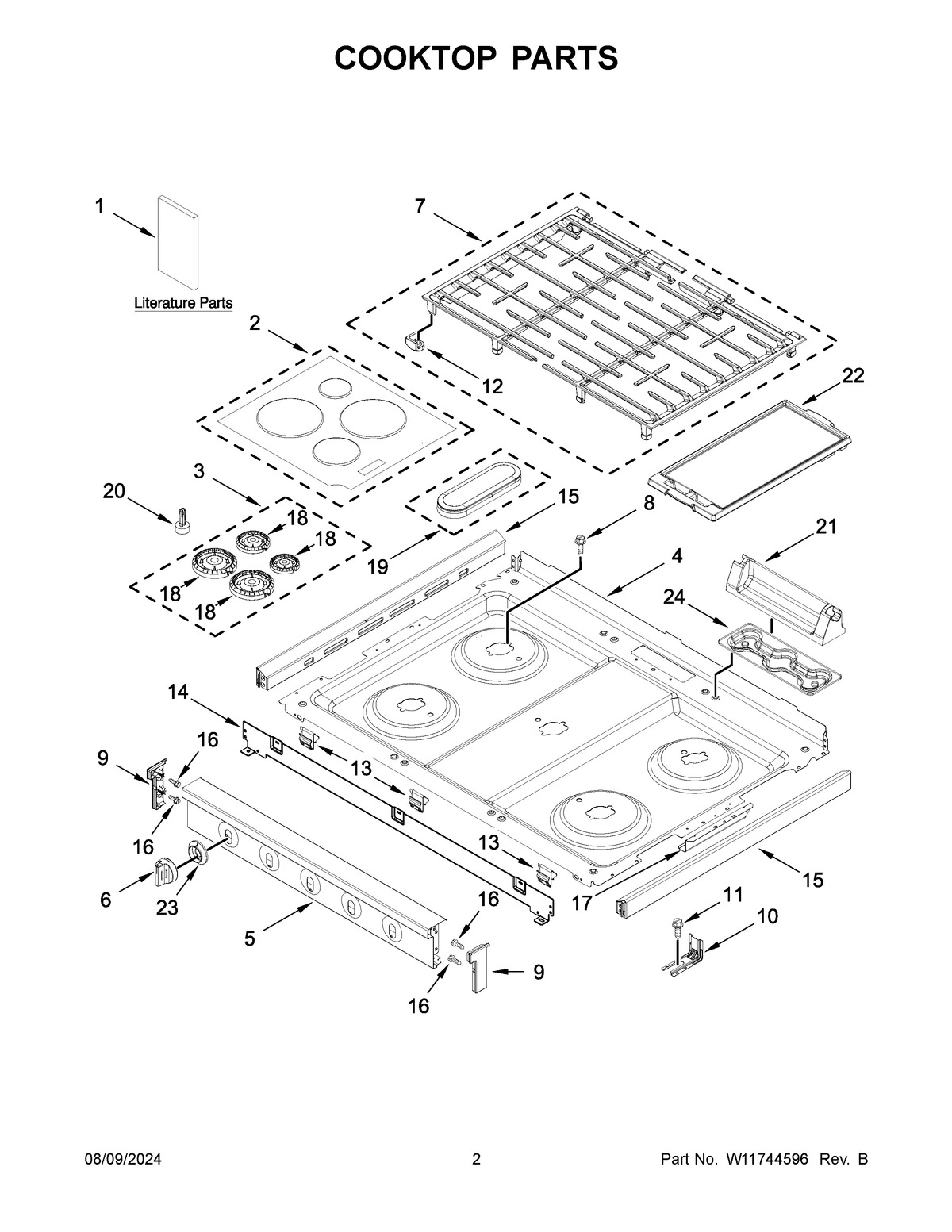

Model Whirlpool WFGS7530RB0 RANGE/OVEN, GAS – Common Parts &amp; Diagrams

1

SCREW WPL W11402213 Contact Us For Availability

1

BOX, FLUE WPL W11366110 Contact Us For Availability

1

HANDLE AND VENT ASSEMBLY (BLACK) WPL W11353052 Contact Us For Availability

1A

W11726984 Whirlpool Door Handle Backorder WPL W11726984 $91.75

2

W10813962 Whirlpool Utility Drawer In Stock WPL W10813962 $59.84

2

W10896982 Whirlpool Compactor Screw In Stock WPL W10896982 $2.95

2

W11684564 Whirlpool Clip Assembly Backorder WPL W11684564 $4.48

2

SHIELD, FLUE WPL W11279866 Contact Us For Availability

3

W10462911 Whirlpool Bracket Mounting Backorder WPL W10462911 $85.23

3

W11569689 Whirlpool Door Trim Backorder WPL W11569689 $20.29

3

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

3

PANEL, CONTROL (BLACK) WPL W11385176 Contact Us For Availability

3

ORIFICE HOLDER ASSEMBLY (18K) (LEFT FRONT) WPL W11300870 Contact Us For Availability

3A

W11594186 Whirlpool Door Trim Backorder WPL W11594186 $21.08

3A

PANEL, CONTROL (WHITE) WPL W11371987 Contact Us For Availability

3A

ORIFICE HOLDER ASSEMBLY (10K) (LEFT REAR) WPL W11300871 Contact Us For Availability

3B

ORIFICE HOLDER ASSEMBLY (18K) (RIGHT FRONT) WPL W11300879 Contact Us For Availability

3C

ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) WPL W11300867 Contact Us For Availability

3D

ORIFICE HOLDER ASSEMBLY (12K) (CENTER) WPL W11634398 Contact Us For Availability

4

W11230490 Whirlpool Drawer Panel Backorder WPL W11230490 $70.99

4

W11730273-includeCORE Whirlpool W11730273 Ele Backorder WPL W11730273-includeCORE $303.89

4

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

4

WP9761344 Whirlpool Door Liner In Stock WPL WP9761344 $135.17

4

TUBING (MANIFOLD TO REGULATOR) WPL W11384792 Contact Us For Availability

4A

W11230486 Whirlpool Drawer Panel Backorder WPL W11230486 $70.99

4A

W11727013 Whirlpool Side Panel Backorder WPL W11727013 $140.96

5

W10137382 Whirlpool Clip Backorder WPL W10137382 $27.12

5

W10898291 Whirlpool Spark Module Backorder WPL W10898291 $185.70

5

W11727166 Whirlpool Wire Harness Backorder WPL W11727166 $50.03

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

5

WPW10031790 Whirlpool Screw In Stock WPL WPW10031790 $2.51

6

W11524031 Whirlpool Range Igniter In Stock WPL W11524031 $29.32

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

6

COVER, UPPER REAR WPL W11393669 Contact Us For Availability

6

BRACKET, MANIFOLD WPL W11287215 Contact Us For Availability

6A

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

7

PANEL, LOWER (BLACK) WPL W11625443 Contact Us For Availability

7

MANIFOLD ASSEMBLY WPL W11279816 Contact Us For Availability

7A

PANEL, LOWER (WHITE) WPL W11625439 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

VALVE, SINGLE (RIGHT FRONT AND CENTER) WPL W11279839 Contact Us For Availability

8A

VALVE, SINGLE (LEFT REAR) WPL W11279838 Contact Us For Availability

8B

VALVE, SINGLE (RIGHT REAR) WPL W11279837 Contact Us For Availability

8C

VALVE, SINGLE (CENTER) WPL W11629949 Contact Us For Availability

9

W10224921 Whirlpool Bracket Mounting Backorder WPL W10224921 $26.21

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

W11703692 Whirlpool Speaker Module In Stock WPL W11703692 $35.79

9

WPW10341186 Whirlpool Range Front Levelling L In Stock WPL WPW10341186 $10.80

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10388635 Whirlpool Door Hinge Backorder WPL WPW10388635 $36.65

11

W11741357 Whirlpool Door Glass Backorder WPL W11741357 $75.10

11

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

11

BOTTOM, OVEN WPL W11602073 Contact Us For Availability

11A

W11741358 Whirlpool Door Glass Backorder WPL W11741358 $75.10

12

W10714060 Whirlpool Broiler Burner Backorder WPL W10714060 $80.87

12

W10761018 Whirlpool Dishwasher Left Door Trim In Stock WPL W10761018 $27.91

12

SENSOR WPL W11633068 Contact Us For Availability

12A

W10761014 Whirlpool Right Door Trim In Stock WPL W10761014 $27.91

12B

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $36.38

12C

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $36.29

13

8053967 Whirlpool Range Heat Baffle Backorder WPL 8053967 $106.98

13

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

13

WPW10184491 Whirlpool Burner Baffle Backorder WPL WPW10184491 $85.58

14

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

14

W11502236 Whirlpool Door Trim In Stock WPL W11502236 $9.28

14

WP9758078 Whirlpool Range Burner In Stock WPL WP9758078 $94.99

15

W10898290 Whirlpool Gas Valve In Stock WPL W10898290 $130.55

15

WPW10440013 Whirlpool Door Hinge In Stock WPL WPW10440013 $29.79

15

SHIELD, LOWER WPL W11640074 Contact Us For Availability

16

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $31.95

16

W11453940 Whirlpool Surface Igniter In Stock WPL W11453940 $22.66

16A

W11453920 Whirlpool Surface Igniter In Stock WPL W11453920 $19.16

16A

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

16B

ELECTRODE (CENTER) WPL W11581944 Contact Us For Availability

17

9757239 Whirlpool Oven Door Rod Backorder WPL 9757239 $31.59

17

WPW10200660 Whirlpool Range Oven Door Handle In Stock WPL WPW10200660 $2.51

18

3196265 Whirlpool Range Screw Backorder WPL 3196265 $9.59

18

W10777162 Whirlpool Screw In Stock WPL W10777162 $2.51

19

WPW10182767 Whirlpool Wire Tie Backorder WPL WPW10182767 $2.51

19

SCREW WPL 3400080 Contact Us For Availability

20

Backorder WPL W11745759-includeCORE $285.74

20

ORIFICE (NOT SERVICED) WPL ARI68EDB5F1759575D795C9CB1FF25DE44D Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

22

W10435470 Whirlpool Brace Backorder WPL W10435470 $26.21

23

W11379353 Whirlpool Retainer Backorder WPL W11379353 $97.63

23A

W11379943 Whirlpool Retainer Backorder WPL W11379943 $97.63

24

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

25

CORD, POWER WPL W11661976 Contact Us For Availability

26

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $2.51

27

W11620712 Whirlpool Light Switch Backorder WPL W11620712 $18.92

28

W11707255 Whirlpool Light Backorder WPL W11707255 $14.04

29

WPW10571723 Whirlpool Light Bulb In Stock WPL WPW10571723 $9.52

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

33

W10807823 Whirlpool Drawer Glide Backorder WPL W10807823 $8.55

34

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

35

W11520287 Whirlpool Rack Assembly In Stock WPL W11520287 $31.31

36

FAN, CONVECTION WPL W11644425 Contact Us For Availability

37

W11464547 Whirlpool Support Bracket Backorder WPL W11464547 $23.30

38

COVER, CONV FAN WPL W11373155 Contact Us For Availability

39

W10516115 Whirlpool Screw Backorder WPL W10516115 $9.59

40

W10379120 Whirlpool Screw Backorder WPL W10379120 $26.21

41

EXHAUST, VENT WPL W11625914 Contact Us For Availability

42

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

43

BLOWER, TUBE WPL W11411632 Contact Us For Availability

44

TUBE, CLAMP WPL W11642475 Contact Us For Availability

45

TERMINAL BLOCK, COVER WPL W11365827 Contact Us For Availability

46

COVER, SIDE FAN WPL W11596199 Contact Us For Availability

47

RACK, OVEN (GULL-WING) WPL W11607819 Contact Us For Availability

48

GLIDE, MAIN TOP WPL 8016P02260 Contact Us For Availability

49

W11692811 Whirlpool Fryer Basket In Stock WPL W11692811 $54.30

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $149.59

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $29.96

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

INSULATION Backorder WPL W11684776 $45.31

W11763416 Whirlpool Orifice Backorder WPL W11763416 $20.70

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

LP CONVERSION KIT WPL W11370714 Contact Us For Availability

INSULATION, BACK WPL W11407376 Contact Us For Availability

ACCESSORIES, GAS RANGE CONNECTOR KIT WPL 3048KITRC Contact Us For Availability
