Model Whirlpool WFC315S0JW4 RANGE/OVEN, ELECTRIC – Common Parts & Diagrams

Common parts from model Whirlpool WFC315S0JW4 RANGE/OVEN, ELECTRIC

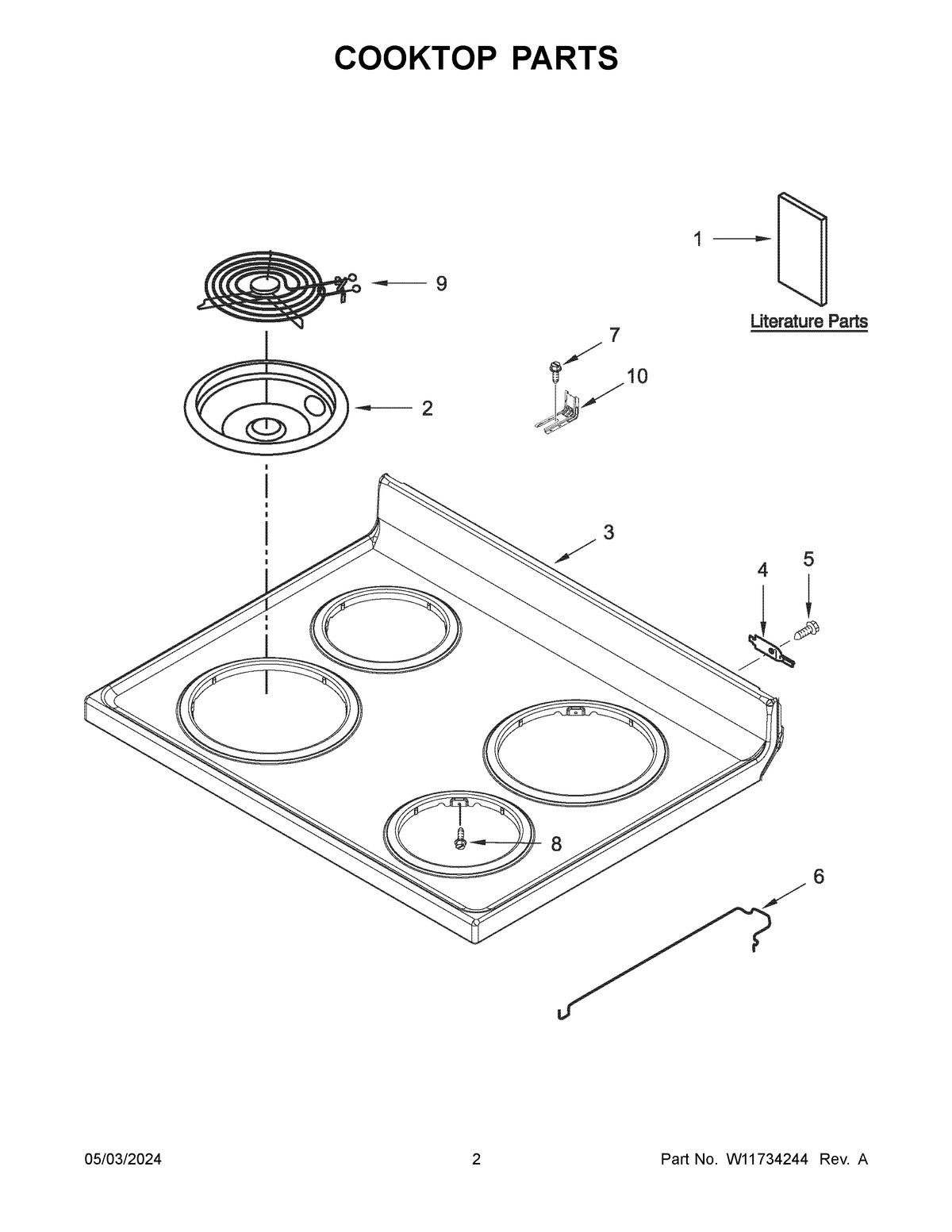

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

2

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $3.06

View on Model

2A

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $4.48

View on Model

8

SHIELD, HEAT WPL W10134247 Contact Us For Availability

View on Model

11

BRACKET, CONSOLE MOUNTING WPL W10525121 Contact Us For Availability

View on Model

14

CLIP, PANEL WPL W10137382 Contact Us For Availability

View on Model

14

CLIP, SPRING WPL 3196200 Contact Us For Availability

View on Model

19

CLIP, OVEN SUPPORT WPL W10404688 Contact Us For Availability

View on Model

26

ROD, DOOR SWITCH WPL 9757239 Contact Us For Availability

View on Model

33

SCREW WPL 3196172 Contact Us For Availability

View on Model

34

ROD, LATCH WPL W10078380 Contact Us For Availability

View on Model

NI

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 View Details $29.96

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 View Details $4.20

View on Model

NI

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

View on Model

NI

WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability

View on Model

NI

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model

×
