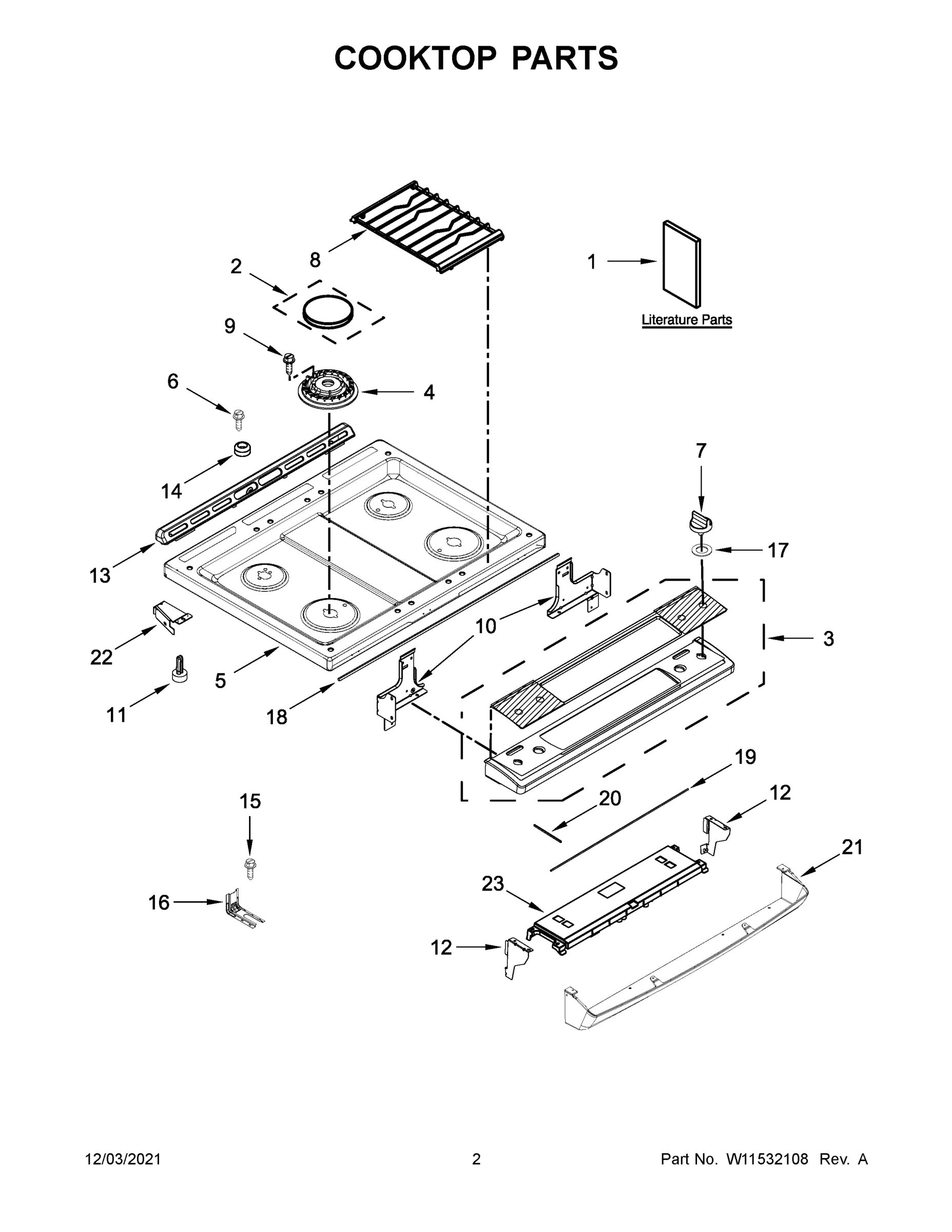

Model Whirlpool WEG515S0FS3 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH – Common Parts & Diagrams

1
ADAPTER, FLUE ASSEMBLY
ADAPTER, FLUE ASSEMBLY WPL W10814257 Contact Us For Availability
View on Model
3
BURNER, BOX GAS
BURNER, BOX GAS WPL W10558276 Contact Us For Availability
View on Model
3A
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR) WPL W10827780 Contact Us For Availability
View on Model
3B
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT) WPL W10827777 Contact Us For Availability
View on Model
3C
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR) WPL W10827779 Contact Us For Availability
View on Model
4
TUBING (MANIFOLD TO REGULATOR)
TUBING (MANIFOLD TO REGULATOR) WPL W10804030 Contact Us For Availability
View on Model
5
CLIP, PANEL
CLIP, PANEL WPL W10137382 Contact Us For Availability
View on Model
5
HARNESS, SWITCH
HARNESS, SWITCH WPL W10834787 Contact Us For Availability
View on Model
8
VALVE, GAS (LEFT REAR)
VALVE, GAS (LEFT REAR) WPL W10901556 Contact Us For Availability
View on Model
8B
VALVE, GAS (RIGHT REAR)
VALVE, GAS (RIGHT REAR) WPL W10901554 Contact Us For Availability
View on Model
9
BRACKET, AEGIS
BRACKET, AEGIS WPL W10224921 Contact Us For Availability
View on Model
10B
BRACKET, CONSOLE (CENTER)
BRACKET, CONSOLE (CENTER) WPL W10814305 Contact Us For Availability
View on Model
11
SCREW
SCREW WPL 3400080 Contact Us For Availability
View on Model
12
BRACKET, CONSOLE (LEFT)
BRACKET, CONSOLE (LEFT) WPL W10547960 Contact Us For Availability
View on Model
12A
BRACKET, CONSOLE (RIGHT)
BRACKET, CONSOLE (RIGHT) WPL W10547961 Contact Us For Availability
View on Model
13
BAFFLE, BURNER OVEN
BAFFLE, BURNER OVEN WPL 8053967 Contact Us For Availability
View on Model
17
ROD, DOOR SWITCH
ROD, DOOR SWITCH WPL 9757239 Contact Us For Availability
View on Model
18
SEAL, SWITCH SHAFT
SEAL, SWITCH SHAFT WPL W10140571 Contact Us For Availability
View on Model
19
ORIFICE (15K) (RIGHT FRONT)
ORIFICE (15K) (RIGHT FRONT) WPL W10849717 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL W10379120 Contact Us For Availability
View on Model
19A
ORIFICE (9.5K) (RIGHT REAR)
ORIFICE (9.5K) (RIGHT REAR) WPL W10849714 Contact Us For Availability
View on Model
20
CLIP-PANEL, RATCHETING
CLIP-PANEL, RATCHETING WPL W10866583 Contact Us For Availability
View on Model
22
BRACE, CORNER (LEFT)
BRACE, CORNER (LEFT) WPL W10162253 Contact Us For Availability
View on Model
22A
BRACE, CORNER (RIGHT)
BRACE, CORNER (RIGHT) WPL W10162252 Contact Us For Availability
View on Model
31
ROD, PUSH LATCH
ROD, PUSH LATCH WPL W10078370 Contact Us For Availability
View on Model
38
CHANNEL, REAR
CHANNEL, REAR WPL W10162241 Contact Us For Availability
View on Model
40
COVER, BACK
COVER, BACK WPL W11379354 Contact Us For Availability
View on Model
43
BRACE, MAIN BACK
BRACE, MAIN BACK WPL W10435470 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL
ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, GRIDDLE
ACCESSORY PARTS, GRIDDLE WPL 4396096RB Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability
View on Model
NI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI WPL W10123240 Contact Us For Availability
View on Model
NI
WHITE PORCELAIN (2 OZ.)
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
WIRE, GROUND
WIRE, GROUND WPL W10580229 Contact Us For Availability
