Model Electrolux WEF352BADB RANGE – Common Parts & Diagrams

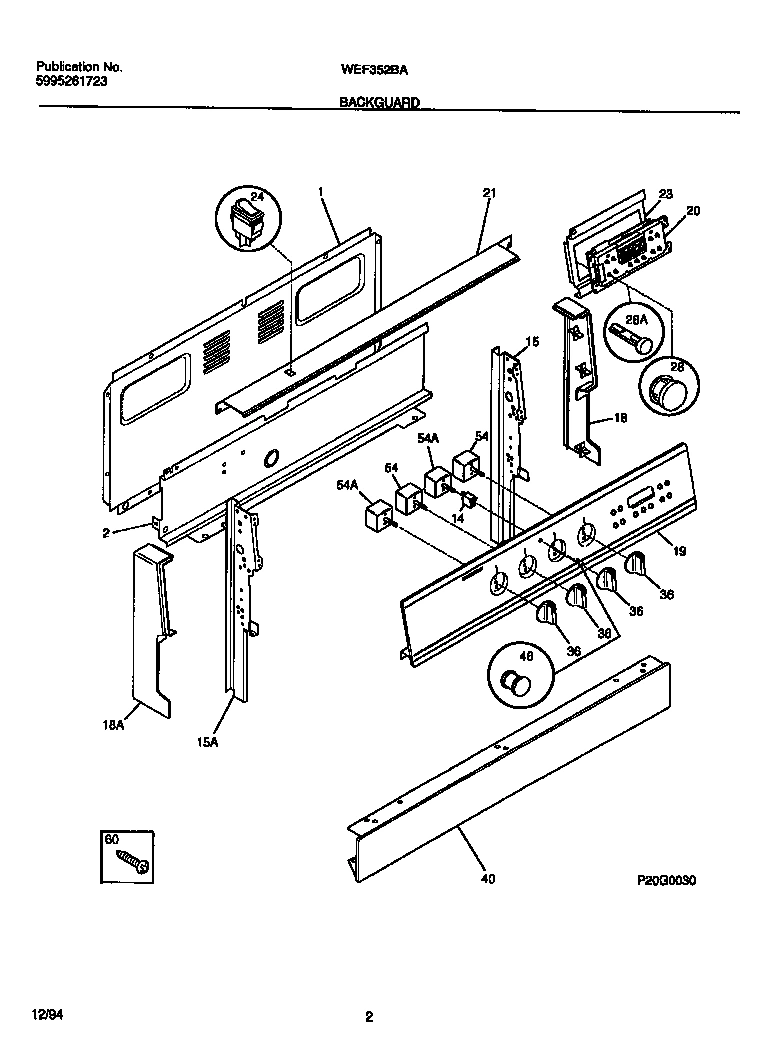

02 - BACKGUARD

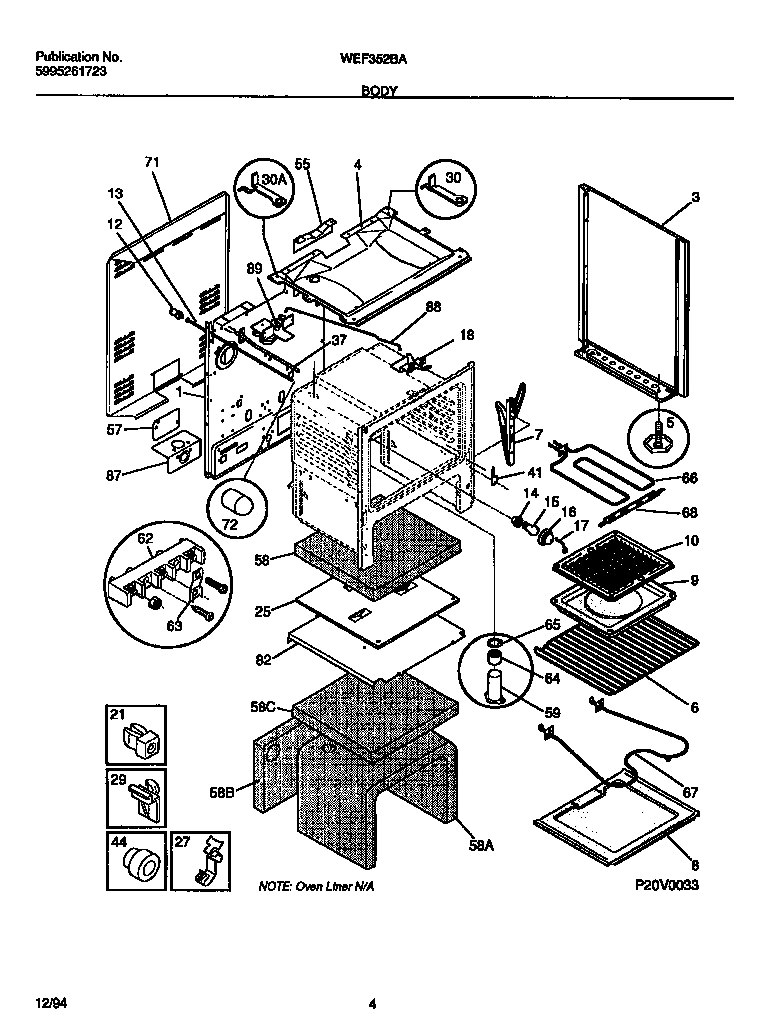

03 - BODY

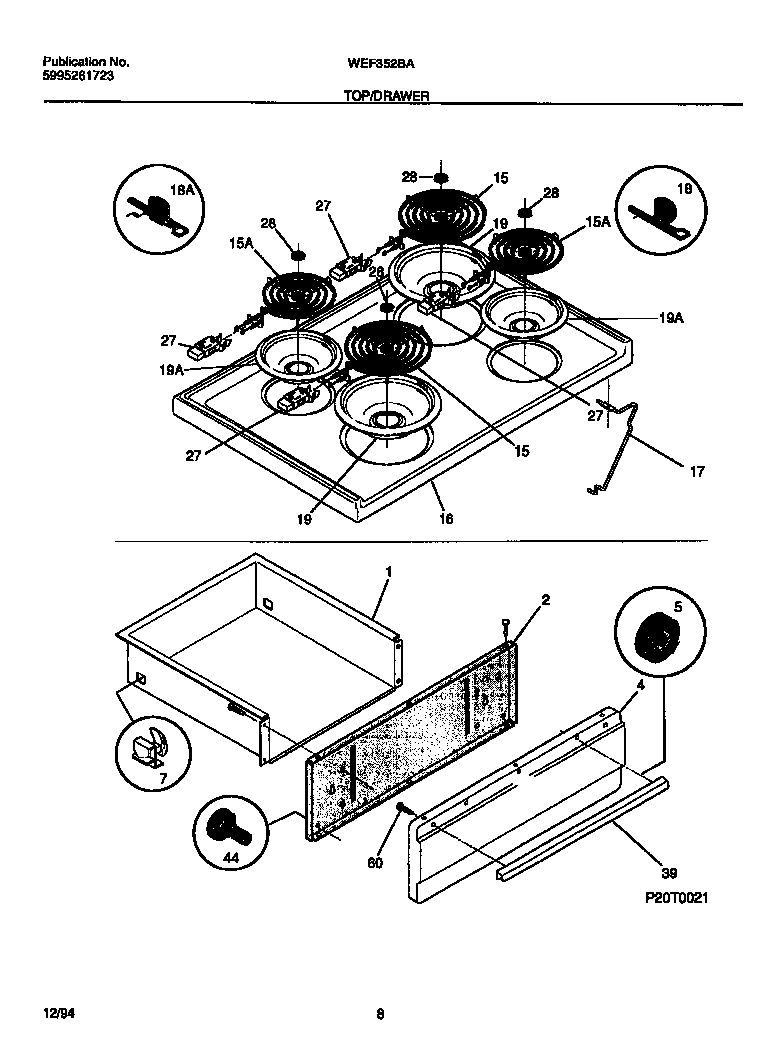

05 - TOP/DRAWER

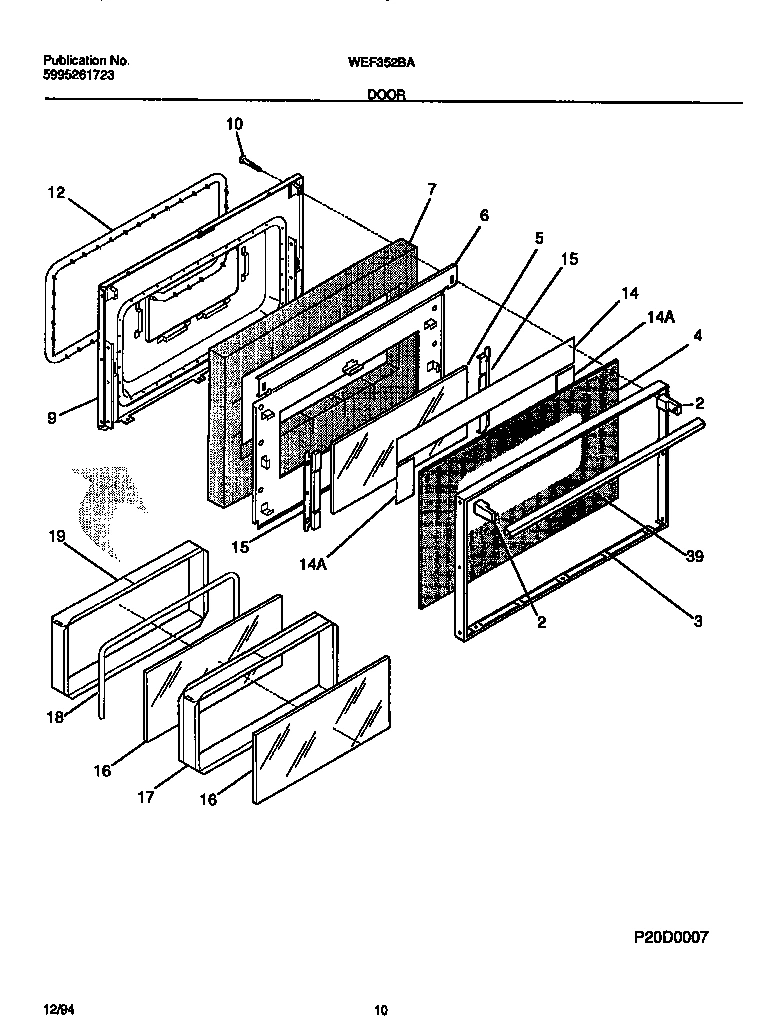

06 - DOOR

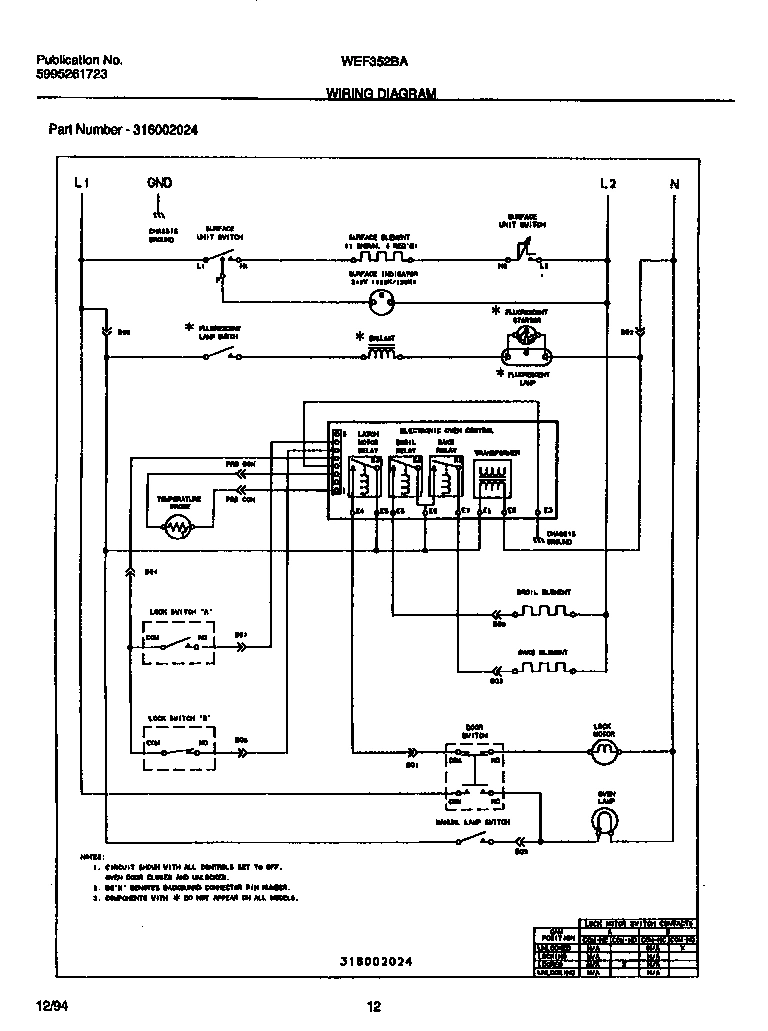

07 - WIRING DIAGRAM

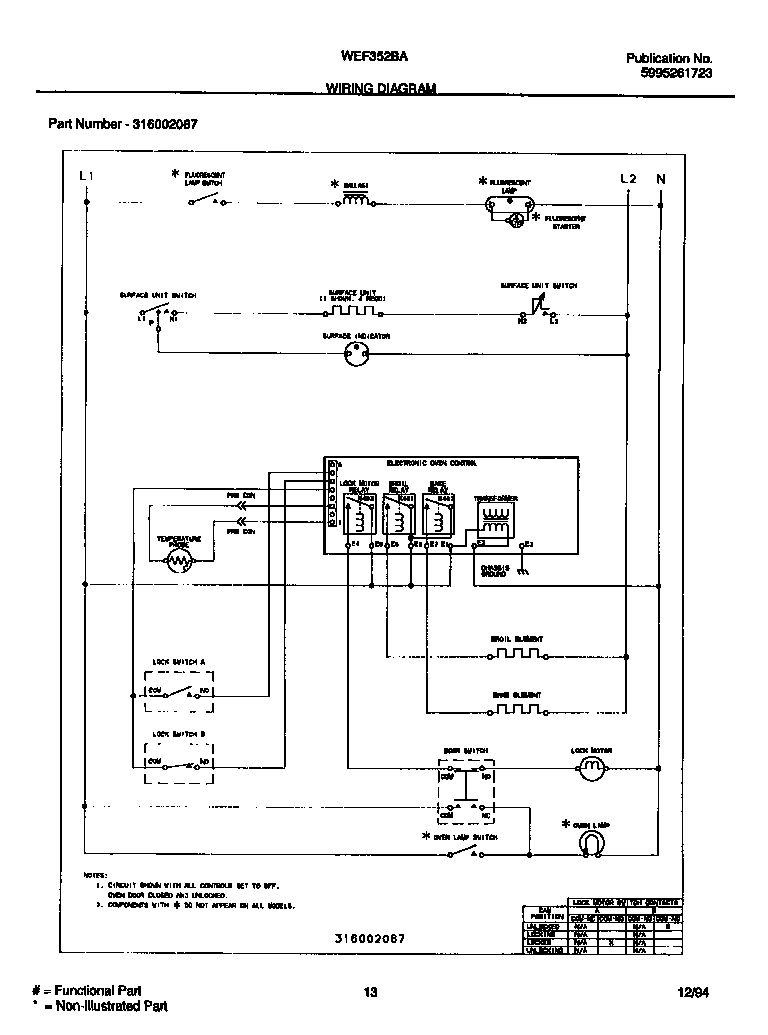

08 - WIRING DIAGRAM
Common parts from model Electrolux WEF352BADB RANGE
1
WCI 316029410 WCI 316029410 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 3131975 WCI 3131975 Contact Us For Availability
3
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
3
WCI 5303269543 WCI 5303269543 Contact Us For Availability
3
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
SCREW, HEX WASHER HEAD, 8, 18(AB) X 1/2 (NI) WCI 08067785 Contact Us For Availability
4
WCI 5303271756 WCI 5303271756 Contact Us For Availability
4
GLASS-OVEN DOOR, BLACK, OUTER WCI 3051152 Contact Us For Availability
4A
WCI 316056206 WCI 316056206 Contact Us For Availability
5
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
GLASS-OVEN DOOR, INNER WCI 5303209513 Contact Us For Availability
5B
WCI 5303288460 WCI 5303288460 Contact Us For Availability
5C
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
6
SHIELD-INSULATION WCI 5303211084 Contact Us For Availability
7
WCI 316007002 WCI 316007002 Contact Us For Availability
7
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 3203540 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066603 WCI 316066603 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 316073900 WCI 316073900 Contact Us For Availability
12
SWITCH-OVEN LIGHT, DOOR FRAME WCI 316027701 Contact Us For Availability
13
WCI 316026800 WCI 316026800 Contact Us For Availability
14
REFLECTOR, ALUMINUM FOIL WCI 5303208656 Contact Us For Availability
15
BRACKET-GLASS MTG WCI 5303209510 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER, (2) WCI 5303209512 Contact Us For Availability
16
WCI 316020908 WCI 316020908 Contact Us For Availability
17
RETAINER-GLASS WCI 3204585 Contact Us For Availability
17
WCI 5303209517 WCI 5303209517 Contact Us For Availability
18
WCI 316036300 WCI 316036300 Contact Us For Availability
18
HINGE-MAIN TOP (RH) WCI 5303273062 Contact Us For Availability
18
SEAL-ROPE, 0.25 DIA WCI 5303211085 Contact Us For Availability
18A
HINGE-MAIN TOP (LH) WCI 5303273063 Contact Us For Availability
19
WCI 316067600 WCI 316067600 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
25
WCI 3200848 WCI 3200848 Contact Us For Availability
30
BRACKET-HINGE, MAIN TOP RH WCI 5303283574 Contact Us For Availability
30A
BRACKET-HINGE, MAIN TOP, LH WCI 5303283575 Contact Us For Availability
39
HANDLE-DRAWER, ALMOND WCI 316019502 Contact Us For Availability
39
HANDLE-DOOR, BLACK, OVEN WCI 5303273127 Contact Us For Availability
39A
RIVET-POP, WARING-PLATE (NON-ILLUSTRATED) WCI 3203618 Contact Us For Availability
39B
PLATE WARNING/CAUTION (NON-ILLUSTRATED) WCI 316065300 Contact Us For Availability
39C
SCREW, CR PAN HD SEMS, 8-32(BP) X 1 (NON-ILLU WCI 5303212671 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
55
WCI 3051368 WCI 3051368 Contact Us For Availability
57
COVER-ACCESS WCI 3203405 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3200833 Contact Us For Availability
58B
WCI 316054200 WCI 316054200 Contact Us For Availability
58C
WCI 313304 WCI 313304 Contact Us For Availability
59
WCI 316073600 WCI 316073600 Contact Us For Availability
60
WCI 5303288574 WCI 5303288574 Contact Us For Availability
60A
SCREW, TRUSS HEAD, 8, 18 X 1/2 (NON-ILUSTRAT WCI 5303281584 Contact Us For Availability
62
SHIELD-TERMINAL BLOCK, (NON-ILLUSTRATED) WCI 316075400 Contact Us For Availability
63
PLATE-GROUND STRAP WCI 5303212739 Contact Us For Availability
71
SHIELD, REAR WALL, REAR WALL WCI 316015803 Contact Us For Availability
72
COVER-LIGHT/SWITCH ROD WCI 5303285692 Contact Us For Availability
82
SHIELD, OVEN BOTTOM WCI 3200825 Contact Us For Availability
87
WCI 5303206618 WCI 5303206618 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
× ![]()
