Model Whirlpool WDE350LVB02 RANGE/OVEN, ELECTRIC, DROP-IN, 30 INCH – Common Parts & Diagrams
06 - OPTIONAL PARTS (NOT INCLUDED)

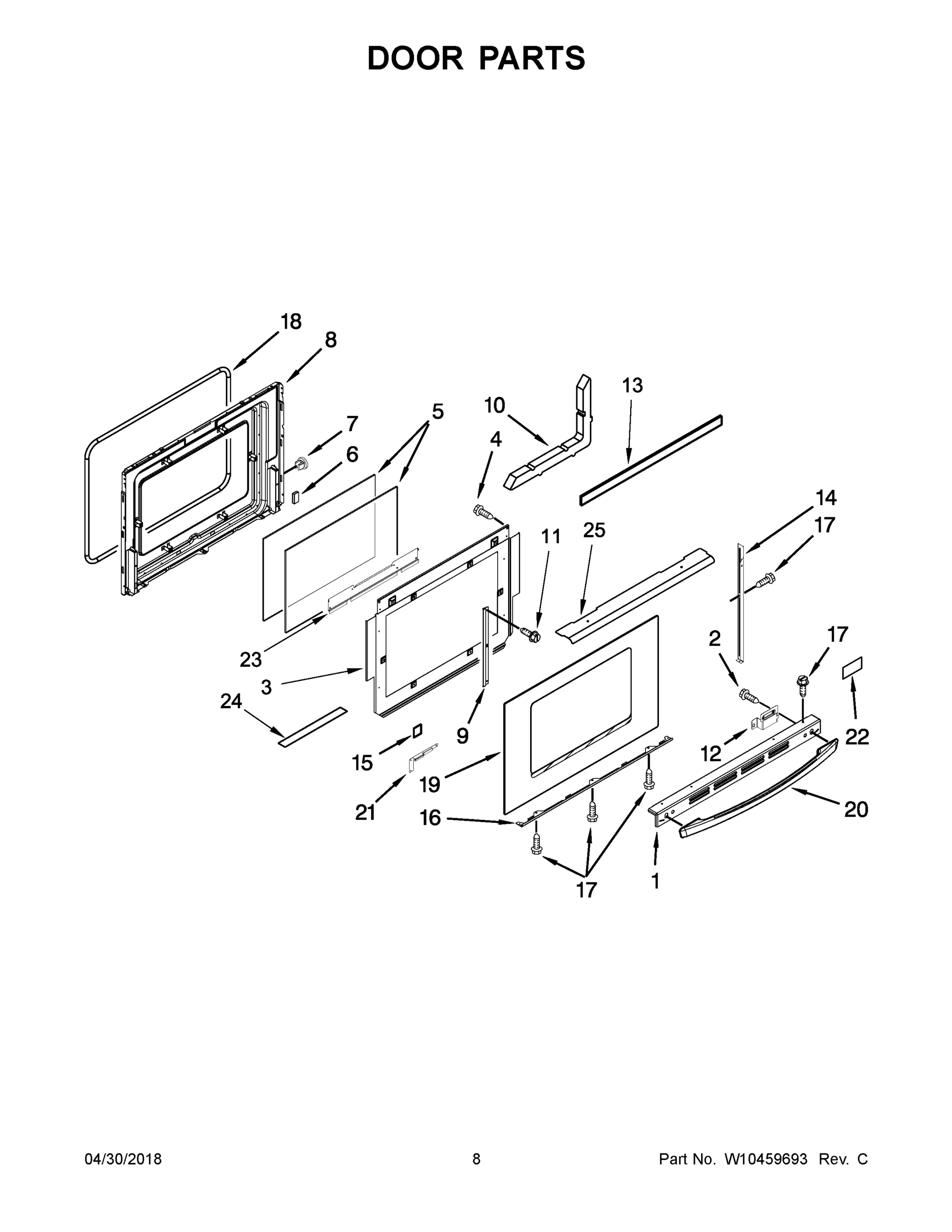

05 - DOOR PARTS
01 - COVER SHEET
03 - CONTROL PANEL PARTS
02 - COOKTOP PARTS
04 - CHASSIS PARTS
Common parts from model Whirlpool WDE350LVB02 RANGE/OVEN, ELECTRIC, DROP-IN, 30 INCH
1
LENS WPL 7730P03160 Contact Us For Availability
1
GUIDE, USE & CARE WPL W10430922 Contact Us For Availability
1
PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS WPL 8101P33660 Contact Us For Availability
1A
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10170210 Contact Us For Availability
2
PANEL, CONTROL (BLACK) WPL W10190181 Contact Us For Availability
2
ASSEMBLY, LATCH WPL 8002P09360 Contact Us For Availability
2A
PANEL, CONTROL (WHITE) WPL W10159606 Contact Us For Availability
2B
PANEL, CONTROL (STAINLESS) WPL W10176434 Contact Us For Availability
3
ENDCAP (BLACK (LEFT HAND)) WPL 7726P40160 Contact Us For Availability
3
BLOCK, ELEMENT SUPPORT WPL 8255P41260 Contact Us For Availability
3A
ENDCAP (BLACK (RIGHT HAND)) WPL 7726P40060 Contact Us For Availability
3B
ENDCAP (WHITE (LEFT HAND)) WPL 7726P33360 Contact Us For Availability
3C
ENDCAP (WHITE (RIGHT HAND)) WPL 7726P33260 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) WPL 7403P37360 Contact Us For Availability
4
BACK, MAIN WPL 3804F31351 Contact Us For Availability
5
TUBE, VENT UPPER WPL W10233479 Contact Us For Availability
5
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
6
SCREW WPL 7101P42660 Contact Us For Availability
6
COVER, TERMINAL WPL 4005F61251 Contact Us For Availability
7
KNOB (BLACK (LEFT FRONT & RIGHT REAR)) WPL 7737P41460 Contact Us For Availability
7
SUPPORT, ELEMENT WPL 8004P09360 Contact Us For Availability
7A
KNOB (BLACK (LEFT REAR & RIGHT FRONT)) WPL 7737P41760 Contact Us For Availability
7B
KNOB (WHITE (LEFT FRONT & RIGHT REAR)) WPL 7737P41560 Contact Us For Availability
7C
KNOB (WHITE (LEFT REAR & RIGHT FRONT)) WPL 7737P41860 Contact Us For Availability
8
SHIELD, CONTROL WPL 3604F42151 Contact Us For Availability
8
INSULATOR, CORD WPL 7003P10160 Contact Us For Availability
9
SWITCH, ROCKER (BLACK) WPL 7403P79860 Contact Us For Availability
9
SHIELD, VENT LOWER (BLACK) WPL 3604W15670 Contact Us For Availability
9A
SWITCH, ROCKER (WHITE) WPL 7403P79960 Contact Us For Availability
9A
SHIELD, VENT LOWER (WHITE) WPL 3604W15671 Contact Us For Availability
10
SUPPORT, CONTROL PANEL WPL 3807F60151 Contact Us For Availability
10
ELEMENT, BROIL WPL 7406P21860 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P04260 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P13660 Contact Us For Availability
12
TUBE, VENT LOWER WPL 8026P09660 Contact Us For Availability
13
BRACKET, CONTROL WPL 3801F89551 Contact Us For Availability
13
VENT TUBE WPL 8026P08560 Contact Us For Availability
14C
TRIM, DOOR SIDE (WHITE (RIGHT HAND)) WPL 3608F11671 Contact Us For Availability
15
SPACER, RUBBER WPL 8010P15260 Contact Us For Availability
15
HOLDER, VENT TUBE WPL 3605F34551 Contact Us For Availability
16
SUPPORT, GLASS WPL 3807F70870 Contact Us For Availability
16
ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability
17
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
18
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
19
ASSEMBLY, OUTER DOOR (BLACK) WPL 7902P81560 Contact Us For Availability
19
TRIM, SIDE (BLACK (LEFT)) WPL 3608F13070 Contact Us For Availability
19A
ASSEMBLY, OUTER DOOR (WHITE) WPL 7902P81460 Contact Us For Availability
19A
TRIM, SIDE (BLACK (RIGHT)) WPL 3608F12870 Contact Us For Availability
19B
ASSEMBLY, OUTER DOOR (STAINLESS) WPL W10494716 Contact Us For Availability
19B
TRIM, SIDE (WHITE (LEFT)) WPL 3608F13071 Contact Us For Availability
19C
TRIM, SIDE (WHITE (RIGHT)) WPL 3608F12871 Contact Us For Availability
21
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
21A
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
22
SUPPORT, OVEN REAR WPL 3807F73251 Contact Us For Availability
23
RETAINER, GLASS WPL 3804F31780 Contact Us For Availability
23
SCREW WPL 7101P43460 Contact Us For Availability
24
INSULATION, FOIL (STAINLESS) WPL 7002P46360 Contact Us For Availability
24
HINGE, DOOR WPL 7106P14160 Contact Us For Availability
25
SHIELD, DOOR WPL 3604F41851 Contact Us For Availability
25
PLATE, SMOKE ELIMINATOR WPL 3605F34445 Contact Us For Availability
26
SWITCH, HI-LIMIT WPL 7450P03460 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
28
EXTENSION, HEAT SHIELD WPL 3826F06451 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F49445 Contact Us For Availability
30
FOOT, LEVELER WPL 7101P50760 Contact Us For Availability
31
RETAINER, BOTTOM WPL 4003F06751 Contact Us For Availability
32
LEVER, LOCK ARM (BLACK) WPL 8009P03160 Contact Us For Availability
34
GUARD, EDGE WPL W10183566 Contact Us For Availability
35
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
36
SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
WIRE,14-GREEN 200C WPL 5111P29760 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P54060 Contact Us For Availability
NI
HARNESS, SWITCH (RIGHT) WPL 5171P55060 Contact Us For Availability
NI
HARNESS, SWITCH (LEFT) WPL 5171P55760 Contact Us For Availability
NI
CABLE ASSEMBLY, FLEX WPL 5700P82260 Contact Us For Availability
NI
GROMMET WPL 8008P05560 Contact Us For Availability
NI
CLIP, WIRE LOCK WPL 8019P01360 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P45660 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
× ![]()
