Model Whirlpool WDE32202 ELECTRIC COIL COOKTOP RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
01 - COOKTOP, LITERATURE

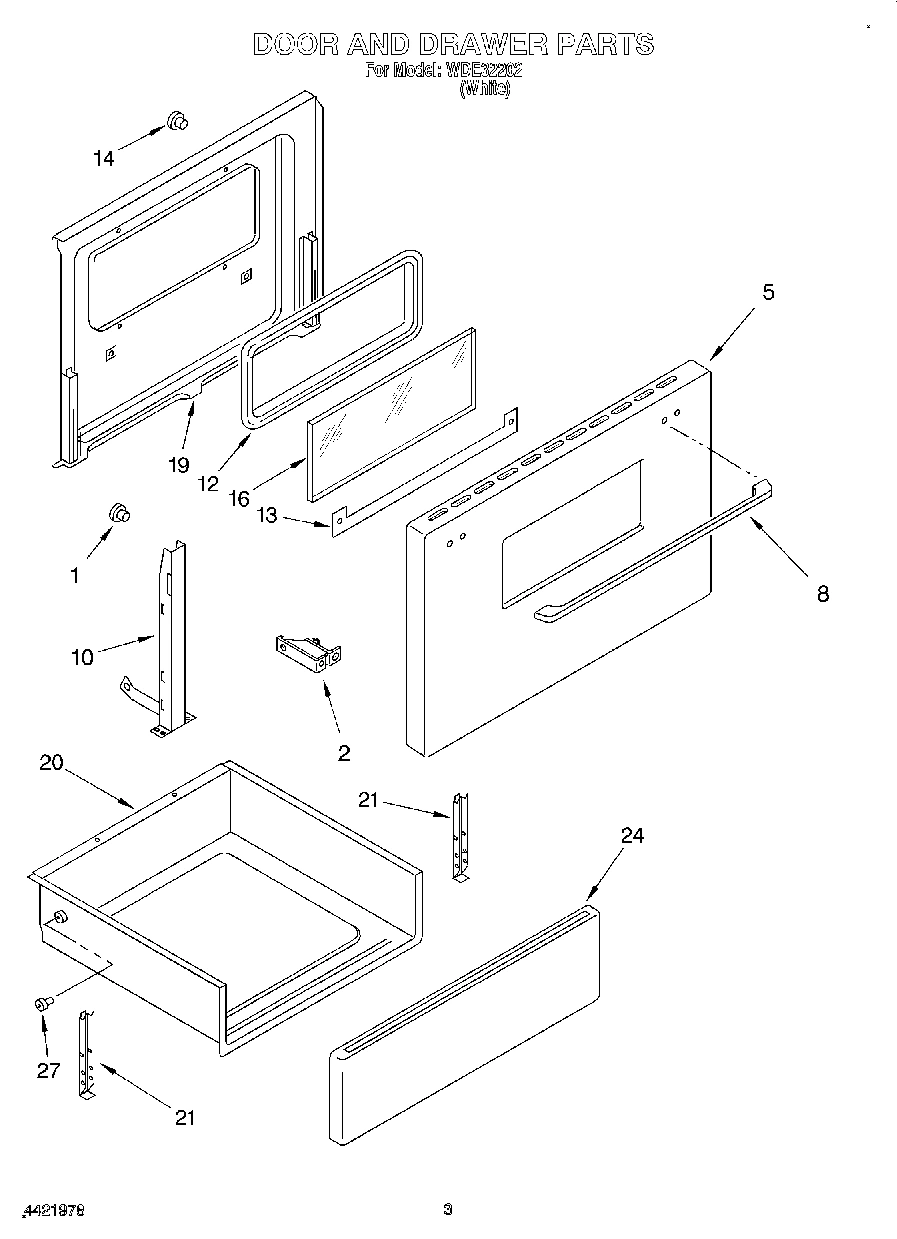

03 - DOOR AND DRAWER

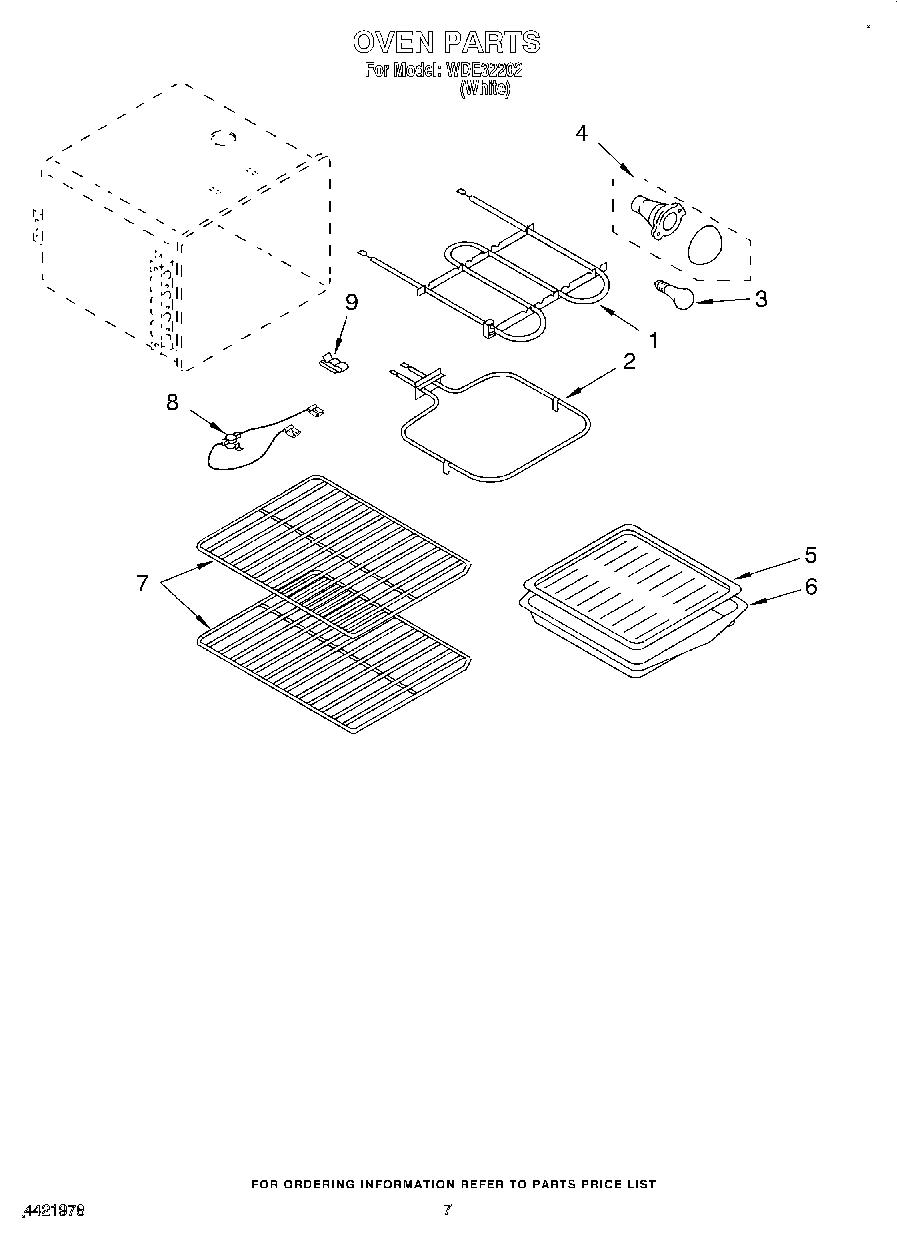

05 - OVEN, OPTIONAL

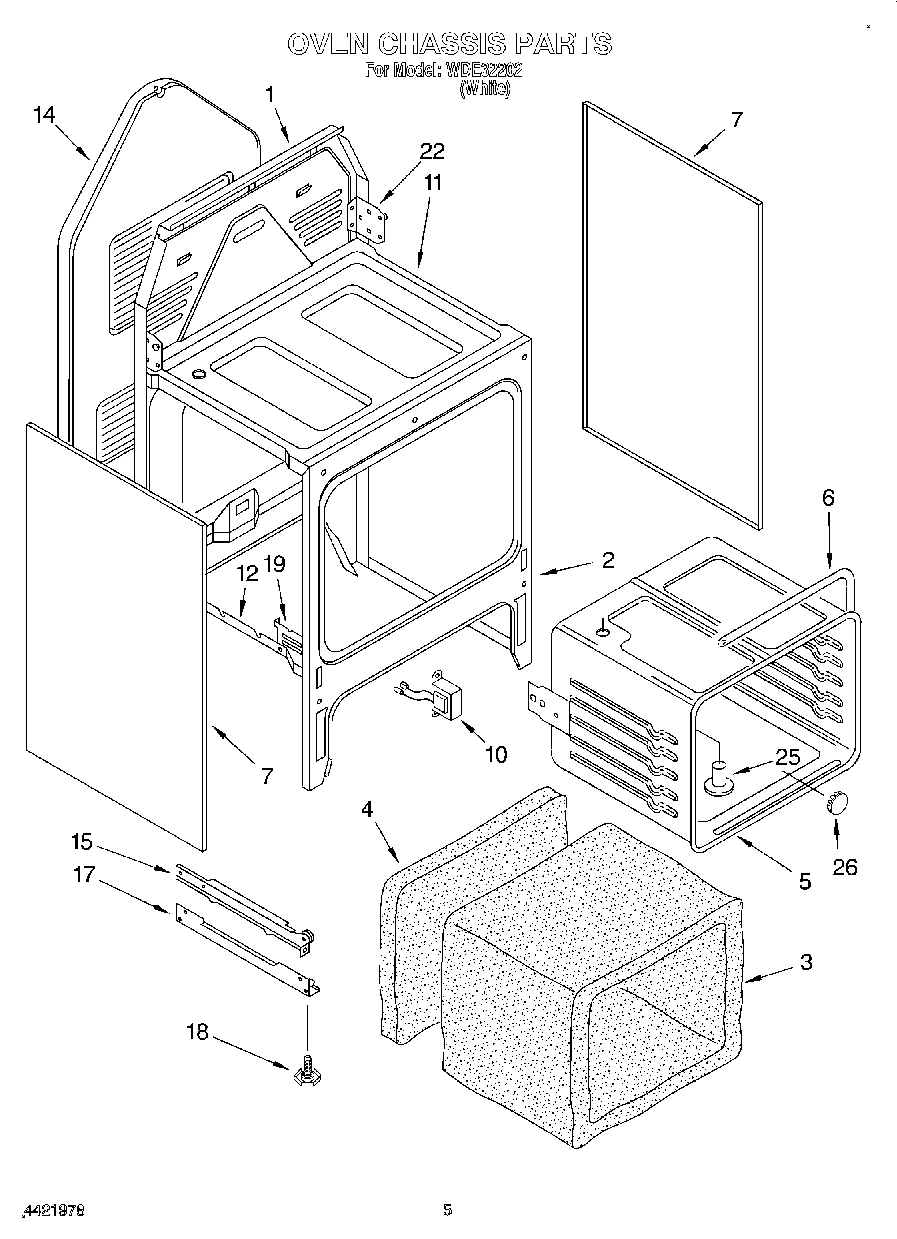

04 - OVEN CHASSIS
Common parts from model Whirlpool WDE32202 ELECTRIC COIL COOKTOP RANGE
Label, Instruction (Lamp Cover) WPL LIT3189886 Contact Us For Availability
Use And Care Guide WPL LIT3189932 Contact Us For Availability
Use & Care (French) WPL LIT3189933 Contact Us For Availability
Wiring Diagram WPL LIT3189969 Contact Us For Availability
1
Cooktop, Coil WPL 9750160GW Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
1
Main Chassis, Back WPL 9780810 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Rod, Support (2) WPL 9751538 Contact Us For Availability
2
Support, Panel WPL 9750676 Contact Us For Availability
2
Screw, Elements WPL 9781509 Contact Us For Availability
2
Chassis, Front WPL 9750477GM Contact Us For Availability
3
Clip, Receptacle WPL 9750735 Contact Us For Availability
3
Insulation, Wrap WPL 9750392 Contact Us For Availability
4
Light Assembly WPL 9750962 Contact Us For Availability
4
Insulation, Rear WPL 9750388 Contact Us For Availability
5
Panel, Oven Door WPL 9780981GW Contact Us For Availability
5
Oven Liner WPL 9781294GM Contact Us For Availability
6
Gasket, Oven WPL 9750691 Contact Us For Availability
7
Rack, Standard WPL 9750498 Contact Us For Availability
7
Side Panel, Oven WPL 9750148PW Contact Us For Availability
8
Handle, Door WPL 9751136PB Contact Us For Availability
8
Screw (4) WPL 9780266 Contact Us For Availability
8
Screw, (1) 8 x 1/4 WPL 9780271 Contact Us For Availability
9
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
9
Medallion, (4) WPL 4211952 Contact Us For Availability
9
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
9
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
9
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
9
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
9
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
9
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
9
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
9
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
9
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
9
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
9
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
9
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
9
Grease WPL 261582 Contact Us For Availability
9
Coffee WPL 261886 Contact Us For Availability
9
New Avocado WPL 261888 Contact Us For Availability
9
Harvest Gold WPL 261890 Contact Us For Availability
9
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
9
Toast WPL 285365 Contact Us For Availability
9
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
9
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
9
Platinum (Uncut) WPL 285368 Contact Us For Availability
9
Harness, Wire (Oven, Light) WPL 3190703 Contact Us For Availability
9
WPL 72108 WPL 72108 Contact Us For Availability
9
WPL 72112 WPL 72112 Contact Us For Availability
9
WPL 799832 WPL 799832 Contact Us For Availability
9
WPL 9750984 WPL 9750984 Contact Us For Availability
9
WPL 9751003 WPL 9751003 Contact Us For Availability
9
WPL 9751014 WPL 9751014 Contact Us For Availability
9
WPL 9781291 WPL 9781291 Contact Us For Availability
9
WPL 9781302 WPL 9781302 Contact Us For Availability
9
WPL 9781304 WPL 9781304 Contact Us For Availability
9
WPL 9781461 WPL 9781461 Contact Us For Availability
9
WPL 9781541 WPL 9781541 Contact Us For Availability
9
WPL 978883 WPL 978883 Contact Us For Availability
10
Hinge, Door R or L WPL 9750235 Contact Us For Availability
10
Ballast WPL 9780881 Contact Us For Availability
11
Washer (3) WPL 83205 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
12
Gasket, glass WPL 9750685 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Retainer, Glass WPL 9750894 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Inner Glass, Clear WPL 9750686 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Liner, Door WPL 9780671GM Contact Us For Availability
19
Screw, (2) 10 x 1/2 WPL 9780272 Contact Us For Availability
19
Hinge, Receiver (R or L) WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
23
Starter, Light WPL 9781118 Contact Us For Availability
24
Front, Drawer WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
26
Button, Plug WPL 9780578 Contact Us For Availability
× ![]()
