LG WD-1243FHB Washer Parts List

*001

Manual Assembly,Owners LGE 3829ER3004M Contact Us For Availability

View on Model

*002

Box,Carton LGE 3890EZ3631C Contact Us For Availability

View on Model

*003

3W20018B LG Washer Leg Bolt Wrench In Stock LGE 3W20018B $9.86

View on Model

A101

3550ER1028A LG Back Cover Backorder LGE 3550ER1028A $33.69

View on Model

A103

4930FR3151A LG Holder Assembly Backorder LGE 4930FR3151A $6.19

View on Model

A132

GUIDE,COVER LGE 4974FR4145A Contact Us For Availability

View on Model

A303

5006EN3015A LG Washer Drain Hose Cap In Stock LGE 5006EN3015A $4.94

View on Model

A310

CAP LGE 5006FR3179A Contact Us For Availability

View on Model

A410

6601ER1006E LG Washer Water Level Pressure Se In Stock LGE 6601ER1006E $53.62

View on Model

A430

Power Cord Assembly LGE 6411ER9001H Contact Us For Availability

View on Model

A440

SWITCH ASSY,DOOR LGE 6601ER1003B Contact Us For Availability

View on Model

A450

PCB Assembly,Main LGE 6871EC1008P Contact Us For Availability

View on Model

F110

PCB Assembly,Display LGE 6871FC2272D Contact Us For Availability

View on Model

F120

Drawing,Assembly LGE 6877ER1003A Contact Us For Availability

View on Model

F130

LEAD WIRE ASSY LGE 6877FC2261B Contact Us For Availability

View on Model

F140

Drawing,Assembly LGE 6877FR1192E Contact Us For Availability

View on Model

F160

5220FR1251B LG Inlet Valve Assembly Backorder LGE 5220FR1251B $92.89

View on Model

F170

VALVE ASSY,INLET LGE 5220FR1280B Contact Us For Availability

View on Model

F210

PANEL ASSY,CONTROL LGE 3721ER1005U Contact Us For Availability

View on Model

F220

Panel Assembly,Drawer LGE 3721ER1006R Contact Us For Availability

View on Model

F220

PANEL ASSY,DRAWER LGE 3721ER1006J Contact Us For Availability

View on Model

F225

5006ER3002B LG Softener Cap Backorder LGE 5006ER3002B $5.40

View on Model

F226

5006FR4100A LG Cover Cap Backorder LGE 5006FR4100A $5.40

View on Model

F227

BOX,DETERGENT LGE 3890ER3001A Contact Us For Availability

View on Model

F300

Dispenser Assembly LGE 4925ER1002C Contact Us For Availability

View on Model

F310

Bellows LGE 4738FR2065A Contact Us For Availability

View on Model

F320

Bellows LGE 4738FR3136C Contact Us For Availability

View on Model

F321

Hose,Inlet LGE 5214FR4125K Contact Us For Availability

View on Model

F322

5214FR4125L LG Inlet Hose Backorder LGE 5214FR4125L $9.86

View on Model

F430

5215ER2002D LG Drain Hose Assembly Backorder LGE 5215ER2002D $19.45

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A $6.19

View on Model

F461

4861FR3068C LG Clamp Backorder LGE 4861FR3068C $6.19

View on Model

F462

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.19

View on Model

F464

3W50012O LG Washer Snap Ring Backorder LGE 3W50012O $6.19

View on Model

F466

4861FR3068B LG Clamp Backorder LGE 4861FR3068B $6.19

View on Model

F467

4860FR3092C LG Clamp Backorder LGE 4860FR3092C $9.86

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E $9.86

View on Model

K105

TUB ASSY,OUTER[SUB4] LGE 3045FR0031C Contact Us For Availability

View on Model

K110

TUB ASSY,INNER[DRUM] LGE 3044FR1220D Contact Us For Availability

View on Model

K111

LIFTER LGE 4432ER1003A Contact Us For Availability

View on Model

K115

Spider LGE 4434ER1003C Contact Us For Availability

View on Model

K117

4000FR4031B LG Customized Screw Backorder LGE 4000FR4031B $6.19

View on Model

K121

BEARING,BALL LGE 4280FR4048B Contact Us For Availability

View on Model

K122

4280EN4001B LG Bearing Ball Backorder LGE 4280EN4001B $41.23

View on Model

K125

4036ER2003A LG Washer Tub Seal In Stock LGE 4036ER2003A $20.35

View on Model

K126

LGE 4811ER1001A LGE 4811ER1001A Contact Us For Availability

View on Model

K130

Balance Weight LGE 4844FR1283A Contact Us For Availability

View on Model

K131

Bolt Assembly LGE 4011FR3173B Contact Us For Availability

View on Model

K135

Balance Weight LGE 4866ER1001A Contact Us For Availability

View on Model

K136

Bolt Assembly LGE 4011FR3173C Contact Us For Availability

View on Model

K140

Cover Assembly,Tub LGE 3551ER1003B Contact Us For Availability

View on Model

K141

SEAL LGE 4036ER4002A Contact Us For Availability

View on Model

K210

BELT,POLY-V LGE 4400FR3116A Contact Us For Availability

View on Model

K220

PULLEY LGE 4560FR1149A Contact Us For Availability

View on Model

K221

BOLT ASSY LGE 4011FR3173A Contact Us For Availability

View on Model

K330

Motor Assembly,AC,Drum LGE 4681FR1241C Contact Us For Availability

View on Model

K332

Screw,Customized LGE 1SZZFR4174A Contact Us For Availability

View on Model

K340

4681EA2001T LG Washer Drain Pump and Motor In Stock LGE 4681EA2001T $44.47

View on Model

K342

5214FR4006H LG Hose Connector Backorder LGE 5214FR4006H $6.19

View on Model

K344

CASING ASSEMBLY,PUMP LGE 3661FR2093E Contact Us For Availability

View on Model

K346

383EER2001B LG Parts Assembly Backorder LGE 383EER2001B $14.79

View on Model

K410

Spring,Hinge LGE 4970FR2084F Contact Us For Availability

View on Model

K411

4930FR3040A LG Washer Hinge Spring Holder In Stock LGE 4930FR3040A $6.19

View on Model

K420

SPRING LGE 4970FR2084E Contact Us For Availability

View on Model

K510

Gasket Assembly LGE 4987FR1165B Contact Us For Availability

View on Model

K520

BELLOWS LGE 4738FR1145A Contact Us For Availability

View on Model

K530

CLAMP ASSY LGE 4861ER2001A Contact Us For Availability

View on Model

K540

3504FR3134A LG Air Chamber Backorder LGE 3504FR3134A $6.19

View on Model

K550

HOSE LGE 5214FR4125J Contact Us For Availability

View on Model

K610

Parts Assembly LGE 383EER3001C Contact Us For Availability

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B $9.86

View on Model

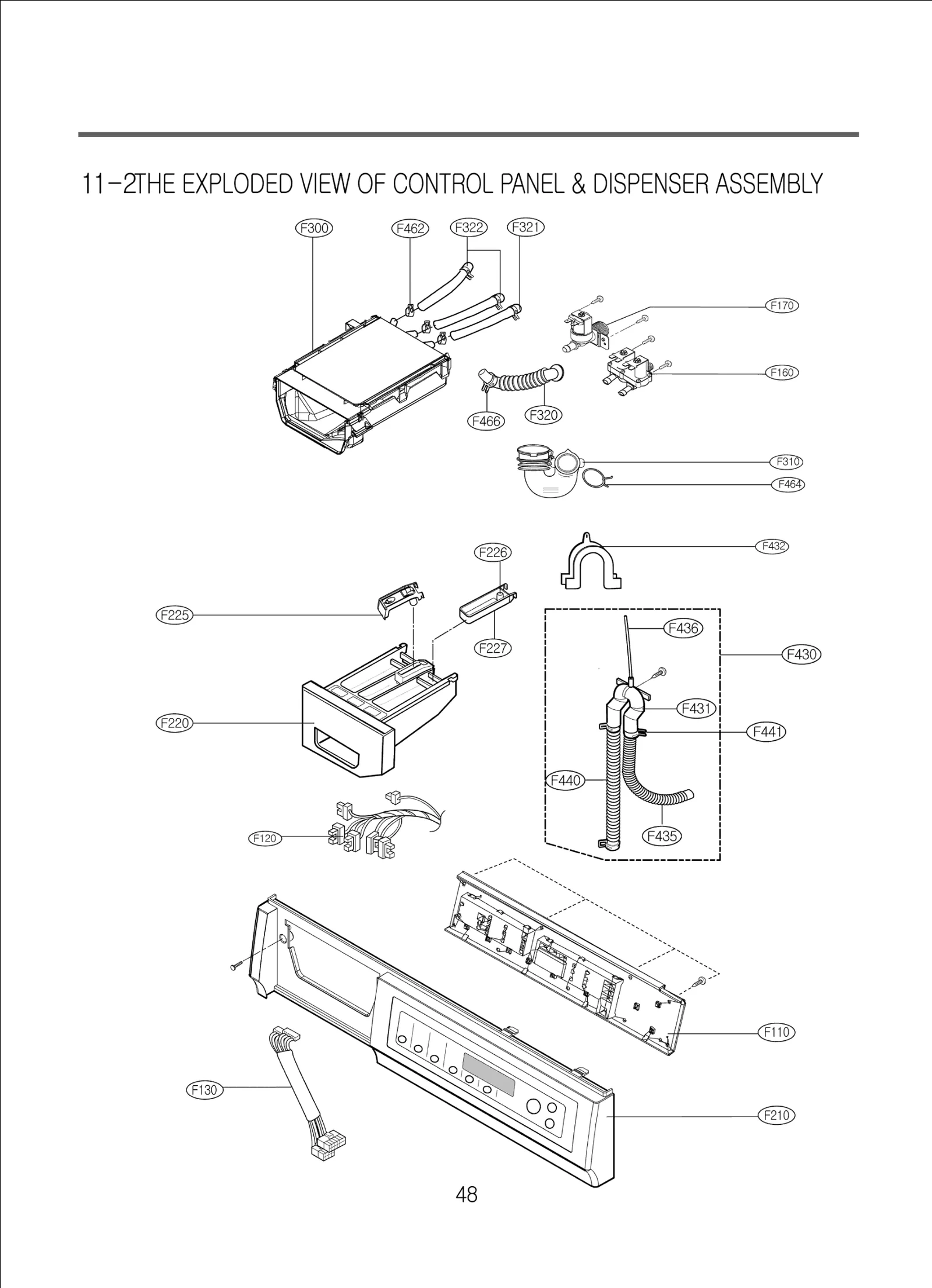

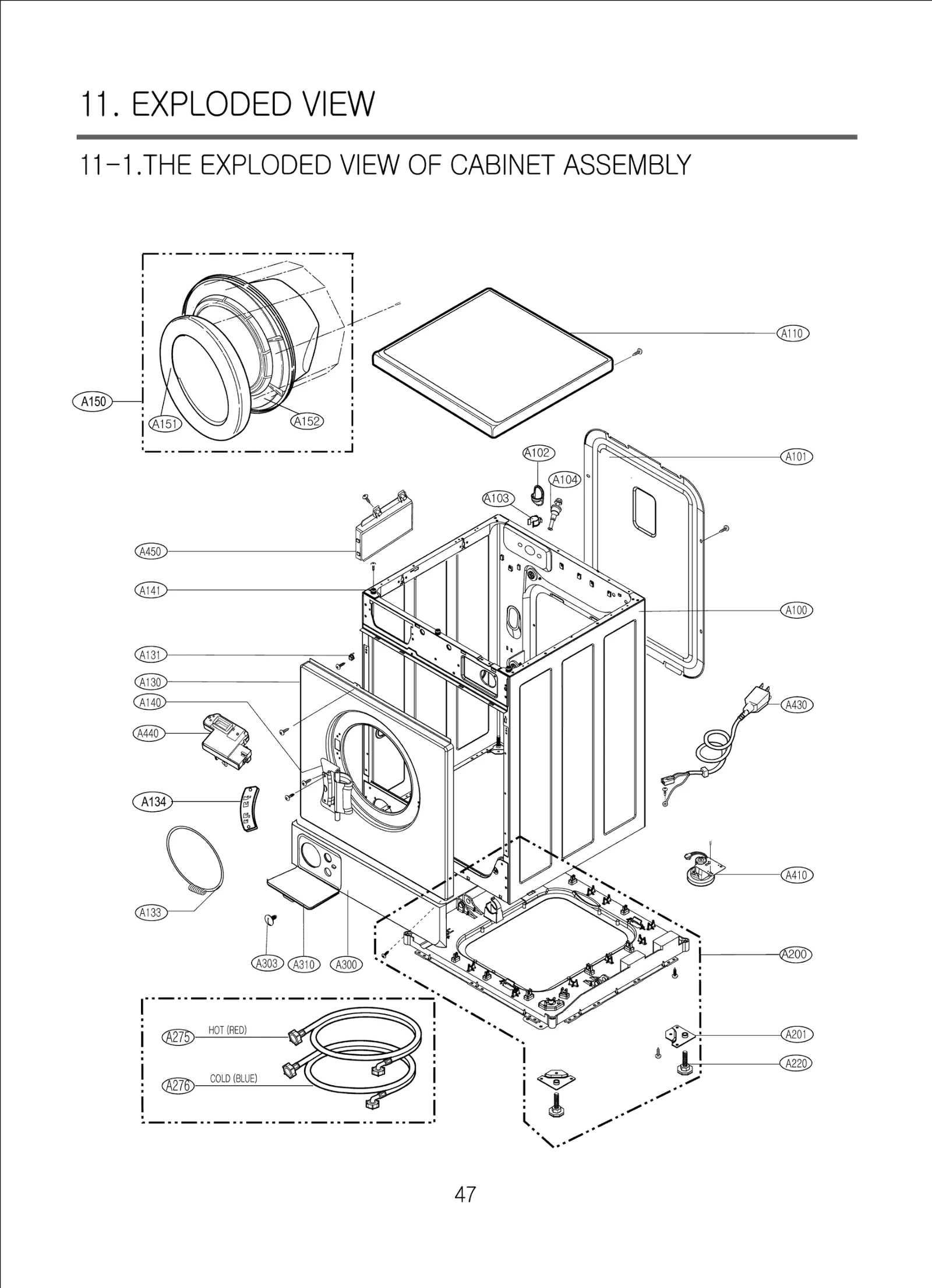

Model LG WD-1243FHB Washer – Common Parts & Diagrams

Common parts from model LG WD-1243FHB Washer
