Model GE WCVH6800J5WW Washer – Common Parts & Diagrams

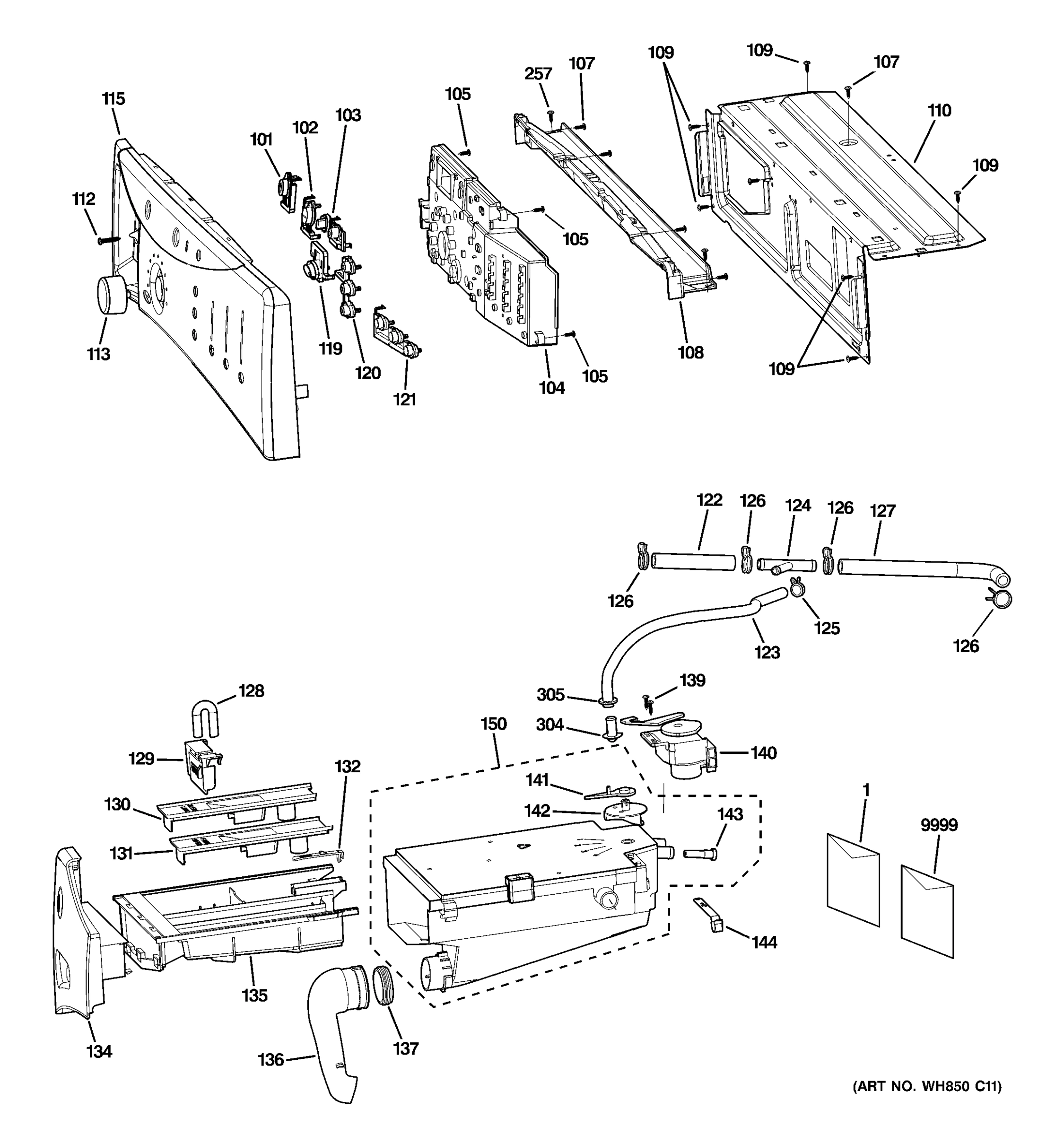

CONTROLS & DISPENSER

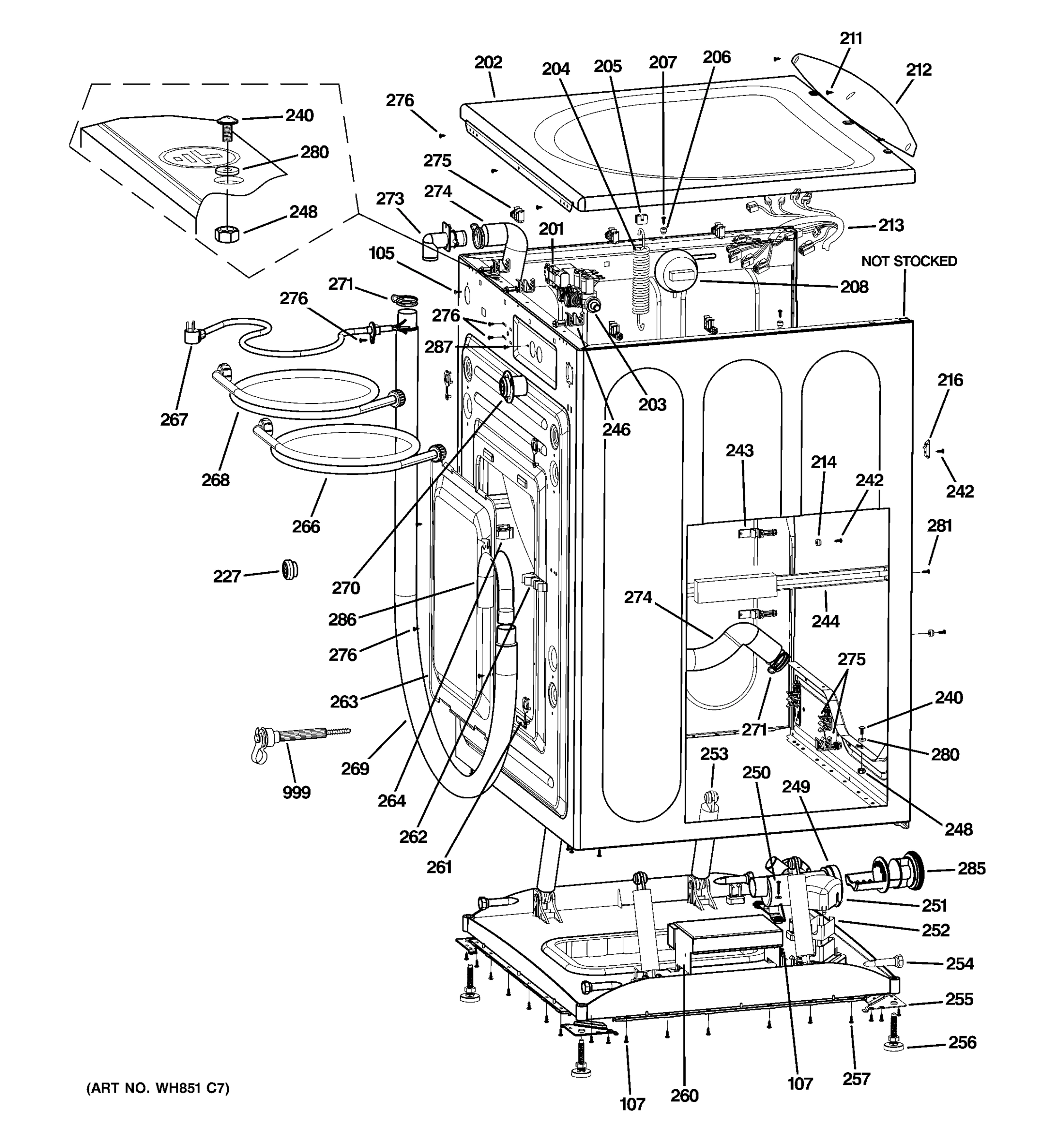

CABINET & TOP PANEL
DOOR
TUB & MOTOR
Common parts from model GE WCVH6800J5WW Washer
101
POWER BUTTON GEN WH01X10239 Contact Us For Availability
102
START PAUSE BUTTON GEN WH01X10240 Contact Us For Availability
103
CHILD LOCK BUTTON GEN WH01X10241 Contact Us For Availability
104
CONTROL BOARD ASM GEN WH12X10517 Contact Us For Availability
105
SCREW_ST3.5 X 11 GEN WH02X10181 Contact Us For Availability
113
SELECT CYCLE KNOB GEN WH11X10054 Contact Us For Availability
115
CONTROL PANEL ASM WW GEN WH42X10771 Contact Us For Availability
119
MY-CYCLE_BUTTON GEN WH12X10304 Contact Us For Availability
120
RINSE_BUTTON GEN WH12X10305 Contact Us For Availability
121
SOIL_SPEED_TEMP_BUTTON GEN WH12X10306 Contact Us For Availability
123
SPRAY_HOSE GEN WH41X10109 Contact Us For Availability
127
INLET_WATER_HOSE GEN WH41X10111 Contact Us For Availability
129
LIQUID_DETERGENT_INSERT GEN WH41X10113 Contact Us For Availability
130
BLEACH_COVER GEN WH41X10114 Contact Us For Availability
131
SOFTENER COVER GEN WH41X10115 Contact Us For Availability
134
DISPENSER DWR FRONT WW GEN WH41X10177 Contact Us For Availability
135
DRAWER DISPENSER GEN WH41X10117 Contact Us For Availability
136
WATER_INLET_PIPE GEN WH41X10118 Contact Us For Availability
137
DISPENSER_SEAL GEN WH41X10119 Contact Us For Availability
205
SPRING_HANGER GEN WH01X10251 Contact Us For Availability
208
PRESSURE SWITCH GEN WH12X10522 Contact Us For Availability
212
TOP DECOR COVER WW GEN WH44X10174 Contact Us For Availability
218
FRONT PANEL WW GEN WH46X10149 Contact Us For Availability
220
HINGE DOOR SHORT PIN GEN WH01X10319 Contact Us For Availability
223
DOOR PLUNGER GEN WH01X10356 Contact Us For Availability
233
DOOR GLASS GEN WH46X10150 Contact Us For Availability
235
SCREW_M5*12 GEN WH02X10194 Contact Us For Availability
236
HINGE COVER GEN WH44X10182 Contact Us For Availability
241
HINGE GEN WH01X10511 Contact Us For Availability
247
SERVICE PANEL WW GEN WH46X10188 Contact Us For Availability
252
INVERTER CONNECTORS SHIE GEN WH44X10177 Contact Us For Availability
254
DAMPER_PIN GEN WH01X10261 Contact Us For Availability
256
LEG GEN WH46X10130 Contact Us For Availability
260
INVERTER GEN WH12X10519 Contact Us For Availability
274
INSIDE_DRAIN_HOSE GEN WH41X10127 Contact Us For Availability
276
SCREW ST4.2*11 GEN WH02X10203 Contact Us For Availability
279
PUMP ACCESS DOOR WW GEN WH01X10357 Contact Us For Availability
282
DOOR COVER ASM GEN WH46X10185 Contact Us For Availability
283
DOOR FRAME-OUTER ASM GEN WH46X10159 Contact Us For Availability
284
PROTECT COVER & RING GEN WH46X10127 Contact Us For Availability
289
HINGE DOOR PLATE GEN WH01X10340 Contact Us For Availability
304
GASKET_NOZZLE GEN WH08X10021 Contact Us For Availability
310
BAFFLE ASM GEN WH16X10079 Contact Us For Availability
313
TUB_SEAL GEN WH08X10023 Contact Us For Availability
315
REAR_TUB GEN WH45X10071 Contact Us For Availability
316
COUNTERWEIGHT REAR GEN WH01X10268 Contact Us For Availability
321
VENT_HOSE GEN WH41X10128 Contact Us For Availability
322
DRIVE PULLEY KIT GEN WH07X10016 Contact Us For Availability
323
NUT_M16 GEN WH02X10211 Contact Us For Availability
330
FLANGE_BOLT_M8*35 GEN WH02X10213 Contact Us For Availability
339
AIR_CHAMBER GEN WH41X10130 Contact Us For Availability
340
DRAIN_HOSE GEN WH41X10131 Contact Us For Availability
342
TUB DRAIN HOSE CLAMP GEN WH01X10276 Contact Us For Availability
345
HEATER GEN WH12X10309 Contact Us For Availability
999
KIT - SHIPPING BOLT GEN WH49X10047 Contact Us For Availability
× ![]()
