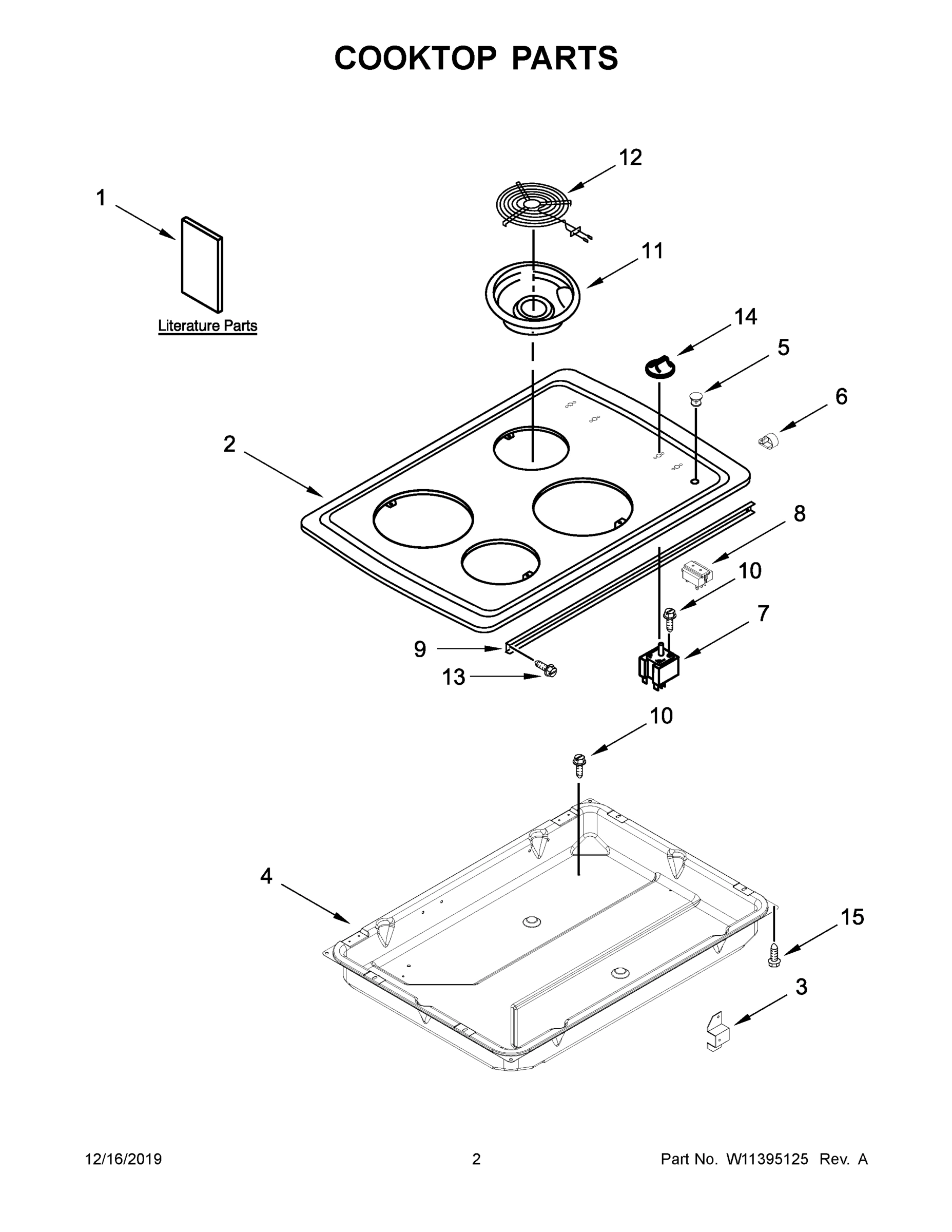

Model Whirlpool WCC31430AB03 COOKTOP, ELECTRIC, BUILT-IN, 30 INCH – Common Parts & Diagrams

5
LENS, INDICATOR LAMP
LENS, INDICATOR LAMP WPL 7730P01260 Contact Us For Availability
View on Model
6
CLAMP, WIRE
CLAMP, WIRE WPL 7111P00260 Contact Us For Availability
View on Model
7
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR)
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) WPL 7403P37360 Contact Us For Availability
View on Model
7A
SWITCH, INFINITE (LEFT REAR & RIGHT FRONT)
SWITCH, INFINITE (LEFT REAR & RIGHT FRONT) WPL 7403P37260 Contact Us For Availability
View on Model
8
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
View on Model
11
BOWL, DRIP SMALL (LEFT FRONT & RIGHT REAR)
BOWL, DRIP SMALL (LEFT FRONT & RIGHT REAR) WPL 7725P05360 Contact Us For Availability
View on Model
11A
BOWL, DRIP LARGE (LEFT REAR & RIGHT FRONT)
BOWL, DRIP LARGE (LEFT REAR & RIGHT FRONT) WPL 7725P05460 Contact Us For Availability
View on Model
13
SCREW
SCREW WPL 7101P33660 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN
ACCESSORIES, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability
View on Model
NI
ACCESSORIES, KIT, CANNING UNIT
ACCESSORIES, KIT, CANNING UNIT WPL 242905 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
View on Model
NI
18 BK 125C
18 BK 125C WPL 5155P75860 Contact Us For Availability
View on Model
NI
SCREW, GROUND
SCREW, GROUND WPL 7101P02760 Contact Us For Availability
View on Model
NI
SCREW (FOR ELEMENT WIRE HARNESS)
SCREW (FOR ELEMENT WIRE HARNESS) WPL 7101P39460 Contact Us For Availability
View on Model
NI
GROMMET, HARNESS
GROMMET, HARNESS WPL 8008P01060 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL WPL 31462 Contact Us For Availability
View on Model
