Model Whirlpool W9RXEMFWS01 REFRIGERATOR – Common Parts & Diagrams

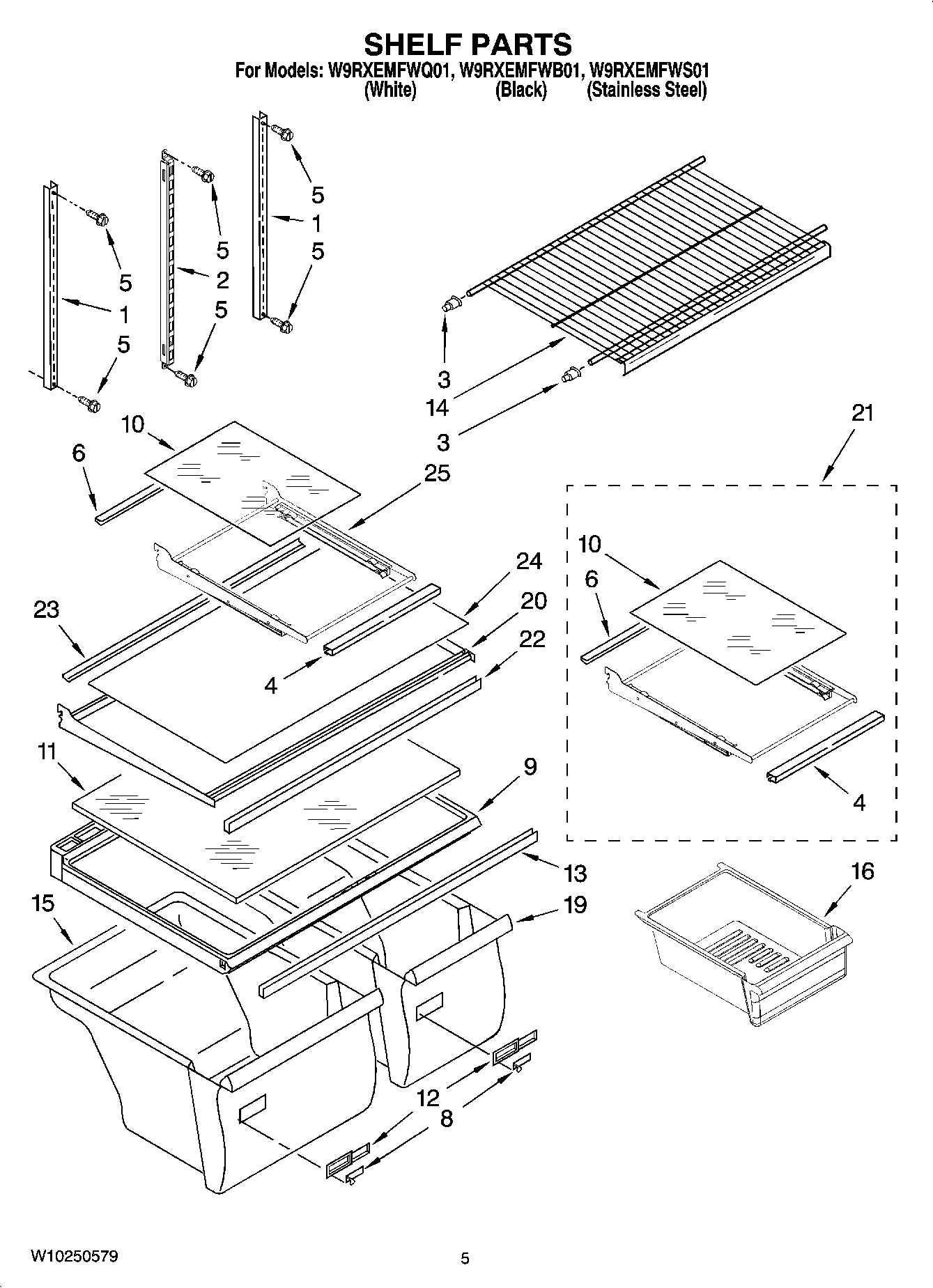

03 - SHELF PARTS

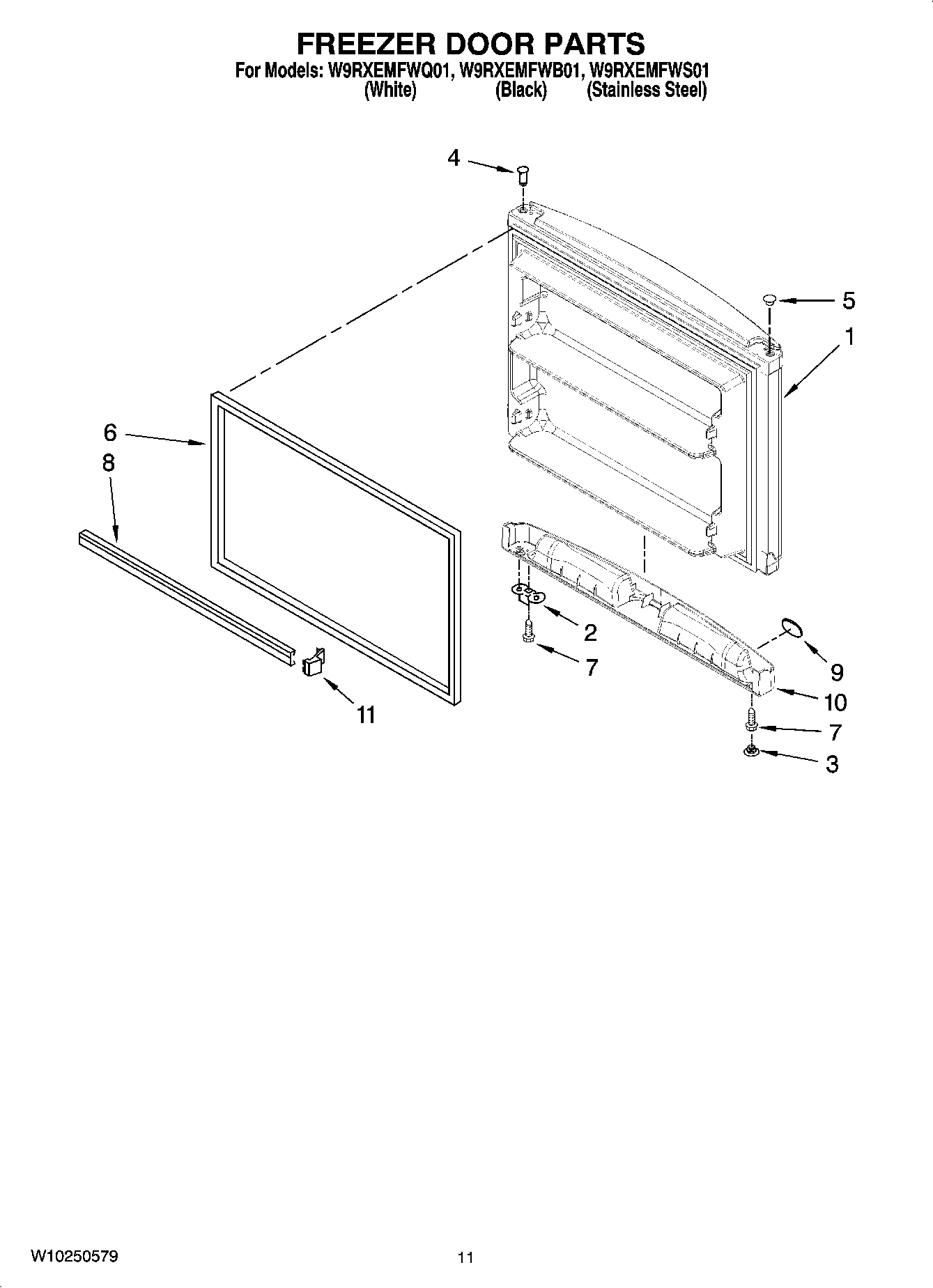

06 - FREEZER DOOR PARTS, OPTIONAL PARTS
05 - UNIT PARTS
01 - CABINET PARTS
02 - LINER PARTS
04 - REFRIGERATOR DOOR PARTS
Common parts from model Whirlpool W9RXEMFWS01 REFRIGERATOR
Brush Touch-Up Kit (White) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
Brush Touch-up kit (Black) WPL 72032 Contact Us For Availability
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
Enamel, Biscuit (12 Oz. Spray Can) WPL 4392901 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Touch-Up, White Porcelain (2 Oz.) WPL 511873 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
WPL 876029 WPL 876029 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
Enamel, White (1 Qt. U WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
1
Service & Wiring Sheet WPL W10142143 Contact Us For Availability
1
Use & Care Guide (Trilingual) WPL W10208839 Contact Us For Availability
1
Use & Care Guide (Bilingual) WPL W10208840 Contact Us For Availability
1
Energy Label WPL W10233119 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI134606A Contact Us For Availability
1
Refrigerator Door (Includes Illus. 4 & 6) (Wh WPL 2205395 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 4 & 6) (Bl WPL 2205398 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 4 & 6) (St WPL W10141742 Contact Us For Availability
3
Cup, Shelf Mounting WPL 2163762 Contact Us For Availability
4
CLIP, GRILLE WPL 2189356 Contact Us For Availability
4
Trim, Shelf Front WPL 2188684 Contact Us For Availability
6
Screw WPL 8534009 Contact Us For Availability
7
Wire Assembly, Control Box WPL 2310077 Contact Us For Availability
7
Housing Compartment WPL 2210566 Contact Us For Availability
8
Slide, Humid Cntl WPL 2176222 Contact Us For Availability
8
Tray, Door WPL 2159302 Contact Us For Availability
9
Handle, Endcap (White) WPL 2212689 Contact Us For Availability
9
Handle, Endcap (Black) WPL 2221652 Contact Us For Availability
10
Bin, Door (3) WPL 2204811 Contact Us For Availability
10
CLAMP, CORD WPL 549193 Contact Us For Availability
12
DOOR COMPARTMENT WPL 2218109 Contact Us For Availability
12
Control Box WPL 2218380 Contact Us For Availability
13
TRIM, DOOR SHELF WPL 2159312 Contact Us For Availability
14
Shelf, Freezer WPL 2189453 Contact Us For Availability
14
HOLE PLUG, ENDCAP (WHITE) WPL 2204837 Contact Us For Availability
14
HOLE PLUG, ENDCAP (BLACK) WPL 2204840 Contact Us For Availability
15
Endcap, Door Trim WPL 2177340 Contact Us For Availability
16
Support Block WPL 2201184 Contact Us For Availability
16
Fitting, Water Tube (Not Serviced) WPL ARI134603A Contact Us For Availability
16
Cover, Evaporator WPL 2320192 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Grille (Includes Illus. 4 & 22) (Black) WPL 2254388 Contact Us For Availability
20
Wire Assembly, Frzr. Compartment (Includes Il WPL W10129799 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
24
Glass-Shelf WPL 2177824 Contact Us For Availability
24
Rail, Center (Not Serviced) WPL ARI134604A Contact Us For Availability
25
Cover, Hole WPL 2205003 Contact Us For Availability
25
Cover, Unit WPL 2254578 Contact Us For Availability
26
Air Separator Assembly WPL 2210390 Contact Us For Availability
26
Cabinet, (Not A Serviceable Part) WPL ARI134605A Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
30
Retainer-Screw WPL 2320183 Contact Us For Availability
31
Shield, heat WPL 2204639 Contact Us For Availability
35
BRACKET EVAP. FAN, REAR WPL 2254454 Contact Us For Availability
× ![]()
