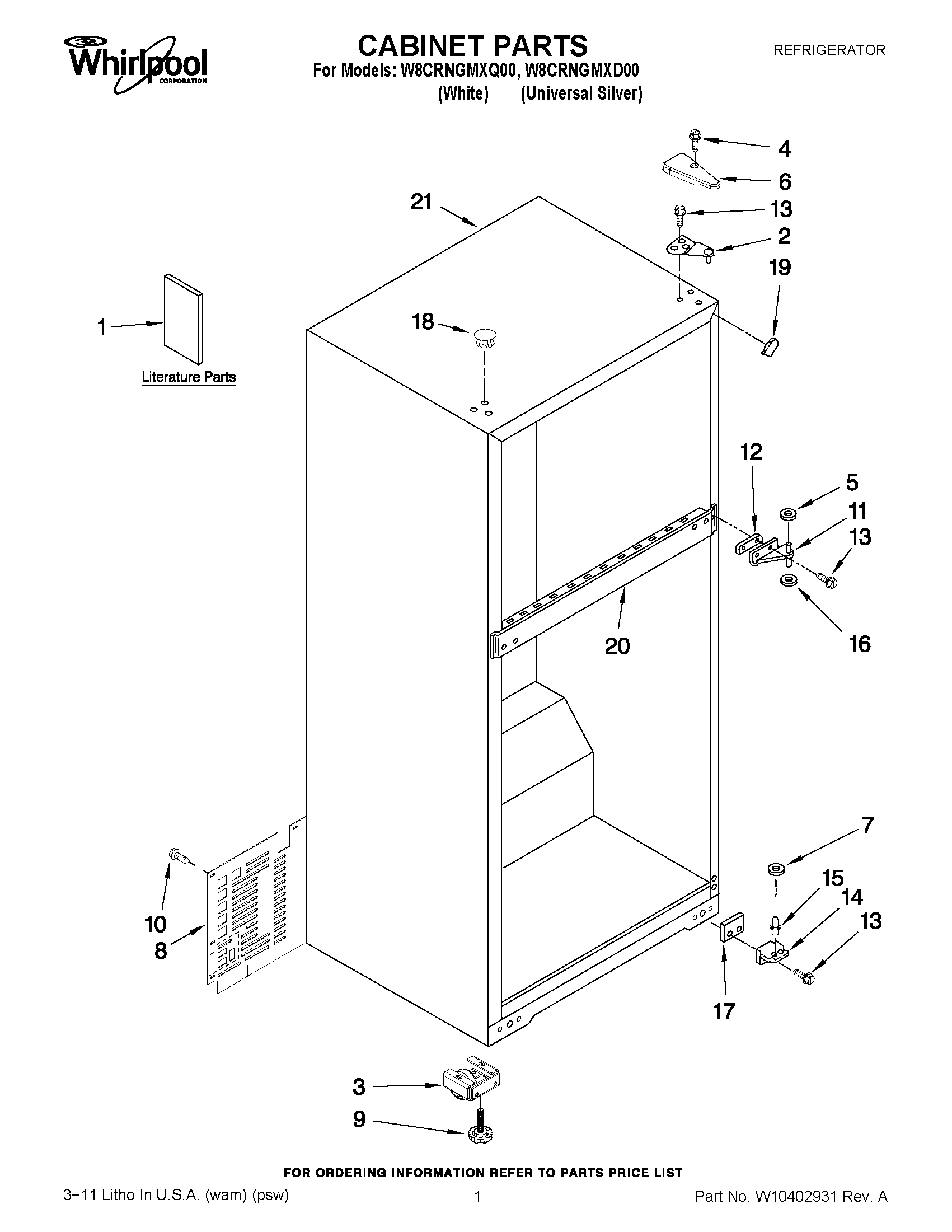

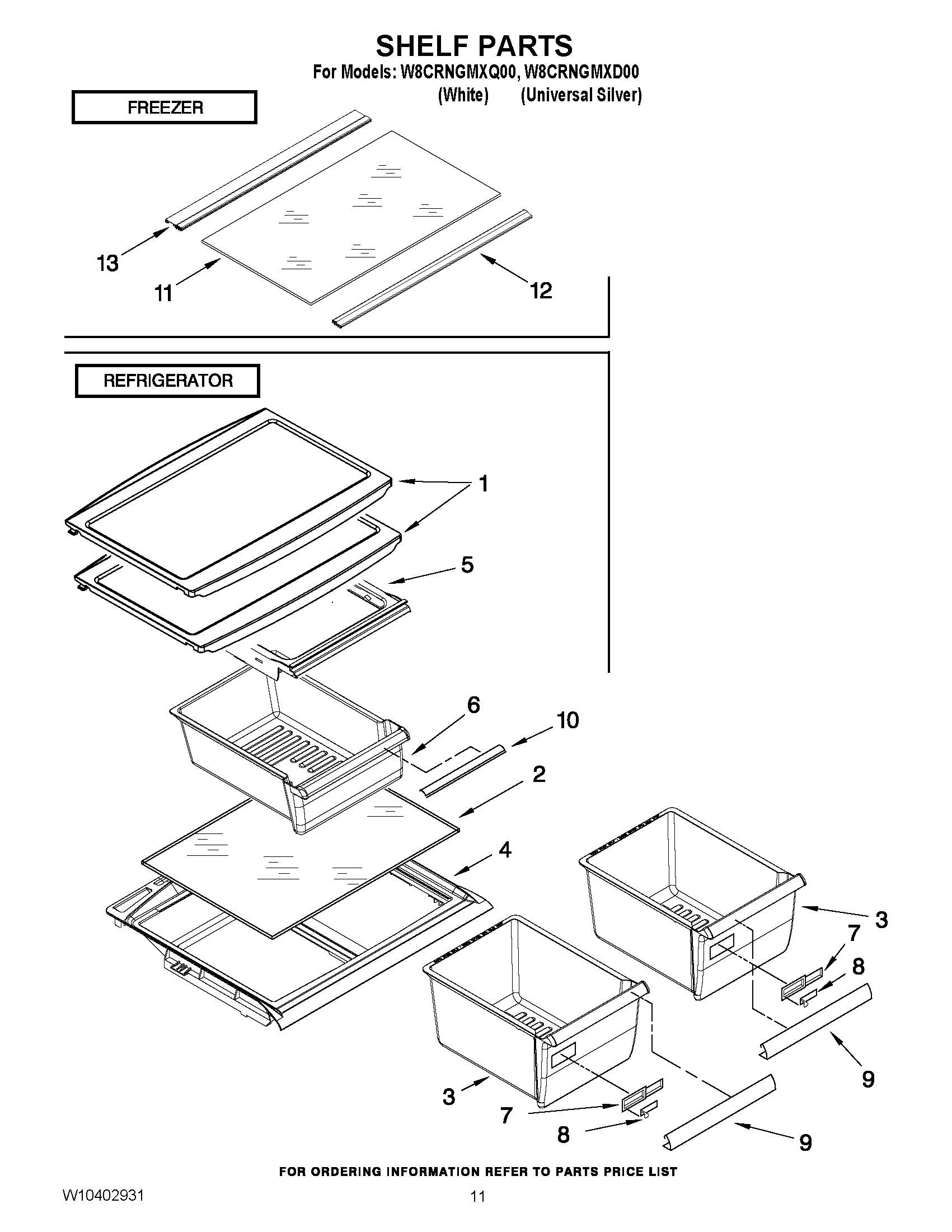

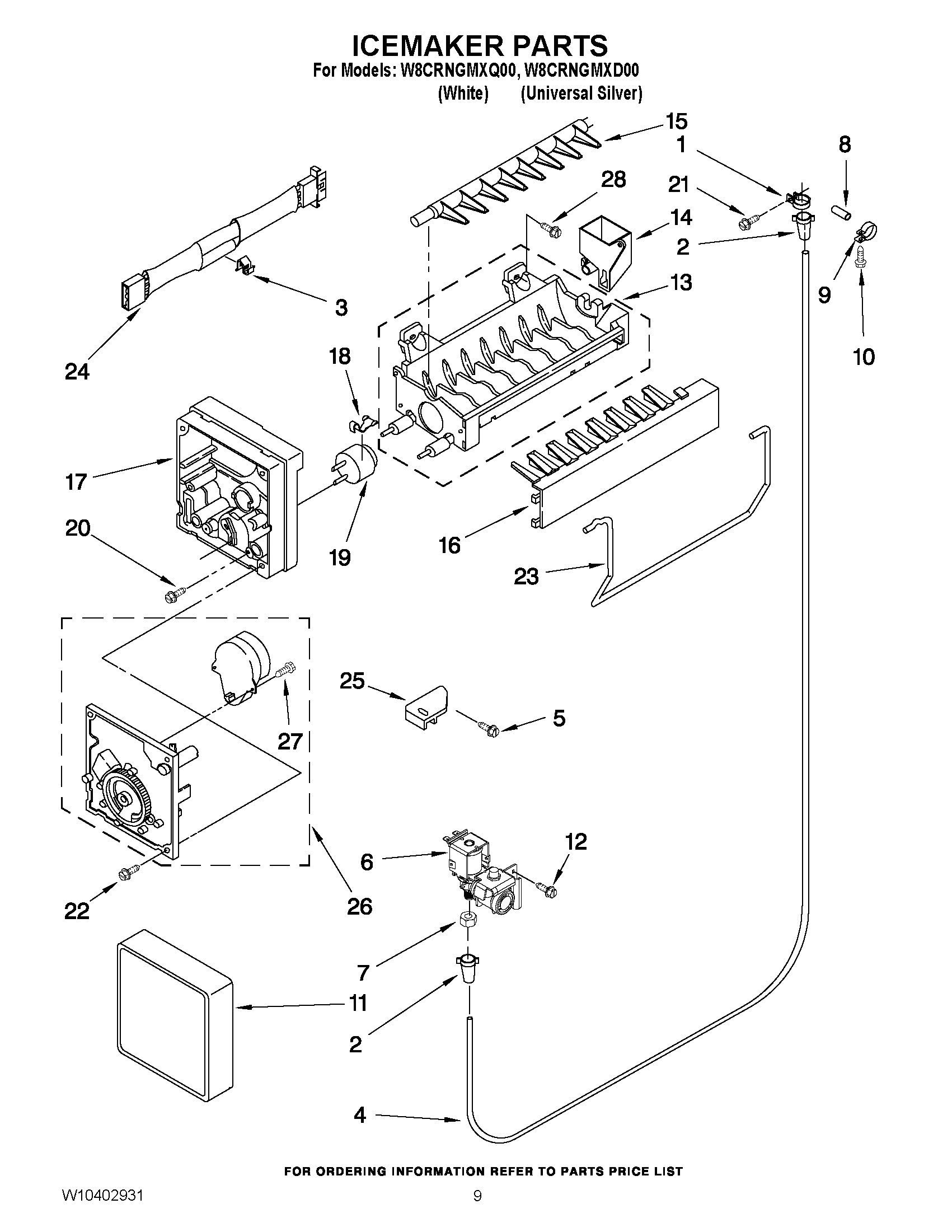

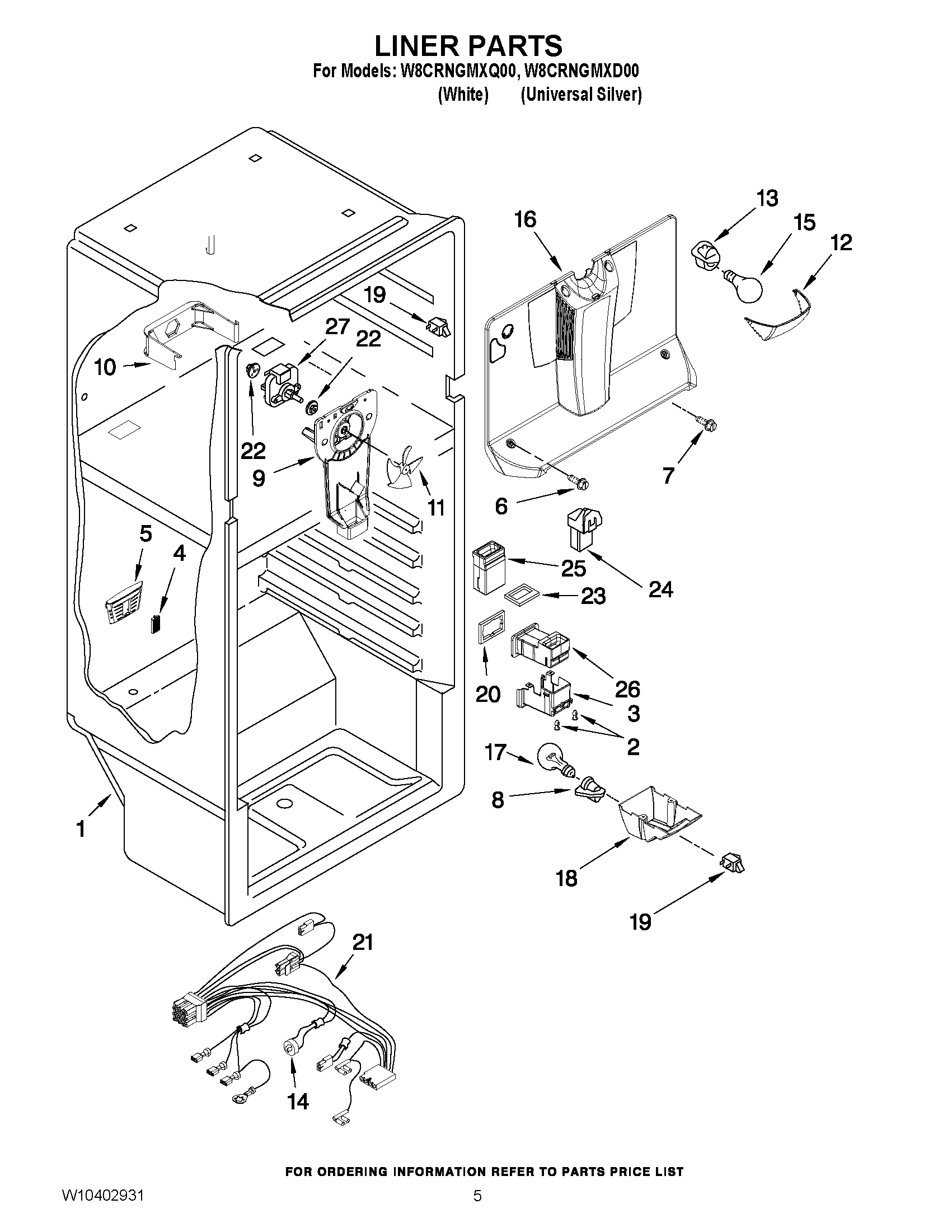

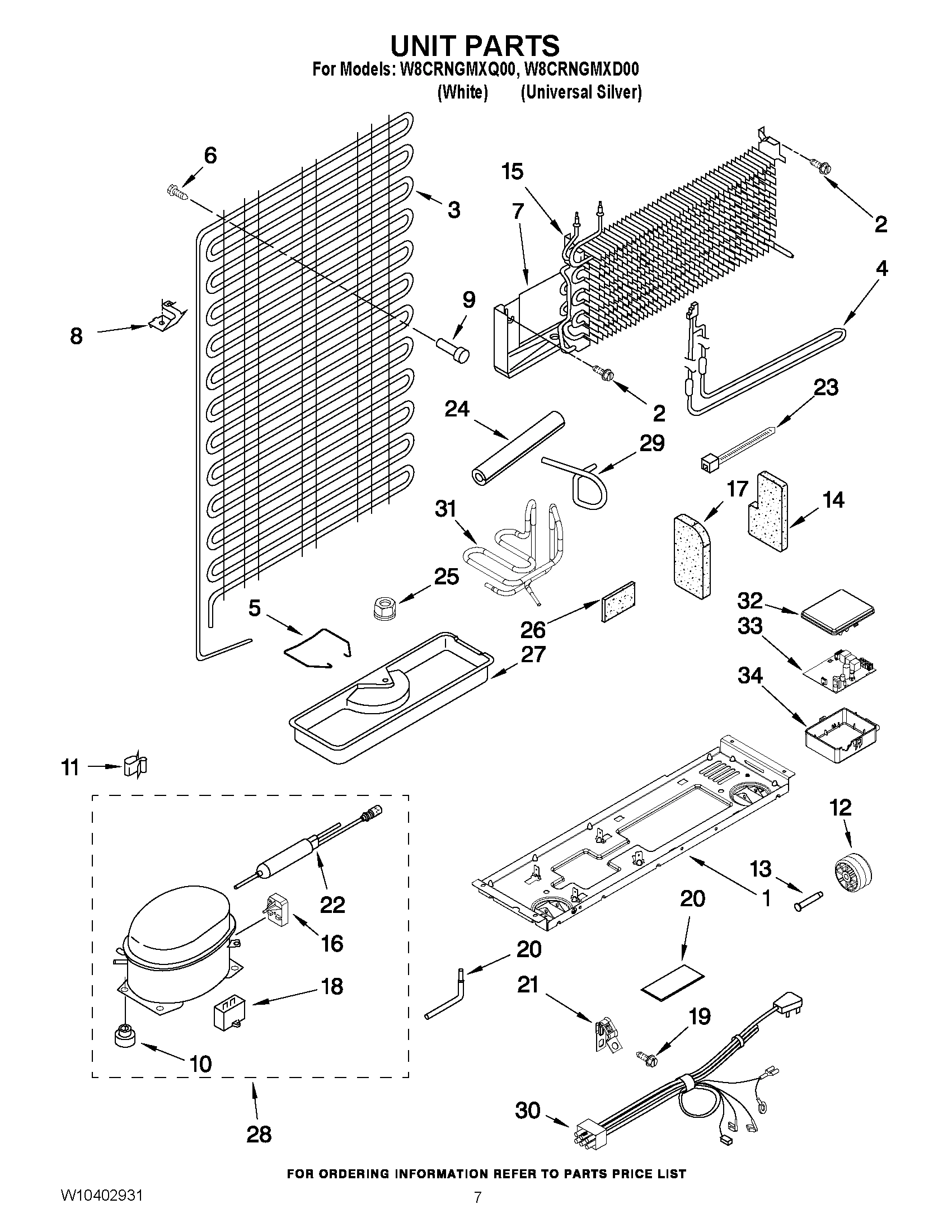

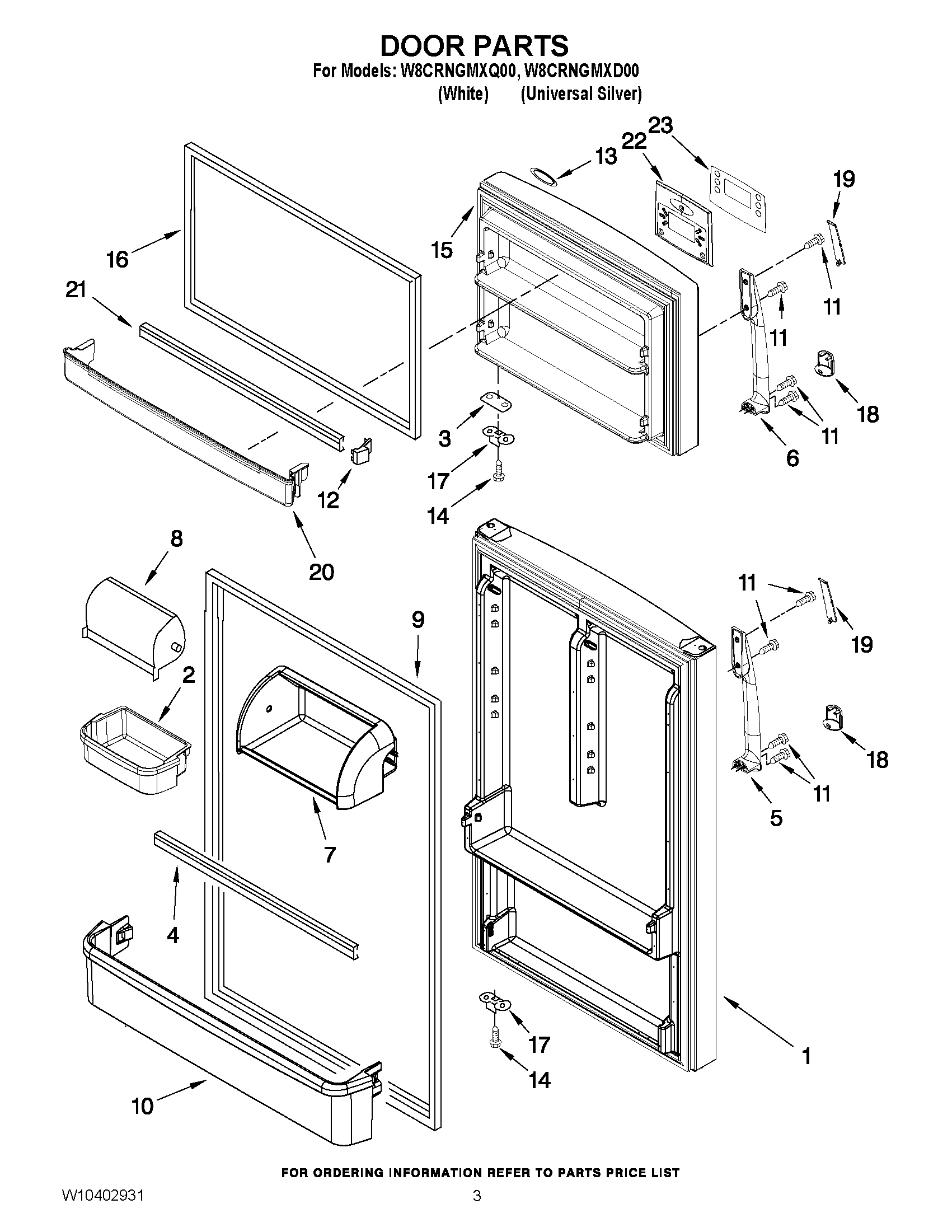

Model Whirlpool W8CRNGMXQ00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

WPW10222451 Whirlpool Refrigerator Support Backorder WPL WPW10222451 $26.75

2

WP2262441 Whirlpool Refrigerator Glass Shelf In Stock WPL WP2262441 $115.54

2

BIN, DOOR WPL 2328524 Contact Us For Availability

3

WP2256704 Whirlpool Crisper Pan In Stock WPL WP2256704 $87.93

3

WP2258681W Whirlpool Refrigerator Shim Backorder WPL WP2258681W $3.70

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

WPW10142530 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10142530 $39.95

4

WP2222031 Whirlpool Refrigerator Cover In Stock WPL WP2222031 $99.97

4

WPW10234241 Whirlpool Door Shelf Trim Backorder WPL WPW10234241 $44.14

5

WP2256601 Whirlpool Refrigerator Holder Backorder WPL WP2256601 $64.35

5

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

6

WP2261934 Whirlpool Meat Pan In Stock WPL WP2261934 $82.70

7

2264477 Whirlpool Refrigerator Housing Assemb Backorder WPL 2264477 $35.67

7

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

7

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

7

Heat Shield WPL 2319224 Contact Us For Availability

8

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

8

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

8

Tube, Water Inlet WPL 2174755 Contact Us For Availability

9

2258452 Whirlpool Refrigerator Spacer Backorder WPL 2258452 $7.85

9

WPW10133299 Whirlpool Refrigerator Screw Backorder WPL WPW10133299 $6.57

9

Trim, Crisper Pan WPL 2325514 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

WPW10468559 Whirlpool Refrigerator Clear Door In Stock WPL WPW10468559 $52.89

Trim, Meat Pan WPL 2325516 Contact Us For Availability

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

GLASS SHELF, FREEZER WPL W10283871 Contact Us For Availability

2166043 Whirlpool Refrigerator Shim Backorder WPL 2166043 $23.81

WP2156003 Whirlpool Refrigerator Door Shelf E In Stock WPL WP2156003 $4.50

WPW10283860 Whirlpool Glass Shelf Backorder WPL WPW10283860 $144.14

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

LIGHT LENS WPL 2263272 Contact Us For Availability

13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

13

WP2264756 Whirlpool Refrigerator Rivet Backorder WPL WP2264756 $3.70

13

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

8201619 Whirlpool Refrigerator Support Assemb Backorder WPL 8201619 $57.45

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2211224 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP2211224 $46.87

WP2325482 Whirlpool Bottom Hinge In Stock WPL WP2325482 $28.51

15

WP2263920 Whirlpool Refrigerator Evaporator Backorder WPL WP2263920 $138.89

15

WP2325483 Whirlpool Hinge Pin In Stock WPL WP2325483 $3.70

15

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

W10892065 Whirlpool Refrigerator Compressor S Backorder WPL W10892065 $67.53

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

17

WP2201567 Whirlpool Hinge Shim In Stock WPL WP2201567 $3.70

18

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

20

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

20

W10205260 Whirlpool Tube Backorder WPL W10205260 $8.00

20

TRIM, FC DOOR WPL 2328522 Contact Us For Availability

21

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

22

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

22

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $16.25

22

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

23

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

23

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

24

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

24

Hood And Foil Assembly WPL 2316186 Contact Us For Availability

25

285002 Whirlpool Nut Backorder WPL 285002 $7.58

25

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

26

2252831 Whirlpool Refrigerator Air Duct Backorder WPL 2252831 $34.24

26

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

27

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

27

WPW10188389 Whirlpool Evaporator Fan Motor In Stock WPL WPW10188389 $48.15

27

EVAPORATOR TRAY WPL W10174378 Contact Us For Availability

28

W10233960 Whirlpool Refrigerator Compressor In Stock WPL W10233960 $340.91

29

EXTENSION, TUBE-HEAT WPL W10245110 Contact Us For Availability

30

WIRE ASSY. UNIT WPL W10238868 Contact Us For Availability

31

TUBE, DISCHARGE (INCL. PRE COOLER) WPL W10278445 Contact Us For Availability

32

BOX COVER WPL W10133000 Contact Us For Availability

33

ELEC. CONTROL WPL W10260816 Contact Us For Availability

34

Control Box WPL 2255623 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE ((R-134A)) WPL NP Contact Us For Availability
