Model Whirlpool W2RXNMMWB02 REFRIGERATOR – Common Parts & Diagrams
07 - OPTIONAL PARTS (NOT INCLUDED)

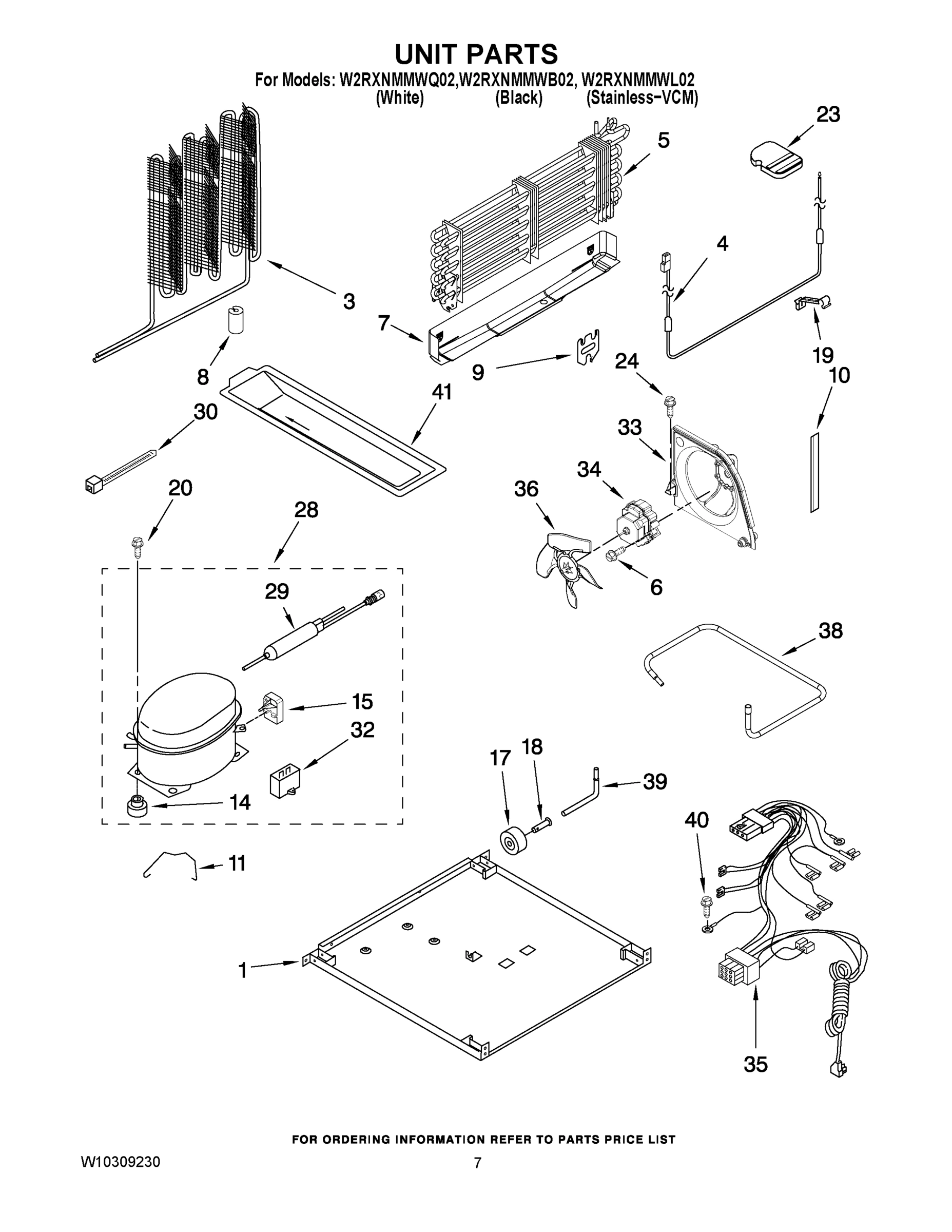

04 - UNIT PARTS
06 - SHELF PARTS
03 - LINER PARTS
05 - ICEMAKER PARTS
02 - DOOR PARTS
01 - CABINET PARTS
Common parts from model Whirlpool W2RXNMMWB02 REFRIGERATOR
4
Cup, Shelf Mtg. WPL 2163762 Contact Us For Availability
5
EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability
6
Clip, Water Valve WPL 2210495 Contact Us For Availability
7
Drain Pan WPL 2254295 Contact Us For Availability
10
TRIM, SHELF FRONT WPL 2188691 Contact Us For Availability
10
Trim, Door Shelf WPL 2159306 Contact Us For Availability
12
Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability
14
Glass, Shelf WPL 2174694 Contact Us For Availability
16
Screw WPL 8533917 Contact Us For Availability
16
Cover, Evaporator WPL 2320194 Contact Us For Availability
17
Shelf, Freezer WPL 2189454 Contact Us For Availability
18
BRACKET EVAP. FAN, REAR WPL 2254454 Contact Us For Availability
19
Compartment Door WPL 2218109 Contact Us For Availability
19
Grille (Includes Illus. 20) (White) WPL 2254313 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Grille (Includes Illus. 20) (Black) WPL 2254315 Contact Us For Availability
20
CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability
21
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Support Block WPL 2201185 Contact Us For Availability
23
SCREW 3-24 X 23/64 WPL 489136 Contact Us For Availability
24
Cover, Unit WPL 2254576 Contact Us For Availability
25
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
26
Slide, Humidity Control WPL 2176222 Contact Us For Availability
26
AIR SEPARATOR ASSEMBLY WPL 2204690 Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
33
Wire Assembly Freezer Compartment (Includes I WPL W10129803 Contact Us For Availability
NI
Brush Touch-Up Kit (White) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
Brush Touch-up kit (Black) WPL 72032 Contact Us For Availability
NI
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
Enamel, Biscuit (12 Oz. Spray Can) WPL 4392901 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Touch-Up, White Porcelain (2 Oz.) WPL 511873 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
KIT, INSULATION (2 PCS.) 3`` X 24 `` X 48``) WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
NI
Kit, Terminal Connector WPL 833938 Contact Us For Availability
NI
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) WPL 799344 Contact Us For Availability
NI
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
