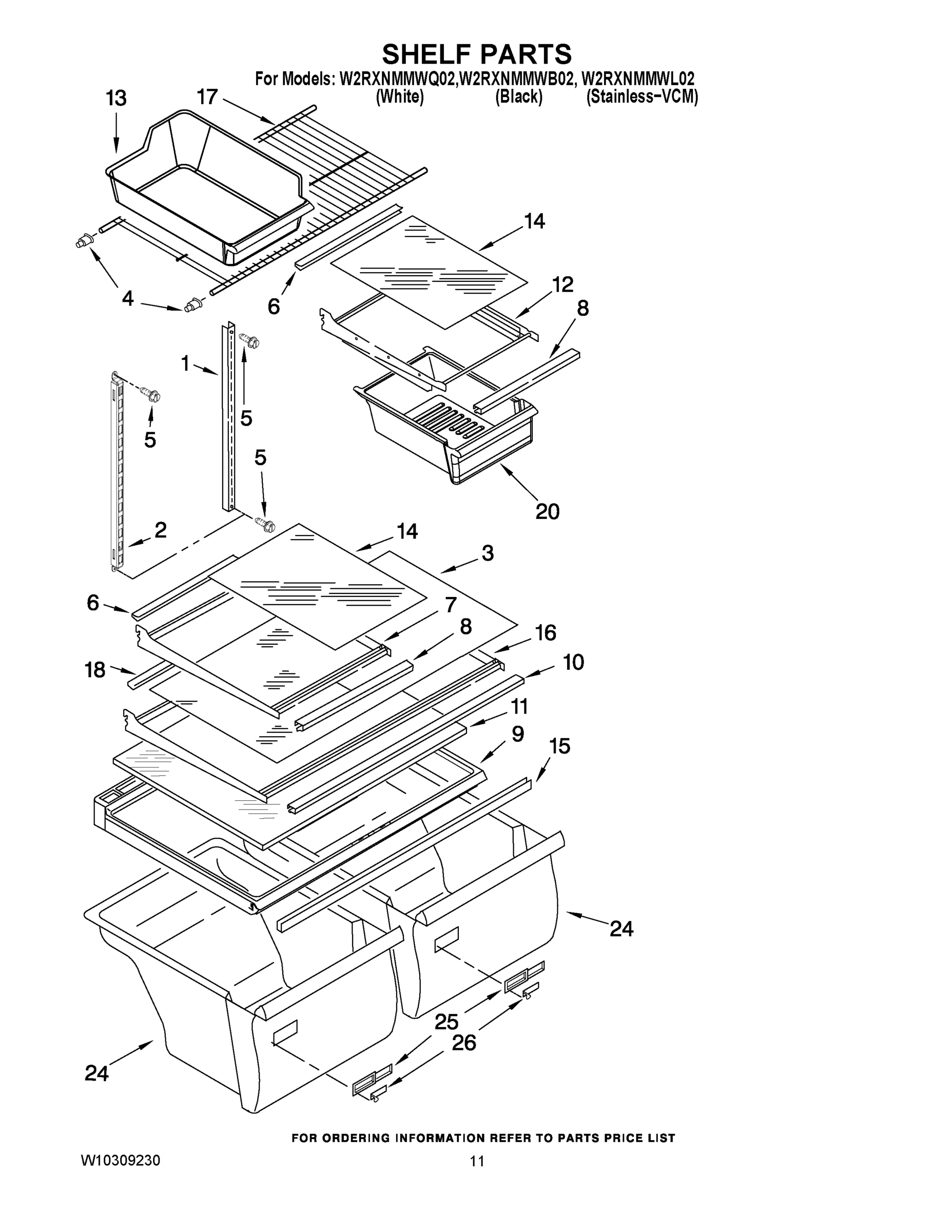

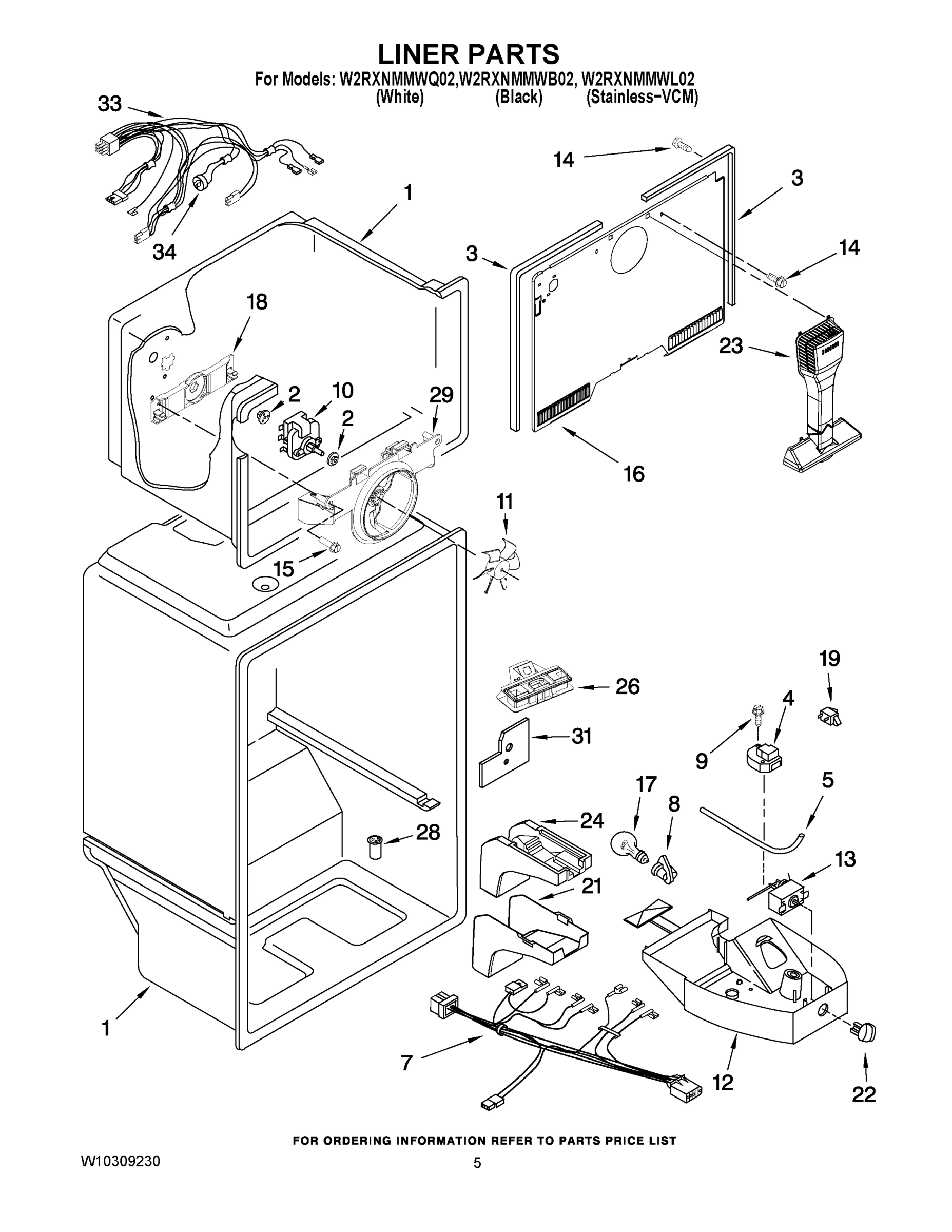

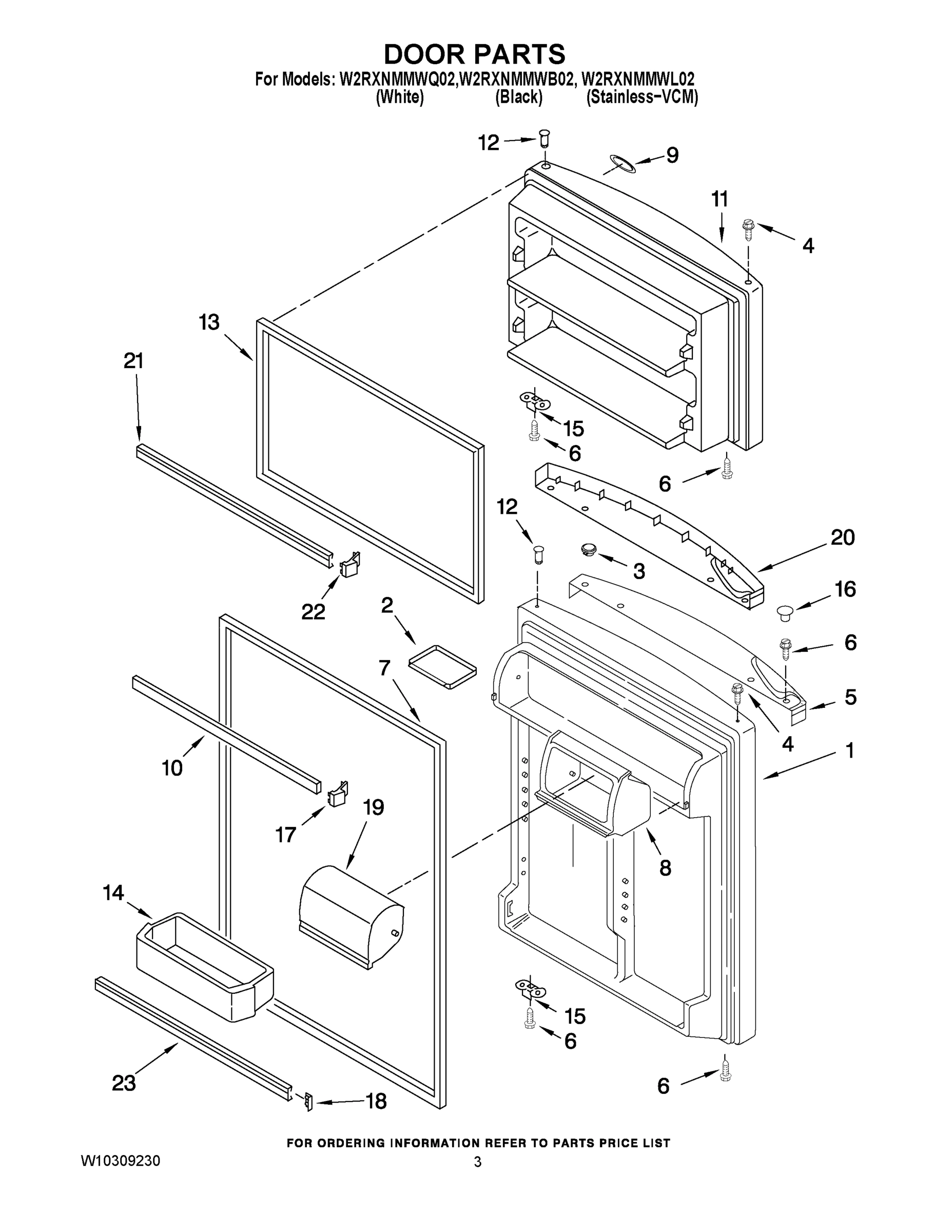

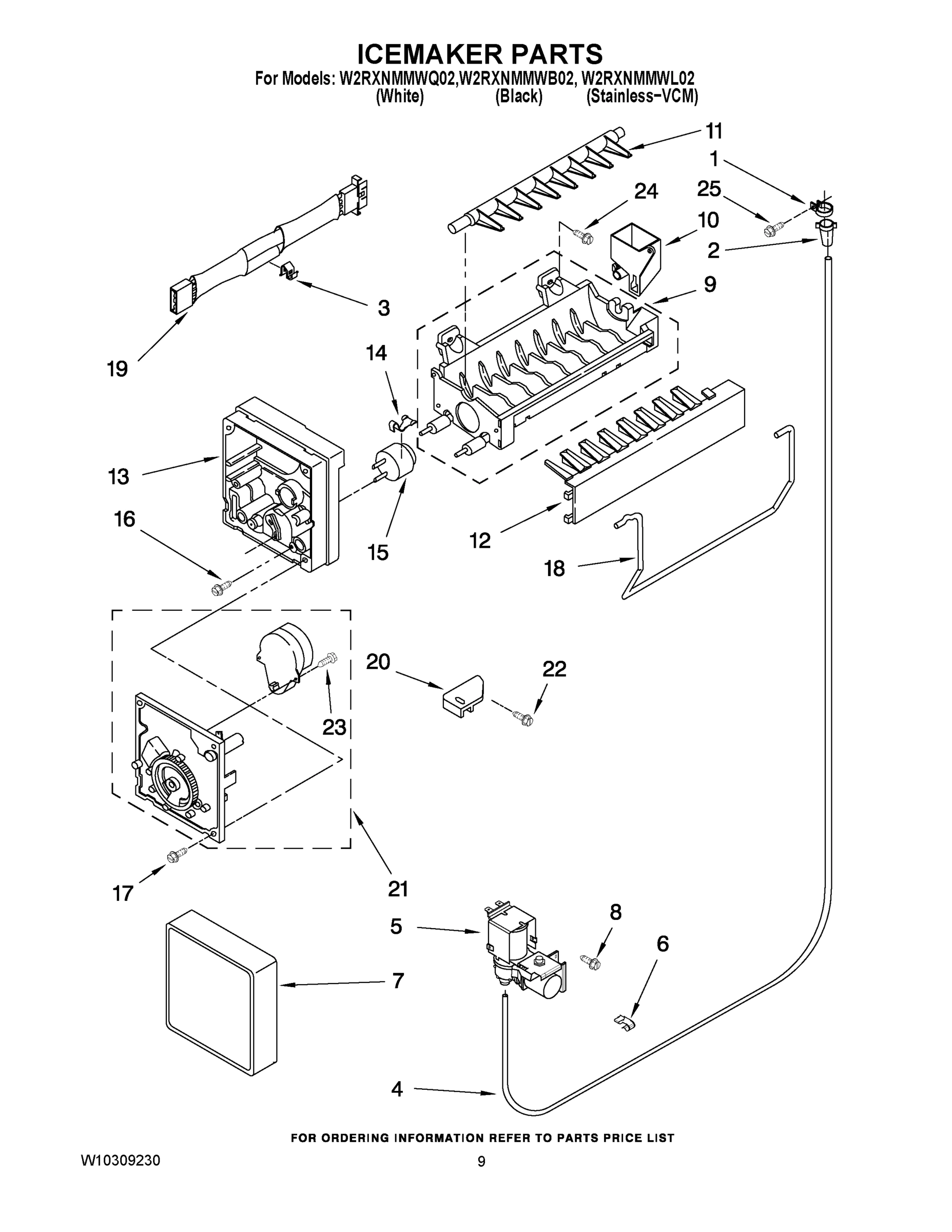

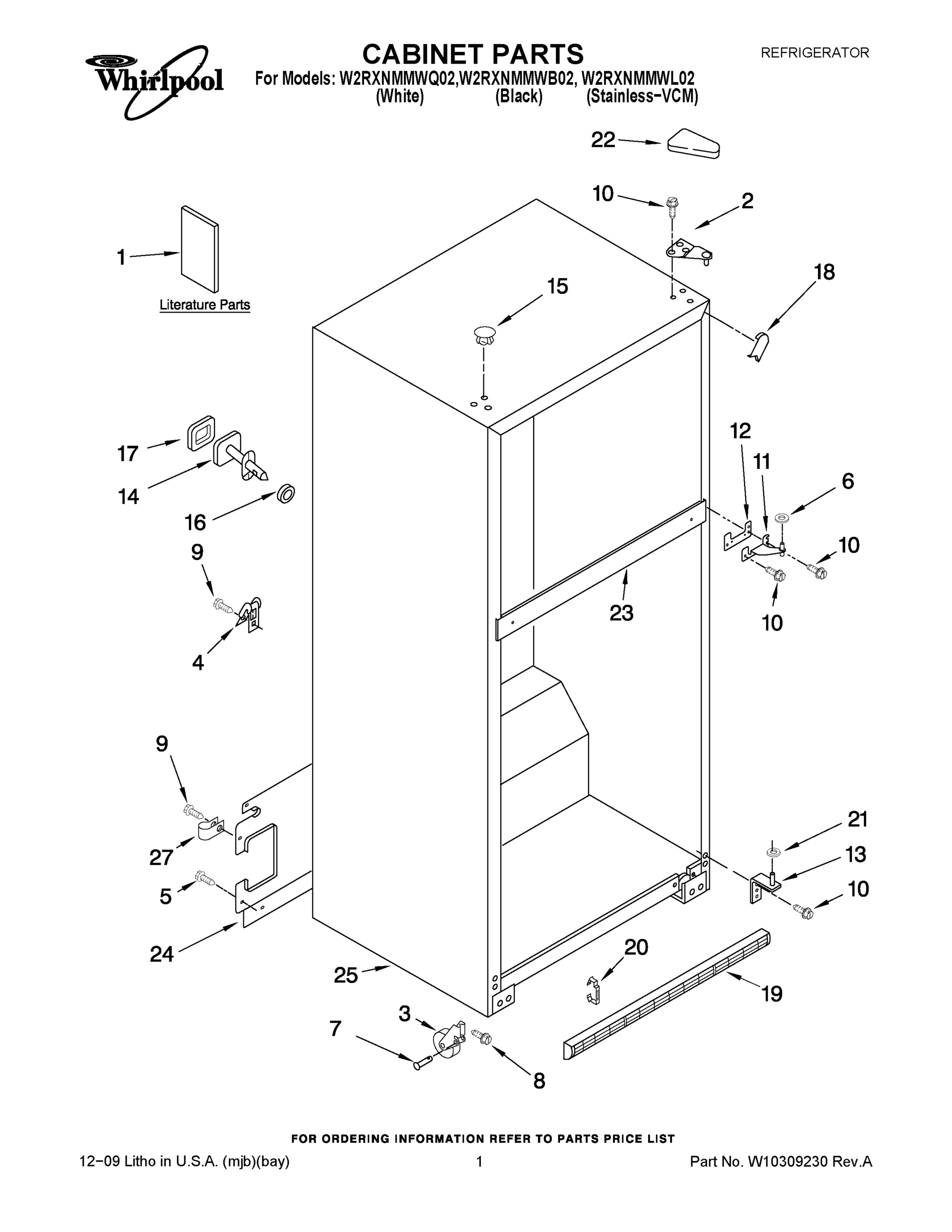

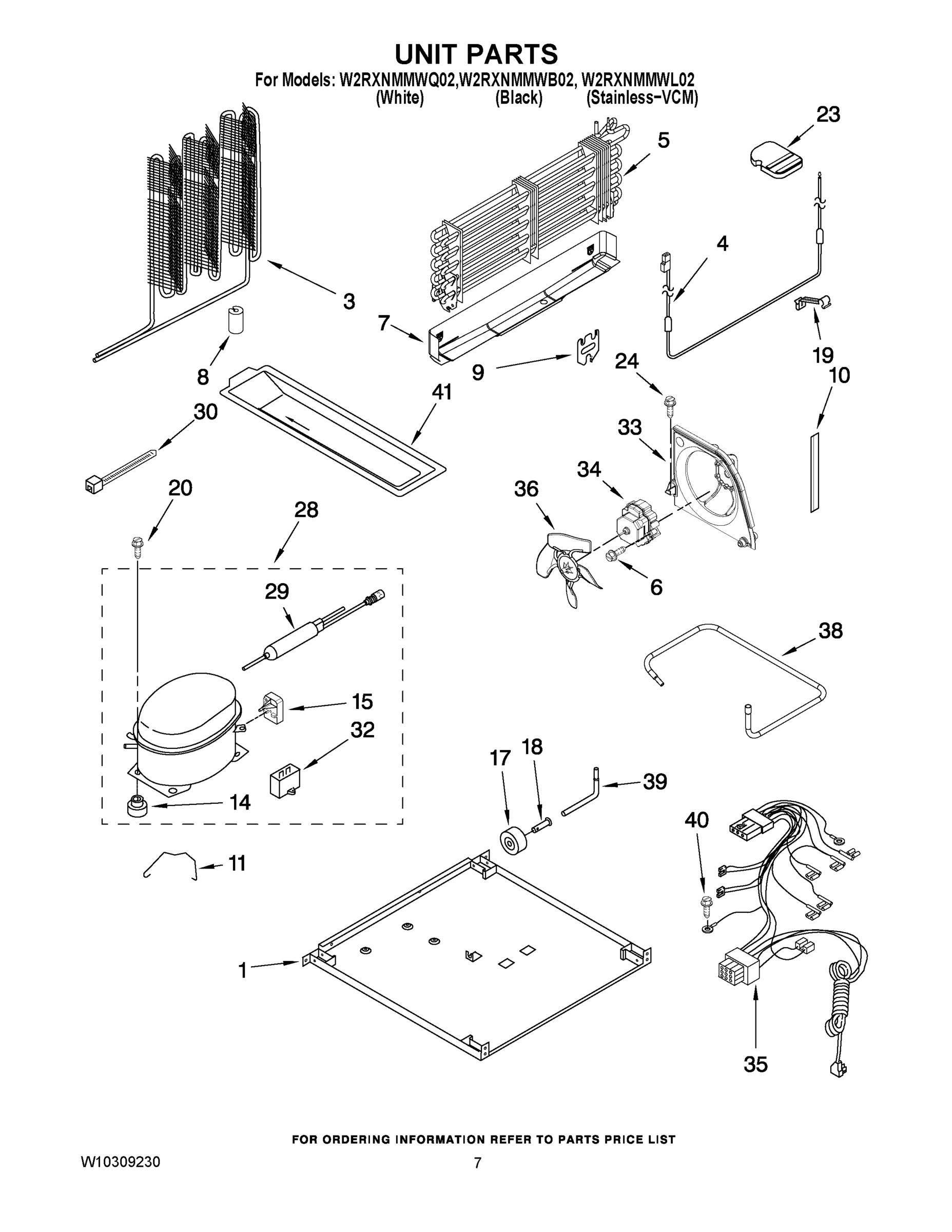

Model Whirlpool W2RXNMMWB02 REFRIGERATOR – Common Parts &amp; Diagrams

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $8.67

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

4

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

4

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

4

WP2314156 Whirlpool Refrigerator Defrost Time In Stock WPL WP2314156 $109.29

4

WPW10140847 Whirlpool Refrigerator Heater In Stock WPL WPW10140847 $72.85

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $33.49

6

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

7

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

7

Drain Pan WPL 2254295 Contact Us For Availability

8

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

8

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

10

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

10

TRIM, SHELF FRONT WPL 2188691 Contact Us For Availability

10

Trim, Door Shelf WPL 2159306 Contact Us For Availability

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $37.19

WP2176225 Whirlpool Glass Shelf In Stock WPL WP2176225 $126.83

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $35.16

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $4.50

WP2314293 Whirlpool Refrigerator Thimble Backorder WPL WP2314293 $3.70

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

Pan, Shelf Cantilever WPL 2201106 Contact Us For Availability

13

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

14

WP2204813 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204813 $51.09

14

Glass, Shelf WPL 2174694 Contact Us For Availability

15

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

15

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $6.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

Cover, Evaporator WPL 2320194 Contact Us For Availability

17

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.06

17

Shelf, Freezer WPL 2189454 Contact Us For Availability

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $33.38

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Compartment Door WPL 2218109 Contact Us For Availability

Grille (Includes Illus. 20) (White) WPL 2254313 Contact Us For Availability

Clip, Heater WPL 2182338 Contact Us For Availability

Grille (Includes Illus. 20) (Black) WPL 2254315 Contact Us For Availability

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

WP2218132K Whirlpool Crisper Meat Pan In Stock WPL WP2218132K $109.65

20

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

21

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

21

TRIM, DOOR (2) WPL 2195947 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

23

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $54.06

23

Support Block WPL 2201185 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $44.74

24

Cover, Unit WPL 2254576 Contact Us For Availability

25

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.15

25

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

26

Slide, Humidity Control WPL 2176222 Contact Us For Availability

26

AIR SEPARATOR ASSEMBLY WPL 2204690 Contact Us For Availability

27

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

33

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $31.22

33

Wire Assembly Freezer Compartment (Includes I WPL W10129803 Contact Us For Availability

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $28.85

35

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $115.98

39

W11676464 Whirlpool Tube Backorder WPL W11676464 $39.69

41

WP2254574 Whirlpool Refrigerator Evaporator T Backorder WPL WP2254574 $57.83

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Enamel, White (1 Qt. Uncut) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
