Model Whirlpool W20DN3 WASHER – Common Parts & Diagrams

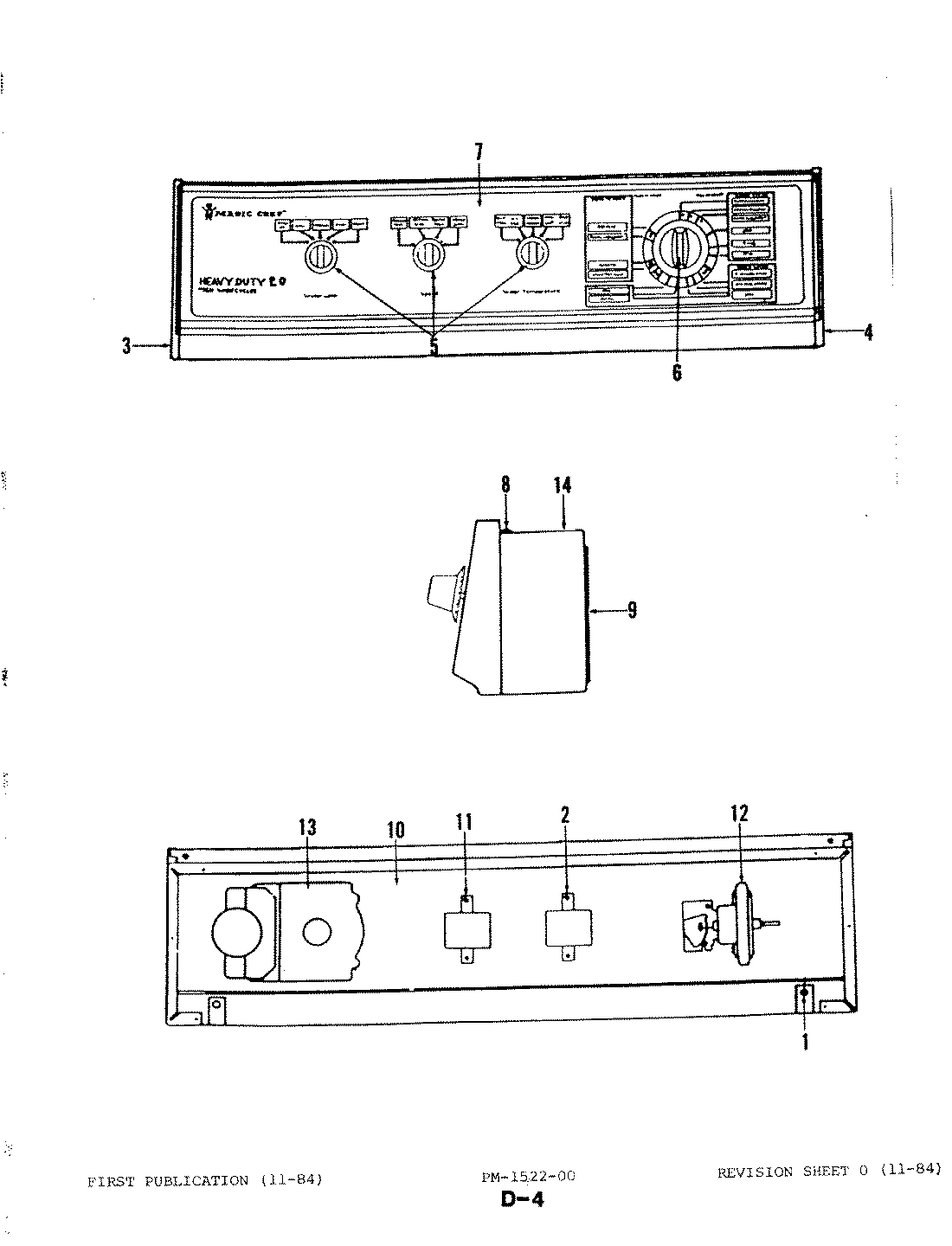

02 - CONTROL PANEL

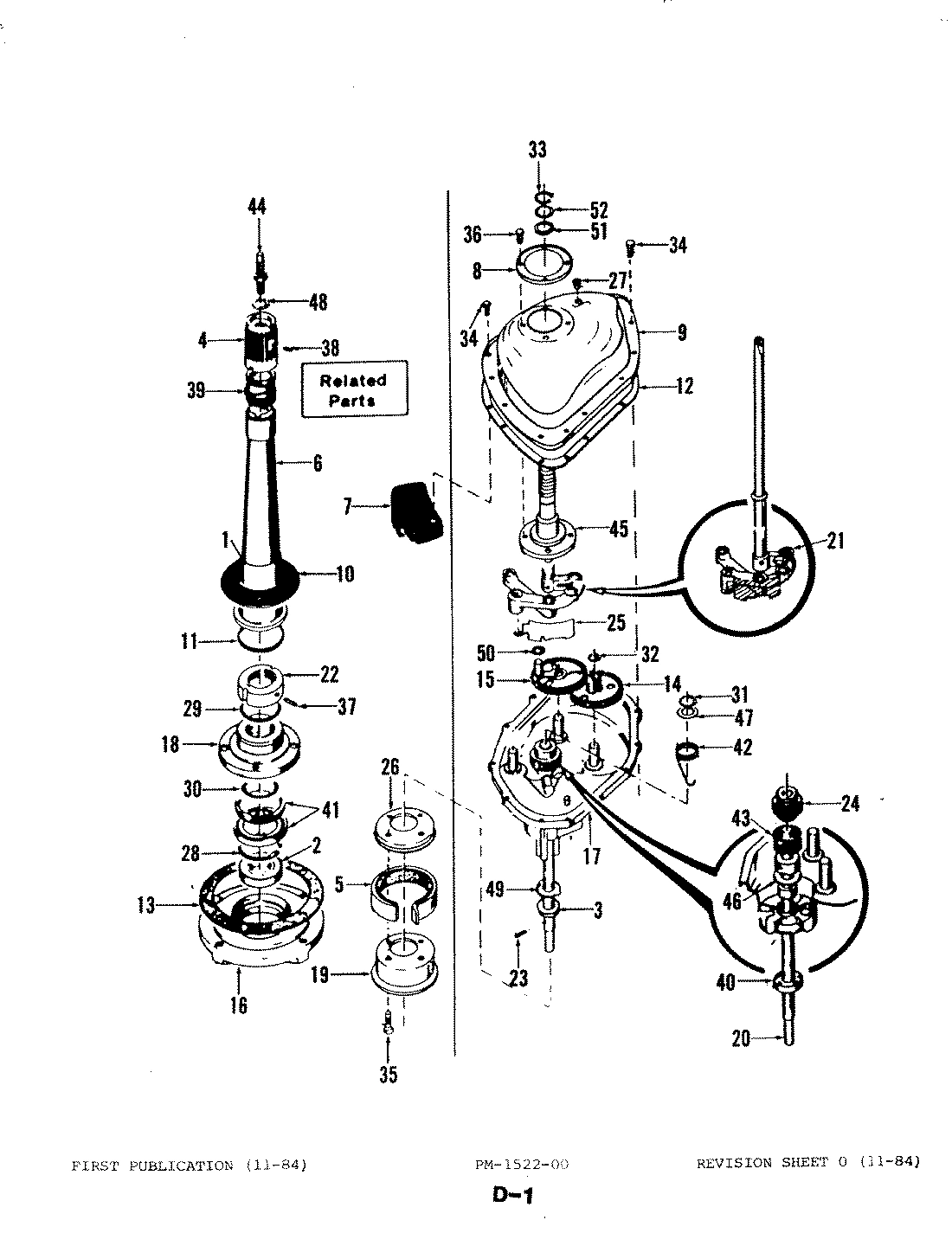

04 - TRANSMISSION

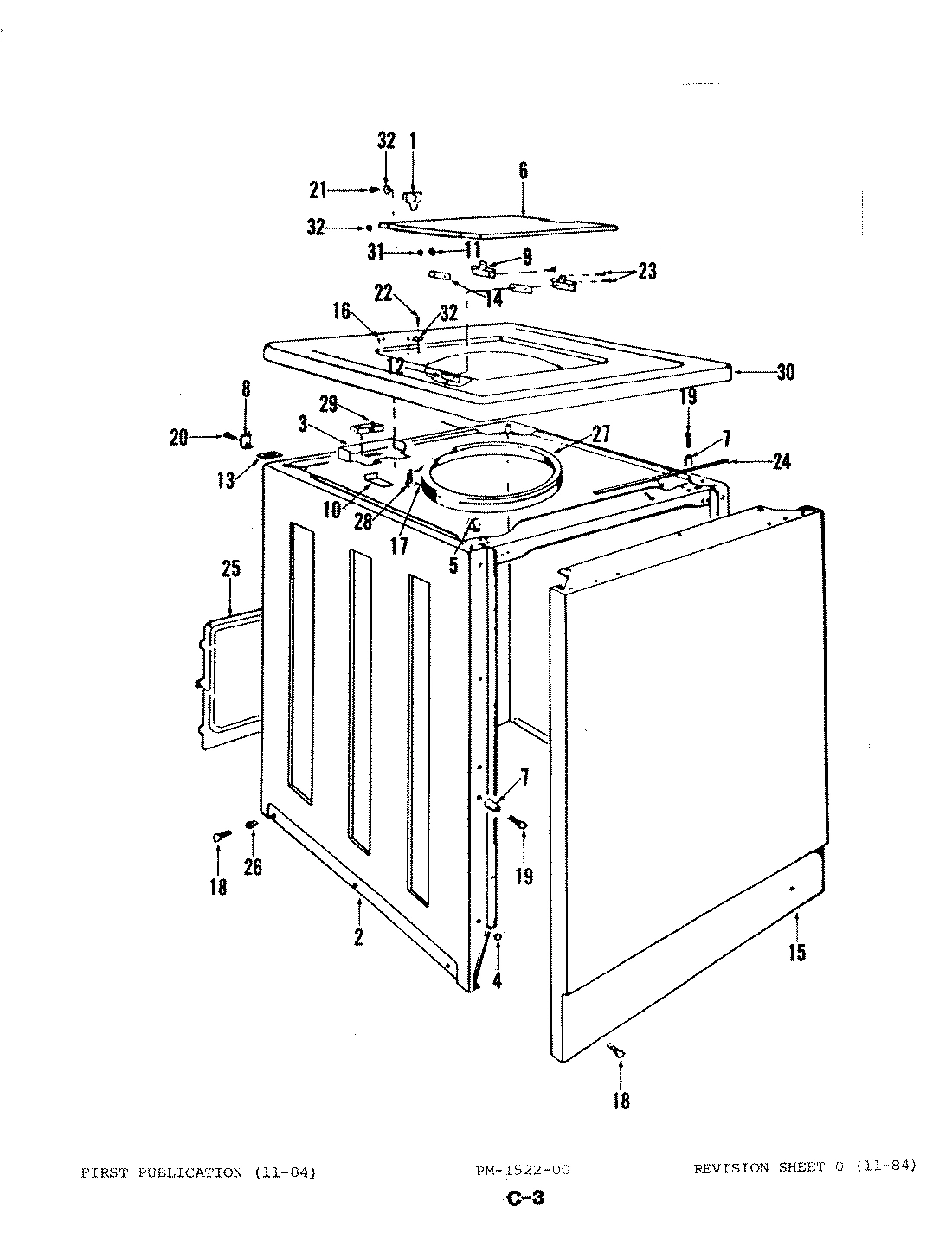

03 - EXTERIOR

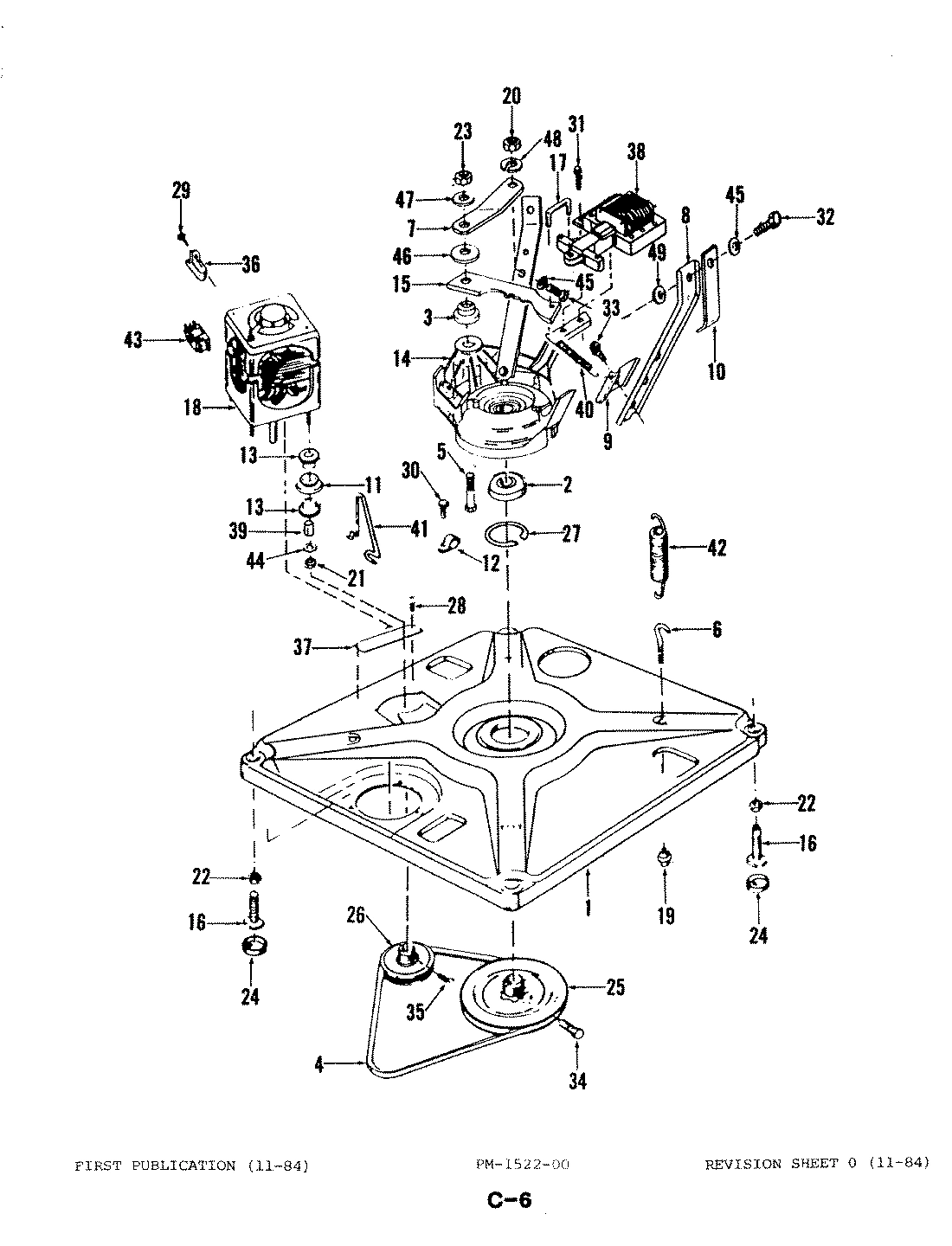

01 - BASE & DRIVE

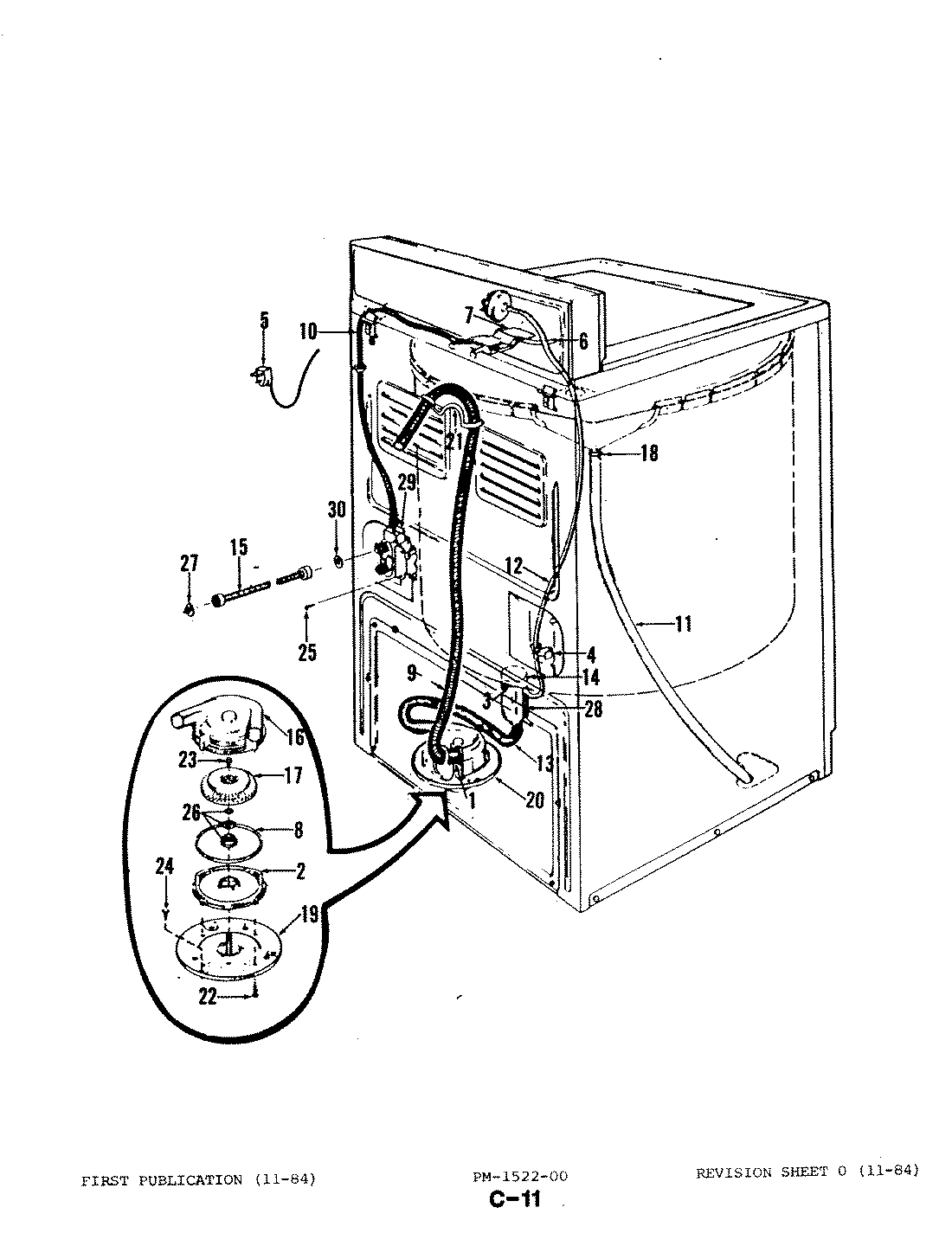

06 - WATER CARRYING

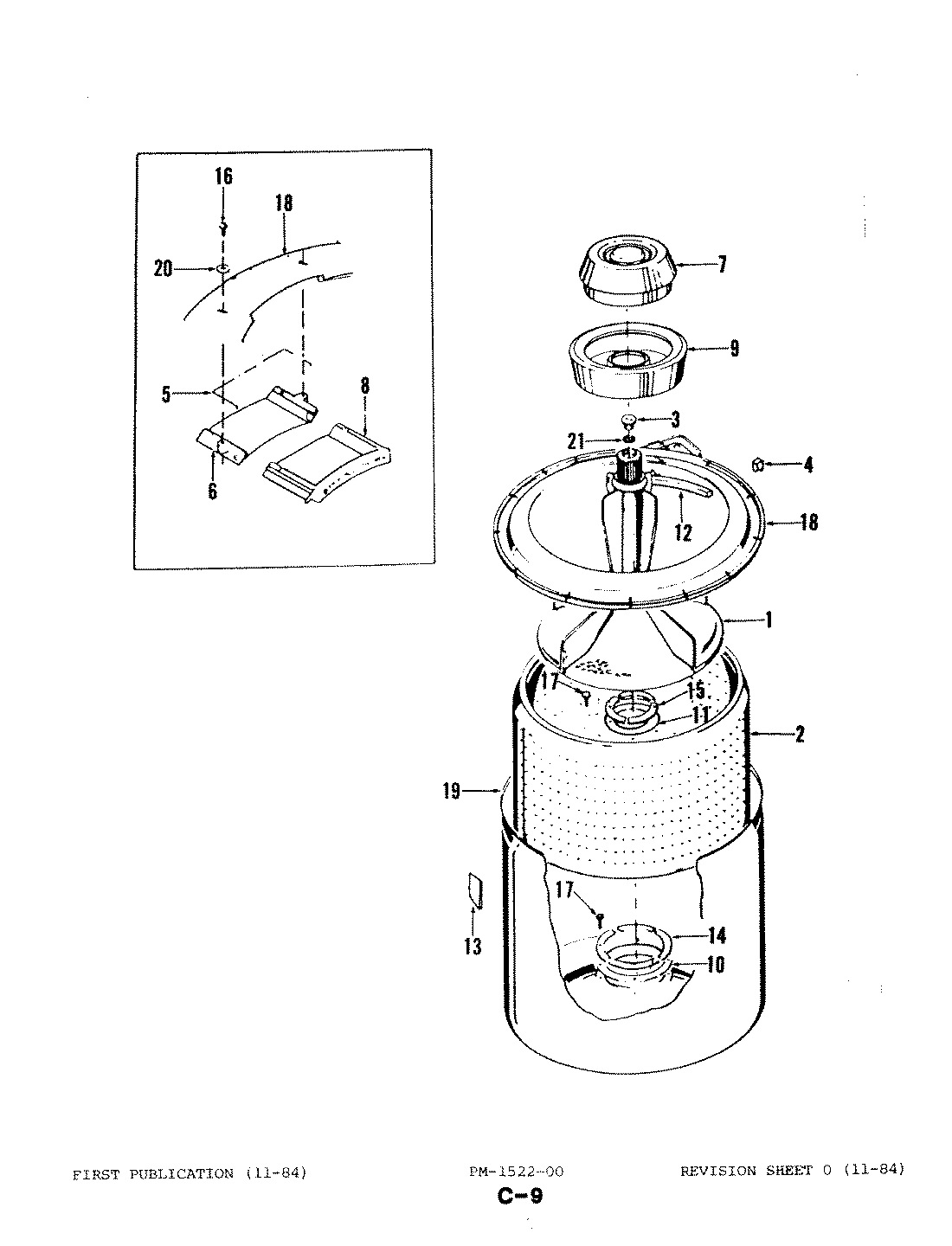

05 - TUB
Common parts from model Whirlpool W20DN3 WASHER
1
BEARING, AGITATOR WPL 336790 Contact Us For Availability
1
ACTUATOR, DOOR SWITCH WPL 430057 Contact Us For Availability
1
BASE/TRI-POINT WPL 339617 Contact Us For Availability
1
HOSE ADAPTER WPL 339536 Contact Us For Availability
1
AGITATOR WPL 335983 Contact Us For Availability
2
SPIN BEARING WPL 330260 Contact Us For Availability
2
CABINET BODY WPL 336068 Contact Us For Availability
2
BEARING WPL 635225 Contact Us For Availability
2
PUMP BASE WPL 336029 Contact Us For Availability
2
BASKET ASM WPL 339566 Contact Us For Availability
3
LH END CAP WPL 336765 Contact Us For Availability
3
BEARING WPL 334944 Contact Us For Availability
3
BRACKET WPL 338289 Contact Us For Availability
3
BEARING WPL 338335 Contact Us For Availability
3
CLAMP WPL 257003 Contact Us For Availability
3
CLAMP WPL 257797 Contact Us For Availability
3
CAP WPL 336241 Contact Us For Availability
4
RH END CAP WPL 336766 Contact Us For Availability
4
DRIVE BLOCK ASM WPL 339729 Contact Us For Availability
4
DRIVE BELT WPL 339787 Contact Us For Availability
4
CLAMP WPL 256049 Contact Us For Availability
4
CLAMP WPL 336099 Contact Us For Availability
4
CLIP WPL 257748 Contact Us For Availability
5
SELECTOR KNOB WPL 339618 Contact Us For Availability
5
BRAKE ASM KIT WPL 334285N Contact Us For Availability
5
BAND&LINING ASM WPL 339686 Contact Us For Availability
5
BRAKE KIT WPL LA1000 Contact Us For Availability
5
CLIP WPL 257285 Contact Us For Availability
5
HEX HD BOLT WPL 257790 Contact Us For Availability
5
SERVICE CORD WPL 333939 Contact Us For Availability
5
CLIP WPL 336521 Contact Us For Availability
6
TIMER MOTOR WPL 339129 Contact Us For Availability
6
KNOB ASM WPL 339634 Contact Us For Availability
6
CENTERPOST KIT WPL 334283N Contact Us For Availability
6
CLUTCH ASM WPL 339023N Contact Us For Availability
6
CENTERPOST ASM WPL 339498 Contact Us For Availability
6
CLOTHES DOOR WPL 337929 Contact Us For Availability
6
EYE BOLT WPL 257365 Contact Us For Availability
6
FLUME EXT WPL 336038 Contact Us For Availability
6
DISPENSER BASE WPL 338265 Contact Us For Availability
7
SCREW WPL 257496 Contact Us For Availability
7
CONTRL PANEL WPL 339959 Contact Us For Availability
7
COUNTERWEIGHT WPL 338767 Contact Us For Availability
7
GUIDE, CABINET WPL 349701 Contact Us For Availability
7
FLUME WPL 336686 Contact Us For Availability
7
DISPENSER WPL 337507 Contact Us For Availability
8
SCREW WPL 250205 Contact Us For Availability
8
SCREW WPL 253092 Contact Us For Availability
8
SET SCREW WPL 256044 Contact Us For Availability
8
SCREW WPL 257649 Contact Us For Availability
8
TUB BRACE WPL 339569 Contact Us For Availability
8
GASKET WPL 336032 Contact Us For Availability
8
DISPENSER ASSEMB WPL 338264 Contact Us For Availability
9
GUIDE WPL 337182 Contact Us For Availability
9
SHIELD WPL 338909 Contact Us For Availability
9
HINGE WPL 336956 Contact Us For Availability
9
DISCHARGE HOSE WPL 339535 Contact Us For Availability
9
LINT FILTER WPL 336107 Contact Us For Availability
10
SHIELD WPL 339367 Contact Us For Availability
10
GASKET WPL 339461 Contact Us For Availability
10
LEVER WPL 338828 Contact Us For Availability
10
BRACKET WPL 336880 Contact Us For Availability
10
INLET HOSE WPL 336689 Contact Us For Availability
10
GASKET WPL 336905 Contact Us For Availability
11
SELECTOR SWITCH WPL 336937 Contact Us For Availability
11
GASKET WPL 338718 Contact Us For Availability
11
PLASTIC NUT WPL 258057 Contact Us For Availability
11
GROMMET WPL 339139 Contact Us For Availability
11
OVERFLOW HOSE WPL 339494 Contact Us For Availability
11
GASKET WPL 338959 Contact Us For Availability
12
PRESSURE SWITCH WPL 339732 Contact Us For Availability
12
COVER GASKET WPL 339366 Contact Us For Availability
12
SPEEDNUT WPL 338058 Contact Us For Availability
12
WIRING CLAMP WPL 257265 Contact Us For Availability
12
PRES SW HOSE WPL 336714 Contact Us For Availability
12
GASKET WPL 333055 Contact Us For Availability
13
CODE H WPL 250129 Contact Us For Availability
13
GASKET WPL 339046 Contact Us For Availability
13
PAD, TOP HINGE WPL 330930 Contact Us For Availability
13
BUSHING WPL 339136 Contact Us For Availability
13
HOSE WPL 336091 Contact Us For Availability
13
PAD WPL 333232 Contact Us For Availability
14
WRAPPER WPL 339668 Contact Us For Availability
14
WRAPPER WPL 33966824 Contact Us For Availability
14
WRAPPER WPL 33966825 Contact Us For Availability
14
CLUSTER GEAR WPL 333228 Contact Us For Availability
14
HINGE PAD WPL 336957 Contact Us For Availability
14
SUSP HOUSING WPL 339579 Contact Us For Availability
14
HOSE WPL 333633 Contact Us For Availability
14
PLATE WPL 338800 Contact Us For Availability
15
GEAR CRANK WPL 335910 Contact Us For Availability
15
BRAKE LATCH KIT WPL 334287N Contact Us For Availability
15
BRAKE LATCH WPL 339520 Contact Us For Availability
15
HOSE, 4` INLET WPL 337891 Contact Us For Availability
15
REINF PLATE WPL 338799 Contact Us For Availability
16
BRG & HSG ASM WPL 339522 Contact Us For Availability
16
BUMPER, CABINET WPL 332653 Contact Us For Availability
16
LEVELING LEG WPL 331249 Contact Us For Availability
16
PUMP HOUSING WPL 336030 Contact Us For Availability
16
SCREW WPL 257082 Contact Us For Availability
17
TRANSM HOUSING WPL 339035 Contact Us For Availability
17
TRANSM HOUSING WPL 339986 Contact Us For Availability
17
RETAINING RING WPL 336093 Contact Us For Availability
17
LINK WPL 337518 Contact Us For Availability
17
IMPELLER WPL 336033 Contact Us For Availability
17
SCREW WPL 257783 Contact Us For Availability
18
SCREW WPL 257001 Contact Us For Availability
18
MOTOR KIT WPL 339224N Contact Us For Availability
18
INSULATION WPL 331389 Contact Us For Availability
18
TUB TOP WPL 336524 Contact Us For Availability
19
SCREEN WPL 339392 Contact Us For Availability
19
BRAKE HUB WPL 339037 Contact Us For Availability
19
BRAKE HUB WPL 339983 Contact Us For Availability
19
SCREW WPL 256109 Contact Us For Availability
19
ANCHOR NUT WPL 257362 Contact Us For Availability
19
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
20
DRIVE SHAFT WPL 339022 Contact Us For Availability
20
SCREW WPL 257732 Contact Us For Availability
20
HEX NUT WPL 257798 Contact Us For Availability
20
WATER PUMP WPL 336027 Contact Us For Availability
20
FLAT WASHER WPL 257224 Contact Us For Availability
21
LINKAGE WPL 339329 Contact Us For Availability
21
LINKAGE ASM FAB WPL 339796 Contact Us For Availability
21
SCREW WPL 257438 Contact Us For Availability
21
NUT, LOCATOR PIN WPL 250224 Contact Us For Availability
21
SUB 36-1456 WPL 337058 Contact Us For Availability
21
RETAINER WPL 339537 Contact Us For Availability
21
RUBBER WASHER WPL 257330 Contact Us For Availability
22
GALLON OF OIL WPL 334266 Contact Us For Availability
22
LOCKNUT WPL 339504 Contact Us For Availability
22
SCREW WPL 257458 Contact Us For Availability
22
SCREW WPL 257463 Contact Us For Availability
22
LOCK NUT WPL 257032 Contact Us For Availability
22
SCREW WPL 257405 Contact Us For Availability
23
PIN WPL 256120 Contact Us For Availability
23
SCREW WPL 257455 Contact Us For Availability
23
LOCKNUT WPL 257304 Contact Us For Availability
23
SCREW PURCHASE WPL 257418 Contact Us For Availability
24
DRIVE PINION WPL 336115 Contact Us For Availability
24
CUSHION STRIP WPL 339948 Contact Us For Availability
24
PAD WPL 340062 Contact Us For Availability
24
SCREW WPL 257419 Contact Us For Availability
25
OIL SPLSH PLATE WPL 339103 Contact Us For Availability
25
REAR SHIELD WPL 338687 Contact Us For Availability
25
DRIVE PULLEY WPL 335976 Contact Us For Availability
25
SCREW WPL 257101 Contact Us For Availability
26
BRAKE RET PLATE WPL 339688 Contact Us For Availability
26
SLEEVE WPL 332088 Contact Us For Availability
26
MOTOR PULLEY WPL 330410 Contact Us For Availability
26
SEAL ASM WPL 336360 Contact Us For Availability
27
OIL FILL PLUG WPL 339373 Contact Us For Availability
27
SPLASH GUARD WPL 336092 Contact Us For Availability
27
RETAINING RING WPL 257360 Contact Us For Availability
27
STRAINER, HOSE WPL 337313 Contact Us For Availability
28
RETAINING RING WPL 257178 Contact Us For Availability
28
SPRING WPL 330767 Contact Us For Availability
28
SCREW WPL 257769 Contact Us For Availability
28
SUMP ASM WPL 337314 Contact Us For Availability
29
O RING WPL 257749 Contact Us For Availability
29
DOOR SWITCH ASM WPL 339064 Contact Us For Availability
29
SCREW WPL 257779 Contact Us For Availability
29
MIXING VALVE WPL 337044 Contact Us For Availability
30
``O`` RING, DRIVE TUBE WPL 257722 Contact Us For Availability
30
CABINET TOP WPL 339362 Contact Us For Availability
30
SCREW WPL 257218 Contact Us For Availability
30
WASHER WPL 257048 Contact Us For Availability
31
25-7708 WPL 257173 Contact Us For Availability
31
WASHER WPL 257086 Contact Us For Availability
31
SCREW WPL 257432 Contact Us For Availability
32
RETAINING RING WPL 257175 Contact Us For Availability
32
NYLITE WASHER WPL 257436 Contact Us For Availability
32
SCREW WPL 257275 Contact Us For Availability
33
RETAINING RING WPL 257708 Contact Us For Availability
33
SCREW WPL 257498 Contact Us For Availability
34
SCREW WPL 257758 Contact Us For Availability
34
SET SCREW WPL 257361 Contact Us For Availability
35
SCREW WPL 257754 Contact Us For Availability
35
SET SCREW WPL 257117 Contact Us For Availability
36
FOOT SLIDE WPL 339137 Contact Us For Availability
37
SET SCREW WPL 257120 Contact Us For Availability
37
PIVOT SLIDE WPL 338573 Contact Us For Availability
38
SET SCREW WPL 257378 Contact Us For Availability
38
BRAKE SOLENOID WPL 338291 Contact Us For Availability
39
SEAL WPL 337806 Contact Us For Availability
39
SPACER WPL 257768 Contact Us For Availability
40
SEAL WPL 339208 Contact Us For Availability
40
BRAKE SPRING WPL 337519 Contact Us For Availability
41
TUB SEAL ASM WPL 337224 Contact Us For Availability
41
PIVOT SPRING WPL 339140 Contact Us For Availability
42
SPRING WPL 336463 Contact Us For Availability
42
SPRING WPL 339553 Contact Us For Availability
43
SPRING WPL 333195 Contact Us For Availability
43
MOTOR SWITCH WPL 337195 Contact Us For Availability
44
TRANSM CVR KIT WPL 334286N Contact Us For Availability
44
TRANSMISSION WPL 339144 Contact Us For Availability
44
STUD WPL 341248 Contact Us For Availability
44
WASHER, FLAT WPL 257047 Contact Us For Availability
45
DRIVE HUB & BRG WPL 338763 Contact Us For Availability
45
FLAT WASHER WPL 257413 Contact Us For Availability
46
WASHER, STEEL WPL 257274 Contact Us For Availability
46
WASHER, FLAT WPL 257416 Contact Us For Availability
46
WASHER WPL 330279 Contact Us For Availability
47
WASHER, FLAT WPL 257415 Contact Us For Availability
47
FLAT WASHER WPL 257549 Contact Us For Availability
48
FLAT WASHER WPL 257316 Contact Us For Availability
48
LOCKWASHER WPL 257089 Contact Us For Availability
49
THRUST WASHER WPL 339217 Contact Us For Availability
50
THRUST WASHER WPL 257091 Contact Us For Availability
52
WASHER, FLAT WPL 257051 Contact Us For Availability
52
HOUSING KIT WPL 334282N Contact Us For Availability
× ![]()
Login and Registration Form
