Model Maytag W205KWC WASHER – Common Parts & Diagrams
01 - BASE
02 - CONTROL PANEL

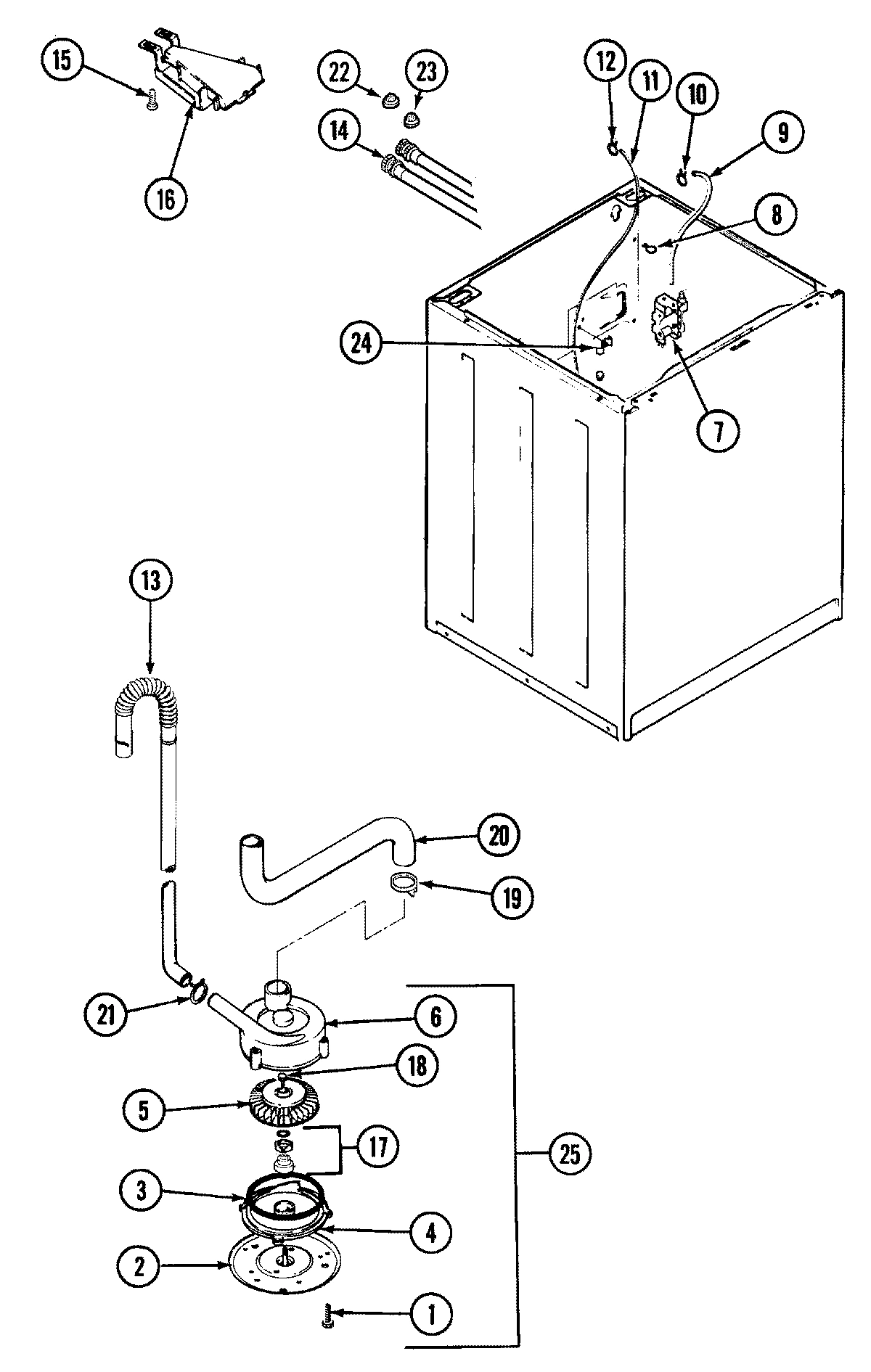

03 - MOTOR & PUMP

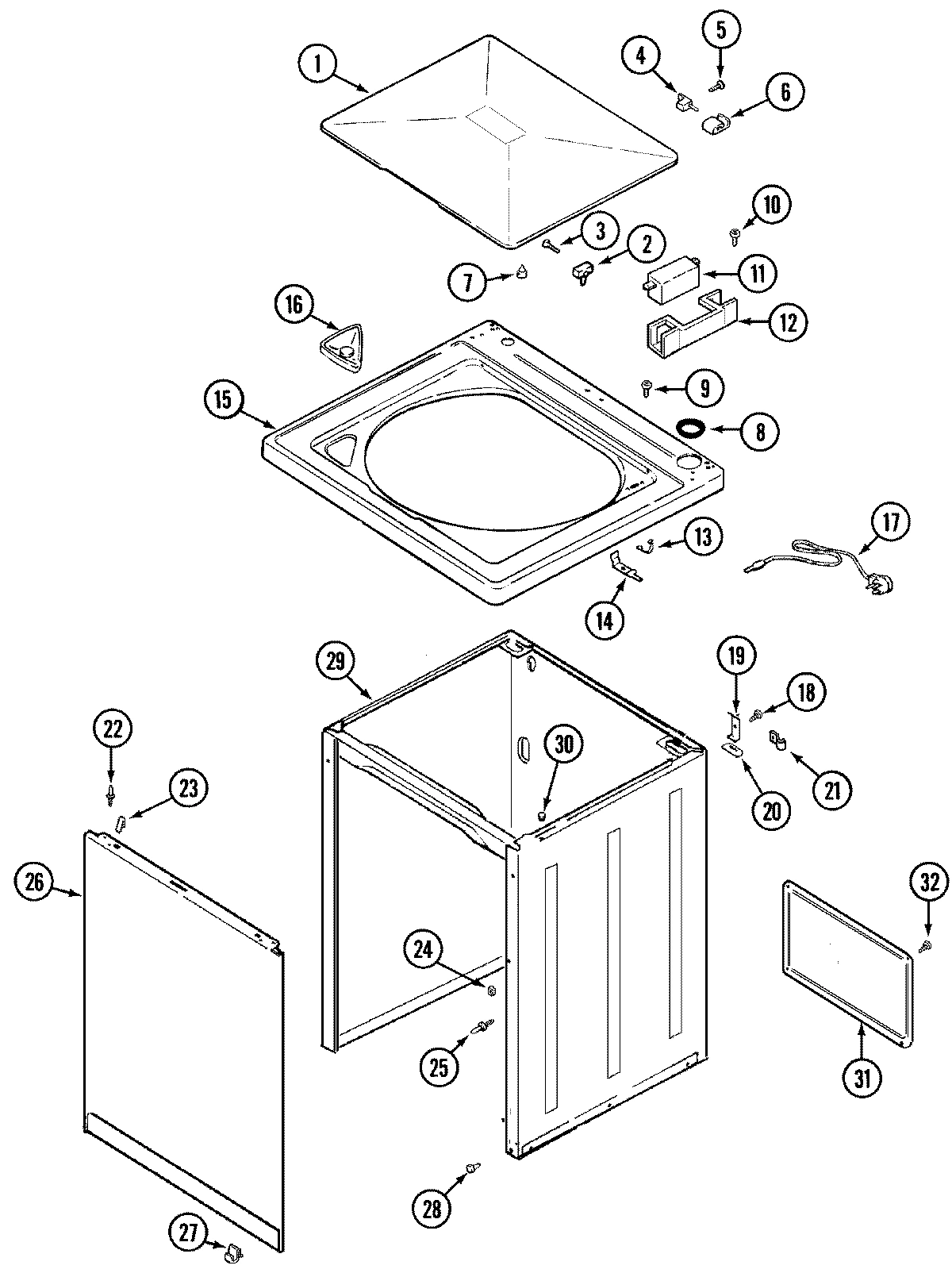

04 - TOP

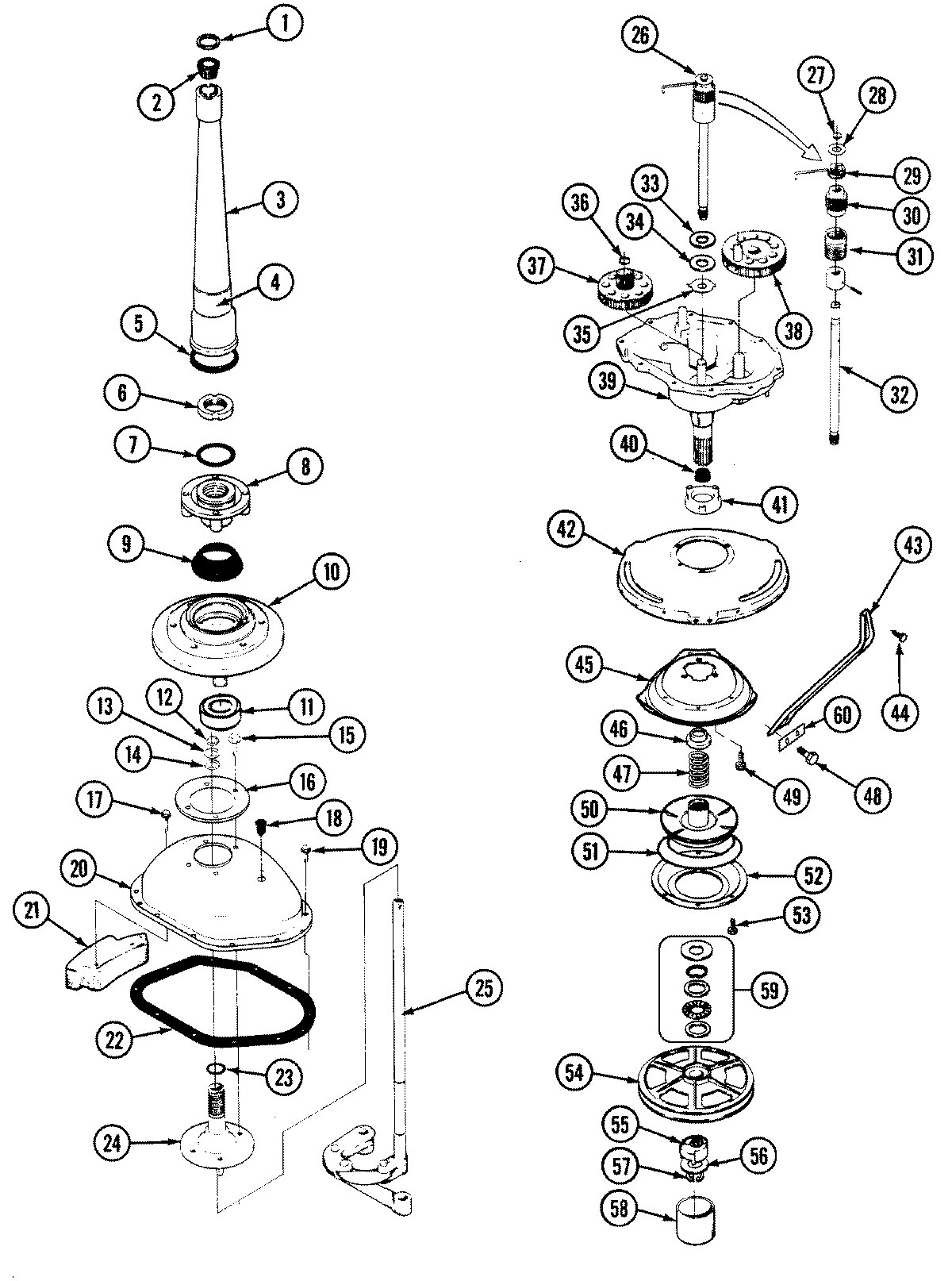

05 - TRANSMISSION

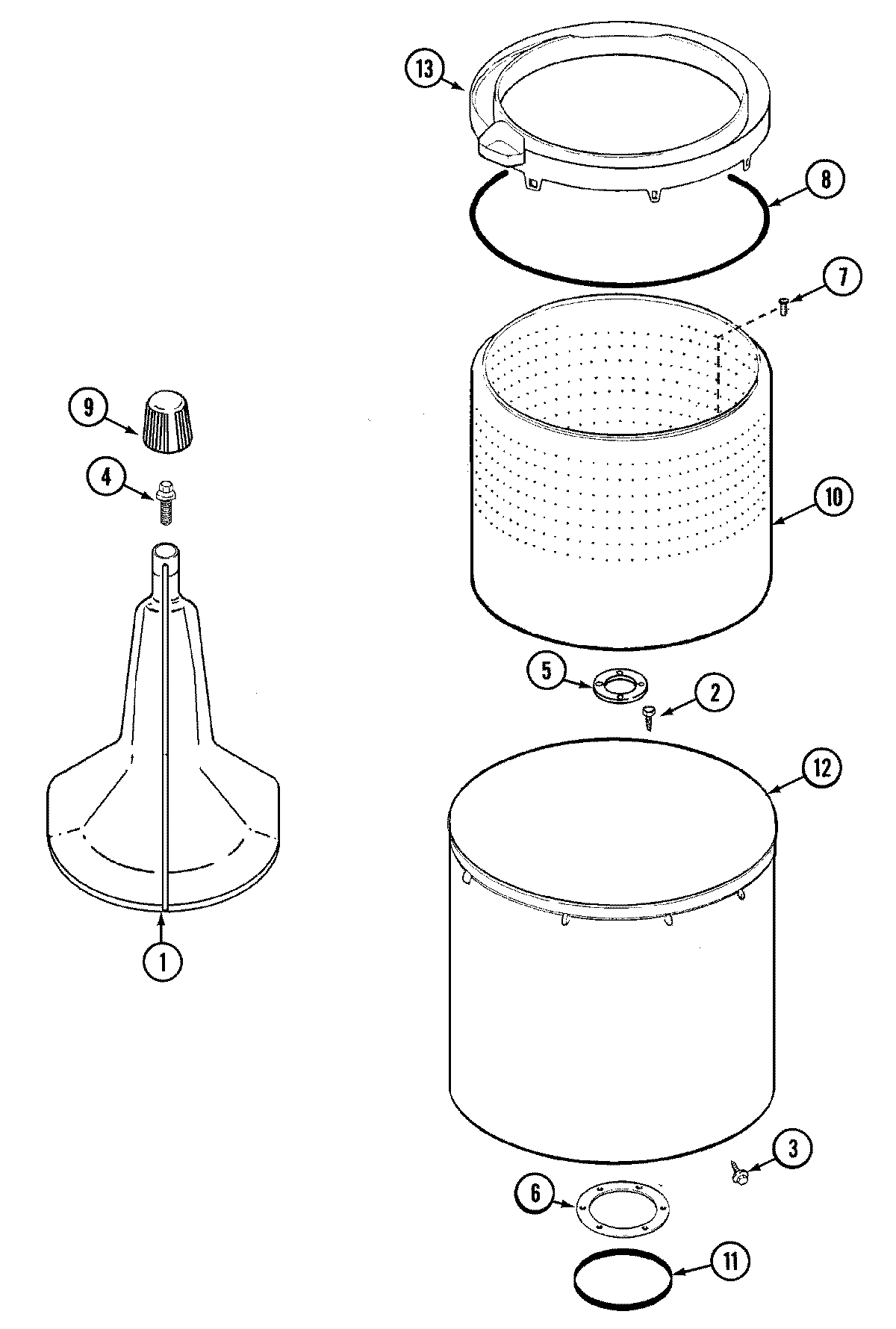

06 - TUB

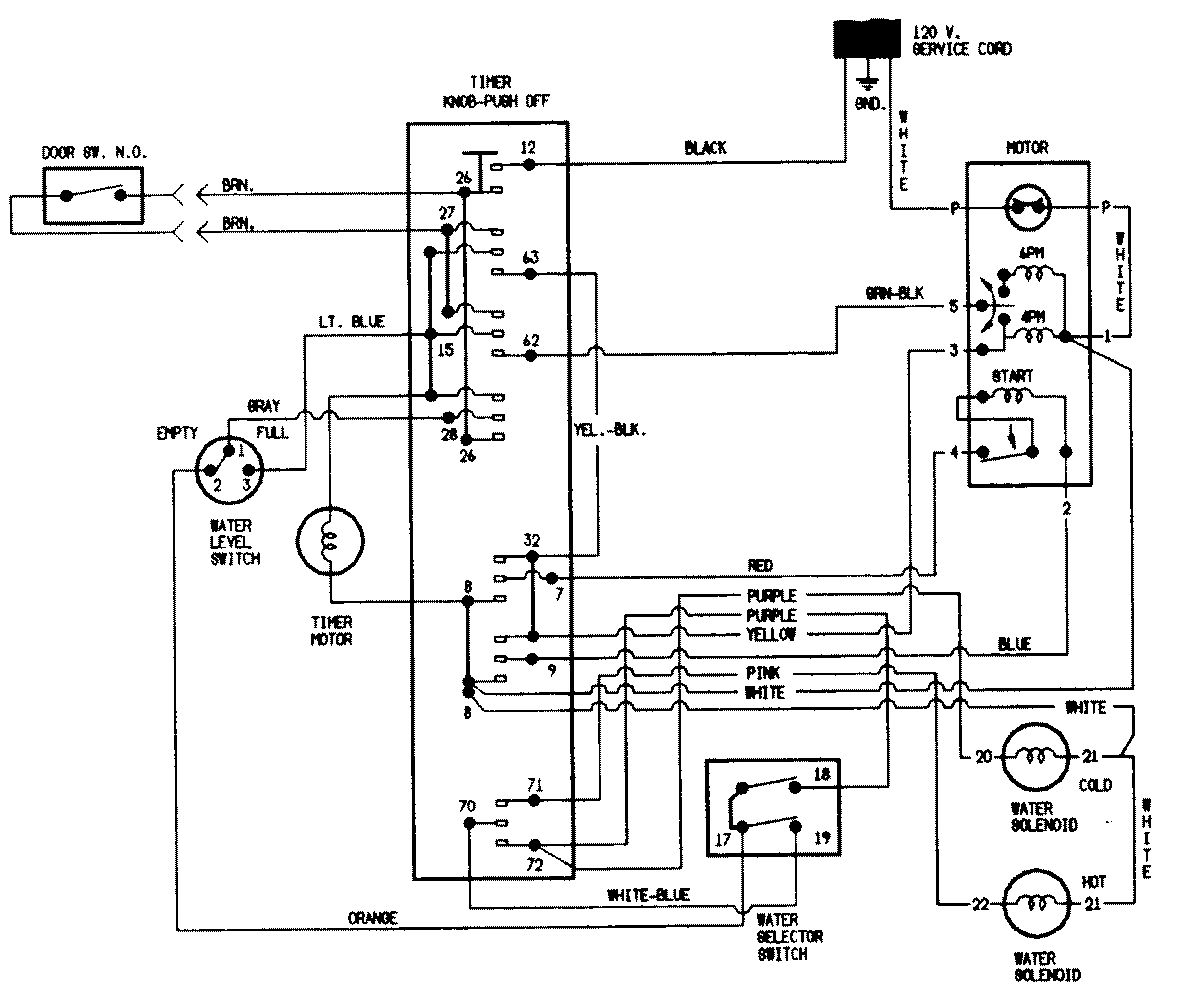

07 - WIRING INFORMATION
Common parts from model Maytag W205KWC WASHER
1
MAY 25-7941 MAY 25-7941 Contact Us For Availability
1
MAY 35-2026 MAY 35-2026 Contact Us For Availability
1
MAY 25-7793 MAY 25-7793 Contact Us For Availability
1
MAY 35-3920 MAY 35-3920 Contact Us For Availability
1
MAY 25-7405 MAY 25-7405 Contact Us For Availability
1
MAY 35-3580 MAY 35-3580 Contact Us For Availability
2
MAY 35-2487 MAY 35-2487 Contact Us For Availability
2
MAY 35-2488 MAY 35-2488 Contact Us For Availability
2
MAY 33-6035 MAY 33-6035 Contact Us For Availability
2
MAY 25-7436 MAY 25-7436 Contact Us For Availability
2
MAY 35-2835 MAY 35-2835 Contact Us For Availability
2
MAY 25-7947 MAY 25-7947 Contact Us For Availability
3
MAY 25-7697 MAY 25-7697 Contact Us For Availability
3
MAY 25-7851 MAY 25-7851 Contact Us For Availability
3
MAY 33-6032 MAY 33-6032 Contact Us For Availability
3
MAY 25-7438 MAY 25-7438 Contact Us For Availability
3
MAY 35-2792 MAY 35-2792 Contact Us For Availability
4
MAY 25-7435 MAY 25-7435 Contact Us For Availability
4
MAY 25-7852 MAY 25-7852 Contact Us For Availability
4
MAY 35-2058 MAY 35-2058 Contact Us For Availability
4
MAY 35-2983 MAY 35-2983 Contact Us For Availability
4
MAY 35-3214 MAY 35-3214 Contact Us For Availability
5
MAY 35-3685 MAY 35-3685 Contact Us For Availability
5
MAY 53-2412 MAY 53-2412 Contact Us For Availability
5
MAY 53-2413 MAY 53-2413 Contact Us For Availability
5
MAY 35-2906 MAY 35-2906 Contact Us For Availability
6
MAY 35-3686 MAY 35-3686 Contact Us For Availability
6
MAY 25-7760 MAY 25-7760 Contact Us For Availability
6
MAY 35-2056 MAY 35-2056 Contact Us For Availability
6
MAY 35-2791 MAY 35-2791 Contact Us For Availability
7
MAY 33-9946 MAY 33-9946 Contact Us For Availability
7
MAY 35-2374 MAY 35-2374 Contact Us For Availability
7
MAY 35-0581 MAY 35-0581 Contact Us For Availability
7
MAY 25-7938 MAY 25-7938 Contact Us For Availability
7
MAY 25-7965 MAY 25-7965 Contact Us For Availability
8
MAY 35-2328 MAY 35-2328 Contact Us For Availability
8
MAY 35-3570 MAY 35-3570 Contact Us For Availability
8
MAY 25-7702 MAY 25-7702 Contact Us For Availability
8
MAY 35-2063 MAY 35-2063 Contact Us For Availability
8
MAY 35-3647 MAY 35-3647 Contact Us For Availability
9
MAY 35-2974 MAY 35-2974 Contact Us For Availability
9
MAY 53-1676 MAY 53-1676 Contact Us For Availability
9
MAY 53-2504 MAY 53-2504 Contact Us For Availability
9
MAY 25-7463 MAY 25-7463 Contact Us For Availability
9
MAY 35-2733 MAY 35-2733 Contact Us For Availability
10
MAY 25-3457 MAY 25-3457 Contact Us For Availability
10
MAY 25-7853 MAY 25-7853 Contact Us For Availability
10
MAY 35-2688 MAY 35-2688 Contact Us For Availability
10
MAY 25-7437 MAY 25-7437 Contact Us For Availability
10
MAY 35-2716 MAY 35-2716 Contact Us For Availability
10
MAY 35-3687 MAY 35-3687 Contact Us For Availability
11
MAY 35-2205 MAY 35-2205 Contact Us For Availability
11
MAY 35-2978 MAY 35-2978 Contact Us For Availability
11
MAY 35-3840 MAY 35-3840 Contact Us For Availability
11
MAY 35-2261 MAY 35-2261 Contact Us For Availability
11
MAY 35-2321 MAY 35-2321 Contact Us For Availability
11
MAY 35-2904 MAY 35-2904 Contact Us For Availability
11
MAY 35-3382 MAY 35-3382 Contact Us For Availability
11
MAY 35-2972 MAY 35-2972 Contact Us For Availability
12
MAY 35-3700 MAY 35-3700 Contact Us For Availability
12
MAY 25-0205 MAY 25-0205 Contact Us For Availability
12
MAY 33-6099 MAY 33-6099 Contact Us For Availability
12
MAY 35-2795 MAY 35-2795 Contact Us For Availability
12
MAY 25-7949 MAY 25-7949 Contact Us For Availability
13
MAY 25-7878 MAY 25-7878 Contact Us For Availability
13
MAY 35-3964 MAY 35-3964 Contact Us For Availability
13
MAY 33-9537 MAY 33-9537 Contact Us For Availability
13
MAY 35-3538 MAY 35-3538 Contact Us For Availability
13
MAY 25-7057 MAY 25-7057 Contact Us For Availability
13
MAY 35-2262 MAY 35-2262 Contact Us For Availability
13
MAY 35-3578 MAY 35-3578 Contact Us For Availability
14
MAY 35-3962 MAY 35-3962 Contact Us For Availability
14
MAY 35-0874 MAY 35-0874 Contact Us For Availability
14
MAY 35-3076 MAY 35-3076 Contact Us For Availability
14
MAY 25-7051 MAY 25-7051 Contact Us For Availability
15
MAY 35-0124 MAY 35-0124 Contact Us For Availability
15
MAY 35-2739 MAY 35-2739 Contact Us For Availability
16
MAY 25-7047 MAY 25-7047 Contact Us For Availability
16
MAY 35-3960 MAY 35-3960 Contact Us For Availability
16
MAY 35-2051 MAY 35-2051 Contact Us For Availability
16
MAY 35-2731 MAY 35-2731 Contact Us For Availability
16
MAY 35-2981 MAY 35-2981 Contact Us For Availability
17
MAY 35-0707 MAY 35-0707 Contact Us For Availability
17
MAY 35-0680 MAY 35-0680 Contact Us For Availability
18
MAY 21001049 MAY 21001049 Contact Us For Availability
18
MAY 21001053 MAY 21001053 Contact Us For Availability
18
MAY 25-7894 MAY 25-7894 Contact Us For Availability
18
MAY 35-2621 MAY 35-2621 Contact Us For Availability
19
MAY 16000329 MAY 16000329 Contact Us For Availability
19
MAY 25-7926 MAY 25-7926 Contact Us For Availability
20
MAY 35-4128 MAY 35-4128 Contact Us For Availability
20
MAY 35-2620 MAY 35-2620 Contact Us For Availability
20
MAY 35-2971 MAY 35-2971 Contact Us For Availability
21
MAY 35-2046 MAY 35-2046 Contact Us For Availability
21
MAY 35-2903 MAY 35-2903 Contact Us For Availability
21
MAY 35-3706 MAY 35-3706 Contact Us For Availability
22
MAY 35-2052 MAY 35-2052 Contact Us For Availability
22
MAY 25-7048 MAY 25-7048 Contact Us For Availability
22
MAY 35-4129 MAY 35-4129 Contact Us For Availability
22
MAY 35-0542 MAY 35-0542 Contact Us For Availability
23
MAY 33-7313 MAY 33-7313 Contact Us For Availability
23
MAY 25-7722 MAY 25-7722 Contact Us For Availability
24
MAY 25-0224 MAY 25-0224 Contact Us For Availability
24
MAY 53-0200 MAY 53-0200 Contact Us For Availability
24
MAY 35-3702 MAY 35-3702 Contact Us For Availability
25
MAY 35-2099 MAY 35-2099 Contact Us For Availability
25
MAY 35-2344 MAY 35-2344 Contact Us For Availability
25
MAY 53-0643 MAY 53-0643 Contact Us For Availability
25
MAY 35-3804 MAY 35-3804 Contact Us For Availability
26
MAY 35-2084 MAY 35-2084 Contact Us For Availability
26
MAY LA-2176 MAY LA-2176 Contact Us For Availability
27
MAY 25-7847 MAY 25-7847 Contact Us For Availability
28
MAY 25-7415 MAY 25-7415 Contact Us For Availability
29
MAY 35-2106 MAY 35-2106 Contact Us For Availability
29
MAY 35-2967 MAY 35-2967 Contact Us For Availability
30
MAY 33-2653 MAY 33-2653 Contact Us For Availability
30
MAY 35-2001 MAY 35-2001 Contact Us For Availability
31
MAY 35-2108 MAY 35-2108 Contact Us For Availability
31
MAY 35-3608 MAY 35-3608 Contact Us For Availability
32
MAY 25-7733 MAY 25-7733 Contact Us For Availability
32
MAY 35-2692 MAY 35-2692 Contact Us For Availability
33
MAY 35-2065 MAY 35-2065 Contact Us For Availability
33
MAY 25-7274 MAY 25-7274 Contact Us For Availability
34
MAY 35-2817 MAY 35-2817 Contact Us For Availability
35
MAY 35-2070 MAY 35-2070 Contact Us For Availability
36
MAY 25-7933 MAY 25-7933 Contact Us For Availability
37
MAY 35-2527 MAY 35-2527 Contact Us For Availability
38
MAY 21001067 MAY 21001067 Contact Us For Availability
38
MAY 35-2631 MAY 35-2631 Contact Us For Availability
39
MAY 35-2812 MAY 35-2812 Contact Us For Availability
40
MAY 35-2010 MAY 35-2010 Contact Us For Availability
41
MAY 35-2730 MAY 35-2730 Contact Us For Availability
41
MAY 35-2973 MAY 35-2973 Contact Us For Availability
42
MAY 35-3724 MAY 35-3724 Contact Us For Availability
43
MAY 35-2799 MAY 35-2799 Contact Us For Availability
45
MAY 35-3698 MAY 35-3698 Contact Us For Availability
46
MAY 35-2017 MAY 35-2017 Contact Us For Availability
47
MAY 35-2112 MAY 35-2112 Contact Us For Availability
48
MAY 25-7930 MAY 25-7930 Contact Us For Availability
49
MAY 25-7895 MAY 25-7895 Contact Us For Availability
50
MAY 35-2948 MAY 35-2948 Contact Us For Availability
52
MAY 35-2018 MAY 35-2018 Contact Us For Availability
53
MAY 25-7900 MAY 25-7900 Contact Us For Availability
54
MAY 35-3829 MAY 35-3829 Contact Us For Availability
55
MAY 35-2439 MAY 35-2439 Contact Us For Availability
56
MAY 35-2082 MAY 35-2082 Contact Us For Availability
56
MAY 35-2132 MAY 35-2132 Contact Us For Availability
58
MAY 35-2007 MAY 35-2007 Contact Us For Availability
60
MAY 35-2025 MAY 35-2025 Contact Us For Availability
61
MAY 35-3384 MAY 35-3384 Contact Us For Availability
61
MAY W10124350 MAY W10124350 Contact Us For Availability
62
MAY 21001091 MAY 21001091 Contact Us For Availability
62
MAY 35-3748 MAY 35-3748 Contact Us For Availability
NI
MAY 15001243 MAY 15001243 Contact Us For Availability
× ![]()
