Model Whirlpool W205KGA WASHER – Common Parts & Diagrams

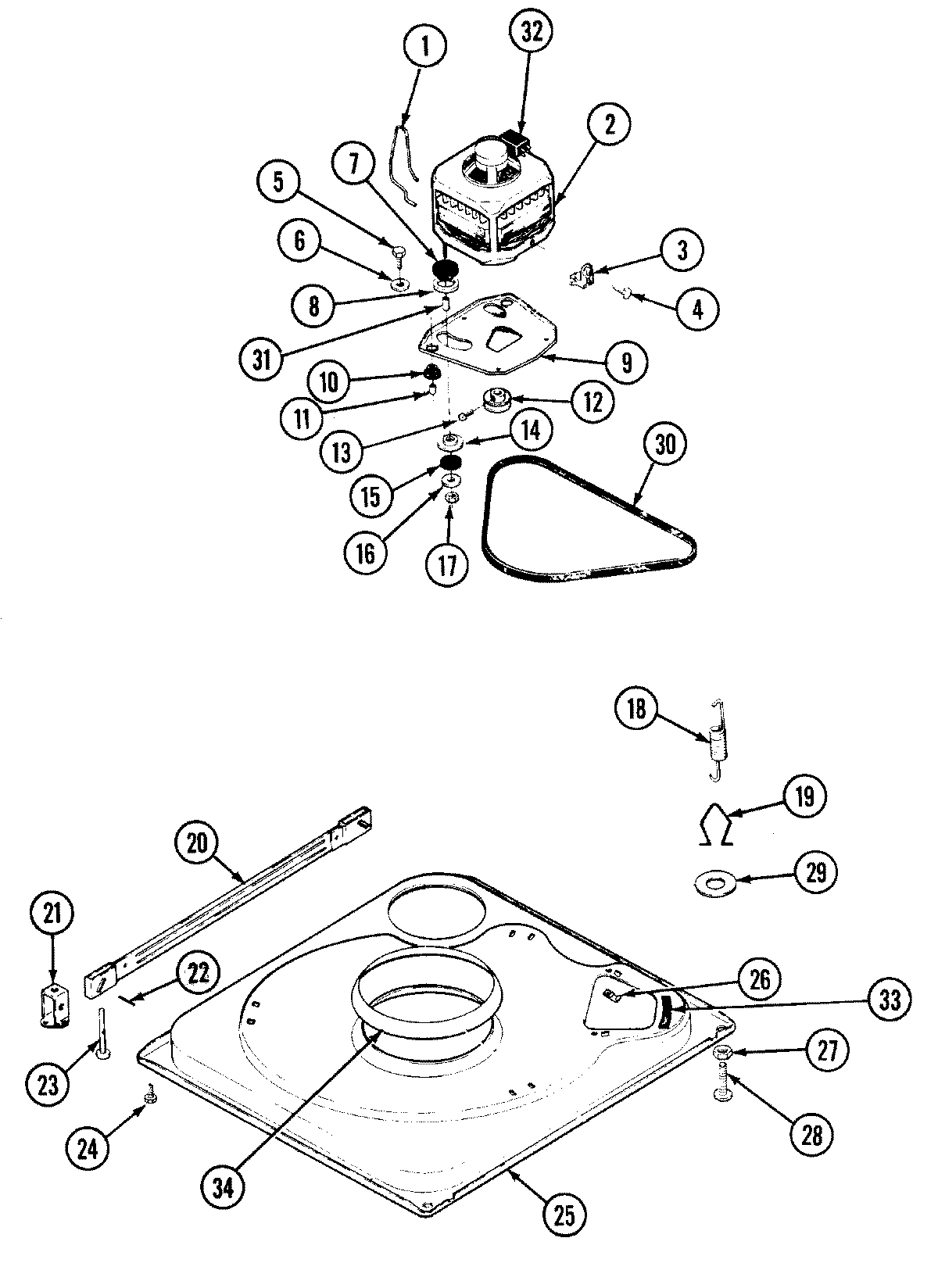

01 - BASE

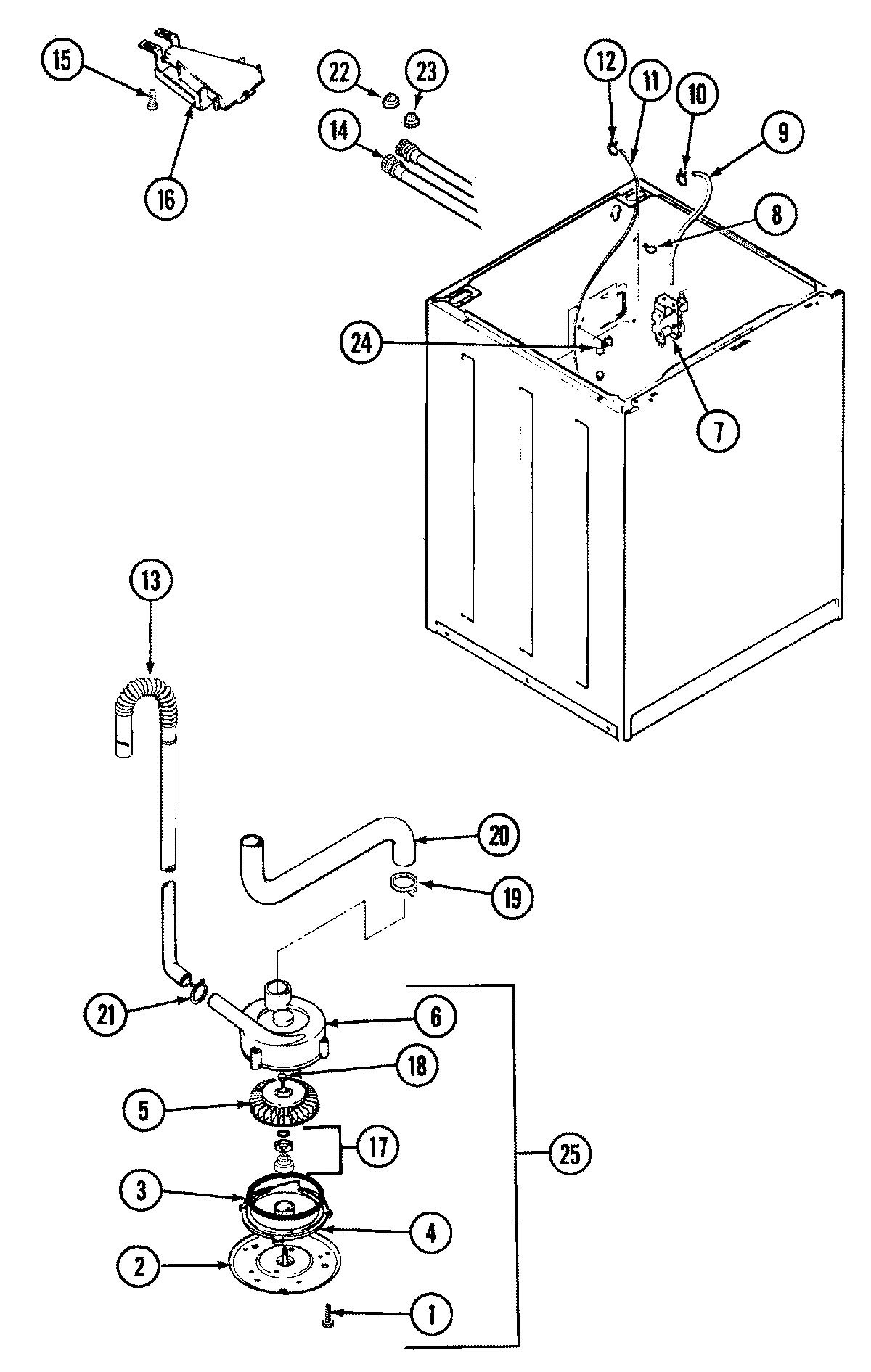

03 - PUMP

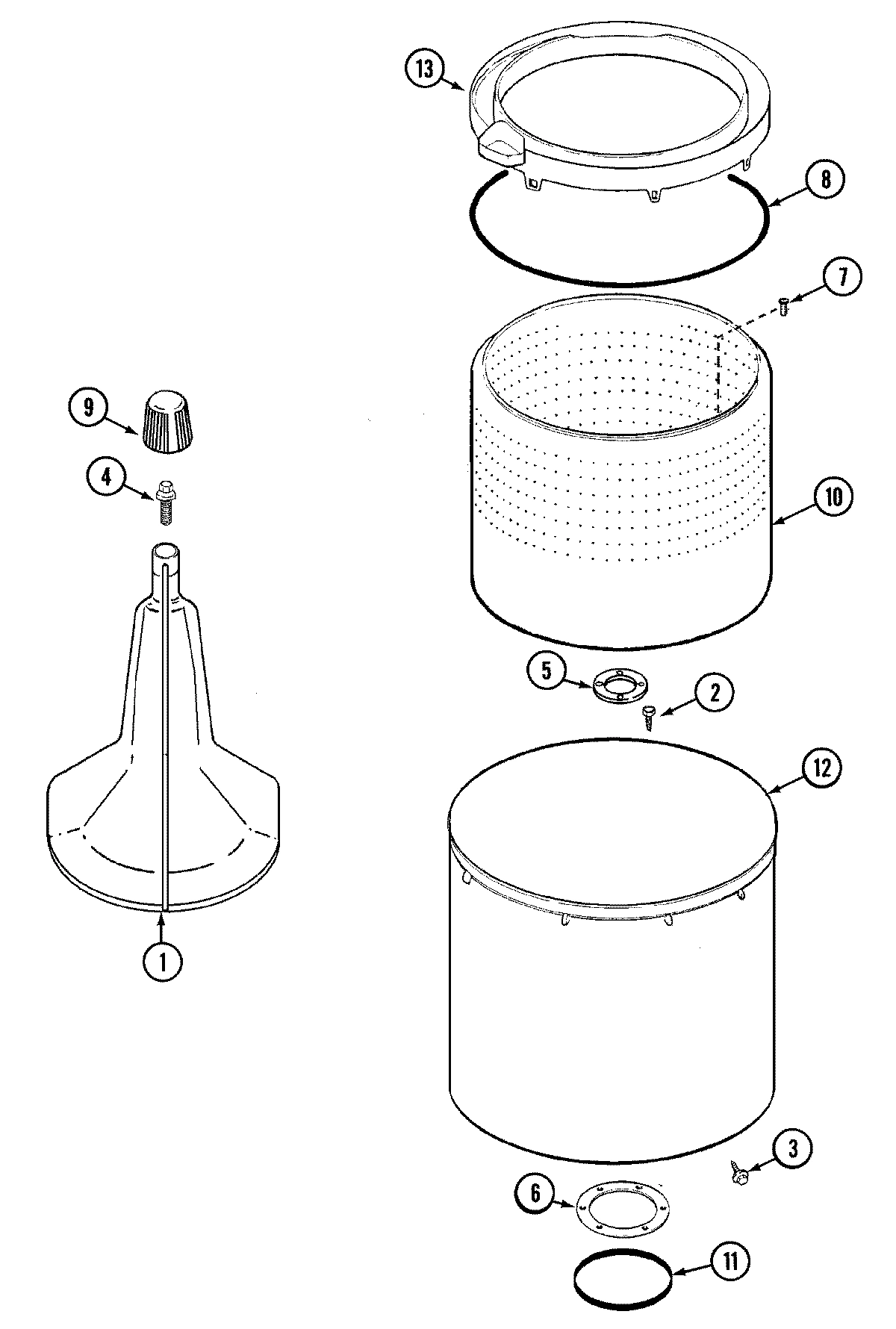

05 - TUB

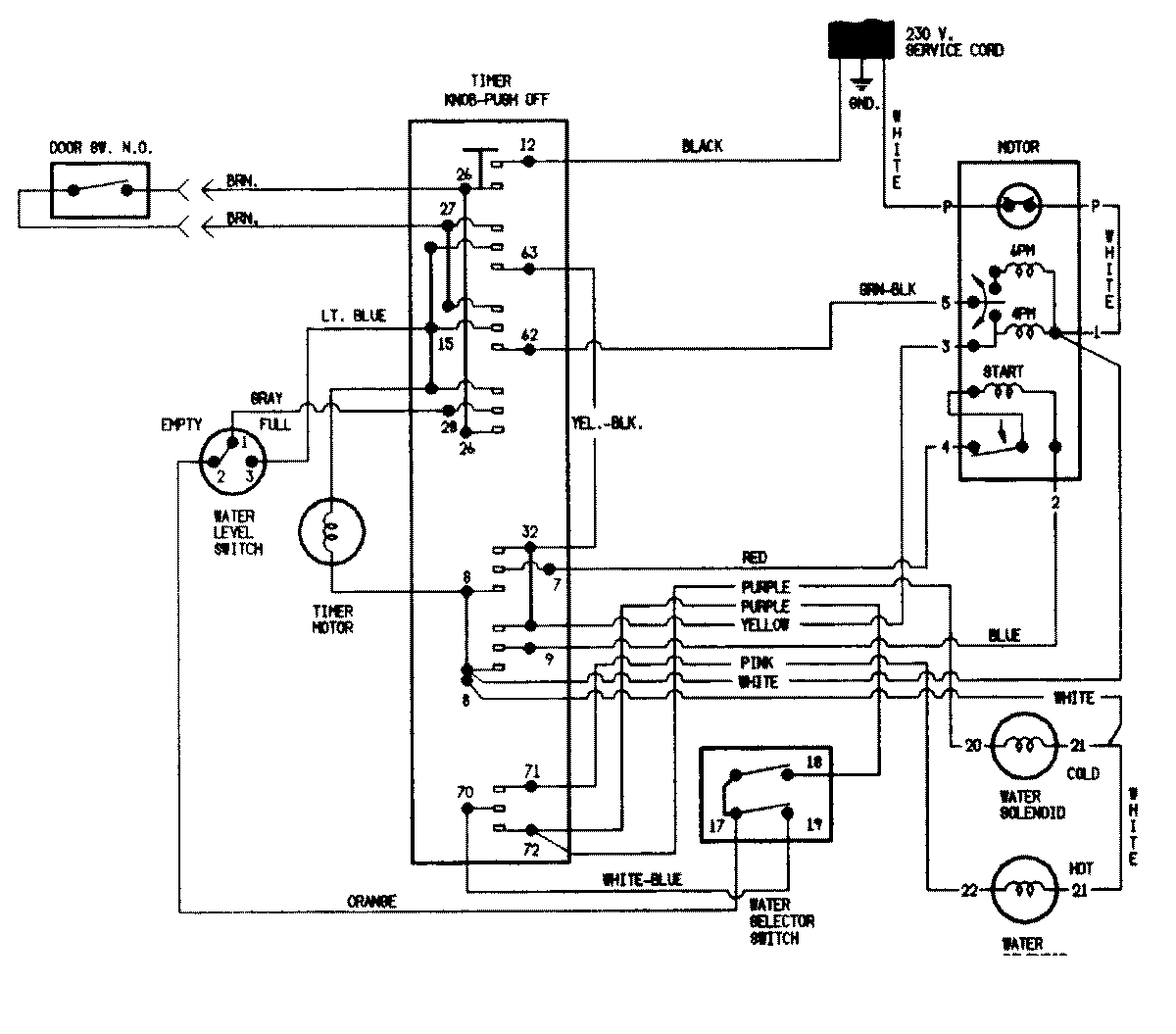

06 - WIRING INFORMATION

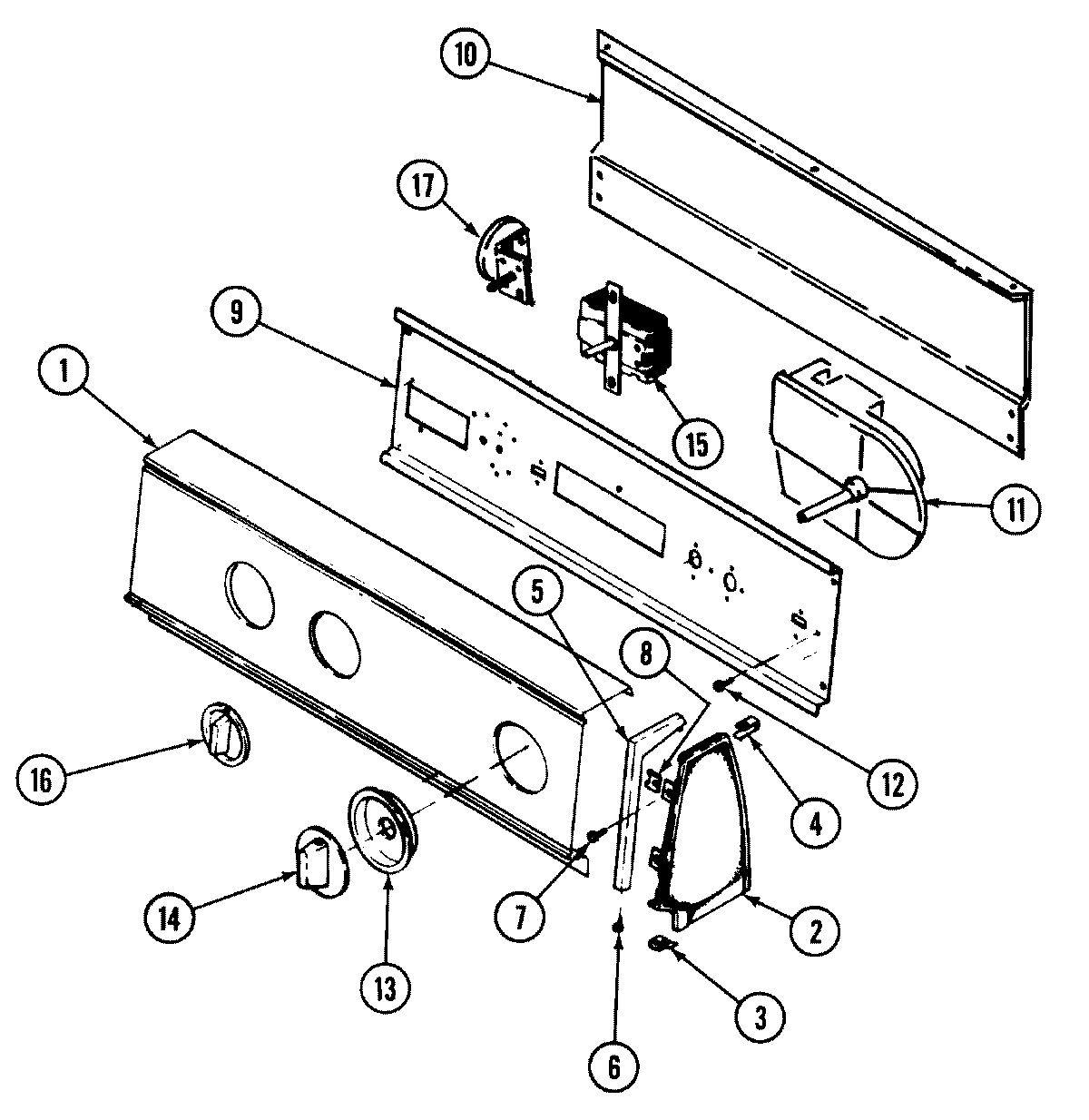

02 - CONTROL PANEL

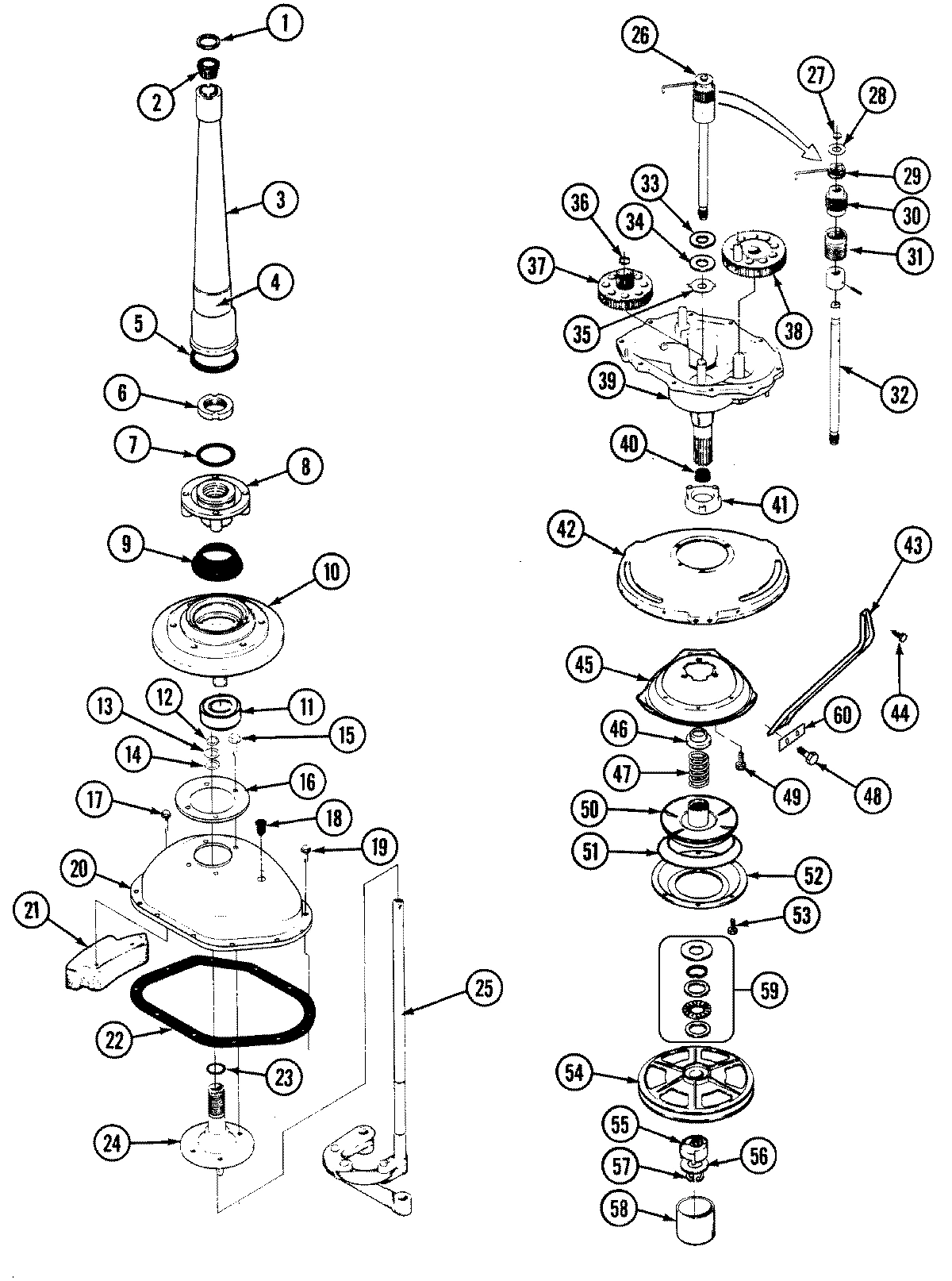

04 - TRANSMISSION
Common parts from model Whirlpool W205KGA WASHER
1
SCREW WPL 257405 Contact Us For Availability
1
AGITATOR WPL 353580 Contact Us For Availability
1
PANEL, CONTROL WPL 21001018 Contact Us For Availability
1
SCREW WPL 257793 Contact Us For Availability
1
``O`` RING WPL 257941 Contact Us For Availability
2
MOTOR (2 SPEED-230V/50-60HZ) WPL 21001231 Contact Us For Availability
2
MOTOR REPLACEMENT KIT WPL LA2003 Contact Us For Availability
2
PLATE & PULLEY ASSY. WPL 336035 Contact Us For Availability
2
SCREW SHOULDER WPL 257947 Contact Us For Availability
2
CAP, END (RT) WPL 352487 Contact Us For Availability
2
CAP, END (LT) WPL 352488 Contact Us For Availability
2
BEARING, CENTERPOST WPL 352835 Contact Us For Availability
3
SLIDE, FOOT WPL 21001109 Contact Us For Availability
3
SLIDE, FOOT WPL 339945 Contact Us For Availability
3
GASKET WPL 336032 Contact Us For Availability
3
SCREW WPL 257953 Contact Us For Availability
3
SCREW WPL 257697 Contact Us For Availability
3
SPEEDCLIP, END CAP TO TOP WPL 257851 Contact Us For Availability
3
CENTERPOST WPL 352792 Contact Us For Availability
4
SCREW PURCHASE WPL 257418 Contact Us For Availability
4
BASE, PUMP WPL 352058 Contact Us For Availability
4
SCREW, AGITATOR RETENTION WPL 257948 Contact Us For Availability
4
SCREW WPL 257435 Contact Us For Availability
4
SPEEDCLIP, RR SHLD TO END CAP WPL 257852 Contact Us For Availability
4
BEARING, AGITATOR WPL 336790 Contact Us For Availability
4
CENTERPOST ASSY. WPL 352983 Contact Us For Availability
5
SCREW WPL 257833 Contact Us For Availability
5
IMPELLER WPL 352057 Contact Us For Availability
5
GASKET, BASKET TO CENTERPOST WPL 353685 Contact Us For Availability
5
TRIM, END CAP (RT) WPL 530279 Contact Us For Availability
5
TRIM, END CAP (LT) WPL 530280 Contact Us For Availability
5
END TRIM R.H. (BLK) WPL 532412 Contact Us For Availability
5
END TRIM L.H. (BLK) WPL 532413 Contact Us For Availability
5
SEAL, CENTERPOST BOTTOM WPL 352906 Contact Us For Availability
6
WASHER WPL 257834 Contact Us For Availability
6
HOUSING, PUMP WPL 352056 Contact Us For Availability
6
GASKET, TUB TO HOUSING WPL 353686 Contact Us For Availability
6
SCREW WPL 257760 Contact Us For Availability
6
NUT, SPIN TUBE WPL 352791 Contact Us For Availability
7
ISOLATOR, MOTOR WPL 339946 Contact Us For Availability
7
CLIP, CABINET TOP WPL 257220 Contact Us For Availability
7
VALVE, WATER MIXING-230V WPL 352375 Contact Us For Availability
7
SCREW WPL 257965 Contact Us For Availability
7
``O`` RING, BASKET DRIVE HUB WPL 257938 Contact Us For Availability
8
WASHER WPL 339944 Contact Us For Availability
8
SEAL, TUB TOP WPL 352328 Contact Us For Availability
8
SPEEDCLIP, END CAP TO CTRL PNL WPL 257702 Contact Us For Availability
8
HUB, BASKET DRIVE WPL 353647 Contact Us For Availability
9
PLATE, MOTOR WPL 21001111 Contact Us For Availability
9
PLATE, MOTOR WPL 352810 Contact Us For Availability
9
HOSE, INLET (PLASTIC) WPL 353623 Contact Us For Availability
9
CAP, AGITATOR WPL 352733 Contact Us For Availability
9
SPACER, CONTROL SHIELD WPL 532504 Contact Us For Availability
9
TUB SEAL/HUB ASSY (HT TRANS) WPL 352974 Contact Us For Availability
10
ISOLATOR, MOTOR PLATE WPL 353646 Contact Us For Availability
10
CLAMP WPL 257867 Contact Us For Availability
10
BASKET, SPIN WPL 353687 Contact Us For Availability
10
SCREW, SEMS WPL 253457 Contact Us For Availability
10
RETAINING RING WPL 257853 Contact Us For Availability
10
SHIELD, CONTROL PANEL (REAR) WPL 352688 Contact Us For Availability
10
HOUSING, BEARING & SEAL WPL 352716 Contact Us For Availability
11
SEAL, TUB/HOUSING WPL 352978 Contact Us For Availability
11
SPACER WPL 257831 Contact Us For Availability
11
PAD, PRESSURE SWITCH HOSE WPL 352261 Contact Us For Availability
11
HOSE, PRESSURE SWITCH WPL 352321 Contact Us For Availability
11
TIMER WPL 354137 Contact Us For Availability
11
BEARING, SPIN WPL 352205 Contact Us For Availability
11
BEARING & SEAL HOUSING ASSY. WPL 352972 Contact Us For Availability
12
PULLEY (50HZ) WPL 331171 Contact Us For Availability
12
CLAMP WPL 336099 Contact Us For Availability
12
TUB ASSEMBLY (PLASTIC) WPL 353700 Contact Us For Availability
12
RING, RETAINING (AG. SHAFT) WPL 257949 Contact Us For Availability
13
SET SCREW WPL 257117 Contact Us For Availability
13
RETAINER WPL 339537 Contact Us For Availability
13
HOSE, DRAIN WPL 353538 Contact Us For Availability
13
SHIELD, TUB TOP WPL 352262 Contact Us For Availability
13
TOP, TUB WPL 353578 Contact Us For Availability
13
SKIRT & RING ASSY (WHT) WPL 353965 Contact Us For Availability
14
MOTOR SLIDE WPL 339943 Contact Us For Availability
14
HOSE, INLET (COLD) WPL 353400 Contact Us For Availability
14
KNOB, TIMER WPL 353962 Contact Us For Availability
14
WASHER, FLAT WPL 257051 Contact Us For Availability
15
WASHER, MOTOR ISOLATOR WPL 339967 Contact Us For Availability
15
SWITCH, WATER TEMP. 3 POSITION WPL 21001139 Contact Us For Availability
15
SWITCH, WATER TEMPERATURE WPL 350124 Contact Us For Availability
16
WASHER, FLAT WPL 257047 Contact Us For Availability
16
FLUME, WATER INLET WPL 352051 Contact Us For Availability
16
KNOB, SELECTOR WPL 353960 Contact Us For Availability
16
COVER, REINFORCEMENT WPL 352981 Contact Us For Availability
17
NUT, MOTOR PLATE ASY TO MOTOR WPL 257325 Contact Us For Availability
17
SCREW WPL 253092 Contact Us For Availability
17
SEAL, SEAT & ``O`` RING WPL 350707 Contact Us For Availability
17
SWITCH, WATER LEVEL WPL 353691 Contact Us For Availability
18
TOOL, 6 POINT SPRING WPL 21001138 Contact Us For Availability
18
SPRING, SUSPENSION WPL 21001165 Contact Us For Availability
18
SPRING, SUSPENSION WPL 353658 Contact Us For Availability
18
SCREW WPL 257894 Contact Us For Availability
18
MANUAL, USE & CARE WPL 21001053 Contact Us For Availability
18
PLUG, OIL FILL WPL 352621 Contact Us For Availability
19
HOOK, SUSPENSION SPRING WPL 352976 Contact Us For Availability
19
CLAMP, HOSE WPL 256068 Contact Us For Availability
19
MANUAL, USE & CARE WPL 21001051 Contact Us For Availability
19
SCREW, COVER TO TRANS. HOUSING WPL 257926 Contact Us For Availability
20
BAR, STABILIZER (WITH GUIDE) WPL 352049 Contact Us For Availability
20
HOSE, TUB TO PUMP WPL 353584 Contact Us For Availability
20
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
20
COVER, TRANSMISSION WPL 352620 Contact Us For Availability
20
TRANSMISSION COVER ASSY. WPL 352971 Contact Us For Availability
21
BRACKET, STABILIZER WPL 352046 Contact Us For Availability
21
CLAMP, DISCHARGE HOSE WPL 257080 Contact Us For Availability
21
COUNTERWEIGHT WPL 352903 Contact Us For Availability
21
COUNTERWEIGHT WPL 353706 Contact Us For Availability
22
PIN, STABILIZER WPL 352052 Contact Us For Availability
22
WASHER WPL 257048 Contact Us For Availability
22
GASKET, TRANSMISSION HOUSING WPL 351030 Contact Us For Availability
23
FOOT, SELF STABILIZER WPL 352050 Contact Us For Availability
23
STRAINER, HOSE WPL 337313 Contact Us For Availability
23
``O`` RING, DRIVE TUBE WPL 257722 Contact Us For Availability
24
BASE WPL 21001169 Contact Us For Availability
24
FOOT PAD ASSY. (REAR) WPL 353020 Contact Us For Availability
24
CLAMP, PRESSURE SWITCH HOSE WPL 257796 Contact Us For Availability
24
DRIVE TUBE ASSY. WPL 353702 Contact Us For Availability
25
BASE WPL 352984 Contact Us For Availability
25
PUMP ASSY (COMPLETE) WPL 352099 Contact Us For Availability
25
RESTRICTOR, FLOW WPL 352344 Contact Us For Availability
25
LINKAGE ASSY. WPL 353804 Contact Us For Availability
26
SPEEDNUT WPL 257838 Contact Us For Availability
26
CLUTCH ASSY. WPL LA2176 Contact Us For Availability
27
HEX NUT WPL 257915 Contact Us For Availability
27
RING, RETAINING (CLUTCH ASSY.) WPL 257847 Contact Us For Availability
28
FOOT, FRONT WPL 350772 Contact Us For Availability
28
PAD, FRONT FOOT WPL 350837 Contact Us For Availability
28
WASHER, FLAT WPL 257415 Contact Us For Availability
28
WASHER, FLAT WPL 257416 Contact Us For Availability
29
WASHER, SUSPENSION HOOK WPL Y257951 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
29
SPRING, ANTI-BACKUP WPL 352967 Contact Us For Availability
30
BELT, DRIVE WPL 352279 Contact Us For Availability
30
PINION, DRIVE WPL 352001 Contact Us For Availability
31
SPACER WPL 257830 Contact Us For Availability
31
SPRING, CLUTCH WPL 353608 Contact Us For Availability
32
SWITCH, MOTOR WPL 339765 Contact Us For Availability
32
DRIVE SHAFT & HUB ASSY. WPL 352692 Contact Us For Availability
33
PAD, MOTOR PLATE WPL 352065 Contact Us For Availability
33
WASHER, STEEL WPL 257274 Contact Us For Availability
34
WASHER, NYLON WPL 352817 Contact Us For Availability
35
WASHER, STEEL W/TABS WPL 352070 Contact Us For Availability
36
RING, RETAINING WPL 257933 Contact Us For Availability
37
GEAR, CLUSTER WPL 352527 Contact Us For Availability
38
GEAR, CRANK WPL 21001067 Contact Us For Availability
38
GEAR, CRANK WPL 352631 Contact Us For Availability
39
HOUSING, TRANSMISSION WPL 352812 Contact Us For Availability
40
SEAL,TRANSMISSION HOUSING(LIP) WPL 352010 Contact Us For Availability
41
BEARING ASSY. (LOWER) WPL 352730 Contact Us For Availability
41
TRANSMISSION HSG ASSY W/LWR BR WPL 352973 Contact Us For Availability
42
SUPPORT, TUB WPL 21001162 Contact Us For Availability
42
SUP WPL 353724 Contact Us For Availability
43
WPL 21001164 WPL 21001164 Contact Us For Availability
43
WPL 352799 WPL 352799 Contact Us For Availability
45
WPL 21001163 WPL 21001163 Contact Us For Availability
45
WPL 353698 WPL 353698 Contact Us For Availability
46
WPL 352017 WPL 352017 Contact Us For Availability
47
WPL 352112 WPL 352112 Contact Us For Availability
48
WPL 257930 WPL 257930 Contact Us For Availability
49
WPL 257895 WPL 257895 Contact Us For Availability
50
WPL 352948 WPL 352948 Contact Us For Availability
51
WPL 21001161 WPL 21001161 Contact Us For Availability
51
WPL 353788 WPL 353788 Contact Us For Availability
52
WPL 352018 WPL 352018 Contact Us For Availability
53
WPL 257900 WPL 257900 Contact Us For Availability
54
WPL 353829 WPL 353829 Contact Us For Availability
55
WPL 352439 WPL 352439 Contact Us For Availability
56
WPL 352082 WPL 352082 Contact Us For Availability
56
WPL 352132 WPL 352132 Contact Us For Availability
57
WPL 257854 WPL 257854 Contact Us For Availability
58
WPL 352007 WPL 352007 Contact Us For Availability
60
WPL 352025 WPL 352025 Contact Us For Availability
61
WPL 21001091 WPL 21001091 Contact Us For Availability
61
WPL 21001168 WPL 21001168 Contact Us For Availability
61
WPL 353384 WPL 353384 Contact Us For Availability
61
WPL 353748 WPL 353748 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001252 Contact Us For Availability
× ![]()
Login and Registration Form
