Model Unimac UX55PVQU6 Washer – Common Parts & Diagrams
Frame - 55 Pound Models
Shock and Spring Assembly - 55 Pound Models Through 6/20/11
and 75 Pound Models Through 11/13/11

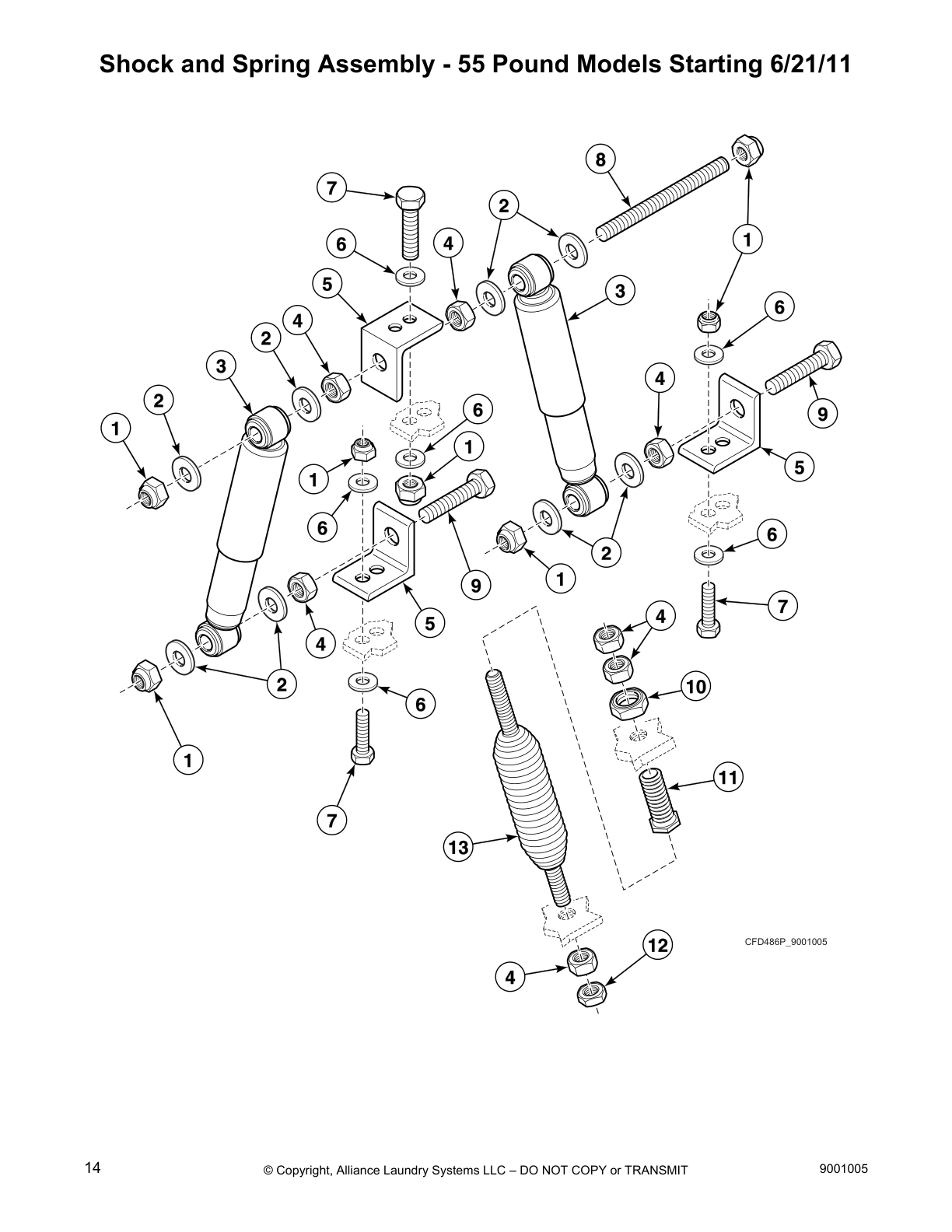

Shock and Spring Assembly - 55 Pound Models Starting 6/21/11
Shock and Spring Assembly - 75 Pound Models Starting 11/14/11

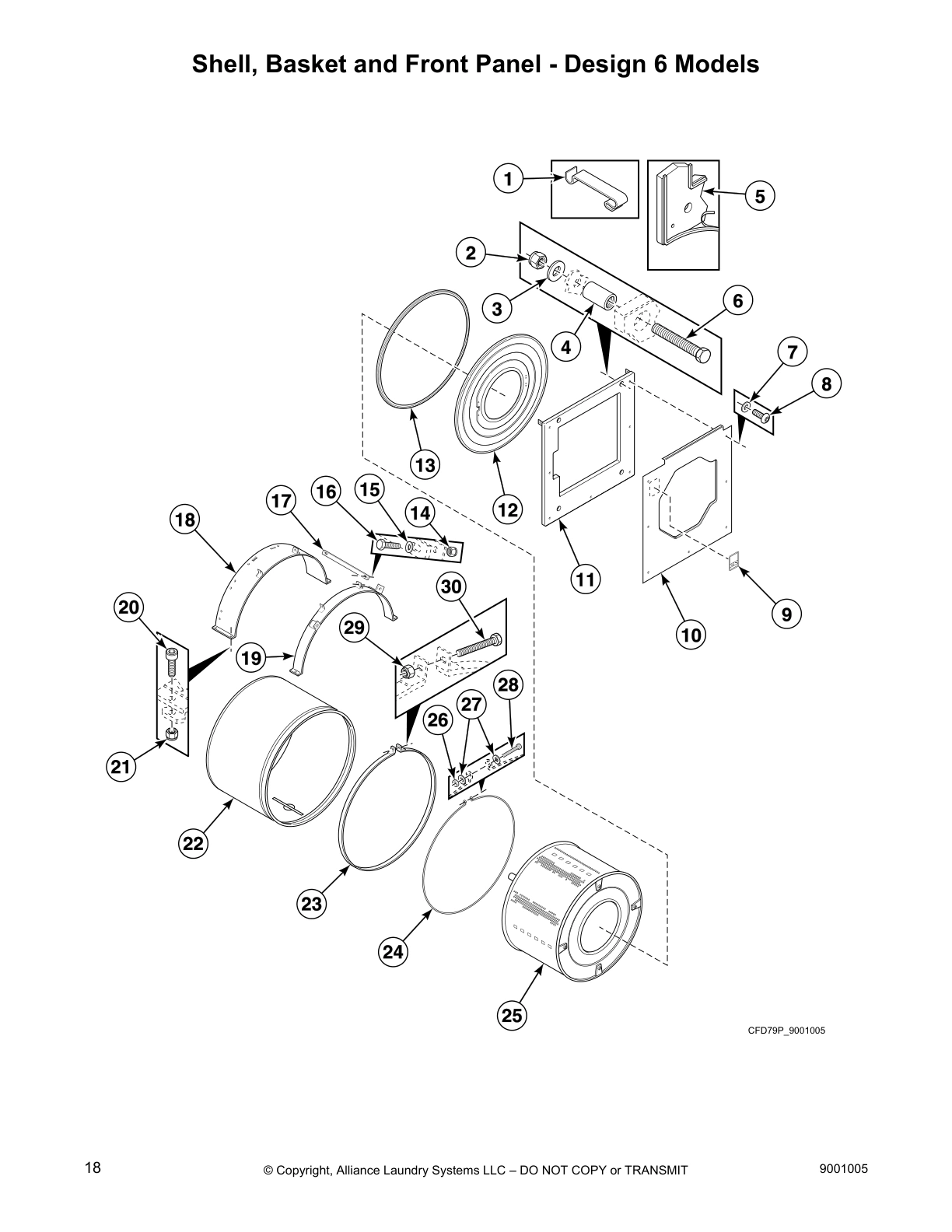

Shell, Basket and Front Panel - Design 6 Models

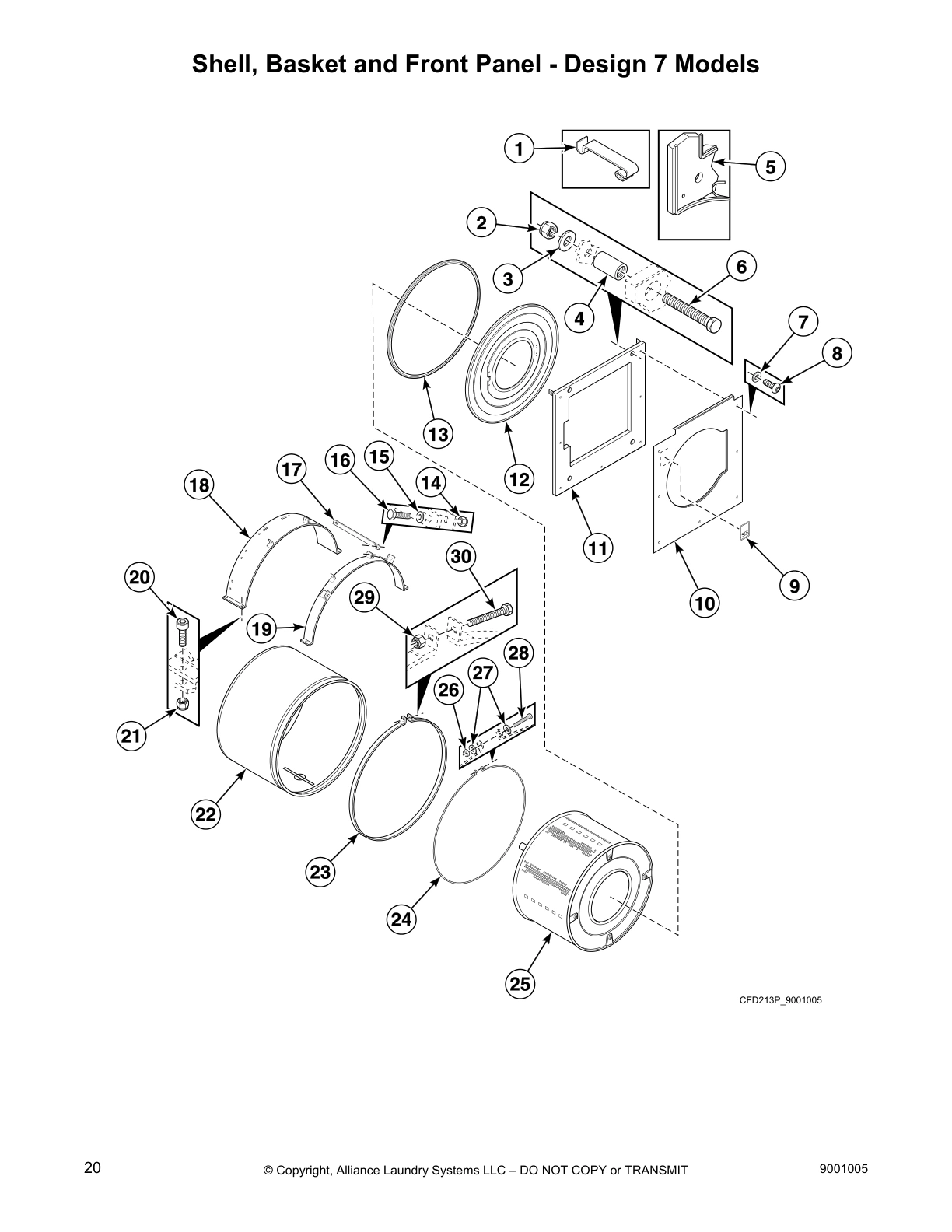

Shell, Basket and Front Panel - Design 7 Models

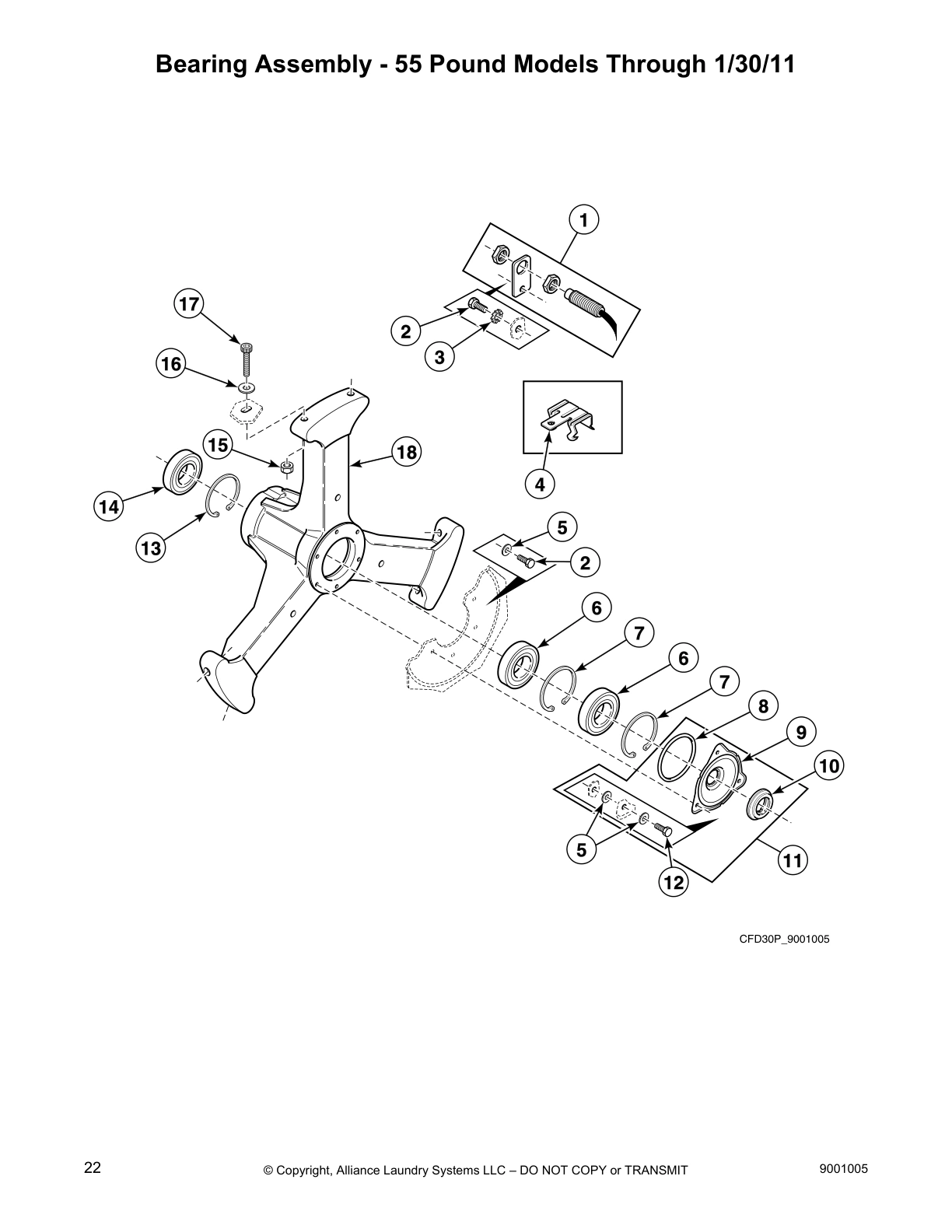

Bearing Assembly - 55 Pound Models Through 1/30/11

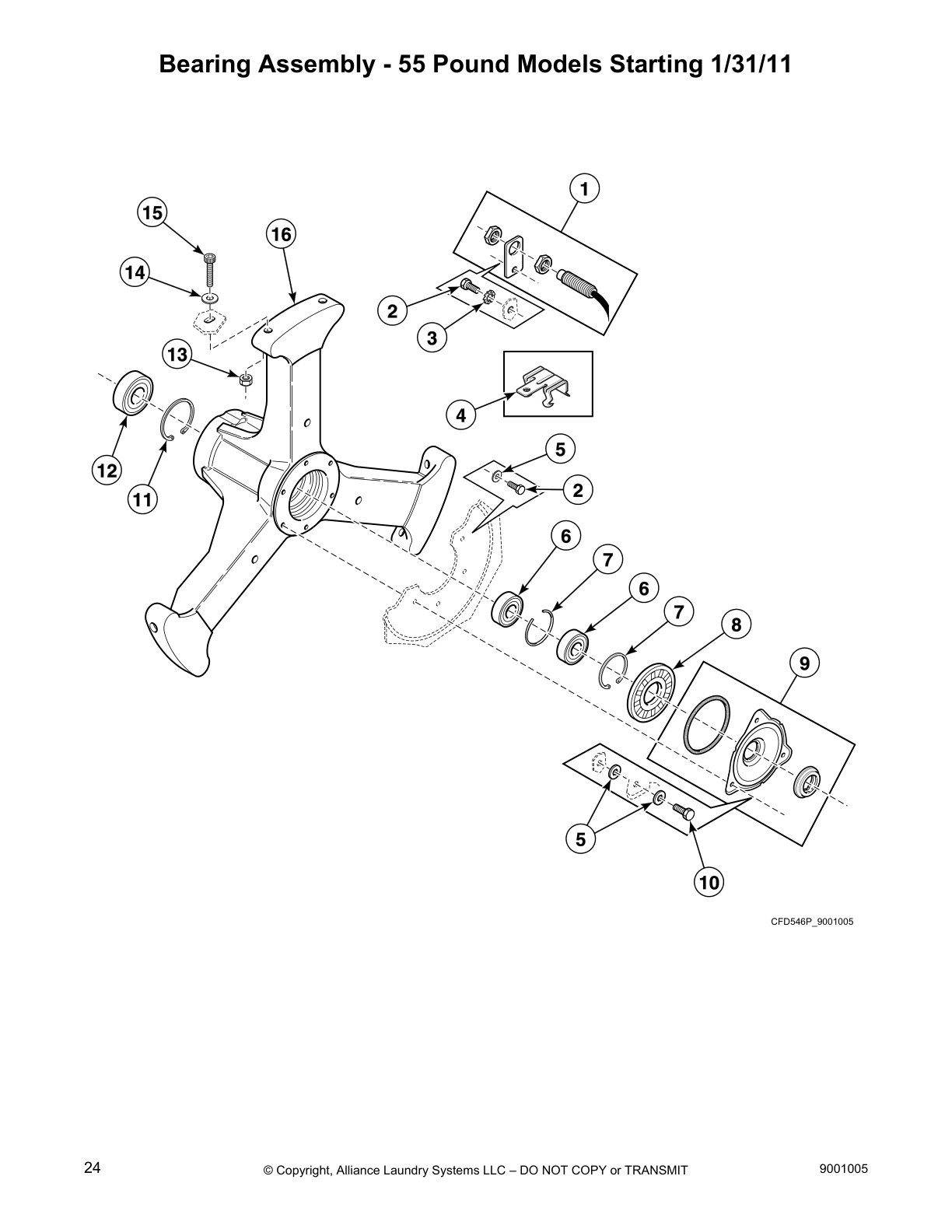

Bearing Assembly - 55 Pound Models Starting 1/31/11

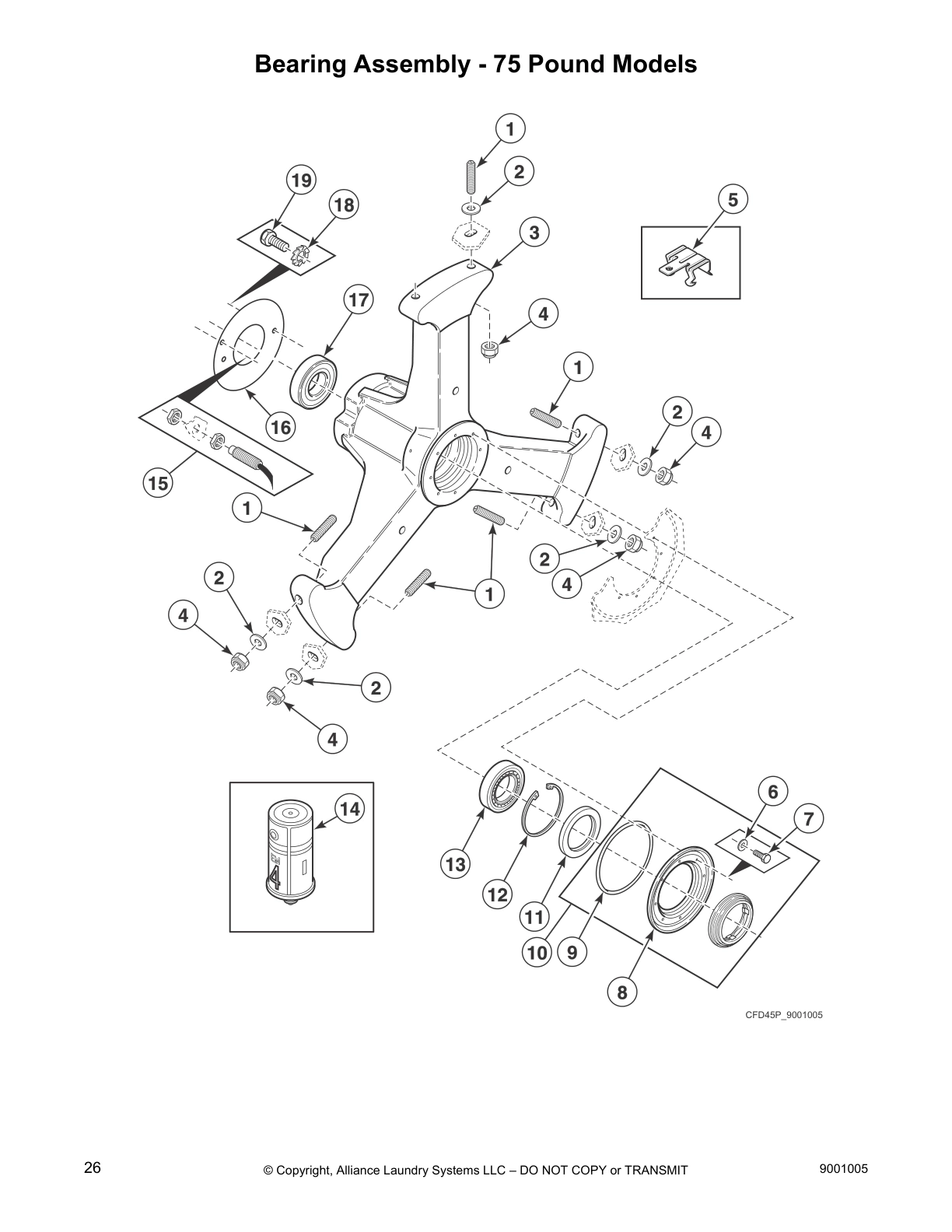

Bearing Assembly - 75 Pound Models

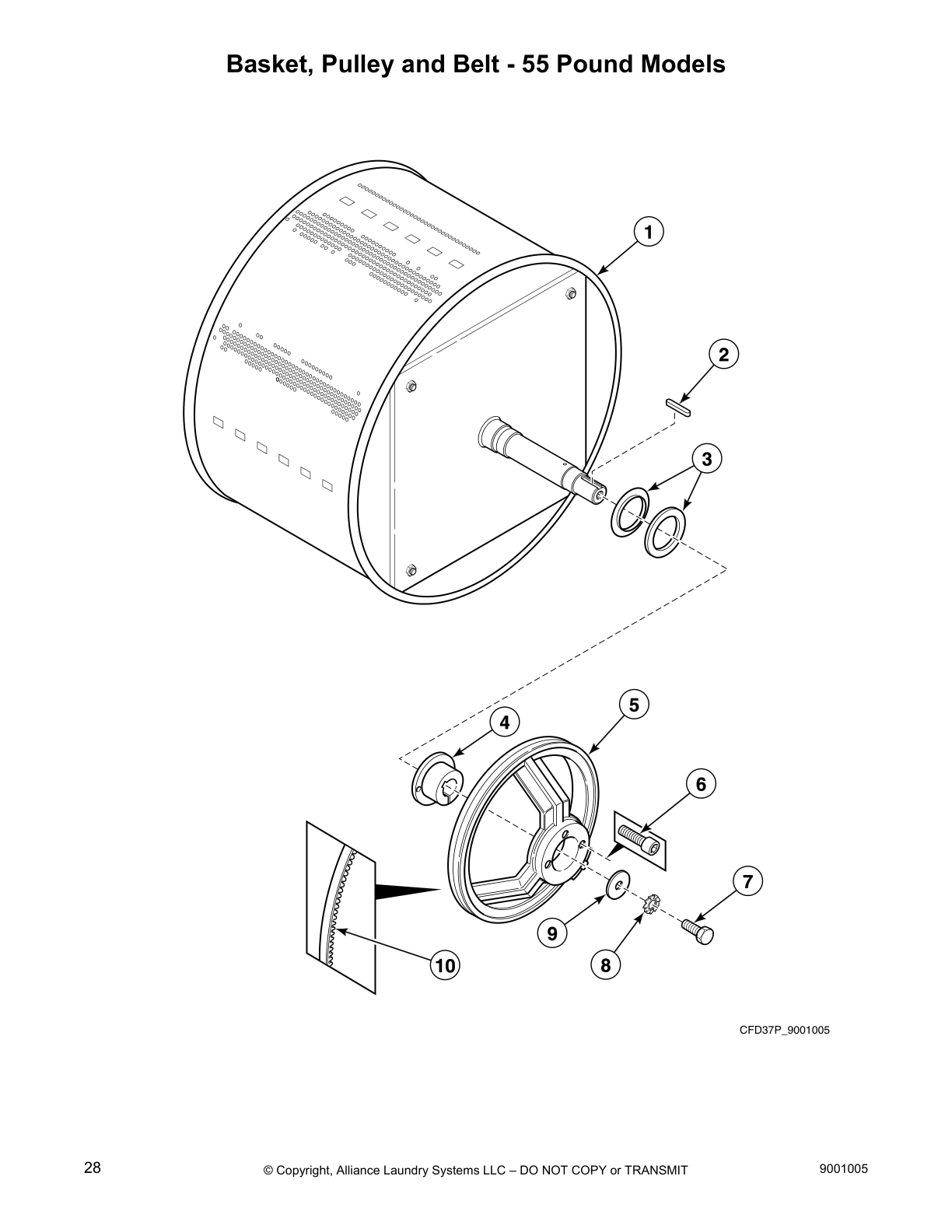

Basket, Pulley and Belt - 55 Pound Models
Basket, Pulley and Belt - 75 Pound Models

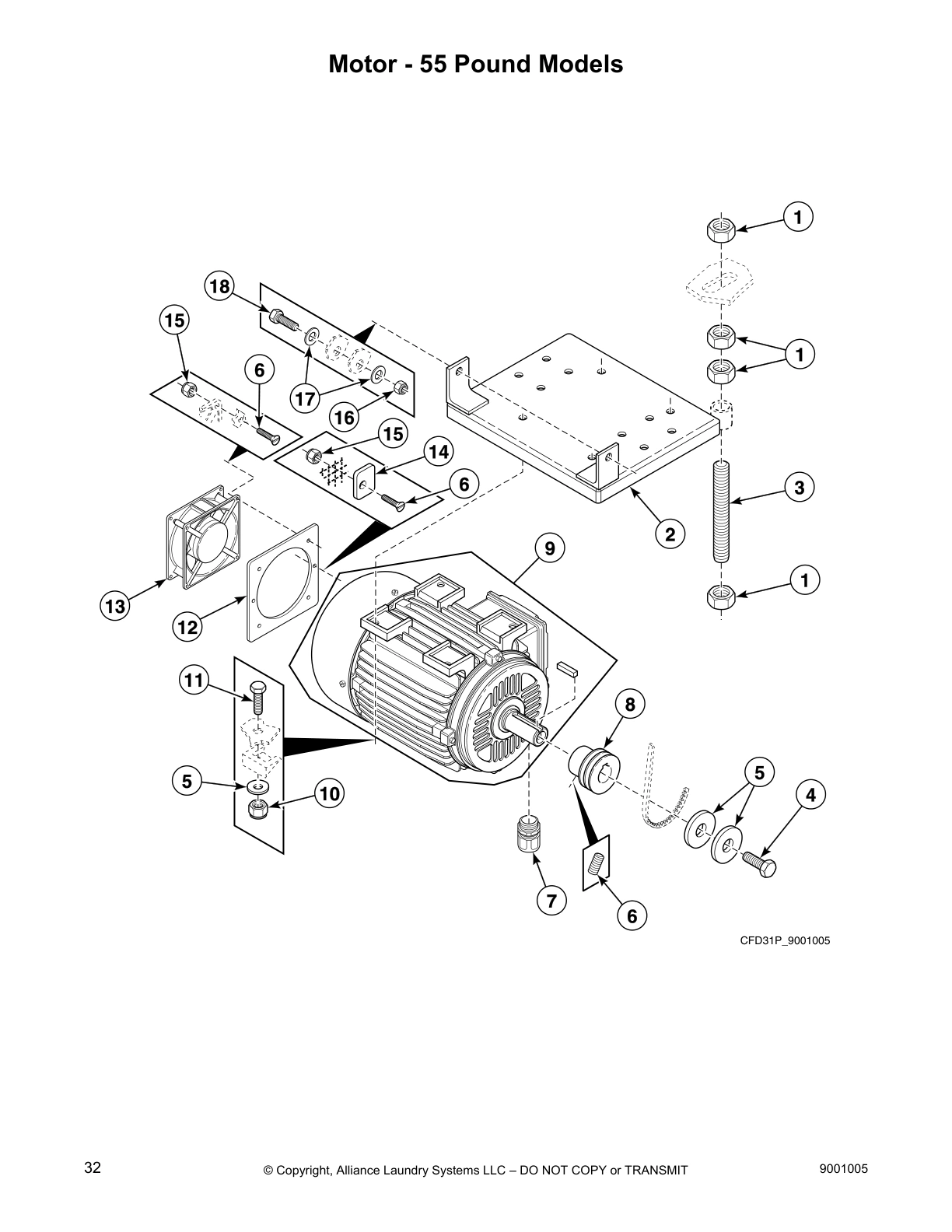

Motor - 55 Pound Models

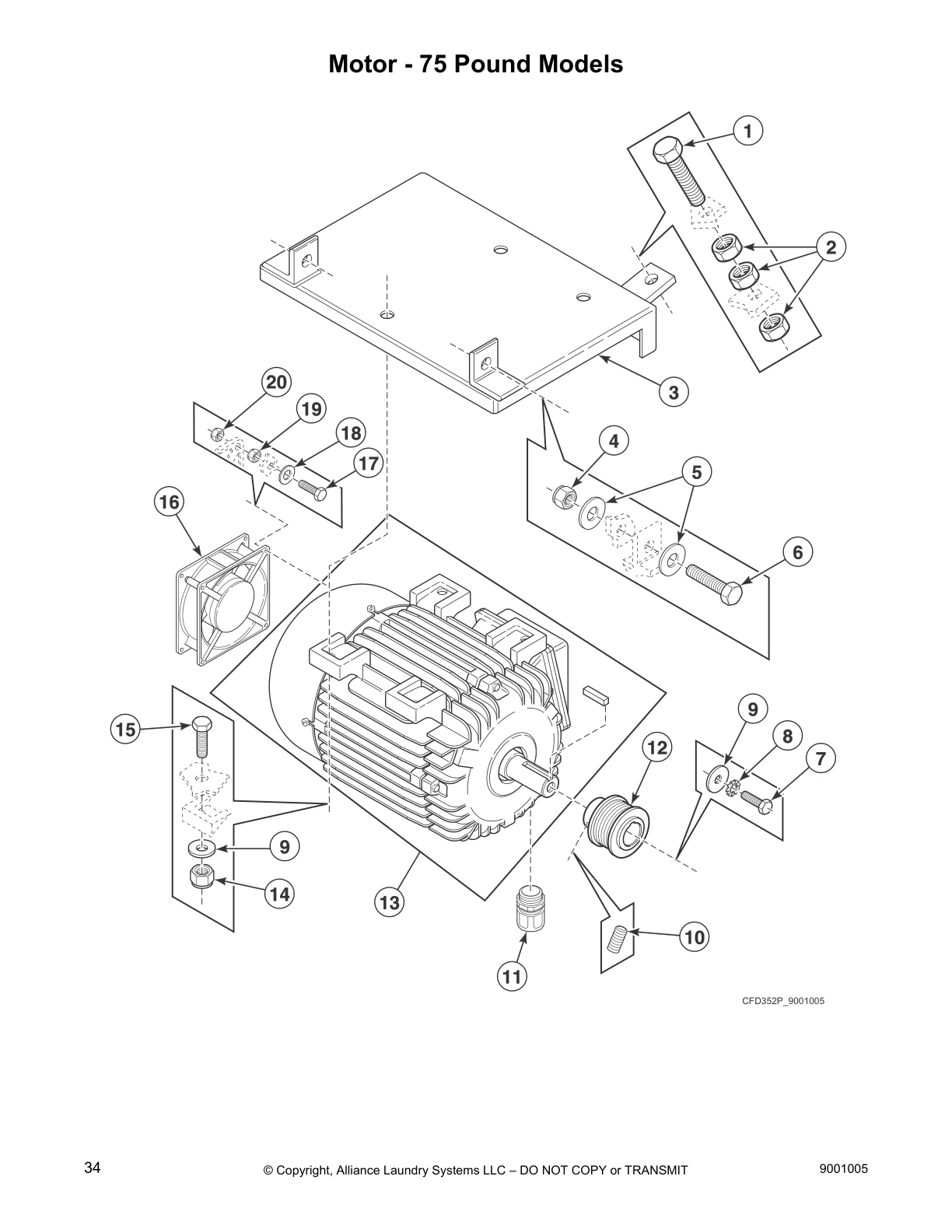

Motor - 75 Pound Models

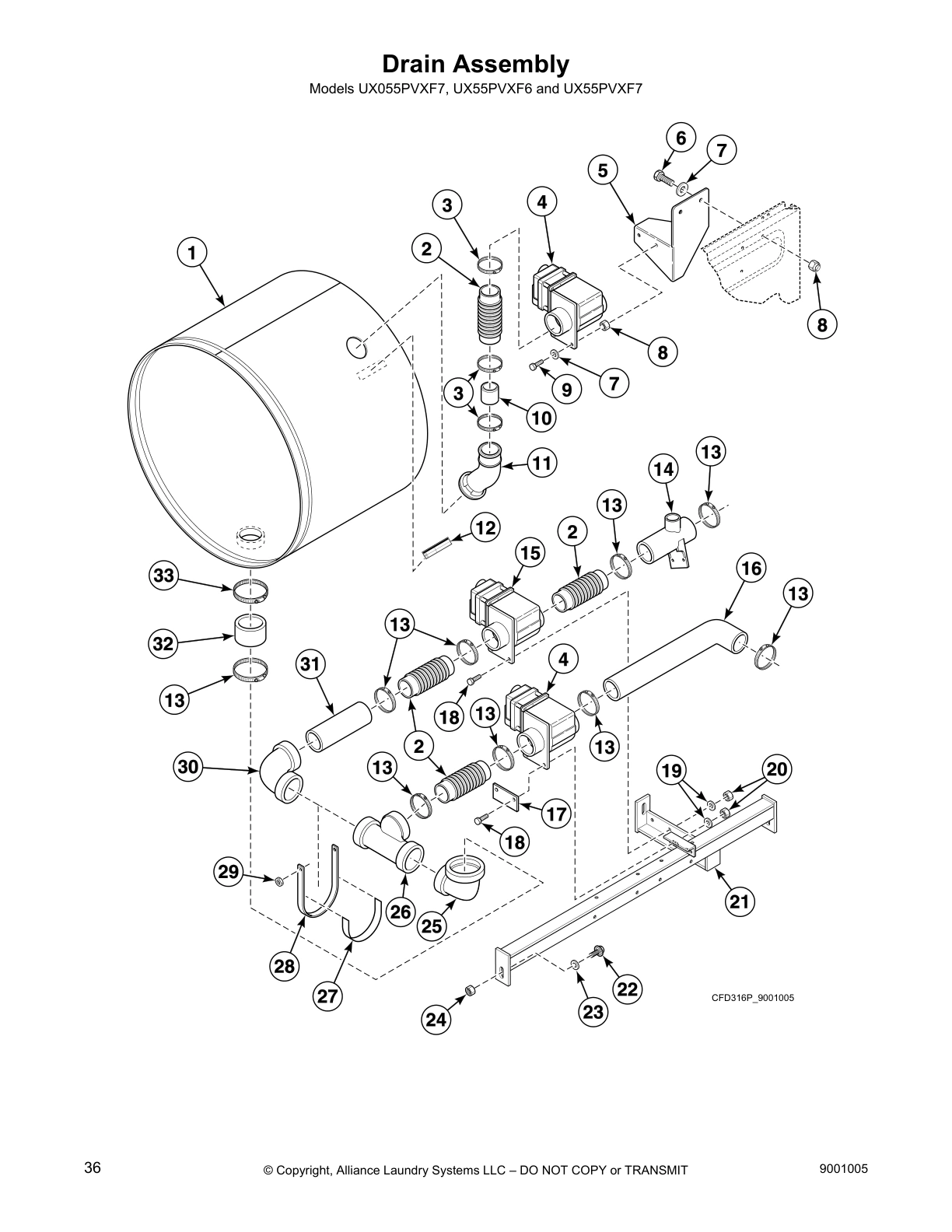

Drain Assembly

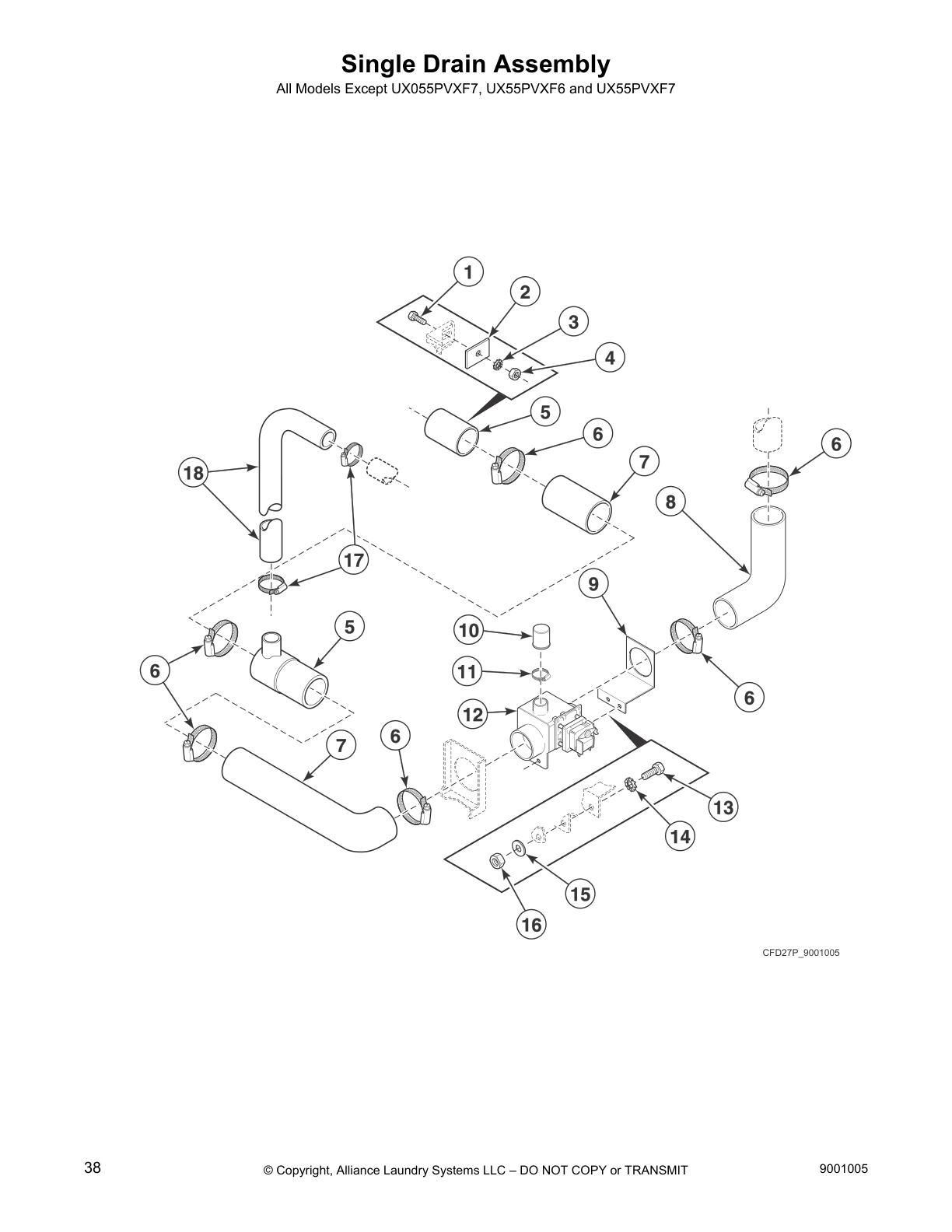

Single Drain Assembly

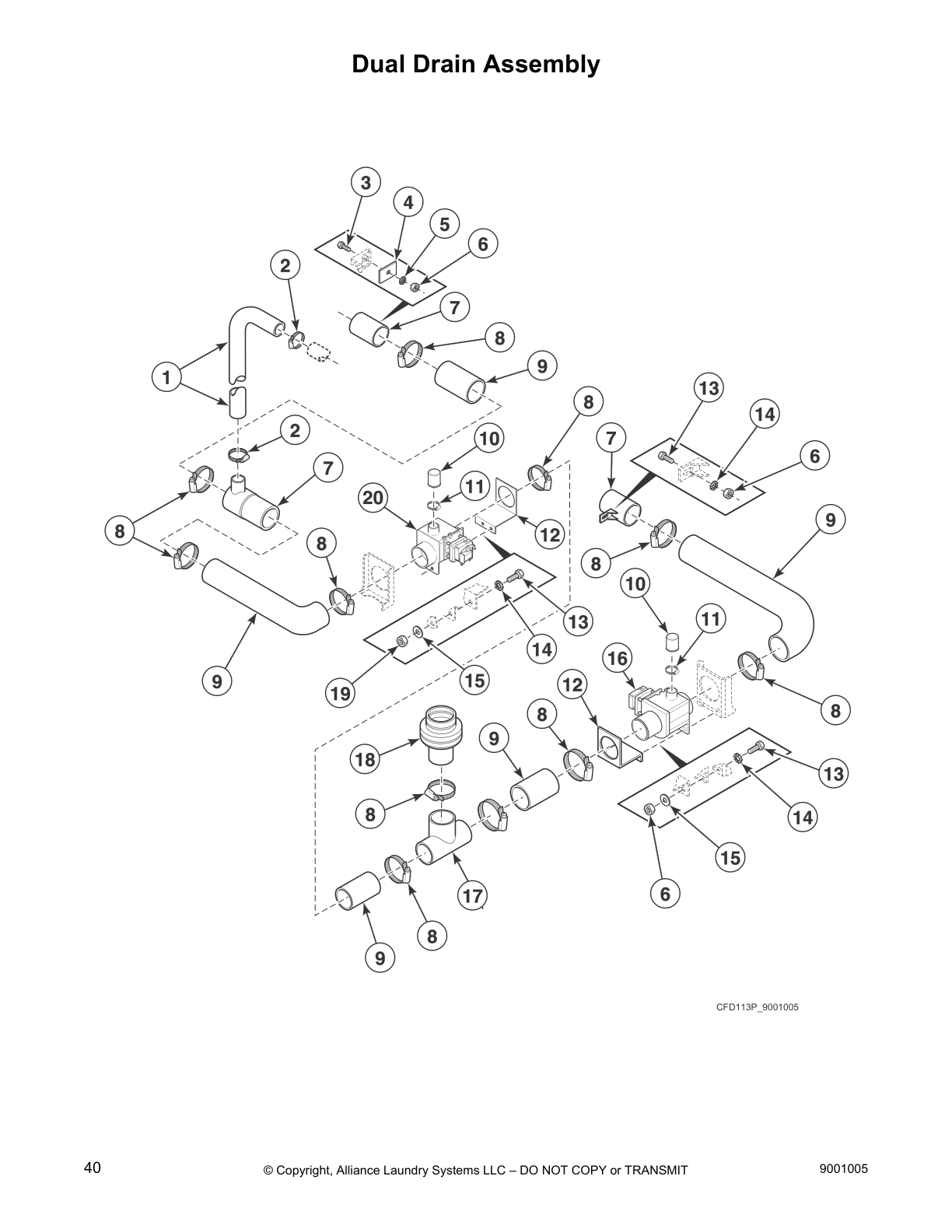

Dual Drain Assembly

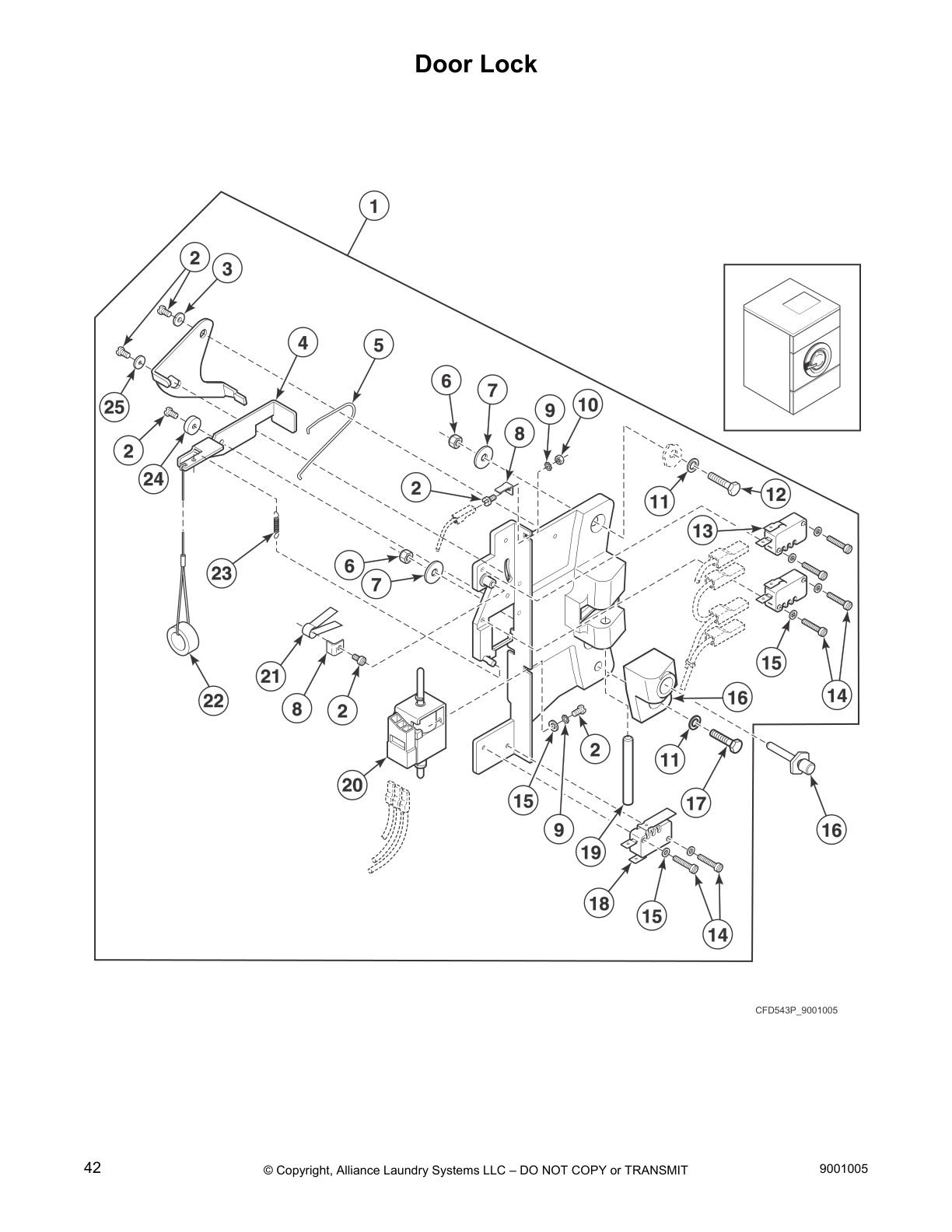

Door Lock

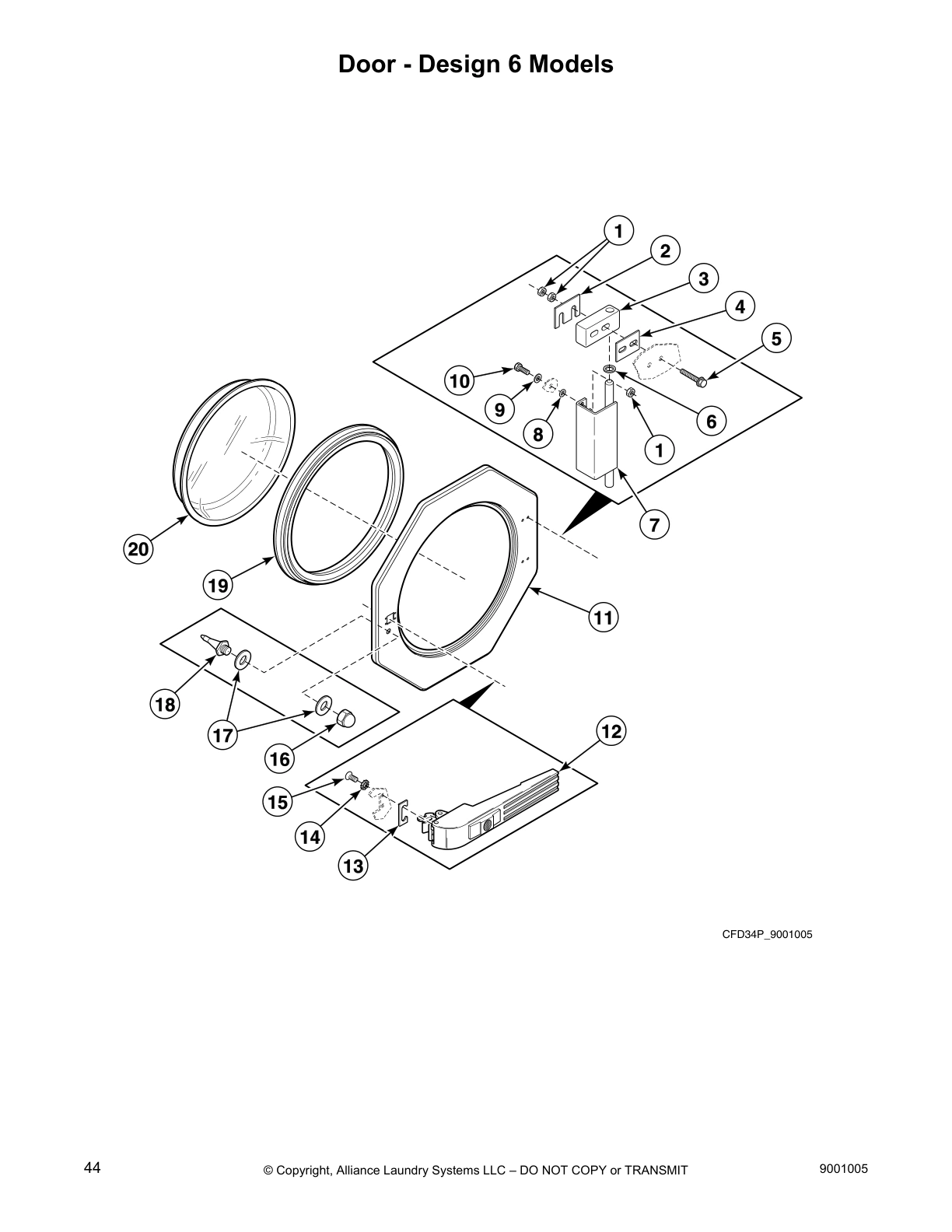

Door - Design 6 Models

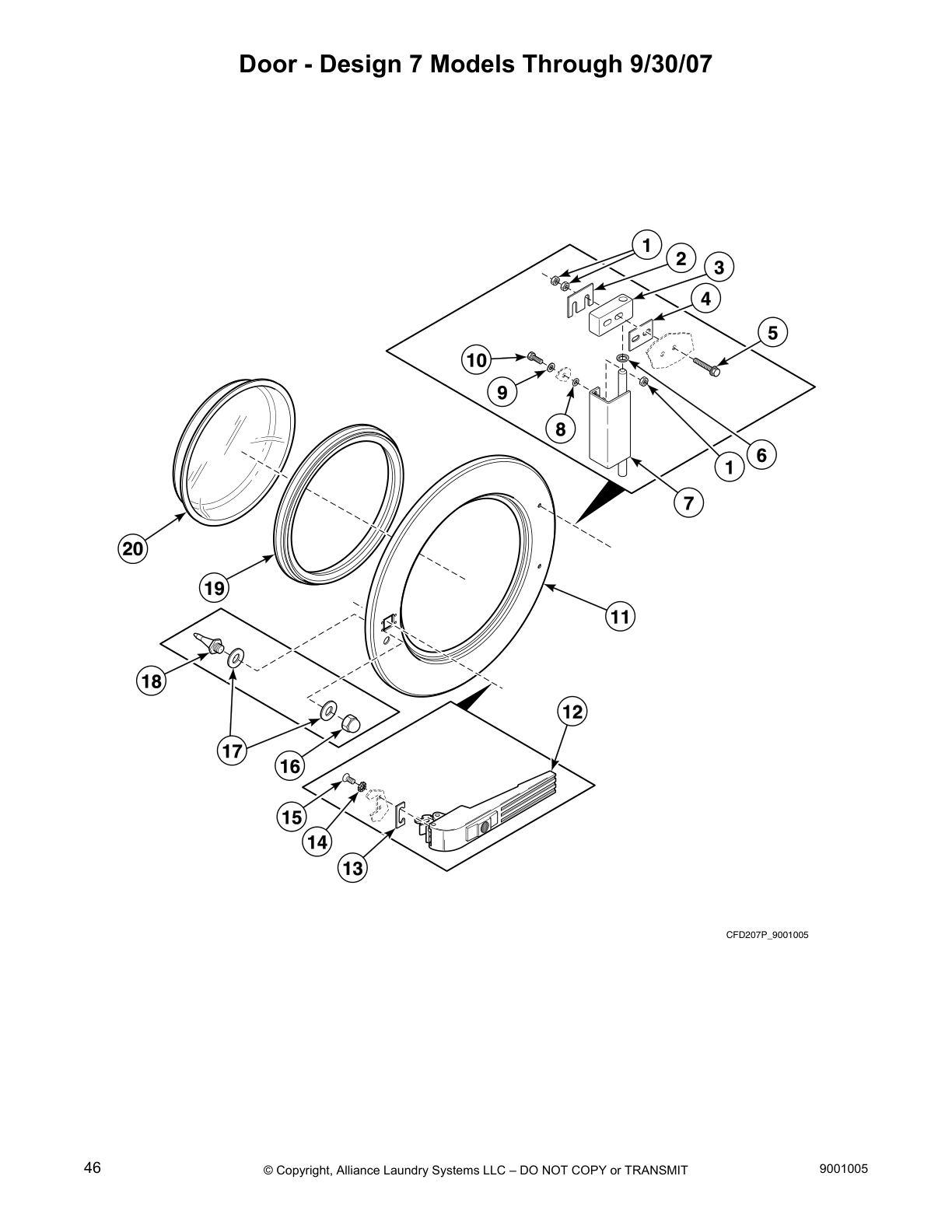

Door - Design 7 Models Through 9/30/07

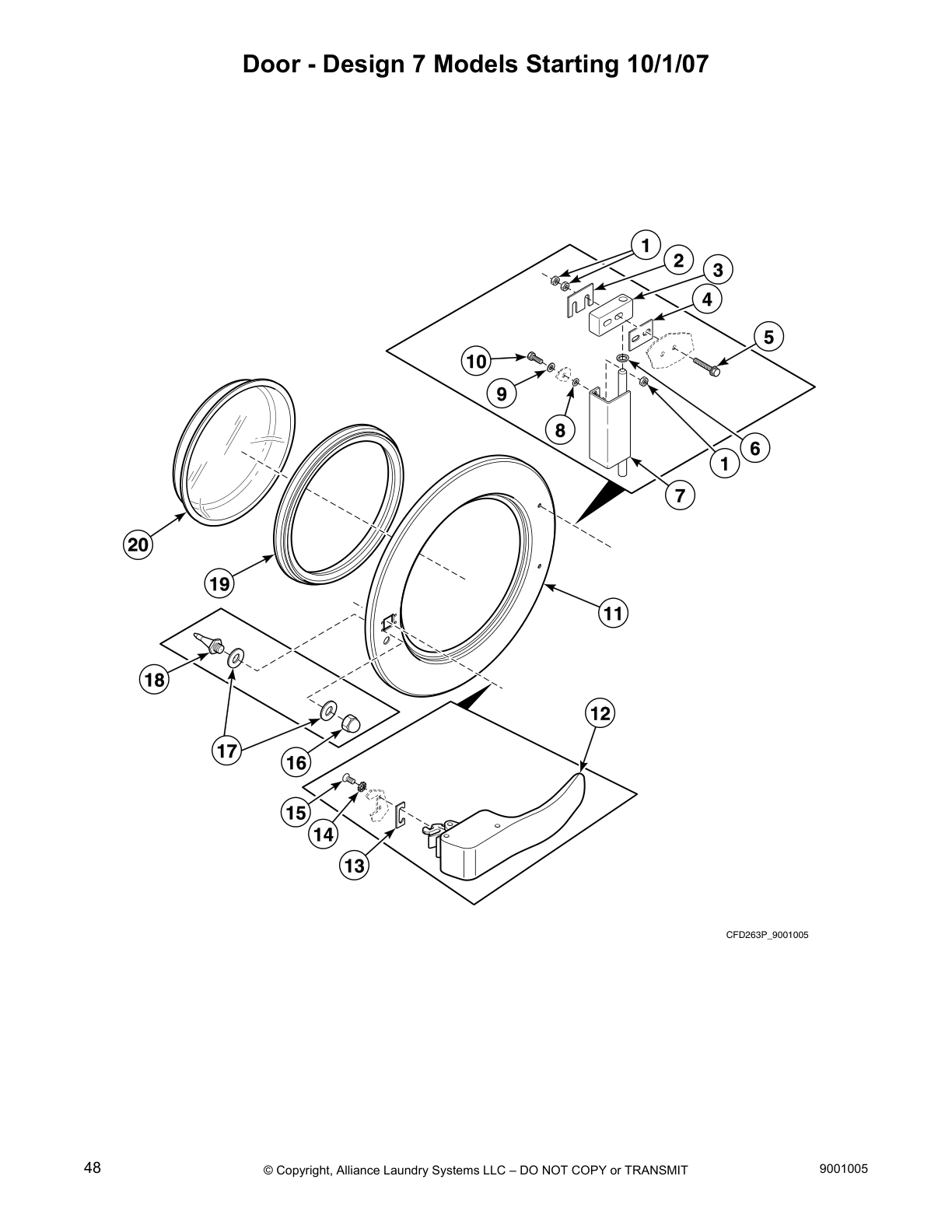

Door - Design 7 Models Starting 10/1/07

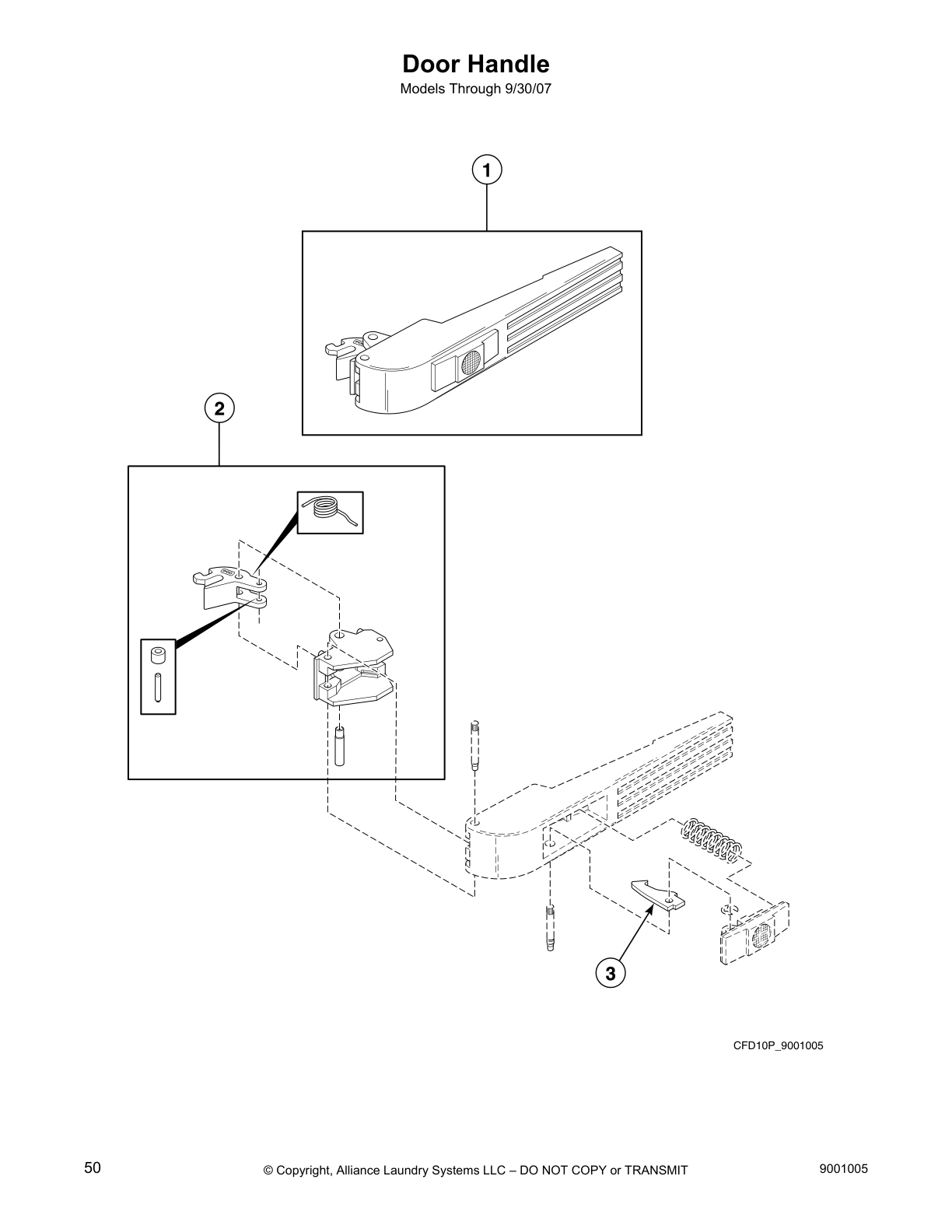

Door Handle
Control Panel - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

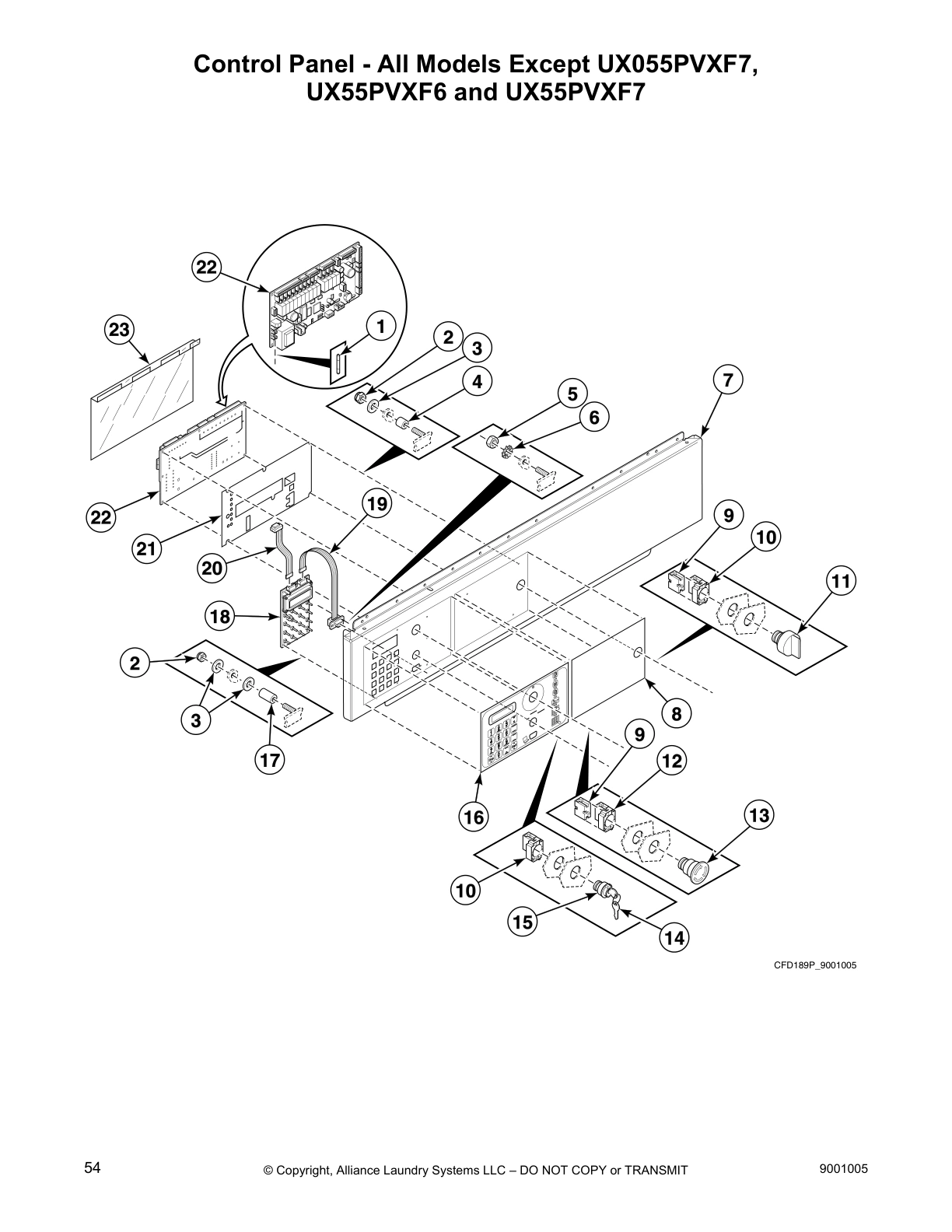

Control Panel - All Models Except UX055PVXF7,
UX55PVXF6 and UX55PVXF7

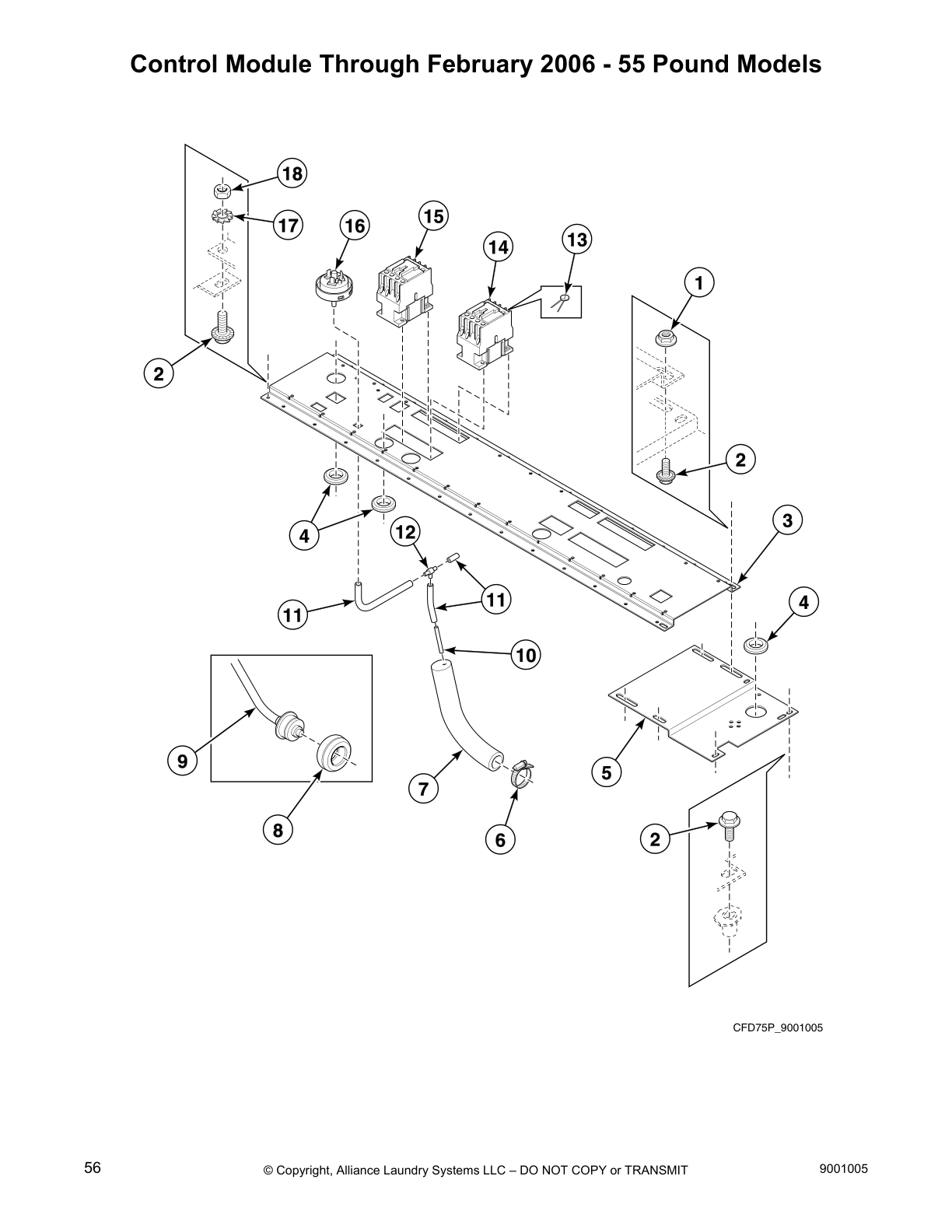

Control Module Through February 2006 - 55 Pound Models

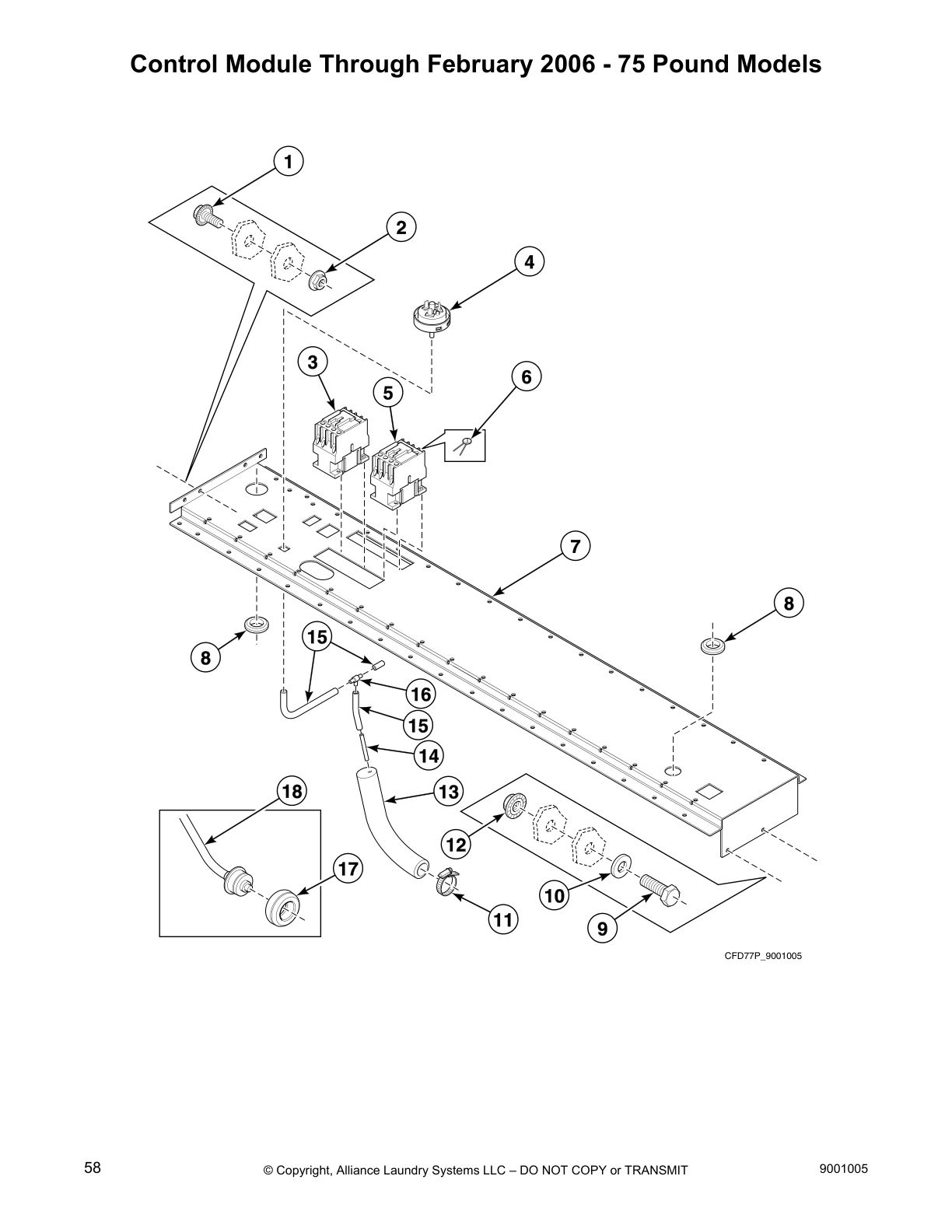

Control Module Through February 2006 - 75 Pound Models

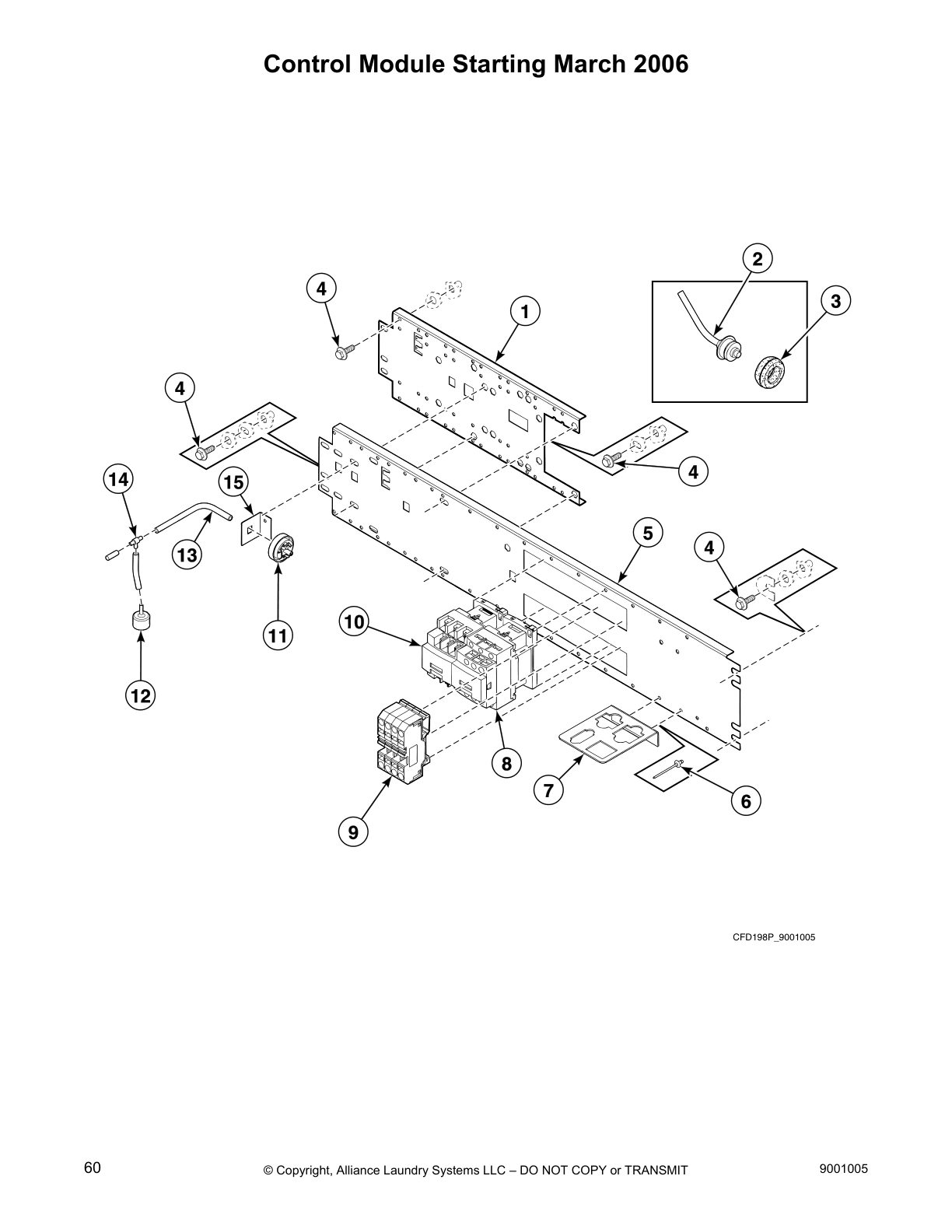

Control Module Starting March 2006

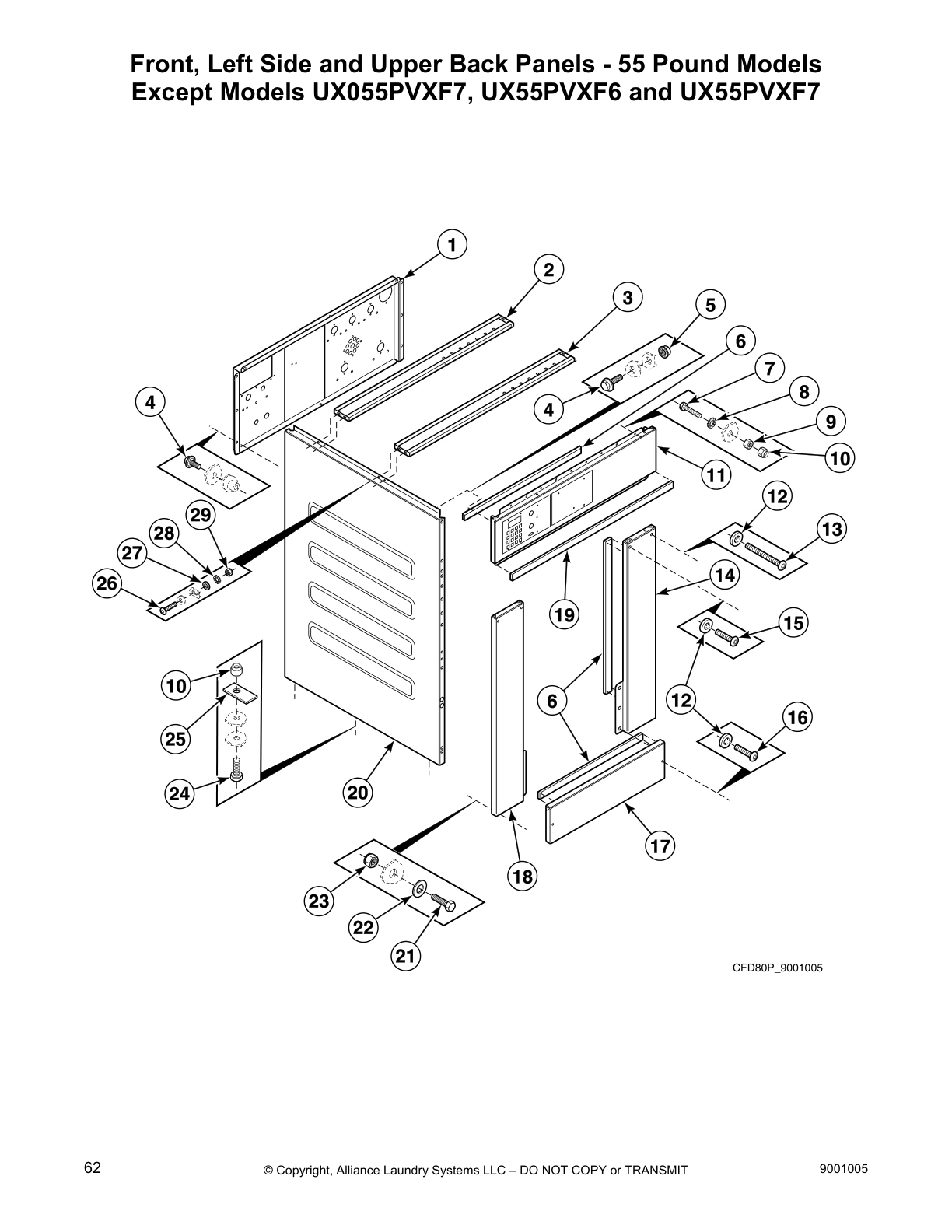

Front, Left Side and Upper Back Panels - 55 Pound Models
Except Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

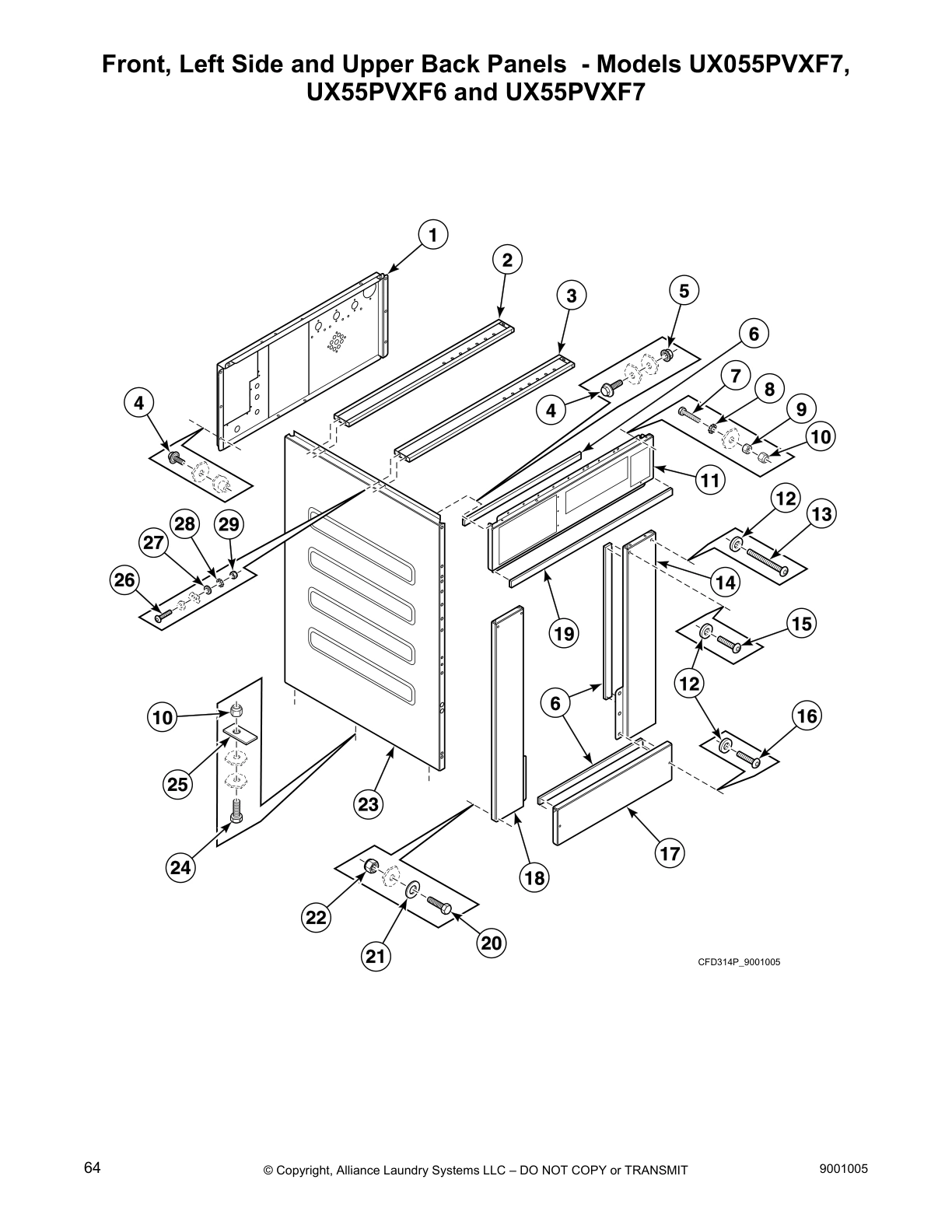

Front, Left Side and Upper Back Panels - Models UX055PVXF7,
UX55PVXF6 and UX55PVXF7

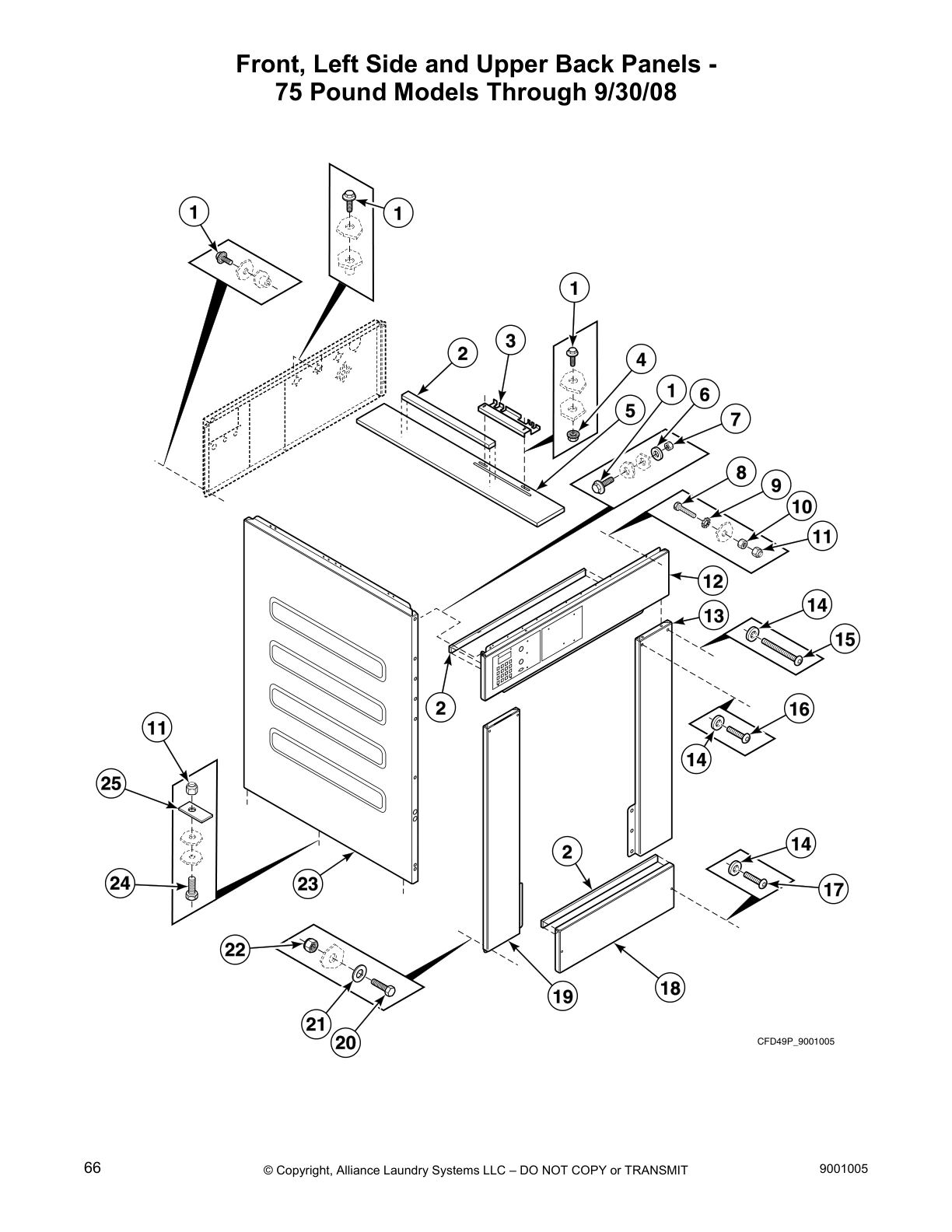

Front, Left Side and Upper Back Panels -
75 Pound Models Through 9/30/08

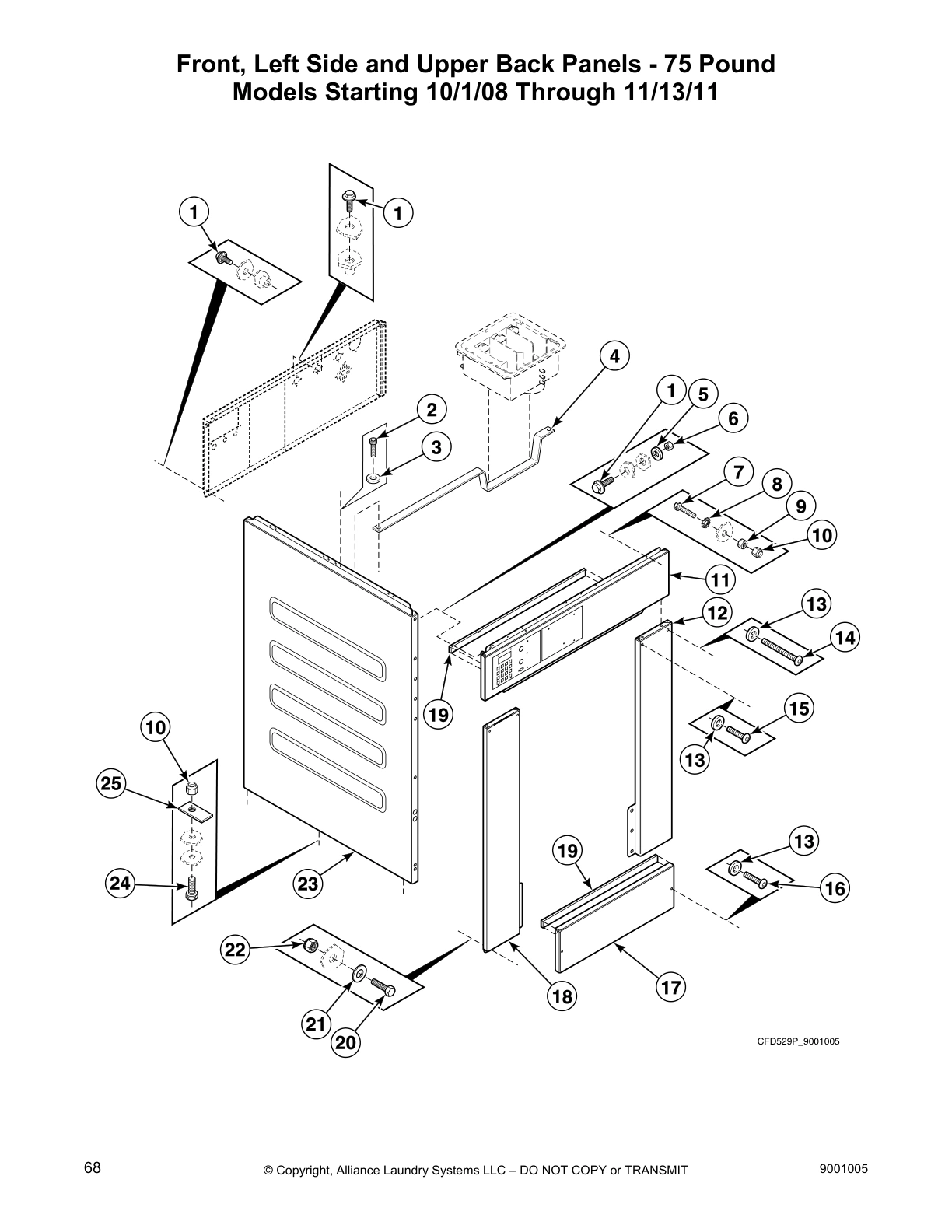

Front, Left Side and Upper Back Panels - 75 Pound
Models Starting 10/1/08 Through 11/13/11

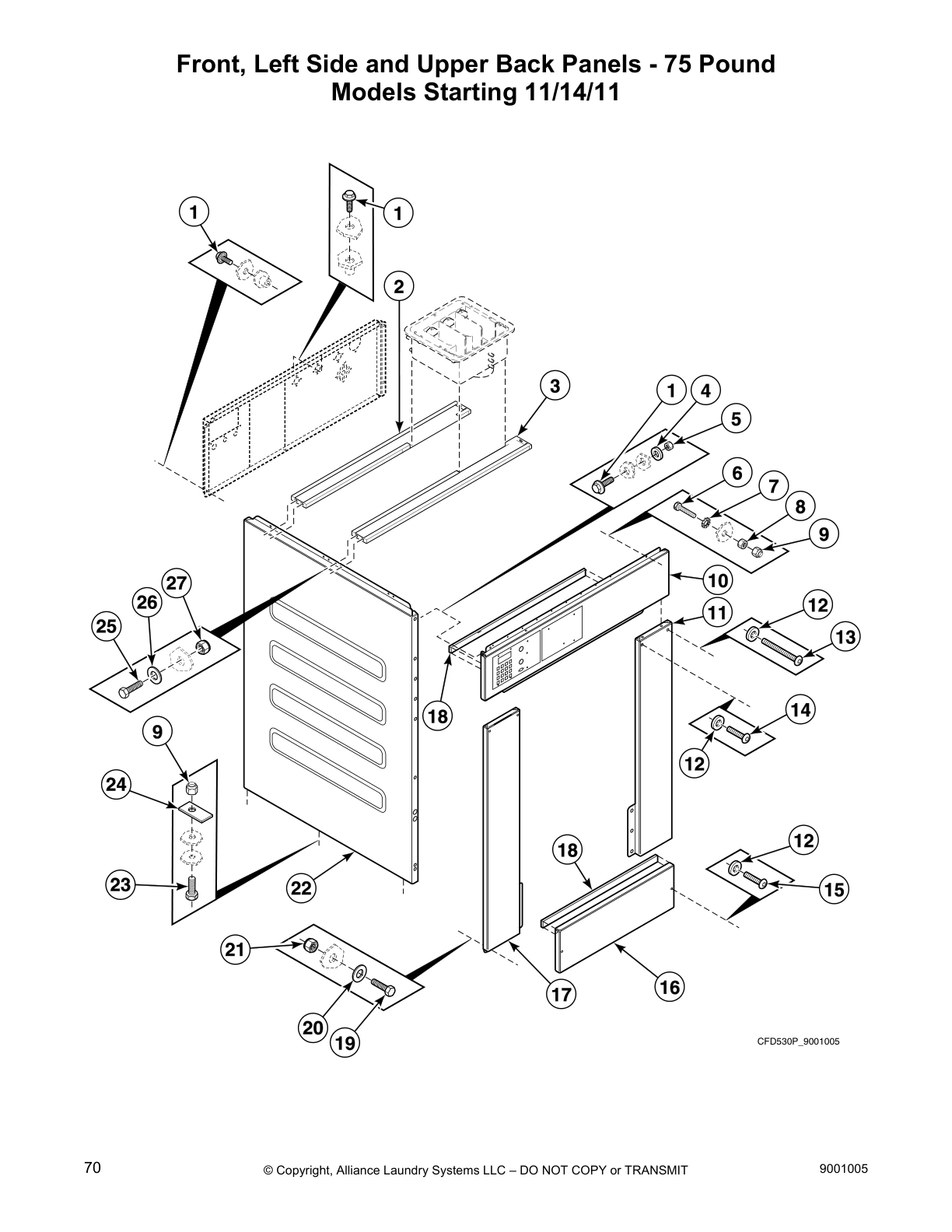

Front, Left Side and Upper Back Panels - 75 Pound
Models Starting 11/14/11

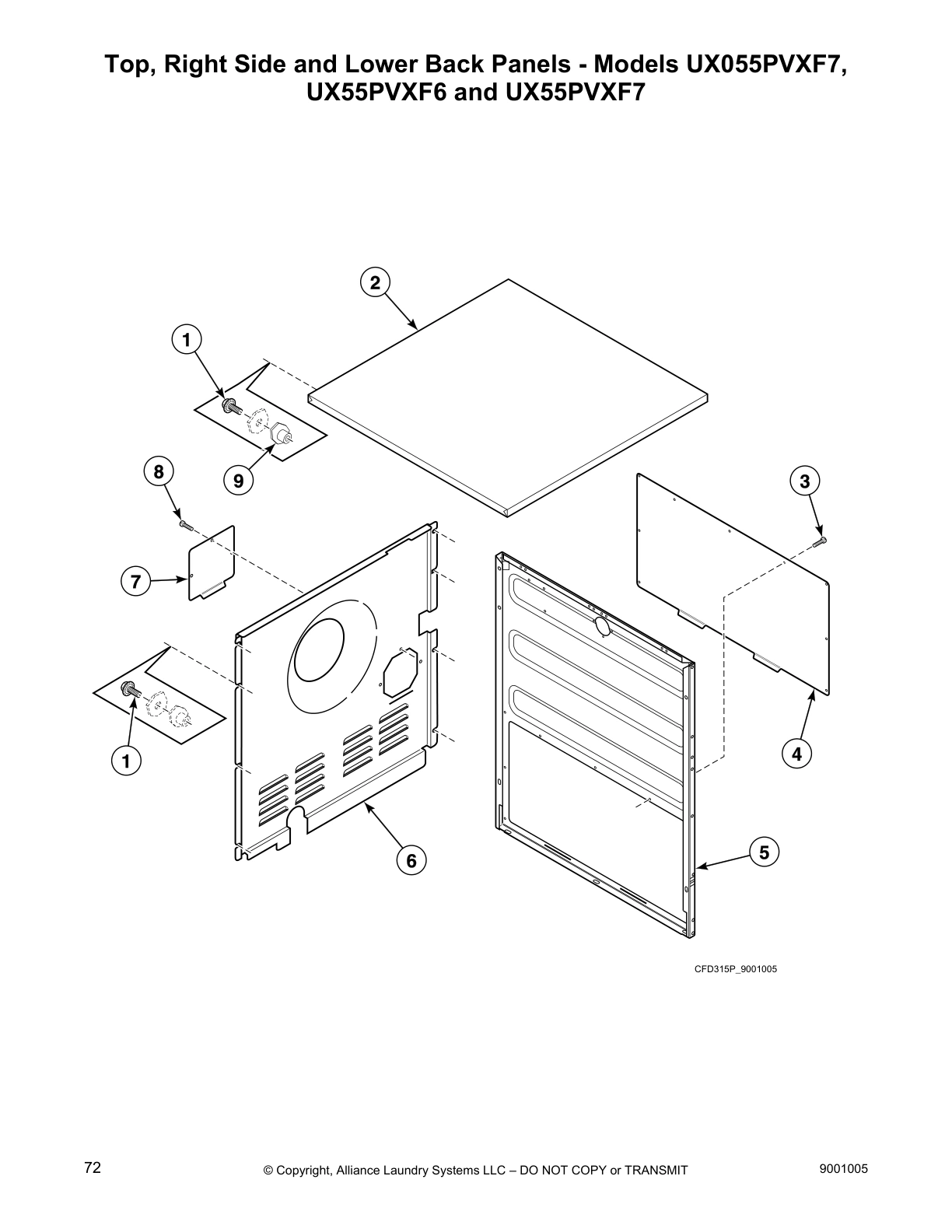

Top, Right Side and Lower Back Panels - Models UX055PVXF7,
UX55PVXF6 and UX55PVXF7

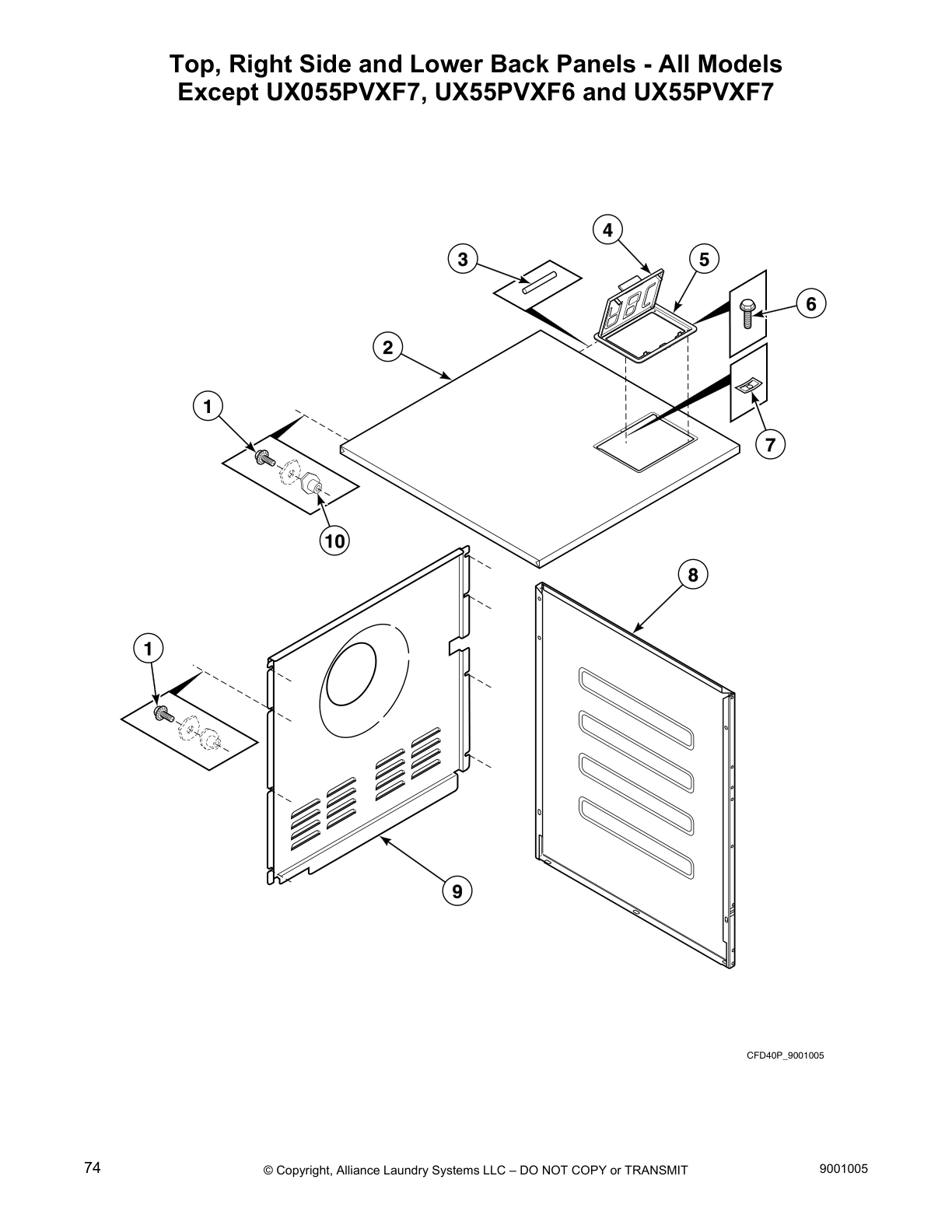

Top, Right Side and Lower Back Panels - All Models
Except UX055PVXF7, UX55PVXF6 and UX55PVXF7

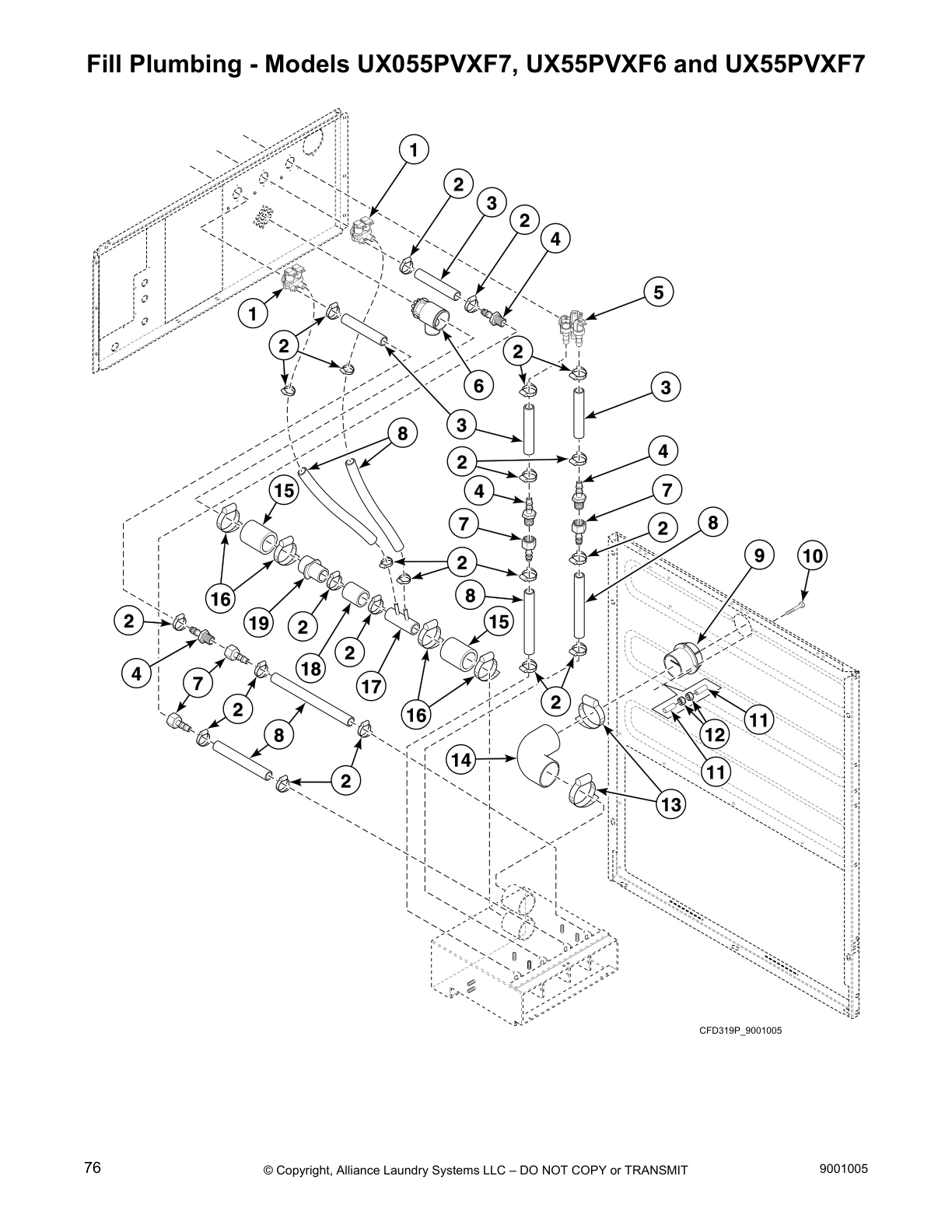

Fill Plumbing - Models UX055PVXF7, UX55PVXF6 and UX55PVXF7

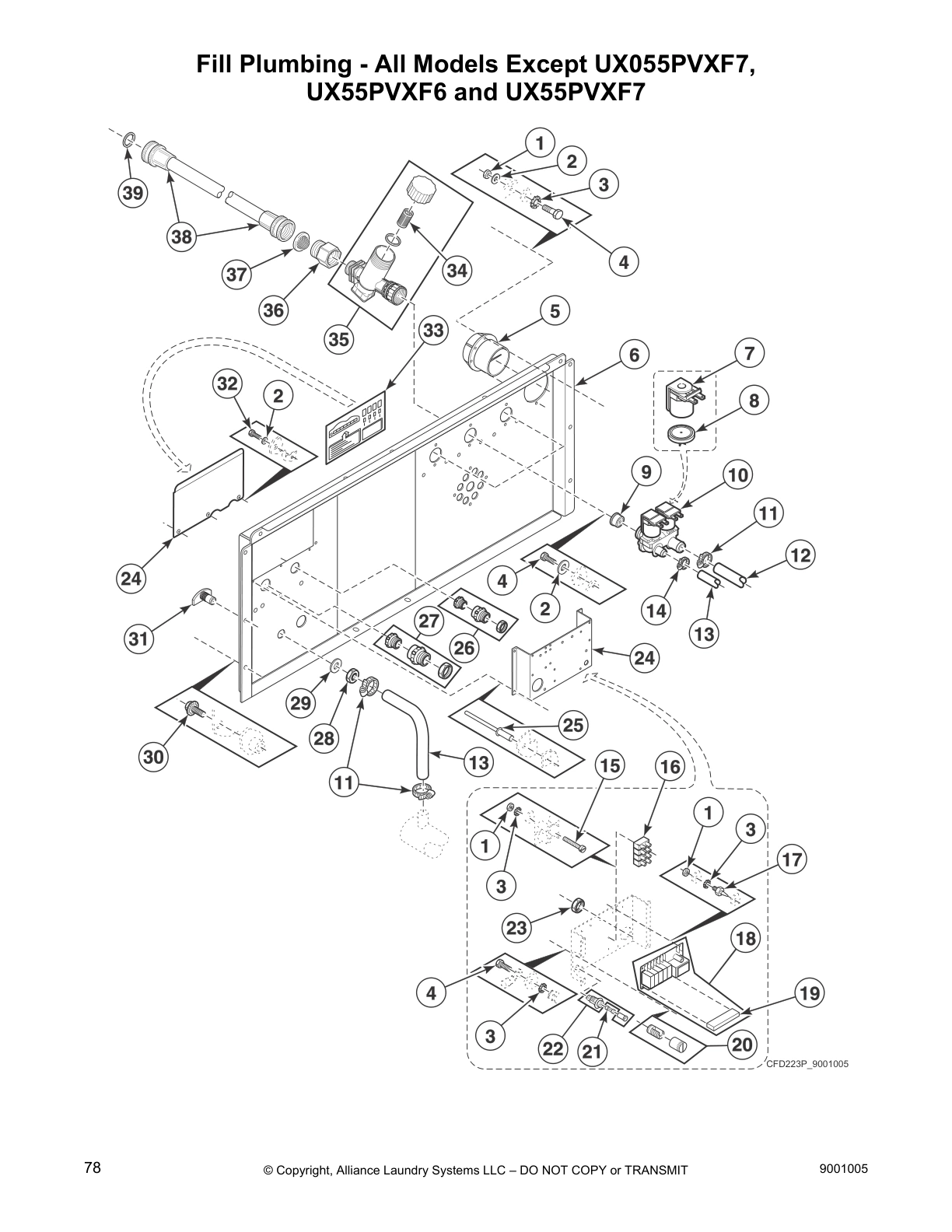

Fill Plumbing - All Models Except UX055PVXF7,
UX55PVXF6 and UX55PVXF7

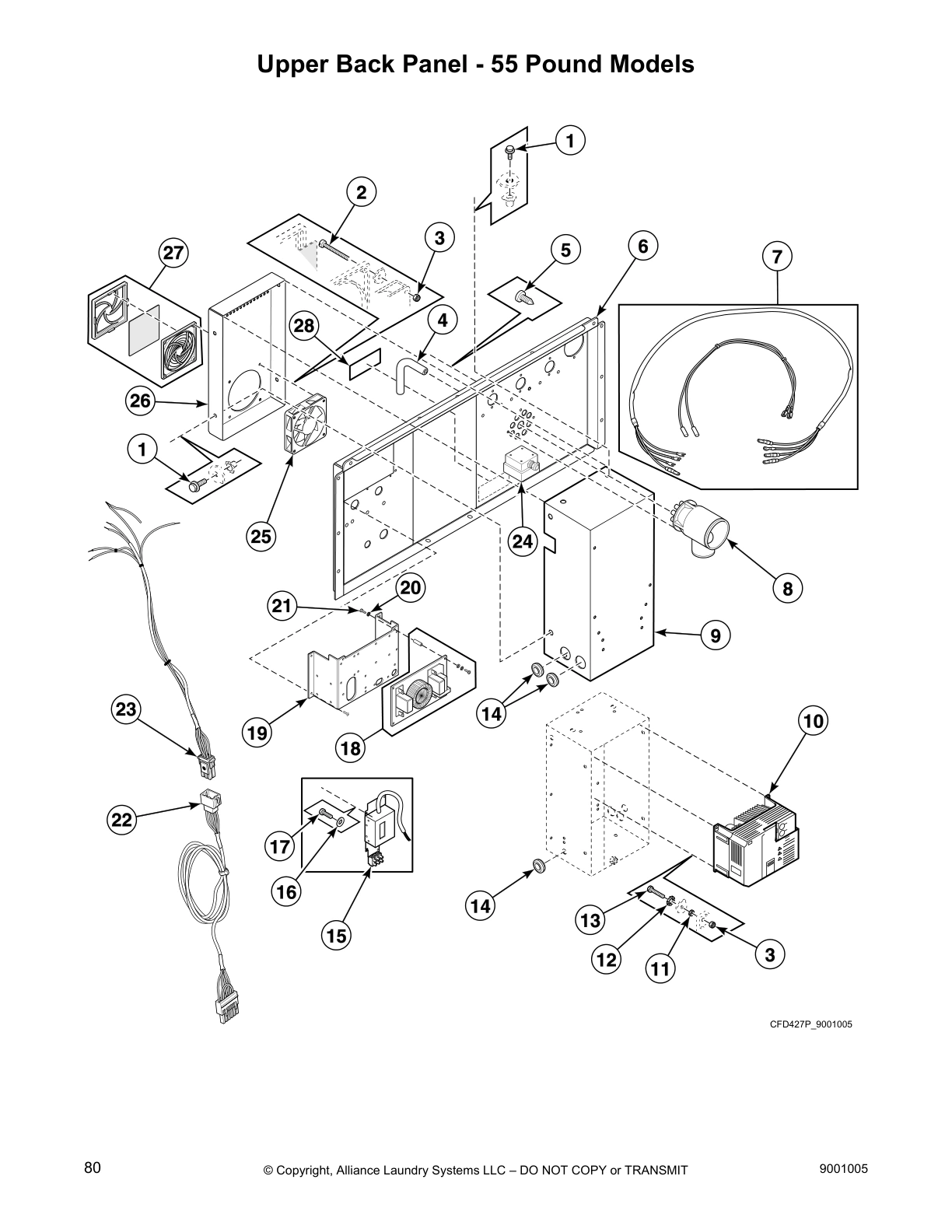

Upper Back Panel - 55 Pound Models

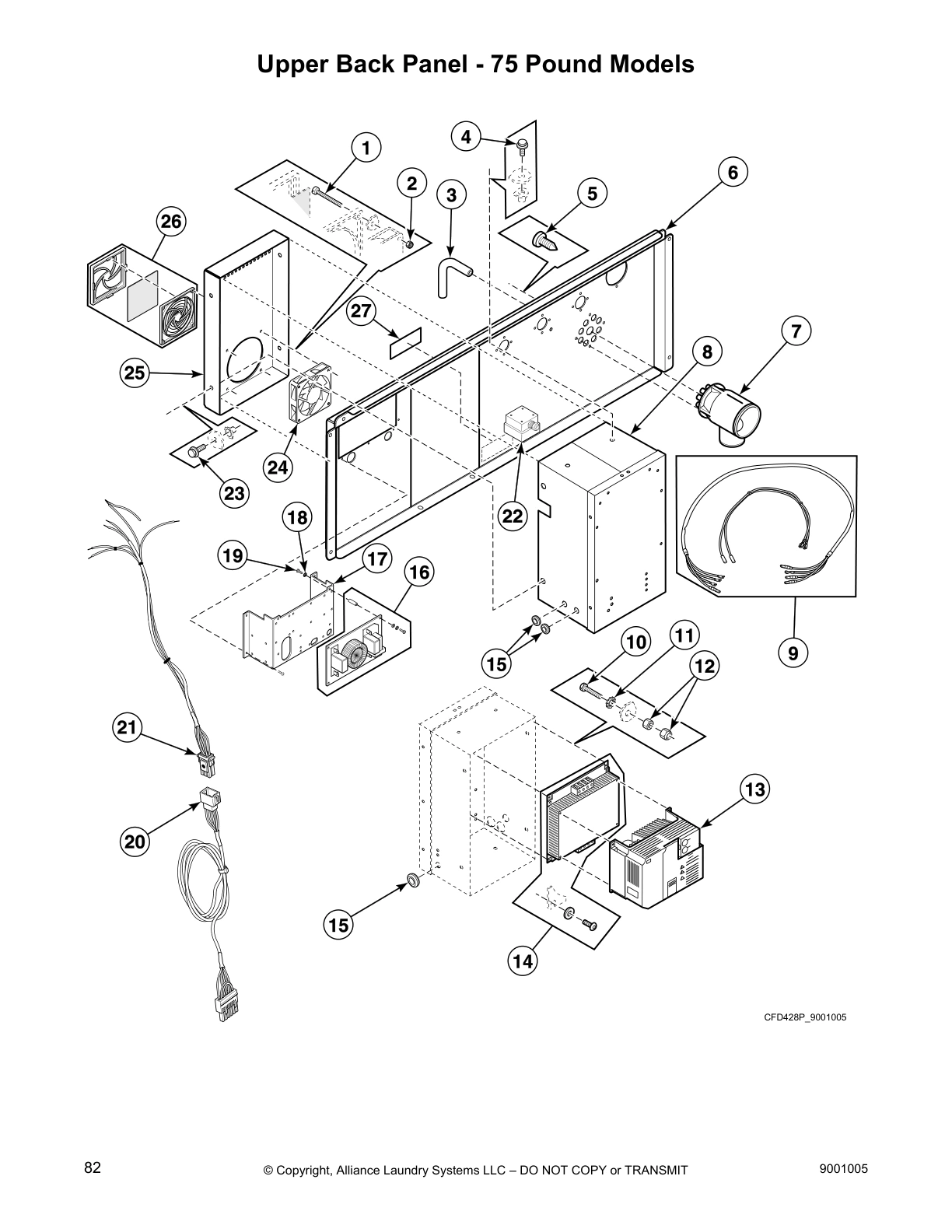

Upper Back Panel - 75 Pound Models

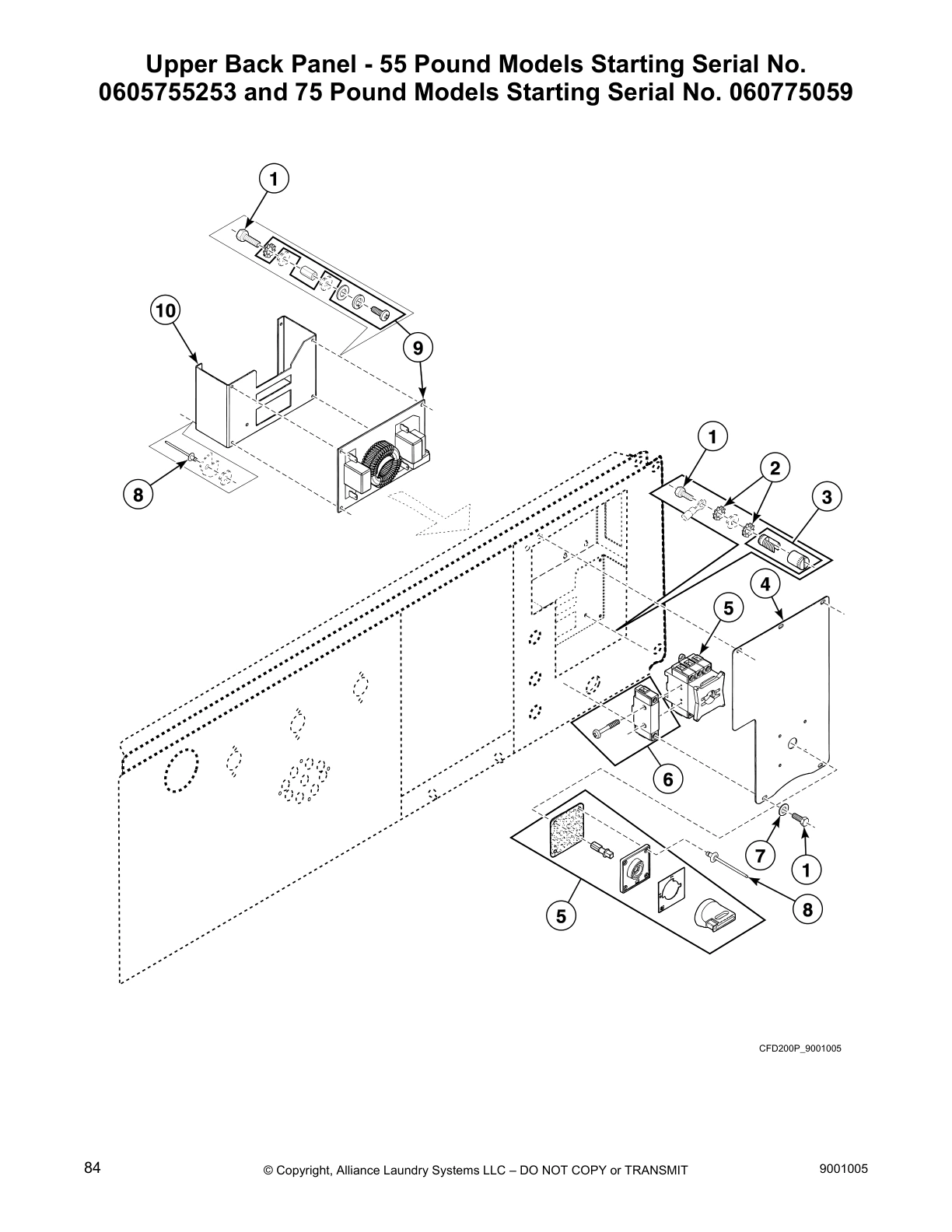

Upper Back Panel - 55 Pound Models Starting Serial No.
0605755253 and 75 Pound Models Starting Serial No. 060775059

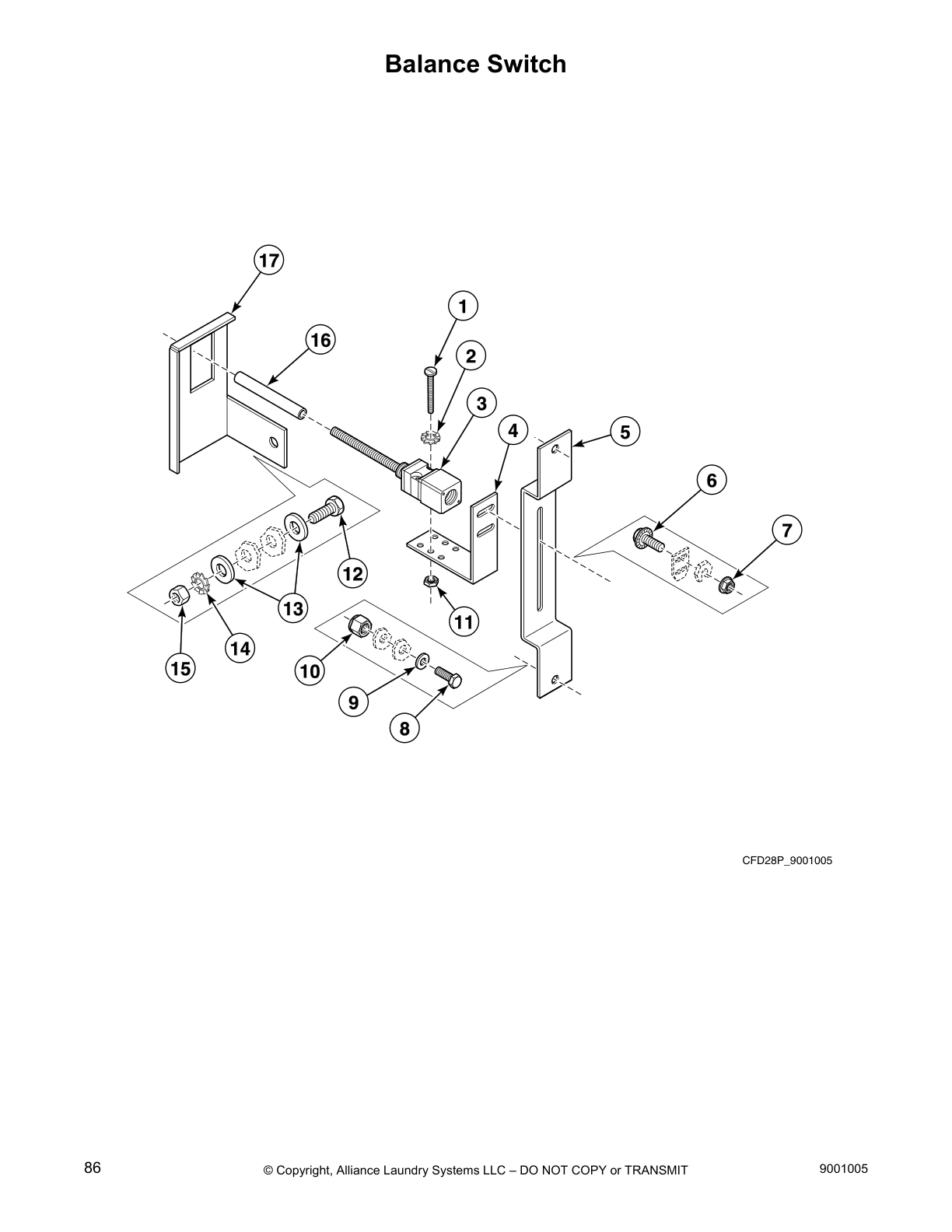

Balance Switch

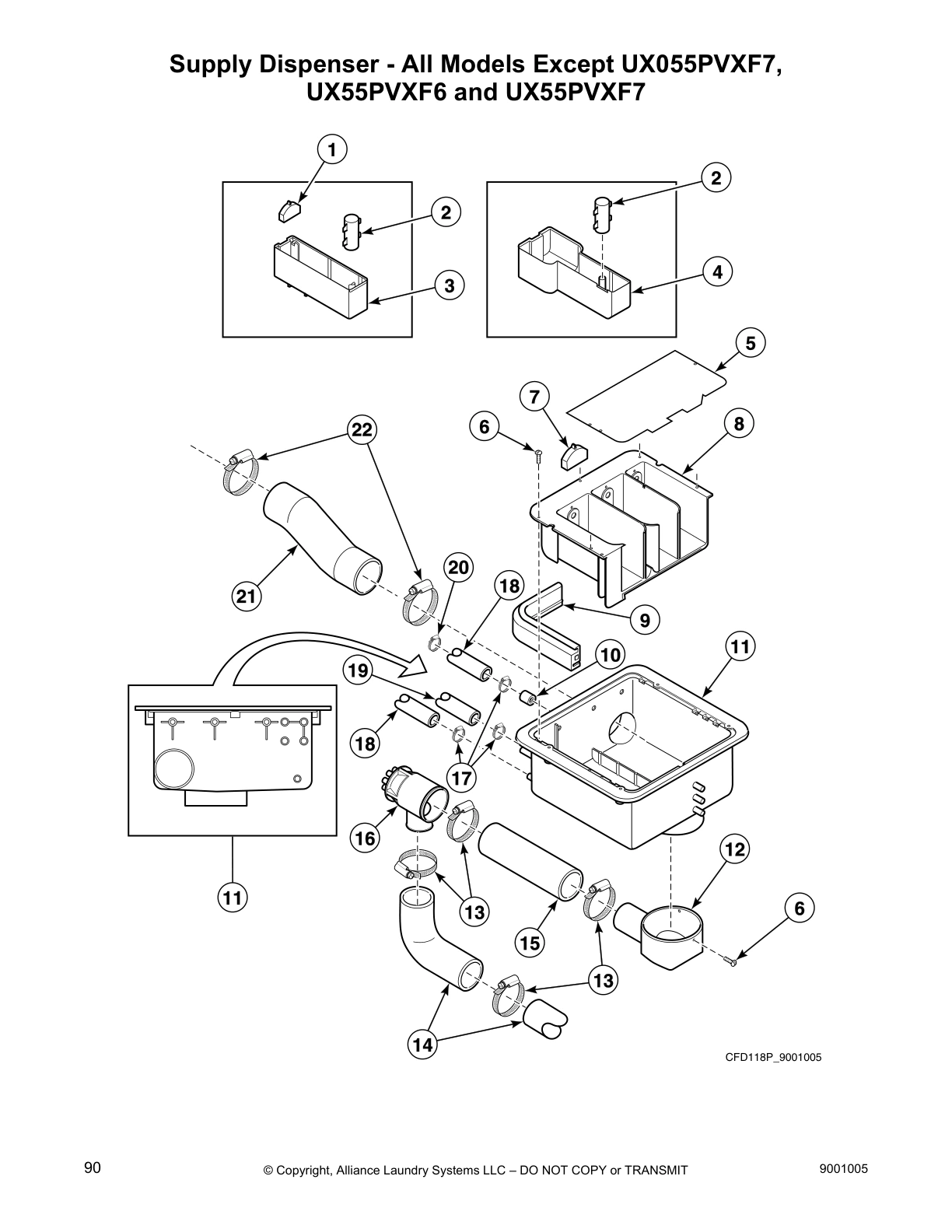

Supply Dispenser - All Models Except UX055PVXF7,
UX55PVXF6 and UX55PVXF7
Electric Heating Option

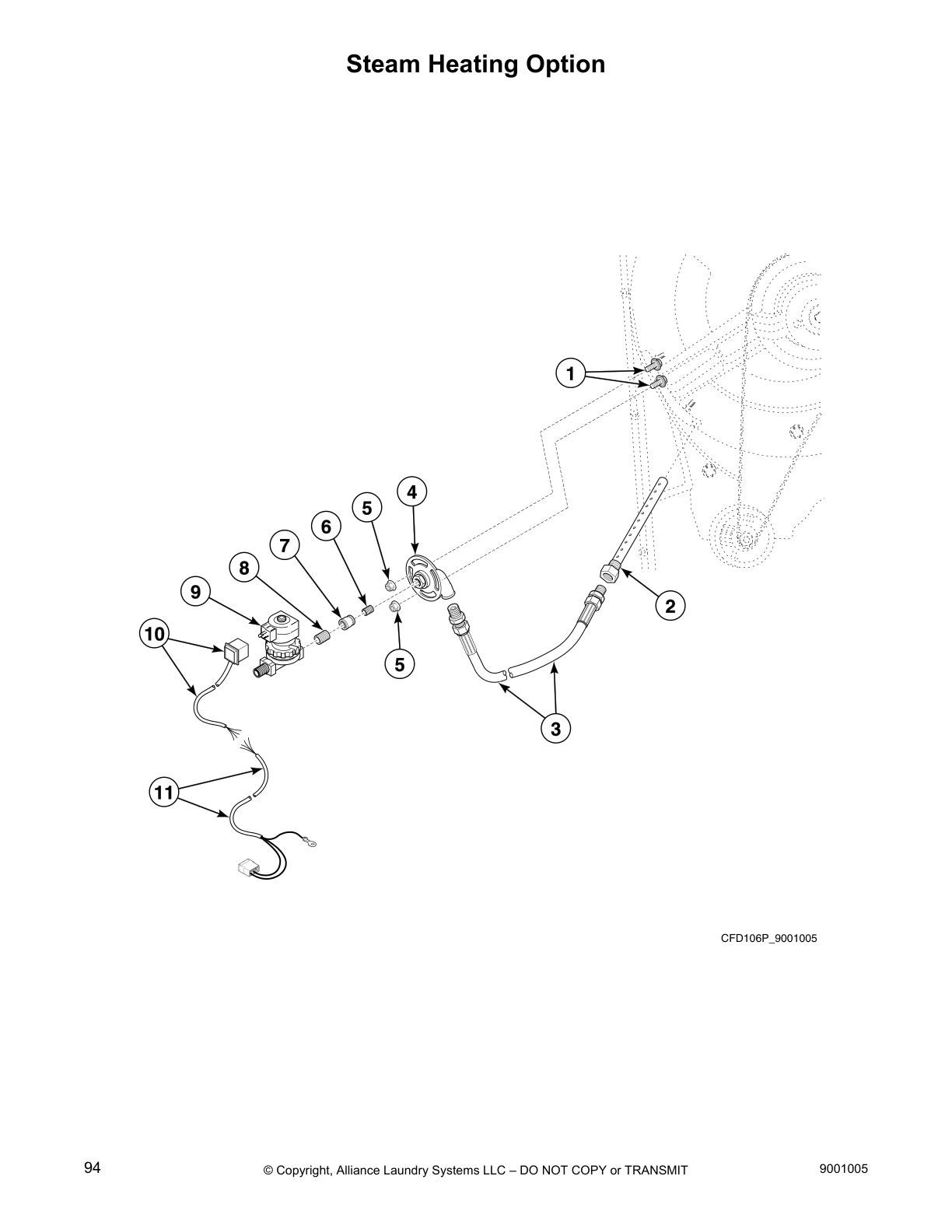

Steam Heating Option
Common parts from model Unimac UX55PVQU6 Washer
SPQ B12382103 SPQ B12382103 Contact Us For Availability
SPQ 111/01150/00 SPQ 111/01150/00 Contact Us For Availability
SPQ 227/00180/00 SPQ 227/00180/00 Contact Us For Availability
1
Nut SPQ 204/00019/00 Contact Us For Availability
1
Tub Front Panel Clip SPQ 217/00008/00 Contact Us For Availability
1
Basket SPQ B12380901 Contact Us For Availability
1
Screw SPQ 206/00158/00 Contact Us For Availability
1
Overflow Hose SPQ 223/00131/00 Contact Us For Availability
1
Fuse SPQ 209/00372/01 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Electrical Component Mounting Pl SPQ 111/10003/40 Contact Us For Availability
1
Bolt SPQ 206/00027/00 Contact Us For Availability
1
Bolt SPQ 206/00136/00 Contact Us For Availability
1
Screw SPQ 207/00018/00 Contact Us For Availability
1
Softener Spray Nozzle SPQ 223/00102/05 Contact Us For Availability
1
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Belt SPQ B12381001 Contact Us For Availability
2
Key SPQ 212/00026/00 Contact Us For Availability
2
Pulleys and Belt Kit SPQ 115/10126/00 Contact Us For Availability
2
Out-of-Balance Switch Bracket SPQ 203/00006/00 Contact Us For Availability
2
Noise Filter SPQ 204/00007/00 Contact Us For Availability
2
Outlet Pipe Plate Assembly SPQ 223/00013/00 Contact Us For Availability
2
Door Handle Latch SPQ 9001474 Contact Us For Availability
2
Nut SPQ 204/00116/00 Contact Us For Availability
2
Outlet Pipe Plate Assembly SPQ 111/10102/00 Contact Us For Availability
2
Rinse Insert SPQ 223/00102/04 Contact Us For Availability
2
Steam Injector SPQ 119/00082/00 Contact Us For Availability
3
Pulley SPQ B12511601 Contact Us For Availability
3
Screw SPQ 253/00022/00 Contact Us For Availability
3
Door Handle Catch SPQ 217/00051/13 Contact Us For Availability
3
Washer SPQ 223/00123/00 Contact Us For Availability
3
Grommet SPQ 111/00197/30 Contact Us For Availability
3
Thermostat Grommet SPQ 225/10004/00 Contact Us For Availability
3
SPQ 111/10101/00 SPQ 111/10101/00 Contact Us For Availability
3
Ground Terminal SPQ 209/00006/01 Contact Us For Availability
3
Soap Dispenser Assembly SPQ 223/00102/03 Contact Us For Availability
4
SPQ 206/00032/00 SPQ 206/00032/00 Contact Us For Availability
4
SPQ 217/00052/04 SPQ 217/00052/04 Contact Us For Availability
4
SPQ 201/00006/00 SPQ 201/00006/00 Contact Us For Availability
4
O-Ring SPQ 118/00124/00 Contact Us For Availability
4
Overlay SPQ 211/00107/00 Contact Us For Availability
4
Parameter Unit Assembly SPQ 209/00287/01 Contact Us For Availability
4
Main Switch Cover SPQ 111/01834/00 Contact Us For Availability
4
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
4
Soap Dispenser Gasket SPQ 223/00102/08 Contact Us For Availability
4
Steam Inlet SPQ 118/01063/00 Contact Us For Availability
5
SPQ 201/00001/00 SPQ 201/00001/00 Contact Us For Availability
5
SPQ B12522101 SPQ B12522101 Contact Us For Availability
5
Bolt SPQ 224/00052/00 Contact Us For Availability
5
SPQ 224/00040/00 SPQ 224/00040/00 Contact Us For Availability
5
SPQ 204/00008/00 SPQ 204/00008/00 Contact Us For Availability
5
SPQ 207/00126/00 SPQ 207/00126/00 Contact Us For Availability
5
Nut SPQ 206/00101/00 Contact Us For Availability
5
Hose Clamp SPQ 140/00021/00 Contact Us For Availability
5
SPQ 204/00005/00 SPQ 204/00005/00 Contact Us For Availability
5
Screw SPQ 111/10004/00 Contact Us For Availability
5
Soap Dispenser Frame SPQ 223/00103/03 Contact Us For Availability
5
SPQ B12355001 SPQ B12355001 Contact Us For Availability
5
Main Switch SPQ 209/00529/00 Contact Us For Availability
5
SPQ F200047800 SPQ F200047800 Contact Us For Availability
6
SPQ 206/00066/00 SPQ 206/00066/00 Contact Us For Availability
6
Bearing and Seal Kit SPQ 201/00201/00 Contact Us For Availability
6
Pulleys and Belt Kit SPQ 239/00013/00 Contact Us For Availability
6
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
6
SPQ 206/00072/00 SPQ 206/00072/00 Contact Us For Availability
6
SPQ 205/00103/00 SPQ 205/00103/00 Contact Us For Availability
6
SPQ 203/00007/00 SPQ 203/00007/00 Contact Us For Availability
6
SPQ 202/00104/00 SPQ 202/00104/00 Contact Us For Availability
6
Noise Suppressor SPQ 209/00356/00 Contact Us For Availability
6
Support Connector SPQ 208/00007/00 Contact Us For Availability
6
Nut SPQ 207/00131/00 Contact Us For Availability
6
Terminal Block SPQ 209/00526/00 Contact Us For Availability
6
Pipe Nipple SPQ 70435601 Contact Us For Availability
7
SPQ 206/00087/00 SPQ 206/00087/00 Contact Us For Availability
7
SPQ 115/00151/00 SPQ 115/00151/00 Contact Us For Availability
7
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
7
SPQ 224/00051/00 SPQ 224/00051/00 Contact Us For Availability
7
SPQ 206/00006/00 SPQ 206/00006/00 Contact Us For Availability
7
SPQ 223/00106/00 SPQ 223/00106/00 Contact Us For Availability
7
SPQ 111/10003/10 SPQ 111/10003/10 Contact Us For Availability
7
SPQ 208/00104/00 SPQ 208/00104/00 Contact Us For Availability
7
SPQ 223/00179/10 SPQ 223/00179/10 Contact Us For Availability
7
Rivet SPQ 209/00530/00 Contact Us For Availability
7
SPQ 223/00102/06 SPQ 223/00102/06 Contact Us For Availability
7
Reducer SPQ F200001100 Contact Us For Availability
8
SPQ 246/00092/00 SPQ 246/00092/00 Contact Us For Availability
8
SPQ 967P3 SPQ 967P3 Contact Us For Availability
8
Washer SPQ 226/00148/00 Contact Us For Availability
8
SPQ 205/00107/00 SPQ 205/00107/00 Contact Us For Availability
8
SPQ 204/00106/00 SPQ 204/00106/00 Contact Us For Availability
8
SPQ 223/00133/00 SPQ 223/00133/00 Contact Us For Availability
8
SPQ 210/10015/00 SPQ 210/10015/00 Contact Us For Availability
8
SPQ 217/00021/00 SPQ 217/00021/00 Contact Us For Availability
8
SPQ F8435601 SPQ F8435601 Contact Us For Availability
8
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
8
Filter SPQ 209/00527/00 Contact Us For Availability
8
SPQ 223/00102/30 SPQ 223/00102/30 Contact Us For Availability
8
Nipple SPQ F200001200 Contact Us For Availability
9
SPQ 206/00071/00 SPQ 206/00071/00 Contact Us For Availability
9
SPQ 217/00002/00 SPQ 217/00002/00 Contact Us For Availability
9
SPQ B12332301 SPQ B12332301 Contact Us For Availability
9
SPQ 206/00130/00 SPQ 206/00130/00 Contact Us For Availability
9
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
9
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
9
SPQ 185/00086/00 SPQ 185/00086/00 Contact Us For Availability
9
SPQ 202/00101/00 SPQ 202/00101/00 Contact Us For Availability
9
SPQ 223/00141/00 SPQ 223/00141/00 Contact Us For Availability
9
SPQ 44018901 SPQ 44018901 Contact Us For Availability
9
SPQ 202/00004/00 SPQ 202/00004/00 Contact Us For Availability
9
SPQ 223/00109/00 SPQ 223/00109/00 Contact Us For Availability
9
DIN Valve Kit SPQ F8521501 Contact Us For Availability
10
Nut SPQ 204/00009/00 Contact Us For Availability
10
Basket Kit SPQ B12543201 Contact Us For Availability
10
Bolt SPQ 205/00104/00 Contact Us For Availability
10
Washer SPQ 203/00001/00 Contact Us For Availability
10
Drain Valve Overflow Plug SPQ 223/00086/00 Contact Us For Availability
10
Switch Base SPQ 209/00099/25 Contact Us For Availability
10
Bushing SPQ 204/00301/00 Contact Us For Availability
10
Washer SPQ 205/00108/00 Contact Us For Availability
10
Filter Bracket SPQ 111/01837/01 Contact Us For Availability
10
Restrictor Assembly SPQ F060334200P Contact Us For Availability
10
Steam Valve Harness SPQ F605220 Contact Us For Availability
11
Bolt SPQ 204/00016/00 Contact Us For Availability
11
Counterweight SPQ 115/00140/00 Contact Us For Availability
11
Retainer Ring SPQ 212/00037/00 Contact Us For Availability
11
Bolt SPQ 206/00004/00 Contact Us For Availability
11
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
11
Door SPQ 131/00004/00 Contact Us For Availability
11
Switch Knob SPQ 209/00099/29 Contact Us For Availability
11
Hose Clamp SPQ 223/00011/00 Contact Us For Availability
11
Water Level Switch SPQ B12548601 Contact Us For Availability
11
Drive SPQ F8421108 Contact Us For Availability
11
Inverter Fan SPQ 203/00005/00 Contact Us For Availability
11
Dispenser Assembly SPQ 223/00102/60 Contact Us For Availability
11
Main Control Heat Harness SPQ 210/01304/03 Contact Us For Availability
12
Suspension Spring SPQ 224/00046/00 Contact Us For Availability
12
Bolt SPQ 206/00009/00 Contact Us For Availability
12
Retainer Ring SPQ 212/00006/00 Contact Us For Availability
12
Bearing SPQ F100134 Contact Us For Availability
12
Washer SPQ 111/00243/00 Contact Us For Availability
12
Contact Block SPQ 44018701 Contact Us For Availability
12
Pressure Switch Cap SPQ 223/00035/02 Contact Us For Availability
12
Washer SPQ 202/00110/00 Contact Us For Availability
12
Inverter Kit SPQ F8421107 Contact Us For Availability
12
Dispenser Drain Funnel SPQ 223/00196/00 Contact Us For Availability
13
Washer SPQ 201/00010/00 Contact Us For Availability
13
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
13
Pushbutton SPQ 44018801 Contact Us For Availability
13
Screw SPQ 208/00121/00 Contact Us For Availability
13
Screw SPQ 223/00044/00 Contact Us For Availability
13
Grommet SPQ 227/00125/05 Contact Us For Availability
13
Inverter Kit SPQ F8421106 Contact Us For Availability
14
Washer SPQ B12456301 Contact Us For Availability
14
Nut SPQ 204/00111/00 Contact Us For Availability
14
Out-of-Balance Switch Boot SPQ 203/00003/00 Contact Us For Availability
14
Screw SPQ 207/00009/00 Contact Us For Availability
14
Hose Barb SPQ 223/00016/00 Contact Us For Availability
14
Kickplate SPQ 208/00125/00 Contact Us For Availability
14
Nut SPQ F8421105 Contact Us For Availability
15
Threaded Rod SPQ B12418401 Contact Us For Availability
15
Bolt SPQ 206/00003/00 Contact Us For Availability
15
Motor Plate SPQ 204/00115/00 Contact Us For Availability
15
Standoff SPQ 9001329 Contact Us For Availability
15
Drain Valve SPQ 202/00002/00 Contact Us For Availability
15
Tilt Detector Plate SPQ 204/00004/00 Contact Us For Availability
15
Microswitch SPQ 201/00018/00 Contact Us For Availability
15
Programming Key Contact Switch SPQ 209/00326/20 Contact Us For Availability
15
Electrical Component Plate SPQ 111/10004/10 Contact Us For Availability
15
Nut SPQ 207/00101/00 Contact Us For Availability
15
Washer SPQ F8421007 Contact Us For Availability
15
Noise Filter SPQ 223/00174/00 Contact Us For Availability
15
Siphon Break Dispenser Hose SPQ 223/00263/00 Contact Us For Availability
16
Bearing Housing Assembly SPQ 139/10006/00 Contact Us For Availability
16
Outlet Pipe Plate Assembly SPQ 111/32943/00 Contact Us For Availability
16
Connector SPQ 209/00058/00 Contact Us For Availability
16
Filter SPQ 227/00242/00 Contact Us For Availability
16
Grommet SPQ F8421005 Contact Us For Availability
16
Out-of-Balance Switch SPQ 223/00246/00 Contact Us For Availability
17
Tub Mount Rings Bracket SPQ 115/00125/00 Contact Us For Availability
17
Exhaust Valve Hose SPQ 253/00006/00 Contact Us For Availability
17
Spacer SPQ 211/00140/00 Contact Us For Availability
17
Water Hose SPQ F200205 Contact Us For Availability
17
Washer SPQ 211/00120/00 Contact Us For Availability
17
Noise Filter SPQ F8421008 Contact Us For Availability
17
Tilt Switch Bracket SPQ B12485001 Contact Us For Availability
18
Tub Tightening Ring SPQ 115/00162/00 Contact Us For Availability
18
Nut SPQ 223/00170/00 Contact Us For Availability
18
Dispenser Rear Mounting Plate SPQ 111/32951/50 Contact Us For Availability
18
Screw SPQ F8421006 Contact Us For Availability
18
Soap Dispenser Rinse Siphon SPQ 9001499 Contact Us For Availability
19
Tub Front Mounting Strap SPQ 115/00161/00 Contact Us For Availability
19
Door Lock Solenoid SPQ 217/00017/03 Contact Us For Availability
19
Programming Cable SPQ B12388303 Contact Us For Availability
19
Bolt SPQ F0637762-00 Contact Us For Availability
19
SPQ 206/00042/00 SPQ 206/00042/00 Contact Us For Availability
19
Vent Hose SPQ 223/00059/00 Contact Us For Availability
19
Ground Terminal SPQ 209/00996/00 Contact Us For Availability
20
Tub SPQ 206/00111/00 Contact Us For Availability
20
Interlock Coil Spring SPQ C000184P Contact Us For Availability
20
Door Hinge Spacer SPQ B12449801 Contact Us For Availability
21
SPQ 204/00109/00 SPQ 204/00109/00 Contact Us For Availability
21
Door Lock Spacer SPQ 224/00049/00 Contact Us For Availability
21
Insulating Sticker SPQ 229/00255/00 Contact Us For Availability
21
Grommet SPQ 209/00468/00 Contact Us For Availability
21
Supply Deflector SPQ 223/00107/06 Contact Us For Availability
22
Tub Clamp Ring SPQ B12330301 Contact Us For Availability
22
Fan Grill SPQ 204/00114/00 Contact Us For Availability
22
Main Control SPQ 209/00580/00 Contact Us For Availability
22
Soap Spray Nozzle SPQ 223/00014/00 Contact Us For Availability
22
Electrical Connection Plate SPQ 209/00202/01 Contact Us For Availability
23
Basket SPQ B12330101 Contact Us For Availability
23
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
23
Interlock Lever SPQ 224/00043/00 Contact Us For Availability
23
Circuit Board Cover SPQ 229/00289/00 Contact Us For Availability
23
Rivet SPQ 223/00198/00 Contact Us For Availability
23
Voltage Discharge Decal SPQ 210/01304/15 Contact Us For Availability
24
Basket Kit SPQ B12330201 Contact Us For Availability
24
SPQ 101/00007/00 SPQ 101/00007/00 Contact Us For Availability
24
Lever Spring SPQ 9001477 Contact Us For Availability
24
Cordlock SPQ 111/00094/10 Contact Us For Availability
24
AC Drive Filter SPQ 227/00165/00 Contact Us For Availability
25
Spacer SPQ 137/00008/00 Contact Us For Availability
25
Ground Terminal SPQ 202/00124/00 Contact Us For Availability
26
Gasket SPQ 238/00011/00 Contact Us For Availability
26
SPQ 207/00032/00 SPQ 207/00032/00 Contact Us For Availability
26
Prewash and Mainwash Nozzle SPQ 211/00123/00 Contact Us For Availability
26
Pressure Hose SPQ 209/00406/00 Contact Us For Availability
27
Filter SPQ 211/00138/00 Contact Us For Availability
28
Water Valve Adapter SPQ 204/00201/00 Contact Us For Availability
28
Voltage Discharge Decal SPQ 207/00004/00 Contact Us For Availability
29
Nut SPQ 204/00113/00 Contact Us For Availability
29
Hose Vent SPQ 201/00002/00 Contact Us For Availability
30
SPQ 201/00007/00 SPQ 201/00007/00 Contact Us For Availability
31
Flow Restrictor SPQ 223/00001/04 Contact Us For Availability
32
SPQ 205/00113/00 SPQ 205/00113/00 Contact Us For Availability
34
SPQ 209/00385/01 SPQ 209/00385/01 Contact Us For Availability
35
SPQ 209/00385/00 SPQ 209/00385/00 Contact Us For Availability
36
SPQ 223/00050/01 SPQ 223/00050/01 Contact Us For Availability
38
SPQ F200166 SPQ F200166 Contact Us For Availability
39
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ B12419101 SPQ B12419101 Contact Us For Availability
NI
SPQ 208/00122/00 SPQ 208/00122/00 Contact Us For Availability
NI
SPQ 229/00281/00 SPQ 229/00281/00 Contact Us For Availability
NI
SPQ 219/00001/00 SPQ 219/00001/00 Contact Us For Availability
NI
SPQ 891P3 SPQ 891P3 Contact Us For Availability
NI
SPQ B12333701 SPQ B12333701 Contact Us For Availability
NI
SPQ 3884P SPQ 3884P Contact Us For Availability
NI
SPQ 381P3 SPQ 381P3 Contact Us For Availability
NI
SPQ B12510901 SPQ B12510901 Contact Us For Availability
NI
SPQ 900/00261/UL00 SPQ 900/00261/UL00 Contact Us For Availability
NI
SPQ 831P3 SPQ 831P3 Contact Us For Availability
NI
SPQ 208/00017/00 SPQ 208/00017/00 Contact Us For Availability
NI
SPQ F200052400 SPQ F200052400 Contact Us For Availability
NI
SPQ 223/00390/00 SPQ 223/00390/00 Contact Us For Availability
NI
SPQ 227/00179/00 SPQ 227/00179/00 Contact Us For Availability
NI
SPQ B12350903 SPQ B12350903 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
SPQ 227/00178/00 SPQ 227/00178/00 Contact Us For Availability
NI
Steam Kit SPQ 808P3 Contact Us For Availability
× ![]()
