Model Unimac UX100PVNU7 Washer – Common Parts & Diagrams
Frame
Shock and Spring Assembly

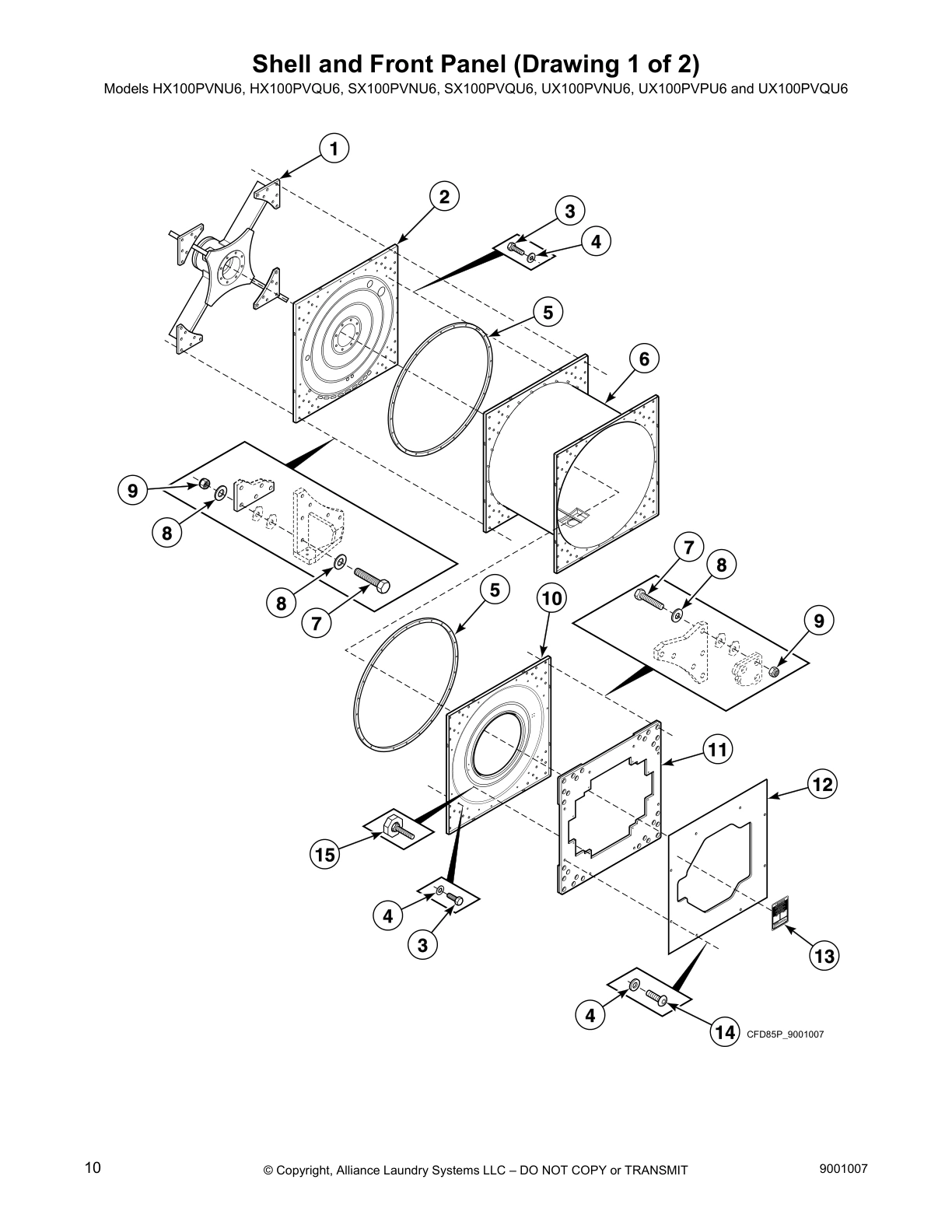

Shell and Front Panel (Drawing 1 of 2)

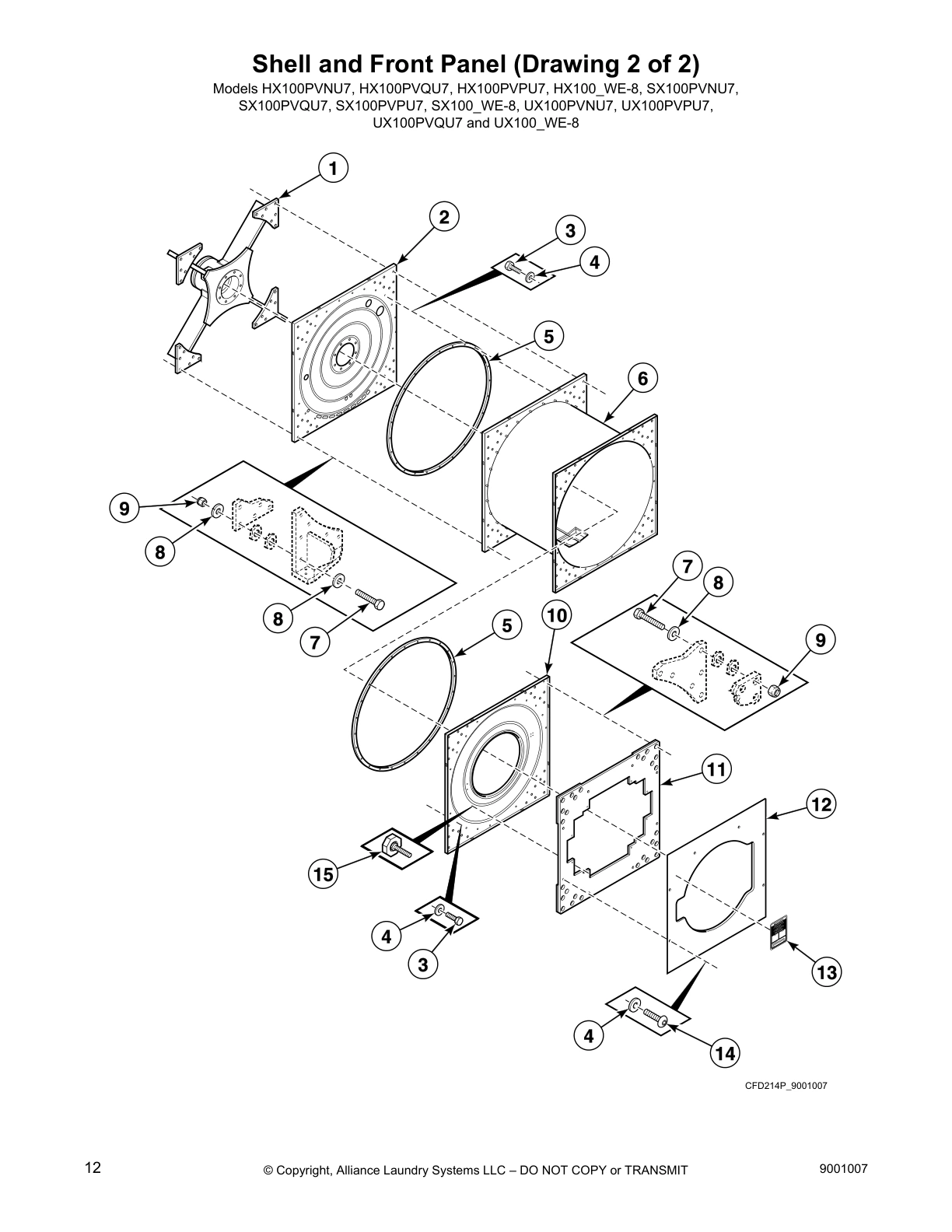

Shell and Front Panel (Drawing 2 of 2)

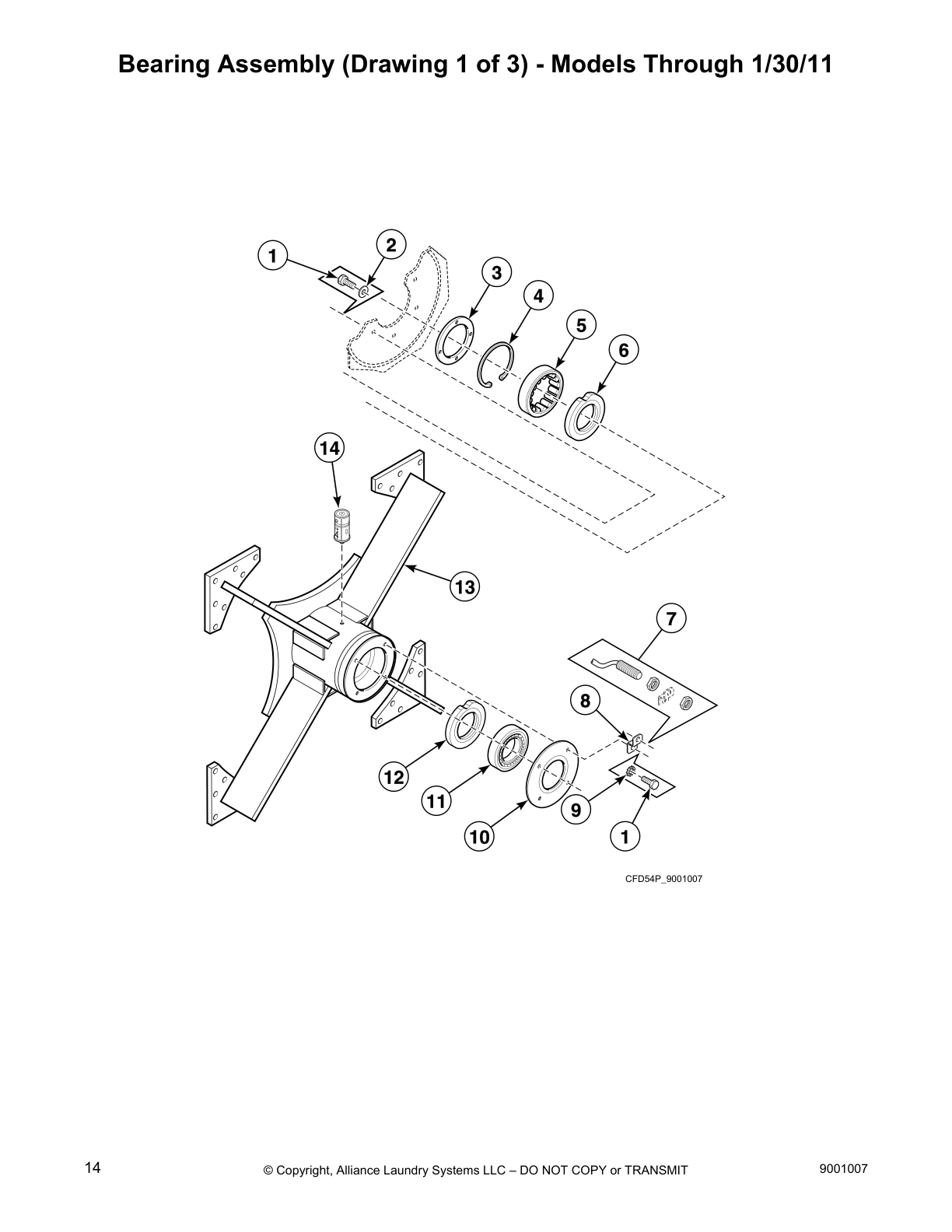

Bearing Assembly (Drawing 1 of 3) - Models Through 1/30/11

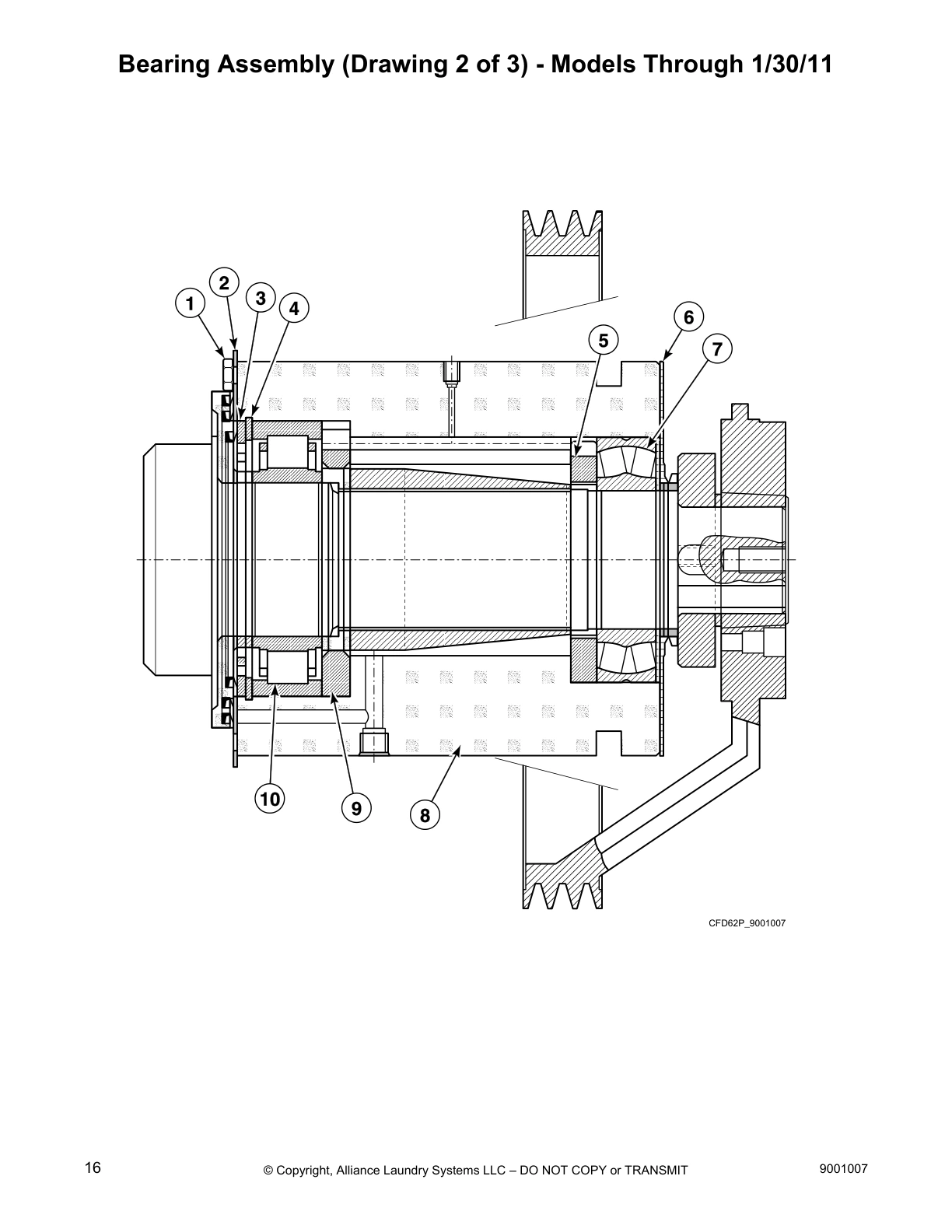

Bearing Assembly (Drawing 2 of 3) - Models Through 1/30/11

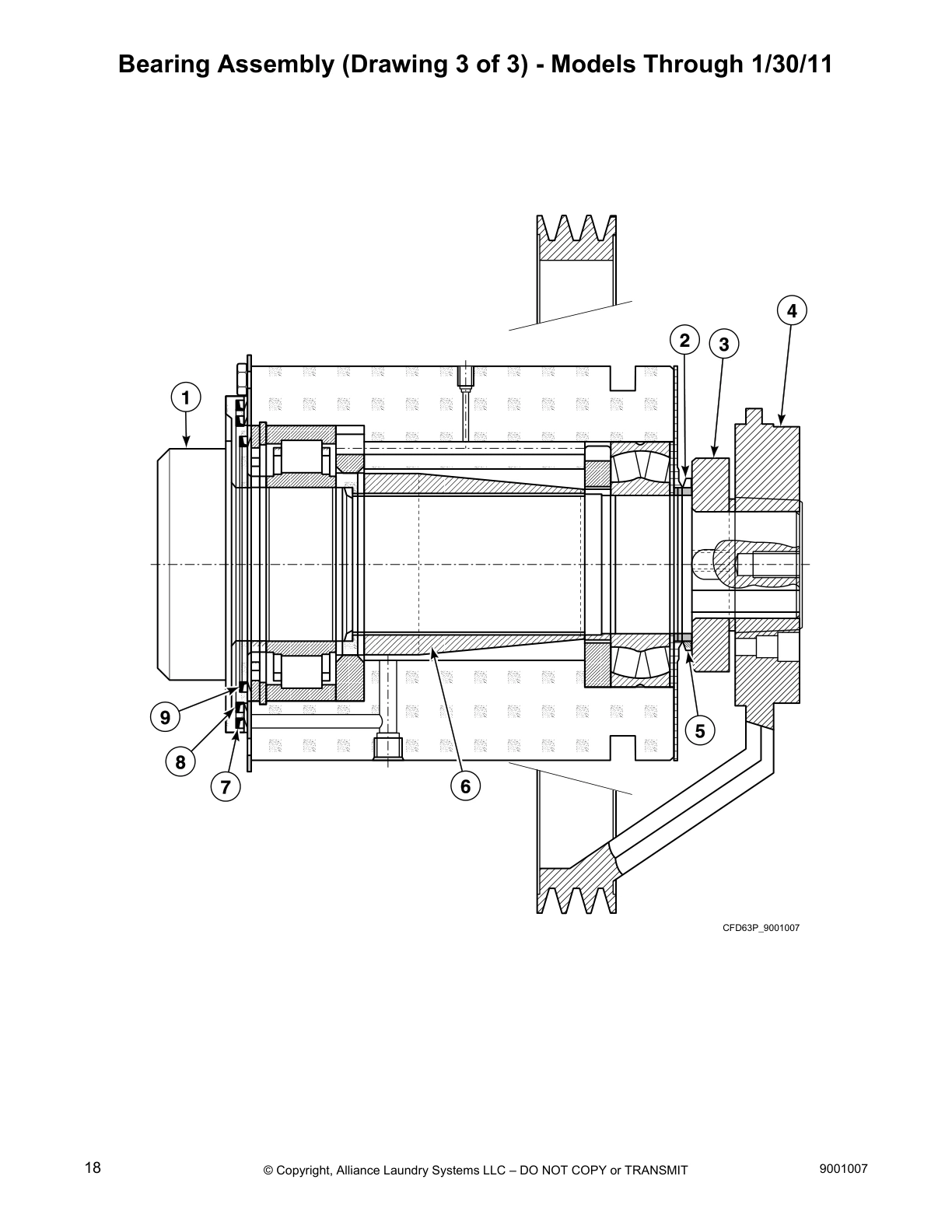

Bearing Assembly (Drawing 3 of 3) - Models Through 1/30/11

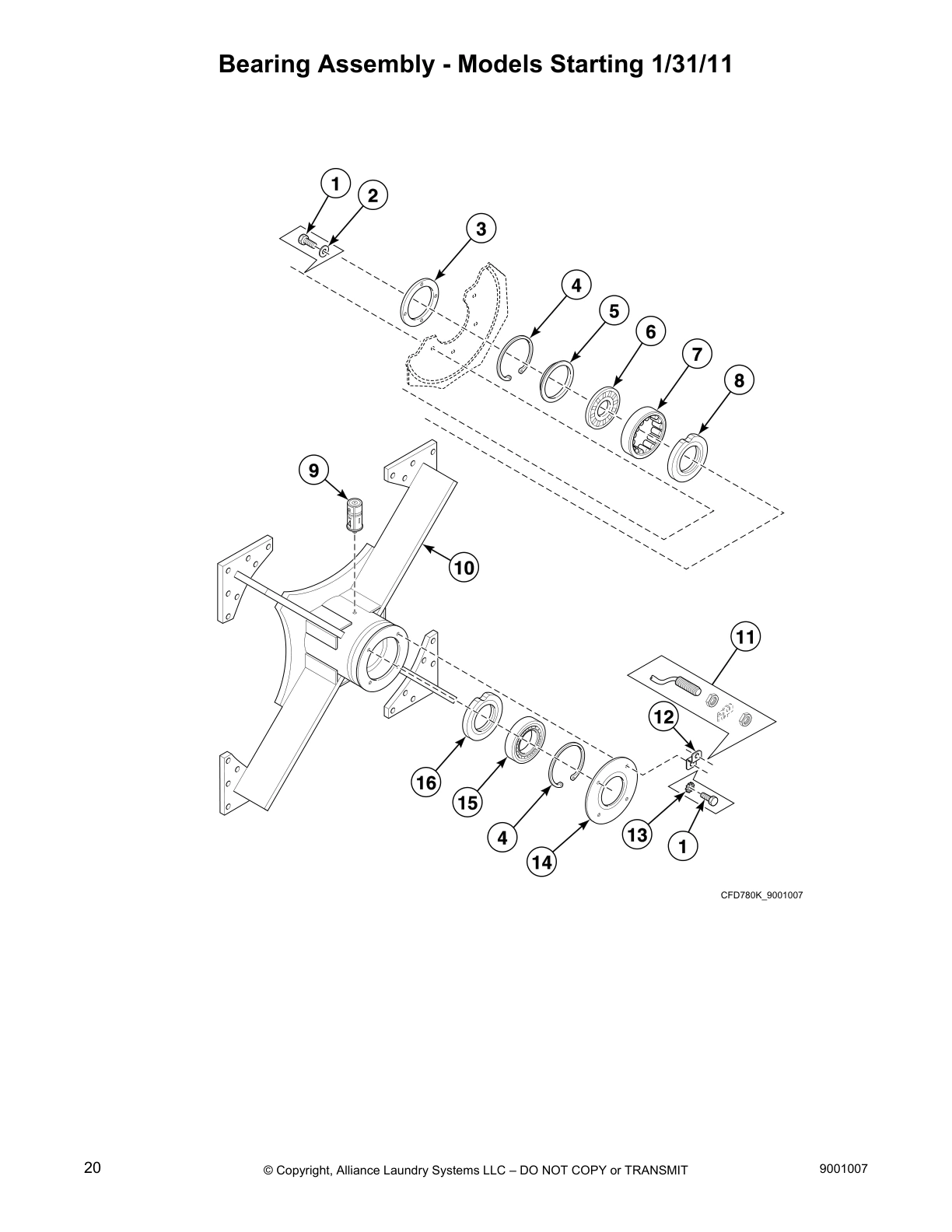

Bearing Assembly - Models Starting 1/31/11

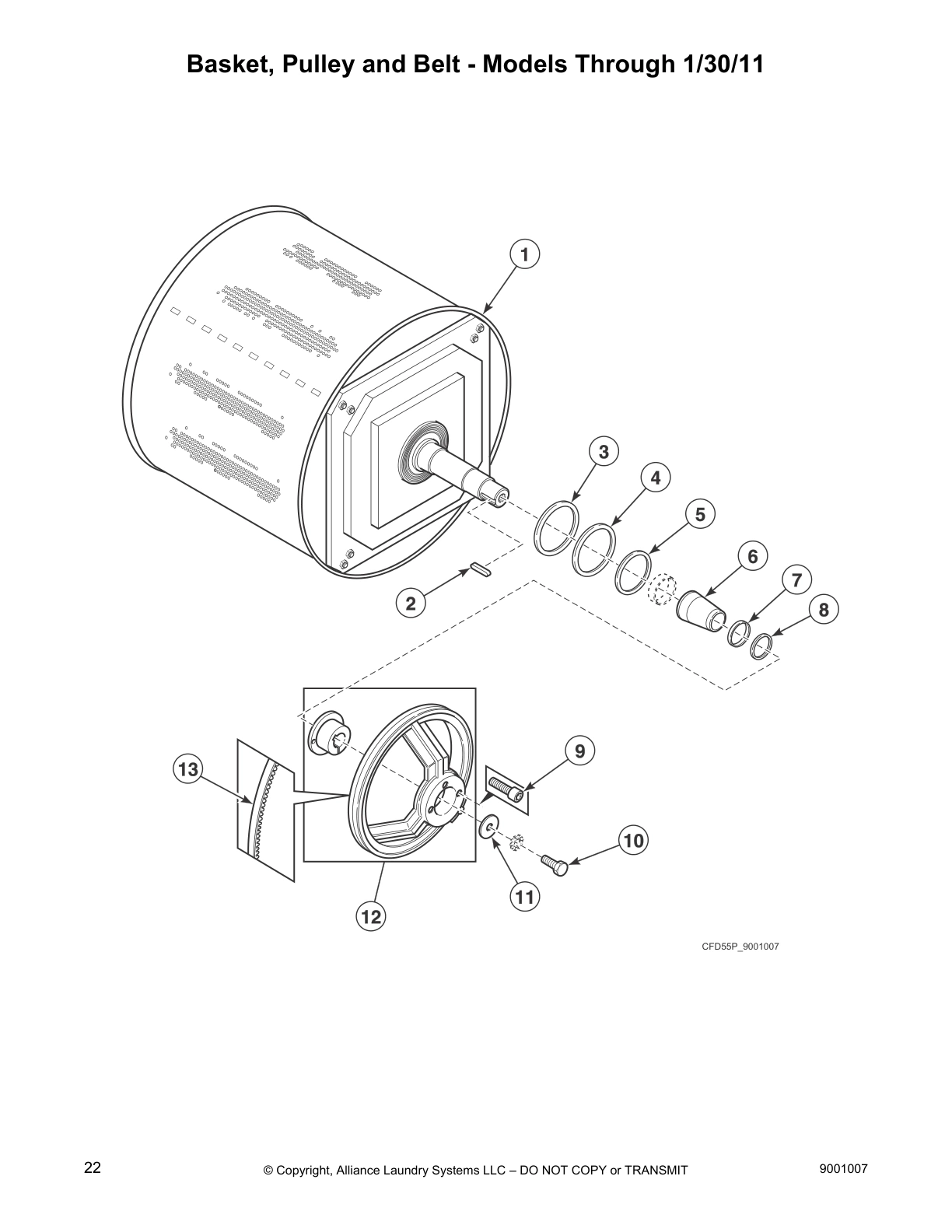

Basket, Pulley and Belt - Models Through 1/30/11

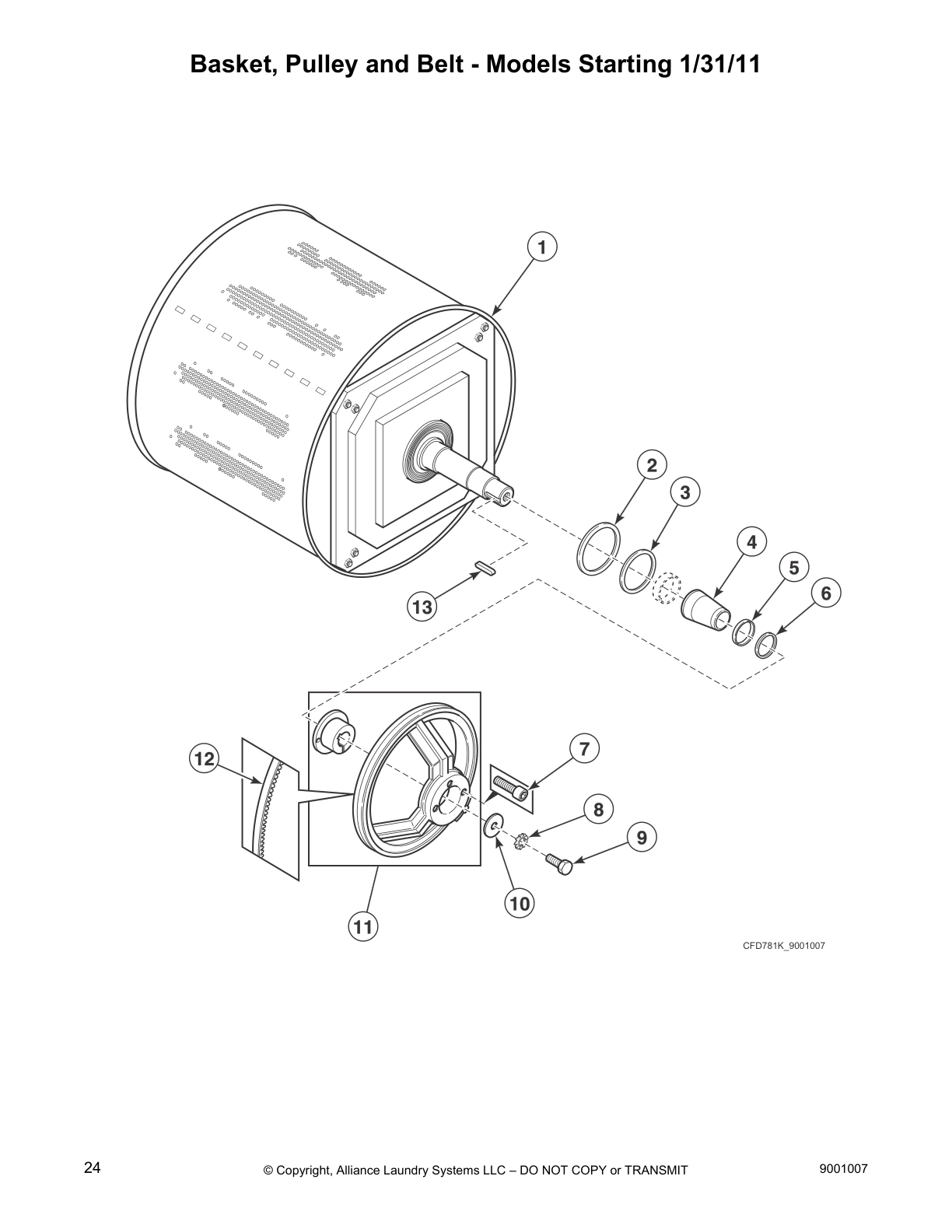

Basket, Pulley and Belt - Models Starting 1/31/11

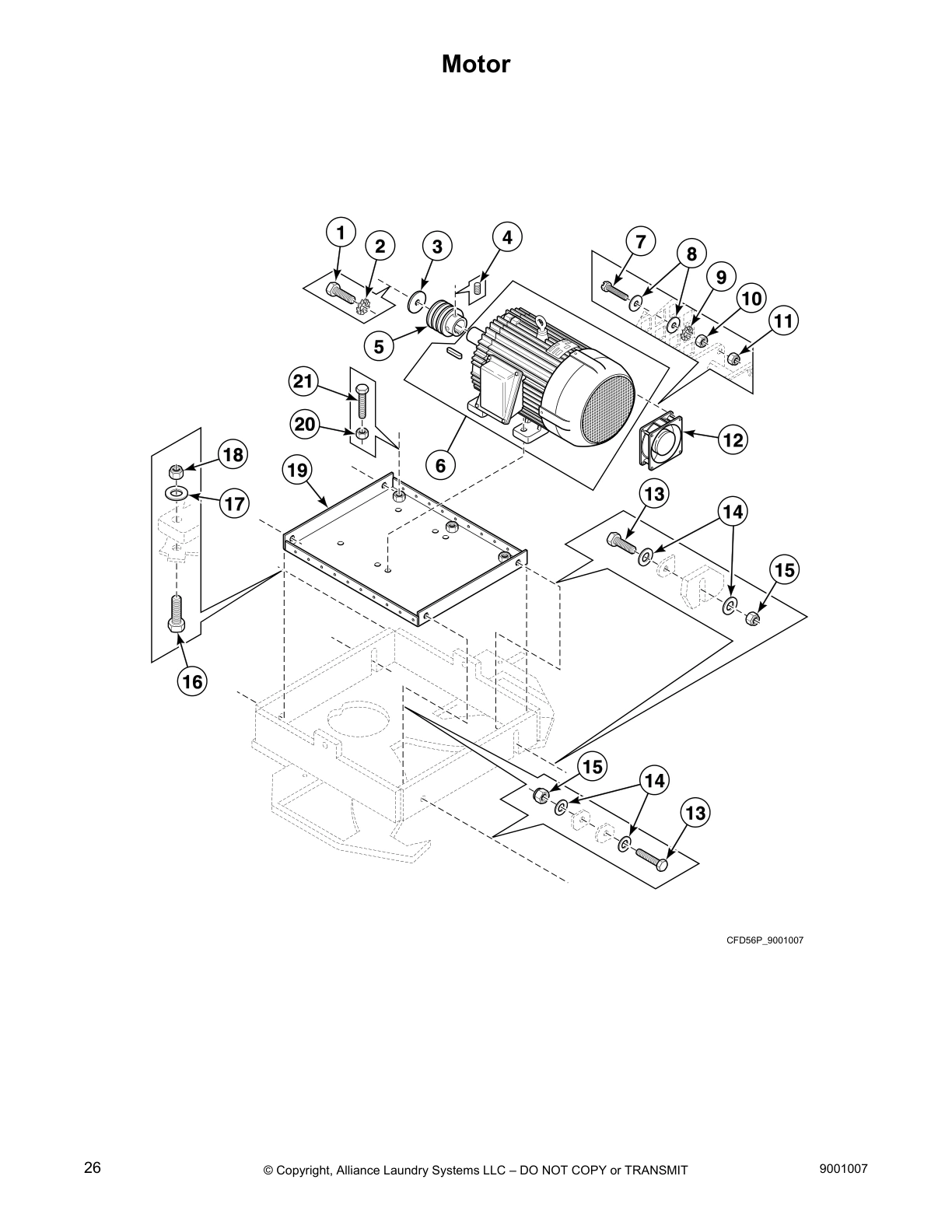

Motor

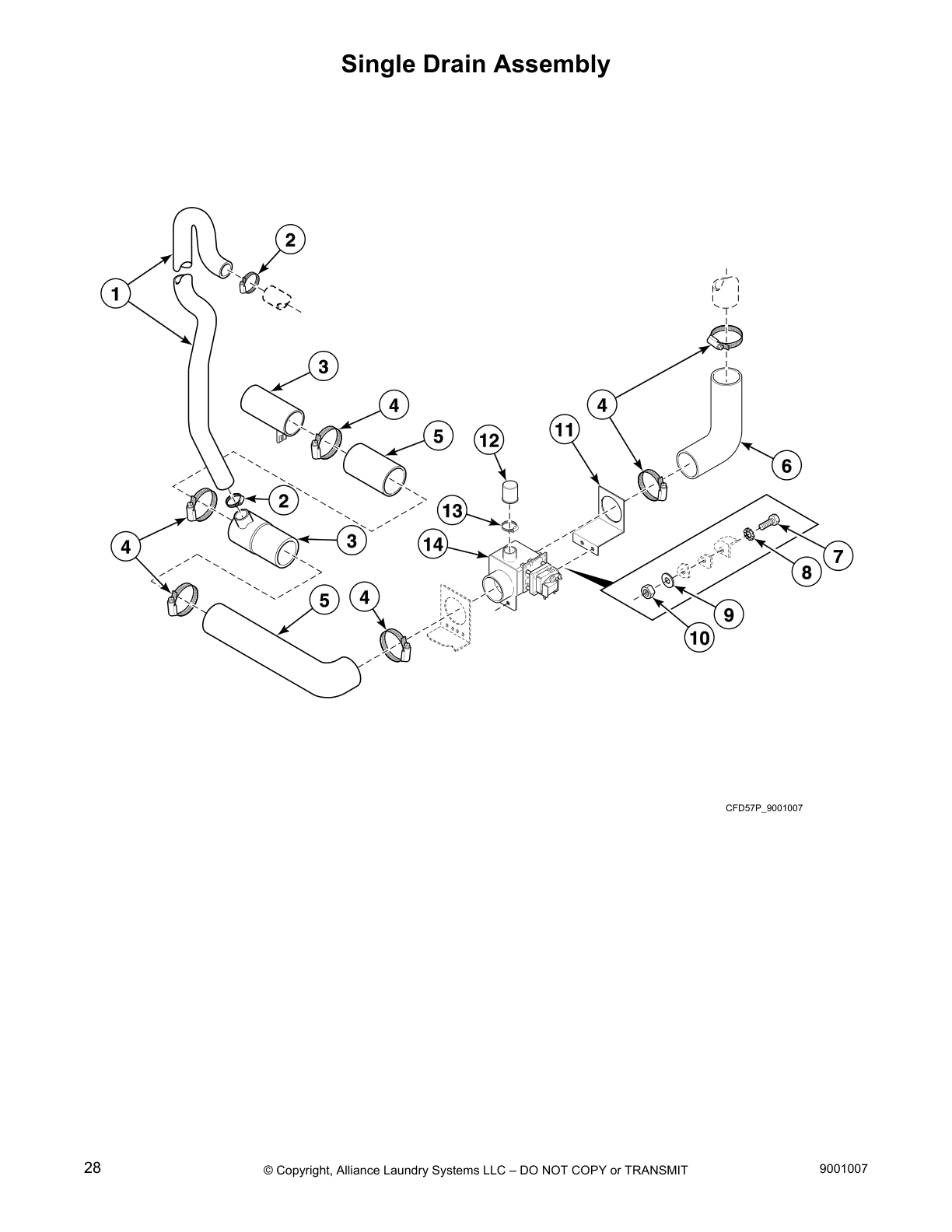

Single Drain Assembly

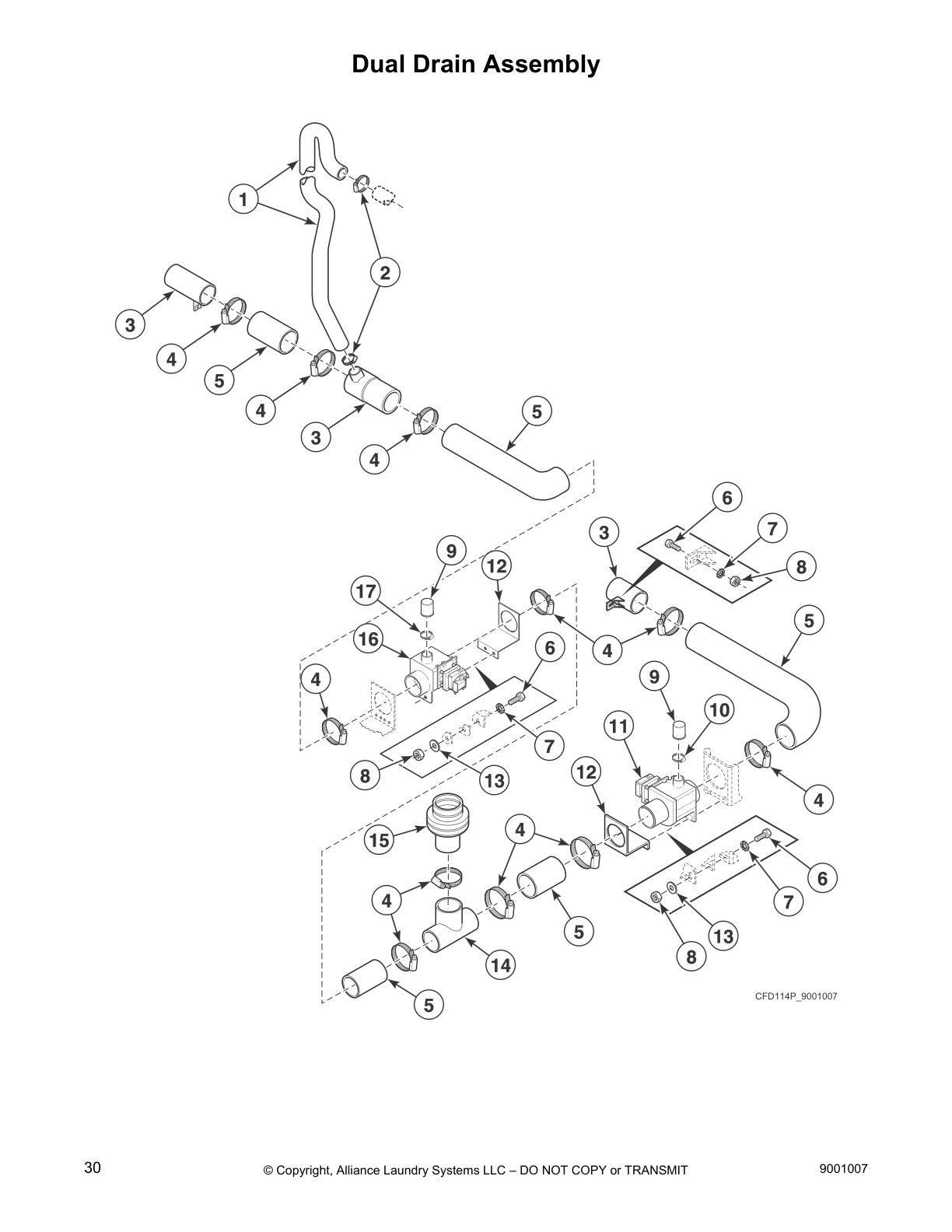

Dual Drain Assembly

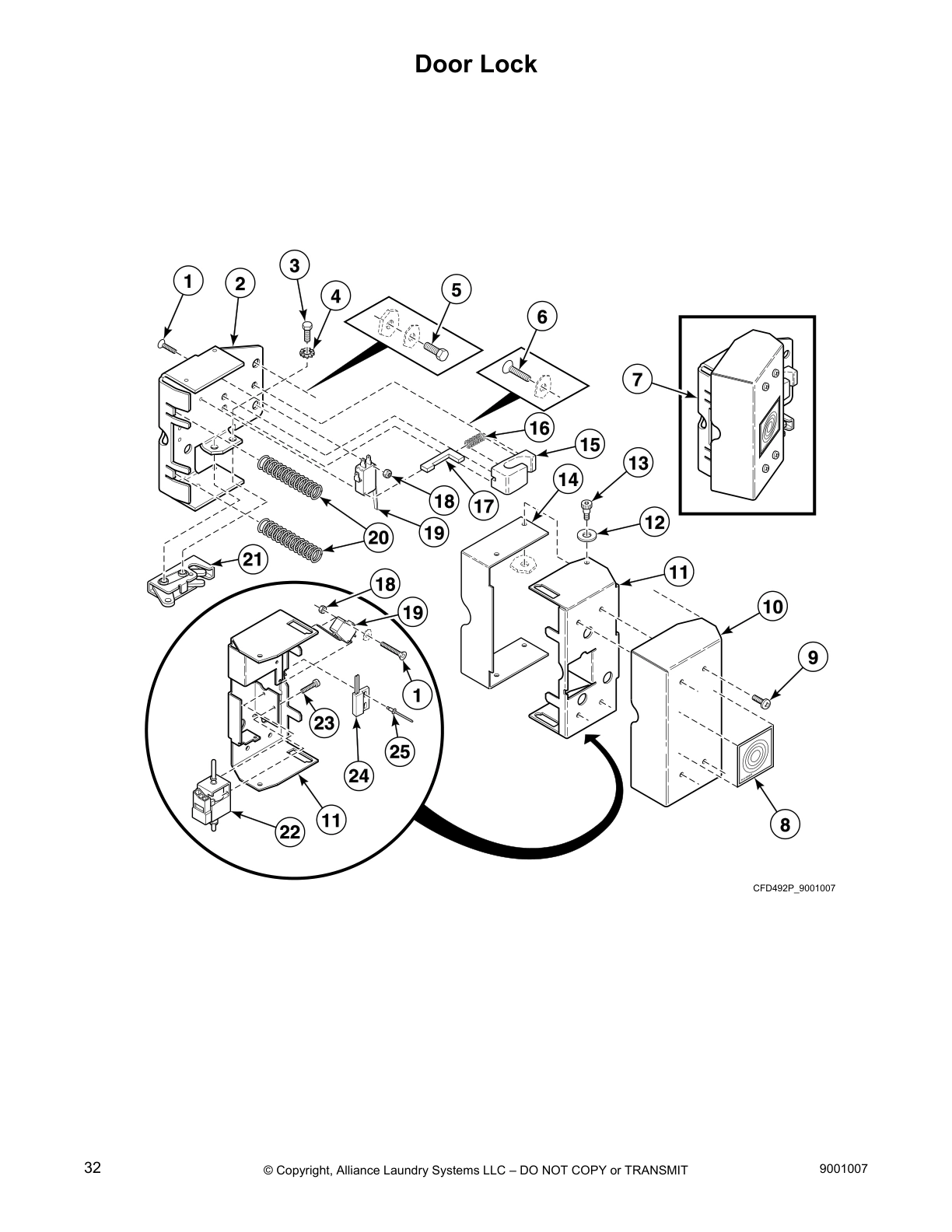

Door Lock

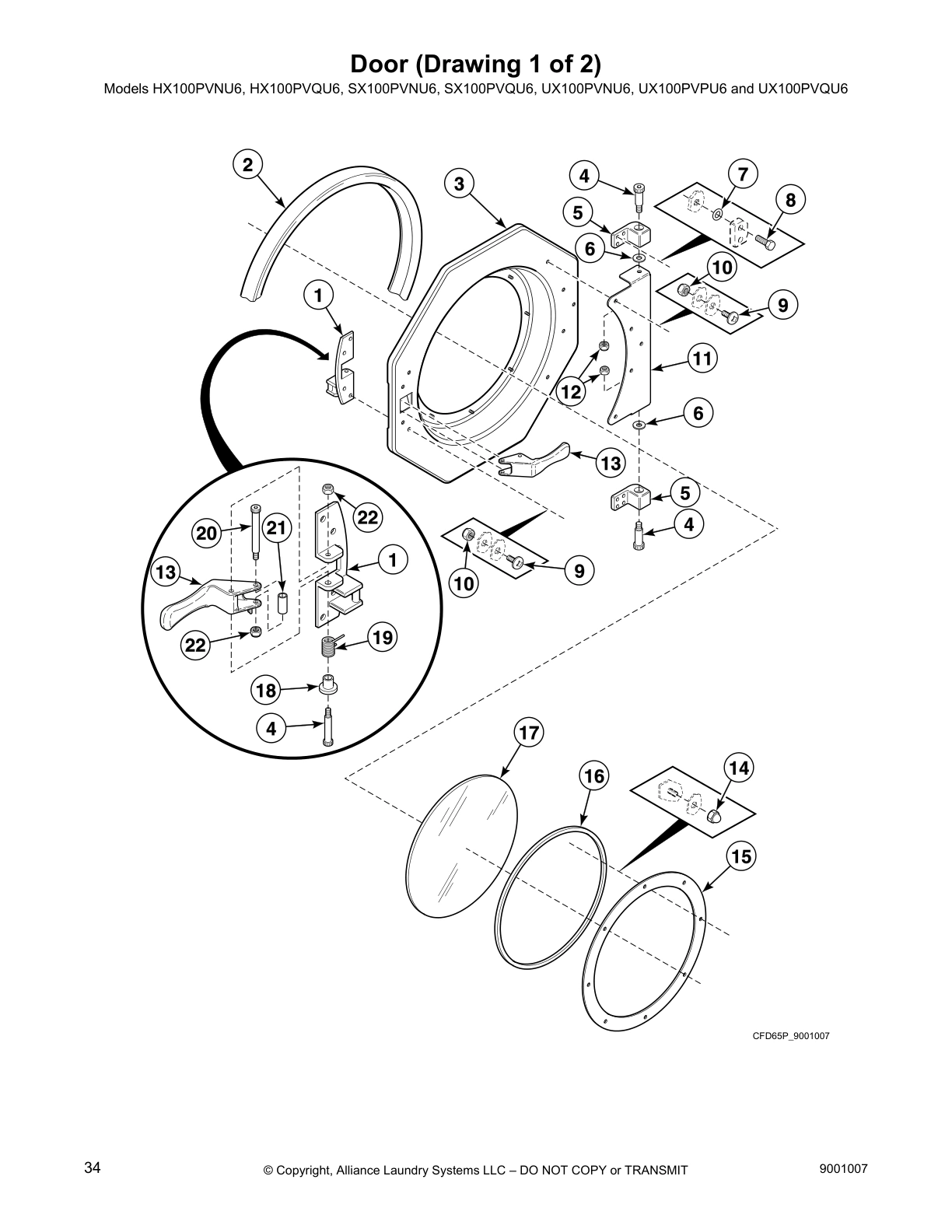

Door (Drawing 1 of 2)

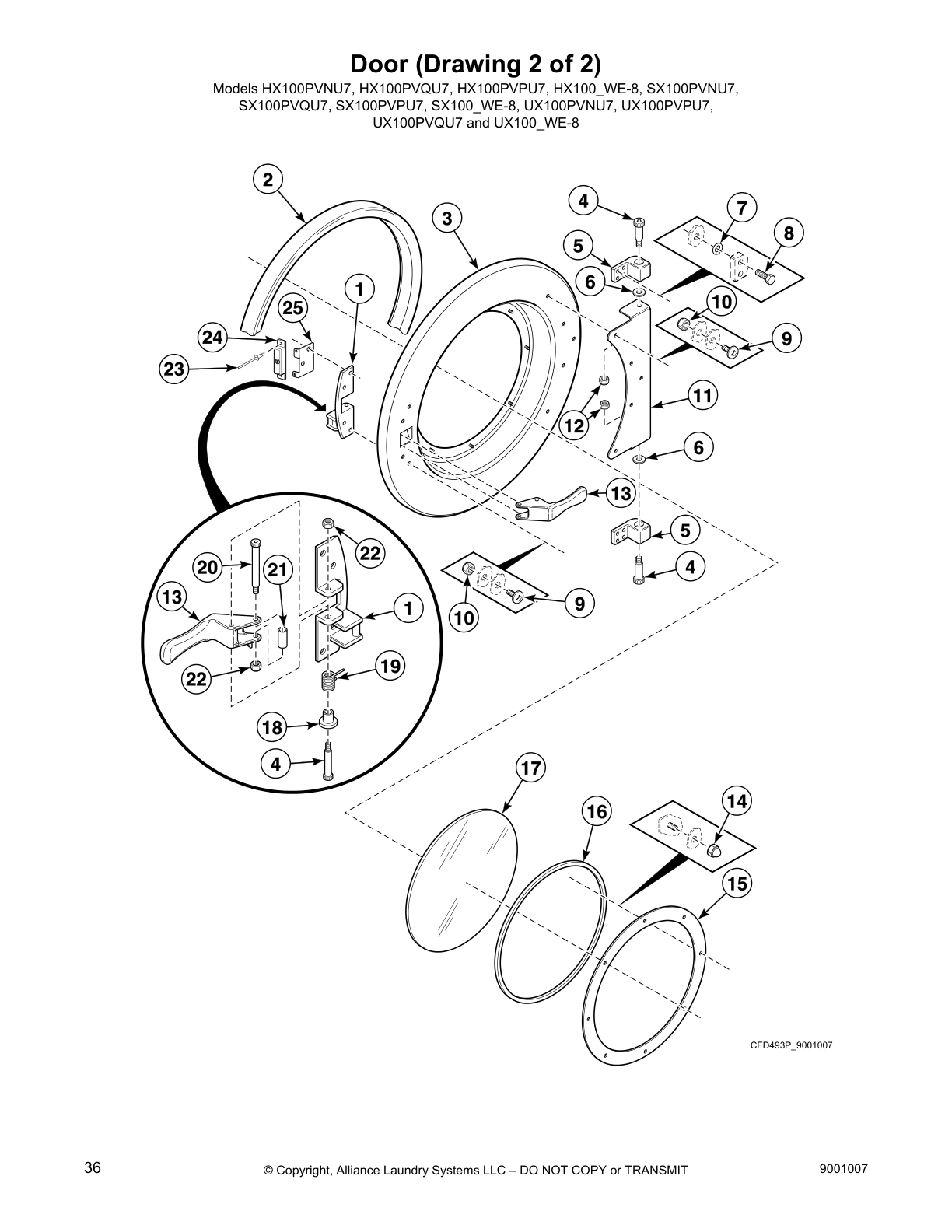

Door (Drawing 2 of 2)

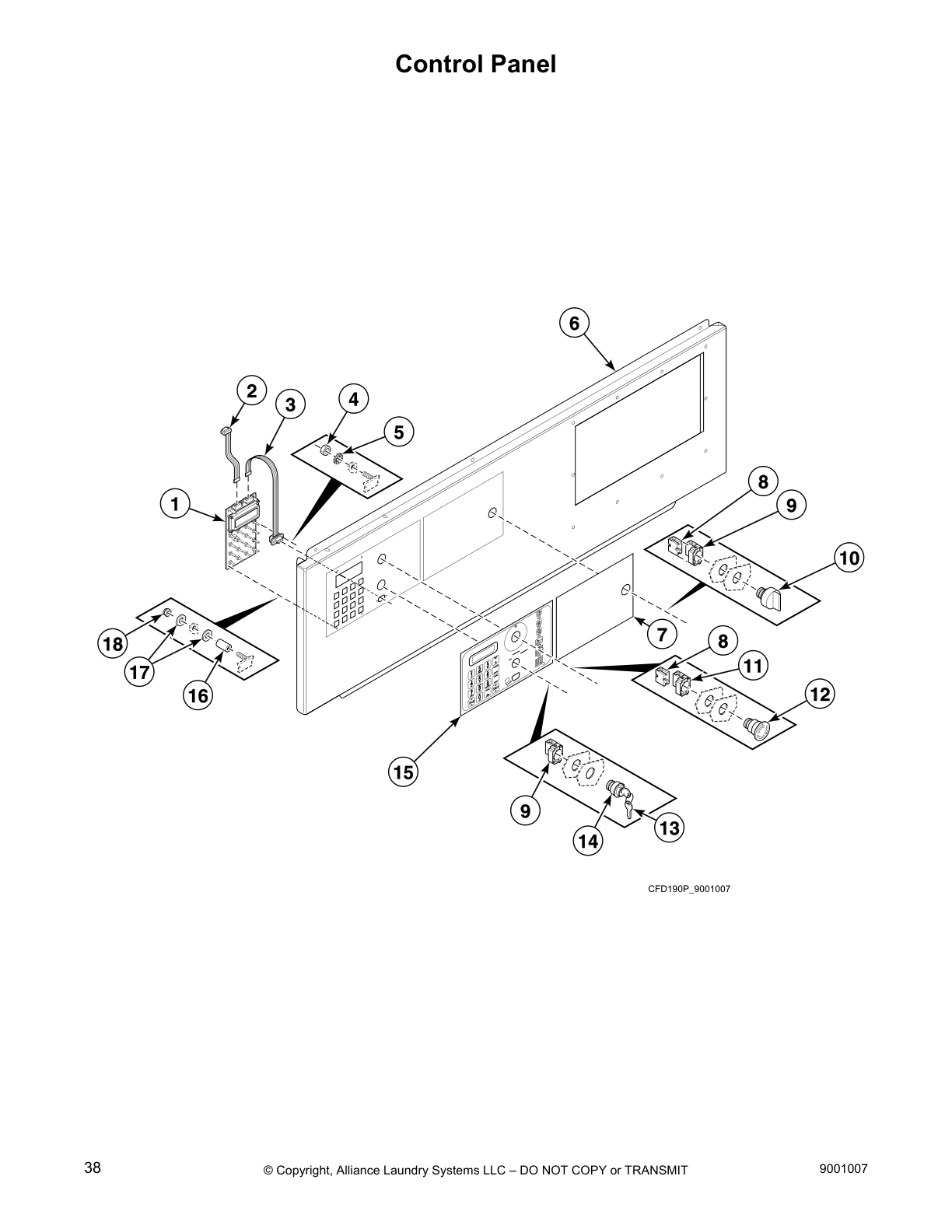

Control Panel

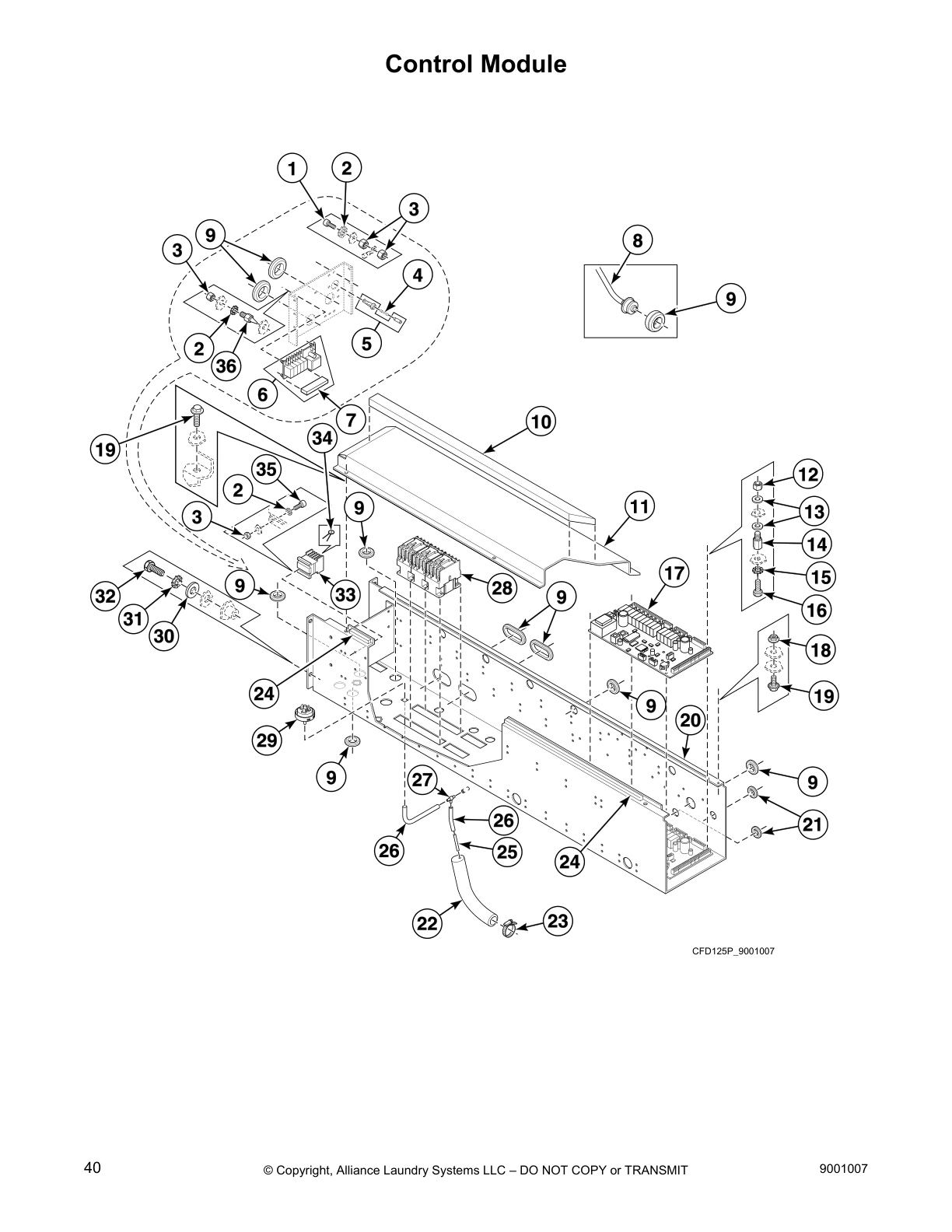

Control Module

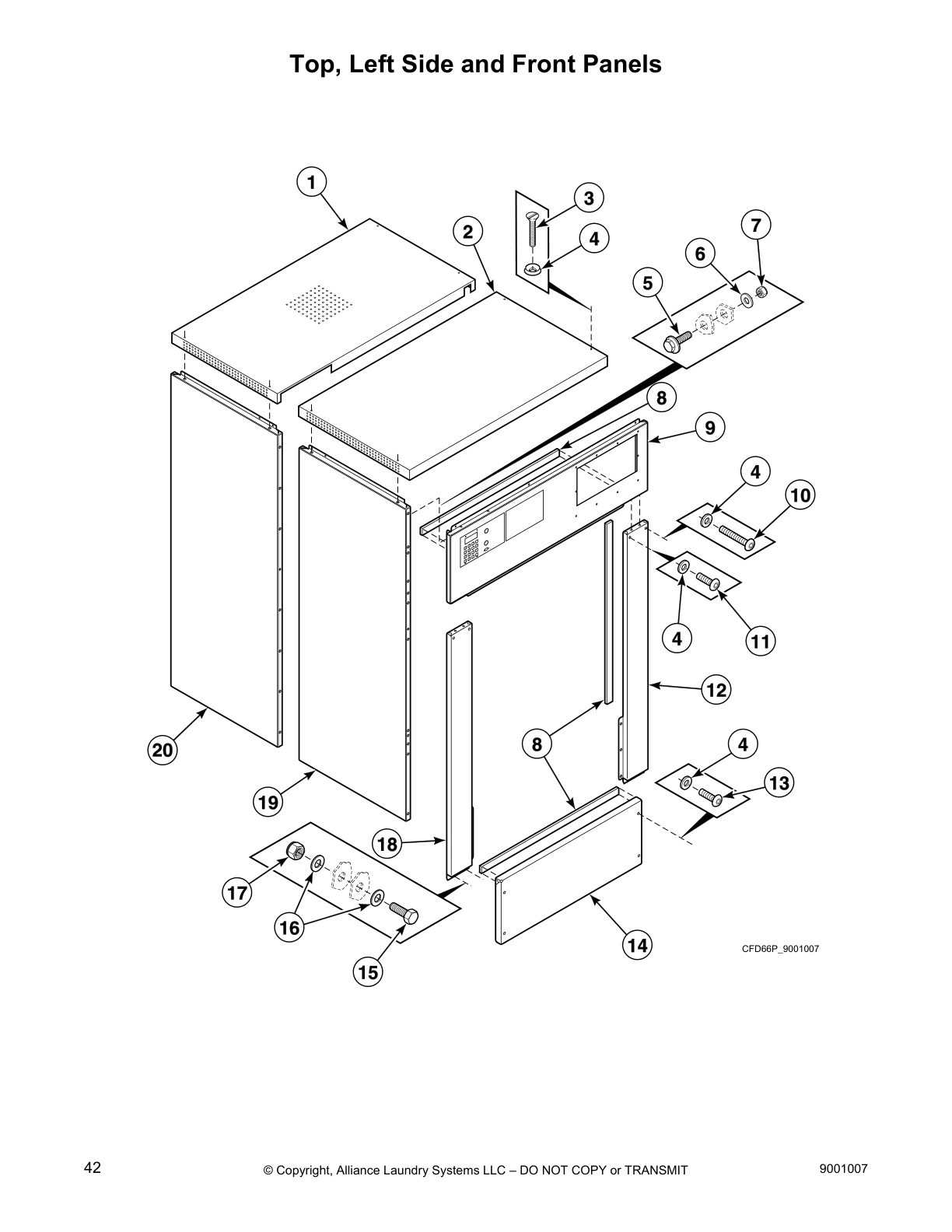

Top, Left Side and Front Panels

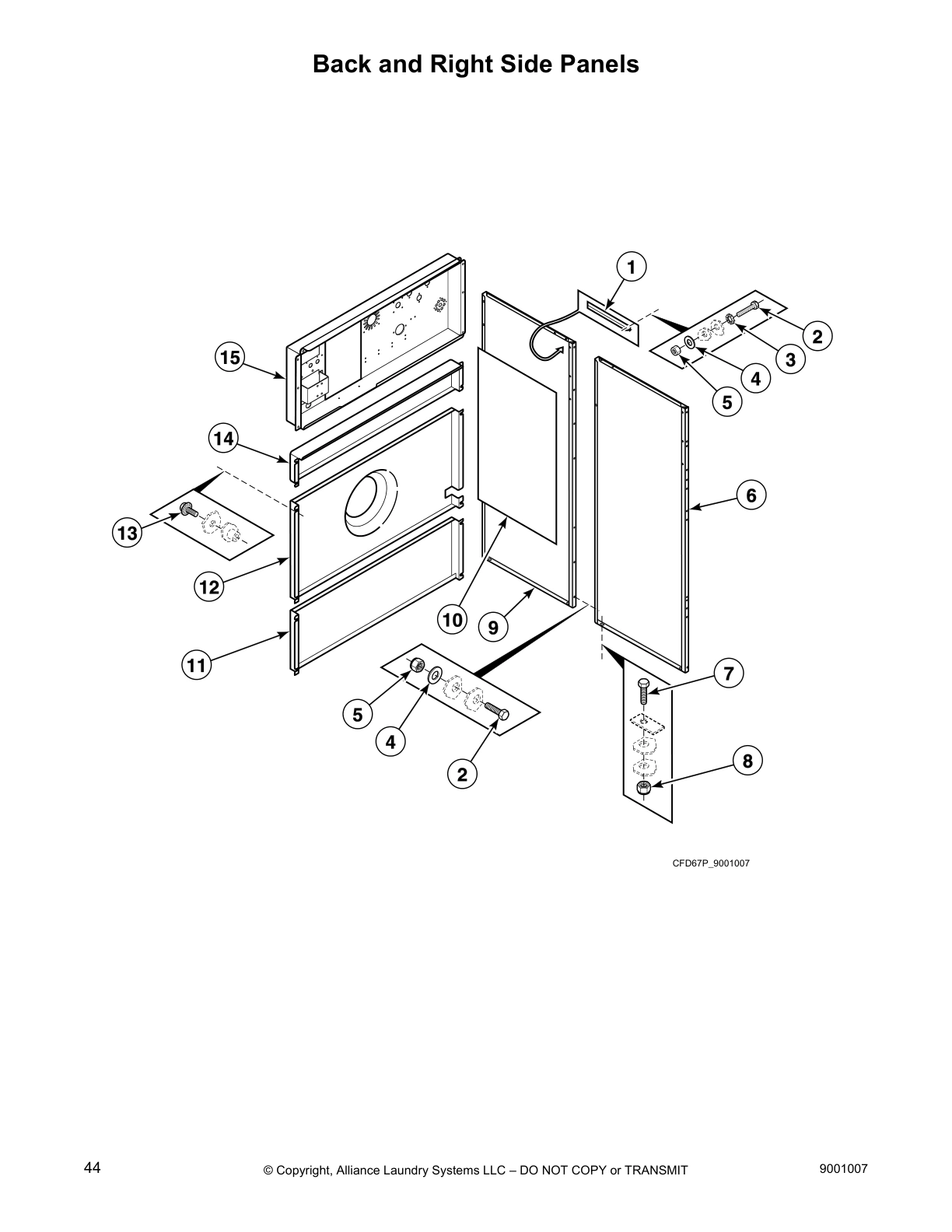

Back and Right Side Panels

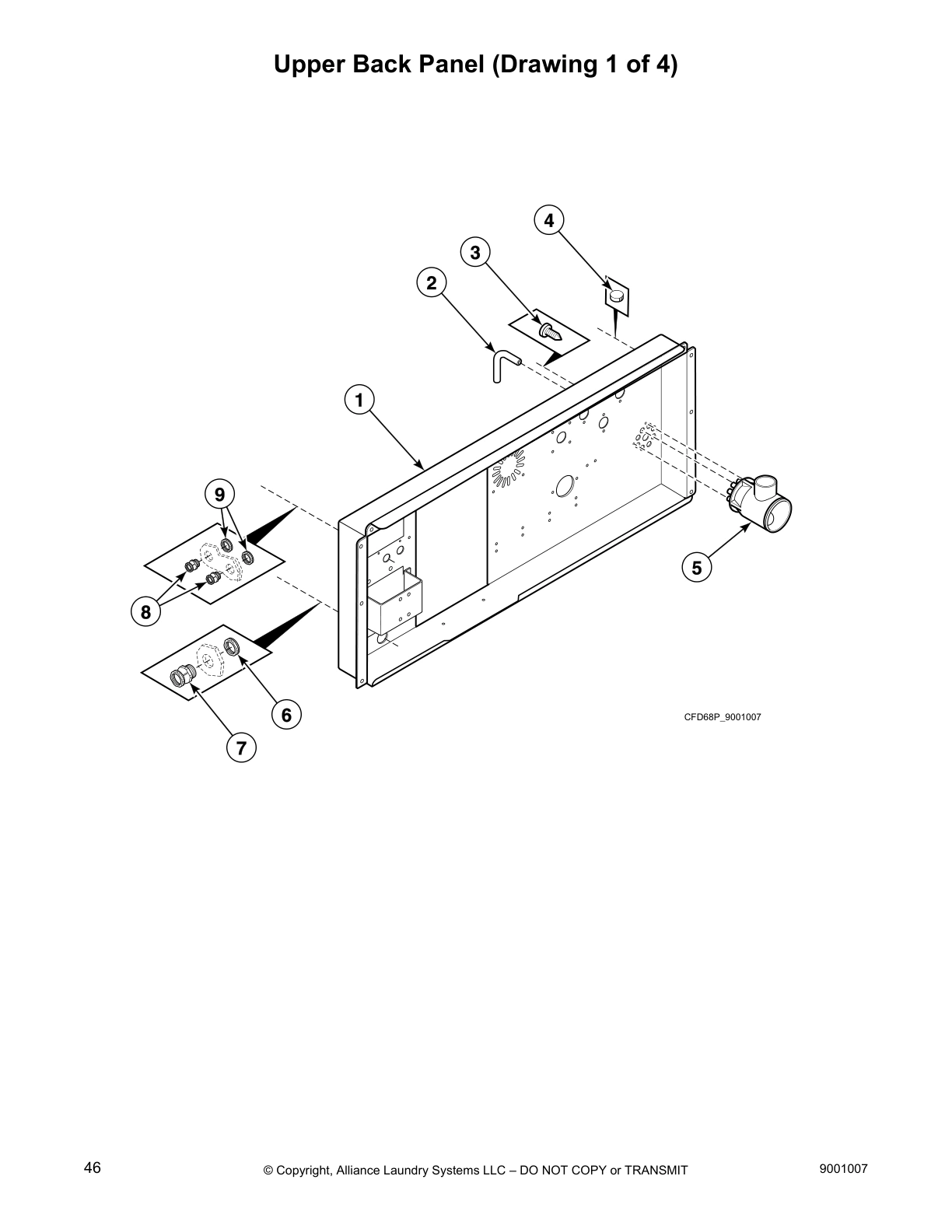

Upper Back Panel (Drawing 1 of 4)

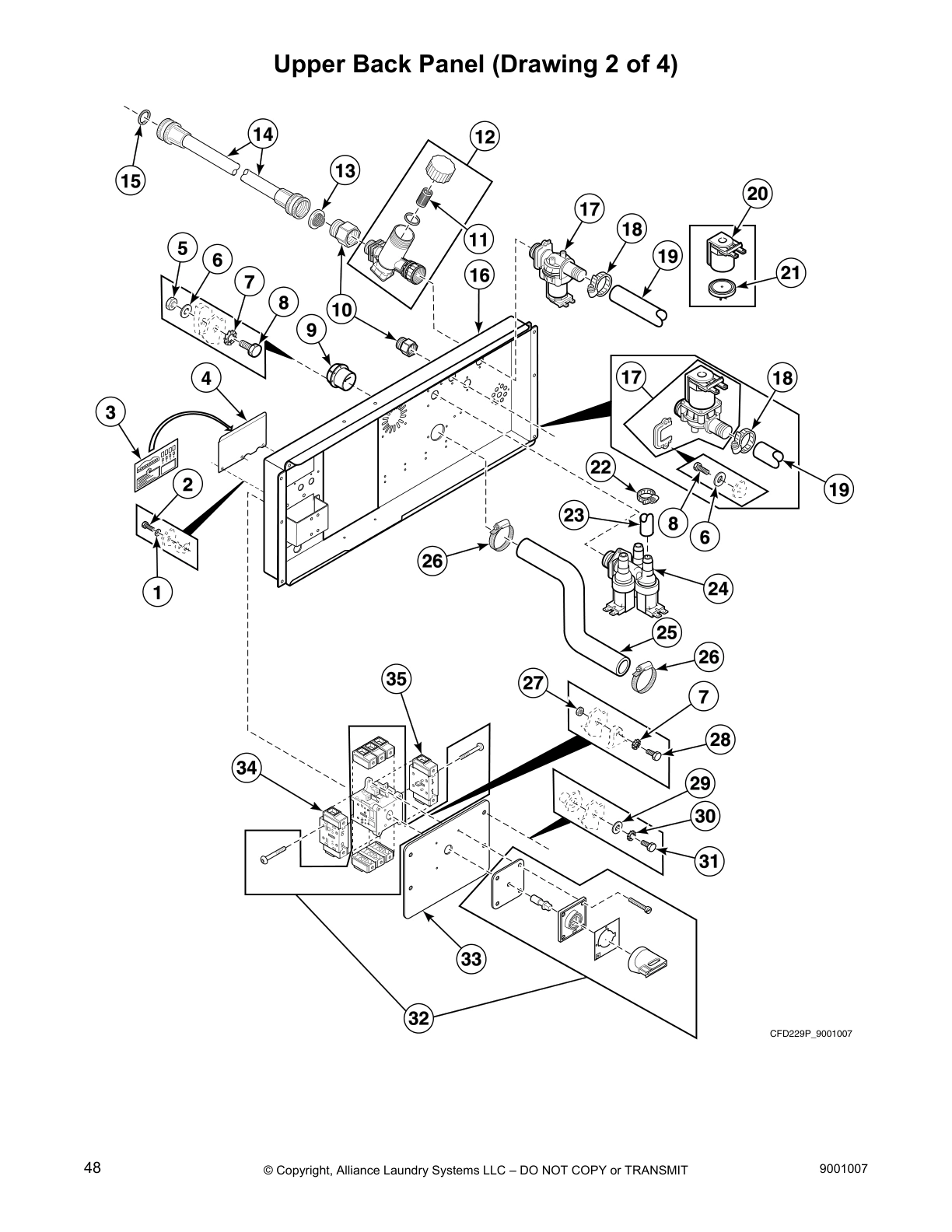

Upper Back Panel (Drawing 2 of 4)

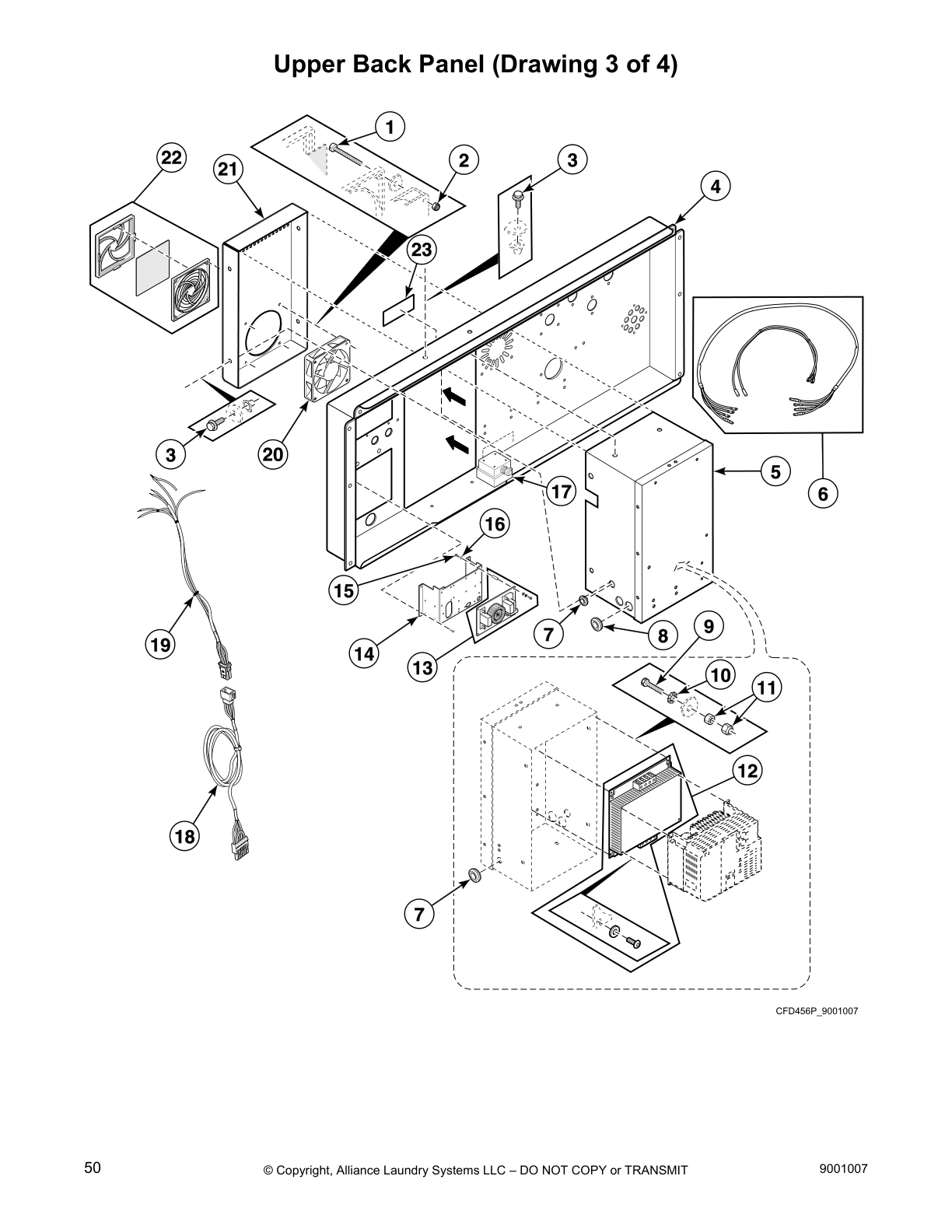

Upper Back Panel (Drawing 3 of 4)

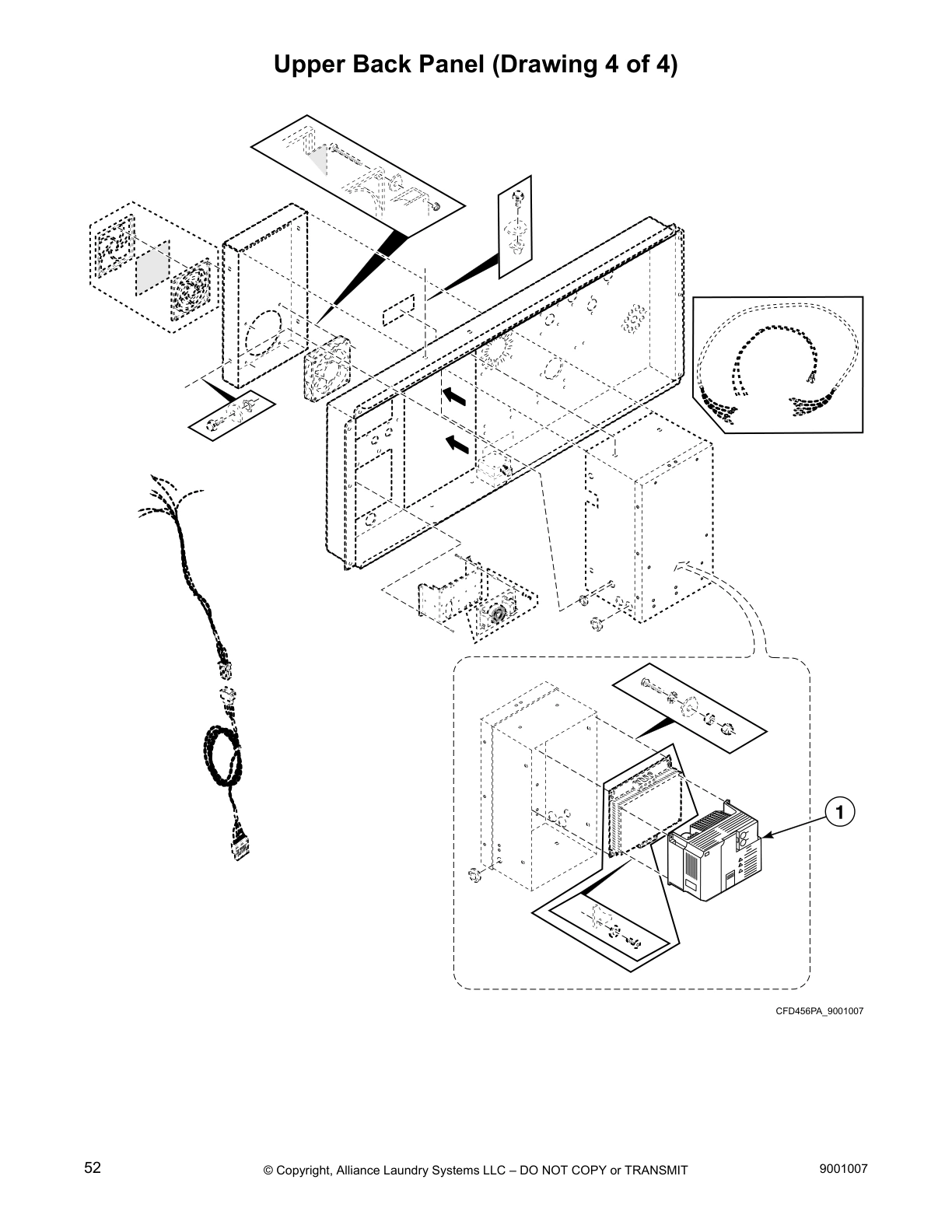

Upper Back Panel (Drawing 4 of 4)

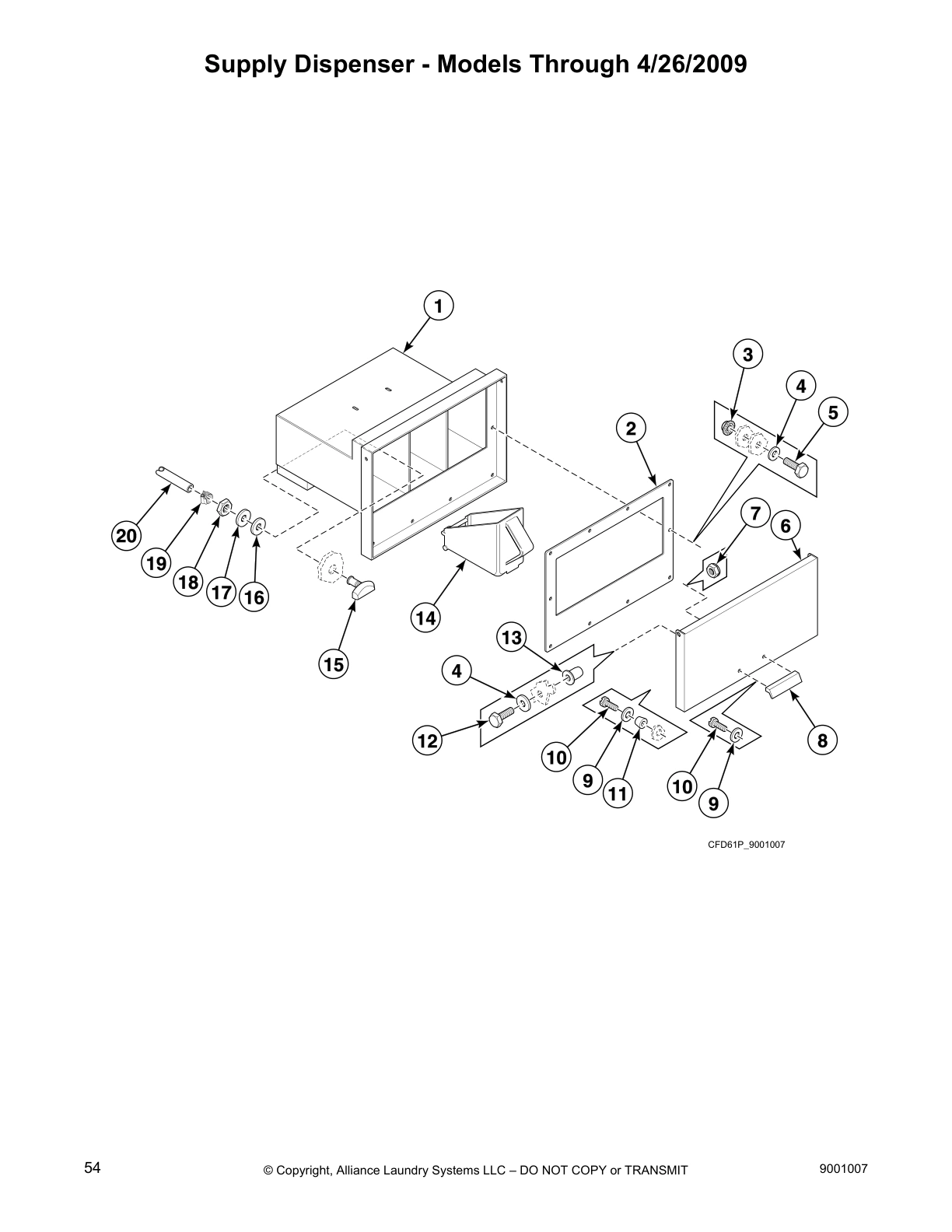

Supply Dispenser - Models Through 4/26/2009

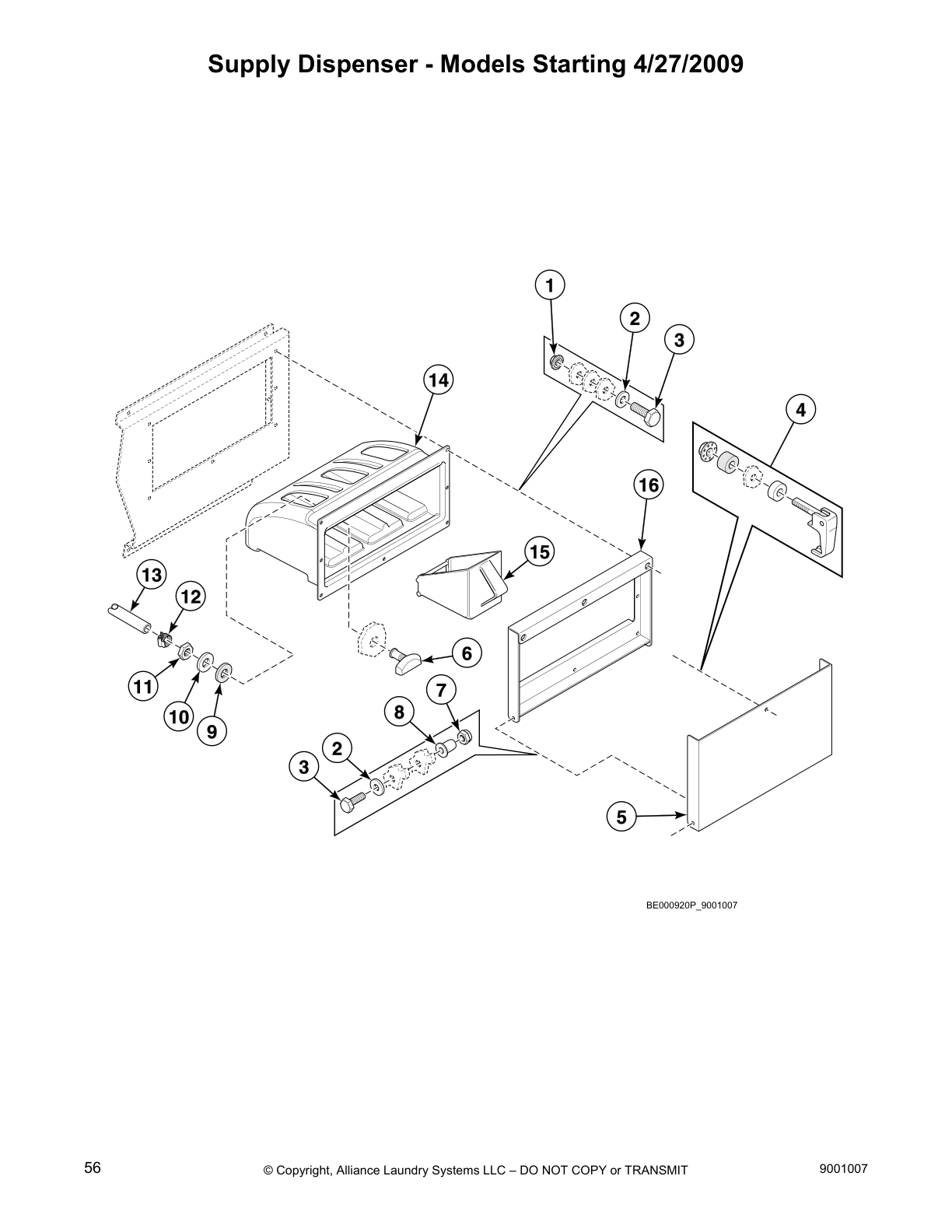

Supply Dispenser - Models Starting 4/27/2009

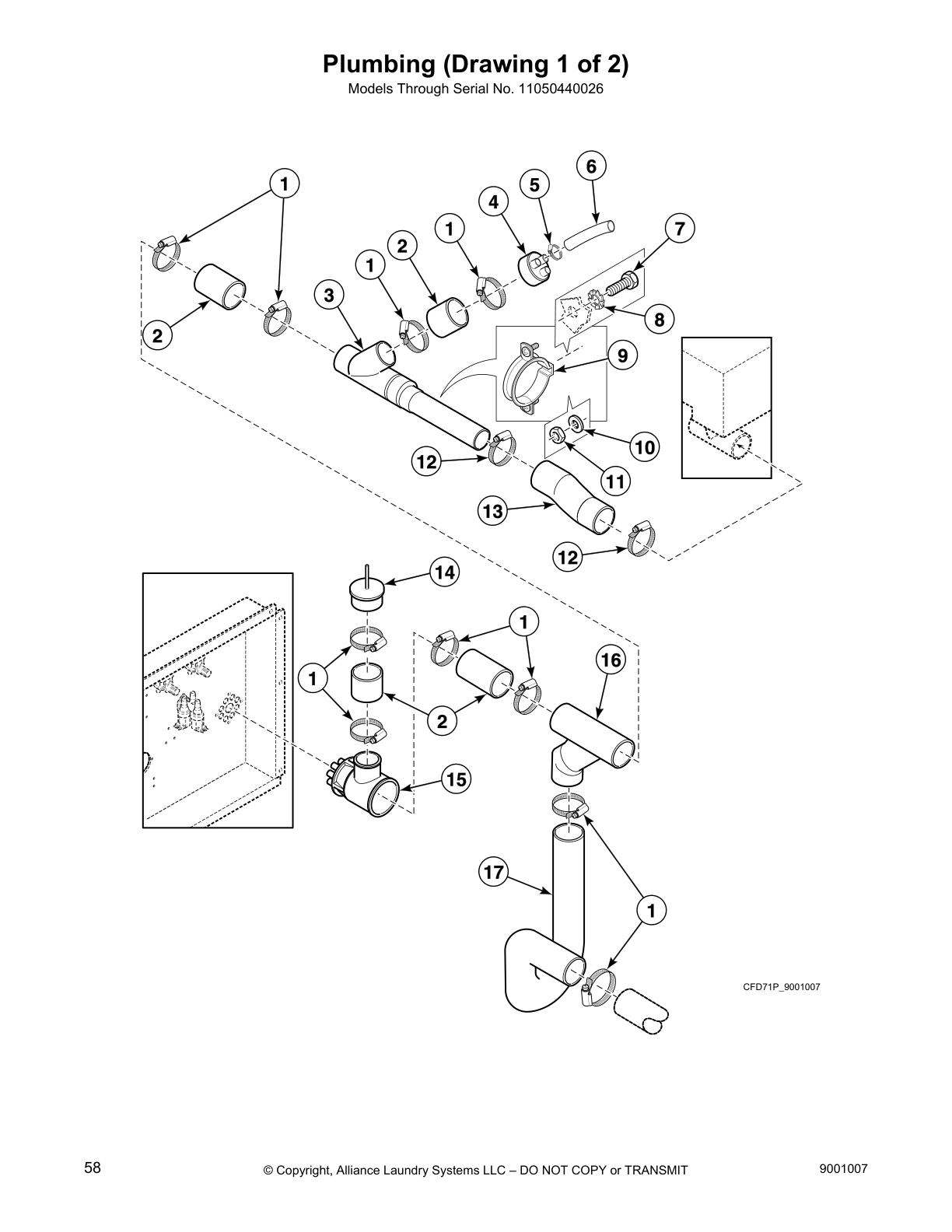

Plumbing (Drawing 1 of 2)

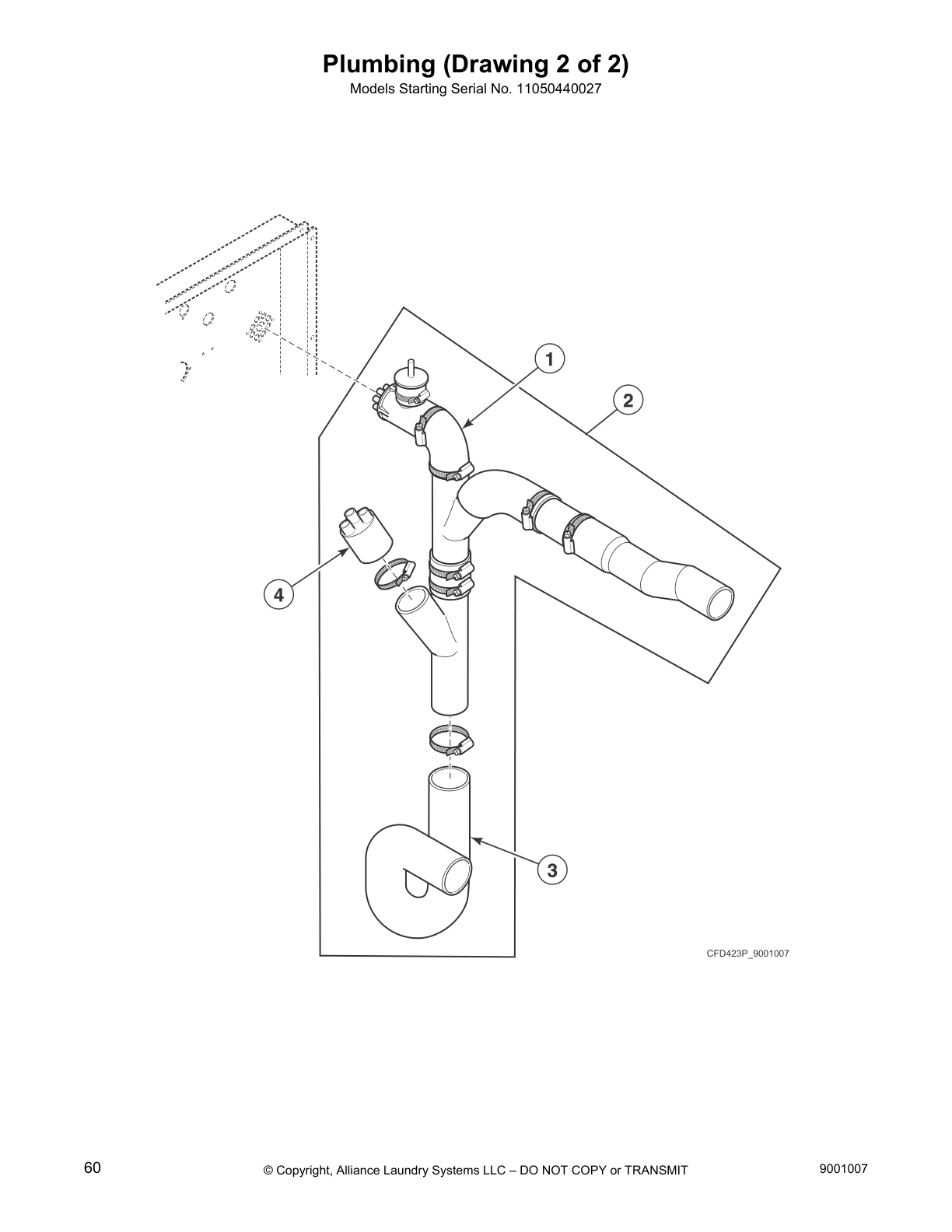

Plumbing (Drawing 2 of 2)

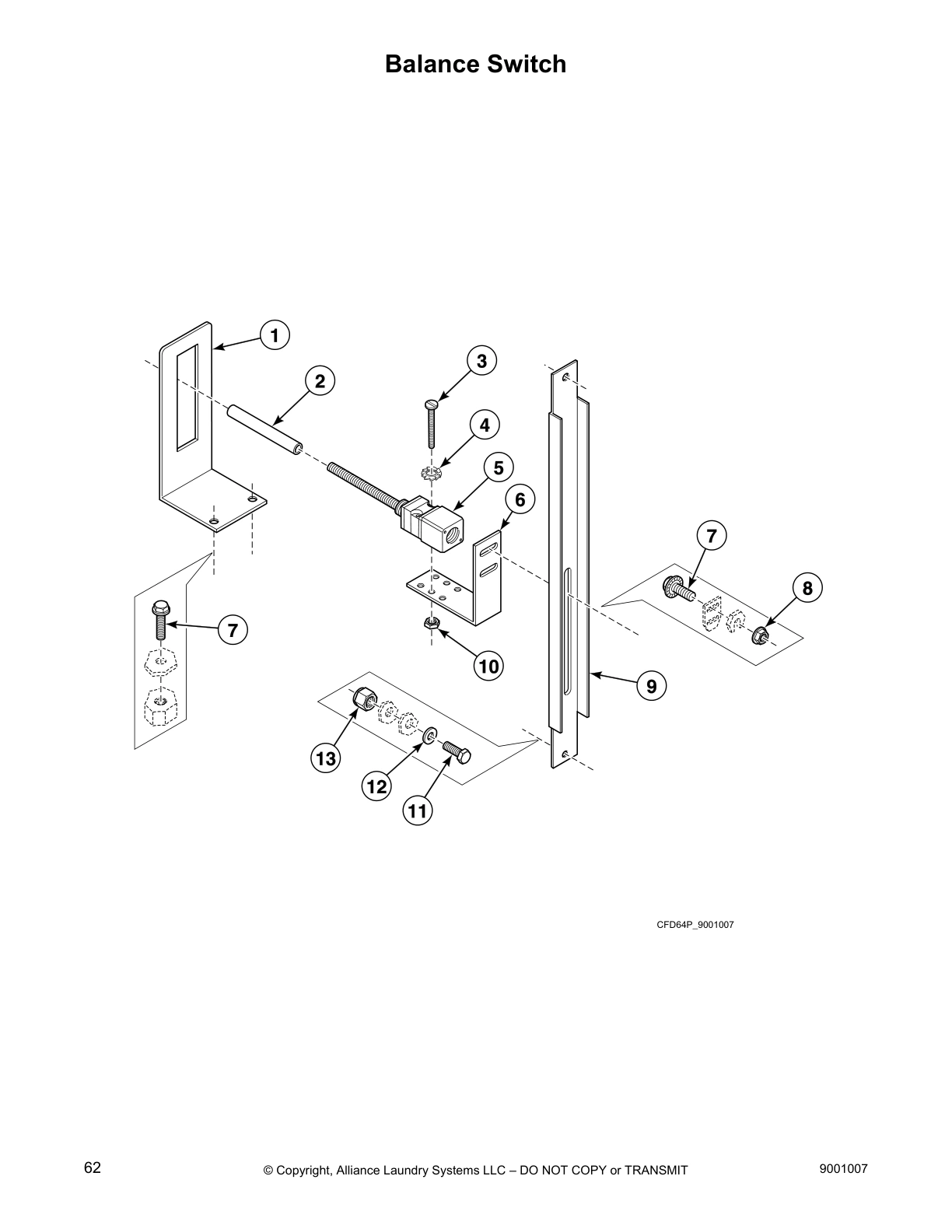

Balance Switch

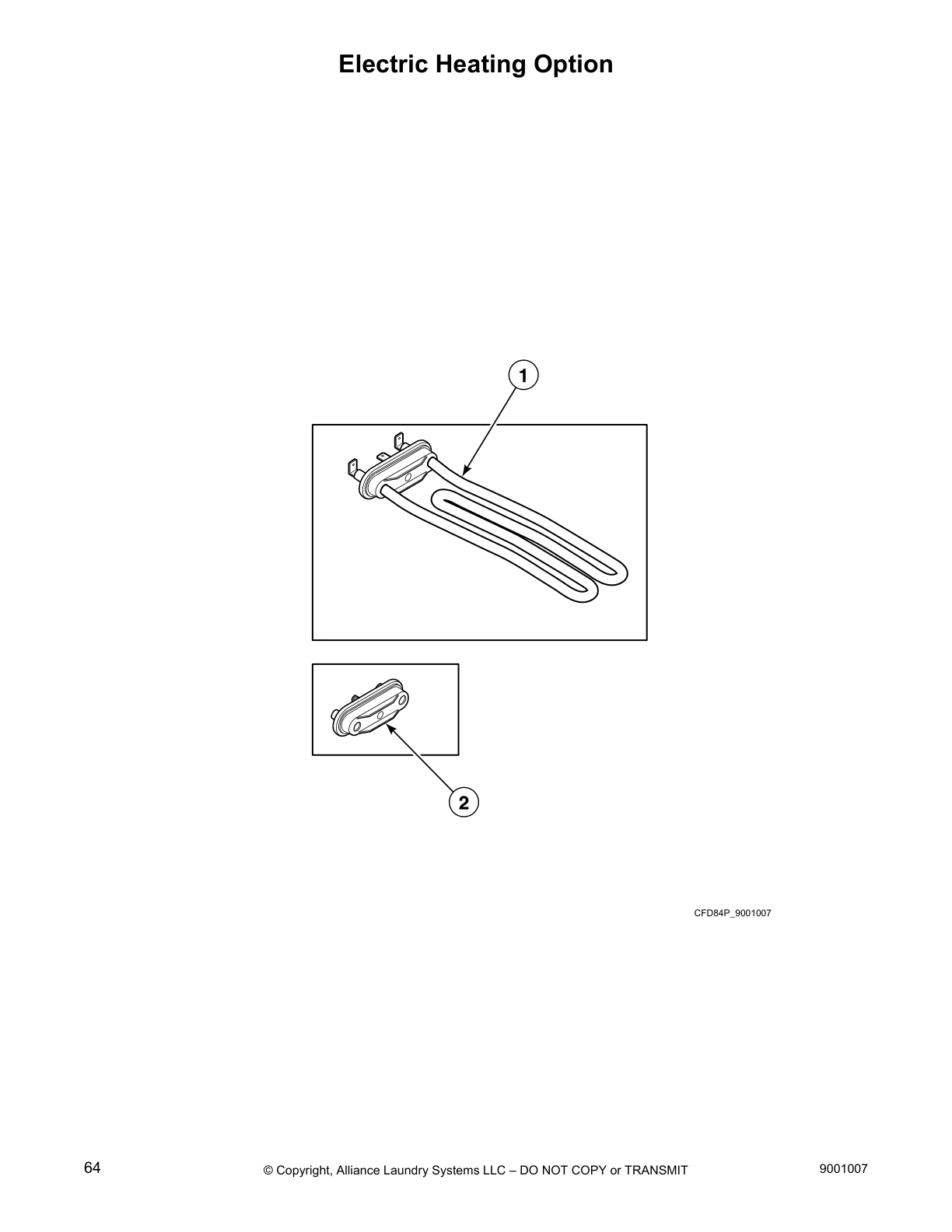

Electric Heating Option

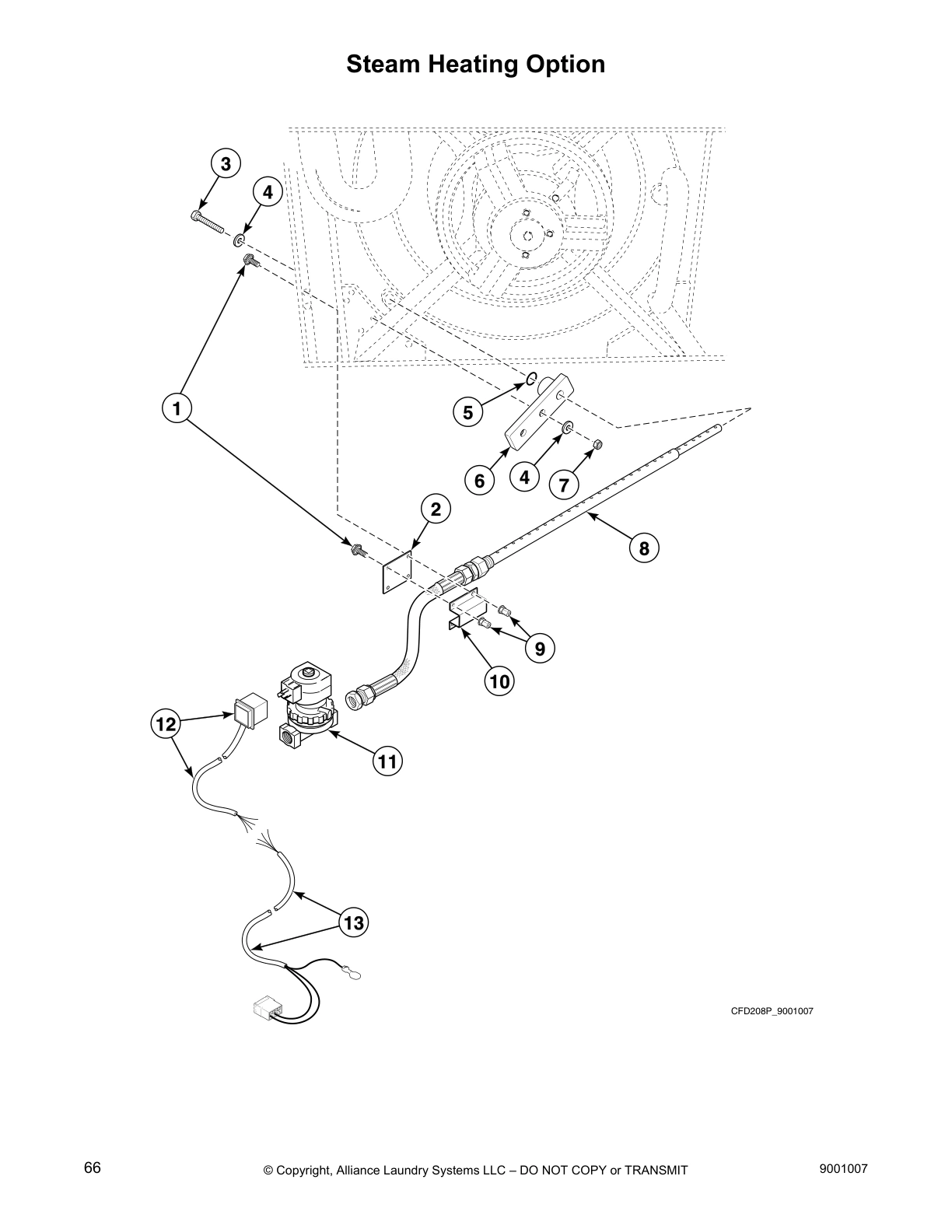

Steam Heating Option
Common parts from model Unimac UX100PVNU7 Washer
Inverter Fan SPQ 227/00125/06 Contact Us For Availability
1
Basket SPQ B12472401 Contact Us For Availability
1
Bolt SPQ 206/00004/00 Contact Us For Availability
1
Overflow Hose SPQ 223/00184/00 Contact Us For Availability
1
Hose Clamp SPQ 223/00071/00 Contact Us For Availability
1
Screw SPQ C000614 Contact Us For Availability
1
Bolt SPQ 206/00099/00 Contact Us For Availability
1
Rear Cabinet Top SPQ 153/00033/02 Contact Us For Availability
1
Side Panel Support Assembly SPQ 153/00103/01 Contact Us For Availability
1
Screw SPQ 9001329 Contact Us For Availability
1
Inverter Drive SPQ F8421114 Contact Us For Availability
1
Heating Element SPQ 209/00562/20 Contact Us For Availability
2
Tub Back Plate SPQ 153/00075/10 Contact Us For Availability
2
Seal Wear Plate SPQ B12360807 Contact Us For Availability
2
Key SPQ 253/00033/00 Contact Us For Availability
2
SPQ 203/00001/00 SPQ 203/00001/00 Contact Us For Availability
2
Drain Valve to Drain Pipe Hose SPQ 223/00013/00 Contact Us For Availability
2
Water Inlet Grid SPQ 223/00141/00 Contact Us For Availability
2
Door Lock Plate SPQ C000684 Contact Us For Availability
2
Door Handle Bushing SPQ 253/00162/01 Contact Us For Availability
2
SPQ 153/00033/01 SPQ 153/00033/01 Contact Us For Availability
2
Pressure Hose SPQ 223/00179/10 Contact Us For Availability
2
Micro to Connector Harness SPQ 209/00406/00 Contact Us For Availability
2
Bolt SPQ 153/00071/00 Contact Us For Availability
2
Plumbing Assembly SPQ B12374001 Contact Us For Availability
2
Screw SPQ 223/00246/00 Contact Us For Availability
2
Heating Element Plug SPQ F360202 Contact Us For Availability
2
Steam Injector Plate SPQ 153/00051/11 Contact Us For Availability
3
Bolt SPQ 153/00076/10 Contact Us For Availability
3
Retaining Ring SPQ 201/00202/00 Contact Us For Availability
3
Bearing Housing Cover SPQ 253/10127/00 Contact Us For Availability
3
Seal SPQ B12378901 Contact Us For Availability
3
SPQ 201/00011/00 SPQ 201/00011/00 Contact Us For Availability
3
Bolt SPQ 223/00106/00 Contact Us For Availability
3
Door Release Decal SPQ 253/00158/567 Contact Us For Availability
3
Programming Cable SPQ B12388303 Contact Us For Availability
3
SPQ 207/00123/00 SPQ 207/00123/00 Contact Us For Availability
3
Supply Dispenser Cover SPQ 205/00104/00 Contact Us For Availability
3
Screw SPQ 208/00130/00 Contact Us For Availability
3
Water Hose SPQ 253/00021/01 Contact Us For Availability
3
Soap Dispenser to Tub Hose SPQ 223/00187/00 Contact Us For Availability
3
Out-of-Balance Switch SPQ 207/00018/00 Contact Us For Availability
3
Washer SPQ 206/00047/00 Contact Us For Availability
4
O-Ring SPQ 201/00001/00 Contact Us For Availability
4
Grease Ring Holder SPQ 153/00121/00 Contact Us For Availability
4
Spacer SPQ B12378801 Contact Us For Availability
4
SPQ 206/00031/00 SPQ 206/00031/00 Contact Us For Availability
4
Tilt Switch Bracket SPQ 203/00006/00 Contact Us For Availability
4
Door Lock Harness SPQ C000571 Contact Us For Availability
4
Control Panel SPQ 204/00008/00 Contact Us For Availability
4
SPQ 209/00468/00 SPQ 209/00468/00 Contact Us For Availability
4
SPQ 208/00009/00 SPQ 208/00009/00 Contact Us For Availability
4
Plug SPQ 211/00087/00 Contact Us For Availability
4
SPQ 153/00027/03 SPQ 153/00027/03 Contact Us For Availability
4
Inverter Drive Box SPQ B12355001 Contact Us For Availability
4
Prewash and Mainwash Nozzle SPQ 223/00392/00 Contact Us For Availability
4
Water Inlet Grid SPQ 223/00289/00 Contact Us For Availability
5
Tub Gasket SPQ 202/00105/00 Contact Us For Availability
5
Bushing SPQ 253/00125/00 Contact Us For Availability
5
SPQ 253/00147/00 SPQ 253/00147/00 Contact Us For Availability
5
SPQ 205/00123/00 SPQ 205/00123/00 Contact Us For Availability
5
SPQ C000175 SPQ C000175 Contact Us For Availability
5
SPQ 209/00202/01 SPQ 209/00202/01 Contact Us For Availability
5
Clamp SPQ 223/00011/00 Contact Us For Availability
5
SPQ 209/00530/00 SPQ 209/00530/00 Contact Us For Availability
5
Bushing SPQ 153/00089/00 Contact Us For Availability
5
Connecting Piece SPQ 223/00349/00 Contact Us For Availability
6
SPQ B12456301 SPQ B12456301 Contact Us For Availability
6
Tub SPQ 223/00168/00 Contact Us For Availability
6
V-Ring Seal SPQ 253/00124/00 Contact Us For Availability
6
Spacer SPQ 253/00131/00 Contact Us For Availability
6
SPQ B12510801 SPQ B12510801 Contact Us For Availability
6
Washer SPQ 223/00133/00 Contact Us For Availability
6
Drain Kit SPQ 206/00009/00 Contact Us For Availability
6
SPQ C000612 SPQ C000612 Contact Us For Availability
6
SPQ C000177 SPQ C000177 Contact Us For Availability
6
Switch Base SPQ 153/10107/40 Contact Us For Availability
6
SPQ 202/00106/00 SPQ 202/00106/00 Contact Us For Availability
6
SPQ 153/00103/00 SPQ 153/00103/00 Contact Us For Availability
6
Cordlock SPQ 211/00097/00 Contact Us For Availability
6
SPQ 223/00059/00 SPQ 223/00059/00 Contact Us For Availability
6
SPQ 209/00527/00 SPQ 209/00527/00 Contact Us For Availability
6
SPQ 153/00070/00 SPQ 153/00070/00 Contact Us For Availability
6
SPQ 223/00001/04 SPQ 223/00001/04 Contact Us For Availability
6
SPQ 111/00107/00 SPQ 111/00107/00 Contact Us For Availability
6
Nut SPQ B12365603 Contact Us For Availability
7
Steam Injector SPQ 204/00113/00 Contact Us For Availability
7
SPQ 204/00016/00 SPQ 204/00016/00 Contact Us For Availability
7
Nut SPQ 153/00077/00 Contact Us For Availability
7
Screw SPQ 253/00154/00 Contact Us For Availability
7
Lubricator SPQ 253/00182/00 Contact Us For Availability
7
Drain Valve Harness SPQ 203/00003/00 Contact Us For Availability
7
SPQ 223/00244/00 SPQ 223/00244/00 Contact Us For Availability
7
SPQ F8435601 SPQ F8435601 Contact Us For Availability
7
SPQ 209/00996/00 SPQ 209/00996/00 Contact Us For Availability
7
SPQ 205/00105/00 SPQ 205/00105/00 Contact Us For Availability
7
SPQ 211/00097/01 SPQ 211/00097/01 Contact Us For Availability
7
SPQ 209/00528/00 SPQ 209/00528/00 Contact Us For Availability
7
Parameter Unit Assembly SPQ 153/10027/20 Contact Us For Availability
8
SPQ 224/00046/00 SPQ 224/00046/00 Contact Us For Availability
8
SPQ 206/00122/00 SPQ 206/00122/00 Contact Us For Availability
8
Bearing Kit SPQ 253/00155/00 Contact Us For Availability
8
Bolt SPQ 206/00053/00 Contact Us For Availability
8
SPQ 201/00008/00 SPQ 201/00008/00 Contact Us For Availability
8
SPQ 204/00004/00 SPQ 204/00004/00 Contact Us For Availability
8
SPQ C000694 SPQ C000694 Contact Us For Availability
8
SPQ 205/00122/00 SPQ 205/00122/00 Contact Us For Availability
8
SPQ 44018901 SPQ 44018901 Contact Us For Availability
8
SPQ 203/00004/00 SPQ 203/00004/00 Contact Us For Availability
8
SPQ 211/00117/00 SPQ 211/00117/00 Contact Us For Availability
8
SPQ 209/00531/00 SPQ 209/00531/00 Contact Us For Availability
8
SPQ 111/01147/00 SPQ 111/01147/00 Contact Us For Availability
8
SPQ 223/00008/05 SPQ 223/00008/05 Contact Us For Availability
8
SPQ 204/00301/00 SPQ 204/00301/00 Contact Us For Availability
8
Steam Kit SPQ 153/00051/50 Contact Us For Availability
9
Bearing Replacement Tool Kit SPQ 253/10120/00 Contact Us For Availability
9
SPQ 203/00016/00 SPQ 203/00016/00 Contact Us For Availability
9
SPQ 223/00086/00 SPQ 223/00086/00 Contact Us For Availability
9
SPQ 253/01580/47 SPQ 253/01580/47 Contact Us For Availability
9
SPQ C000561 SPQ C000561 Contact Us For Availability
9
SPQ 209/00099/25 SPQ 209/00099/25 Contact Us For Availability
9
SPQ 225/10004/00 SPQ 225/10004/00 Contact Us For Availability
9
SPQ 206/00101/00 SPQ 206/00101/00 Contact Us For Availability
9
SPQ 153/00104/00 SPQ 153/00104/00 Contact Us For Availability
9
SPQ 211/00118/00 SPQ 211/00118/00 Contact Us For Availability
9
SPQ 202/00102/00 SPQ 202/00102/00 Contact Us For Availability
9
SPQ 209/00533/00 SPQ 209/00533/00 Contact Us For Availability
9
SPQ 223/00199/00 SPQ 223/00199/00 Contact Us For Availability
9
SPQ 223/00001/07 SPQ 223/00001/07 Contact Us For Availability
9
SPQ 253/00019/00 SPQ 253/00019/00 Contact Us For Availability
10
Bearing Housing Assembly SPQ 9001198 Contact Us For Availability
10
Basket Kit SPQ B12543301 Contact Us For Availability
10
Washer SPQ 201/00025/00 Contact Us For Availability
10
Nut SPQ 204/00007/00 Contact Us For Availability
10
Hose Clamp SPQ 223/00012/00 Contact Us For Availability
10
Door Lock Cover SPQ C000688 Contact Us For Availability
10
Nut SPQ C000560 Contact Us For Availability
10
Switch Knob SPQ 209/00099/29 Contact Us For Availability
10
Screw SPQ 208/00121/00 Contact Us For Availability
10
Washer SPQ 202/00110/00 Contact Us For Availability
10
Side Panel Gasket SPQ 246/00079/00 Contact Us For Availability
10
Water Valve Adapter SPQ 223/00050/01 Contact Us For Availability
10
Screw SPQ 207/00110/00 Contact Us For Availability
10
Washer SPQ 203/00005/00 Contact Us For Availability
10
Washer SPQ 201/00002/00 Contact Us For Availability
10
Bracket SPQ 153/00051/10 Contact Us For Availability
11
Counterweight SPQ 253/10013/00 Contact Us For Availability
11
Pulley SPQ 253/00026/00 Contact Us For Availability
11
Door Lock Solenoid Bracket SPQ C003022 Contact Us For Availability
11
Hinge Plate SPQ 253/00176/50 Contact Us For Availability
11
Contact Block SPQ 44018701 Contact Us For Availability
11
Top Cover Plate SPQ 153/00111/01 Contact Us For Availability
11
Nut SPQ 204/00106/00 Contact Us For Availability
11
Front Right Panel SPQ 208/00125/00 Contact Us For Availability
11
Back Panel Support Assembly SPQ 153/00114/C0 Contact Us For Availability
11
Filter SPQ 209/00385/01 Contact Us For Availability
11
Nut SPQ 204/00107/00 Contact Us For Availability
11
Handle Grommet SPQ 223/00008/01 Contact Us For Availability
11
Hose Clamp SPQ 204/00201/00 Contact Us For Availability
11
Bolt SPQ 205/00107/00 Contact Us For Availability
11
DIN Valve Kit SPQ F8521501 Contact Us For Availability
12
Door Front Panel SPQ 153/10113/00 Contact Us For Availability
12
Speed Sensor Bracket SPQ 153/00041/11 Contact Us For Availability
12
Pulley SPQ 253/00078/00 Contact Us For Availability
12
Pushbutton SPQ 44018801 Contact Us For Availability
12
Nut SPQ 204/00116/00 Contact Us For Availability
12
Kickplate SPQ 153/10116/50 Contact Us For Availability
12
Water Hose SPQ 209/00385/00 Contact Us For Availability
12
Vent Hose SPQ 223/00014/00 Contact Us For Availability
12
Washer SPQ 202/00101/00 Contact Us For Availability
12
Noise Filter SPQ 227/00163/00 Contact Us For Availability
12
Bushing SPQ 207/00126/00 Contact Us For Availability
12
Water Hose SPQ 223/00010/00 Contact Us For Availability
12
Steam Valve Harness SPQ F605220 Contact Us For Availability
13
Door Handle Decal SPQ 229/00282/00 Contact Us For Availability
13
Washer SPQ 153/00041/01 Contact Us For Availability
13
Belt SPQ 226/00155/00 Contact Us For Availability
13
Motor Plate SPQ 248/00114/00 Contact Us For Availability
13
Bolt SPQ C000430 Contact Us For Availability
13
Door Glass Retainer SPQ C001679P Contact Us For Availability
13
Washer SPQ 223/00123/00 Contact Us For Availability
13
Bolt SPQ 207/00101/00 Contact Us For Availability
13
Out-of-Balance Switch Boot SPQ 204/00009/00 Contact Us For Availability
13
Supply Dispenser Box SPQ 223/00044/00 Contact Us For Availability
13
Noise Filter SPQ 227/00242/00 Contact Us For Availability
13
Liquid Soap Manifold SPQ 223/00107/03 Contact Us For Availability
13
Main Control Heat Harness SPQ 210/01304/03 Contact Us For Availability
14
Screw SPQ 208/00123/00 Contact Us For Availability
14
Bearing Cover Plate SPQ 203/00002/00 Contact Us For Availability
14
T-Piece SPQ 253/00006/00 Contact Us For Availability
14
Door Lock Spring Cover SPQ C000687 Contact Us For Availability
14
Door Handle Spring Bushing SPQ F8549401 Contact Us For Availability
14
Programming Key Contact Switch SPQ 209/00326/20 Contact Us For Availability
14
Washer SPQ 153/10117/00 Contact Us For Availability
14
Backbridge SPQ 153/00114/A1 Contact Us For Availability
14
Hose Clamp SPQ F200166 Contact Us For Availability
14
Filter SPQ 227/00180/00 Contact Us For Availability
14
Prewash and Mainwash Nozzle SPQ 253/00012/02 Contact Us For Availability
14
Bolt SPQ 223/00345/01 Contact Us For Availability
15
Leveling Leg SPQ 252/00006/00 Contact Us For Availability
15
Roller Bearing SPQ 153/00069/00 Contact Us For Availability
15
Exhaust Valve Hose SPQ 223/00170/00 Contact Us For Availability
15
Door Lock Catch SPQ C000185 Contact Us For Availability
15
Door Handle Torsion Spring SPQ 253/10128/00 Contact Us For Availability
15
Screw SPQ 203/00007/00 Contact Us For Availability
15
Nut SPQ 206/00042/00 Contact Us For Availability
15
Screw SPQ F200164 Contact Us For Availability
15
Filter SPQ 227/00179/00 Contact Us For Availability
16
Bearing Spacer SPQ 253/00156/00 Contact Us For Availability
16
Motor SPQ 206/00003/00 Contact Us For Availability
16
Front Left Panel SPQ 202/00002/00 Contact Us For Availability
16
Door Lock Slide Spring SPQ C000276 Contact Us For Availability
16
Spacer SPQ 211/00140/00 Contact Us For Availability
16
Electrical Connection Plate SPQ 111/00180/00 Contact Us For Availability
16
Soap Dispenser to Tub Hose SPQ 253/00030/00 Contact Us For Availability
17
SPQ 201/00004/00 SPQ 201/00004/00 Contact Us For Availability
17
Drain Pipe SPQ 223/00223/00 Contact Us For Availability
17
Door Lock Switch Slide SPQ C000271 Contact Us For Availability
17
Bolt SPQ 206/00027/00 Contact Us For Availability
17
Electrical Plate Assembly SPQ 209/00580/0000 Contact Us For Availability
17
Side Panel SPQ 204/00109/00 Contact Us For Availability
18
SPQ 204/00111/00 SPQ 204/00111/00 Contact Us For Availability
18
Nut SPQ C000578 Contact Us For Availability
18
Front Cabinet Top SPQ 153/10115/50 Contact Us For Availability
18
Vent Hose SPQ 153/10027/90 Contact Us For Availability
19
SPQ B12369701 SPQ B12369701 Contact Us For Availability
19
Water Hose SPQ F200205 Contact Us For Availability
20
Spring SPQ C000431 Contact Us For Availability
20
Hose Barb SPQ 153/00111/10 Contact Us For Availability
21
SPQ 206/00125/00 SPQ 206/00125/00 Contact Us For Availability
21
Door Latch SPQ C001244 Contact Us For Availability
21
Fan Cover SPQ 210/01304/15 Contact Us For Availability
22
AC Drive Filter SPQ 204/00114/00 Contact Us For Availability
22
Door Lock Solenoid SPQ C000184P Contact Us For Availability
22
Door Magnet Mounting Bracket SPQ F431024 Contact Us For Availability
22
Terminal Block SPQ 209/00137/01 Contact Us For Availability
23
Hinge Block SPQ F431223 Contact Us For Availability
23
Voltage Discharge Decal SPQ 153/00027/02 Contact Us For Availability
24
Washer SPQ F8390801 Contact Us For Availability
24
Blind Rivet SPQ C003000 Contact Us For Availability
24
Water Level Switch SPQ 246/00092/00 Contact Us For Availability
25
Door Lock Kit SPQ F8245101 Contact Us For Availability
25
O-Ring SPQ C002994 Contact Us For Availability
25
Noise Suppressor SPQ 223/00016/00 Contact Us For Availability
26
Hose Vent SPQ 223/00211/00 Contact Us For Availability
27
Fuse SPQ 223/00035/01 Contact Us For Availability
29
Fuse Holder SPQ B12548601 Contact Us For Availability
29
SPQ 9001280 SPQ 9001280 Contact Us For Availability
30
Thermostat Grommet SPQ 201/00007/00 Contact Us For Availability
33
SPQ 209/00532/00 SPQ 209/00532/00 Contact Us For Availability
34
SPQ 209/00356/00 SPQ 209/00356/00 Contact Us For Availability
34
SPQ 209/00526/00 SPQ 209/00526/00 Contact Us For Availability
35
SPQ 207/00003/00 SPQ 207/00003/00 Contact Us For Availability
35
SPQ 153/00027/04 SPQ 153/00027/04 Contact Us For Availability
36
SPQ 211/00120/00 SPQ 211/00120/00 Contact Us For Availability
NI
SPQ 212/00002/00 SPQ 212/00002/00 Contact Us For Availability
NI
SPQ 894P3 SPQ 894P3 Contact Us For Availability
NI
SPQ 245/00054/00 SPQ 245/00054/00 Contact Us For Availability
NI
SPQ 3885P SPQ 3885P Contact Us For Availability
NI
SPQ 206/00147/00 SPQ 206/00147/00 Contact Us For Availability
NI
SPQ 210/01575/18 SPQ 210/01575/18 Contact Us For Availability
NI
SPQ 831P3 SPQ 831P3 Contact Us For Availability
NI
SPQ C000867P SPQ C000867P Contact Us For Availability
NI
SPQ 253/00158/00 SPQ 253/00158/00 Contact Us For Availability
NI
SPQ 223/00174/00 SPQ 223/00174/00 Contact Us For Availability
NI
SPQ 140/00010/01 SPQ 140/00010/01 Contact Us For Availability
NI
SPQ 202/00004/00 SPQ 202/00004/00 Contact Us For Availability
NI
SPQ 223/00102/07 SPQ 223/00102/07 Contact Us For Availability
NI
SPQ 205/00108/00 SPQ 205/00108/00 Contact Us For Availability
NI
SPQ F8410901 SPQ F8410901 Contact Us For Availability
NI
Inverter Drive Retrofit Kit SPQ F8421014 Contact Us For Availability
NI
SPQ F8421116 SPQ F8421116 Contact Us For Availability
NI
SPQ F8421016 SPQ F8421016 Contact Us For Availability
NI
SPQ 809P3 SPQ 809P3 Contact Us For Availability
× ![]()
