Model Unimac UWU060K12 Washer – Common Parts & Diagrams

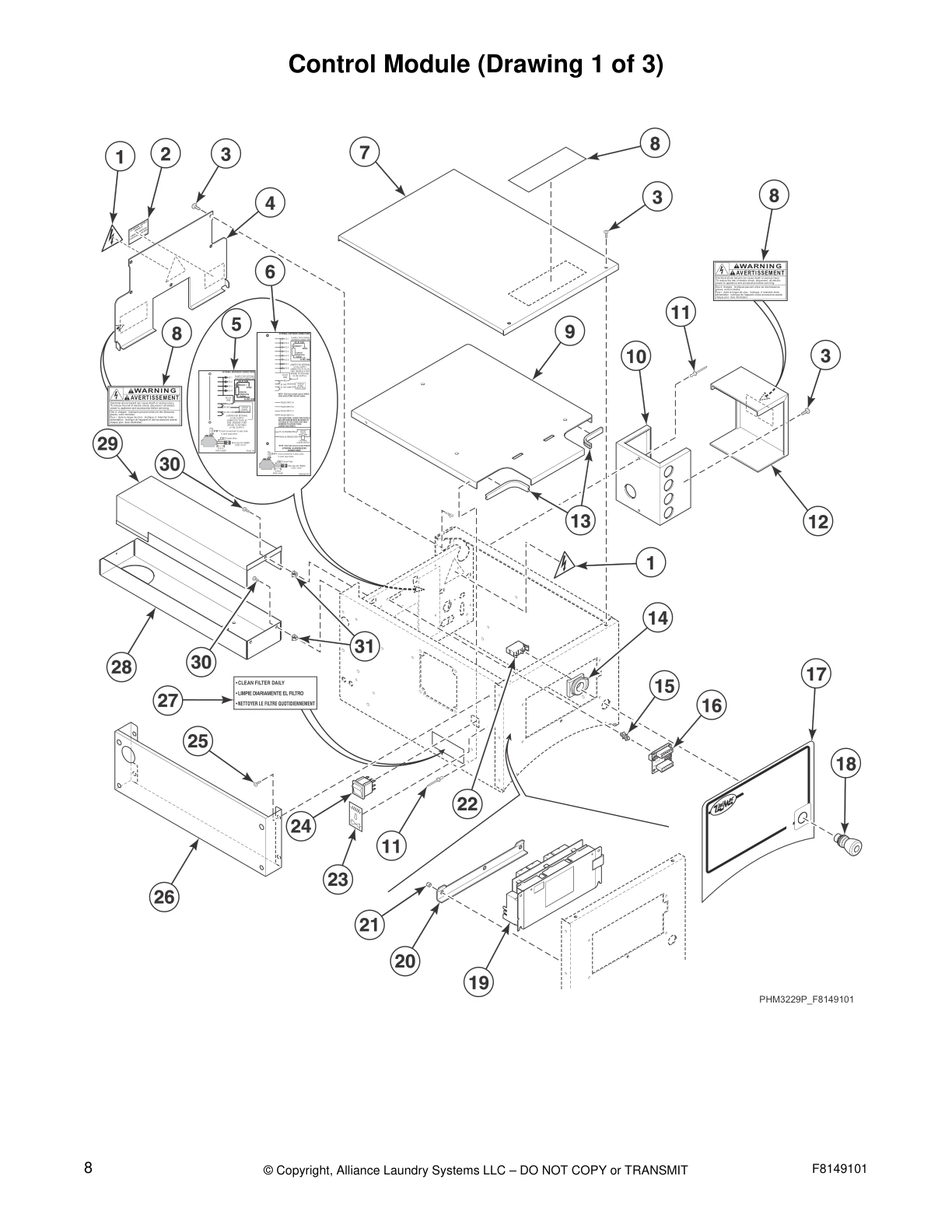

Control Module (Drawing 1 of 3)

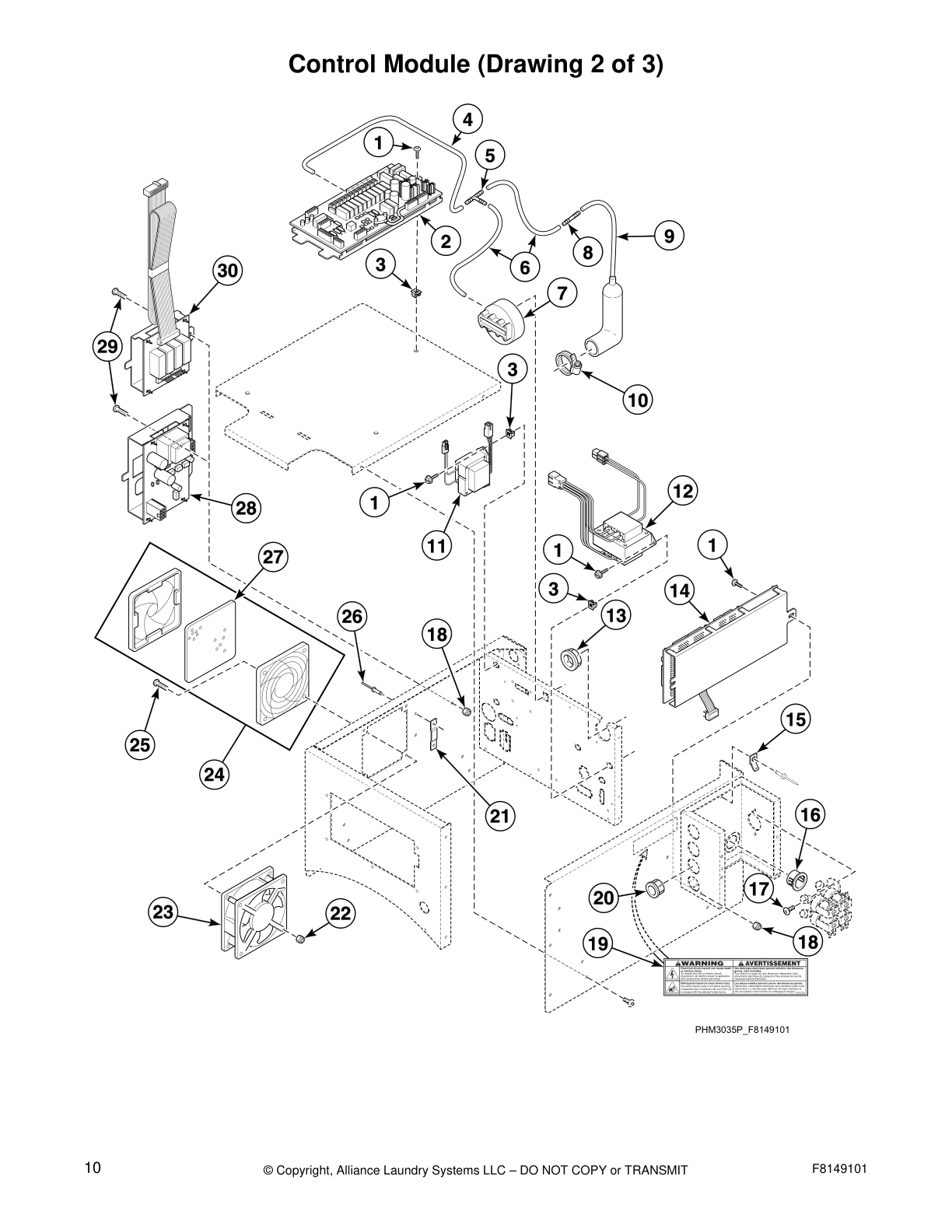

Control Module (Drawing 2 of 3)

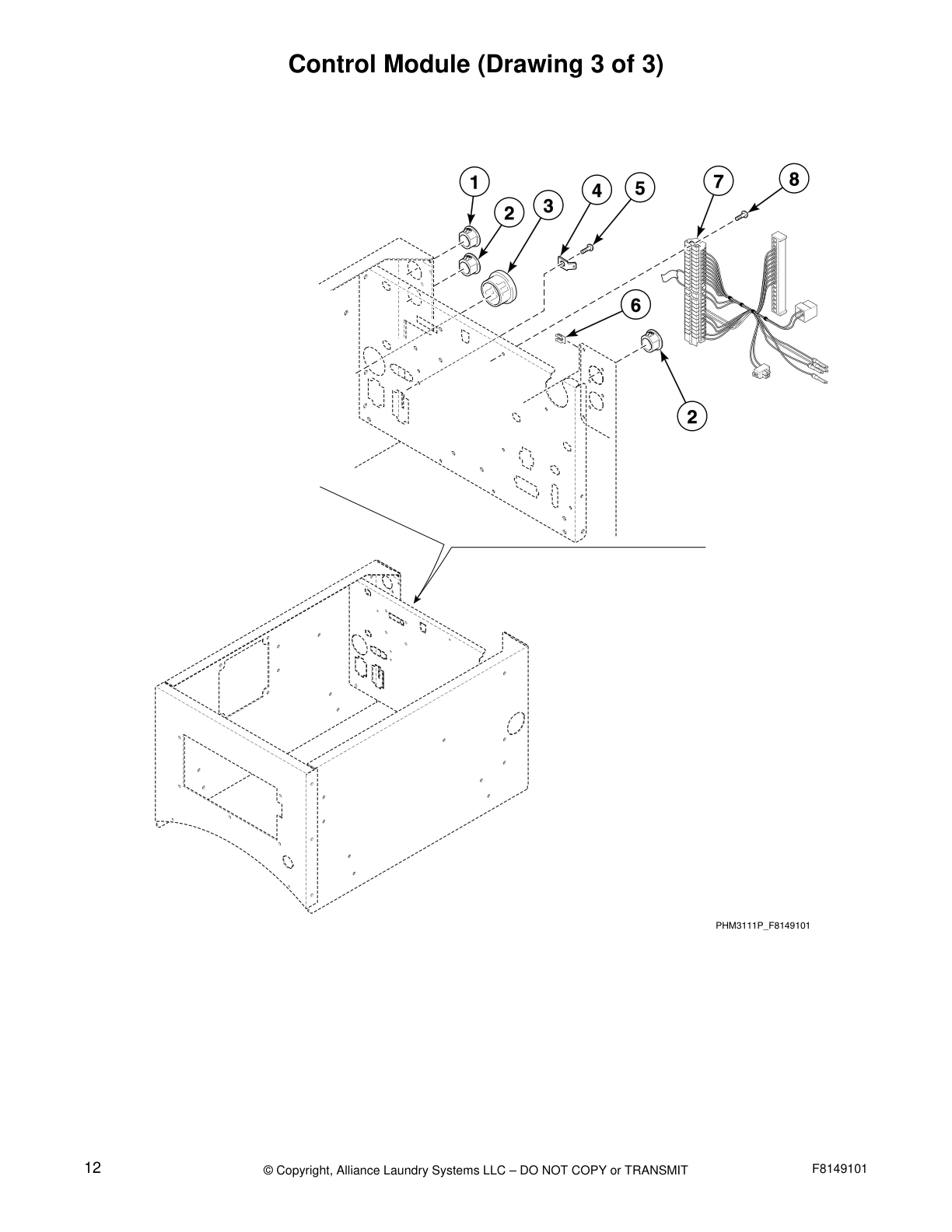

Control Module (Drawing 3 of 3)

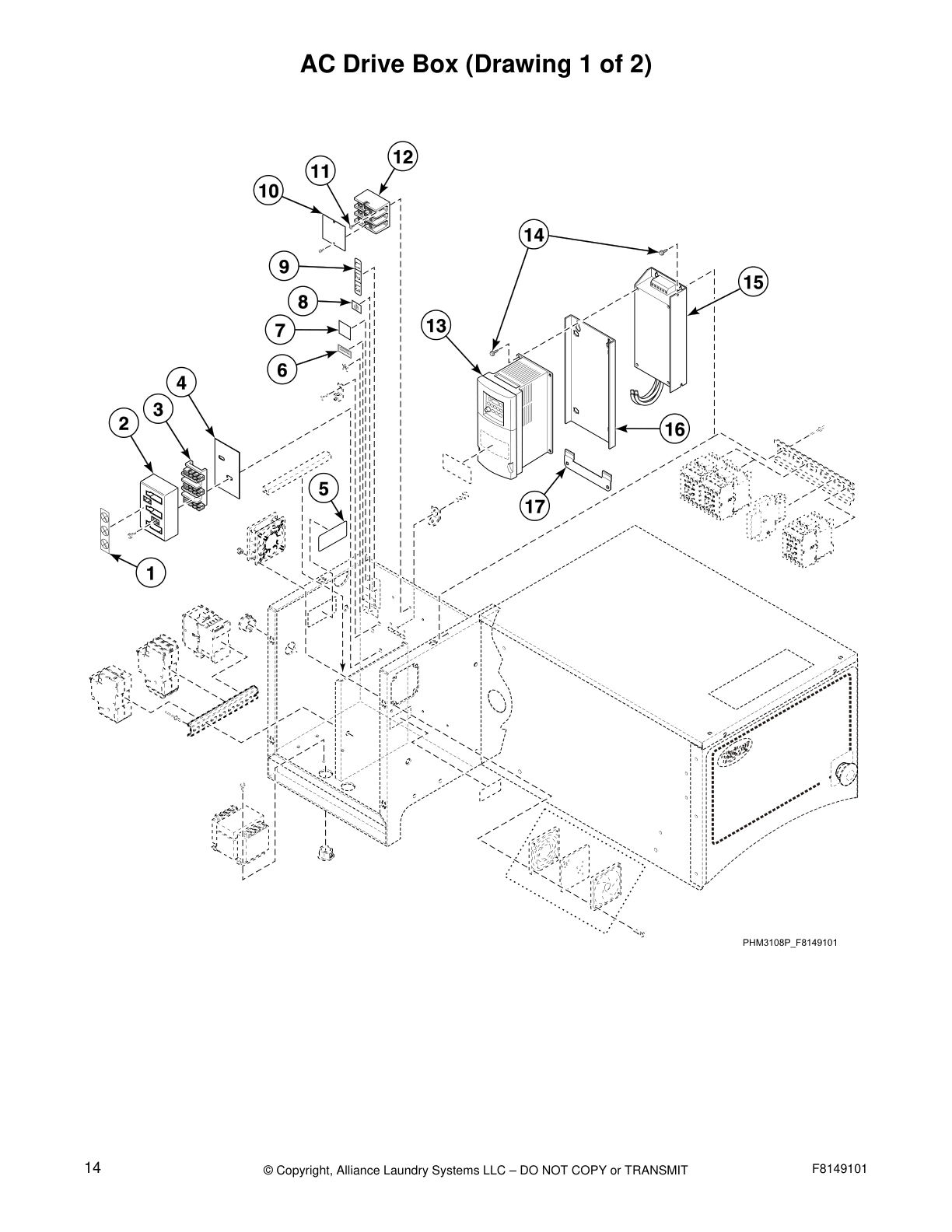

AC Drive Box (Drawing 1 of 2)

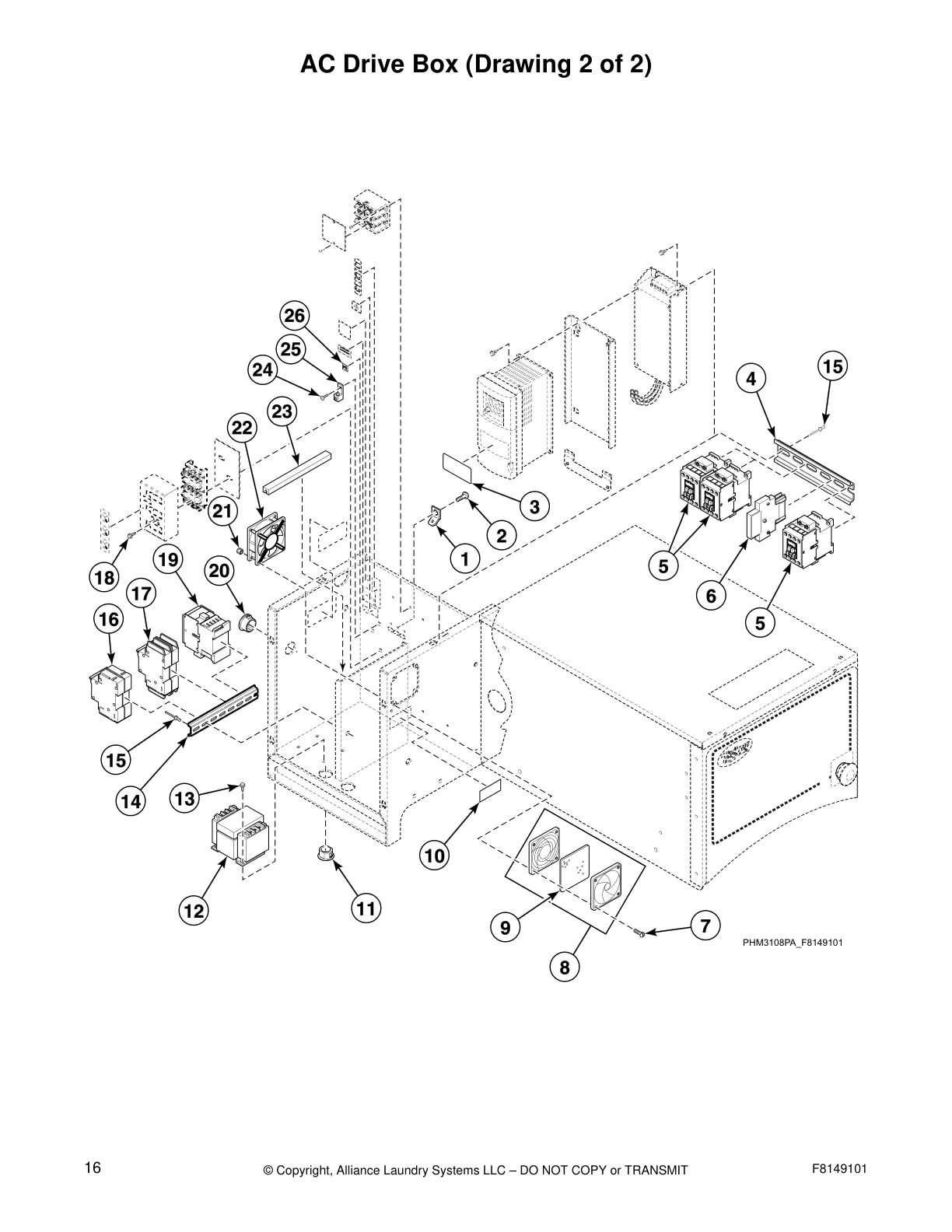

AC Drive Box (Drawing 2 of 2)

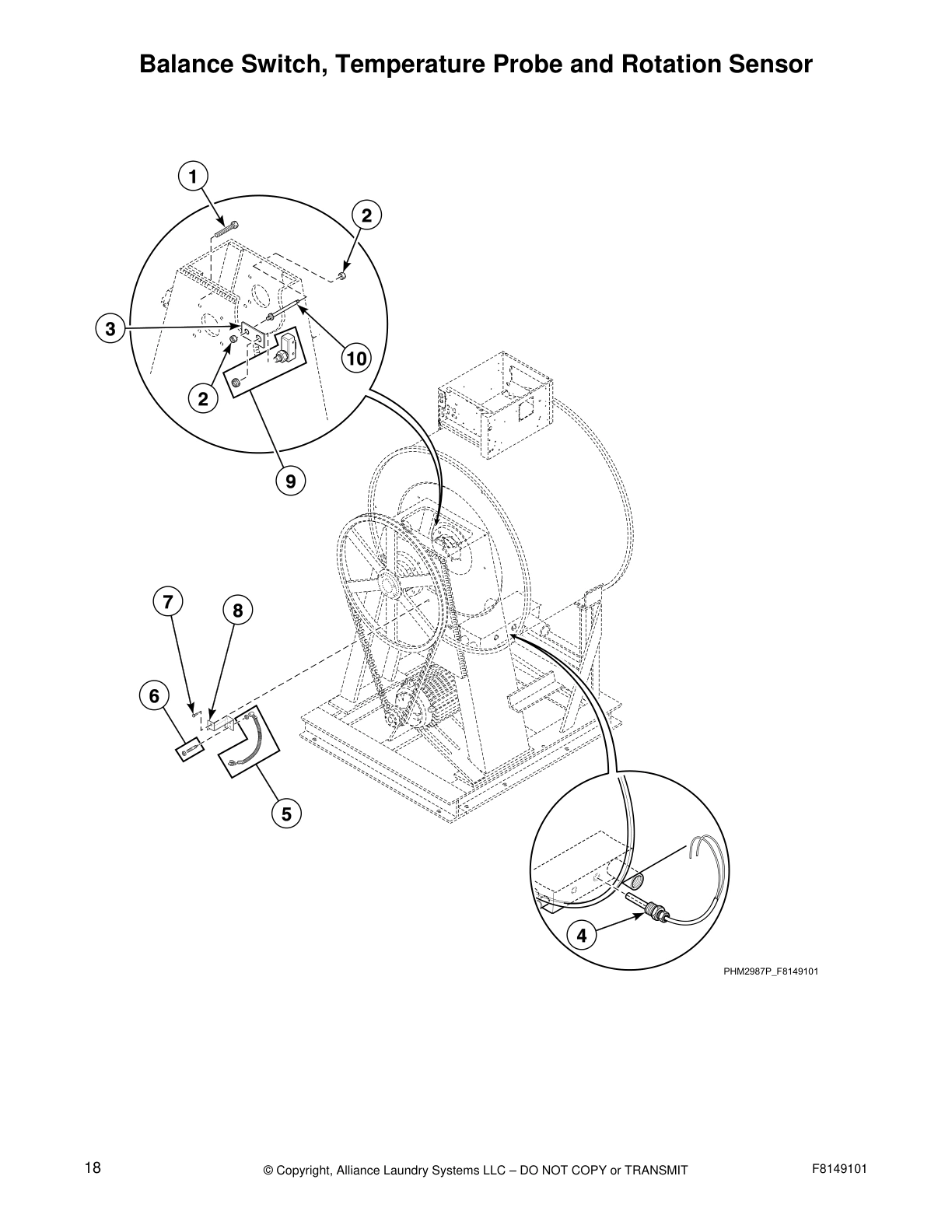

Balance Switch, Temperature Probe and Rotation Sensor

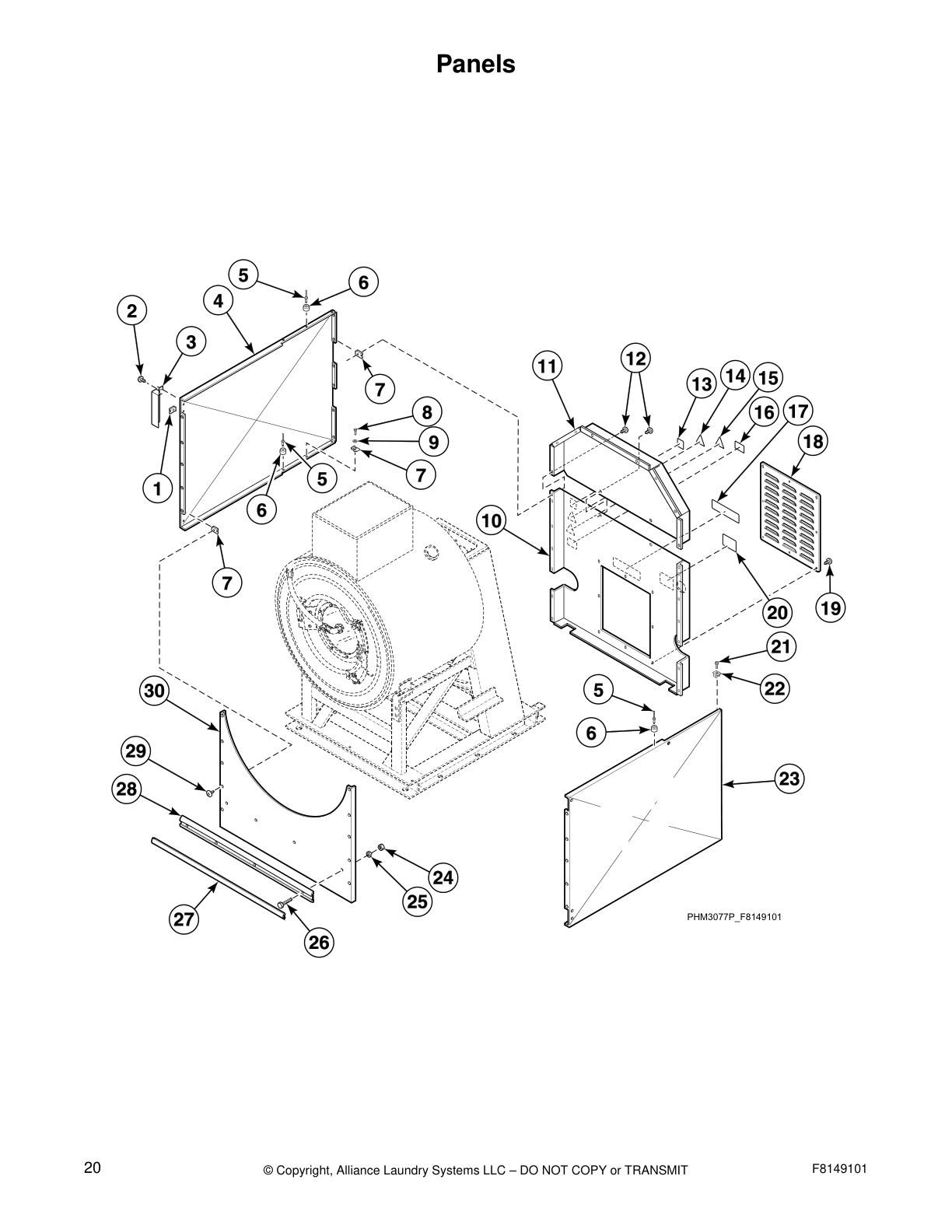

Panels

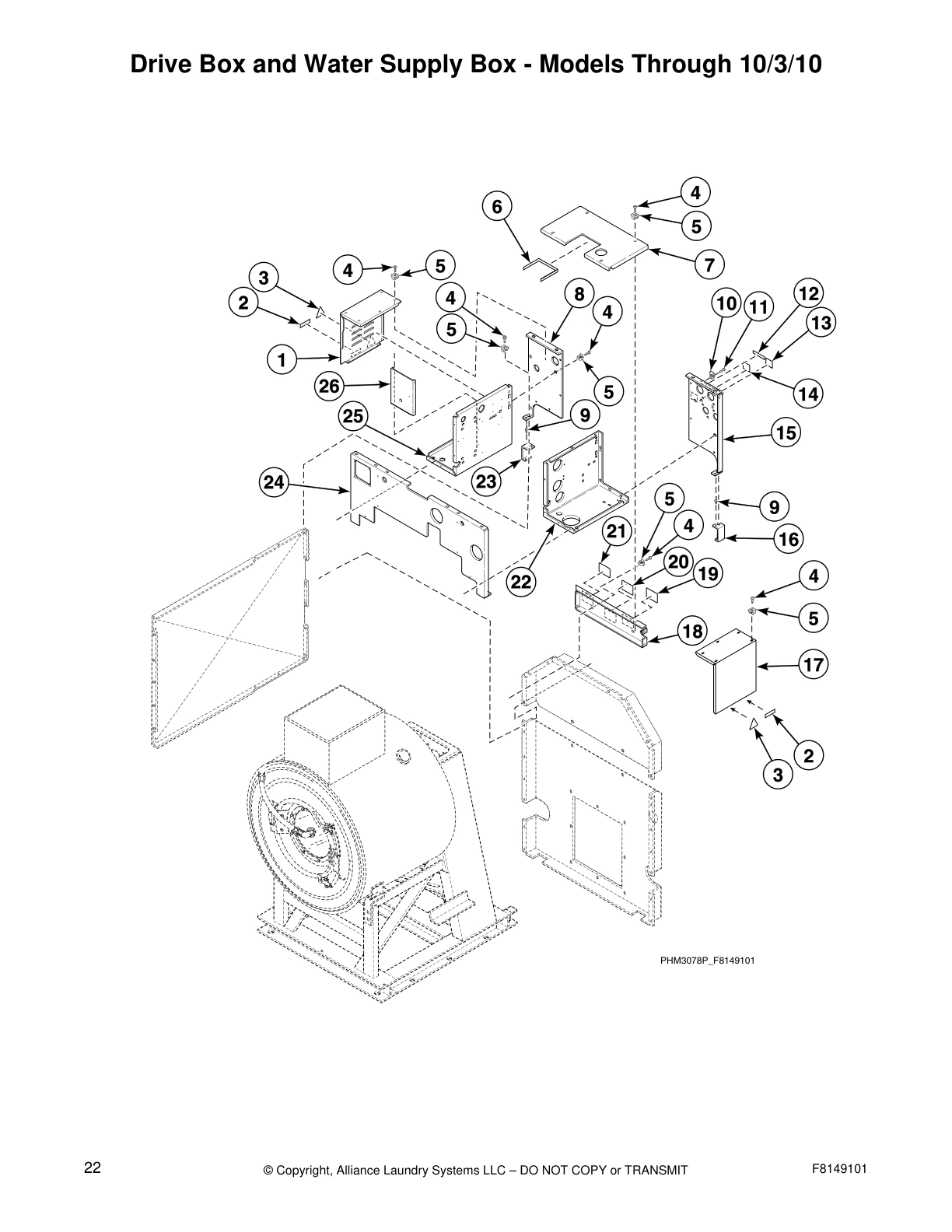

Drive Box and Water Supply Box - Models Through 10/3/10

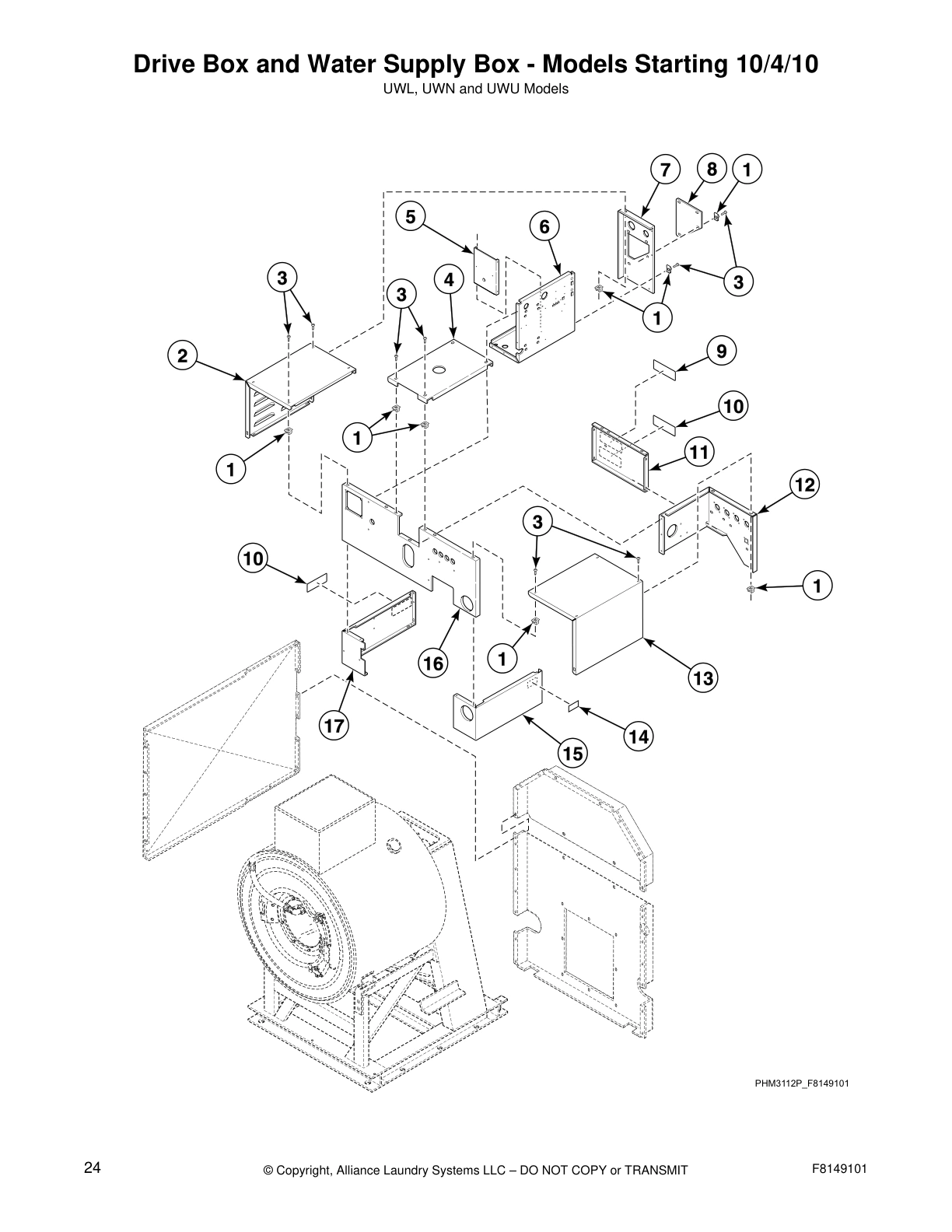

Drive Box and Water Supply Box - Models Starting 10/4/10

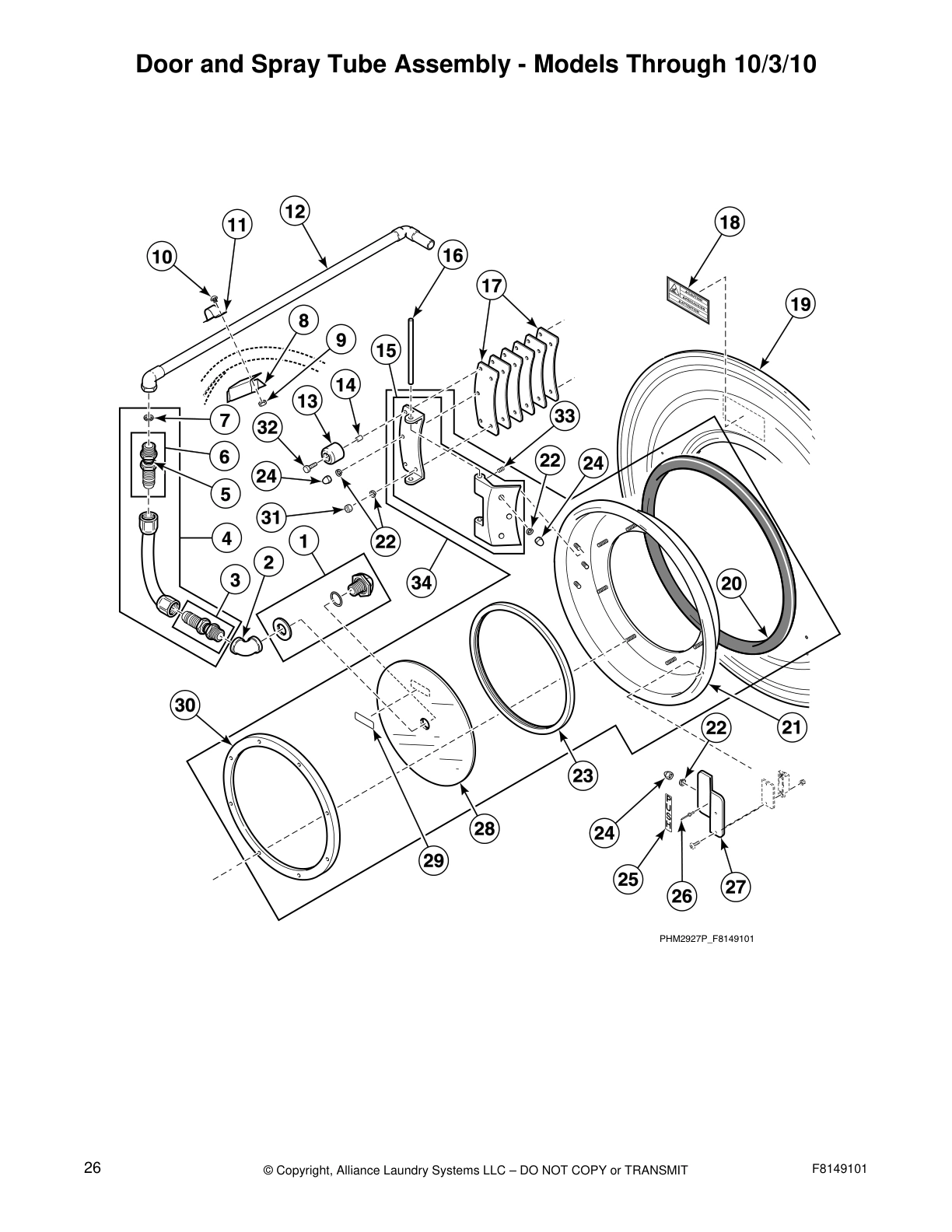

Door and Spray Tube Assembly - Models Through 10/3/10

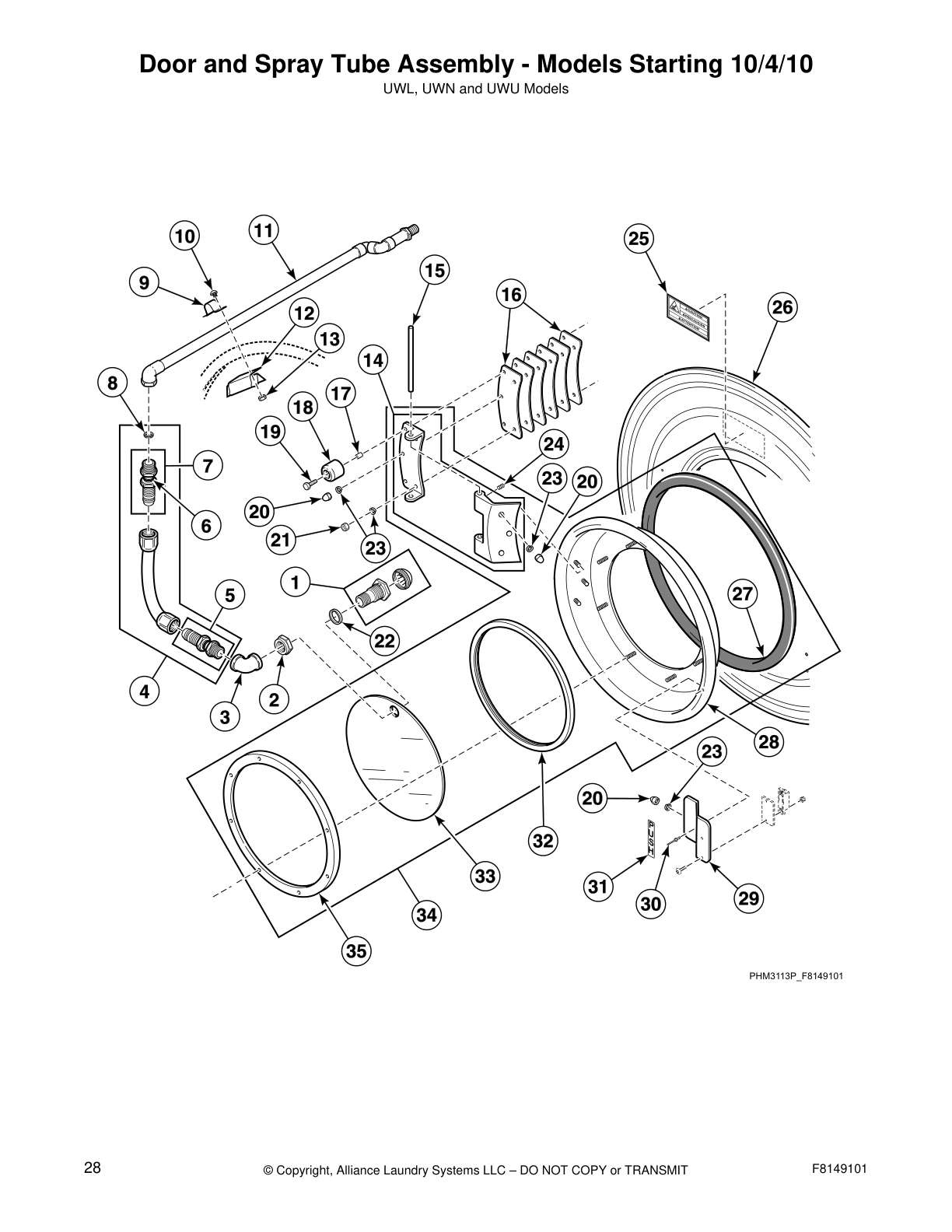

Door and Spray Tube Assembly - Models Starting 10/4/10

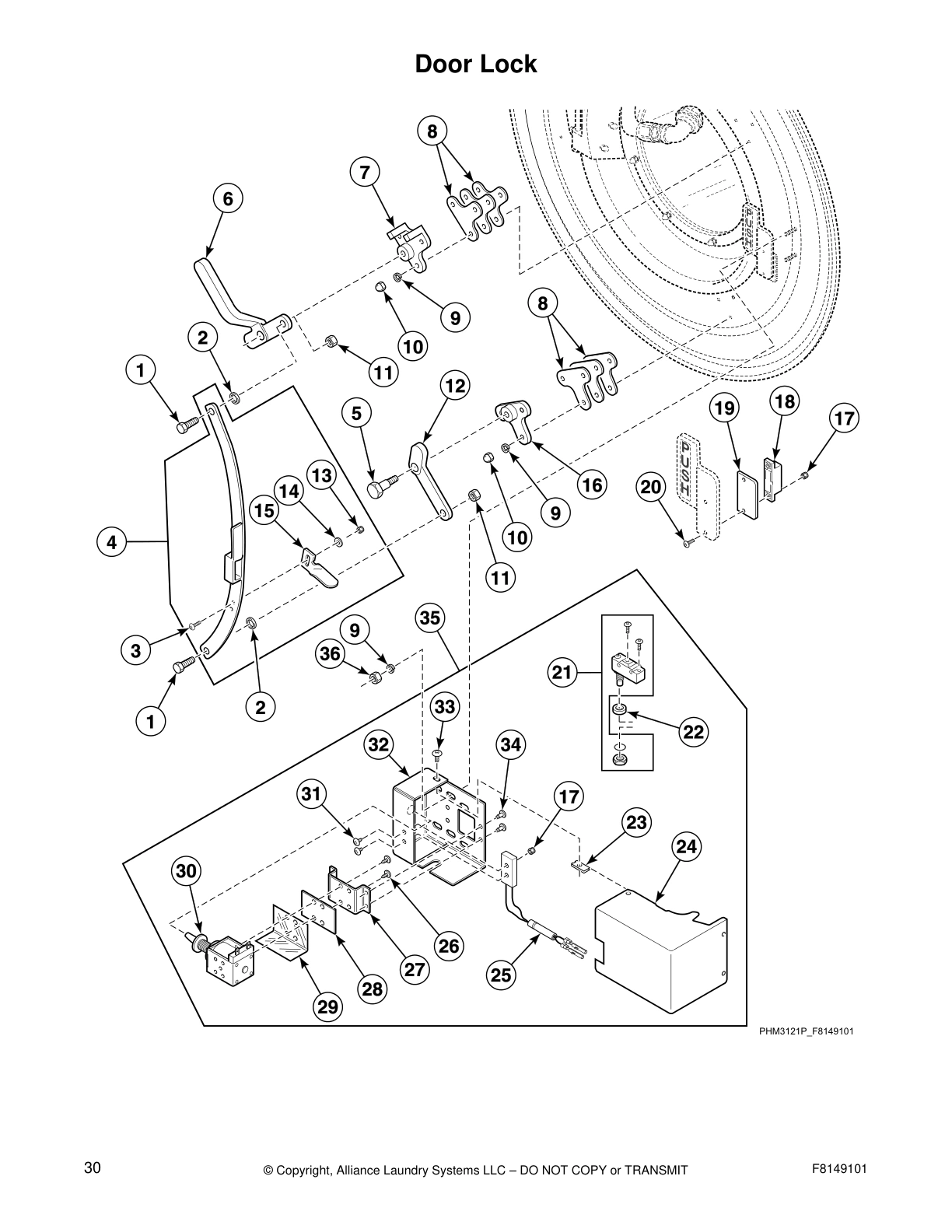

Door Lock

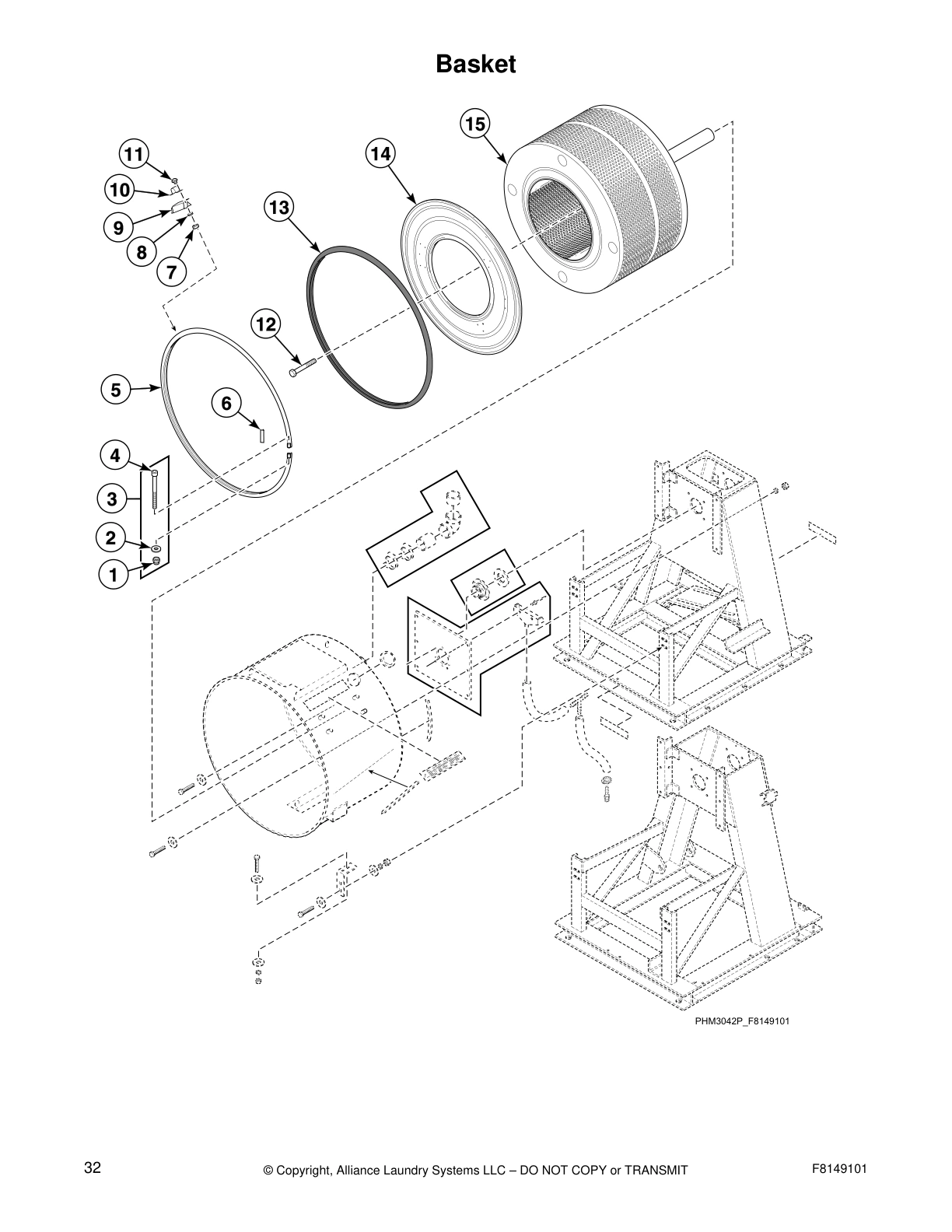

Basket

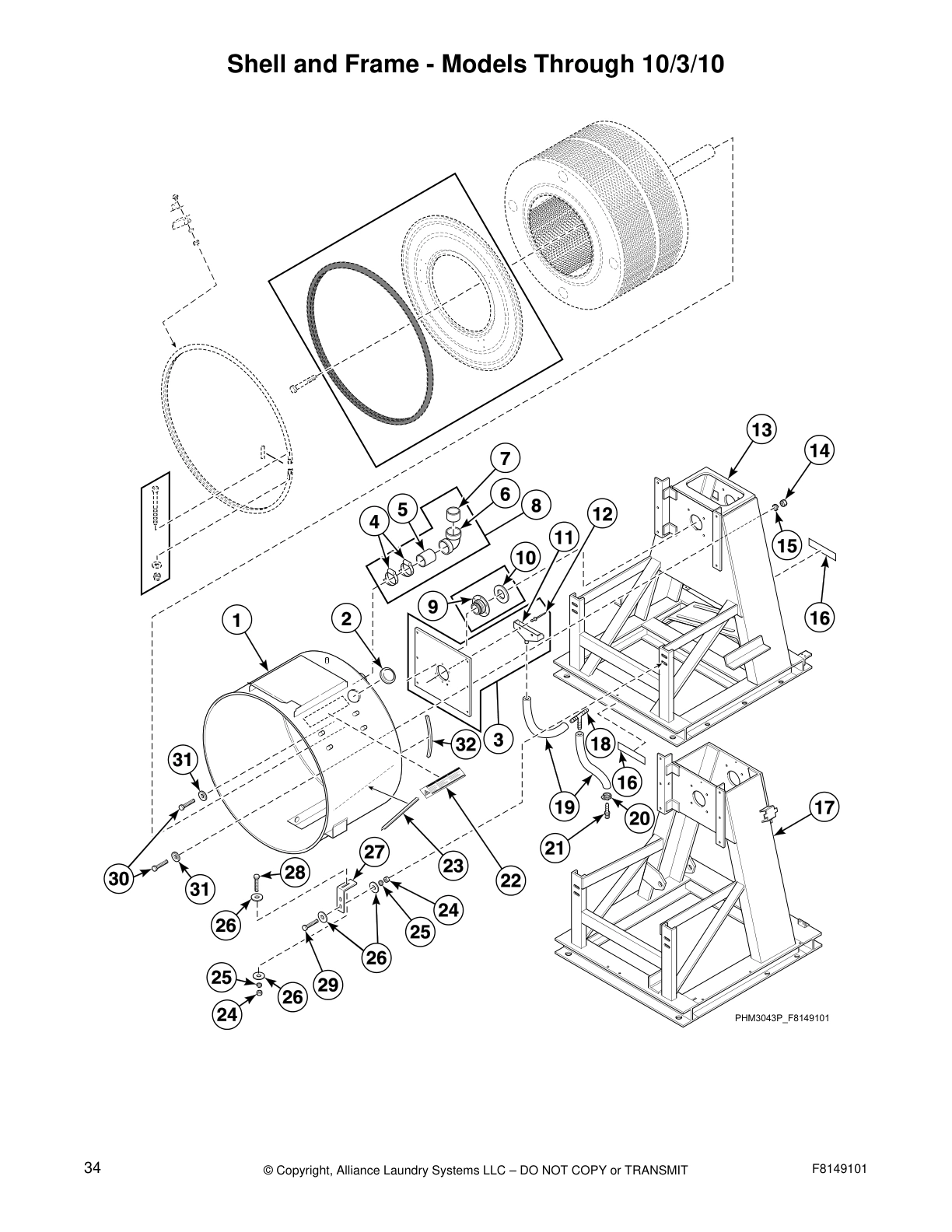

Shell and Frame - Models Through 10/3/10

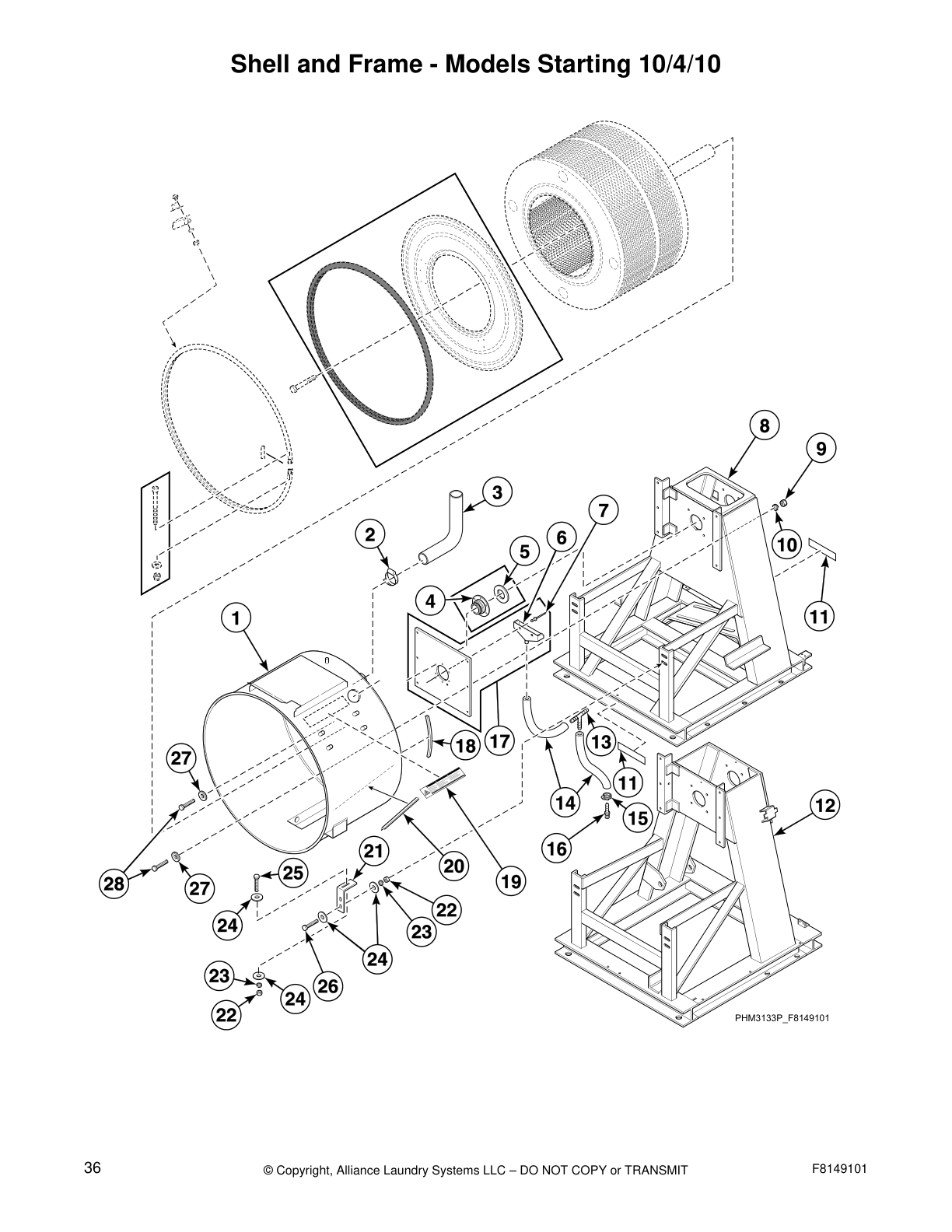

Shell and Frame - Models Starting 10/4/10

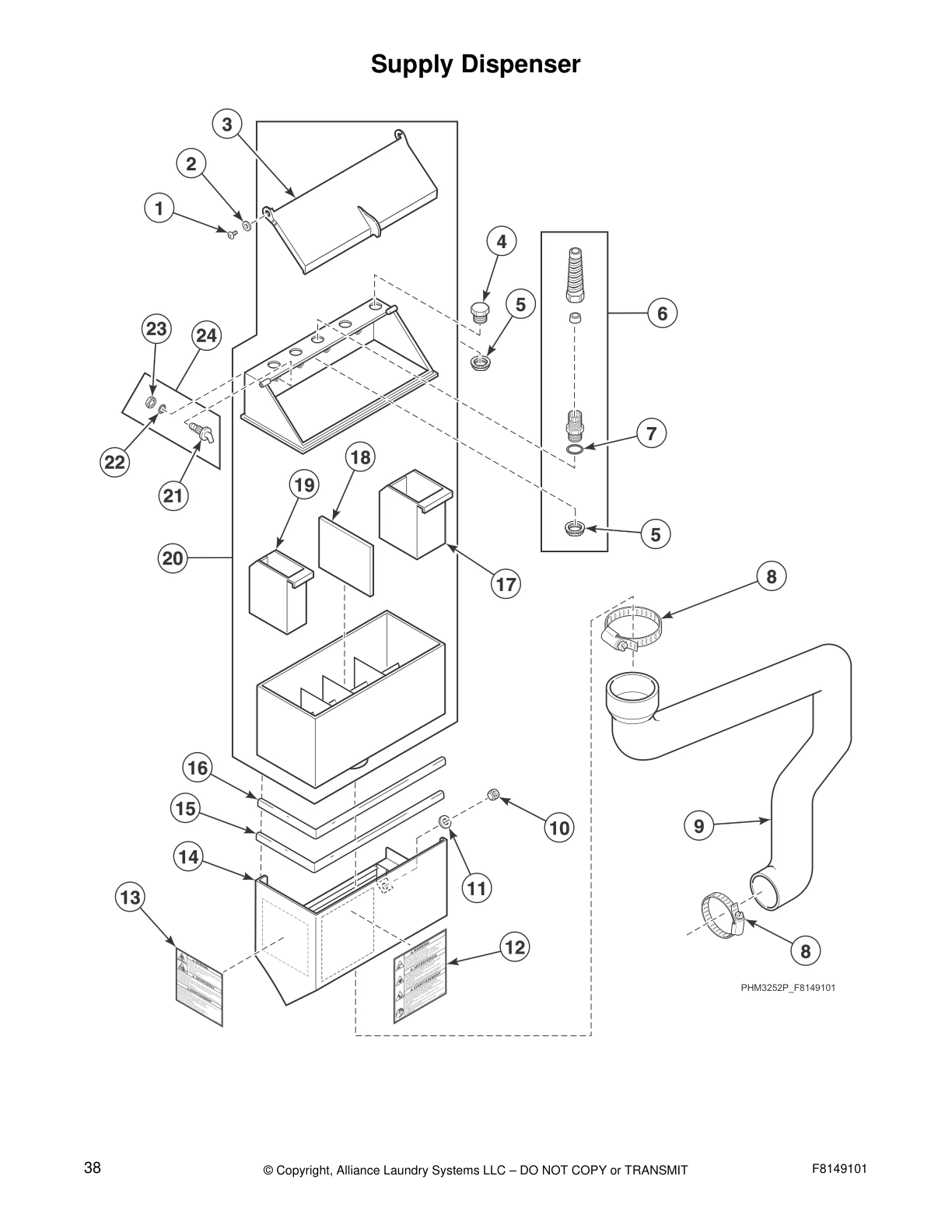

Supply Dispenser

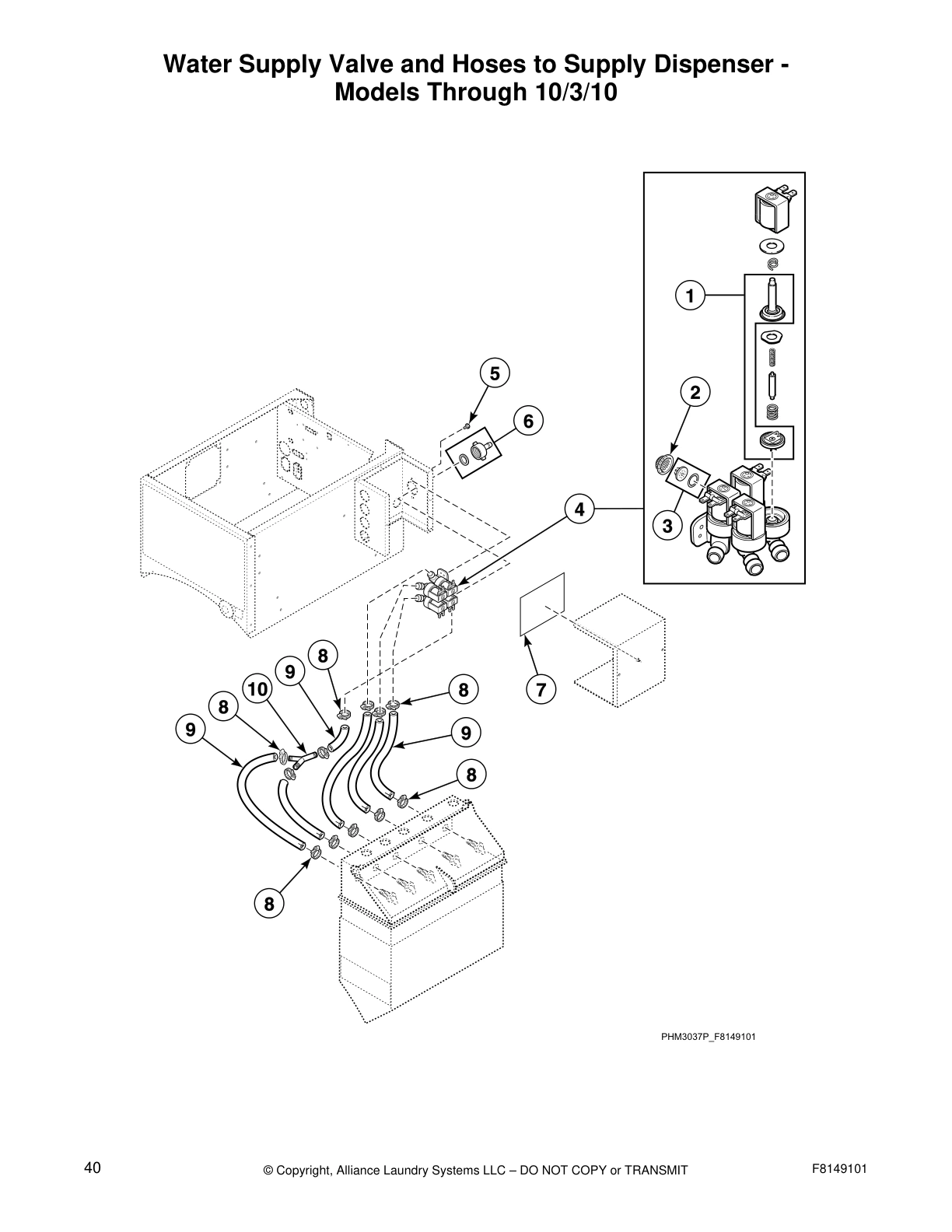

Water Supply Valve and Hoses to Supply Dispenser -
Models Through 10/3/10

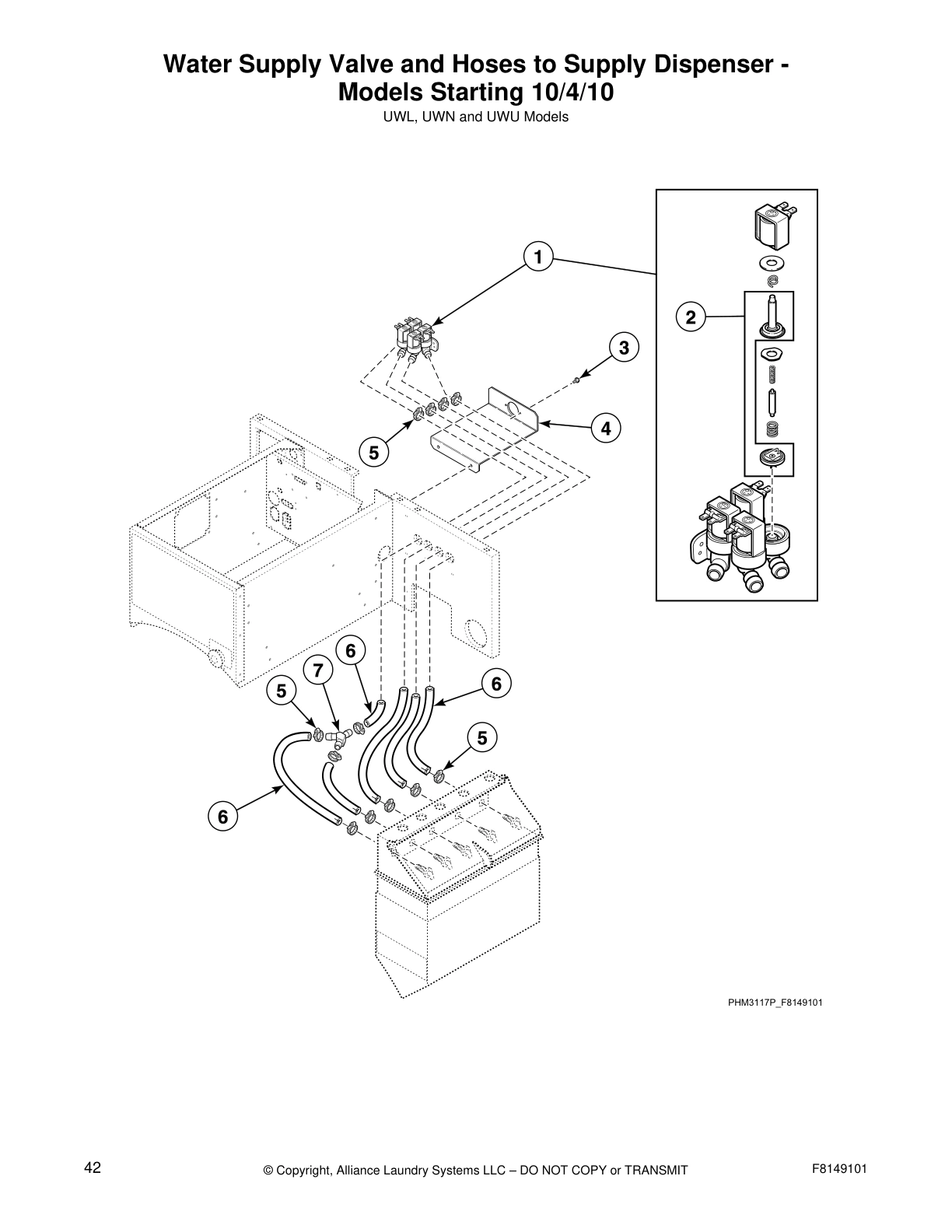

Water Supply Valve and Hoses to Supply Dispenser -
Models Starting 10/4/10

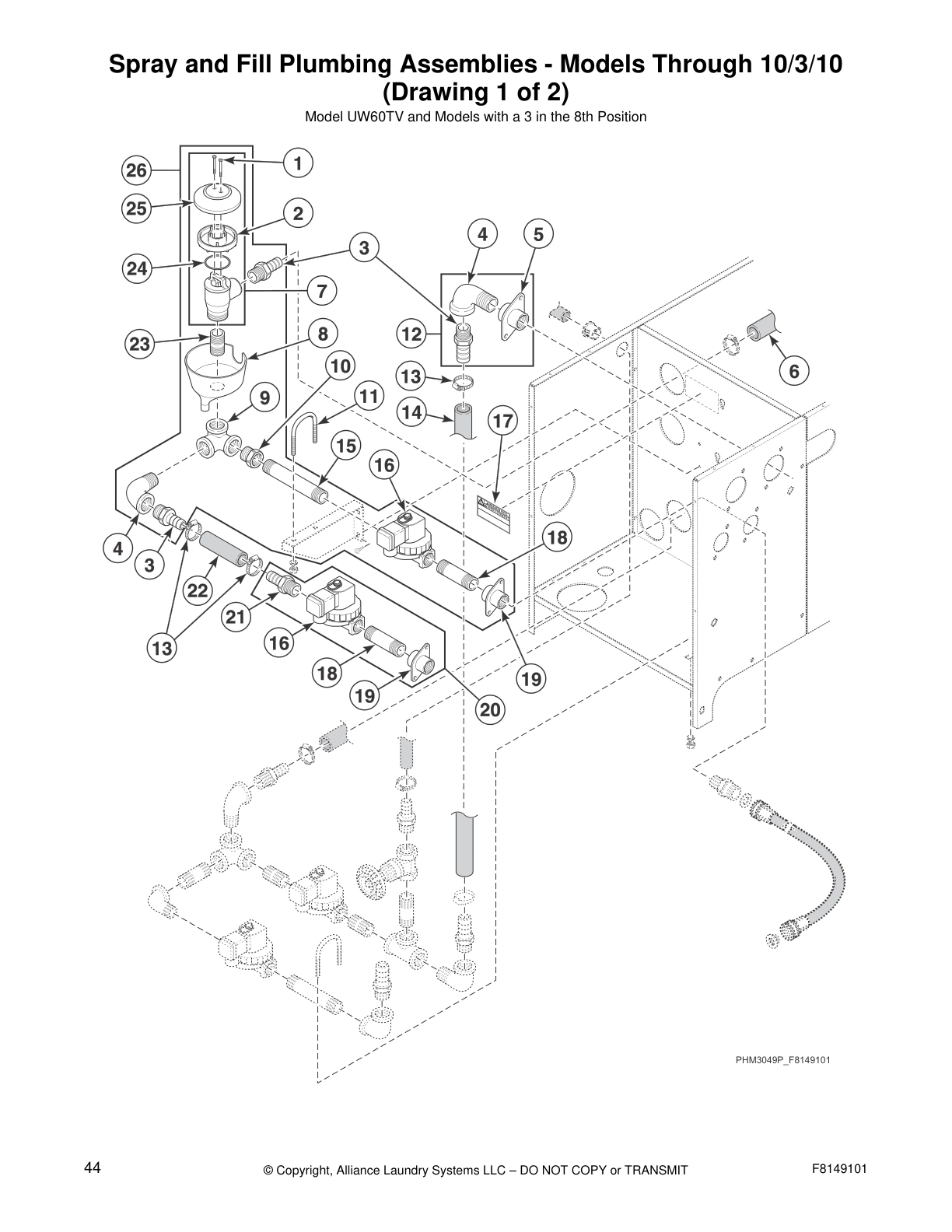

Spray and Fill Plumbing Assemblies - Models Through 10/3/10
(Drawing 1 of 2)

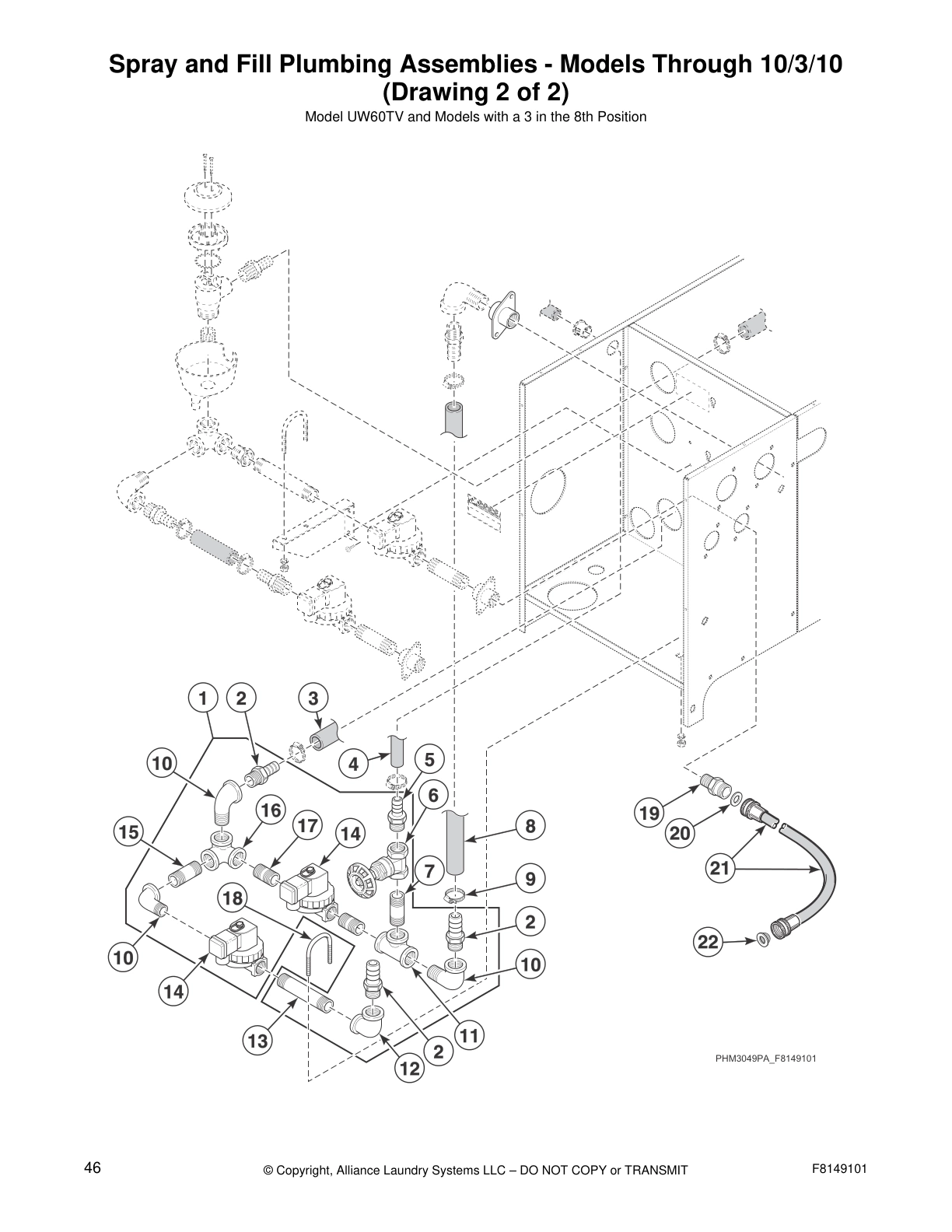

Spray and Fill Plumbing Assemblies - Models Through 10/3/10
(Drawing 2 of 2)

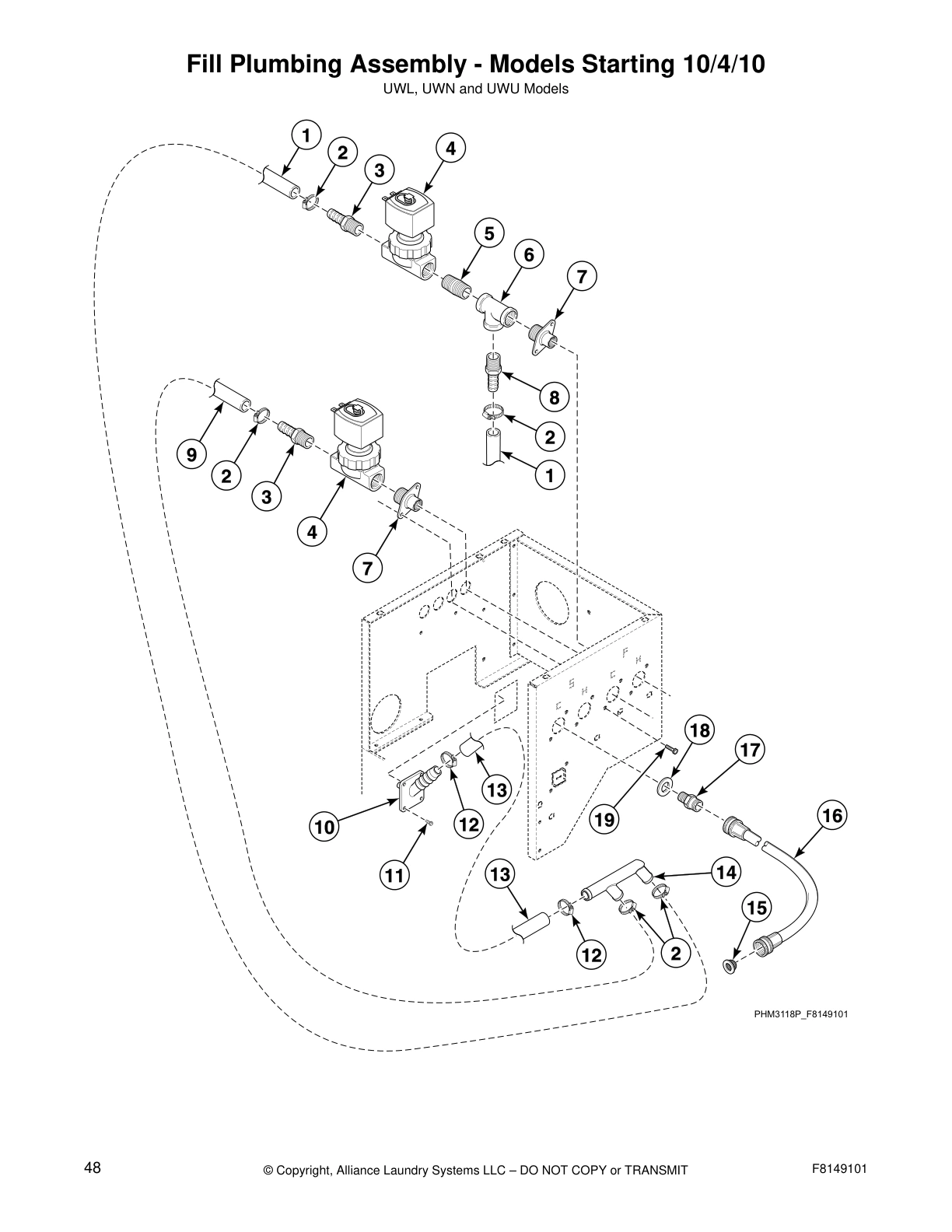

Fill Plumbing Assembly - Models Starting 10/4/10

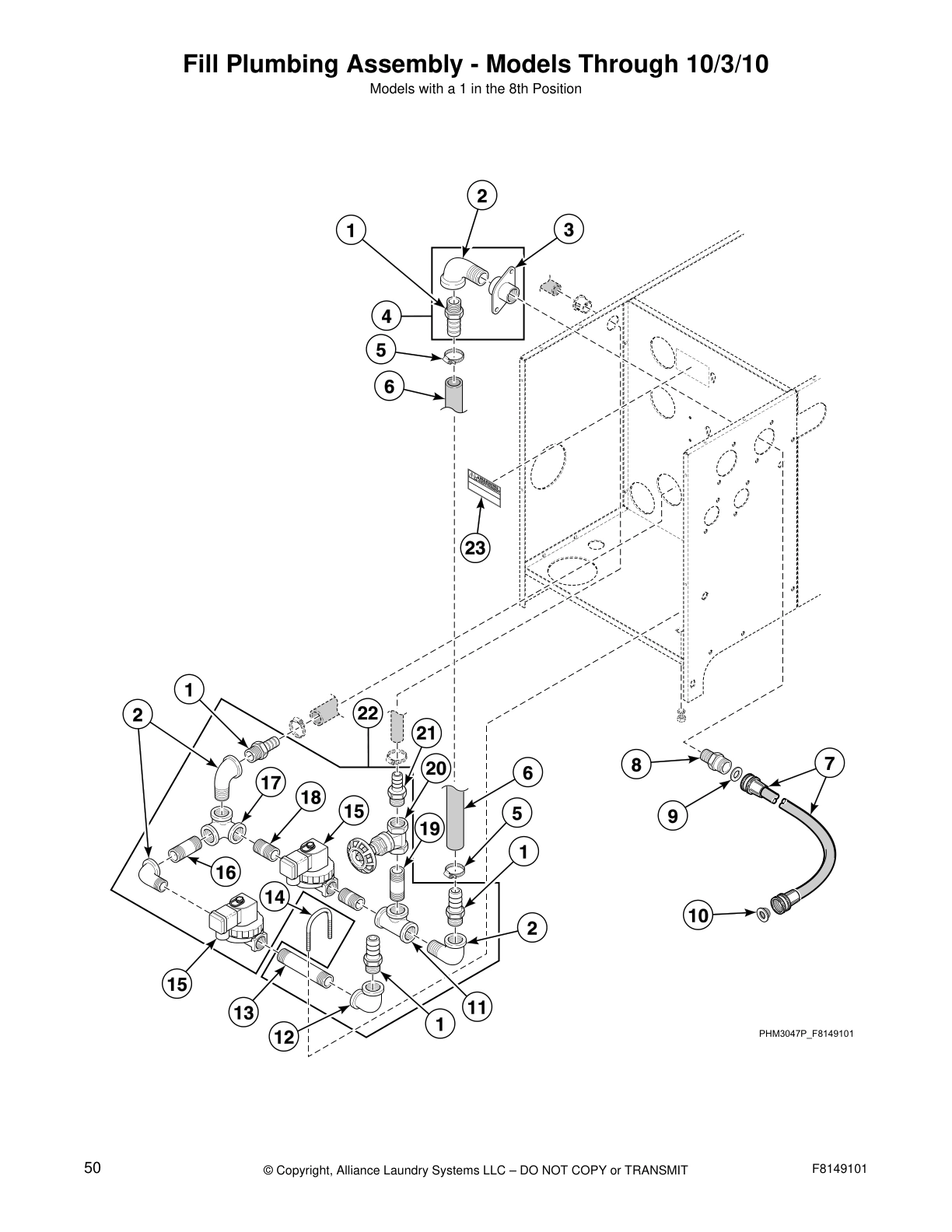

Fill Plumbing Assembly - Models Through 10/3/10

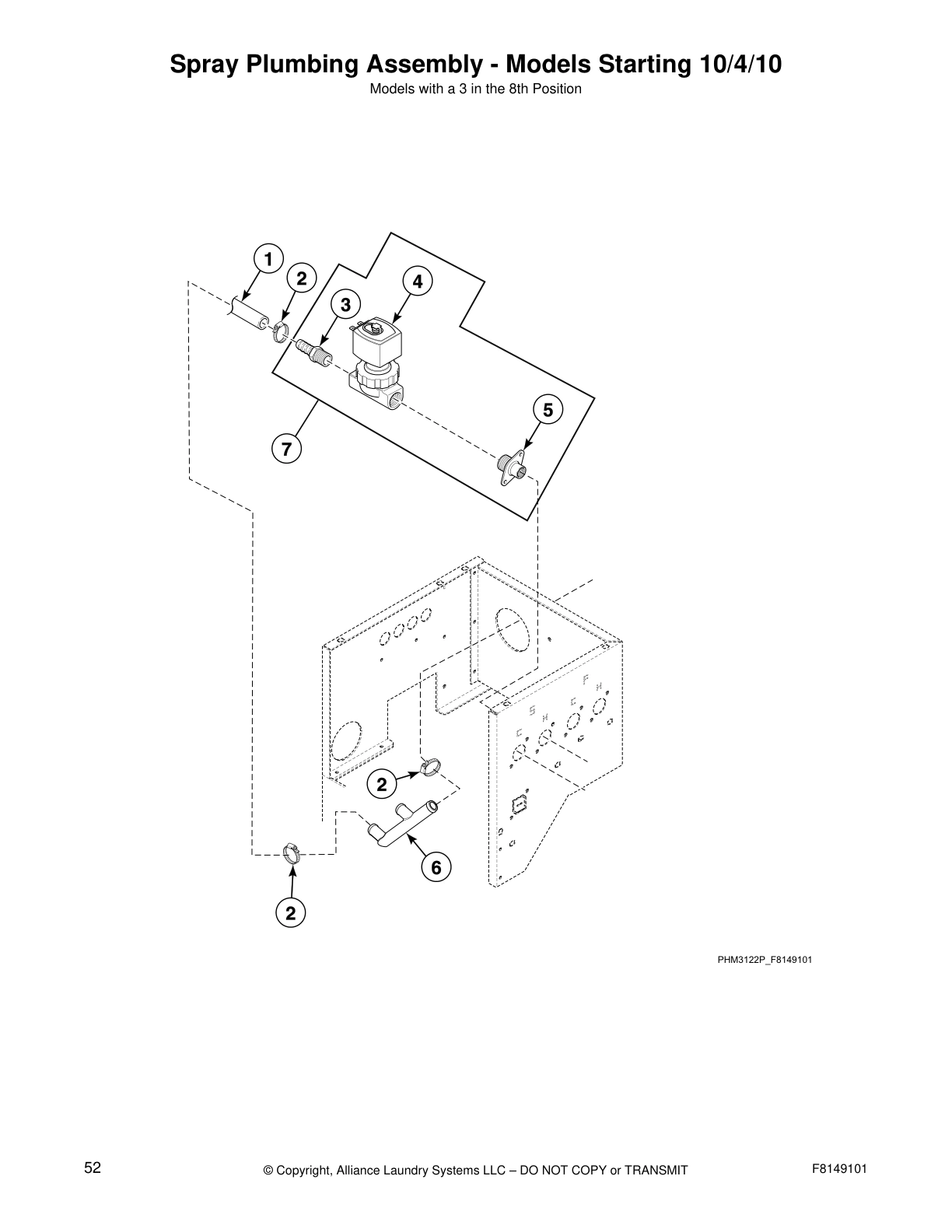

Spray Plumbing Assembly - Models Starting 10/4/10

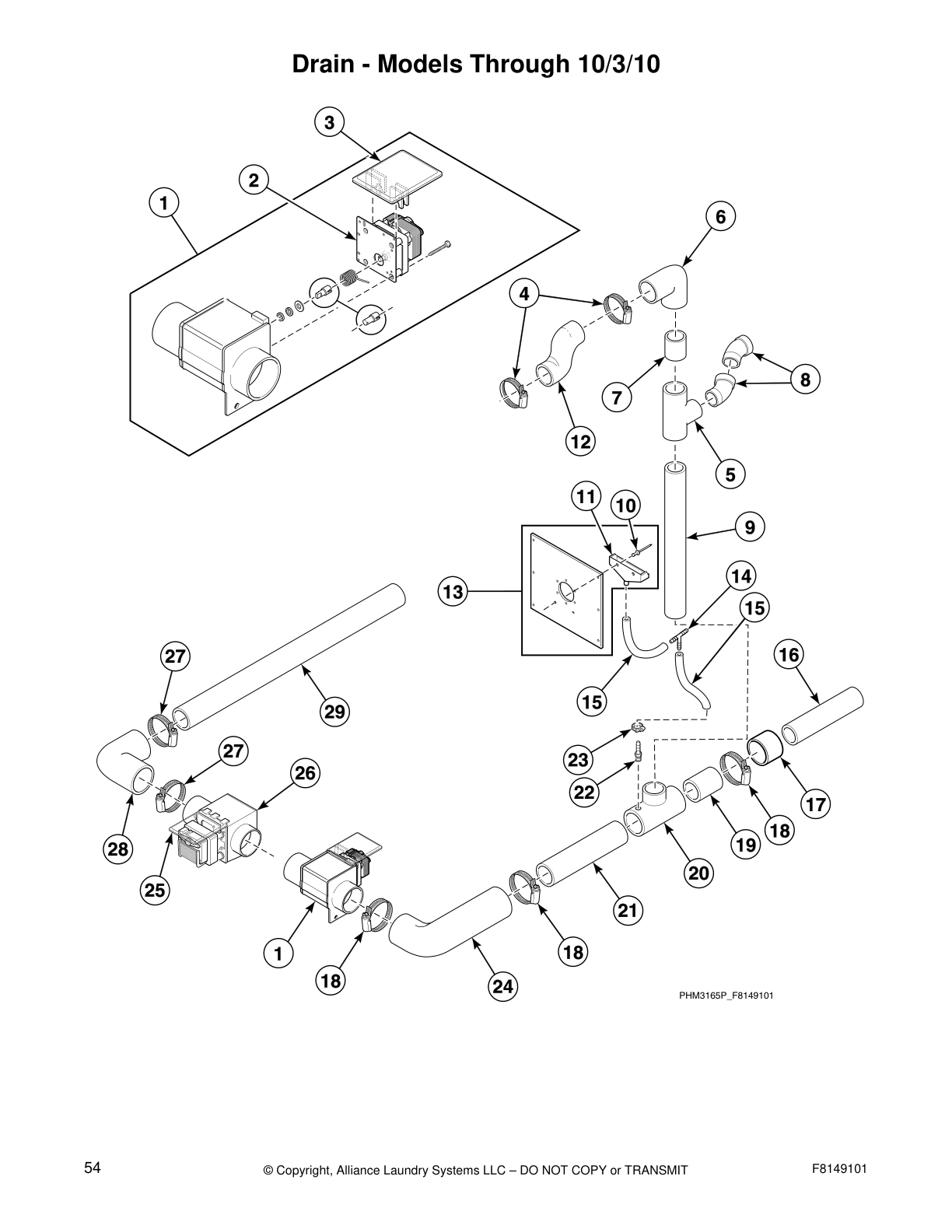

Drain - Models Through 10/3/10

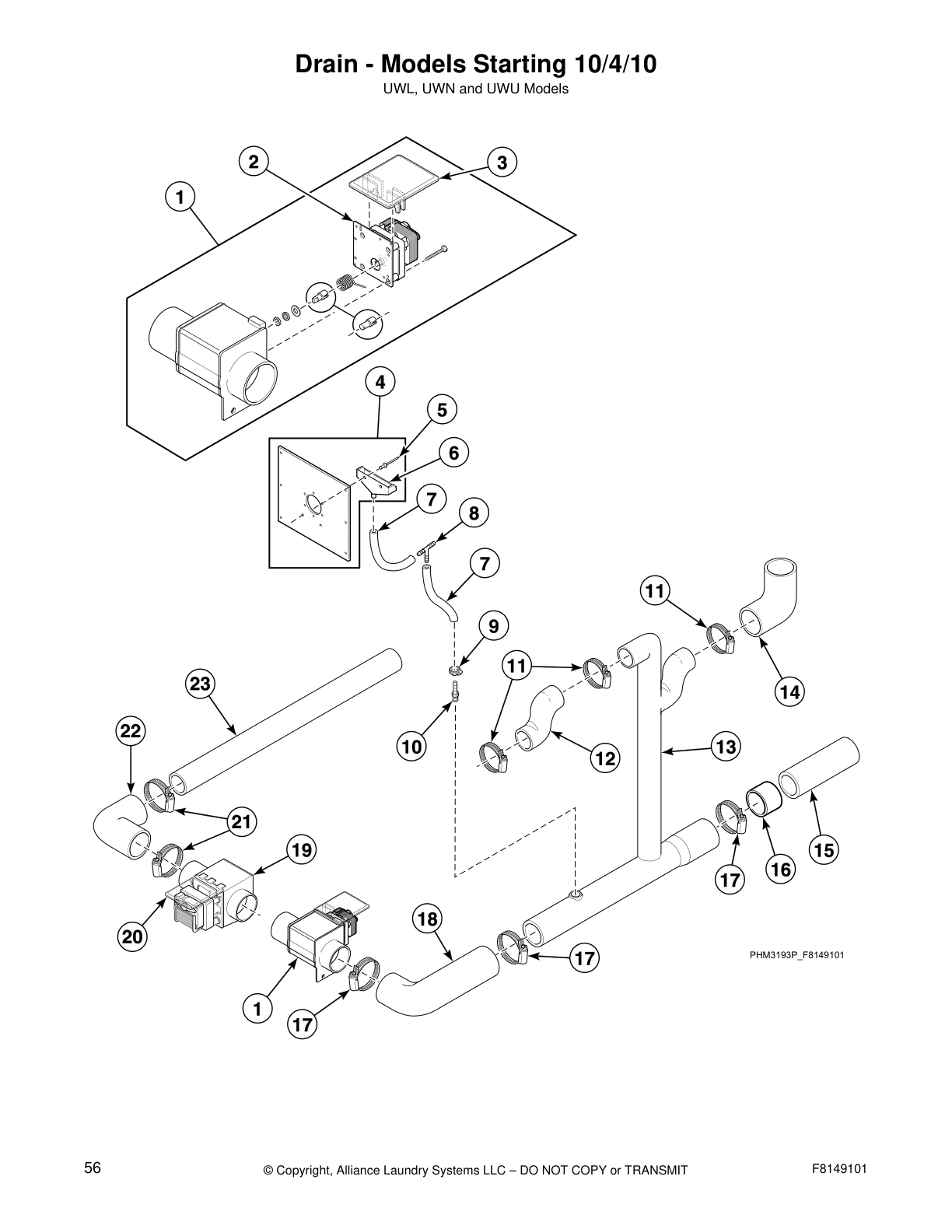

Drain - Models Starting 10/4/10

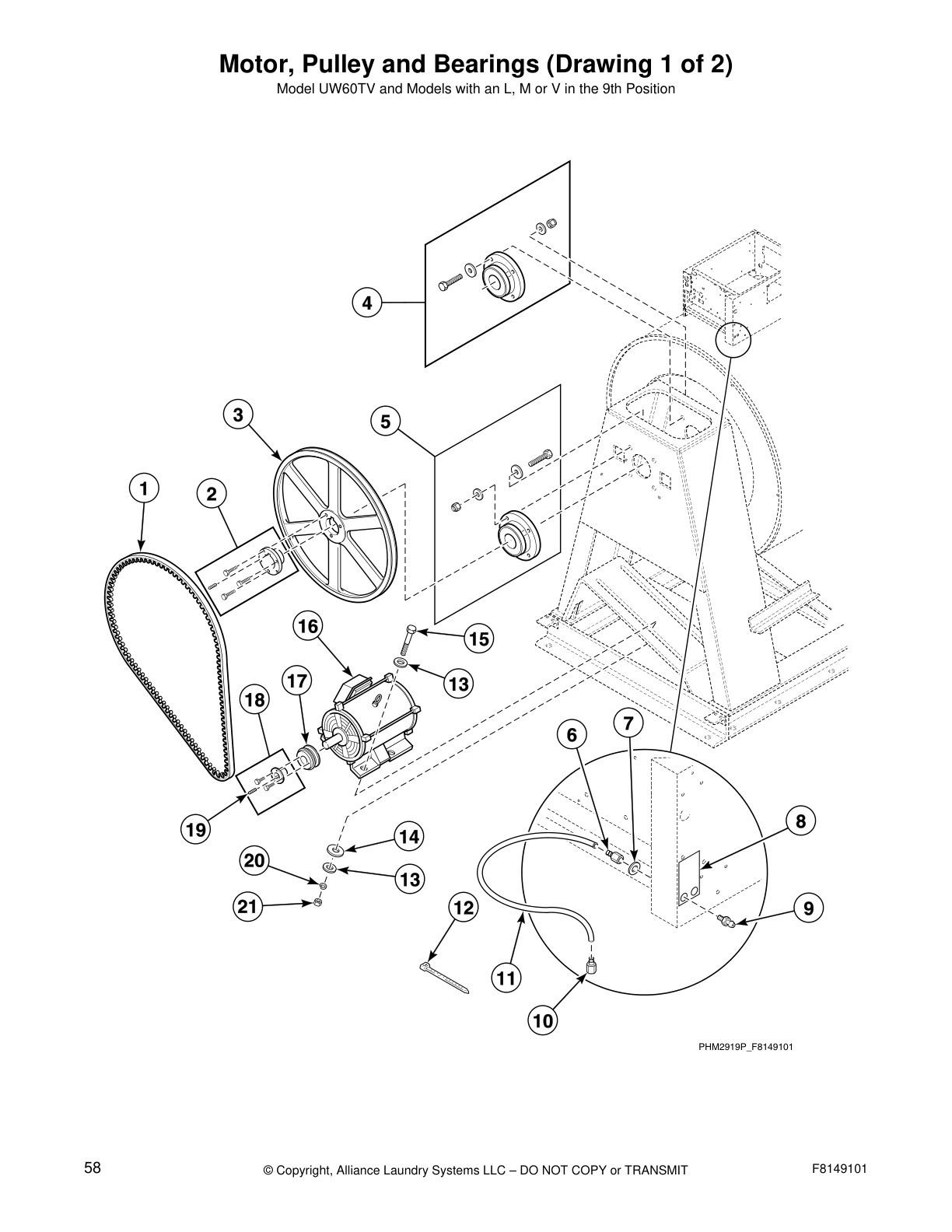

Motor, Pulley and Bearings (Drawing 1 of 2)

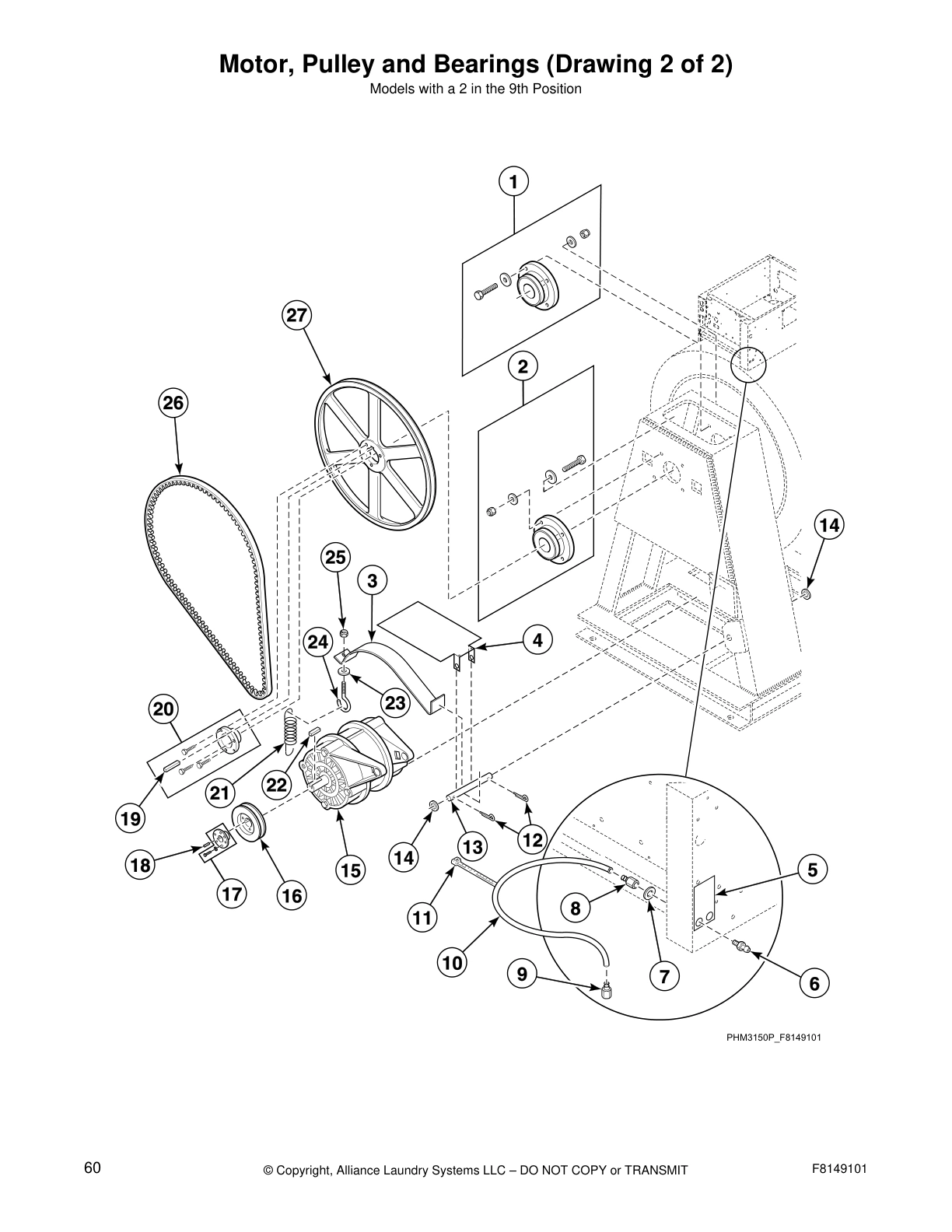

Motor, Pulley and Bearings (Drawing 2 of 2)

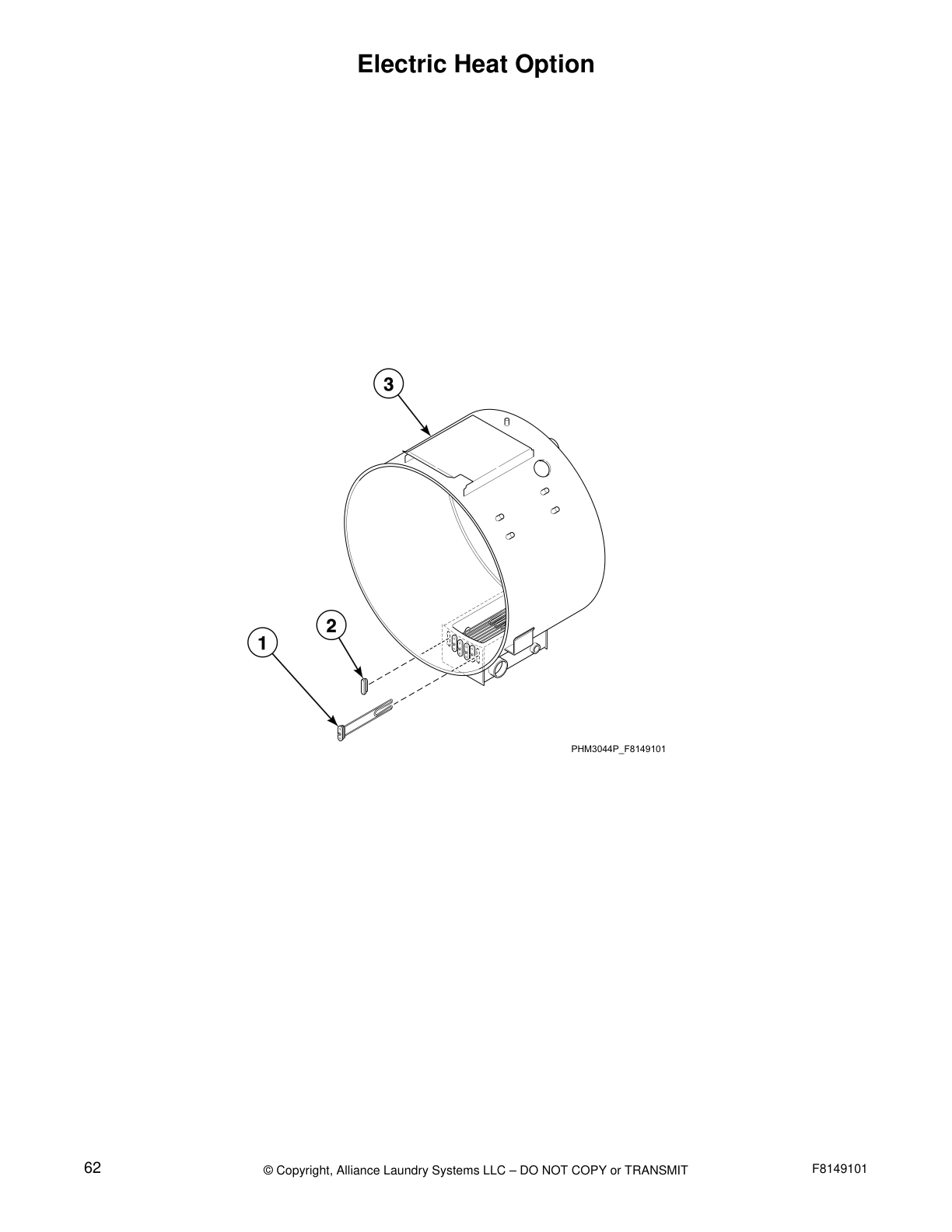

Electric Heat Option

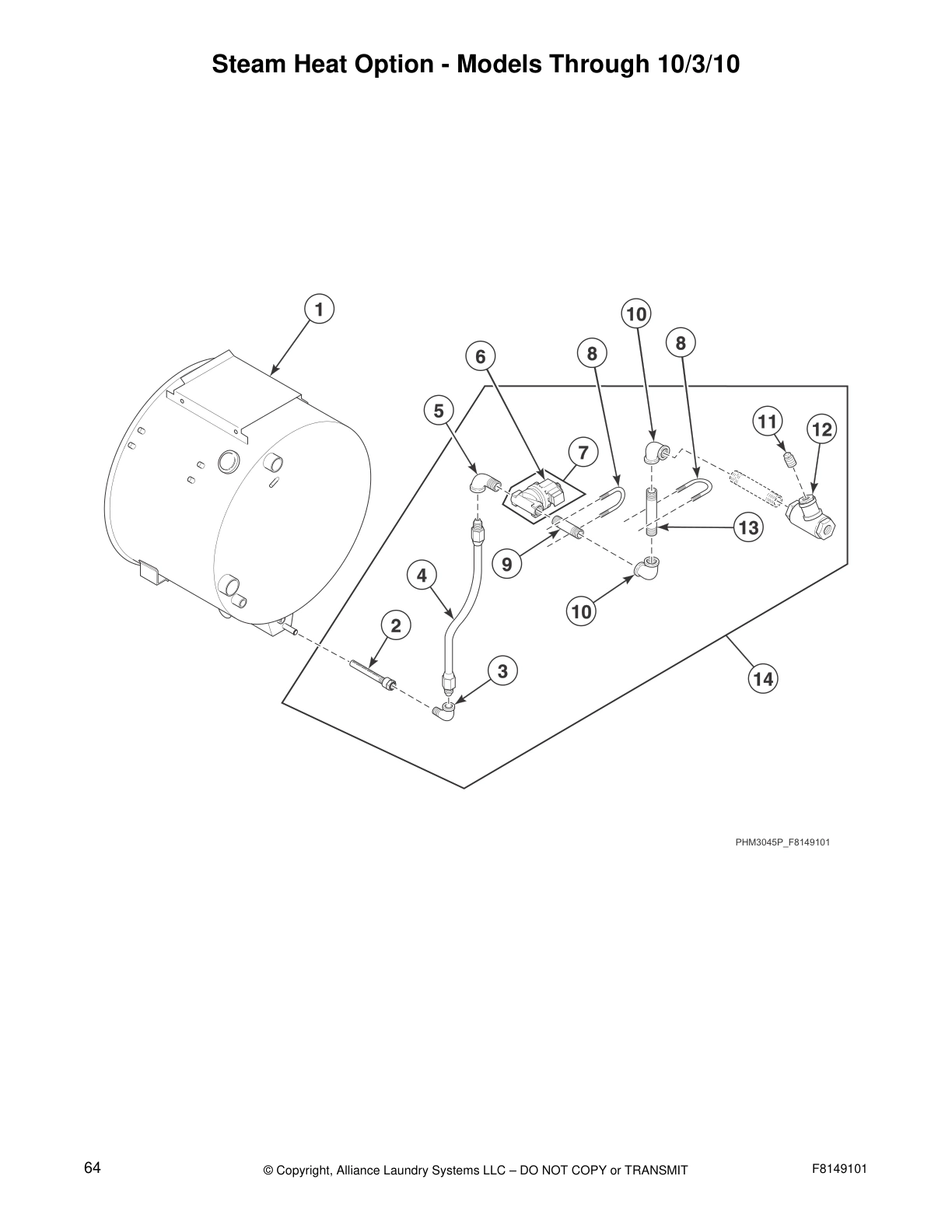

Steam Heat Option - Models Through 10/3/10

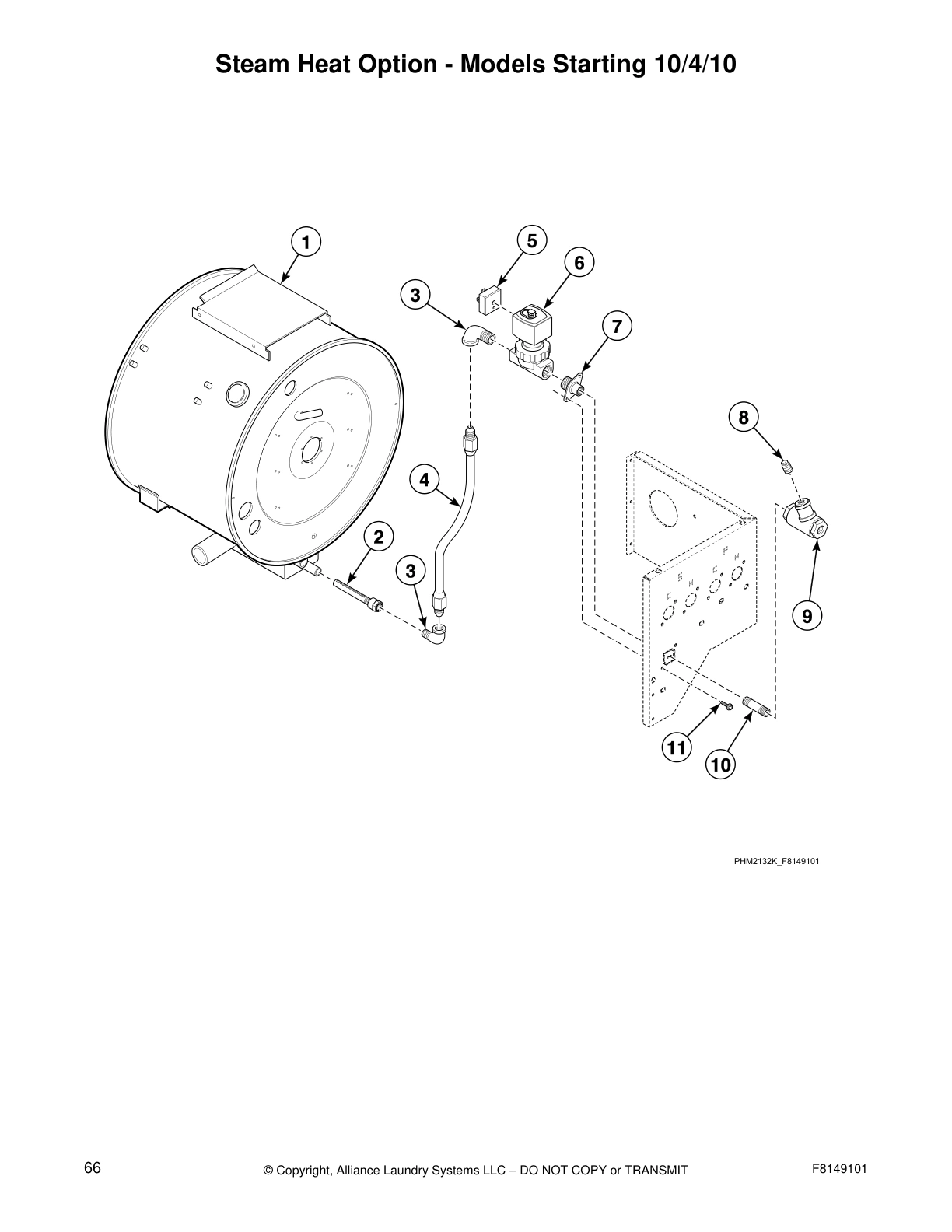

Steam Heat Option - Models Starting 10/4/10

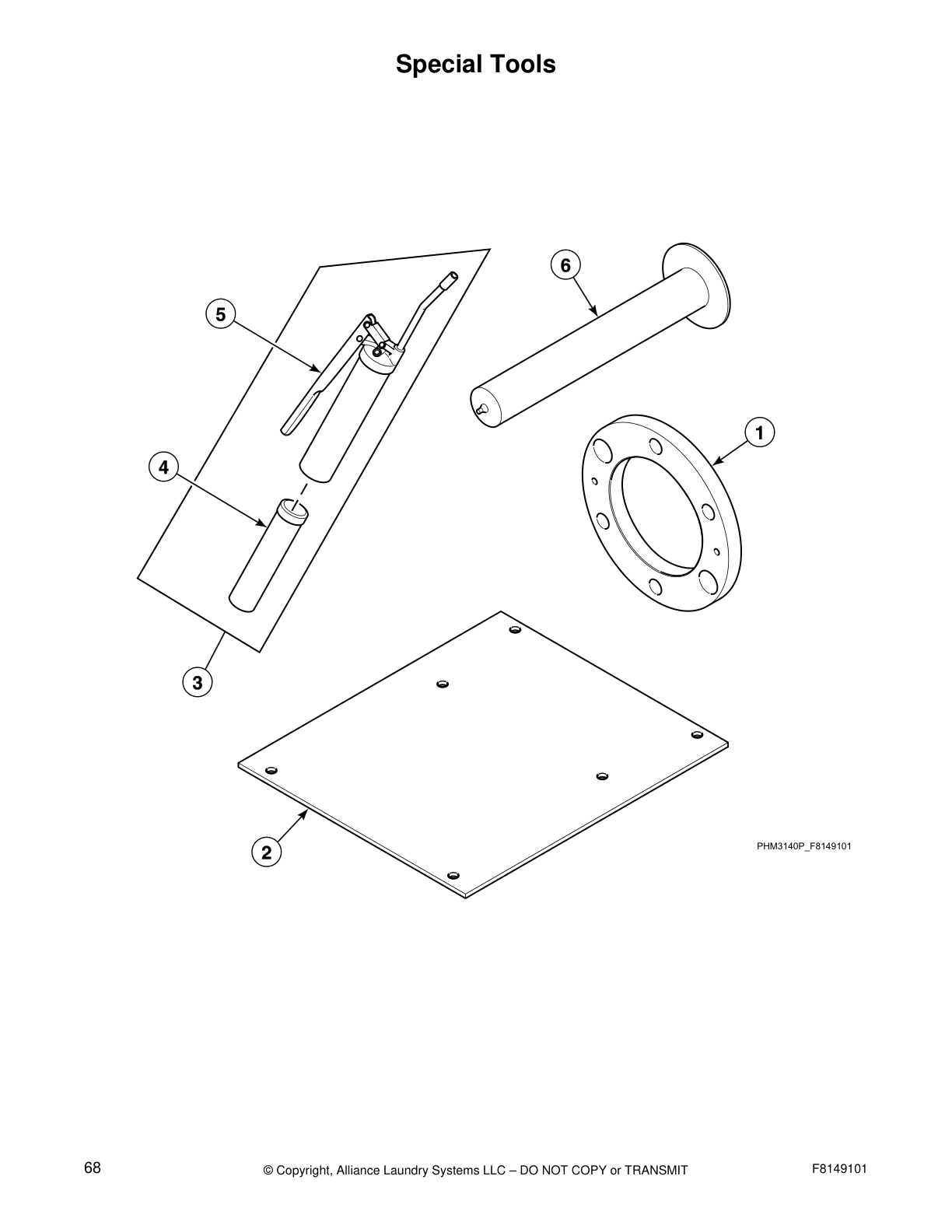

Special Tools
Common parts from model Unimac UWU060K12 Washer
SPQ F020014200 SPQ F020014200 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ F8158801P SPQ F8158801P Contact Us For Availability
SPQ F8028401 SPQ F8028401 Contact Us For Availability
SPQ 44088501P SPQ 44088501P Contact Us For Availability
SPQ F8054903 SPQ F8054903 Contact Us For Availability
SPQ F8054603 SPQ F8054603 Contact Us For Availability
SPQ F330186P SPQ F330186P Contact Us For Availability
SPQ F8103101 SPQ F8103101 Contact Us For Availability
SPQ F421909 SPQ F421909 Contact Us For Availability
SPQ F8158901P SPQ F8158901P Contact Us For Availability
SPQ F8054702 SPQ F8054702 Contact Us For Availability
Wet-Clean Kit SPQ F925P3 Contact Us For Availability
1
Do Not Tamper Label SPQ F8345901 Contact Us For Availability
1
Ground Lug Connector SPQ M411283 Contact Us For Availability
1
Screw SPQ F8111101 Contact Us For Availability
1
Screw SPQ F430927 Contact Us For Availability
1
Left Side Cover SPQ F8278102 Contact Us For Availability
1
Screw SPQ F430917 Contact Us For Availability
1
Nut SPQ F430215 Contact Us For Availability
1
Shell Weldment SPQ F8273301 Contact Us For Availability
1
Dispenser Valve Harness SPQ F8347301 Contact Us For Availability
1
Hose Barb SPQ F421951 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Front Bearing Kit SPQ F798824-00 Contact Us For Availability
1
Electric Heat Harness SPQ F8056701 Contact Us For Availability
1
Shell Weldment SPQ F8366001 Contact Us For Availability
1
Shaft Seal Alignment Fixture SPQ F0100312-00 Contact Us For Availability
2
Hole Plug SPQ F430903 Contact Us For Availability
2
Snap Bushing SPQ M400985 Contact Us For Availability
2
Terminal Block SPQ 70333001 Contact Us For Availability
2
Screw SPQ F8352602 Contact Us For Availability
2
Interlock Switch Spacer SPQ F430909 Contact Us For Availability
2
Shell Band Fastener Kit SPQ F430317 Contact Us For Availability
2
Drip Rail SPQ F200085500 Contact Us For Availability
2
Injection Nozzle SPQ F431133 Contact Us For Availability
2
4-Way Valve SPQ F8336601 Contact Us For Availability
2
Fill Plumbing Assembly SPQ F420105 Contact Us For Availability
2
Pop Rivet SPQ F200133600 Contact Us For Availability
2
Bushing SPQ F745010 Contact Us For Availability
2
Heating Element SPQ F360203P Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F947P3 Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Rebar Frame Template SPQ F602941 Contact Us For Availability
3
Insulator SPQ 430642 Contact Us For Availability
3
Top Cover SPQ F8206901 Contact Us For Availability
3
Contactor SPQ 00177 Contact Us For Availability
3
Temperature Harness
Standard SPQ F8124301 Contact Us For Availability
3
SPQ 70182601 SPQ 70182601 Contact Us For Availability
3
Coupling SPQ 20253 Contact Us For Availability
3
Door Handle Casting SPQ F430916 Contact Us For Availability
3
Shell Band Assembly SPQ F791001 Contact Us For Availability
3
Dual Drain Harness SPQ F200107P Contact Us For Availability
3
SPQ F430913 SPQ F430913 Contact Us For Availability
3
Strain Relief Connector SPQ F0150514-00 Contact Us For Availability
3
Diaphragm and Guide Kit SPQ G582P3 Contact Us For Availability
3
Hose SPQ F8100401 Contact Us For Availability
3
SPQ F0602365-11 SPQ F0602365-11 Contact Us For Availability
3
Connector SPQ F200280700 Contact Us For Availability
3
Heating Element Plug SPQ F360202 Contact Us For Availability
3
Street Elbow SPQ F421703 Contact Us For Availability
3
Grease Gun Kit SPQ F798700 Contact Us For Availability
4
Screw SPQ F430948 Contact Us For Availability
4
Warning Label SPQ M413862 Contact Us For Availability
4
Contactor Power Harness SPQ F8115501 Contact Us For Availability
4
Temperature Harness
Electric heat SPQ F8028223 Contact Us For Availability
4
SPQ F8096101P SPQ F8096101P Contact Us For Availability
4
Water Hose SPQ F8233501 Contact Us For Availability
4
Control Box Partition SPQ F8374101 Contact Us For Availability
4
SPQ F746803 SPQ F746803 Contact Us For Availability
4
Shell Gasket Shield SPQ F430518 Contact Us For Availability
4
SPQ F8137401 SPQ F8137401 Contact Us For Availability
4
SPQ F8363601 SPQ F8363601 Contact Us For Availability
4
Strain Relief Adapter Kit SPQ F190304 Contact Us For Availability
4
Dispenser Valve Harness SPQ F8091601P Contact Us For Availability
4
SPQ F8119201 SPQ F8119201 Contact Us For Availability
4
SPQ F190701 SPQ F190701 Contact Us For Availability
4
Steam Hose SPQ F200197 Contact Us For Availability
4
Bearing Grease SPQ F210206P Contact Us For Availability
5
4-Way Valve SPQ F381723P Contact Us For Availability
5
Drive Box Rear Panel SPQ F8117601 Contact Us For Availability
5
Reversing Contactor Harness SPQ F8200101 Contact Us For Availability
5
Thermistor Sensor SPQ F8028221P Contact Us For Availability
5
SPQ F8099602P SPQ F8099602P Contact Us For Availability
5
Drive Mounting Box SPQ F8351801 Contact Us For Availability
5
SPQ F430168 SPQ F430168 Contact Us For Availability
5
Spray Rinse Bracket Assembly SPQ F603344P Contact Us For Availability
5
SPQ F8162201 SPQ F8162201 Contact Us For Availability
5
Hose Clamp SPQ F140340P Contact Us For Availability
5
Valve Mounting Bracket SPQ F8331901 Contact Us For Availability
5
Adapter SPQ F8154502 Contact Us For Availability
5
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
5
SPQ F0602365-20 SPQ F0602365-20 Contact Us For Availability
5
Grease Gun SPQ F210207P Contact Us For Availability
6
Control Harness SPQ F8189401P Contact Us For Availability
6
Ground Decal SPQ F8242201 Contact Us For Availability
6
Reducer Bushing SPQ F370609 Contact Us For Availability
6
SPQ M412763 SPQ M412763 Contact Us For Availability
6
Back Electrical Panel SPQ F8346401 Contact Us For Availability
6
SPQ F150203 SPQ F150203 Contact Us For Availability
6
SPQ F601216 SPQ F601216 Contact Us For Availability
6
SPQ F8162101 SPQ F8162101 Contact Us For Availability
6
SPQ F0603139-03 SPQ F0603139-03 Contact Us For Availability
6
Chemical Supply Hose SPQ F749802 Contact Us For Availability
6
Hose Adapter SPQ F8117101 Contact Us For Availability
6
Valve SPQ F8322801P Contact Us For Availability
6
SPQ F8257002 SPQ F8257002 Contact Us For Availability
6
SPQ F430332 SPQ F430332 Contact Us For Availability
6
DIN Valve Kit SPQ H86070034 Contact Us For Availability
6
Alignment Shaft Assembly SPQ F633426 Contact Us For Availability
7
Interlock Switch Harness SPQ F8153901 Contact Us For Availability
7
DIN Valve Adapter Kit SPQ F200222 Contact Us For Availability
7
SPQ F8191201P SPQ F8191201P Contact Us For Availability
7
Main Power Harness SPQ F230630 Contact Us For Availability
7
Rotation Sensor Harness SPQ F421936 Contact Us For Availability
7
SPQ F170404 SPQ F170404 Contact Us For Availability
7
Electrical Access Panel SPQ F8352401 Contact Us For Availability
7
SPQ F431022 SPQ F431022 Contact Us For Availability
7
SPQ F150201P SPQ F150201P Contact Us For Availability
7
SPQ F422900 SPQ F422900 Contact Us For Availability
7
SPQ F798819-00 SPQ F798819-00 Contact Us For Availability
7
SPQ F170215 SPQ F170215 Contact Us For Availability
7
Water Hose SPQ F200110P Contact Us For Availability
7
Coupling SPQ F8362701 Contact Us For Availability
7
SPQ F8257001P SPQ F8257001P Contact Us For Availability
7
SPQ F422114 SPQ F422114 Contact Us For Availability
7
DIN Valve Kit SPQ F380987P Contact Us For Availability
8
Power Harness SPQ F8246601 Contact Us For Availability
8
SPQ F8136601 SPQ F8136601 Contact Us For Availability
8
Logic Supply Power Harness SPQ F230739 Contact Us For Availability
8
Interlock Contactor SPQ F8202001P Contact Us For Availability
8
Rotation Sensor SPQ F8066401 Contact Us For Availability
8
SPQ F8099201 SPQ F8099201 Contact Us For Availability
8
SPQ F8359201 SPQ F8359201 Contact Us For Availability
8
SPQ F602058 SPQ F602058 Contact Us For Availability
8
SPQ F431113 SPQ F431113 Contact Us For Availability
8
SPQ F0602364-04 SPQ F0602364-04 Contact Us For Availability
8
Water Valve Assembly Decal SPQ F230754 Contact Us For Availability
8
Fill/Supply Harness SPQ F8137502 Contact Us For Availability
8
Valve SPQ F8521801 Contact Us For Availability
8
SPQ F8257101 SPQ F8257101 Contact Us For Availability
8
SPQ F8028301P SPQ F8028301P Contact Us For Availability
8
SPQ J1408004 SPQ J1408004 Contact Us For Availability
8
Plug SPQ F420409 Contact Us For Availability
9
Output Auxiliary Power Harness SPQ F8339601 Contact Us For Availability
9
Filter Retainer Guard SPQ F8131801 Contact Us For Availability
9
Rotation Sensor Bracket SPQ F8066201 Contact Us For Availability
9
SPQ F431100 SPQ F431100 Contact Us For Availability
9
SPQ F8278202 SPQ F8278202 Contact Us For Availability
9
SPQ F200119600 SPQ F200119600 Contact Us For Availability
9
SPQ F602901P SPQ F602901P Contact Us For Availability
9
SPQ F8261301 SPQ F8261301 Contact Us For Availability
9
SPQ F100203 SPQ F100203 Contact Us For Availability
9
SPQ F8265501 SPQ F8265501 Contact Us For Availability
9
Fill Valve Harness SPQ F200166 Contact Us For Availability
9
U-Bolt Clamp SPQ F8521501 Contact Us For Availability
10
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
10
Nut SPQ F8122701 Contact Us For Availability
10
Nut SPQ 70030401 Contact Us For Availability
10
Belt Guard Assembly SPQ F8244201P Contact Us For Availability
10
Spray Rinse Strap SPQ F602880 Contact Us For Availability
10
Hose Barb SPQ F421929 Contact Us For Availability
10
Elbow SPQ F8351501 Contact Us For Availability
10
Tubing SPQ C000628P Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
11
Plug SPQ F8223901 Contact Us For Availability
11
Screw SPQ F8244101 Contact Us For Availability
11
Center Back Panel SPQ F8346501 Contact Us For Availability
11
Nut SPQ F431011 Contact Us For Availability
11
Hose Clamp SPQ F200213 Contact Us For Availability
11
Warning Label SPQ 70142 Contact Us For Availability
11
Washer SPQ F431147 Contact Us For Availability
11
Tee SPQ F420402 Contact Us For Availability
11
Cable Tie SPQ F140605 Contact Us For Availability
11
Plug SPQ 70079601 Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
12
Power Distribution Block SPQ M413865 Contact Us For Availability
12
Water Line Caution Decal SPQ F230734 Contact Us For Availability
12
Back Water Panel SPQ F8346301 Contact Us For Availability
12
Lower Door Latch Casting SPQ F150204 Contact Us For Availability
12
Shell Band Gasket SPQ 70391101 Contact Us For Availability
12
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
12
Elbow SPQ F420503 Contact Us For Availability
12
Overflow Hose SPQ F0150488-00 Contact Us For Availability
12
Cotter Pin SPQ F430401 Contact Us For Availability
13
Washer SPQ F430231 Contact Us For Availability
13
Right Side Cover SPQ F8352601 Contact Us For Availability
13
Shell Front Weldment SPQ F8302001 Contact Us For Availability
13
Tee SPQ F8166101 Contact Us For Availability
13
Spin Warning Decal SPQ F200085100 Contact Us For Availability
13
Nipple SPQ F420108 Contact Us For Availability
13
Molded Drain SPQ F8351301 Contact Us For Availability
13
Motor Support Rod Kit SPQ F730076 Contact Us For Availability
14
Male Tab Terminal SPQ 70346501 Contact Us For Availability
14
Door Hinge Strap Kit SPQ F200030600P Contact Us For Availability
14
Basket Assembly SPQ F8135801P Contact Us For Availability
14
Extension Arm Tab SPQ F431108 Contact Us For Availability
14
Soap Dispenser Shroud Weldment SPQ F8024301 Contact Us For Availability
14
Drain Hose SPQ F8261303 Contact Us For Availability
14
Washer SPQ 901690 Contact Us For Availability
14
Steam Heat Kit SPQ 70263801 Contact Us For Availability
15
Snap Bushing SPQ F8108501P Contact Us For Availability
15
Water Box Rear Panel SPQ F8278201 Contact Us For Availability
15
Front Bulkhead Panel SPQ F8359001 Contact Us For Availability
15
Door Hinge Pin SPQ F601815 Contact Us For Availability
15
Lower Door Latch Bracket Casting SPQ F601639 Contact Us For Availability
15
Washer SPQ F632015 Contact Us For Availability
15
Trim SPQ F170400RP Contact Us For Availability
15
Reducer Bushing SPQ F200165100 Contact Us For Availability
15
Motor SPQ F8597805P Contact Us For Availability
16
Drive Bracket SPQ F8386901 Contact Us For Availability
16
Support Bracket SPQ F8302601 Contact Us For Availability
16
Side Electrical Panel SPQ F8346201 Contact Us For Availability
16
Door Butt Shim SPQ F0610695-00 Contact Us For Availability
16
Magnet SPQ F150202 Contact Us For Availability
16
Gasket SPQ F170158P Contact Us For Availability
16
Drain Valve Motor SPQ F422602 Contact Us For Availability
16
Pulley SPQ F280146P Contact Us For Availability
17
Door Switch SPQ F8390801 Contact Us For Availability
17
Terminal Block Shield SPQ F8322402 Contact Us For Availability
17
Right Side Cover SPQ F8278101 Contact Us For Availability
17
Left Side Cover SPQ F8352501 Contact Us For Availability
17
Door Bumper Bushing SPQ F430416 Contact Us For Availability
17
Chemical Supply Cup SPQ F150386 Contact Us For Availability
17
Drain Valve Cover SPQ F200201 Contact Us For Availability
17
Motor Bushing SPQ F280214 Contact Us For Availability
18
Control Assembly Kit SPQ M405340 Contact Us For Availability
18
Snap Bushing SPQ 51783 Contact Us For Availability
18
Top Support Brace SPQ F8099301 Contact Us For Availability
18
Door Bumper Moulding SPQ F150366 Contact Us For Availability
18
Interlock Switch SPQ F431118 Contact Us For Availability
18
Supply Dispenser Spacer SPQ F0150525-00 Contact Us For Availability
18
Street Elbow SPQ F8110201 Contact Us For Availability
18
Pipe SPQ F150438 Contact Us For Availability
18
Key SPQ F430802 Contact Us For Availability
19
Fuse SPQ F430232 Contact Us For Availability
19
Expansion Clip SPQ F8117501 Contact Us For Availability
19
Washer SPQ F430103 Contact Us For Availability
19
Dispenser Assembly SPQ F150385 Contact Us For Availability
19
Gate Valve SPQ F420509 Contact Us For Availability
19
Shell Reinforcement Plate Ass SPQ F380933P Contact Us For Availability
19
Pipe SPQ F0602365-07 Contact Us For Availability
19
Rear Bearing Kit SPQ F430801 Contact Us For Availability
20
Muffin Fan SPQ F980P3 Contact Us For Availability
20
Door Lock Cover SPQ F8165201 Contact Us For Availability
20
Hose Clamp SPQ F0200237-00 Contact Us For Availability
20
O-Ring SPQ F0150512-00P Contact Us For Availability
20
Warning Label SPQ F420101 Contact Us For Availability
20
Hose Barb SPQ F422802 Contact Us For Availability
20
Scupper SPQ F0602365-27 Contact Us For Availability
20
Spring SPQ F280409P Contact Us For Availability
21
Muffin Fan SPQ F8223801 Contact Us For Availability
21
Extrusion Insert SPQ F8246401 Contact Us For Availability
21
Water Box Bottom Panel SPQ F8614301 Contact Us For Availability
21
Shell Front Weldment SPQ F431005 Contact Us For Availability
21
Reed Switch Assembly SPQ F340900 Contact Us For Availability
21
Washer SPQ F150364 Contact Us For Availability
21
Water Hose SPQ F8084201 Contact Us For Availability
21
Coupling SPQ F420502 Contact Us For Availability
21
Drain Valve Cover SPQ F060236531 Contact Us For Availability
21
Bolt SPQ F310127 Contact Us For Availability
22
Pop Rivet SPQ 802492 Contact Us For Availability
22
Rub Rail SPQ M411072 Contact Us For Availability
22
Front Bulkhead Panel SPQ F8278401 Contact Us For Availability
22
Solenoid Mount Bracket SPQ F601055 Contact Us For Availability
22
Tee SPQ F431215 Contact Us For Availability
22
Screw SPQ F601806 Contact Us For Availability
22
Fill Plumbing Connection SPQ F380500 Contact Us For Availability
23
Door Lock Solenoid Shim SPQ F430264 Contact Us For Availability
23
Filter SPQ F140938 Contact Us For Availability
23
Male Tab Terminal SPQ F110110 Contact Us For Availability
23
Drive Box Bottom Panel SPQ F8302602 Contact Us For Availability
23
Drain Valve Harness SPQ F150389 Contact Us For Availability
23
Hose Clamp SPQ F421964 Contact Us For Availability
23
Belt SPQ F430153 Contact Us For Availability
24
Plug Cap SPQ F730168 Contact Us For Availability
24
Expansion Clip SPQ F8079401 Contact Us For Availability
24
Electric Shock Danger Label SPQ F8152703 Contact Us For Availability
24
Front Panel SPQ F8099601P Contact Us For Availability
24
Control Box Partition SPQ F8278301 Contact Us For Availability
24
Door Kit SPQ F430502 Contact Us For Availability
24
Door Lock Dielectric Shield SPQ F8127601 Contact Us For Availability
24
Motor Adjustment Strap SPQ F430233 Contact Us For Availability
25
Left Side Panel SPQ F430211 Contact Us For Availability
25
Expansion Clip SPQ F8282401 Contact Us For Availability
25
Door Lock Solenoid SPQ F8066801P Contact Us For Availability
25
Motor Drip Shield SPQ F280309 Contact Us For Availability
26
Trim SPQ F8077601 Contact Us For Availability
26
Lock Bracket SPQ F430995 Contact Us For Availability
26
Slinger SPQ F430924 Contact Us For Availability
26
Grease Fitting SPQ F280410 Contact Us For Availability
27
Panel Locator SPQ F430921 Contact Us For Availability
27
Handle Weldment SPQ F170145 Contact Us For Availability
27
Pop Rivet SPQ F8127501 Contact Us For Availability
27
Scupper SPQ F431116 Contact Us For Availability
27
Air Coupling SPQ F602166 Contact Us For Availability
28
SPQ F150397 SPQ F150397 Contact Us For Availability
28
Pop Rivet SPQ F017014501 Contact Us For Availability
28
Door Lock Assembly SPQ F8133601 Contact Us For Availability
28
Pop Rivet SPQ F431112 Contact Us For Availability
28
SPQ F422803 SPQ F422803 Contact Us For Availability
29
Water Pressure Switch SPQ F430910 Contact Us For Availability
29
SPQ F150408 SPQ F150408 Contact Us For Availability
29
Door Glass Gasket SPQ F730307 Contact Us For Availability
29
Extension Arm Kit SPQ F8135301 Contact Us For Availability
29
SPQ F422901 SPQ F422901 Contact Us For Availability
30
SPQ F8098301 SPQ F8098301 Contact Us For Availability
30
Glass SPQ F746201-1 Contact Us For Availability
30
Top Latch Bracket Casting SPQ F300129P Contact Us For Availability
31
Door Glass Retainer SPQ F230652 Contact Us For Availability
32
Door Assembly SPQ F609427 Contact Us For Availability
32
Door Lock Harness SPQ F8127401 Contact Us For Availability
34
Spray Rinse Strap SPQ F170117 Contact Us For Availability
34
SPQ F431210 SPQ F431210 Contact Us For Availability
35
SPQ F290201P SPQ F290201P Contact Us For Availability
35
SPQ F8127701 SPQ F8127701 Contact Us For Availability
NI
SPQ F220900 SPQ F220900 Contact Us For Availability
NI
SPQ F200318900P SPQ F200318900P Contact Us For Availability
NI
SPQ F8170601 SPQ F8170601 Contact Us For Availability
NI
SPQ F8055001 SPQ F8055001 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
CFG Harness SPQ F8223001P Contact Us For Availability
NI
Network Wire Harness Assembly SPQ F422500 Contact Us For Availability
NI
SPQ F8173701P SPQ F8173701P Contact Us For Availability
NI
SPQ F8060401P SPQ F8060401P Contact Us For Availability
NI
SPQ F8028109 SPQ F8028109 Contact Us For Availability
NI
SPQ F8367801 SPQ F8367801 Contact Us For Availability
NI
Electric Heat Coils Harness SPQ F8060301 Contact Us For Availability
NI
Electric Heat Harness SPQ F8060001 Contact Us For Availability
NI
SPQ F8054901 SPQ F8054901 Contact Us For Availability
NI
SPQ F8054602 SPQ F8054602 Contact Us For Availability
NI
SPQ F8054601 SPQ F8054601 Contact Us For Availability
NI
Filter SPQ 44136801 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ F601239 SPQ F601239 Contact Us For Availability
NI
SPQ F8029102 SPQ F8029102 Contact Us For Availability
NI
SPQ F8273302 SPQ F8273302 Contact Us For Availability
NI
SPQ M400013 SPQ M400013 Contact Us For Availability
NI
Shell Weldment SPQ F8351502 Contact Us For Availability
NI
SPQ F150469 SPQ F150469 Contact Us For Availability
NI
Y Connector SPQ F422816 Contact Us For Availability
NI
SPQ F200401P SPQ F200401P Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F8265701 SPQ F8265701 Contact Us For Availability
NI
SPQ F421908 SPQ F421908 Contact Us For Availability
NI
SPQ F8073702P SPQ F8073702P Contact Us For Availability
NI
SPQ F8054701P SPQ F8054701P Contact Us For Availability
NI
Steam Heat Kit SPQ F943P3 Contact Us For Availability
NI
Steam Assembly SPQ F8394501 Contact Us For Availability
NI
Mounting Bolt Kit SPQ F730055-1 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
Reuse Kit SPQ F924P3 Contact Us For Availability
NI
Concrete Hardware Kit SPQ 1113P Contact Us For Availability
× ![]()
