Model UniMac UWT130D3 Washer – Common Parts & Diagrams

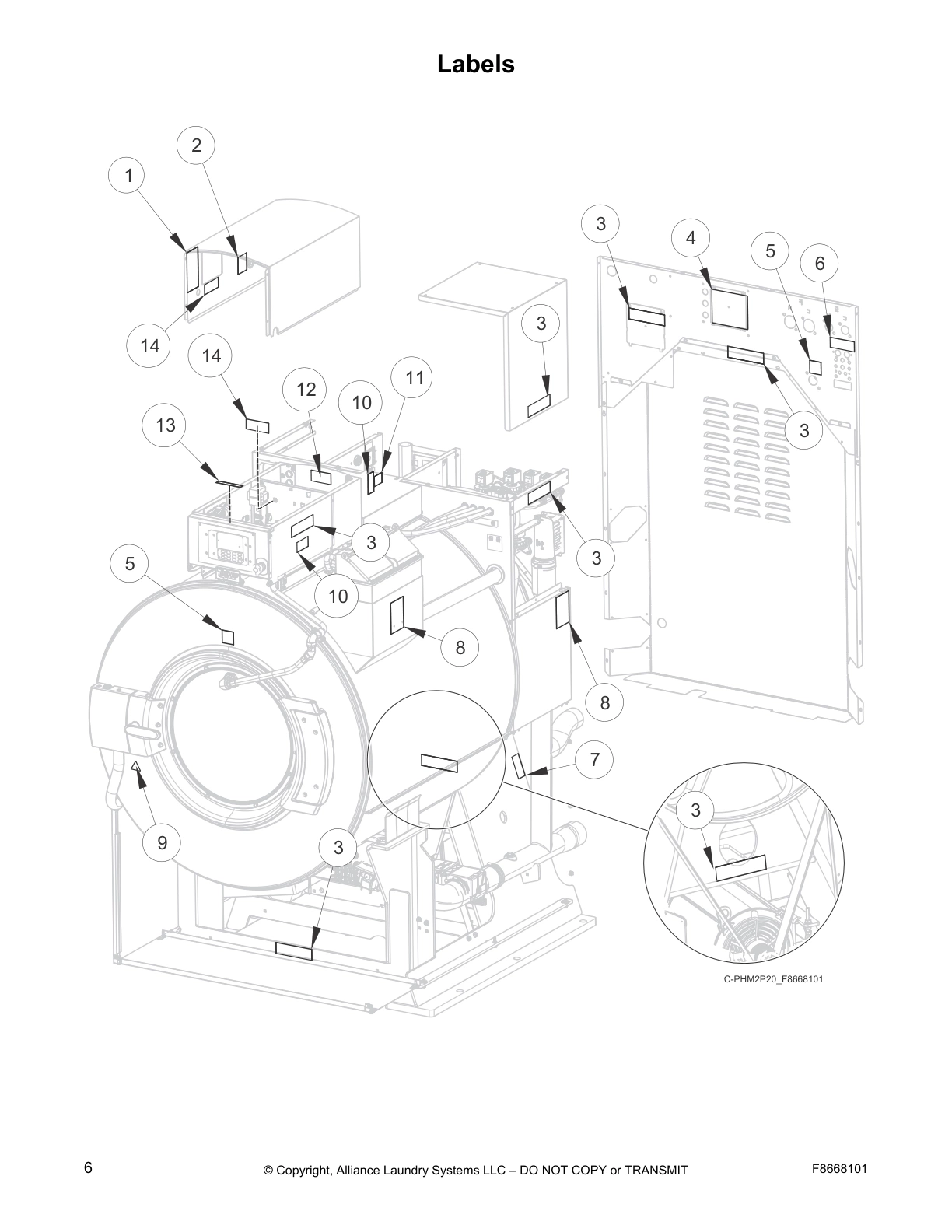

Labels

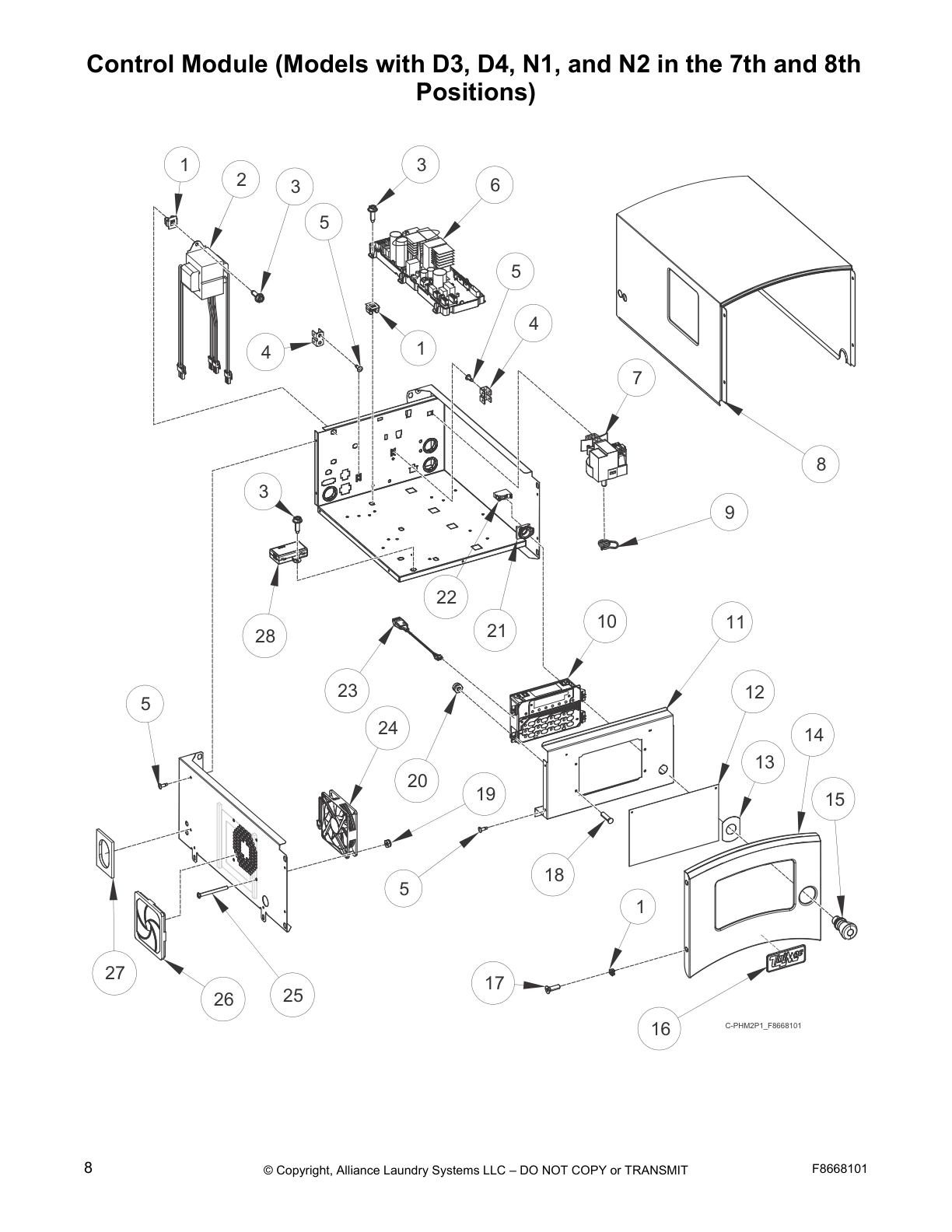

Control Module (Models with D3, D4, N1, and N2 in the 7th and 8th
Positions)

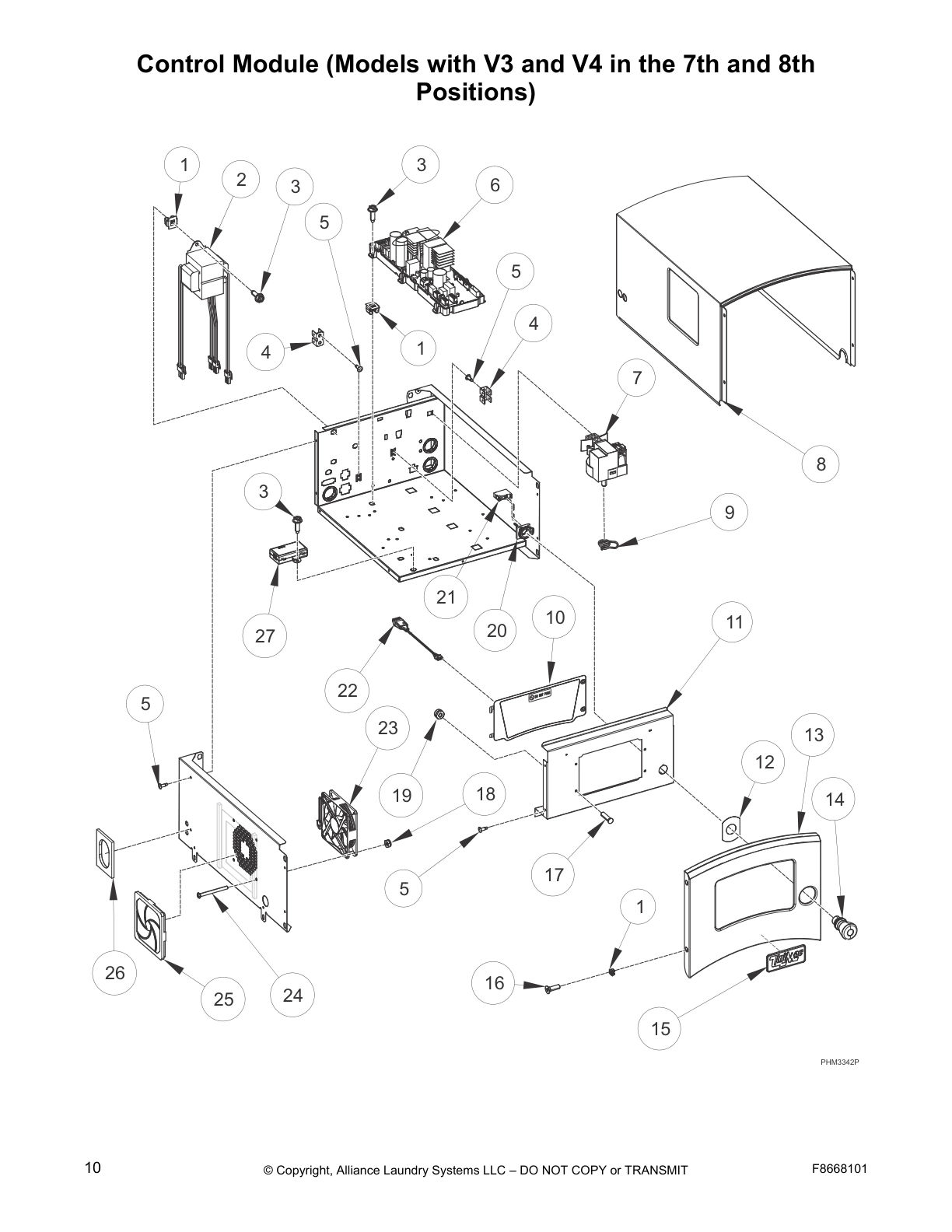

Control Module (Models with V3 and V4 in the 7th and 8th
Positions)

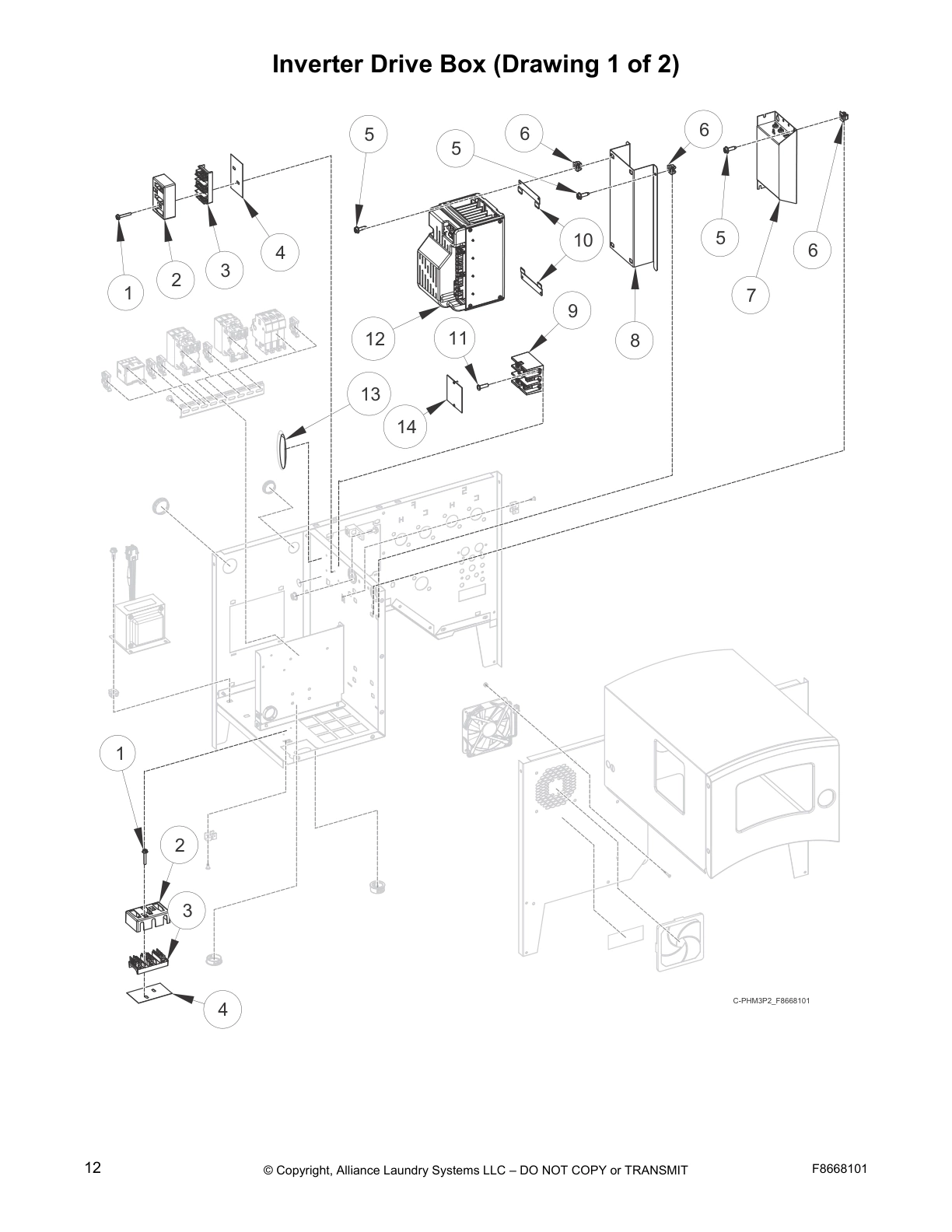

Inverter Drive Box (Drawing 1 of 2)

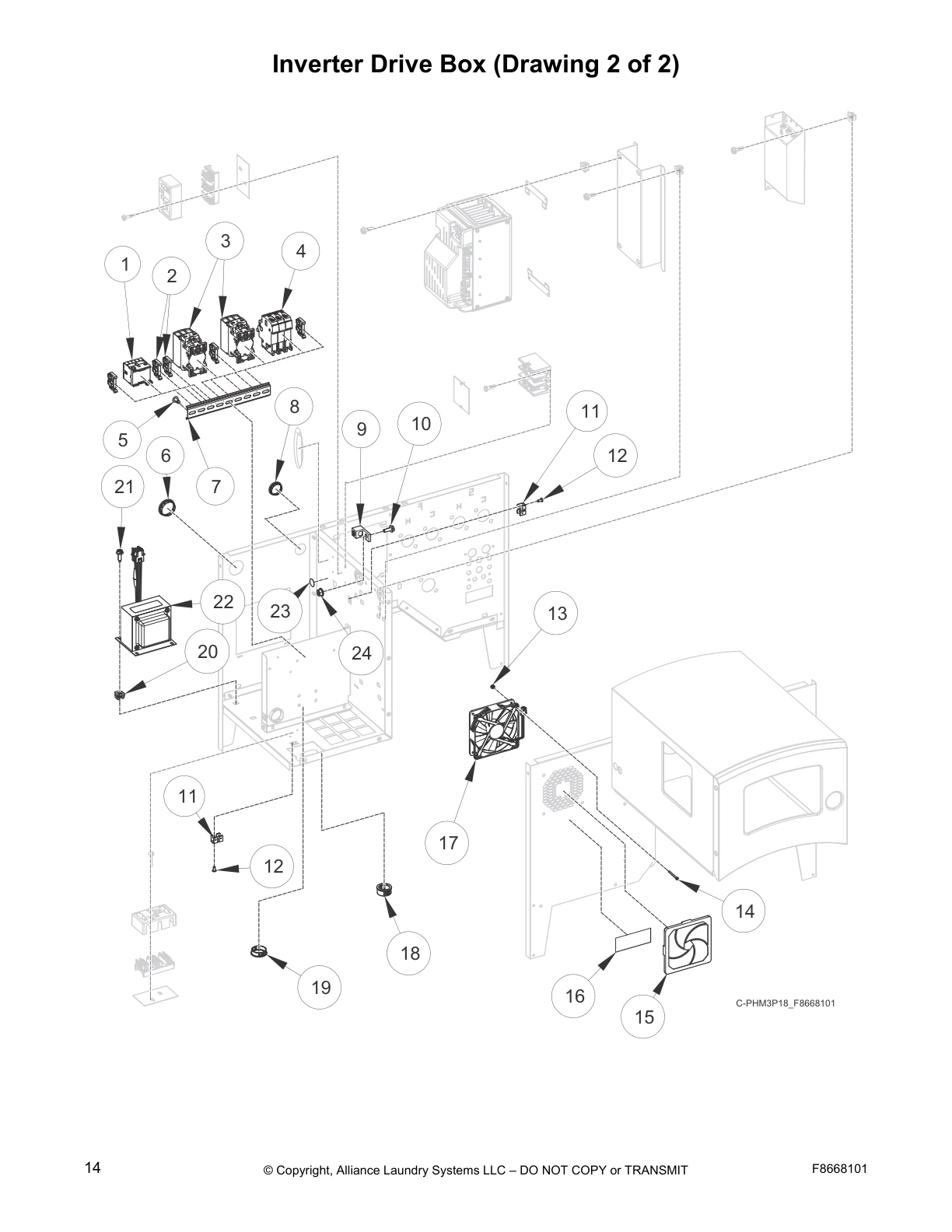

Inverter Drive Box (Drawing 2 of 2)

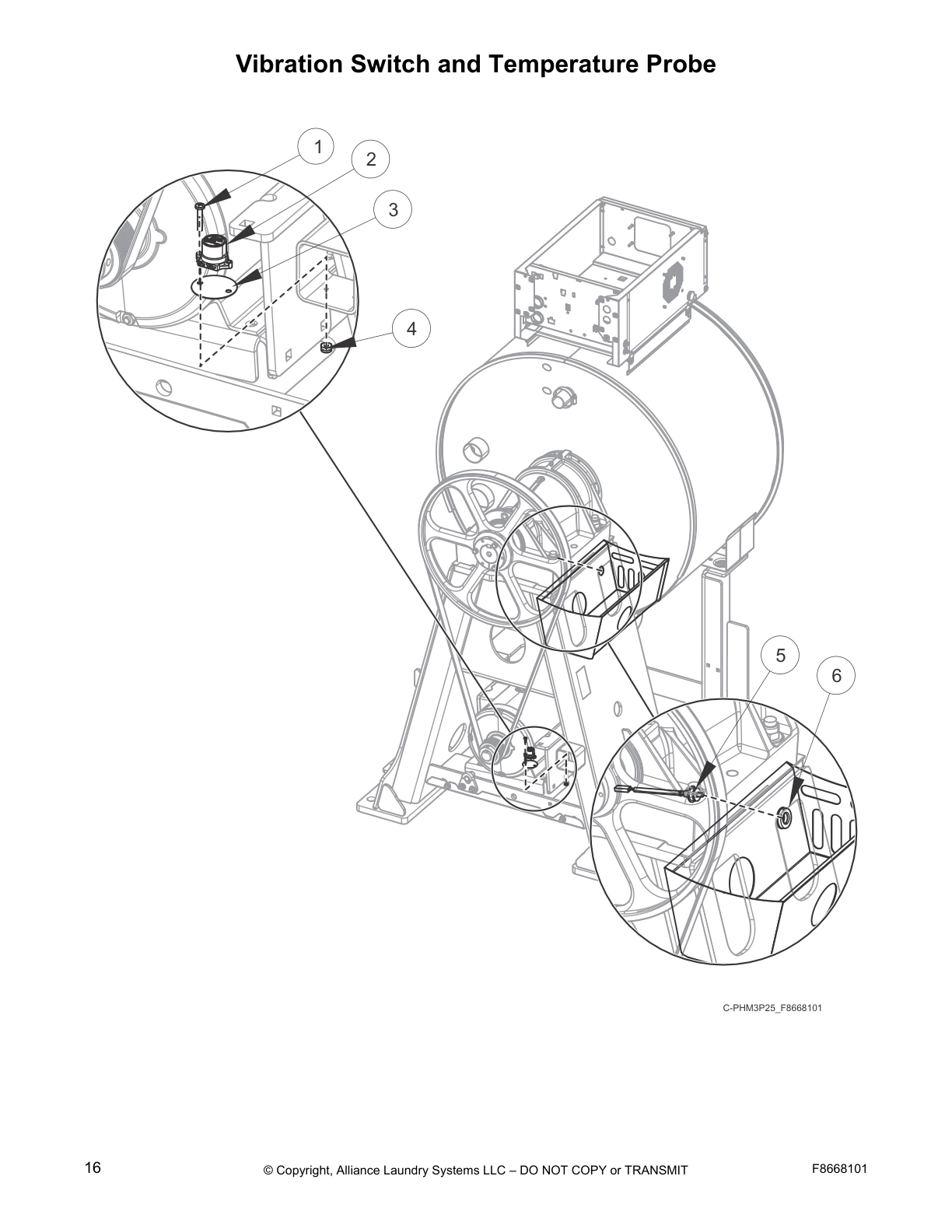

Vibration Switch and Temperature Probe

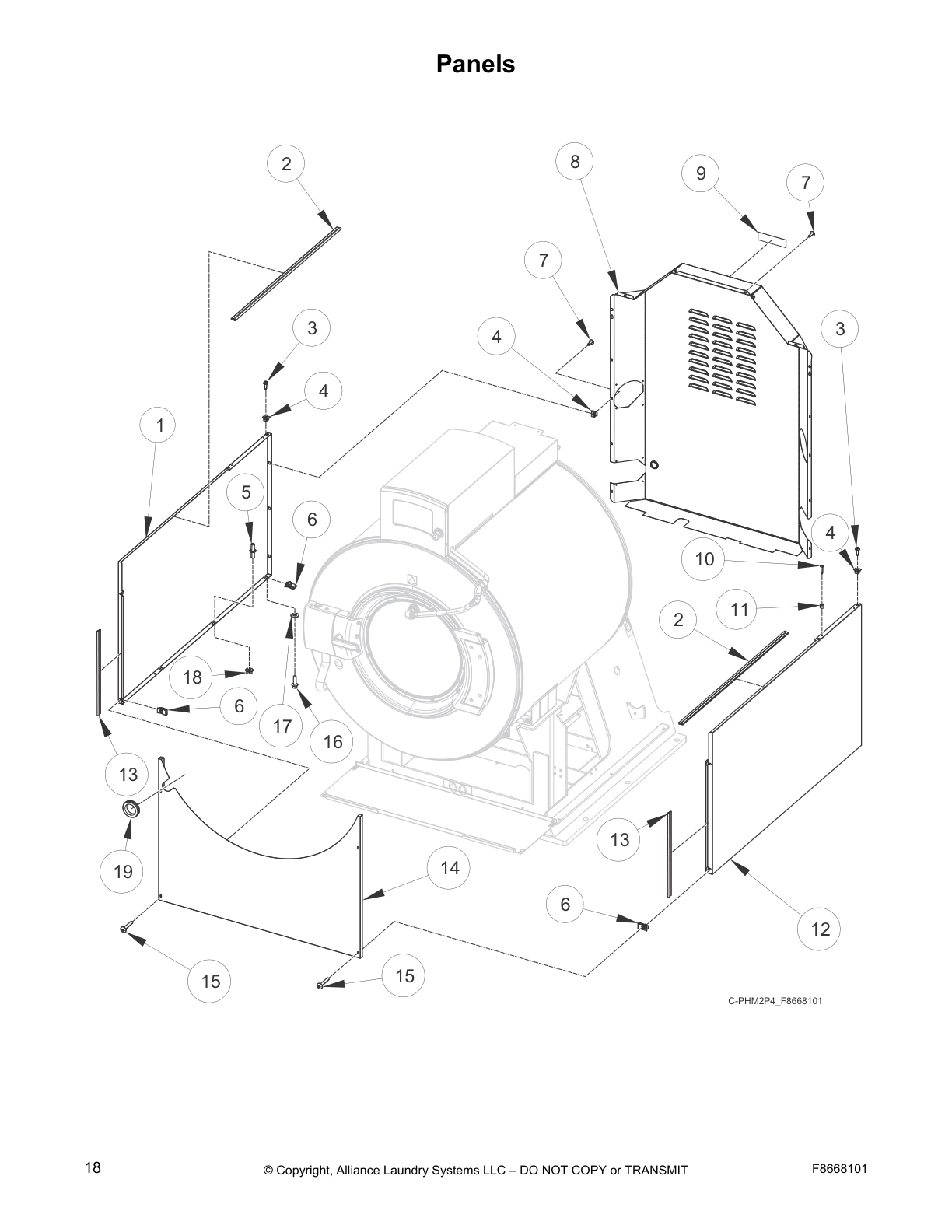

Panels

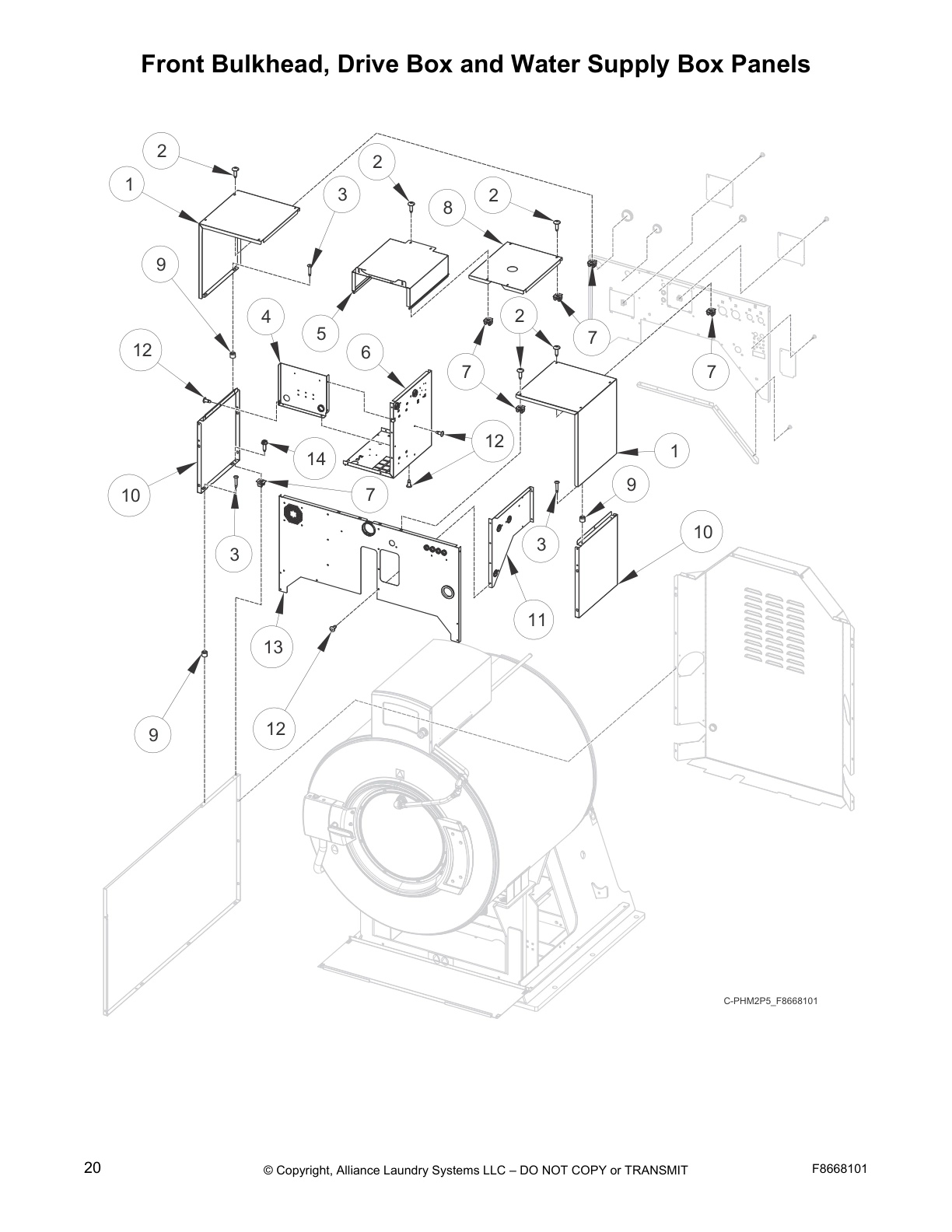

Front Bulkhead, Drive Box and Water Supply Box Panels

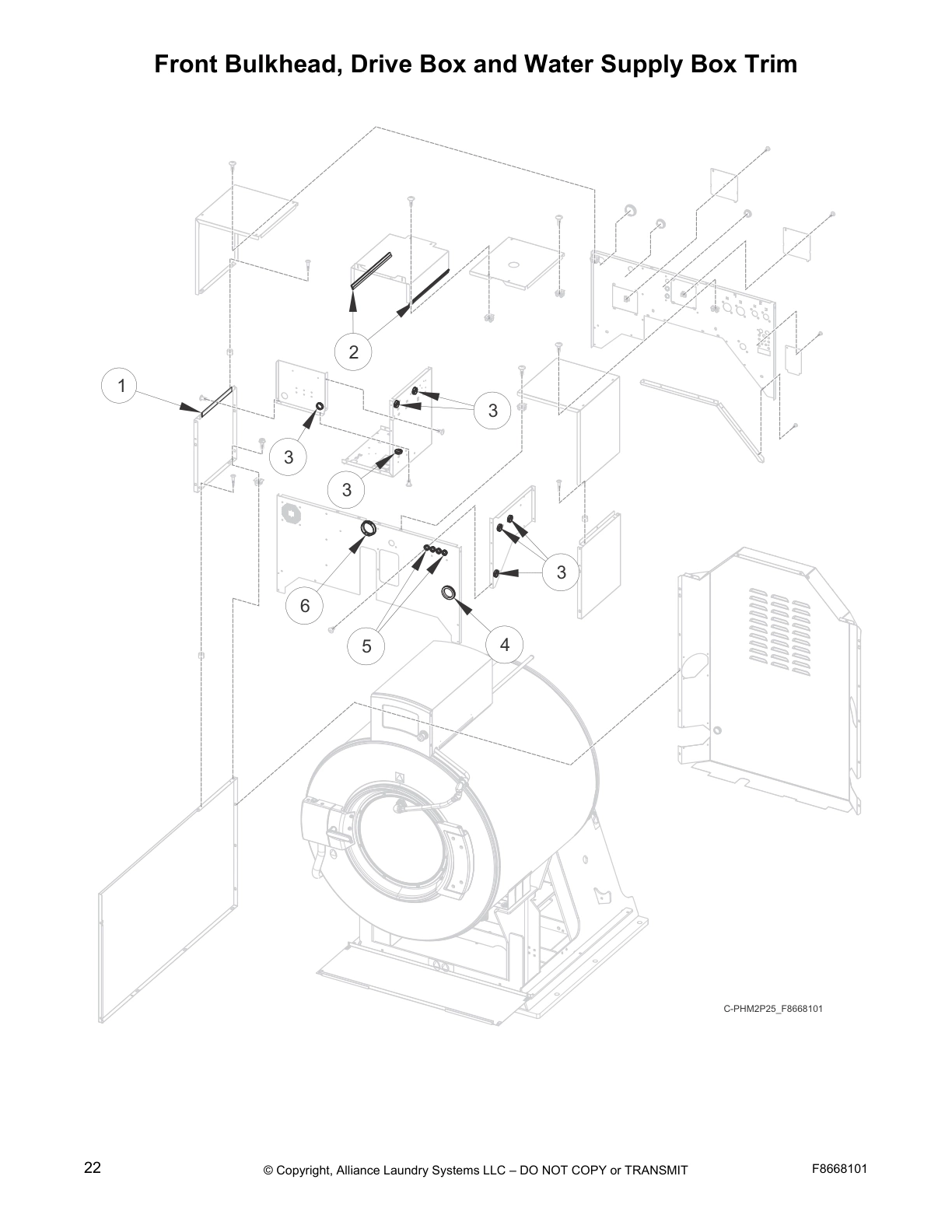

Front Bulkhead, Drive Box and Water Supply Box Trim

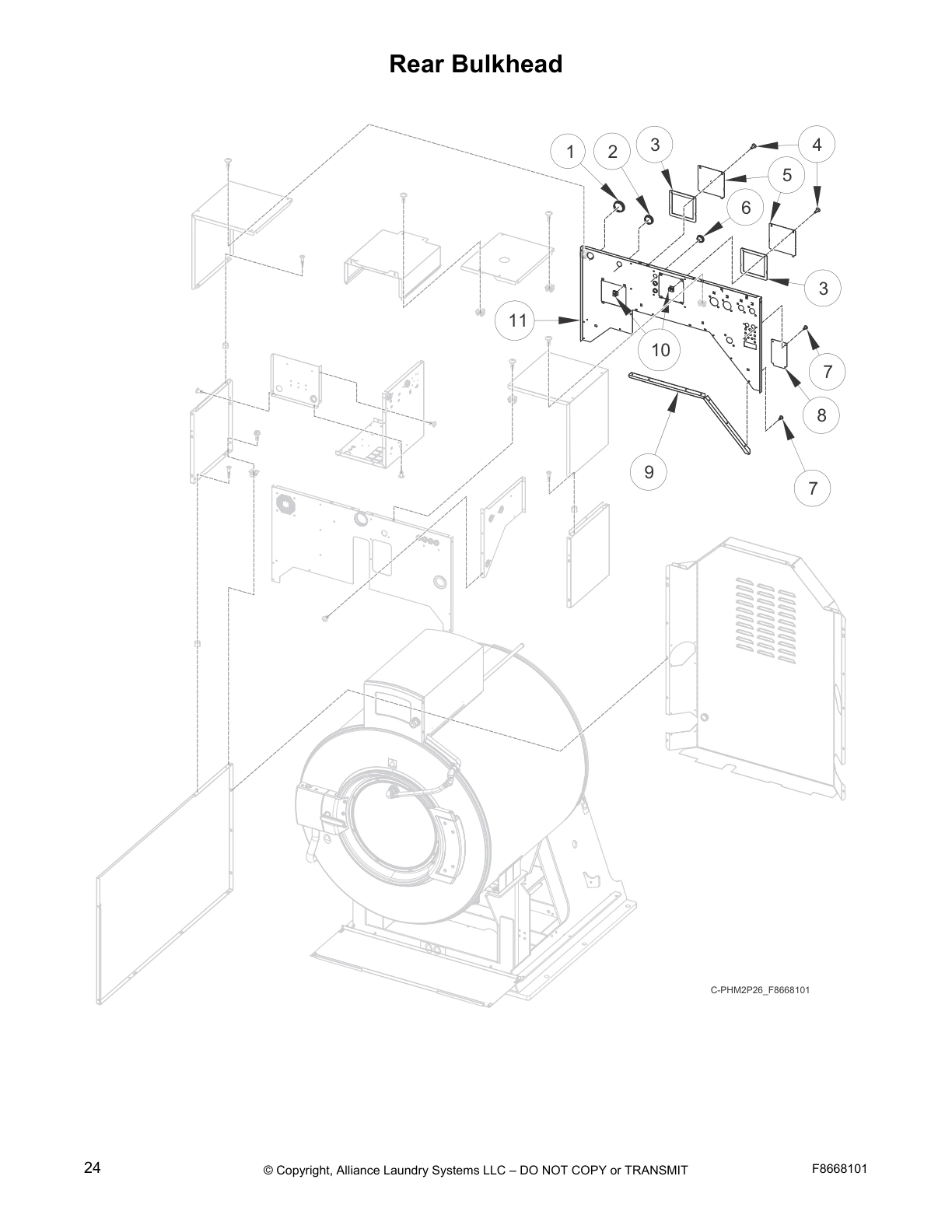

Rear Bulkhead

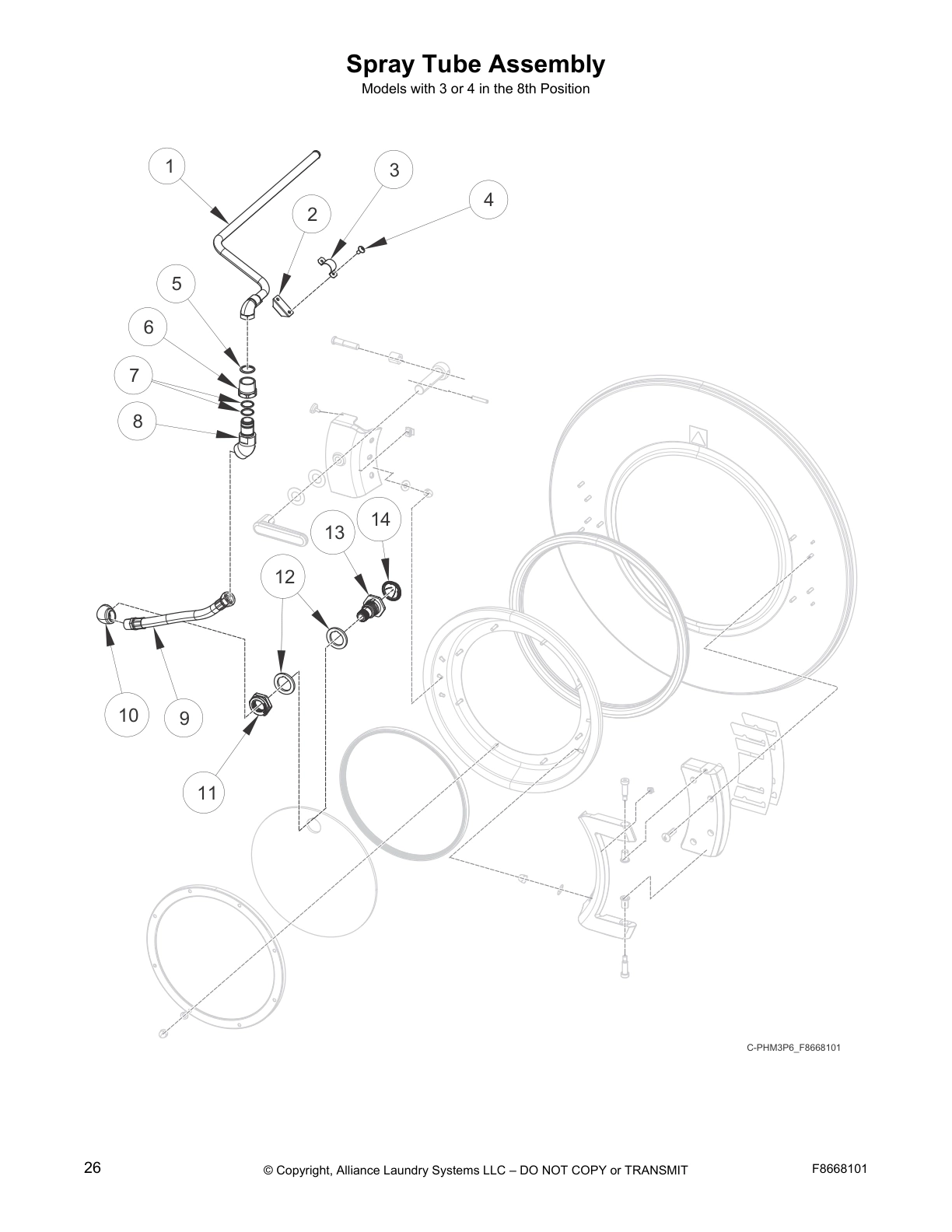

Spray Tube Assembly

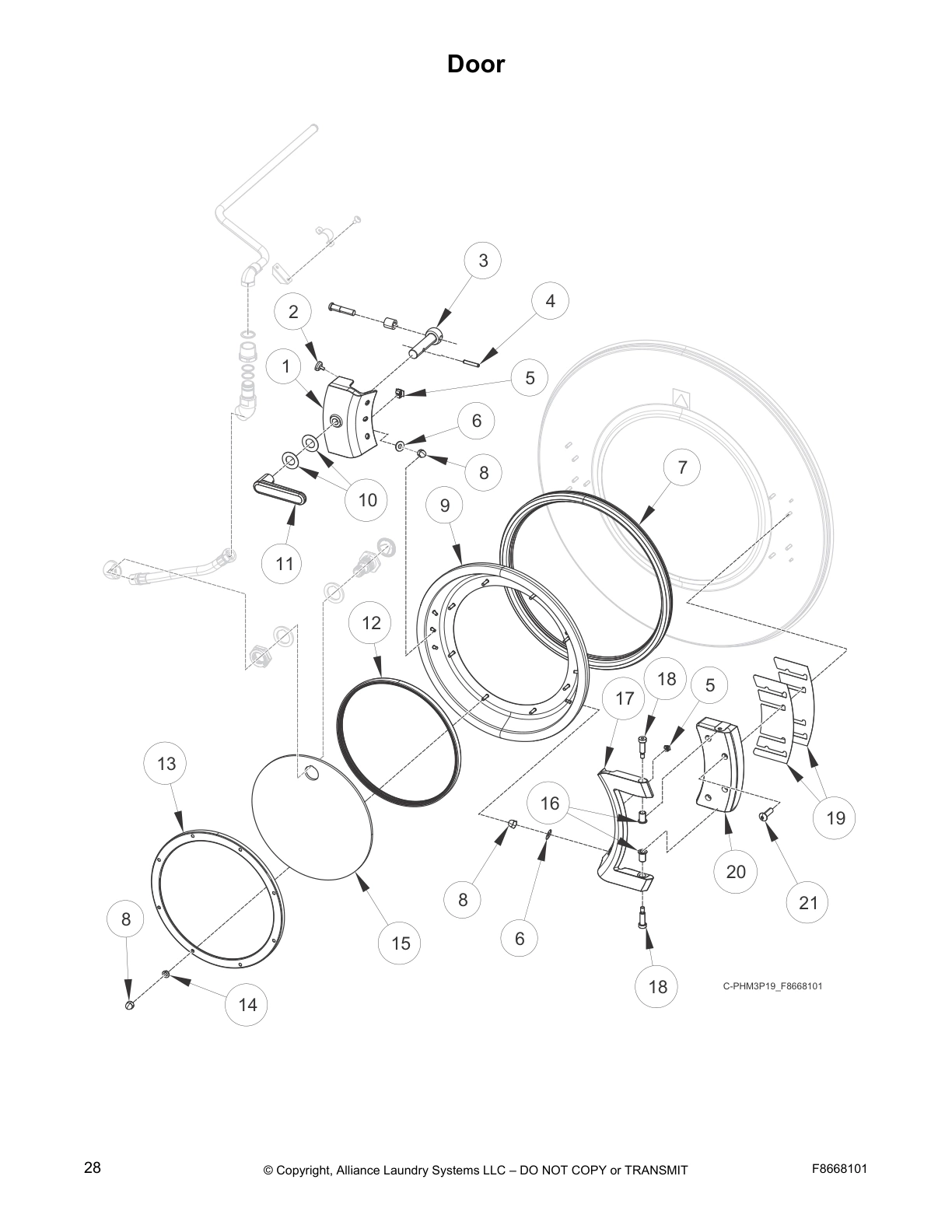

Door

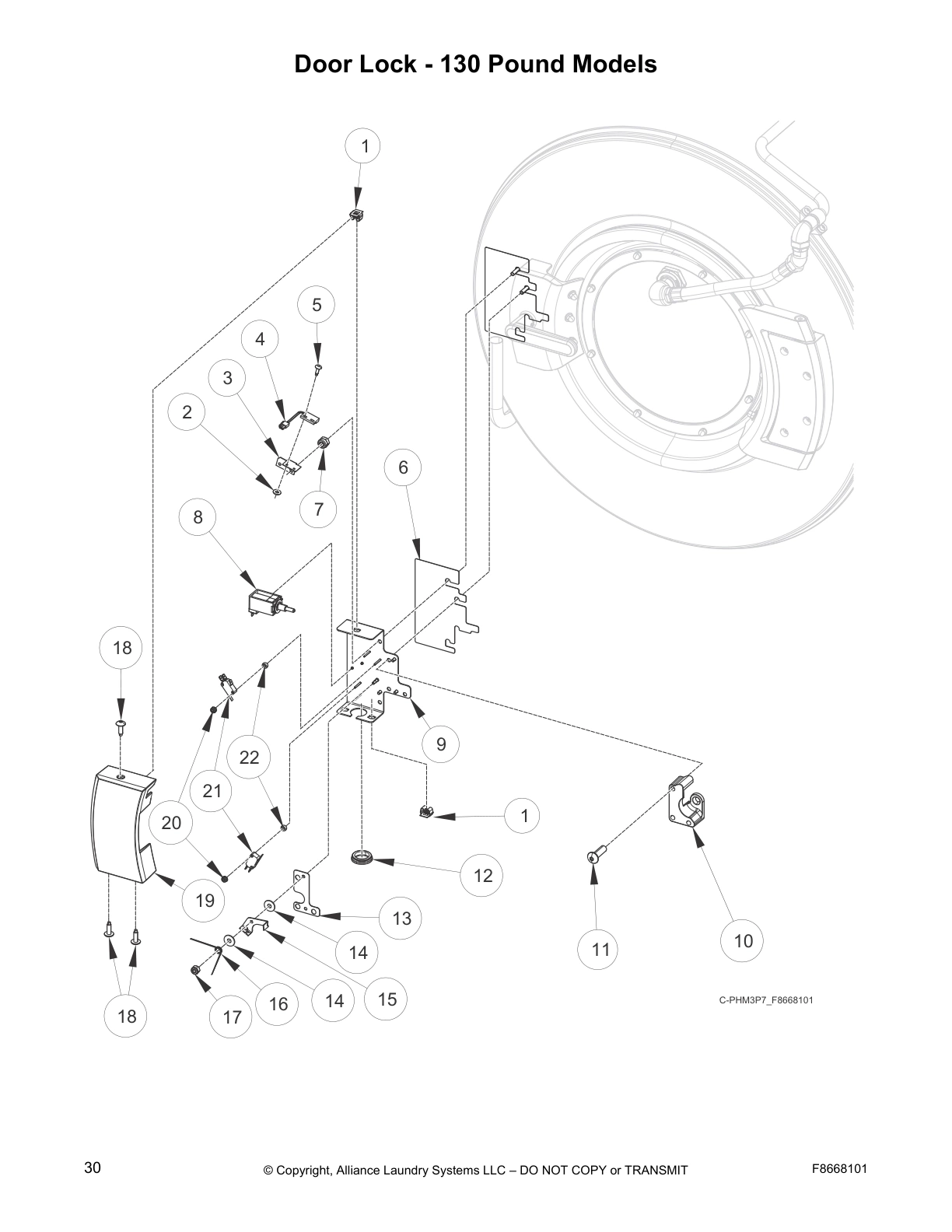

Door Lock - 130 Pound Models

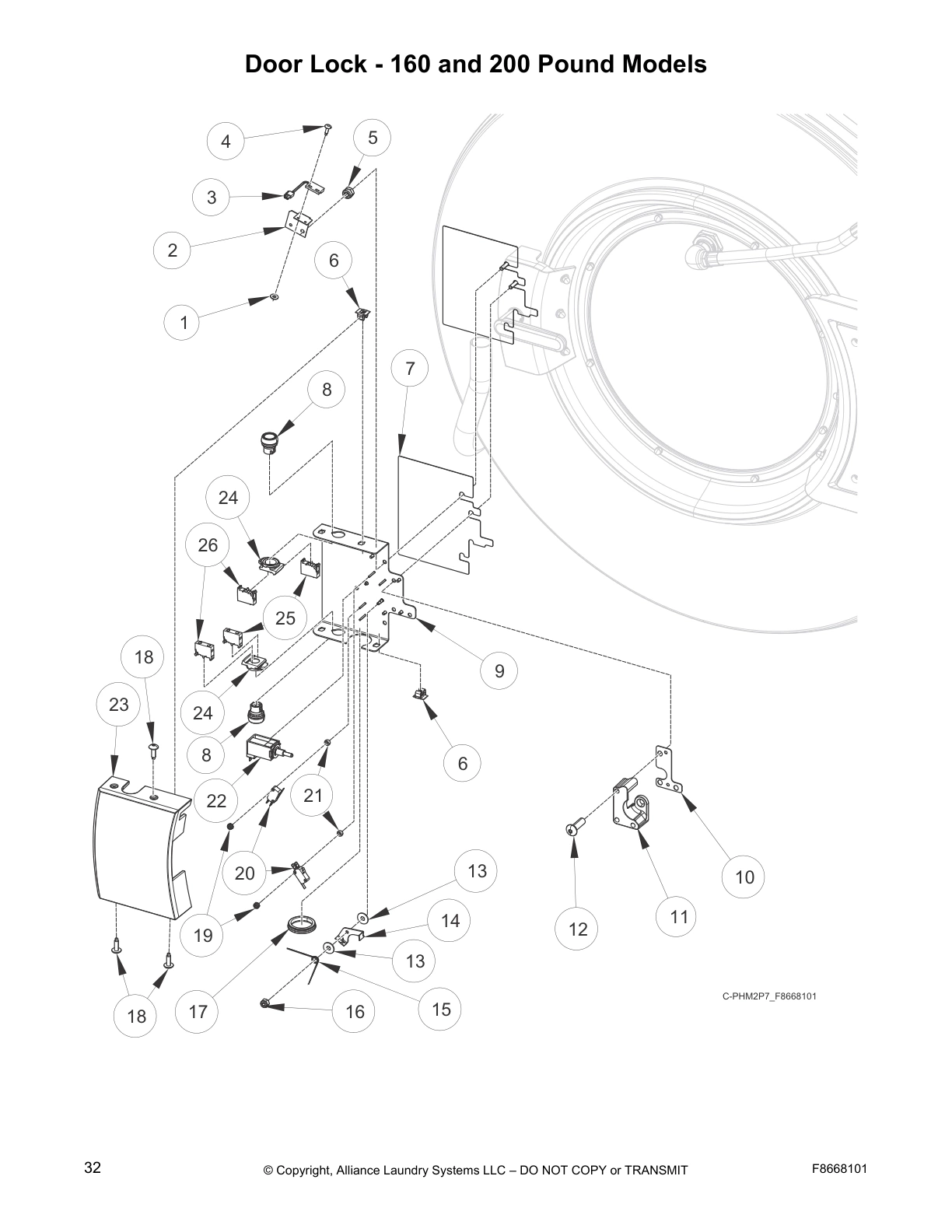

Door Lock - 160 and 200 Pound Models

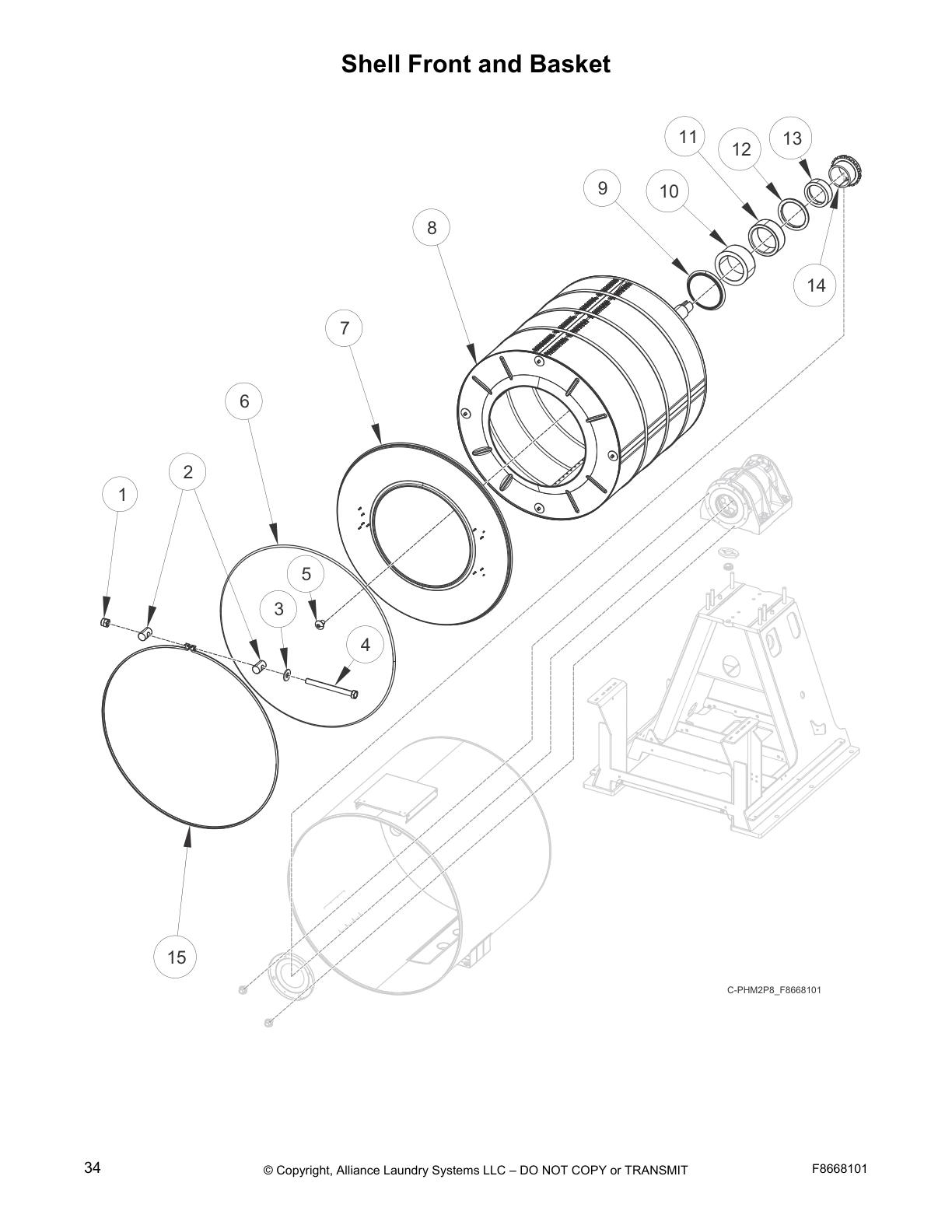

Shell Front and Basket

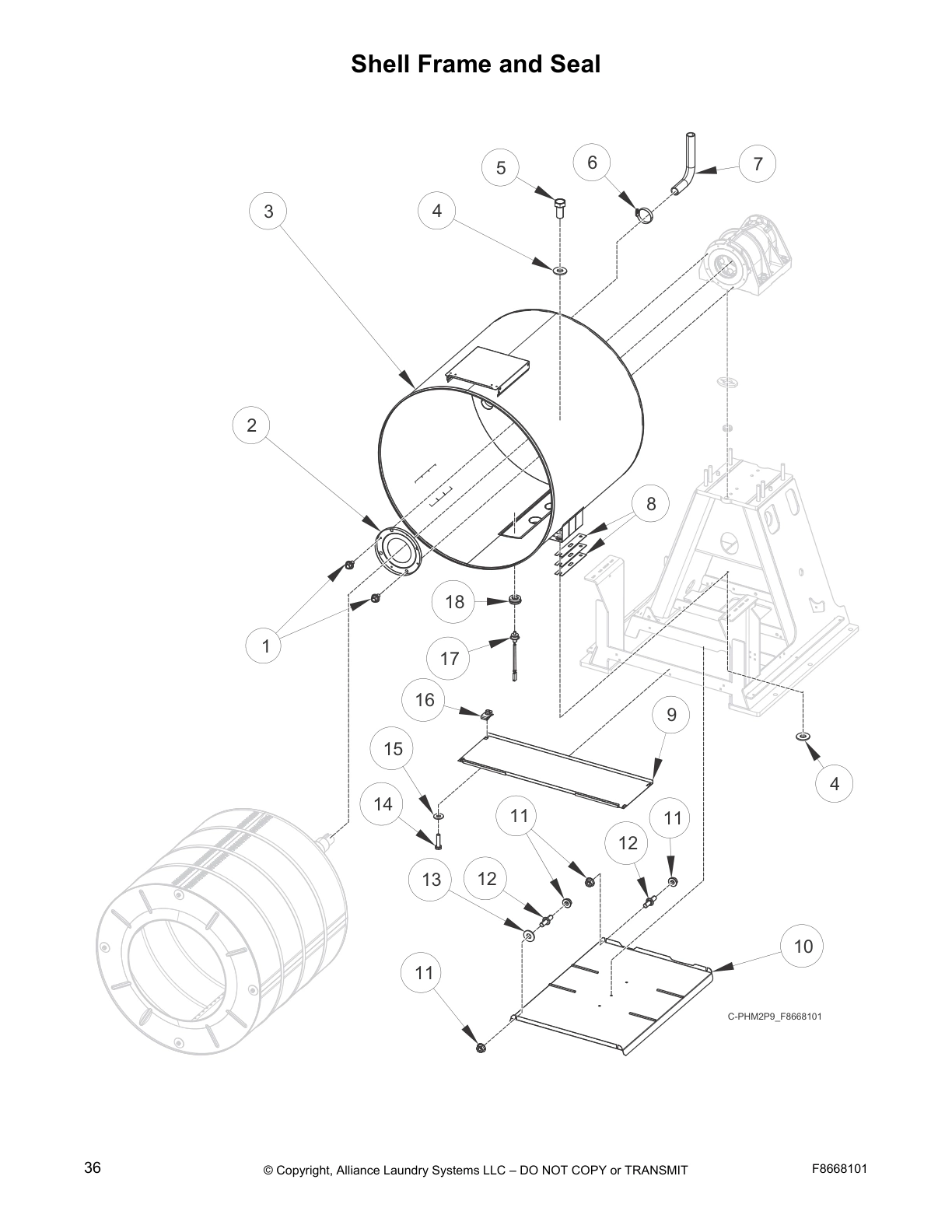

Shell Frame and Seal

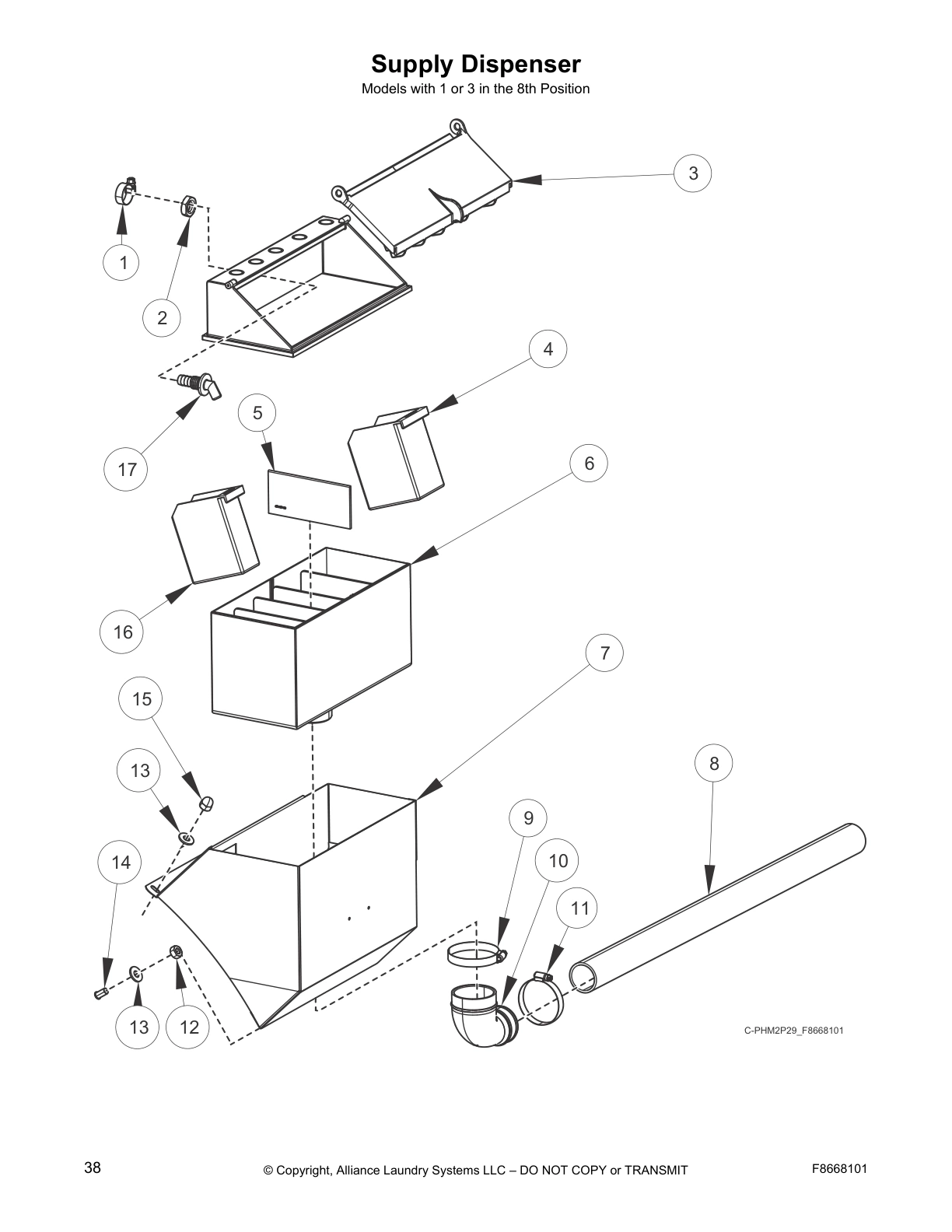

Supply Dispenser

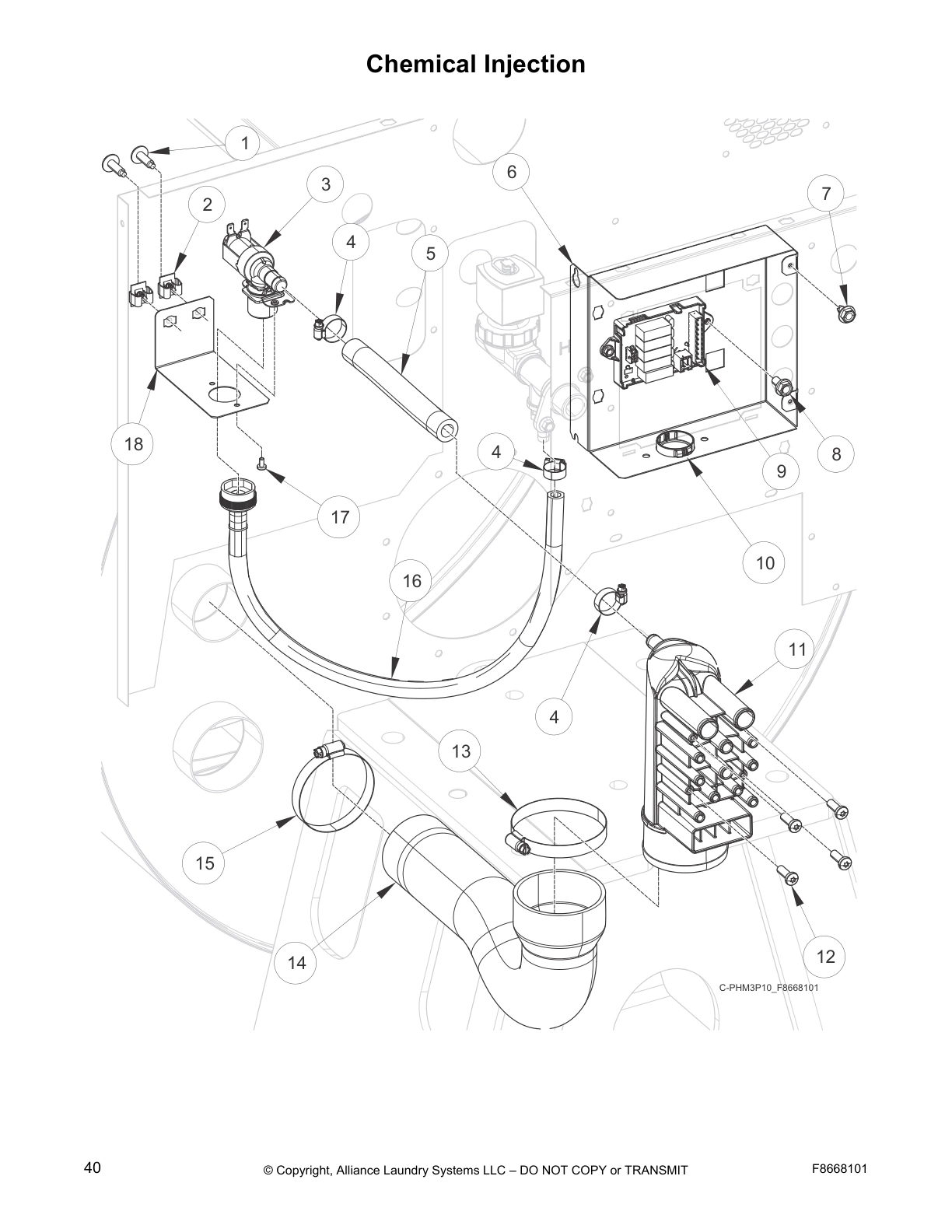

Chemical Injection

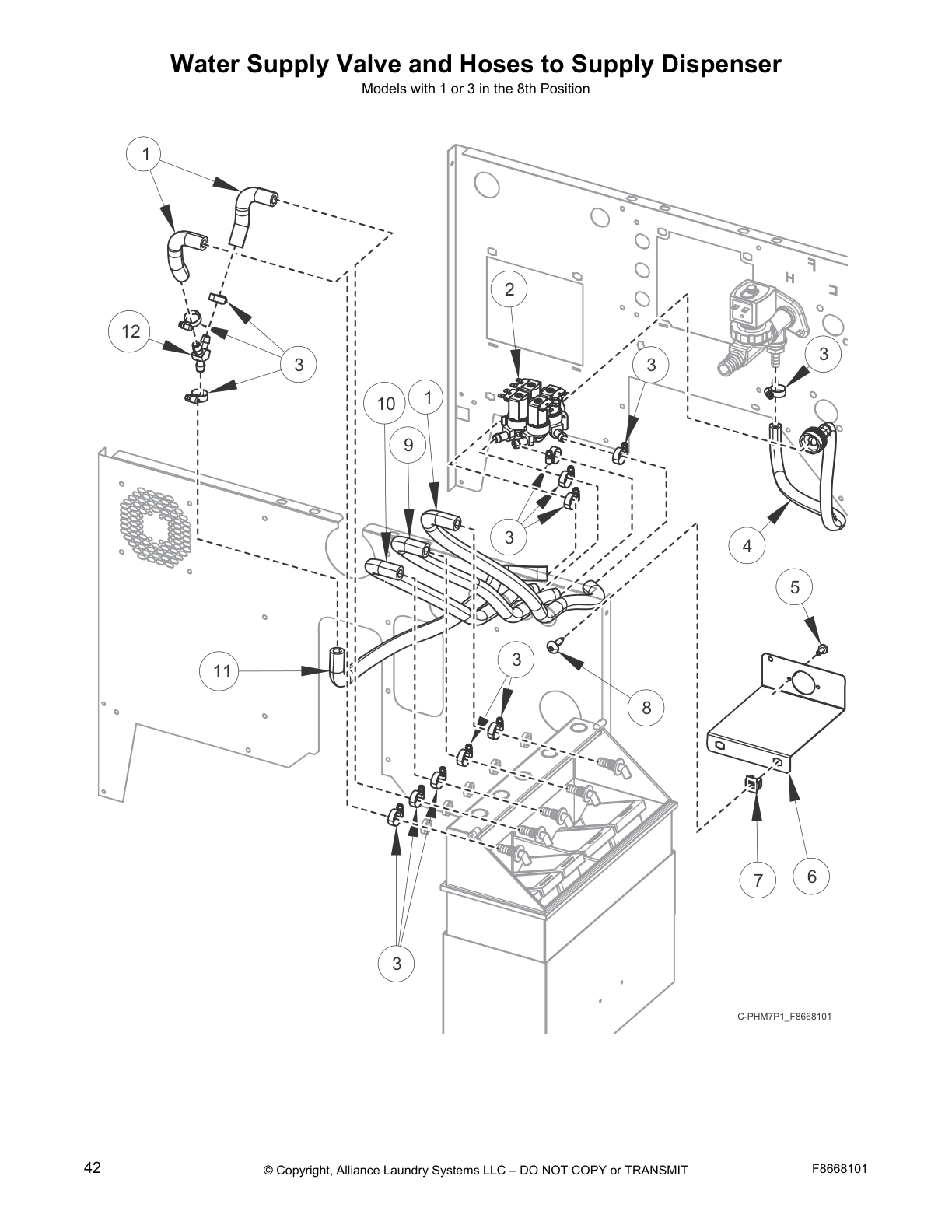

Water Supply Valve and Hoses to Supply Dispenser

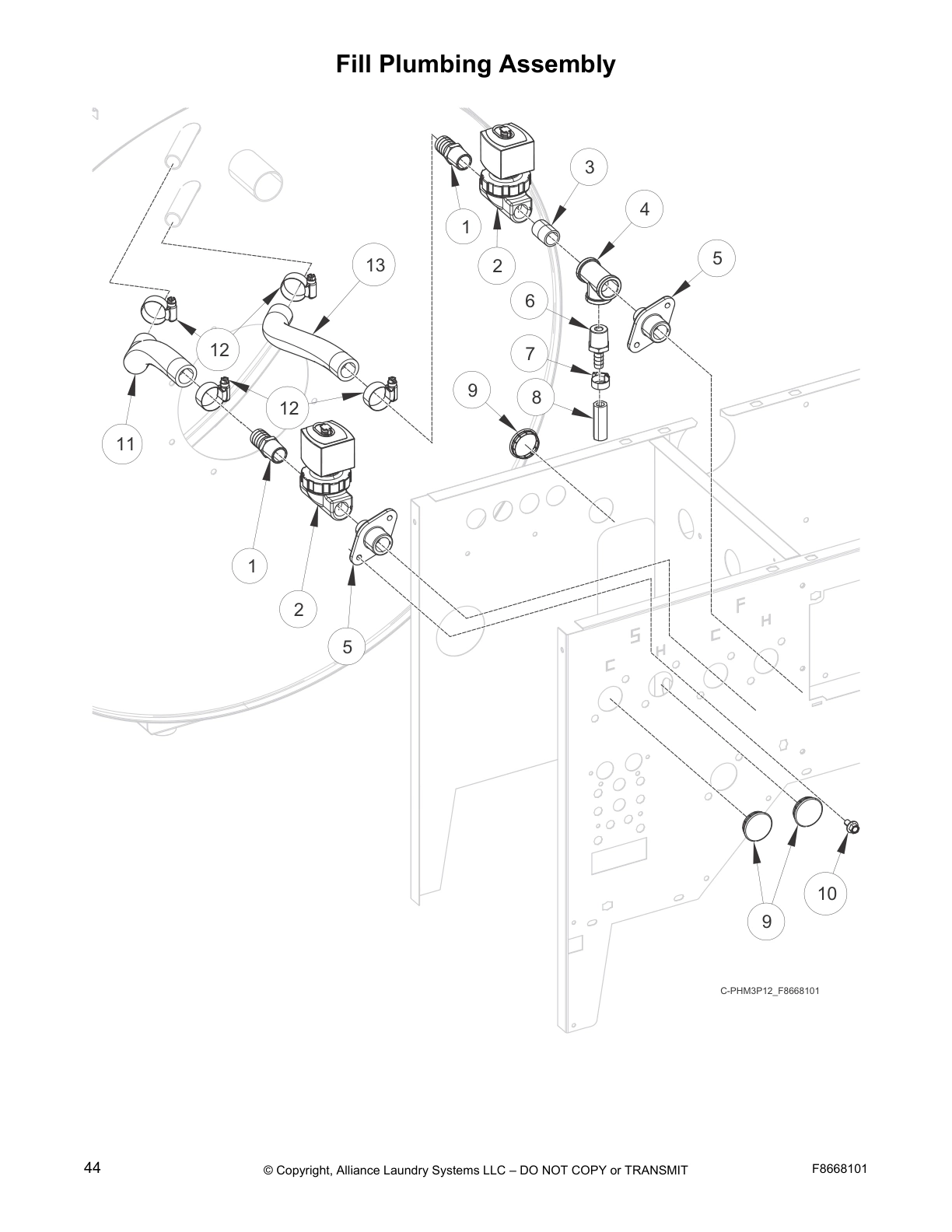

Fill Plumbing Assembly

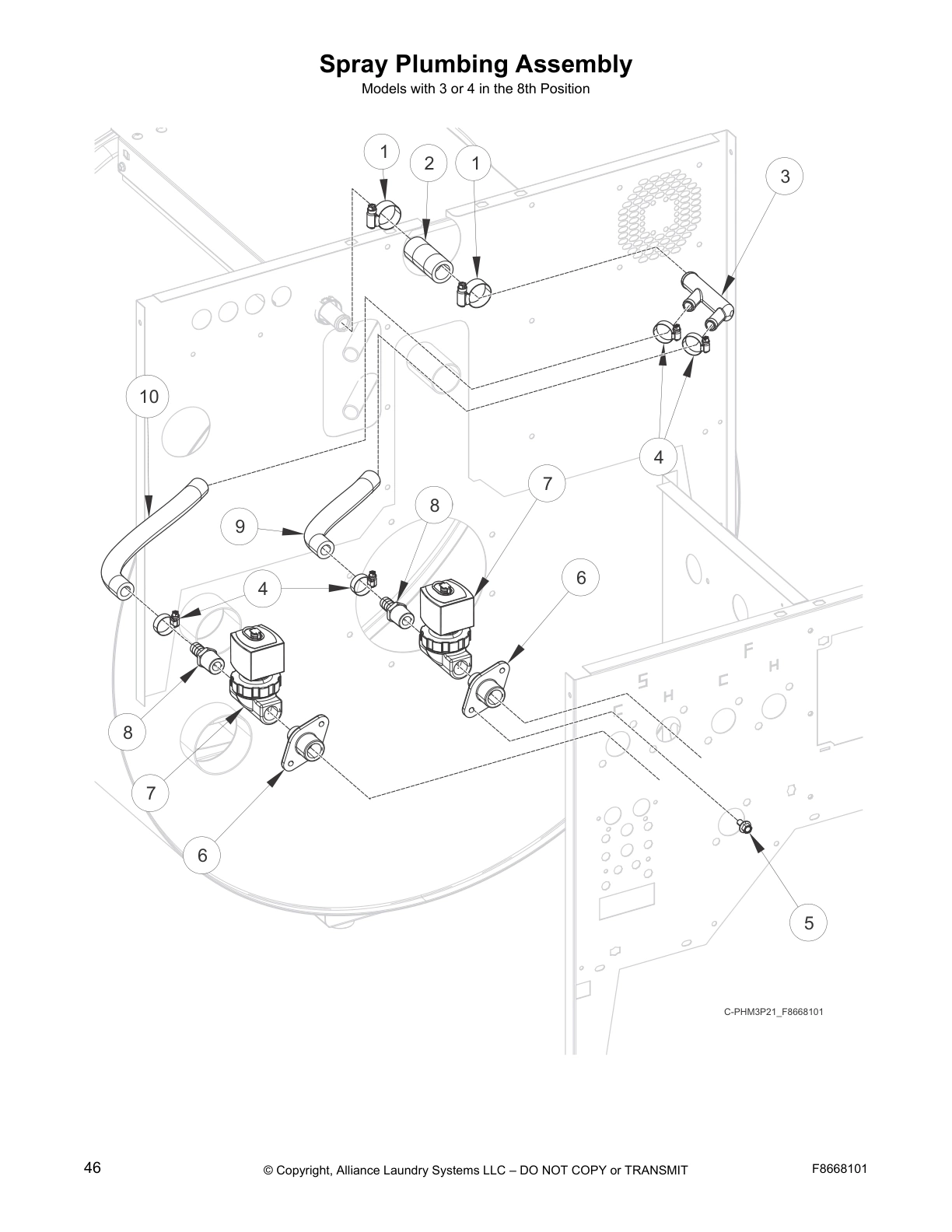

Spray Plumbing Assembly

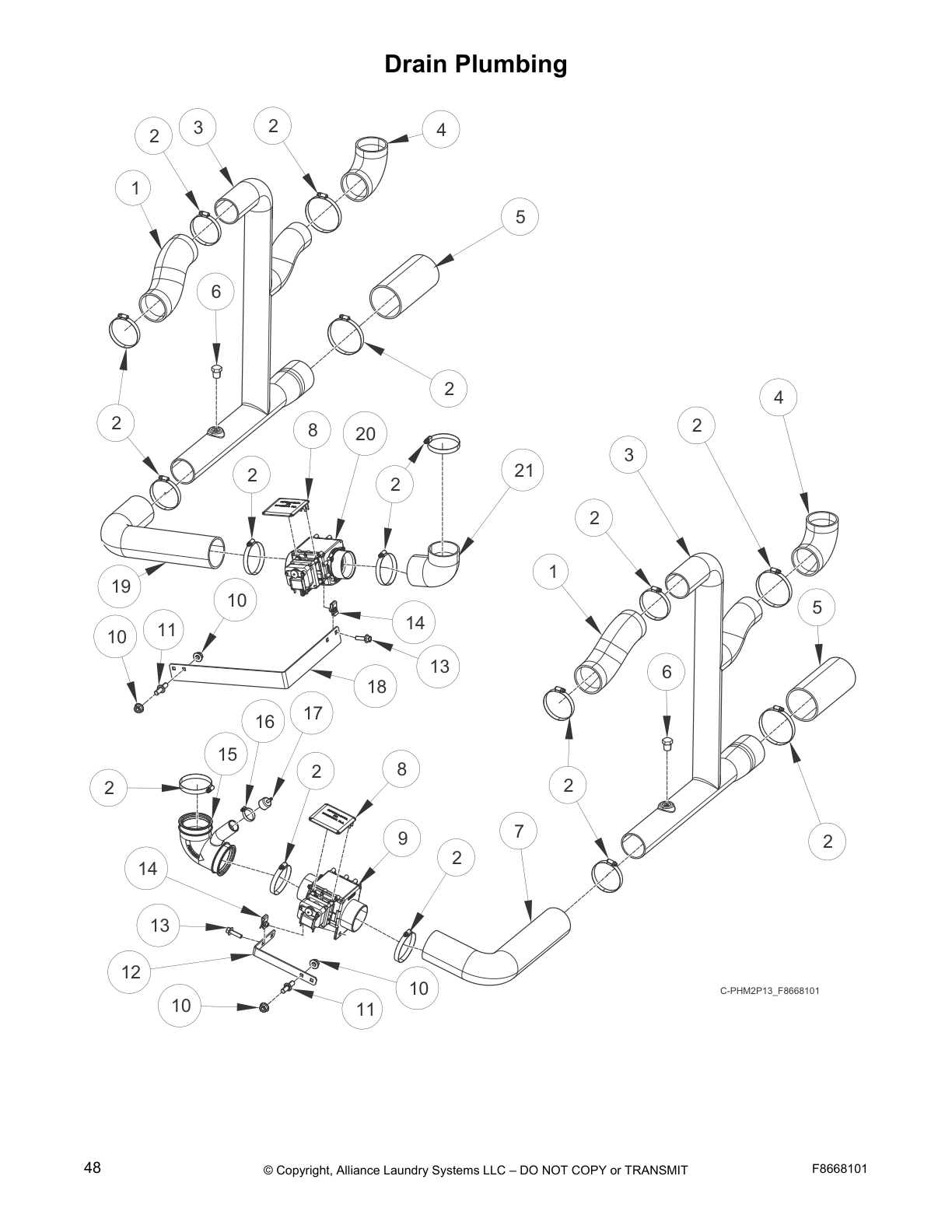

Drain Plumbing

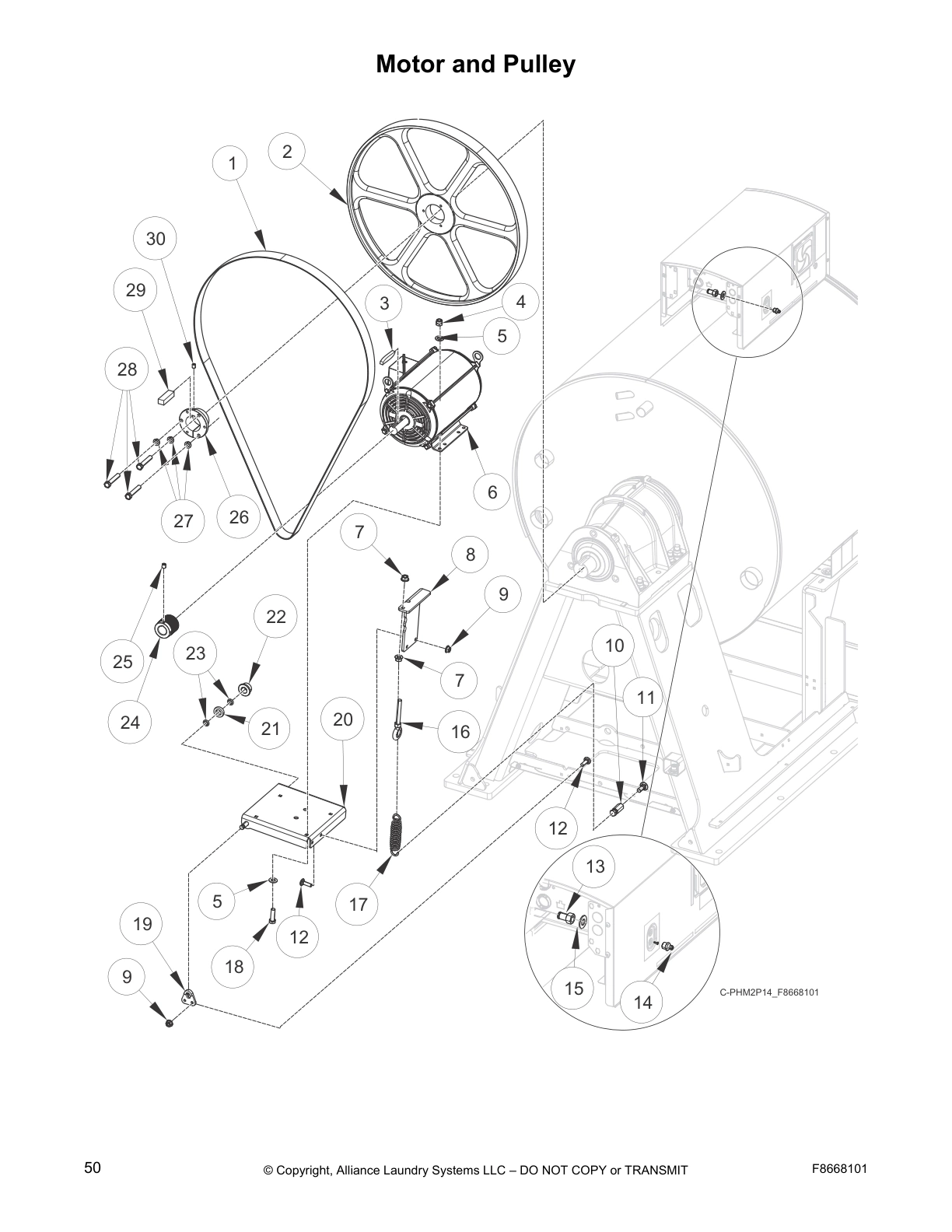

Motor and Pulley

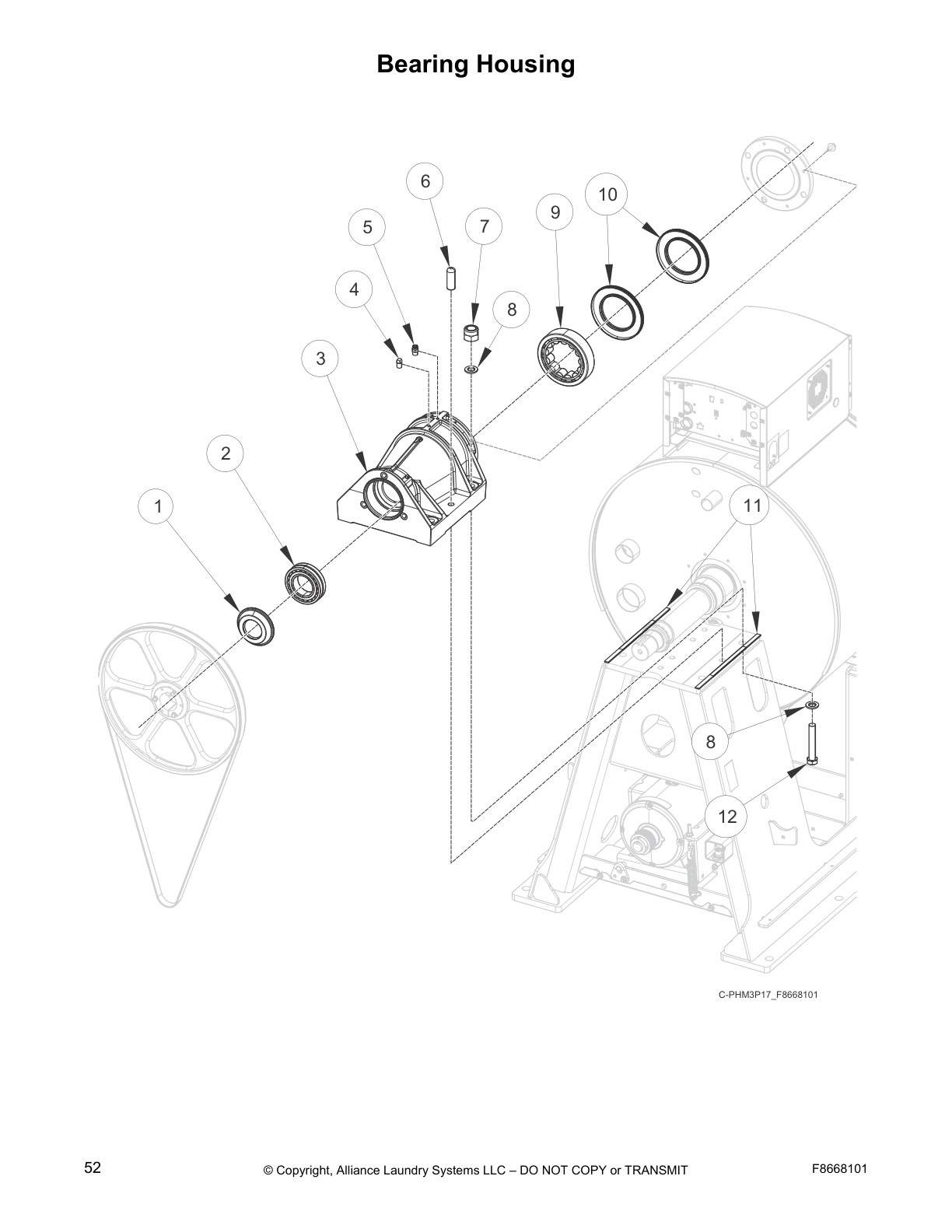

Bearing Housing

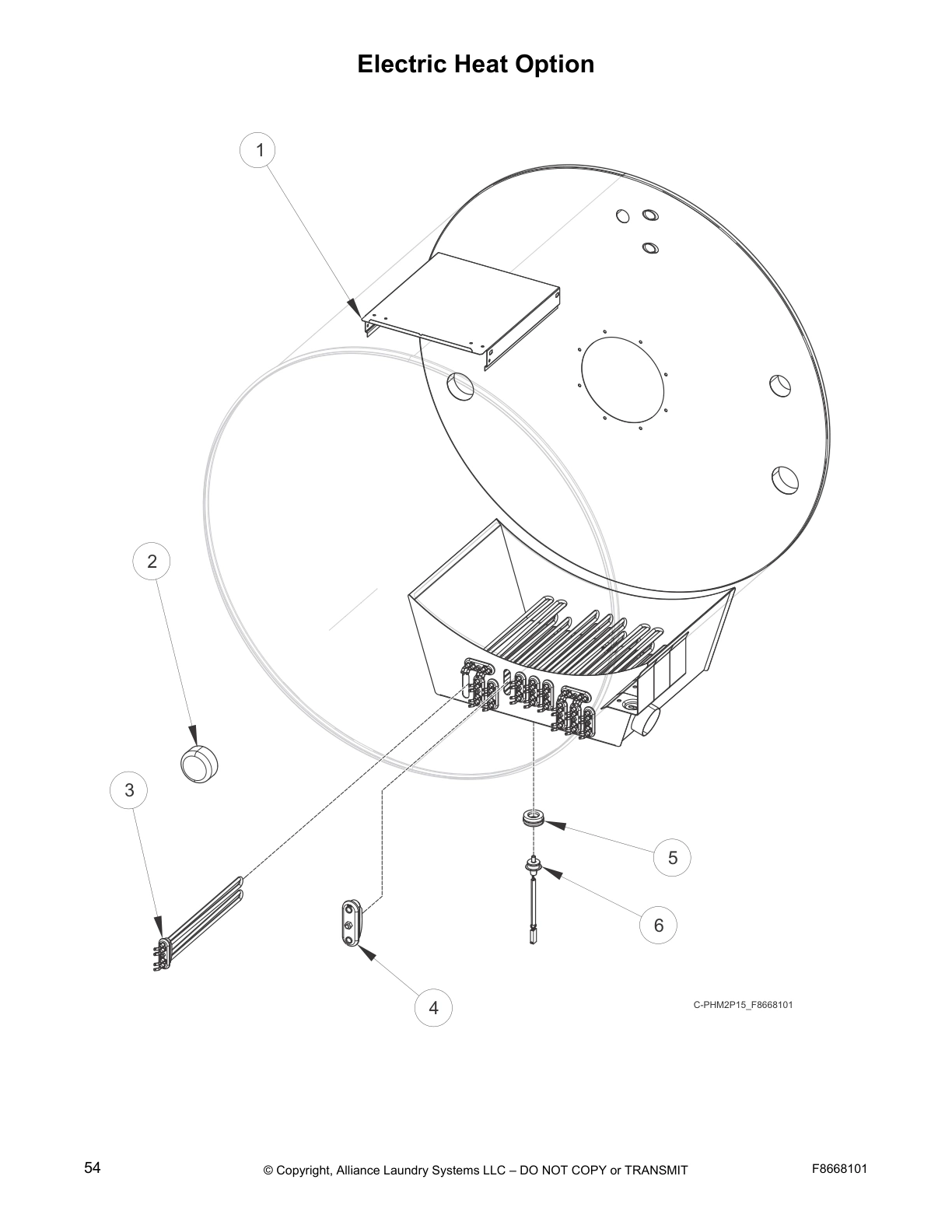

Electric Heat Option

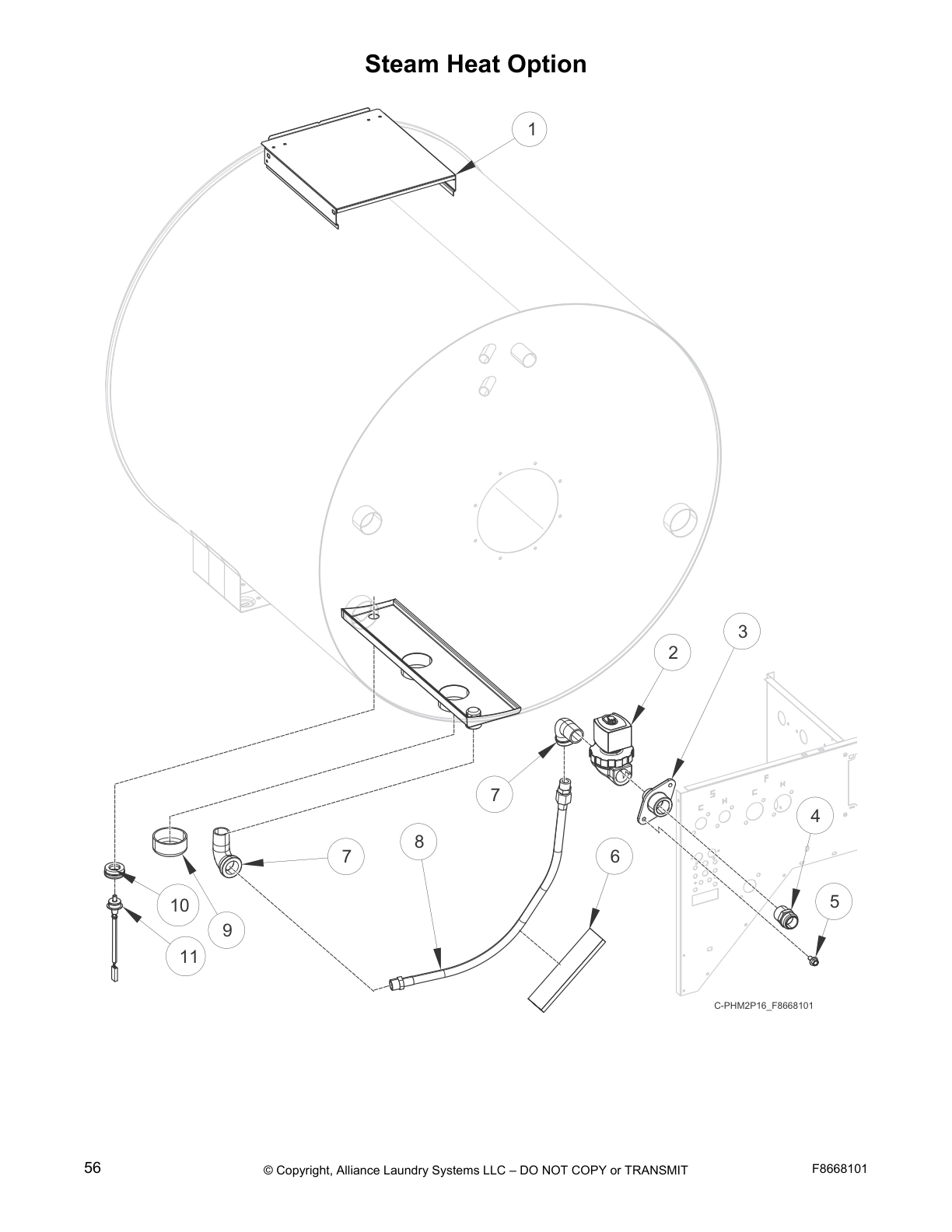

Steam Heat Option

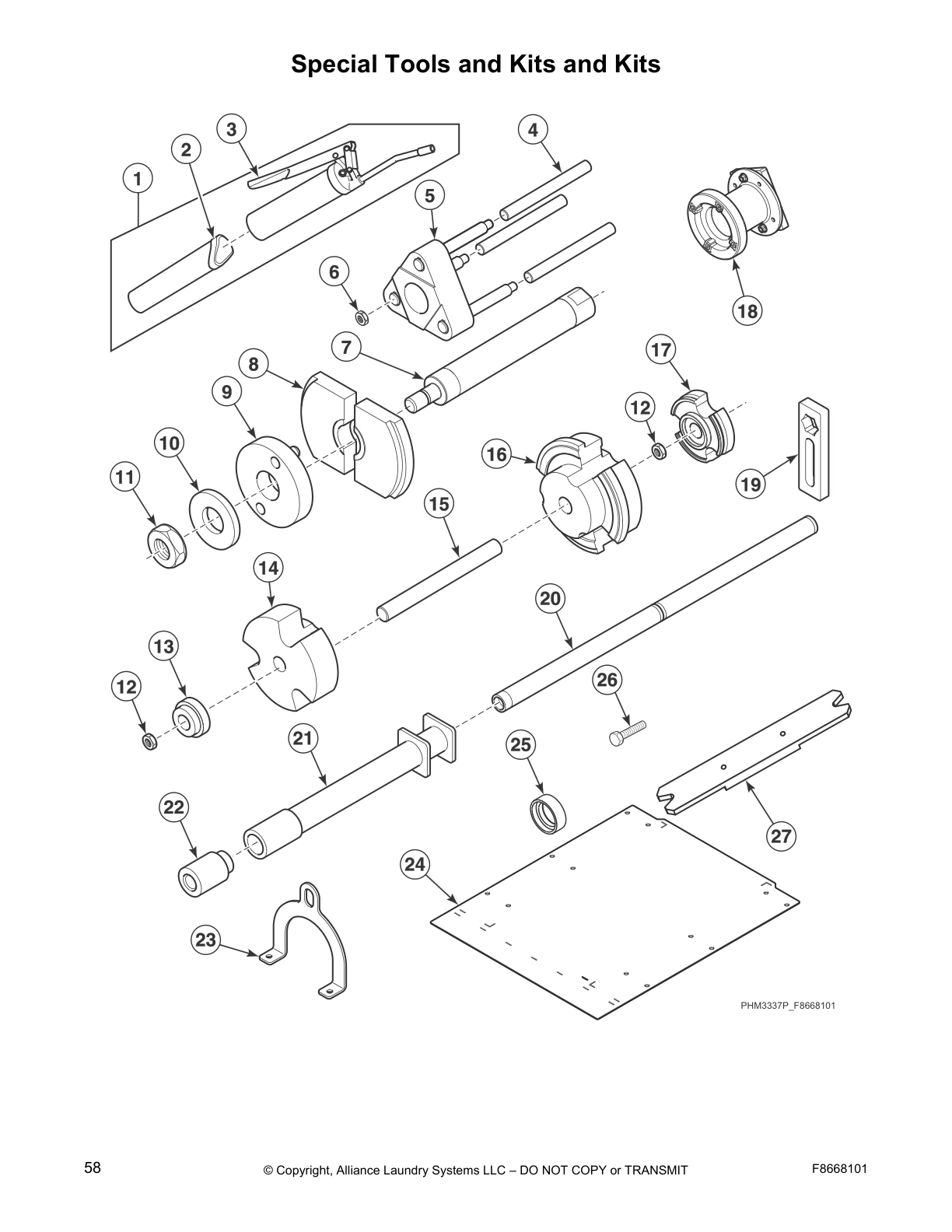

Special Tools and Kits and Kits
Common parts from model UniMac UWT130D3 Washer
SPQ F8555403 SPQ F8555403 Contact Us For Availability
SPQ F8555401 SPQ F8555401 Contact Us For Availability
SPQ 804528 SPQ 804528 Contact Us For Availability
SPQ F8126601 SPQ F8126601 Contact Us For Availability
SPQ F200185 SPQ F200185 Contact Us For Availability
SPQ F8288312 SPQ F8288312 Contact Us For Availability
SPQ F8531401 SPQ F8531401 Contact Us For Availability
SPQ F200133600 SPQ F200133600 Contact Us For Availability
Valve Rebuild Kit SPQ F8489101 Contact Us For Availability
SPQ F8312905 SPQ F8312905 Contact Us For Availability
Steam Kit SPQ F8662302 Contact Us For Availability
Harness SPQ F8520704 Contact Us For Availability
Concrete Hardware Kit SPQ F8674005 Contact Us For Availability
SPQ 205391P SPQ 205391P Contact Us For Availability
1
Screw SPQ 51783 Contact Us For Availability
1
Contactor SPQ 70482601 Contact Us For Availability
1
Hole Plug SPQ F8223801 Contact Us For Availability
1
Left Side Panel SPQ F8481102 Contact Us For Availability
1
Spray Rinse Tube Assembly SPQ F8332306 Contact Us For Availability
1
Handle Mount SPQ F8468601 Contact Us For Availability
1
Screw SPQ F8442702 Contact Us For Availability
1
Shell Assembly SPQ F8544404 Contact Us For Availability
1
Hose SPQ F8617815 Contact Us For Availability
1
Hose Adapter SPQ F421968 Contact Us For Availability
1
Hose Clamp SPQ F200222 Contact Us For Availability
1
Overflow Hose SPQ F0150488-00 Contact Us For Availability
1
Belt SPQ F8382810 Contact Us For Availability
1
Radial Seal SPQ F8528503 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Terminal Block SPQ 70333001 Contact Us For Availability
2
Plug SPQ F8223901 Contact Us For Availability
2
Thermistor SPQ F8538801 Contact Us For Availability
2
Expansion Clip SPQ F8412811 Contact Us For Availability
2
Spray Rinse Strap SPQ F8451701 Contact Us For Availability
2
Lug Hinge SPQ F8406201 Contact Us For Availability
2
Door Lock Microswitch SPQ F8493801 Contact Us For Availability
2
Pin SPQ F8302701 Contact Us For Availability
2
Hose Clamp SPQ F8550103 Contact Us For Availability
2
Tee SPQ F8322907 Contact Us For Availability
2
Manifold SPQ F8137504 Contact Us For Availability
2
Motor Bracket Weldment SPQ F8522301 Contact Us For Availability
2
Bearing Housing SPQ F8465703 Contact Us For Availability
2
Guide Rod Assembly SPQ F210206P Contact Us For Availability
3
Insulator SPQ 430642 Contact Us For Availability
3
Plug SPQ 70482701 Contact Us For Availability
3
Vibration Switch Shield SPQ F8337301 Contact Us For Availability
3
Expansion Clip SPQ M412763 Contact Us For Availability
3
Expansion Clip SPQ F8221403 Contact Us For Availability
3
Dispenser Assembly SPQ F0150514-00 Contact Us For Availability
3
Screw SPQ F8333201 Contact Us For Availability
3
SPQ F8395801 SPQ F8395801 Contact Us For Availability
3
SPQ F8487101 SPQ F8487101 Contact Us For Availability
3
Plug SPQ F8465201 Contact Us For Availability
3
Valve SPQ F8322908 Contact Us For Availability
3
Bearing Seal Insertion and Removal Kit SPQ F210207P Contact Us For Availability
4
Door Gasket SPQ F431222 Contact Us For Availability
4
Expansion Clip SPQ M413862 Contact Us For Availability
4
Ground Lug Connector SPQ 70488101 Contact Us For Availability
4
Grommet SPQ F8528401 Contact Us For Availability
4
Ring Retainer SPQ F310206 Contact Us For Availability
4
Expansion Clip SPQ F8245101 Contact Us For Availability
4
Supply Weldment SPQ F150386 Contact Us For Availability
4
SPQ F200201 SPQ F200201 Contact Us For Availability
4
Screw SPQ F200509 Contact Us For Availability
4
Coupling SPQ F422208 Contact Us For Availability
4
SPQ F8387601 SPQ F8387601 Contact Us For Availability
4
Connector SPQ M403052 Contact Us For Availability
4
Heating Element Plug SPQ F360202 Contact Us For Availability
4
Coupling SPQ F8362702 Contact Us For Availability
5
Snap Bushing SPQ 70178701 Contact Us For Availability
5
Chemical Connection Cover SPQ F8561601 Contact Us For Availability
5
O-Ring SPQ F170200 Contact Us For Availability
5
Door Lock Plate Shim SPQ F431024 Contact Us For Availability
5
Screw SPQ 70391101 Contact Us For Availability
5
Supply Hose SPQ F0150525-00 Contact Us For Availability
5
SPQ F8232007 SPQ F8232007 Contact Us For Availability
5
Valve Mounting Bracket SPQ F8230301 Contact Us For Availability
5
Hose Barb SPQ F8362703 Contact Us For Availability
5
SPQ F200166402 SPQ F200166402 Contact Us For Availability
5
SPQ F8366601 SPQ F8366601 Contact Us For Availability
5
Dowel Pin SPQ J1408004 Contact Us For Availability
5
Hose Adapter SPQ F421909 Contact Us For Availability
6
SPQ F8494101P SPQ F8494101P Contact Us For Availability
6
SPQ F8332501 SPQ F8332501 Contact Us For Availability
6
Pop Rivet SPQ M400985 Contact Us For Availability
6
Gasket SPQ F8502307 Contact Us For Availability
6
Strain Relief Adapter Kit SPQ F0150512-00P Contact Us For Availability
6
SPQ F8561401 SPQ F8561401 Contact Us For Availability
6
Expansion Clip SPQ F8331902 Contact Us For Availability
6
Plug SPQ F421964 Contact Us For Availability
6
Valve SPQ F8362701 Contact Us For Availability
6
SPQ F8487001 SPQ F8487001 Contact Us For Availability
6
SPQ F8564402 SPQ F8564402 Contact Us For Availability
6
Nut SPQ F8406502 Contact Us For Availability
6
Wireless Network Kit SPQ F8459001 Contact Us For Availability
7
SPQ F8623401 SPQ F8623401 Contact Us For Availability
7
SPQ F8134101 SPQ F8134101 Contact Us For Availability
7
Swivel Coupling Body SPQ F8504001 Contact Us For Availability
7
Door Assembly SPQ F8508503 Contact Us For Availability
7
SPQ F8489601 SPQ F8489601 Contact Us For Availability
7
Shell Front Assembly SPQ F8479401 Contact Us For Availability
7
SPQ F200215 SPQ F200215 Contact Us For Availability
7
Plug Cap SPQ F8549703 Contact Us For Availability
7
Screw SPQ 70321501 Contact Us For Availability
7
Hose Barb SPQ F8515001 Contact Us For Availability
7
SPQ F8340801 SPQ F8340801 Contact Us For Availability
7
Washer SPQ F430248 Contact Us For Availability
8
SPQ F8117601 SPQ F8117601 Contact Us For Availability
8
SPQ F8481802 SPQ F8481802 Contact Us For Availability
8
Spray Rinse Hose SPQ F8508203 Contact Us For Availability
8
Basket Assembly SPQ F8576101 Contact Us For Availability
8
SPQ F8551904 SPQ F8551904 Contact Us For Availability
8
Strainer SPQ F8344602 Contact Us For Availability
8
SPQ F8386805 SPQ F8386805 Contact Us For Availability
8
Bearings and Se SPQ F8171201 Contact Us For Availability
8
Street Elbow SPQ F421707 Contact Us For Availability
9
SPQ M413865 SPQ M413865 Contact Us For Availability
9
SPQ M411283 SPQ M411283 Contact Us For Availability
9
SPQ F8484101 SPQ F8484101 Contact Us For Availability
9
SPQ F8479801 SPQ F8479801 Contact Us For Availability
9
SPQ F8320402 SPQ F8320402 Contact Us For Availability
9
Excluder Seal SPQ F8527703 Contact Us For Availability
9
Bearing Housing SPQ F8465401 Contact Us For Availability
9
SPQ F8555405 SPQ F8555405 Contact Us For Availability
9
Valve Rebuild Kit SPQ F8223902 Contact Us For Availability
9
Valve Rebuild Kit SPQ F421930 Contact Us For Availability
9
SPQ F8491701 SPQ F8491701 Contact Us For Availability
9
Steam Hose SPQ F200183 Contact Us For Availability
10
Screw SPQ 685837 Contact Us For Availability
10
Bushing SPQ 70346501 Contact Us For Availability
10
Elbow SPQ F8453701 Contact Us For Availability
10
Washer SPQ F431916 Contact Us For Availability
10
Shim SPQ F8484401 Contact Us For Availability
10
Sleeve Seal SPQ F8343913 Contact Us For Availability
10
Frame Shield SPQ F8480301 Contact Us For Availability
10
Elbow SPQ F8514301 Contact Us For Availability
10
Hose SPQ F602586-34 Contact Us For Availability
10
Stud SPQ F8634701 Contact Us For Availability
10
Gasket SPQ F8203812 Contact Us For Availability
10
Washer SPQ F8456101 Contact Us For Availability
11
Control Plate SPQ F8555701 Contact Us For Availability
11
Stud SPQ 70334702 Contact Us For Availability
11
Bulkhead Panel SPQ F8561301 Contact Us For Availability
11
Nut SPQ F8322601 Contact Us For Availability
11
Door Handle SPQ F8435501 Contact Us For Availability
11
Door Lock Catch SPQ F8344501 Contact Us For Availability
11
Shell Assembly SPQ F8544403 Contact Us For Availability
11
Chemical Dispenser SPQ F8538201 Contact Us For Availability
11
Y Connector SPQ F8617810 Contact Us For Availability
11
Hose SPQ F8394005 Contact Us For Availability
11
Bolt SPQ M405503 Contact Us For Availability
11
Screw SPQ F8207001 Contact Us For Availability
11
Nut SPQ F8455801 Contact Us For Availability
12
Pop Rivet SPQ M400003 Contact Us For Availability
12
Emergency Stop Label SPQ 44012902 Contact Us For Availability
12
Power Distribution Block Cover SPQ F8496901 Contact Us For Availability
12
Right Side Panel SPQ F8481101 Contact Us For Availability
12
Spray Nozzle Gasket SPQ F8322701 Contact Us For Availability
12
Door Glass Gasket SPQ F8499903 Contact Us For Availability
12
Bolt SPQ F8270701 Contact Us For Availability
12
Insertion Sleeve SPQ F8464903 Contact Us For Availability
12
Nut SPQ F431005 Contact Us For Availability
12
Hose Clamp SPQ F422816 Contact Us For Availability
12
Air Coupling SPQ F8402801 Contact Us For Availability
12
Bearing SPQ F8313702 Contact Us For Availability
12
Bearing Grease SPQ F8457701 Contact Us For Availability
13
Nut SPQ F430231 Contact Us For Availability
13
Door Spray Nozzle Assembly SPQ F8356301 Contact Us For Availability
13
Washer SPQ F431147 Contact Us For Availability
13
Door Glass Retainer SPQ F8488201 Contact Us For Availability
13
Washer SPQ F8193101 Contact Us For Availability
13
Shaft Sleeve SPQ F8522603 Contact Us For Availability
13
Valve SPQ F8394004 Contact Us For Availability
13
Grease Fitting SPQ F422114 Contact Us For Availability
14
Label SPQ F8151201 Contact Us For Availability
14
Screw SPQ F8206901 Contact Us For Availability
14
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
14
Terminal Block Shield SPQ 44014901P Contact Us For Availability
14
Front Panel SPQ F8481401 Contact Us For Availability
14
Drain Hose SPQ 202175 Contact Us For Availability
14
Spray Rinse Bracket SPQ F8451101 Contact Us For Availability
14
Door Glass SPQ F431100 Contact Us For Availability
14
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
14
Adapter Sleeve SPQ F8382503 Contact Us For Availability
14
Stud SPQ F390301 Contact Us For Availability
14
Washer SPQ F190701 Contact Us For Availability
15
Nameplate SPQ F8443105 Contact Us For Availability
15
Hose Clamp SPQ 70030401 Contact Us For Availability
15
Screw SPQ F8560601 Contact Us For Availability
15
Thermistor SPQ M405535 Contact Us For Availability
15
Chemical Supply Cup SPQ F8549401 Contact Us For Availability
15
Bushing SPQ F8469201 Contact Us For Availability
15
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
15
Ring Clamp Weldment SPQ F8388007 Contact Us For Availability
15
Water Valve Bracket SPQ F200213 Contact Us For Availability
15
Eye Bolt SPQ 70292801 Contact Us For Availability
16
Screw SPQ F8413701 Contact Us For Availability
16
Snap Bushing SPQ F8614601 Contact Us For Availability
16
Door Hinge SPQ F8378701 Contact Us For Availability
16
Nut SPQ F430232 Contact Us For Availability
16
Injection Nozzle SPQ F150385 Contact Us For Availability
16
Drain Elbow Hose SPQ F8542501 Contact Us For Availability
16
Extension Spring SPQ F8319503 Contact Us For Availability
17
Bolt SPQ F8468201 Contact Us For Availability
17
Grommet SPQ F8457802 Contact Us For Availability
17
Screw SPQ F8632601 Contact Us For Availability
18
Bushing SPQ 44071501 Contact Us For Availability
18
Door Hinge Shim SPQ F8549301 Contact Us For Availability
18
Connector SPQ F8562201 Contact Us For Availability
18
Drain Valve Kit SPQ F8542301 Contact Us For Availability
19
Reed Switch Bracket SPQ F430225 Contact Us For Availability
19
Trim SPQ F8489401 Contact Us For Availability
19
Magnet SPQ F8479601 Contact Us For Availability
19
Door Lock Cover SPQ F8468801 Contact Us For Availability
19
Basket Pulley SPQ F8441101 Contact Us For Availability
20
Door Latch Arm Assemb SPQ F8468401 Contact Us For Availability
20
Spacer SPQ F8441802 Contact Us For Availability
20
Frame Template SPQ F8534103 Contact Us For Availability
21
Spacer SPQ F200203200 Contact Us For Availability
21
Machine ID Control Assembly SPQ F8069501 Contact Us For Availability
21
Solenoid SPQ F431901 Contact Us For Availability
21
Drain Valve Cover SPQ F8488601 Contact Us For Availability
21
O-Ring SPQ F8451601 Contact Us For Availability
22
Hole Plug SPQ F8512001 Contact Us For Availability
22
Contact Base SPQ F8630601 Contact Us For Availability
23
Motor Pulley SPQ F8441901 Contact Us For Availability
24
Reed Switch Assembly SPQ F8538101 Contact Us For Availability
24
DIN Rail SPQ 44088001 Contact Us For Availability
24
Basket Pulley Bushing SPQ F8466901 Contact Us For Availability
24
Screw SPQ F8471901 Contact Us For Availability
25
Key SPQ F8484702 Contact Us For Availability
26
Nut SPQ F280294P Contact Us For Availability
26
Basket Rotation Clamp SPQ M400063 Contact Us For Availability
27
Grease Gun SPQ F8634803 Contact Us For Availability
28
SPQ 44079204 SPQ 44079204 Contact Us For Availability
29
SPQ 44049001 SPQ 44049001 Contact Us For Availability
30
SPQ M400077 SPQ M400077 Contact Us For Availability
NI
SPQ F8662111 SPQ F8662111 Contact Us For Availability
NI
SPQ F8662110 SPQ F8662110 Contact Us For Availability
NI
SPQ F8662109 SPQ F8662109 Contact Us For Availability
NI
SPQ F8480002P SPQ F8480002P Contact Us For Availability
NI
Shell Front Gasket Kit SPQ F8537807 Contact Us For Availability
NI
SPQ F8363601 SPQ F8363601 Contact Us For Availability
NI
SPQ F749802 SPQ F749802 Contact Us For Availability
NI
SPQ F190304 SPQ F190304 Contact Us For Availability
NI
SPQ F8555404 SPQ F8555404 Contact Us For Availability
NI
SPQ F8555402 SPQ F8555402 Contact Us For Availability
NI
SPQ F8497401 SPQ F8497401 Contact Us For Availability
NI
SPQ 70493102 SPQ 70493102 Contact Us For Availability
NI
Valve Assembly SPQ F200166 Contact Us For Availability
NI
Washer SPQ F200164 Contact Us For Availability
NI
SPQ F200193 SPQ F200193 Contact Us For Availability
NI
SPQ F8379508 SPQ F8379508 Contact Us For Availability
NI
SPQ F8288311 SPQ F8288311 Contact Us For Availability
NI
SPQ F8232006 SPQ F8232006 Contact Us For Availability
NI
SPQ F8288406 SPQ F8288406 Contact Us For Availability
NI
Drain Valve Bracket SPQ F8489102 Contact Us For Availability
NI
SPQ F8312903 SPQ F8312903 Contact Us For Availability
NI
SPQ F200165100 SPQ F200165100 Contact Us For Availability
NI
SPQ F8488501 SPQ F8488501 Contact Us For Availability
NI
SPQ F8577201 SPQ F8577201 Contact Us For Availability
NI
SPQ F8579601 SPQ F8579601 Contact Us For Availability
NI
SPQ F8575401 SPQ F8575401 Contact Us For Availability
NI
SPQ F8474802P SPQ F8474802P Contact Us For Availability
NI
Plug SPQ F0150502-00 Contact Us For Availability
NI
Steam Filter SPQ F270308 Contact Us For Availability
NI
Drain Valve Harness SPQ F8520705 Contact Us For Availability
NI
Steam Valve Assembly SPQ F8379506 Contact Us For Availability
NI
SPQ F8288313 SPQ F8288313 Contact Us For Availability
NI
Wireless Harness SPQ F8599403 Contact Us For Availability
NI
Gateway SPQ F8676201 Contact Us For Availability
NI
USB IR Interface Kit SPQ F8599403-1 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
× ![]()
