Model UniMac UWT045D4 Washer – Common Parts & Diagrams
Labels
Control Module - Models with D3, D4, N1, and N2 in the 7th and 8th
Positions

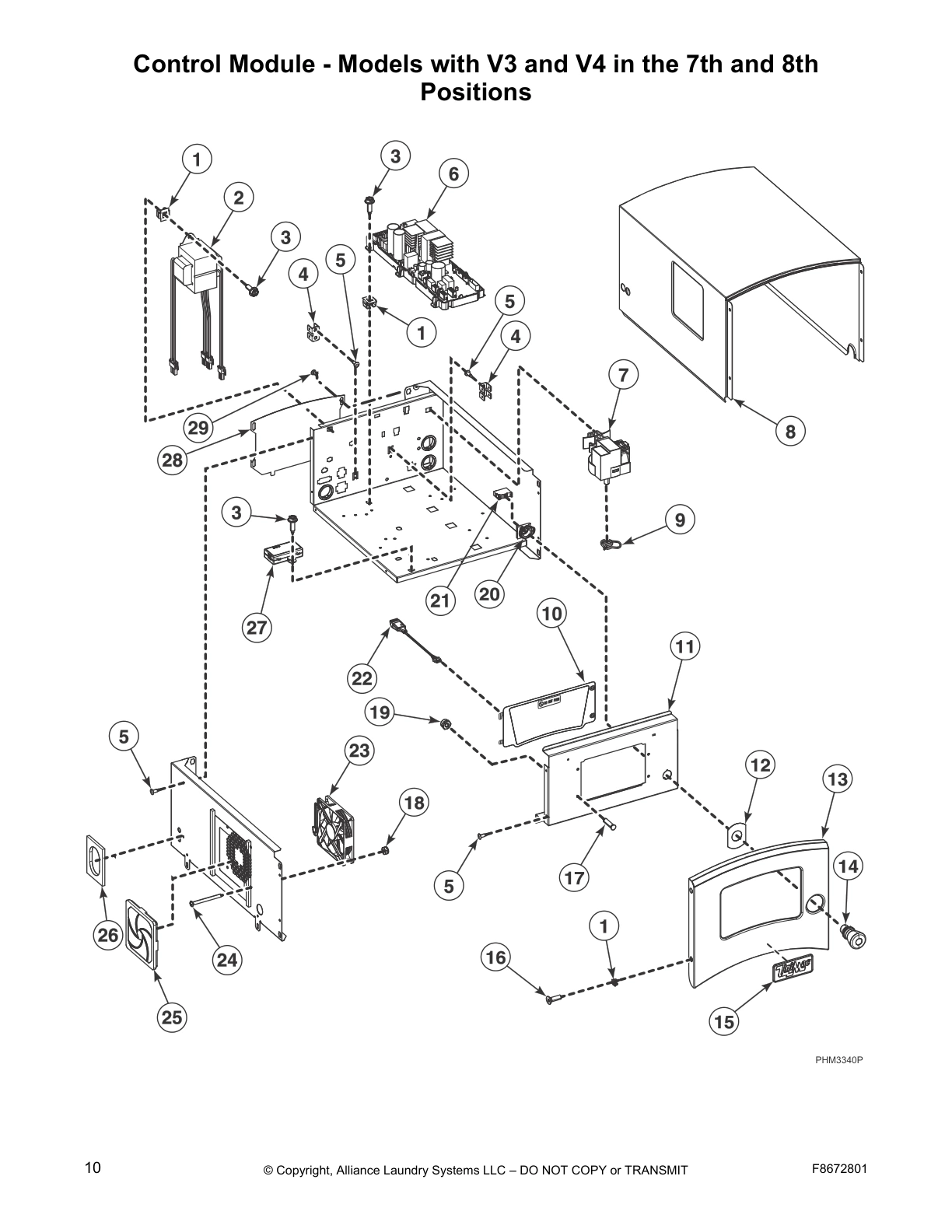

Control Module - Models with V3 and V4 in the 7th and 8th
Positions

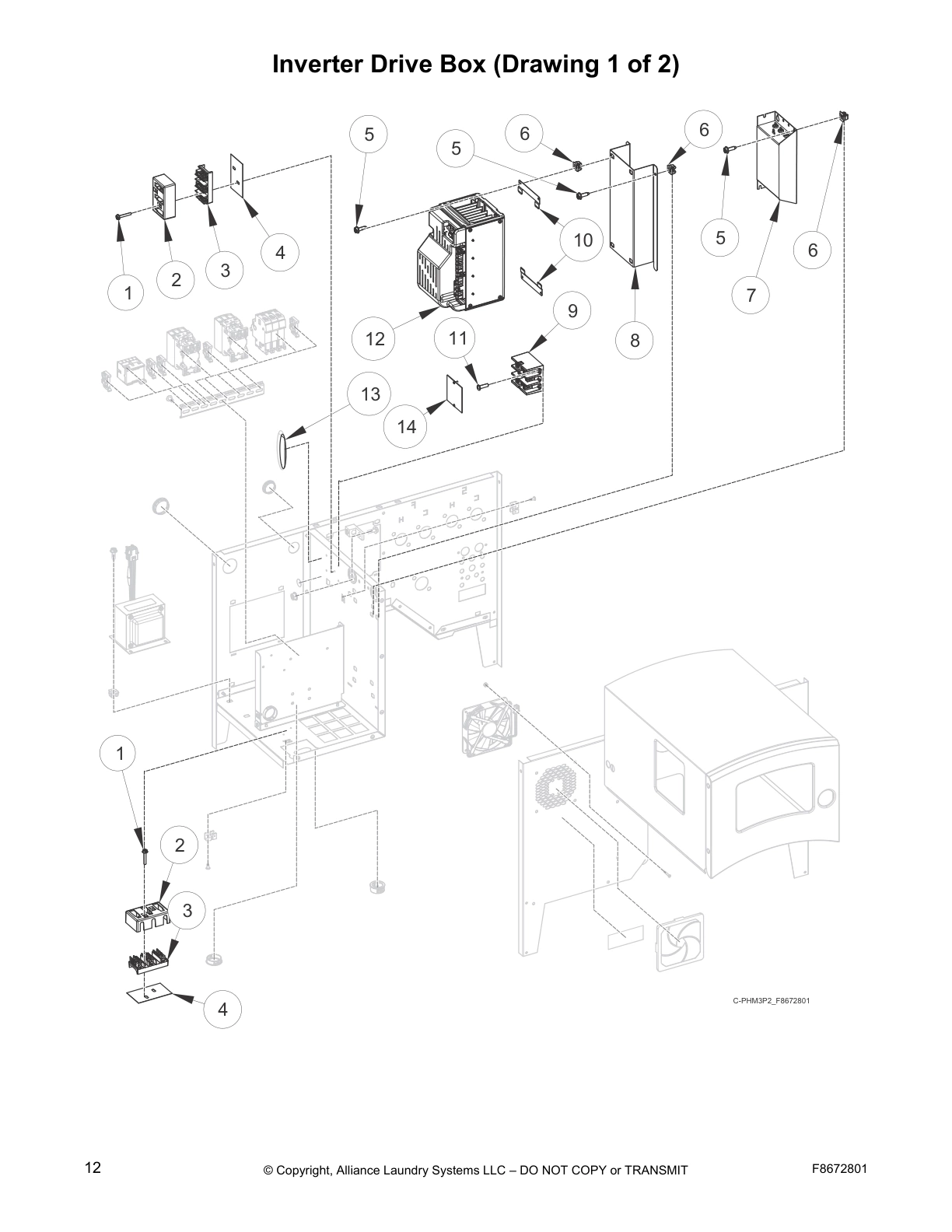

Inverter Drive Box (Drawing 1 of 2)

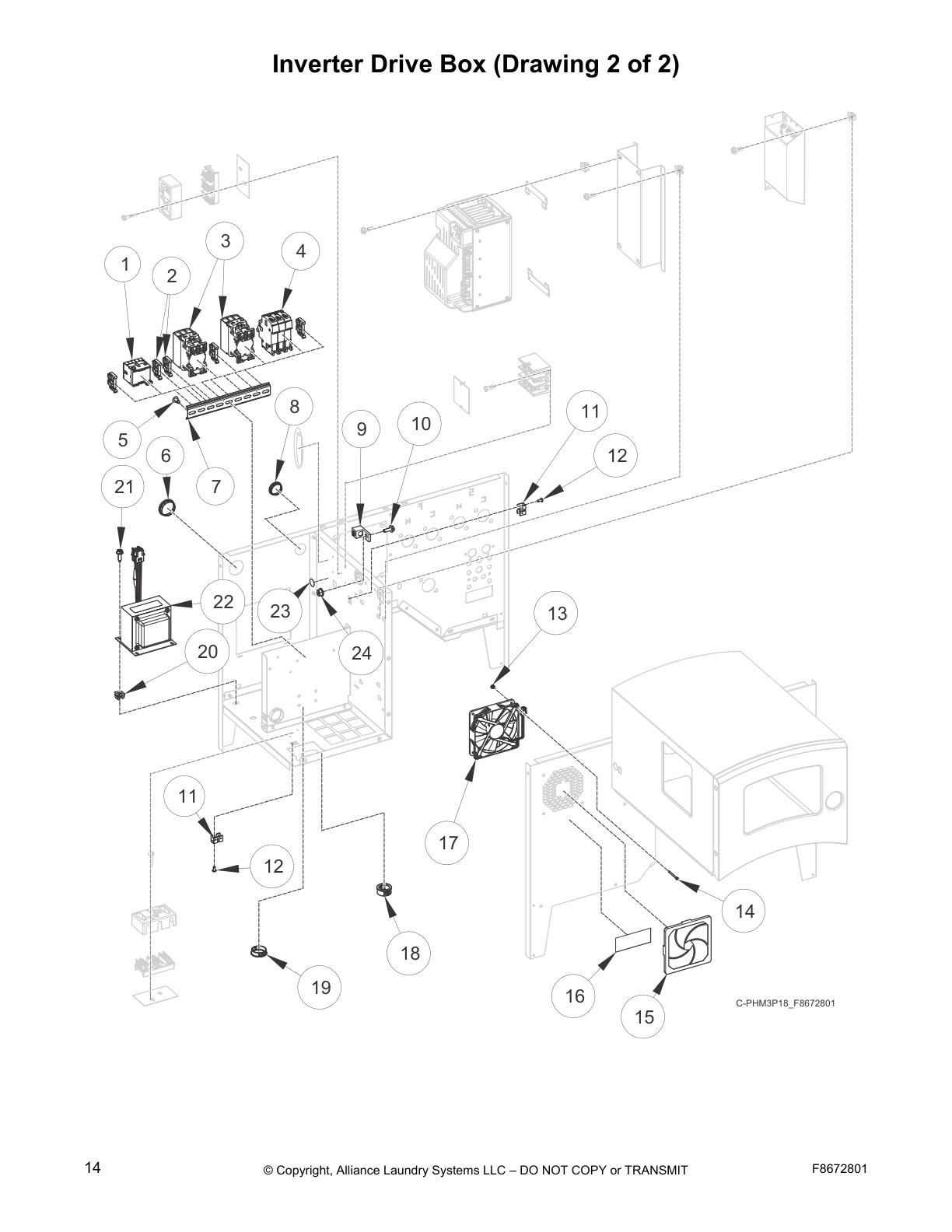

Inverter Drive Box (Drawing 2 of 2)

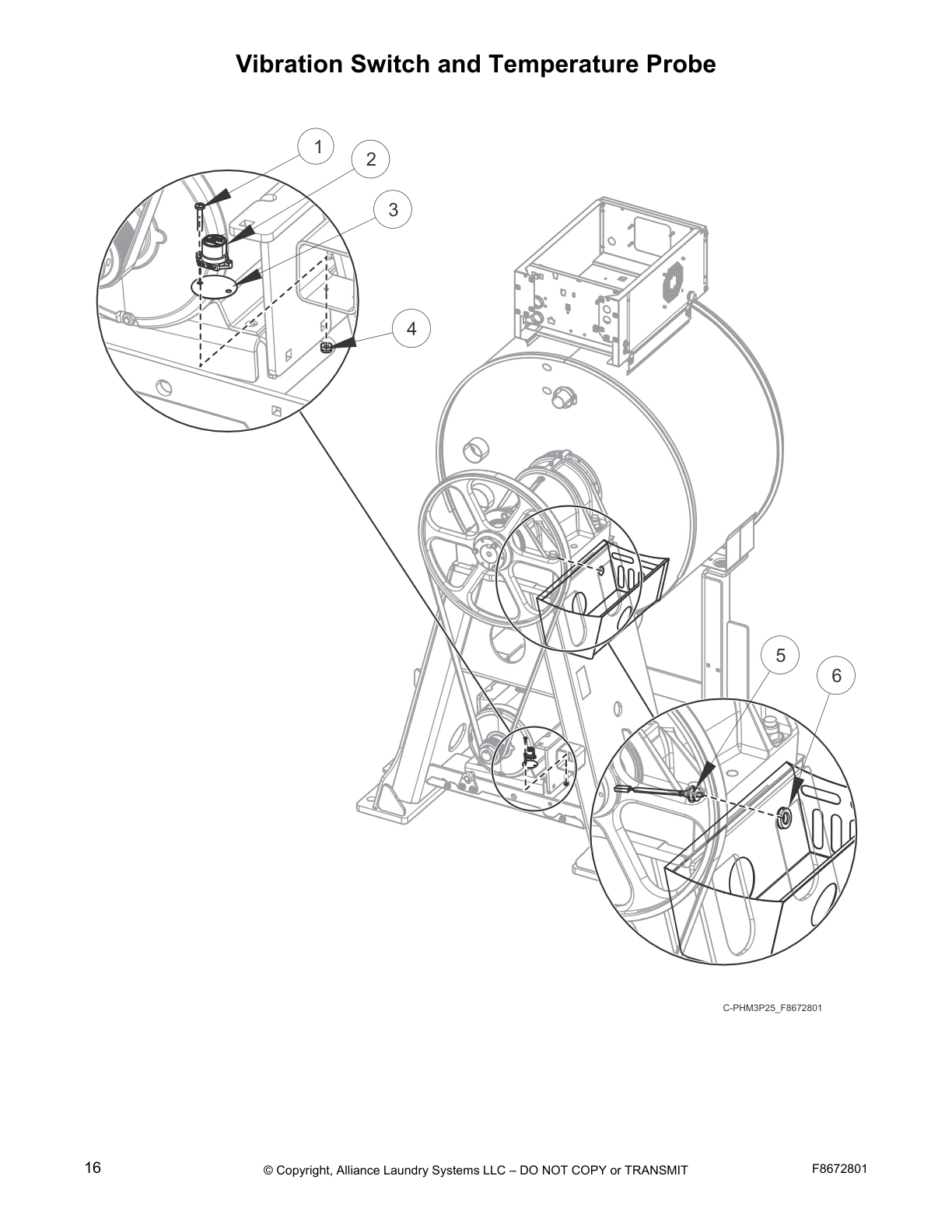

Vibration Switch and Temperature Probe

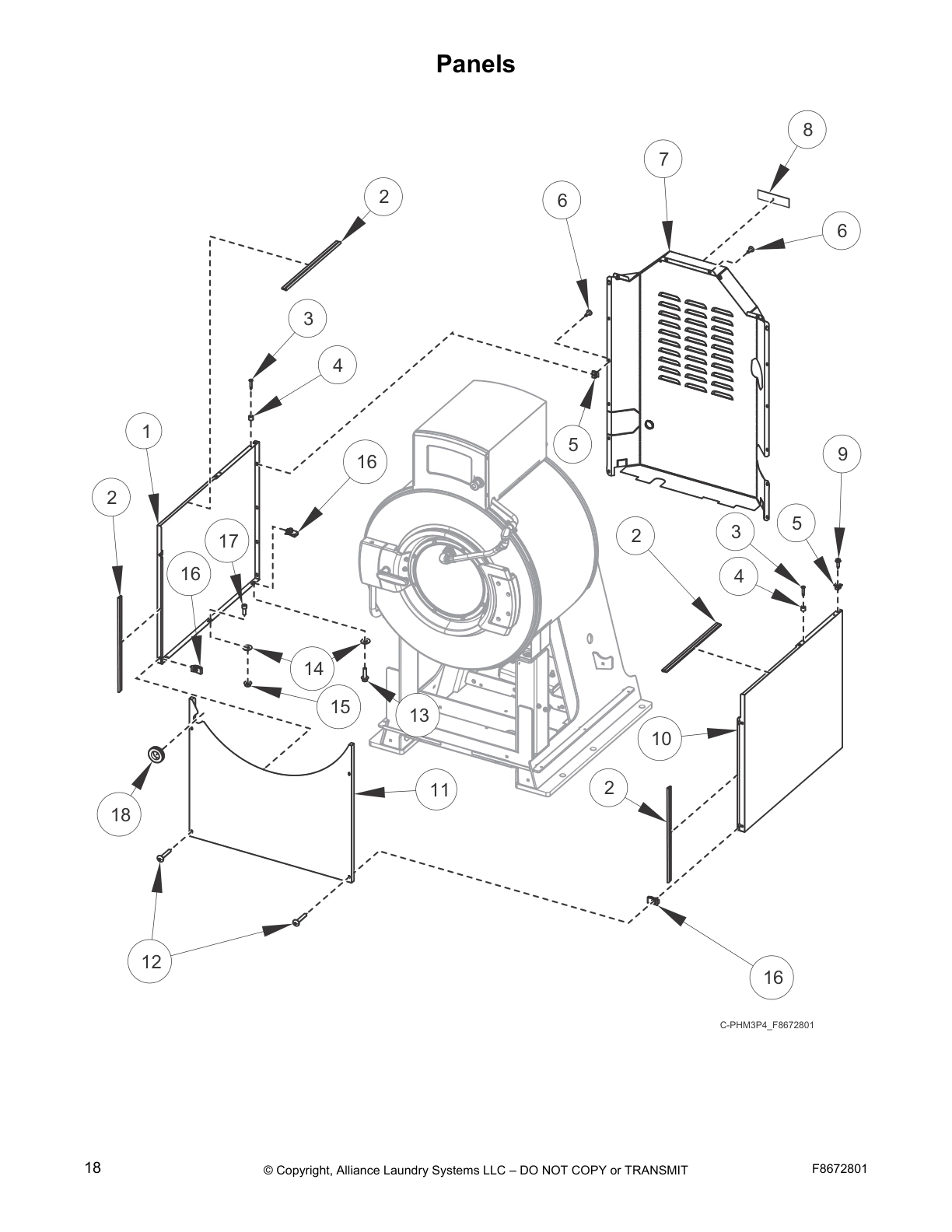

Panels

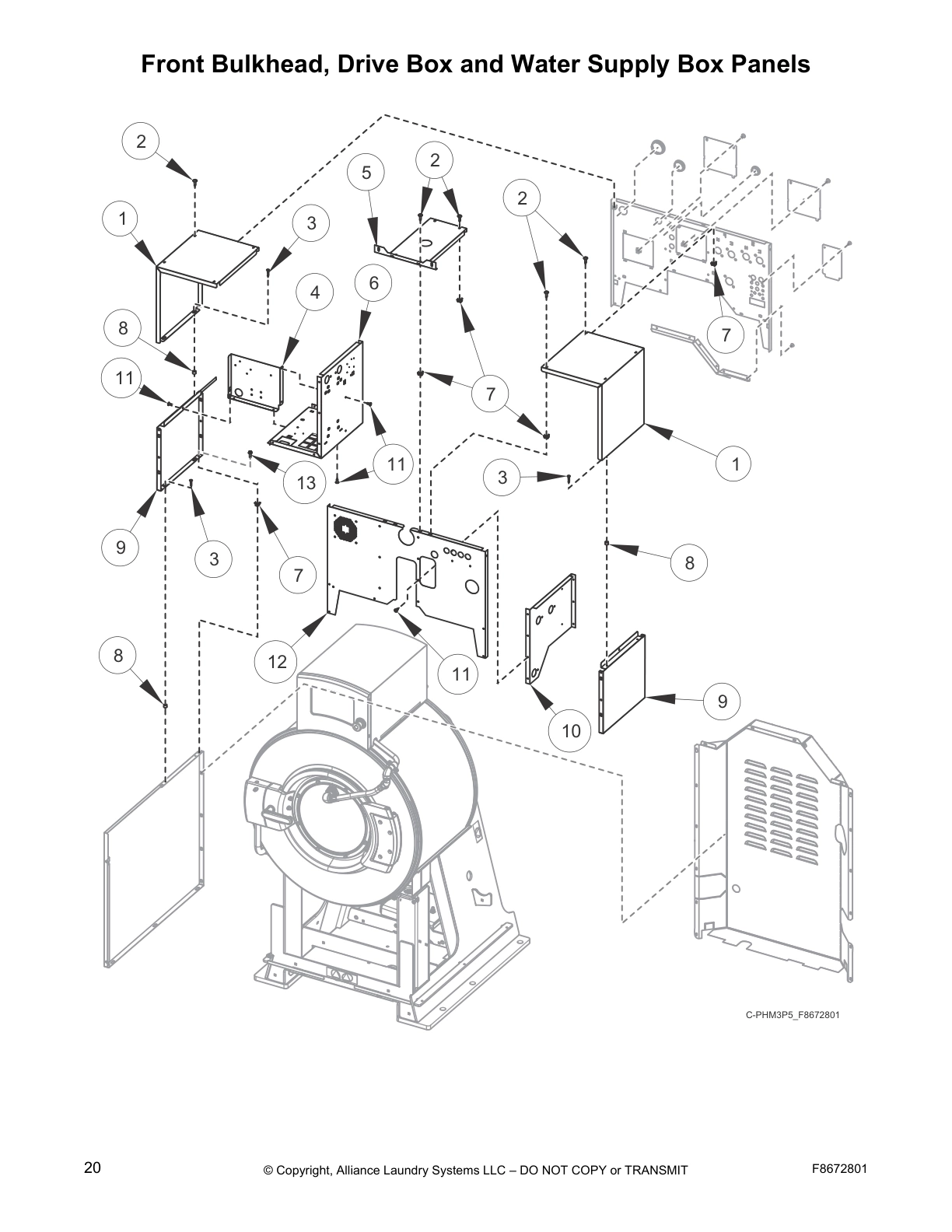

Front Bulkhead, Drive Box and Water Supply Box Panels

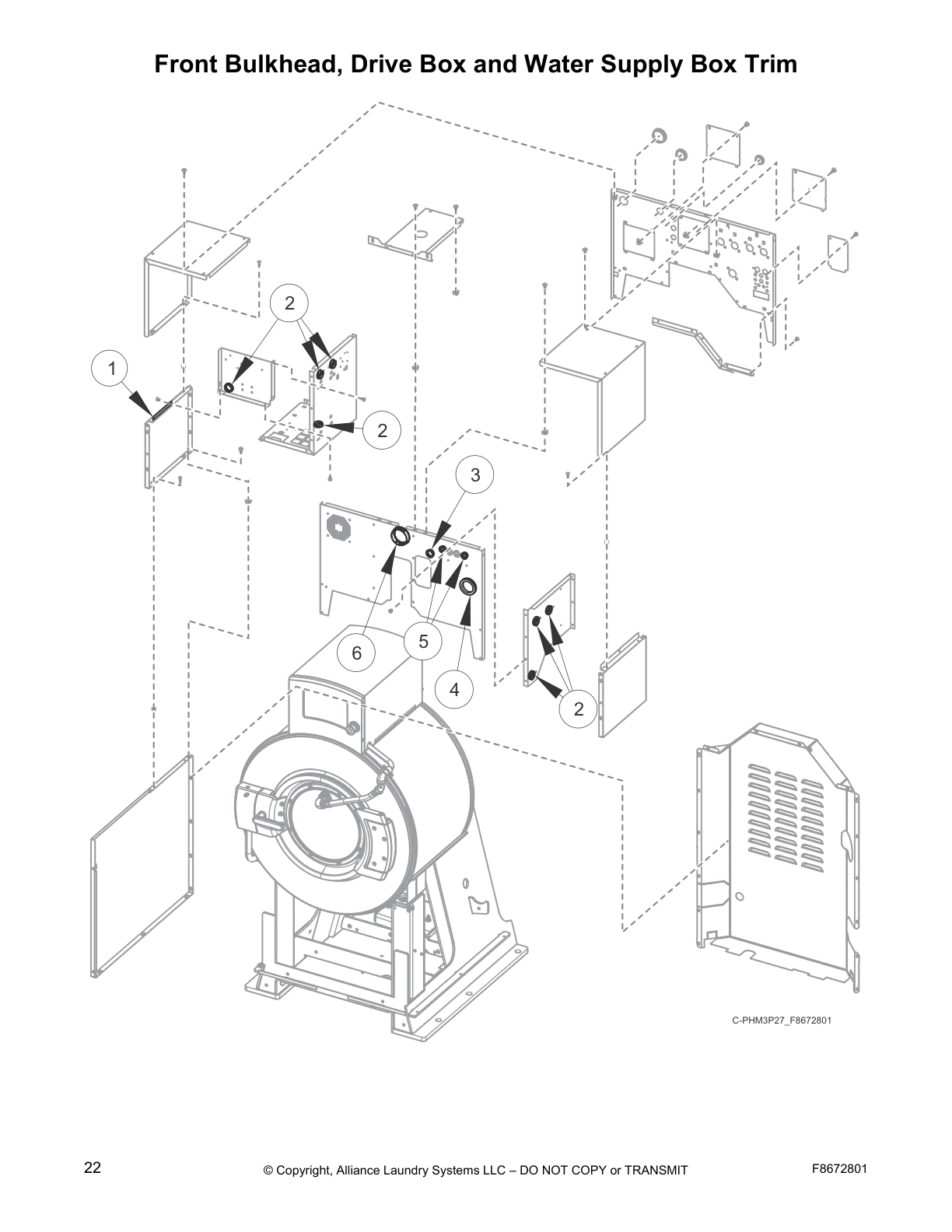

Front Bulkhead, Drive Box and Water Supply Box Trim

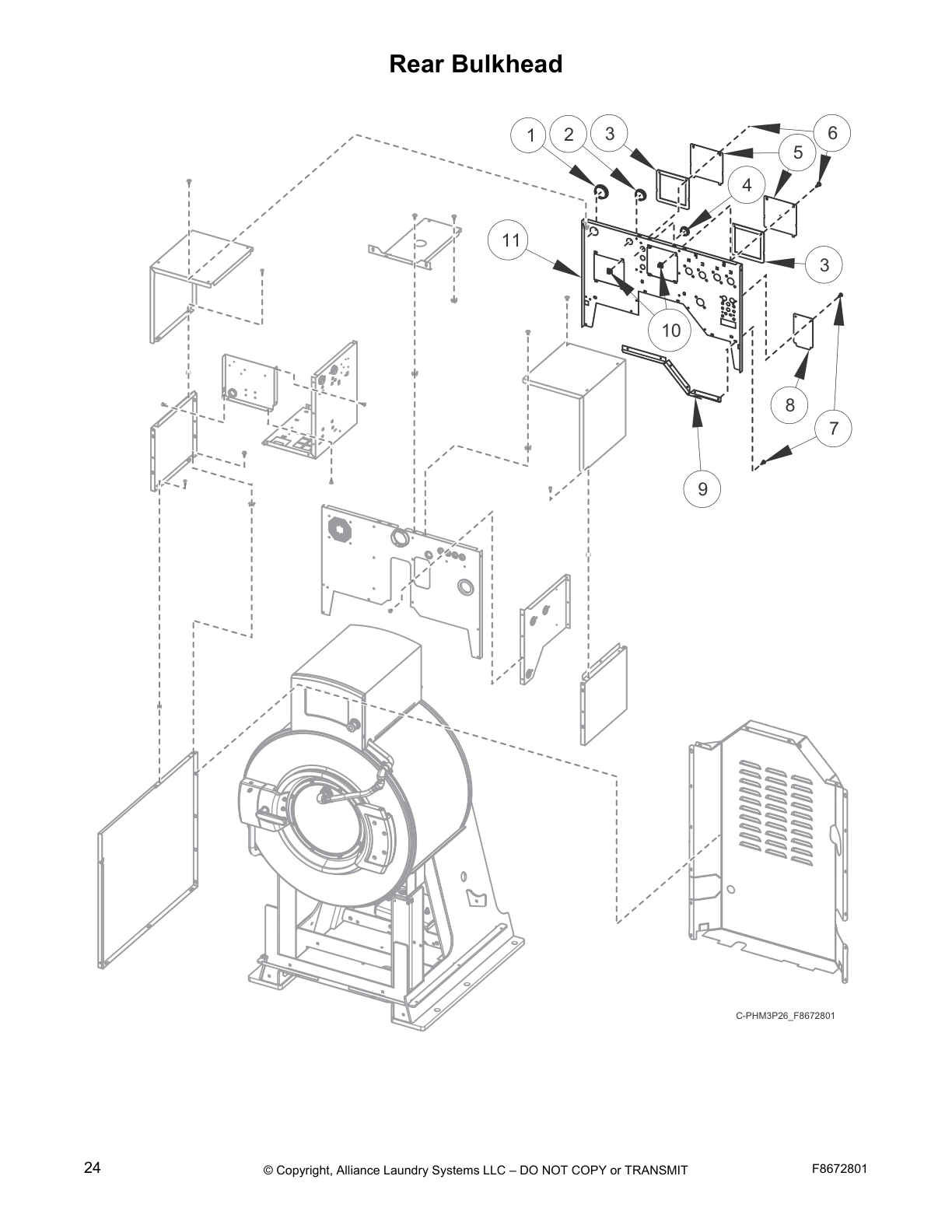

Rear Bulkhead

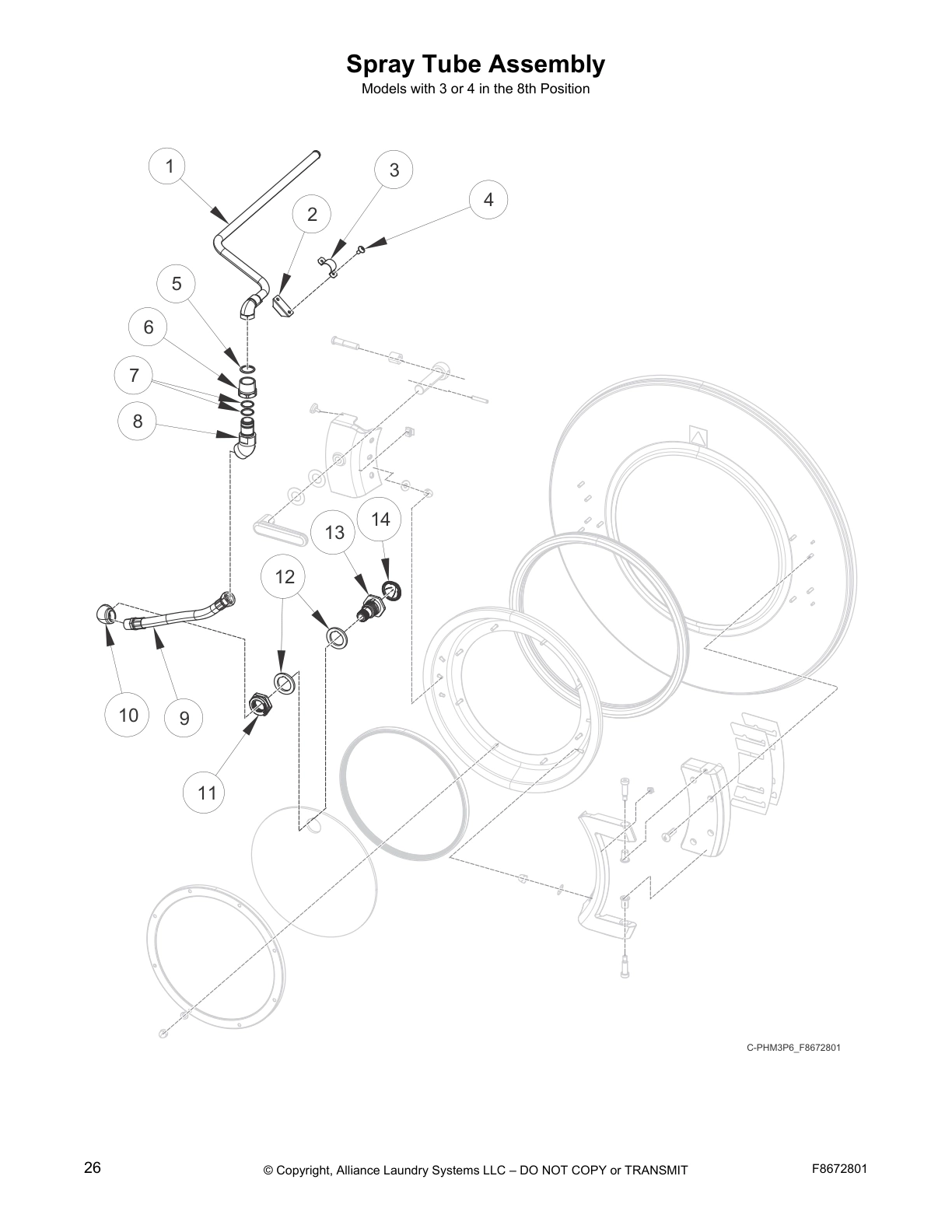

Spray Tube Assembly

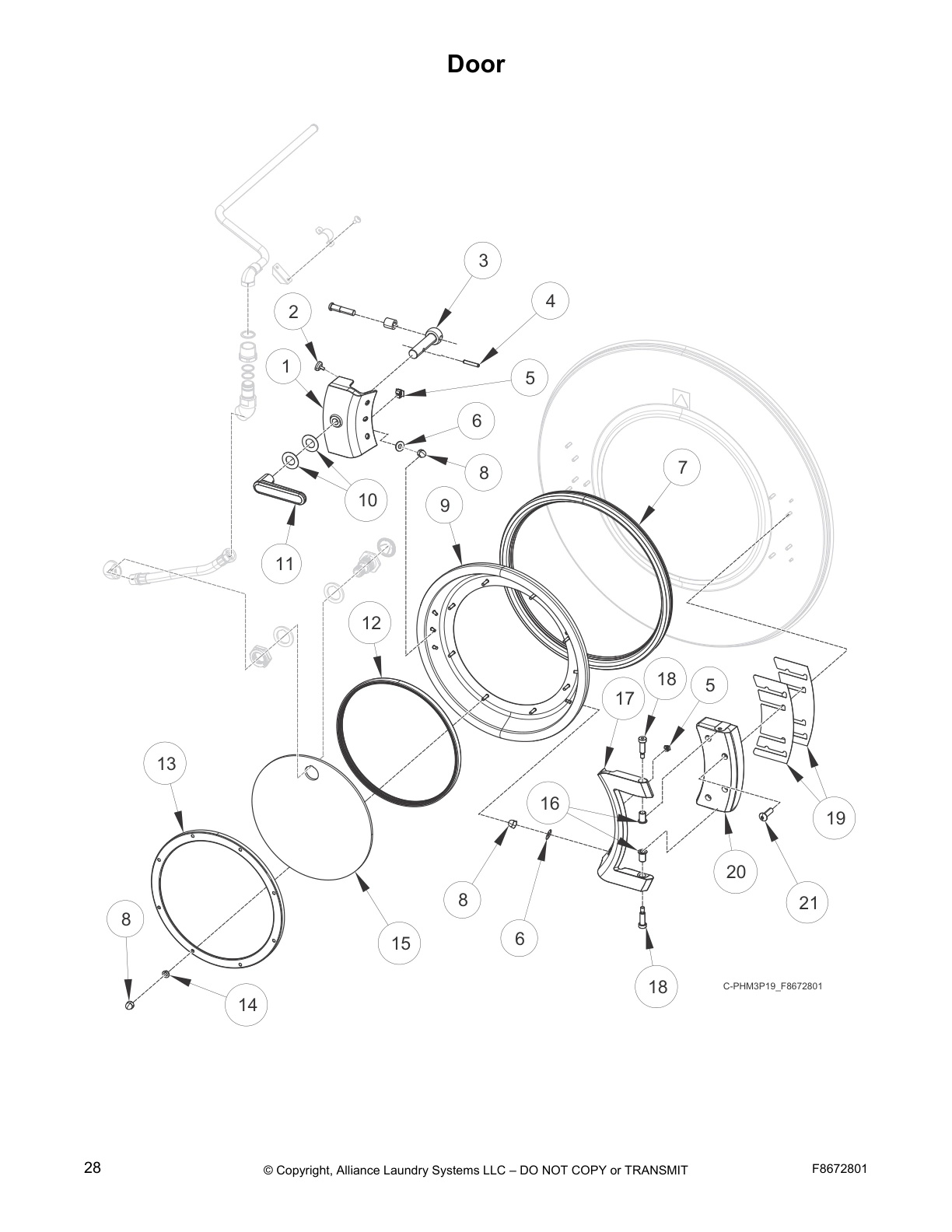

Door

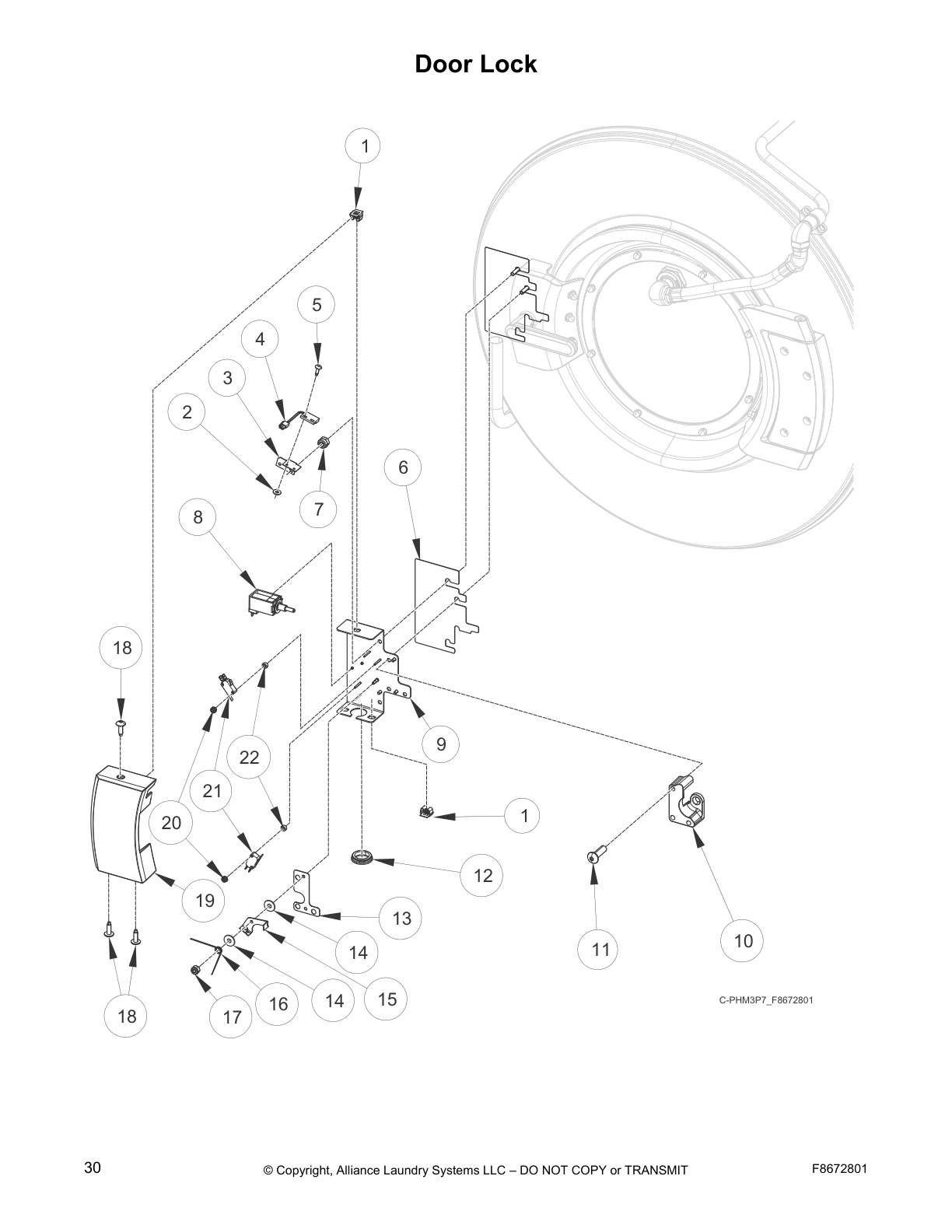

Door Lock

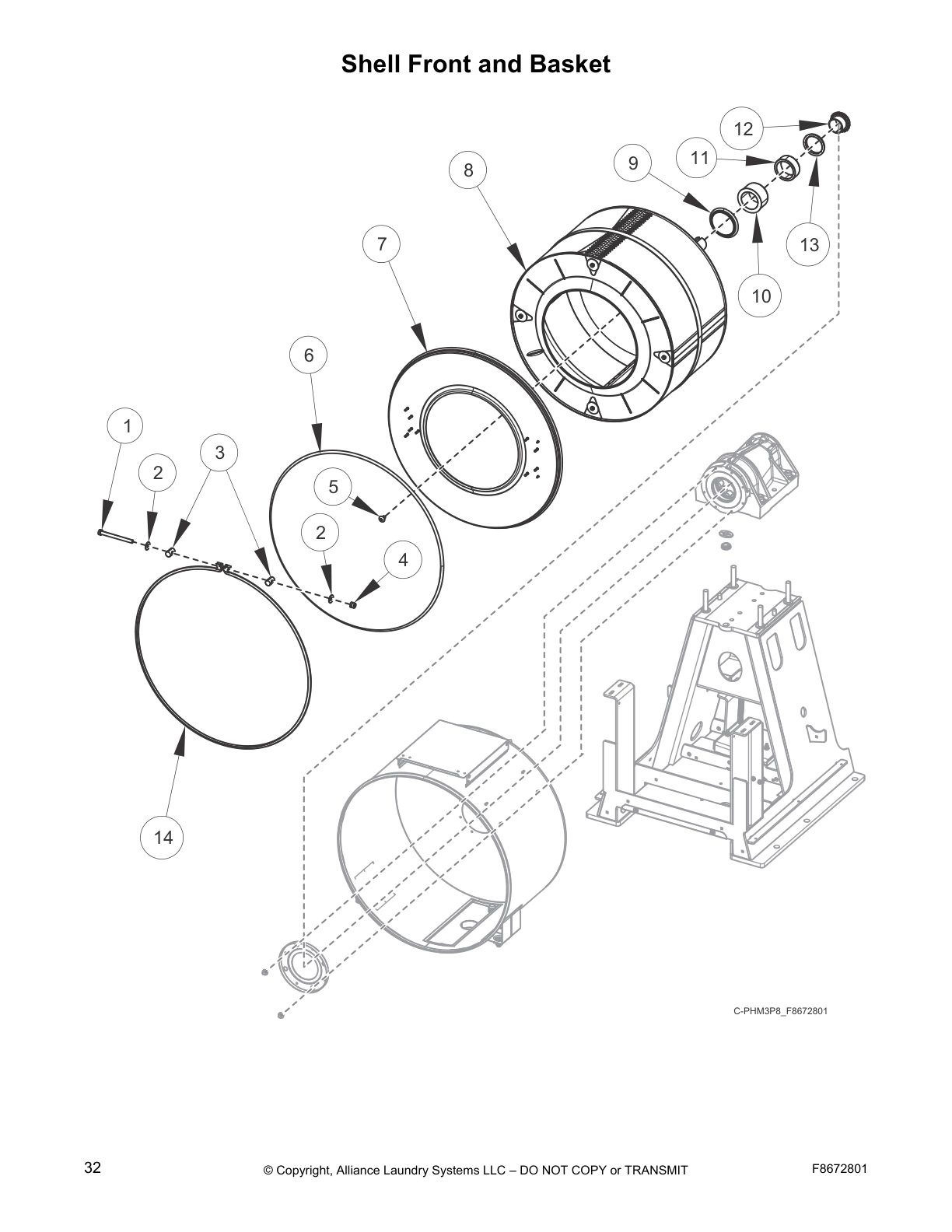

Shell Front and Basket

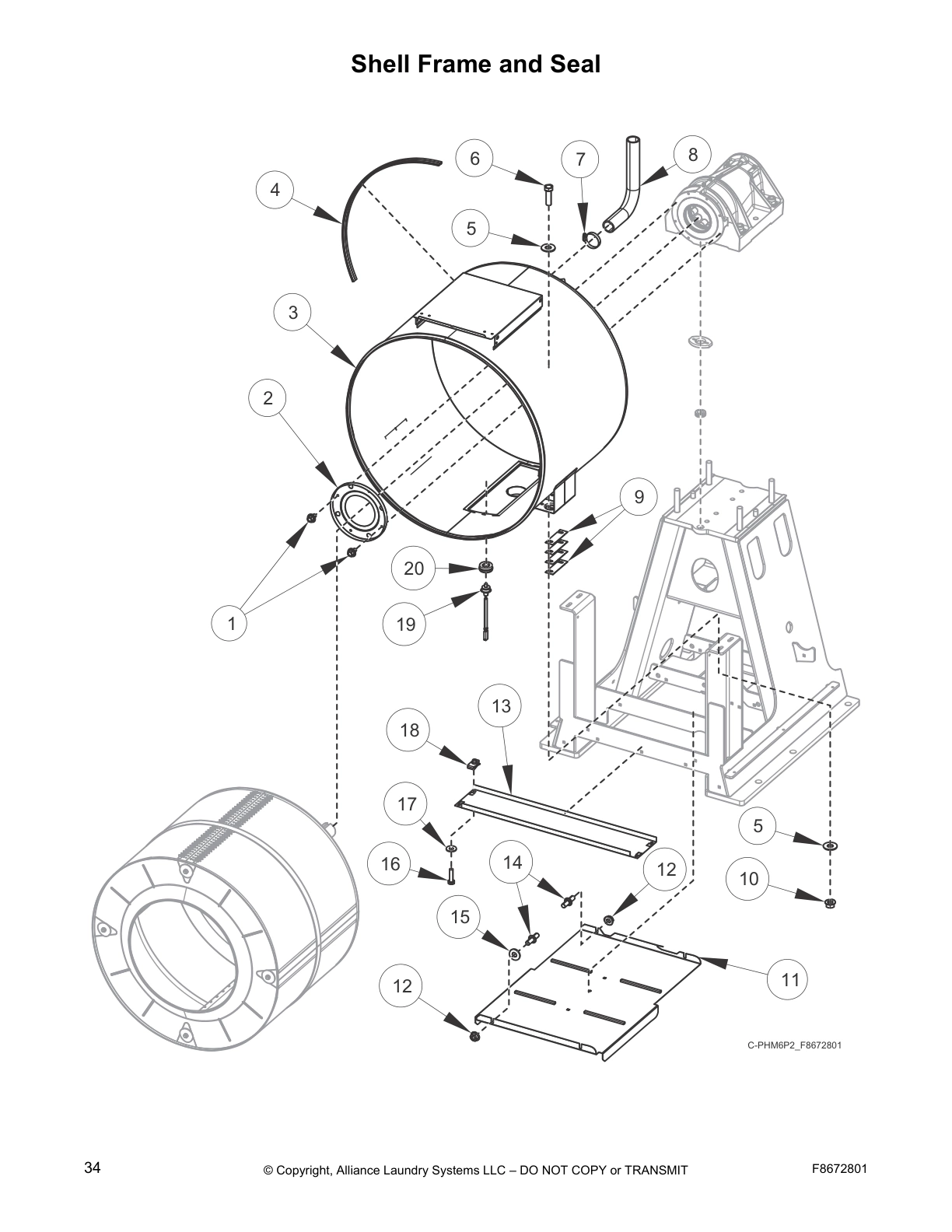

Shell Frame and Seal

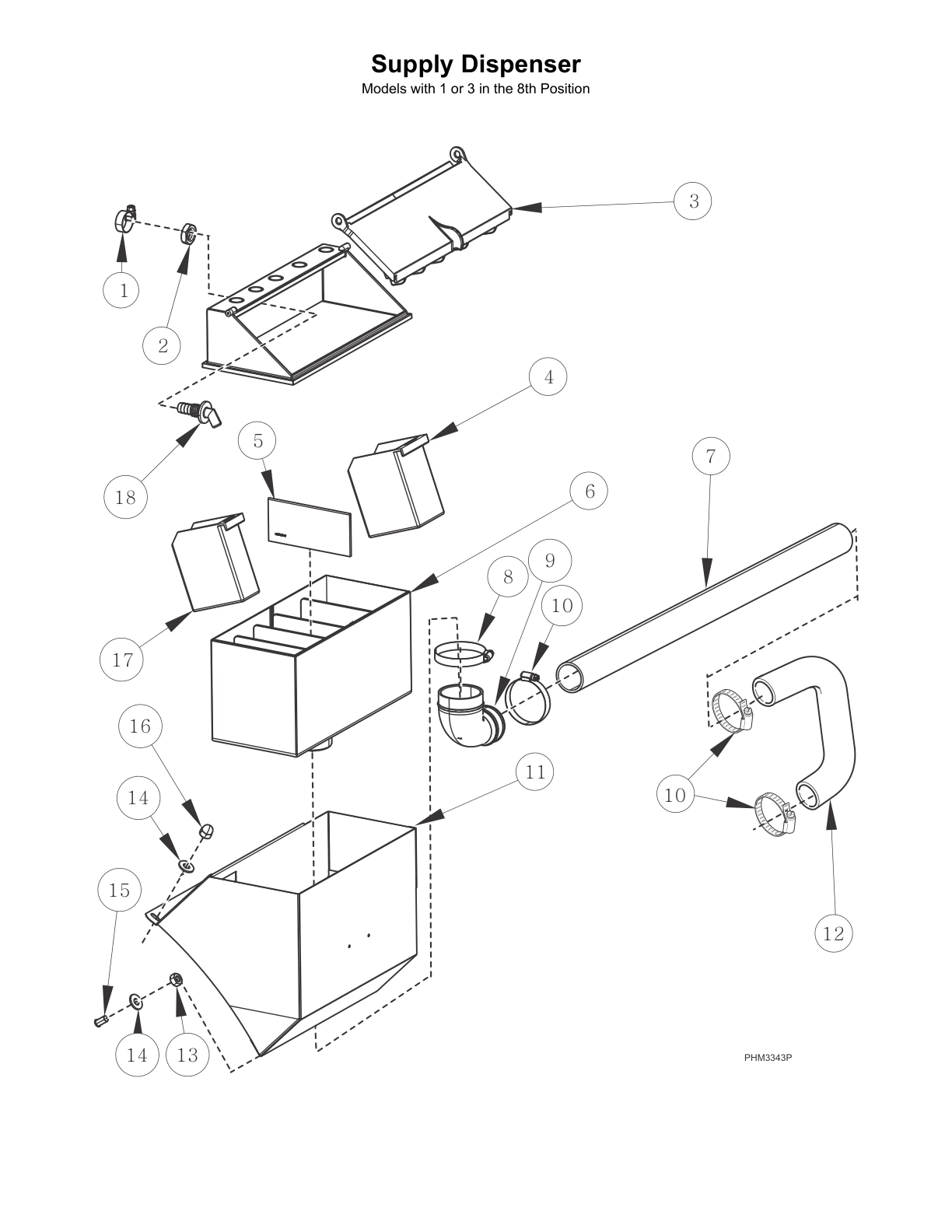

Supply Dispenser

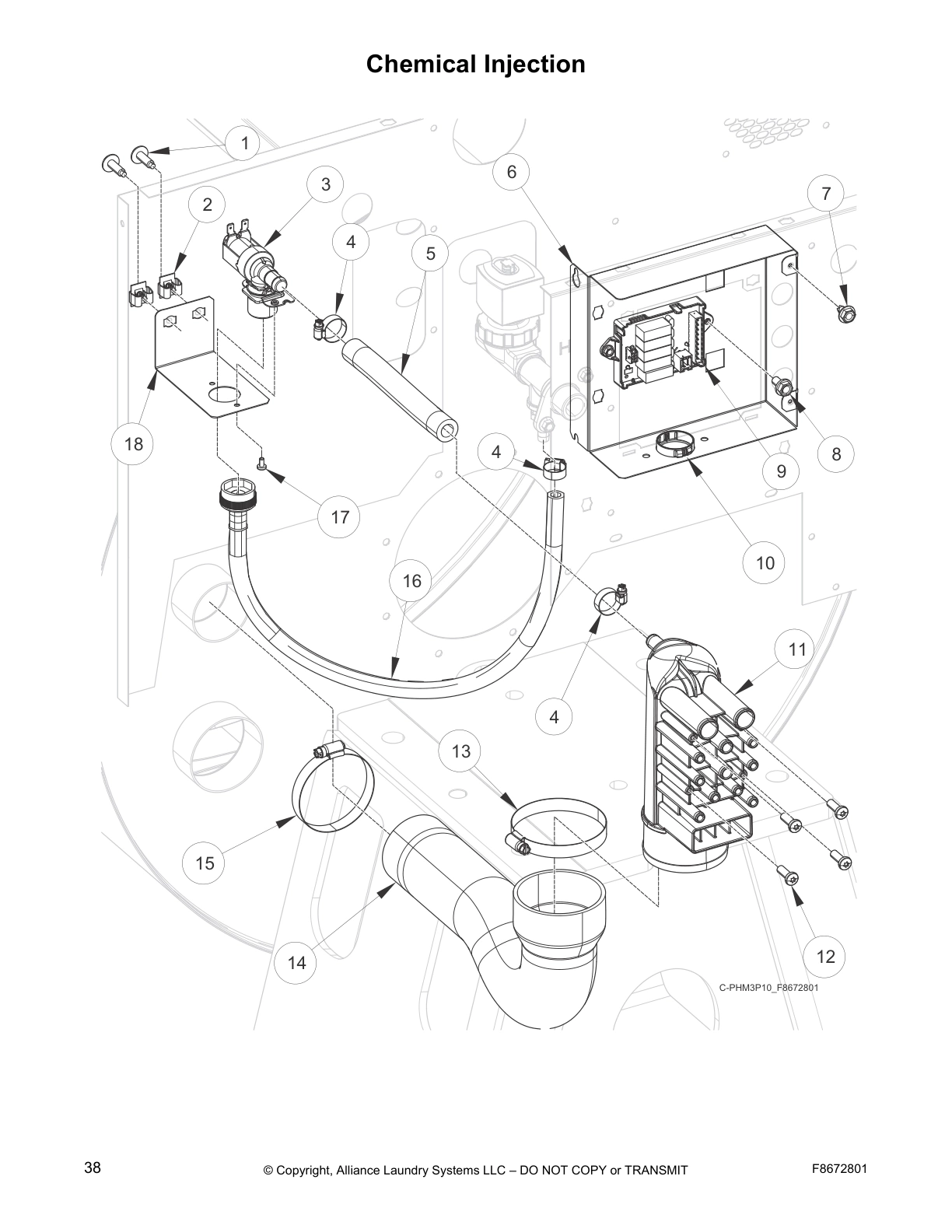

Chemical Injection

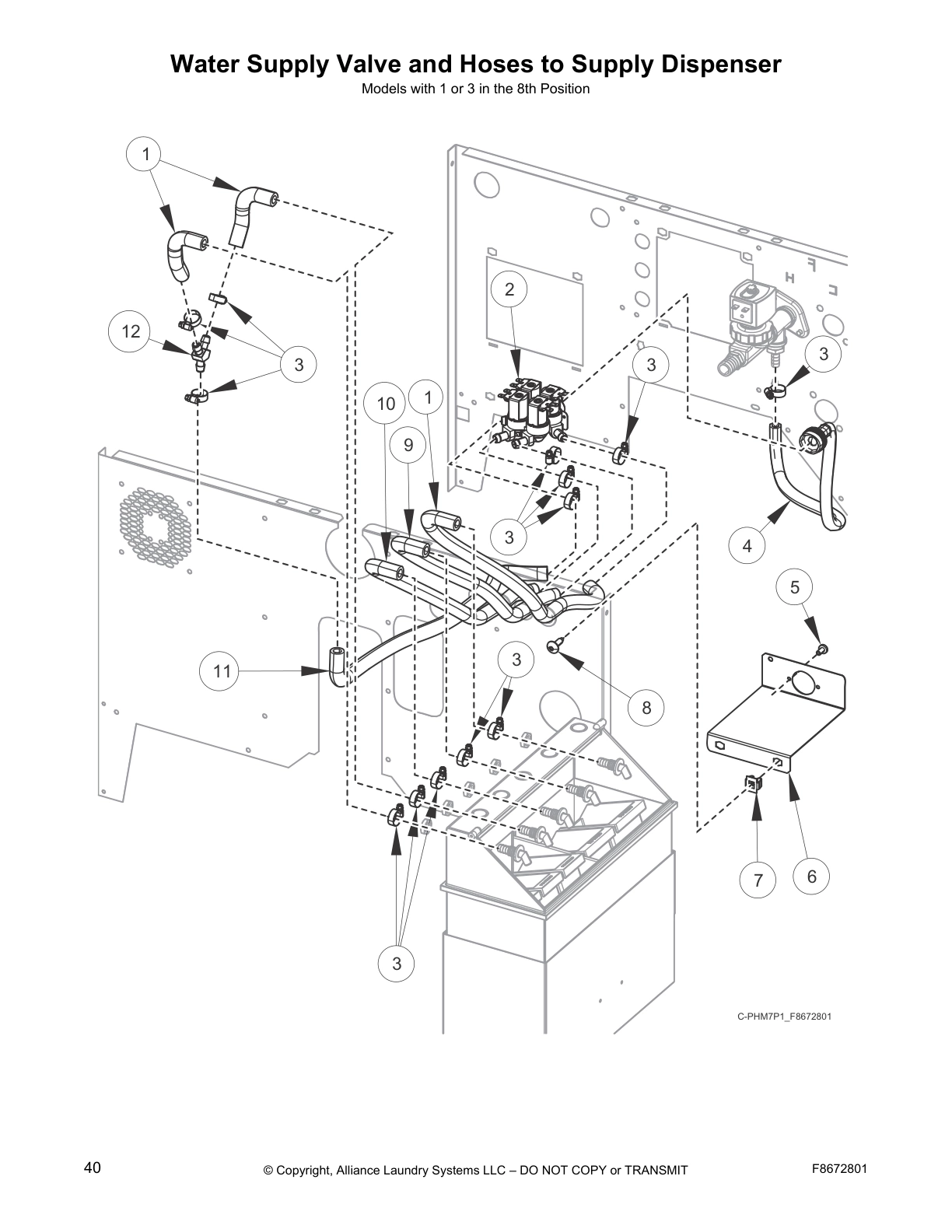

Water Supply Valve and Hoses to Supply Dispenser

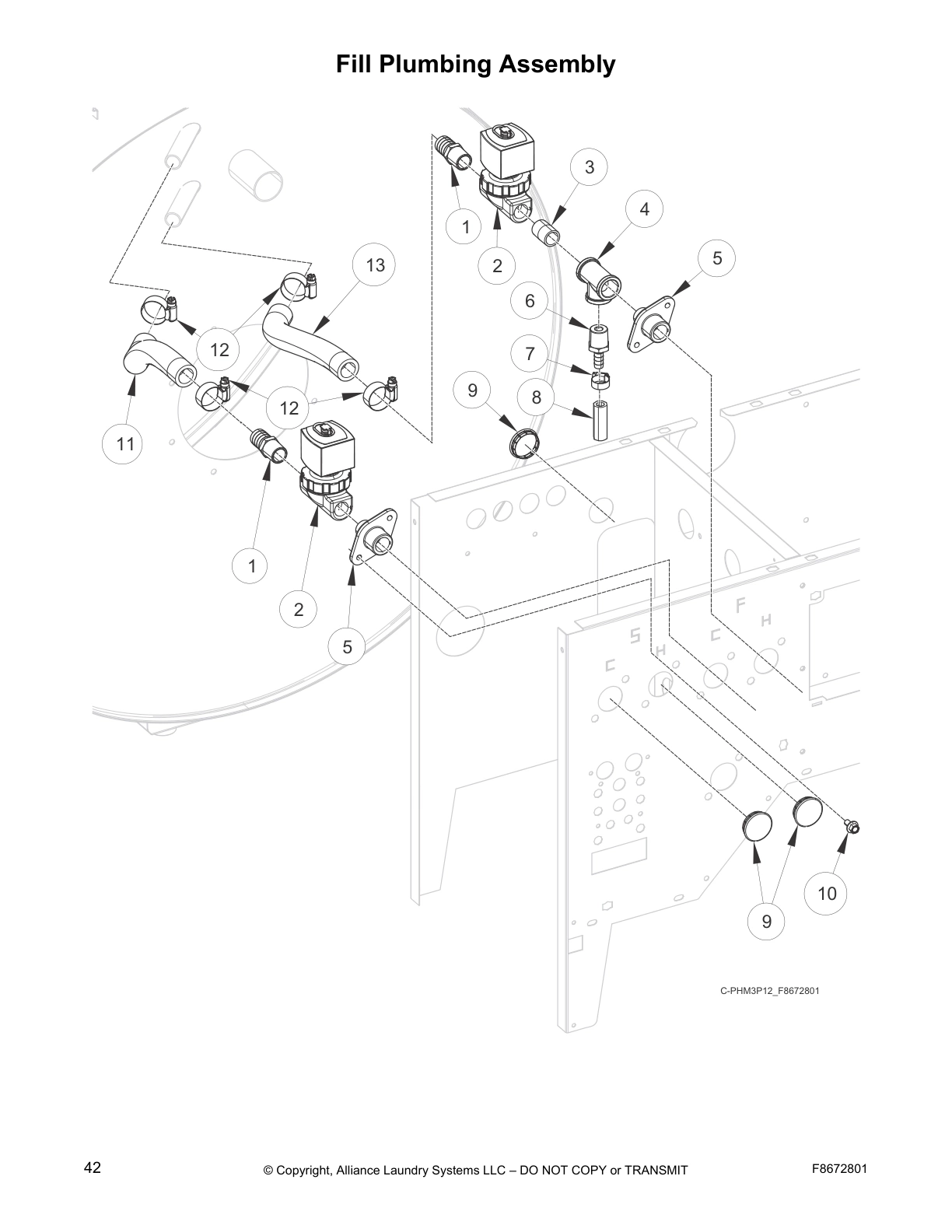

Fill Plumbing Assembly

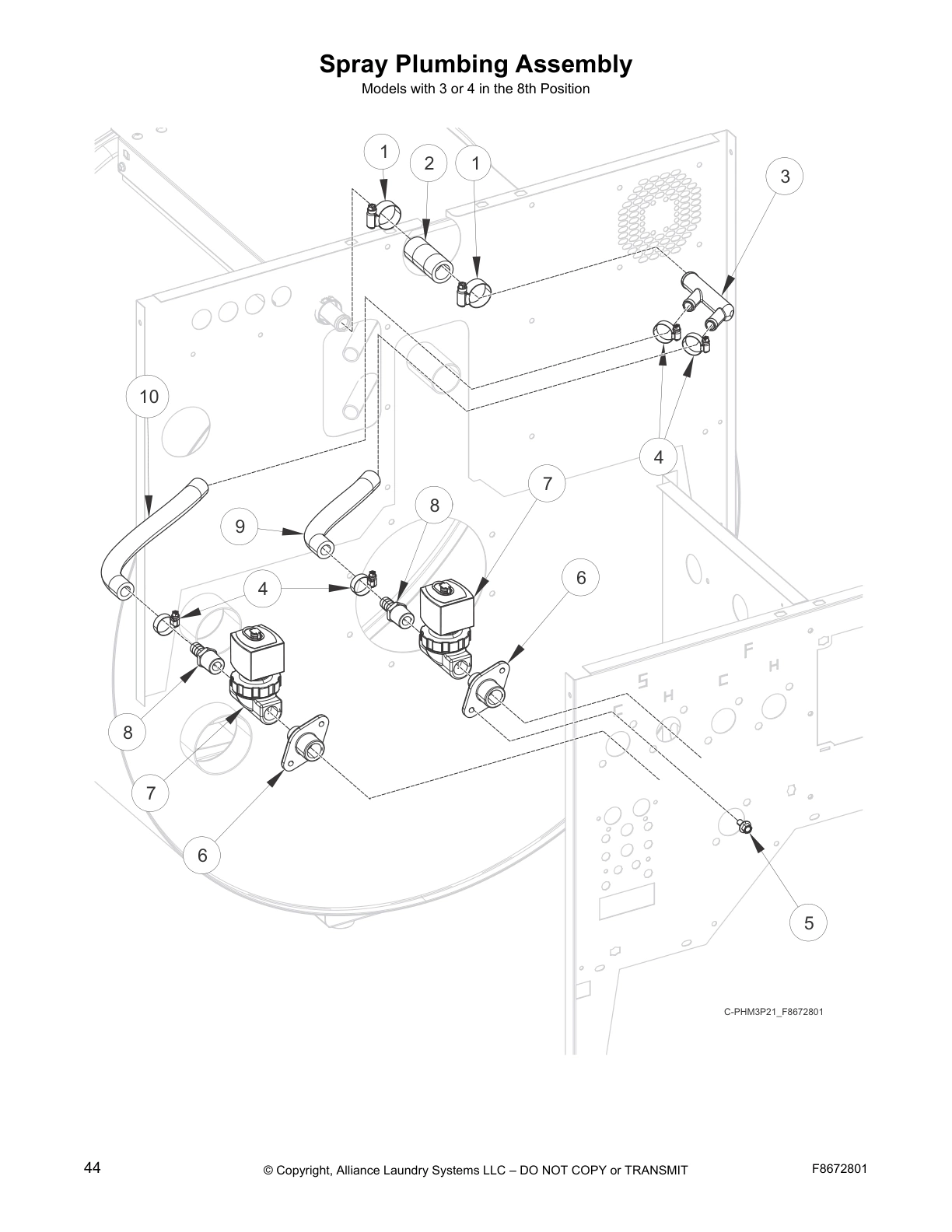

Spray Plumbing Assembly

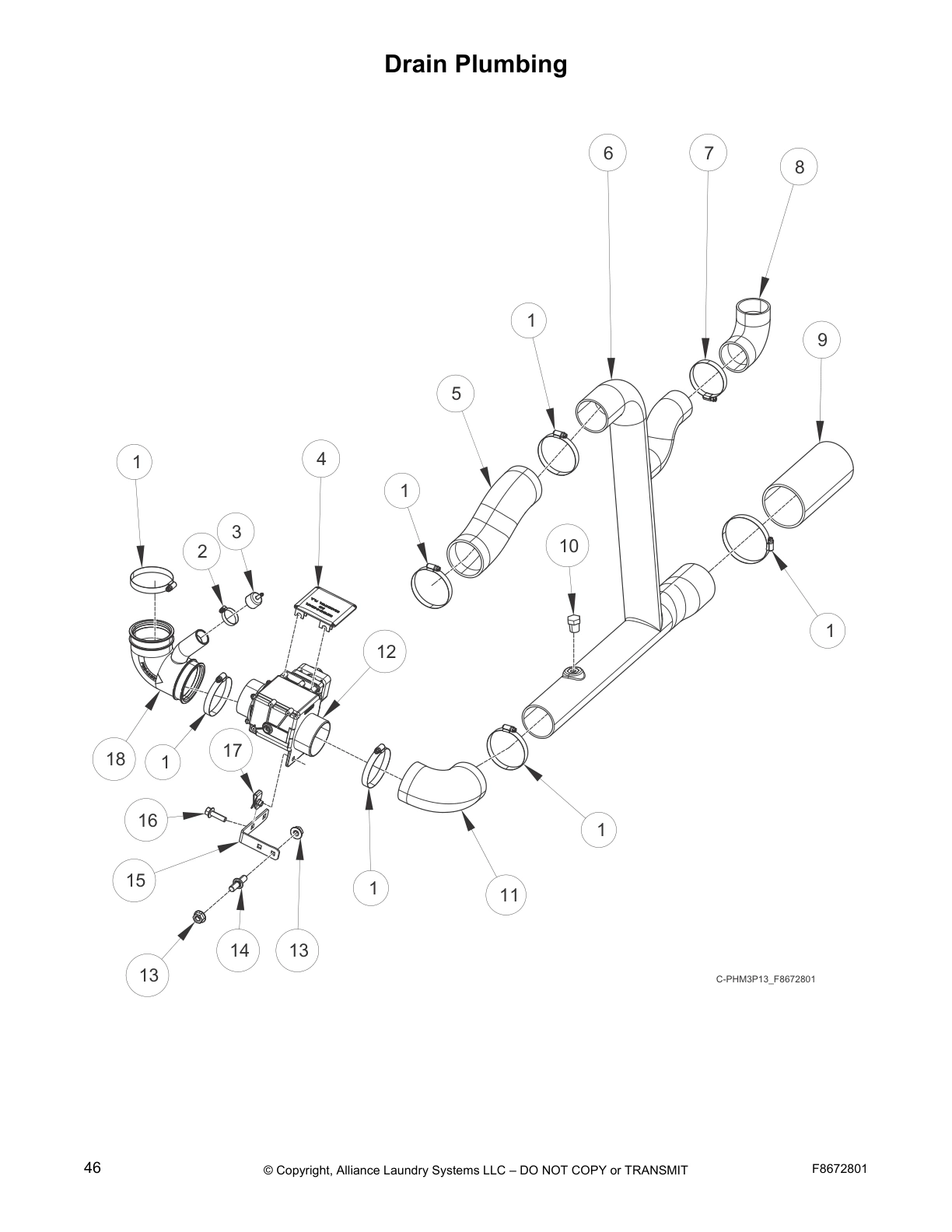

Drain Plumbing

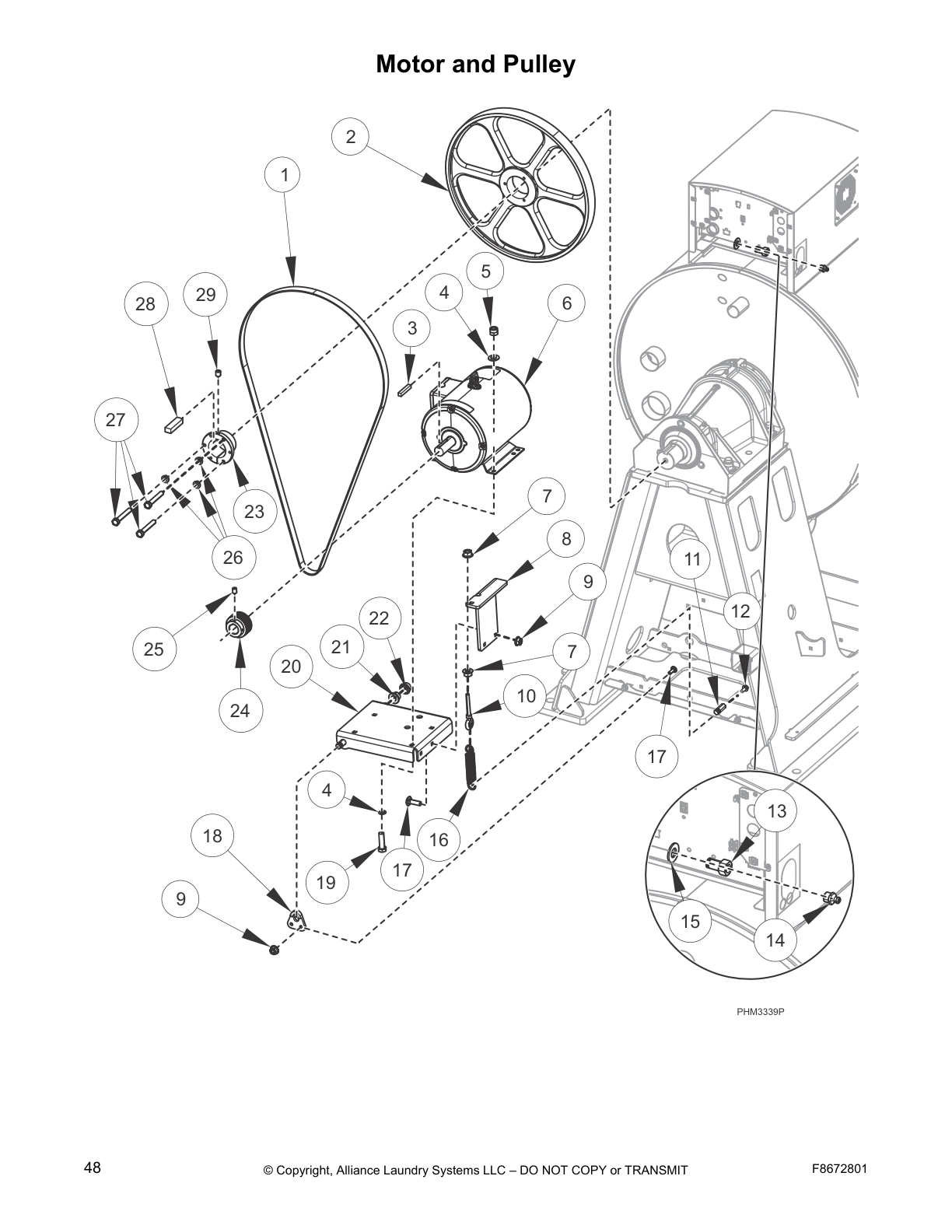

Motor and Pulley

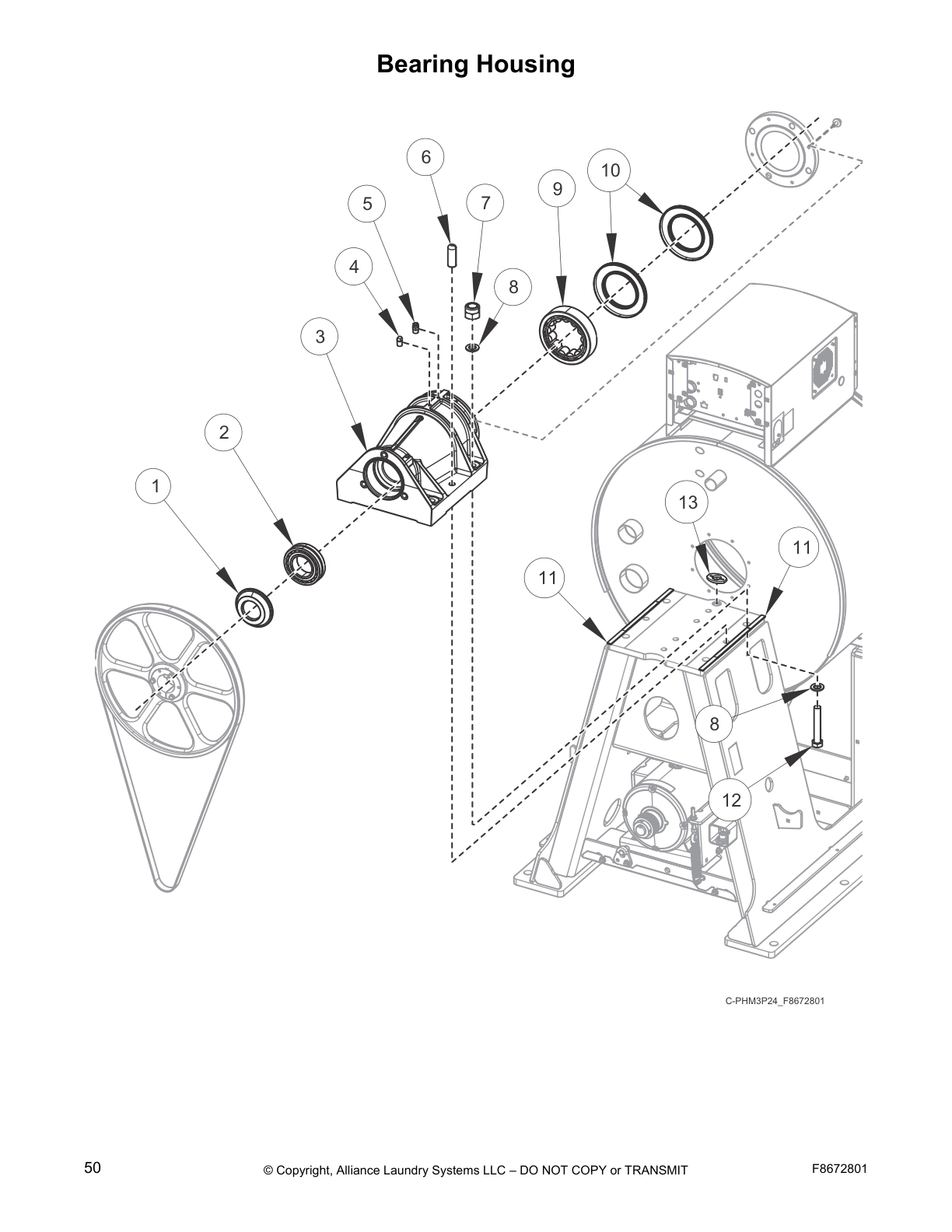

Bearing Housing

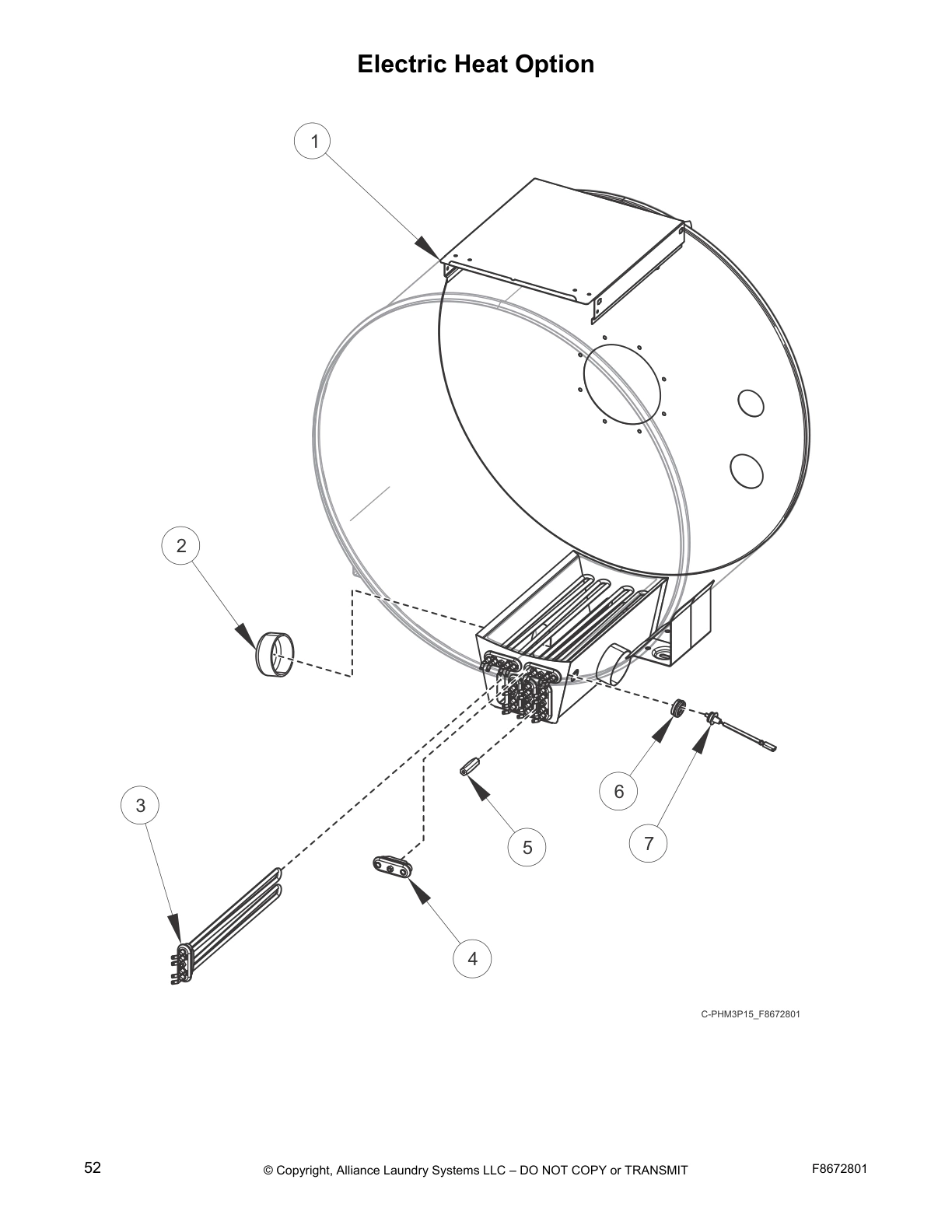

Electric Heat Option

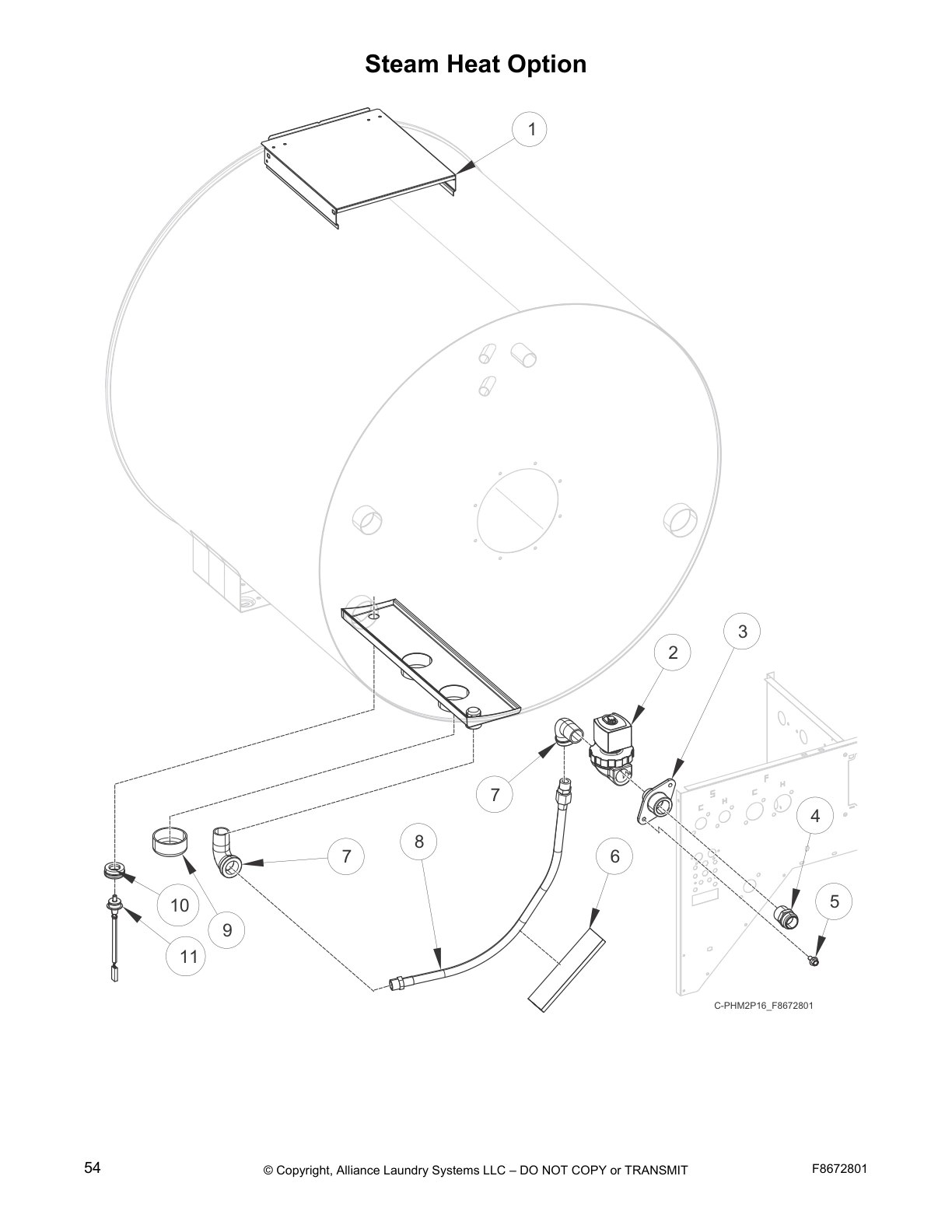

Steam Heat Option

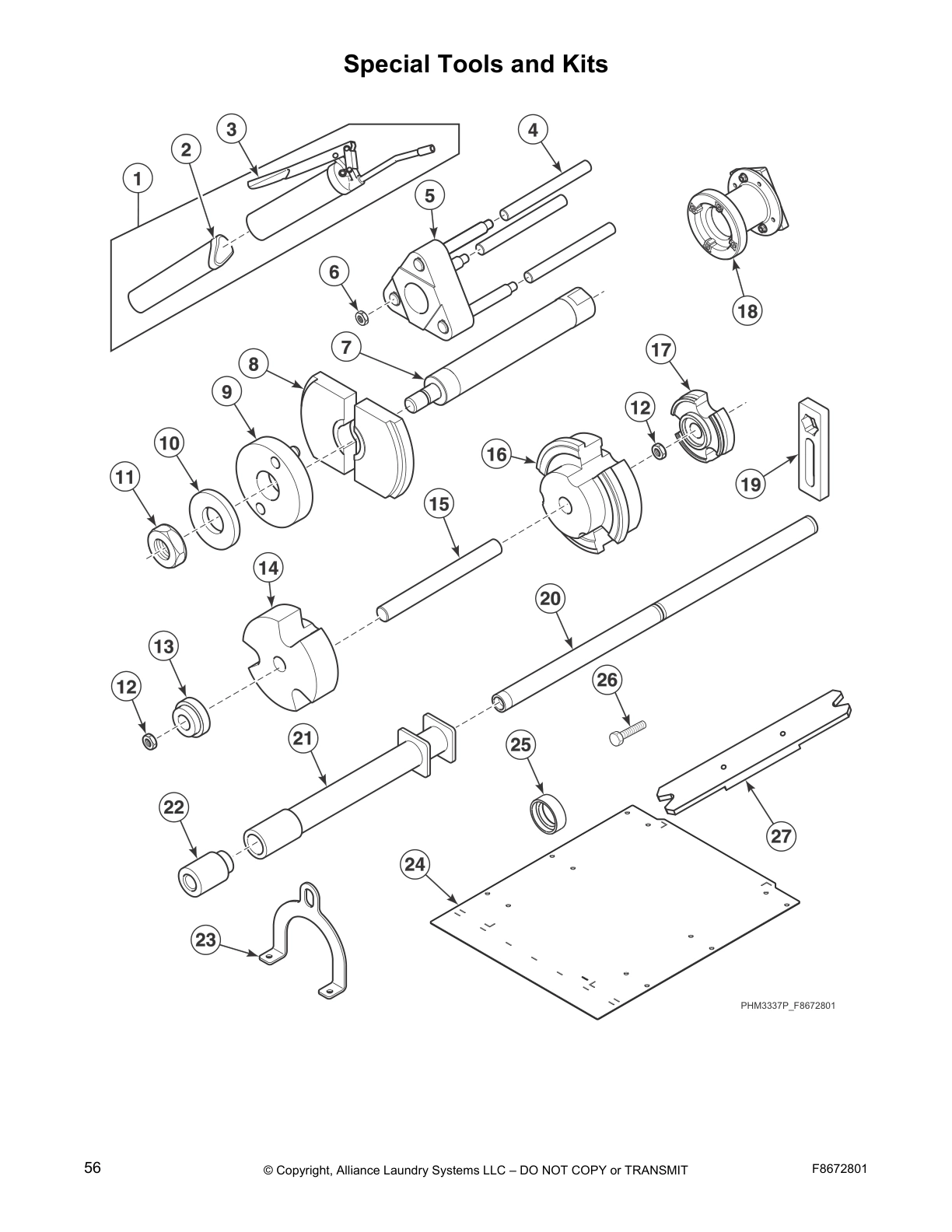

Special Tools and Kits
Common parts from model UniMac UWT045D4 Washer
SPQ F8662102 SPQ F8662102 Contact Us For Availability
SPQ F8555403 SPQ F8555403 Contact Us For Availability
SPQ F8555401 SPQ F8555401 Contact Us For Availability
SPQ 804528 SPQ 804528 Contact Us For Availability
SPQ F200164 SPQ F200164 Contact Us For Availability
SPQ F200185 SPQ F200185 Contact Us For Availability
SPQ F8288409 SPQ F8288409 Contact Us For Availability
Drain Valve Bracket SPQ F8545901 Contact Us For Availability
SPQ F8503701 SPQ F8503701 Contact Us For Availability
SPQ F8474602 SPQ F8474602 Contact Us For Availability
Concrete Hardware Kit SPQ F8599401-1 Contact Us For Availability
SPQ 205391P SPQ 205391P Contact Us For Availability
1
Screw SPQ 51783 Contact Us For Availability
1
Contactor SPQ 70482601 Contact Us For Availability
1
Hole Plug SPQ F8223801 Contact Us For Availability
1
Screw SPQ M401938 Contact Us For Availability
1
Left Side Panel SPQ F8407902 Contact Us For Availability
1
Spray Rinse Tube Assembly SPQ F8332302 Contact Us For Availability
1
Handle Mount SPQ F8435701 Contact Us For Availability
1
Screw SPQ F8442802 Contact Us For Availability
1
Shell Assembly SPQ F8544002 Contact Us For Availability
1
Hose Clamp SPQ F200201 Contact Us For Availability
1
Hose Barb SPQ F8110701 Contact Us For Availability
1
Hose Clamp SPQ F200222 Contact Us For Availability
1
Belt SPQ F8382820 Contact Us For Availability
1
Radial Lip Seal SPQ F8528501 Contact Us For Availability
1
Grease Gun Kit SPQ F798700 Contact Us For Availability
2
Terminal Block SPQ 70333001 Contact Us For Availability
2
Expansion Clip SPQ F8449801 Contact Us For Availability
2
Plug SPQ F8223901 Contact Us For Availability
2
Vibration Switch SPQ F8204001 Contact Us For Availability
2
Thermistor SPQ F8538801 Contact Us For Availability
2
Expansion Clip SPQ F8412801 Contact Us For Availability
2
Spray Rinse Bracket SPQ F8451101 Contact Us For Availability
2
Door Lug Hinge SPQ F8406201 Contact Us For Availability
2
Hose Clamp SPQ F8550101 Contact Us For Availability
2
Manifold SPQ F606816-1 Contact Us For Availability
2
Motor Bracket Weldment SPQ F8517801 Contact Us For Availability
2
Bearing SPQ F8452701 Contact Us For Availability
2
Frame Template SPQ F210206P Contact Us For Availability
3
Insulator SPQ 430642 Contact Us For Availability
3
Plug SPQ 70482701 Contact Us For Availability
3
Vibration Switch Shield SPQ F8337301 Contact Us For Availability
3
Expansion Clip SPQ M412763 Contact Us For Availability
3
Snap Bushing SPQ 70203901 Contact Us For Availability
3
Spray Rinse Strap SPQ F8451701 Contact Us For Availability
3
Expansion Clip SPQ F8221403 Contact Us For Availability
3
Reed Switch Assembly SPQ F8402601 Contact Us For Availability
3
Pin SPQ F8302701 Contact Us For Availability
3
Coil SPQ F8515001 Contact Us For Availability
3
Screw SPQ F8333201 Contact Us For Availability
3
SPQ M405232 SPQ M405232 Contact Us For Availability
3
Wireless Network Kit SPQ F210207P Contact Us For Availability
4
Door Gasket SPQ F431222 Contact Us For Availability
4
Expansion Clip SPQ M413862 Contact Us For Availability
4
Ground Lug Connector SPQ 70488101 Contact Us For Availability
4
Grommet SPQ F8528401 Contact Us For Availability
4
Chemical Connection Cover SPQ M400985 Contact Us For Availability
4
Tee SPQ F421921 Contact Us For Availability
4
Molded Drain SPQ F200133600 Contact Us For Availability
4
SPQ F8366601 SPQ F8366601 Contact Us For Availability
4
Plug SPQ F8375401 Contact Us For Availability
4
Heating Element Plug SPQ F360202 Contact Us For Availability
4
Valve SPQ F8322805 Contact Us For Availability
5
SPQ 70178701 SPQ 70178701 Contact Us For Availability
5
Screw SPQ F8561601 Contact Us For Availability
5
Ring Retainer SPQ F310206 Contact Us For Availability
5
Door Lock Plate Shim SPQ F8245101 Contact Us For Availability
5
Screw SPQ 70391101 Contact Us For Availability
5
SPQ F8412803 SPQ F8412803 Contact Us For Availability
5
SPQ F8232007 SPQ F8232007 Contact Us For Availability
5
Screw SPQ F8230301 Contact Us For Availability
5
Coupling SPQ F422208 Contact Us For Availability
5
Coupling SPQ F8362701 Contact Us For Availability
5
Drain Valve Harness SPQ F0150488-00 Contact Us For Availability
5
SPQ F8387601 SPQ F8387601 Contact Us For Availability
5
Connector SPQ M403052 Contact Us For Availability
5
Standoff SPQ F8515401 Contact Us For Availability
6
SPQ F8494101P SPQ F8494101P Contact Us For Availability
6
SPQ F8332501 SPQ F8332501 Contact Us For Availability
6
Solenoid SPQ F8489601 Contact Us For Availability
6
Shell Band Gasket SPQ F8502305 Contact Us For Availability
6
SPQ F8561401 SPQ F8561401 Contact Us For Availability
6
SPQ F8351302 SPQ F8351302 Contact Us For Availability
6
Dowel Pin SPQ J1408004 Contact Us For Availability
6
Wireless Harness SPQ F8459101 Contact Us For Availability
7
SPQ F8623401 SPQ F8623401 Contact Us For Availability
7
SPQ F8134101 SPQ F8134101 Contact Us For Availability
7
SPQ F8487901 SPQ F8487901 Contact Us For Availability
7
O-Ring SPQ F170200 Contact Us For Availability
7
Door Assembly SPQ F8508501 Contact Us For Availability
7
Door Lock Plate Assembly SPQ F431024 Contact Us For Availability
7
Shell Front Assembly SPQ F8319901 Contact Us For Availability
7
SPQ F430900 SPQ F430900 Contact Us For Availability
7
SPQ F200213 SPQ F200213 Contact Us For Availability
7
Water Hose SPQ F421964 Contact Us For Availability
7
Nut SPQ F8406502 Contact Us For Availability
7
Hose Adapter SPQ F421908 Contact Us For Availability
8
SPQ F8117601 SPQ F8117601 Contact Us For Availability
8
Swivel Coupling Body SPQ F8504001 Contact Us For Availability
8
SPQ F8630601 SPQ F8630601 Contact Us For Availability
8
Basket Assembly Kit SPQ F8424202P Contact Us For Availability
8
SPQ F200215 SPQ F200215 Contact Us For Availability
8
Screw SPQ 70321501 Contact Us For Availability
8
SPQ F8261303 SPQ F8261303 Contact Us For Availability
8
SPQ F8342201 SPQ F8342201 Contact Us For Availability
8
Washer SPQ F430248 Contact Us For Availability
9
Filter Kit SPQ M413865 Contact Us For Availability
9
SPQ F8405301 SPQ F8405301 Contact Us For Availability
9
SPQ M411283 SPQ M411283 Contact Us For Availability
9
SPQ F8439101 SPQ F8439101 Contact Us For Availability
9
Spray Rinse Hose SPQ F8508201 Contact Us For Availability
9
SPQ F8308001 SPQ F8308001 Contact Us For Availability
9
SPQ F8320401 SPQ F8320401 Contact Us For Availability
9
Excluder Seal SPQ F8527701 Contact Us For Availability
9
SPQ F8555405 SPQ F8555405 Contact Us For Availability
9
Valve Assembly SPQ F8344602 Contact Us For Availability
9
Valve Rebuild Kit SPQ F421930 Contact Us For Availability
9
SPQ F200165100 SPQ F200165100 Contact Us For Availability
9
Bearings and Seals Kit SPQ F8171201 Contact Us For Availability
9
Street Elbow SPQ F421703 Contact Us For Availability
10
Drive Mounting Bracket SPQ F8322401 Contact Us For Availability
10
Screw SPQ 685837 Contact Us For Availability
10
Bushing SPQ 70346501 Contact Us For Availability
10
Right Side Panel SPQ F8407901 Contact Us For Availability
10
Elbow SPQ F8453701 Contact Us For Availability
10
Washer SPQ F431916 Contact Us For Availability
10
Door Lock Catch SPQ F8344501 Contact Us For Availability
10
Seal Sleeve SPQ F8343911 Contact Us For Availability
10
Hose SPQ F602586-34 Contact Us For Availability
10
Plug SPQ F8531401 Contact Us For Availability
10
Eye Bolt SPQ F8319503 Contact Us For Availability
10
Radial Seal SPQ F8203808 Contact Us For Availability
10
Washer SPQ F8456101 Contact Us For Availability
11
Front Panel SPQ F8408001 Contact Us For Availability
11
Bulkhead Panel SPQ F8561101 Contact Us For Availability
11
Nut SPQ F8322601 Contact Us For Availability
11
Door Handle SPQ F8435501 Contact Us For Availability
11
Bolt SPQ F8270701 Contact Us For Availability
11
Bearing SPQ F8465401 Contact Us For Availability
11
Shell Assembly SPQ F8544001 Contact Us For Availability
11
Frame Shield SPQ F8509401 Contact Us For Availability
11
Chemical Dispenser SPQ F8538201 Contact Us For Availability
11
Hose SPQ C002658 Contact Us For Availability
11
Overflow SPQ F8491701 Contact Us For Availability
11
Stud SPQ F8634701 Contact Us For Availability
11
Gasket SPQ F8203807 Contact Us For Availability
11
Nut SPQ F8455801 Contact Us For Availability
12
Pop Rivet SPQ M400003 Contact Us For Availability
12
Emergency Stop Label SPQ 44012902 Contact Us For Availability
12
Power Distribution Block Cover SPQ F8496901 Contact Us For Availability
12
Screw SPQ F8560601 Contact Us For Availability
12
Bulkhead Panel SPQ F8577701 Contact Us For Availability
12
Spray Nozzle Gasket SPQ F8322701 Contact Us For Availability
12
Door Glass Gasket SPQ F8499901 Contact Us For Availability
12
Grommet SPQ F8457801 Contact Us For Availability
12
Sleeve Adapter SPQ F8382501 Contact Us For Availability
12
Drain Valve Kit SPQ F200166402 Contact Us For Availability
12
Screw SPQ 70126104 Contact Us For Availability
12
Screw SPQ F8207001 Contact Us For Availability
12
Bearing Sleeve Assembly SPQ F8457701 Contact Us For Availability
13
Nut SPQ F430231 Contact Us For Availability
13
Screw SPQ F8206901 Contact Us For Availability
13
Door Glass Retainer SPQ F8323301 Contact Us For Availability
13
Shim SPQ F8484401 Contact Us For Availability
13
Insertion Sleeve SPQ F8464901 Contact Us For Availability
13
Valve Coil SPQ F8137502 Contact Us For Availability
13
Air Coupling SPQ F422114 Contact Us For Availability
13
Seal Scupper Pad SPQ F8313701 Contact Us For Availability
14
Module Box Front Panel SPQ F8664201 Contact Us For Availability
14
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
14
Label SPQ F8151201 Contact Us For Availability
14
Terminal Block Shield SPQ 44014901P Contact Us For Availability
14
Door Spray Nozzle Assembly SPQ F8356301 Contact Us For Availability
14
Washer SPQ F431147 Contact Us For Availability
14
Door Glass SPQ F431100 Contact Us For Availability
14
Washer SPQ F8193101 Contact Us For Availability
14
Shell Band SPQ F8388005 Contact Us For Availability
14
Stud SPQ 70334702 Contact Us For Availability
14
Grease Fitting SPQ F190701 Contact Us For Availability
15
Nameplate SPQ F8443105 Contact Us For Availability
15
Grommet SPQ 44087101 Contact Us For Availability
15
Bushing SPQ F8323401P Contact Us For Availability
15
Door Lock Switch Lever SPQ F8223401 Contact Us For Availability
15
Washer SPQ 70292801 Contact Us For Availability
16
Screw SPQ F8413701 Contact Us For Availability
16
Snap Bushing SPQ F8614601 Contact Us For Availability
16
Screw SPQ 202175 Contact Us For Availability
16
Nut SPQ F8549401 Contact Us For Availability
16
Door Hinge SPQ F8378701 Contact Us For Availability
16
Torsion/Door Lock Spring SPQ F8070301 Contact Us For Availability
16
Extension Spring SPQ F8440701 Contact Us For Availability
17
Seal Wear Plate SPQ M405535 Contact Us For Availability
17
Drain Hose SPQ 70030401 Contact Us For Availability
17
Rivet SPQ F8458801 Contact Us For Availability
17
Bolt SPQ F8436001 Contact Us For Availability
17
Nut SPQ F430232 Contact Us For Availability
17
Bolt SPQ F8402801 Contact Us For Availability
18
Bushing SPQ 44071501 Contact Us For Availability
18
Panel Locator SPQ F170604 Contact Us For Availability
18
Door Hinge Shim SPQ F8549301 Contact Us For Availability
18
Connector SPQ F8562201 Contact Us For Availability
18
Drain Valve Cover SPQ F8542301 Contact Us For Availability
18
Motor Rod Plate SPQ F8441101 Contact Us For Availability
18
Bearing Grease SPQ F8530201 Contact Us For Availability
19
Magnet SPQ F8398301 Contact Us For Availability
19
Door Lock Cover SPQ F8435801 Contact Us For Availability
20
Contact Switch SPQ F8538101 Contact Us For Availability
20
Door Lock Microswitch SPQ F430225 Contact Us For Availability
20
Door Latch Arm Assemb SPQ F8435901 Contact Us For Availability
20
Flanged Isolator SPQ F8441805 Contact Us For Availability
21
Spacer SPQ F200203200 Contact Us For Availability
21
Machine ID Control Assembly SPQ F8069501 Contact Us For Availability
21
Flanged Bushing SPQ F8535202 Contact Us For Availability
22
Hole Plug SPQ F8512001 Contact Us For Availability
22
Reed Switch Bracket SPQ F431901 Contact Us For Availability
22
Motor Pulley SPQ F8333302 Contact Us For Availability
24
DIN Rail SPQ 44088001 Contact Us For Availability
24
Key SPQ F8362601 Contact Us For Availability
24
Excluder Seal Fixture SPQ F8413201 Contact Us For Availability
25
Nut SPQ M400077 Contact Us For Availability
25
Screw SPQ F8537502 Contact Us For Availability
26
Motor Spring Bracket SPQ M400013 Contact Us For Availability
26
Clamp SPQ M400063 Contact Us For Availability
27
Spring Stud Kit SPQ 44079203 Contact Us For Availability
27
Grease Gun SPQ F8634801 Contact Us For Availability
28
Input and Output Control Assembly SPQ F8408901 Contact Us For Availability
28
Motor Harness SPQ 44049002 Contact Us For Availability
29
SPQ F8484702 SPQ F8484702 Contact Us For Availability
NI
SPQ F8662104 SPQ F8662104 Contact Us For Availability
NI
SPQ F8662103 SPQ F8662103 Contact Us For Availability
NI
SPQ F8662101 SPQ F8662101 Contact Us For Availability
NI
SPQ F8531702 SPQ F8531702 Contact Us For Availability
NI
Shell Front Gasket Kit SPQ F8537805 Contact Us For Availability
NI
SPQ F8363601 SPQ F8363601 Contact Us For Availability
NI
SPQ F8555404 SPQ F8555404 Contact Us For Availability
NI
SPQ F8555402 SPQ F8555402 Contact Us For Availability
NI
SPQ F8497401 SPQ F8497401 Contact Us For Availability
NI
SPQ 70493102 SPQ 70493102 Contact Us For Availability
NI
SPQ F8223902 SPQ F8223902 Contact Us For Availability
NI
SPQ F200166 SPQ F200166 Contact Us For Availability
NI
SPQ F200193 SPQ F200193 Contact Us For Availability
NI
SPQ F8379505 SPQ F8379505 Contact Us For Availability
NI
SPQ F8288408 SPQ F8288408 Contact Us For Availability
NI
SPQ F8232006 SPQ F8232006 Contact Us For Availability
NI
SPQ F8288406 SPQ F8288406 Contact Us For Availability
NI
SPQ F8520002 SPQ F8520002 Contact Us For Availability
NI
SPQ F8748601 SPQ F8748601 Contact Us For Availability
NI
SPQ F8519005 SPQ F8519005 Contact Us For Availability
NI
Bearing Housing Kit SPQ F8280504 Contact Us For Availability
NI
Bearing Housing Assembly SPQ F8503801 Contact Us For Availability
NI
SPQ F822P3 SPQ F822P3 Contact Us For Availability
NI
SPQ F8474601 SPQ F8474601 Contact Us For Availability
NI
Plug SPQ F0150502-00 Contact Us For Availability
NI
Steam Hose SPQ F200517 Contact Us For Availability
NI
Steam Kit SPQ F8662301 Contact Us For Availability
NI
Drain Valve Harness SPQ F8520705 Contact Us For Availability
NI
Steam Valve Assembly SPQ F8288407 Contact Us For Availability
NI
Bearing Seal Insertion and Removal Kit SPQ F8676201 Contact Us For Availability
NI
Gateway SPQ F8674005 Contact Us For Availability
NI
USB IR Interface Kit SPQ F8599401 Contact Us For Availability
NI
SPQ 1112P SPQ 1112P Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
× ![]()
