Model Unimac UWN060T3V Washer – Common Parts & Diagrams

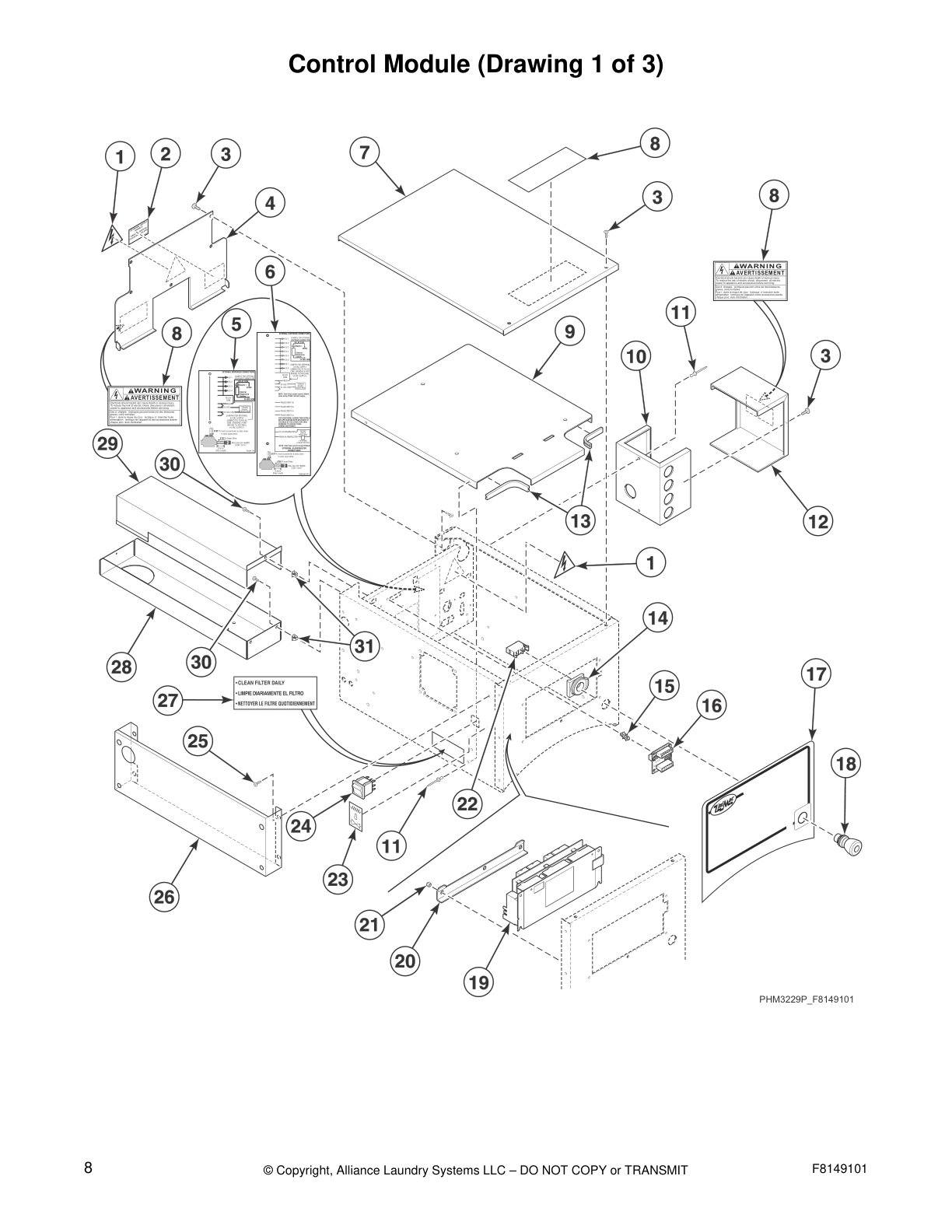

Control Module (Drawing 1 of 3)

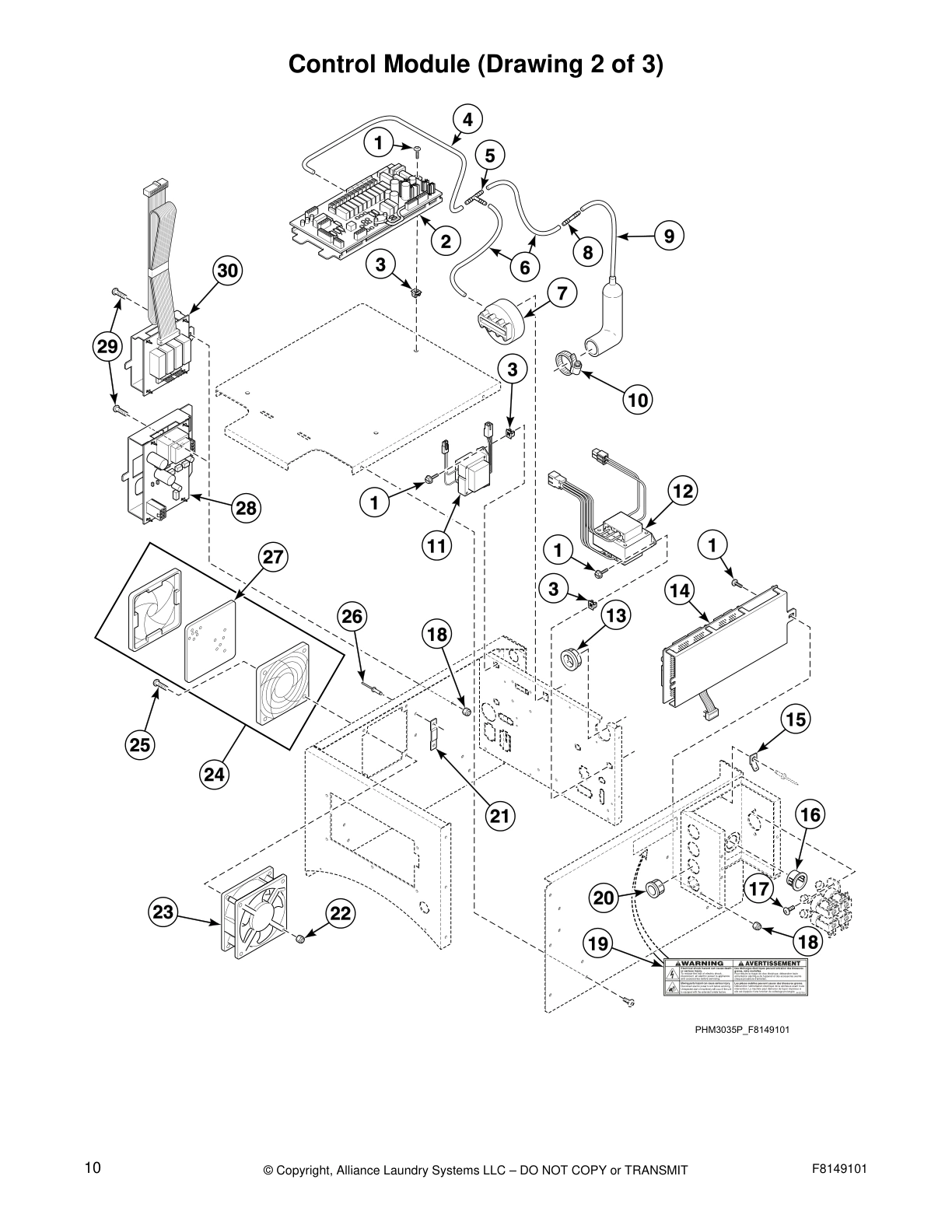

Control Module (Drawing 2 of 3)

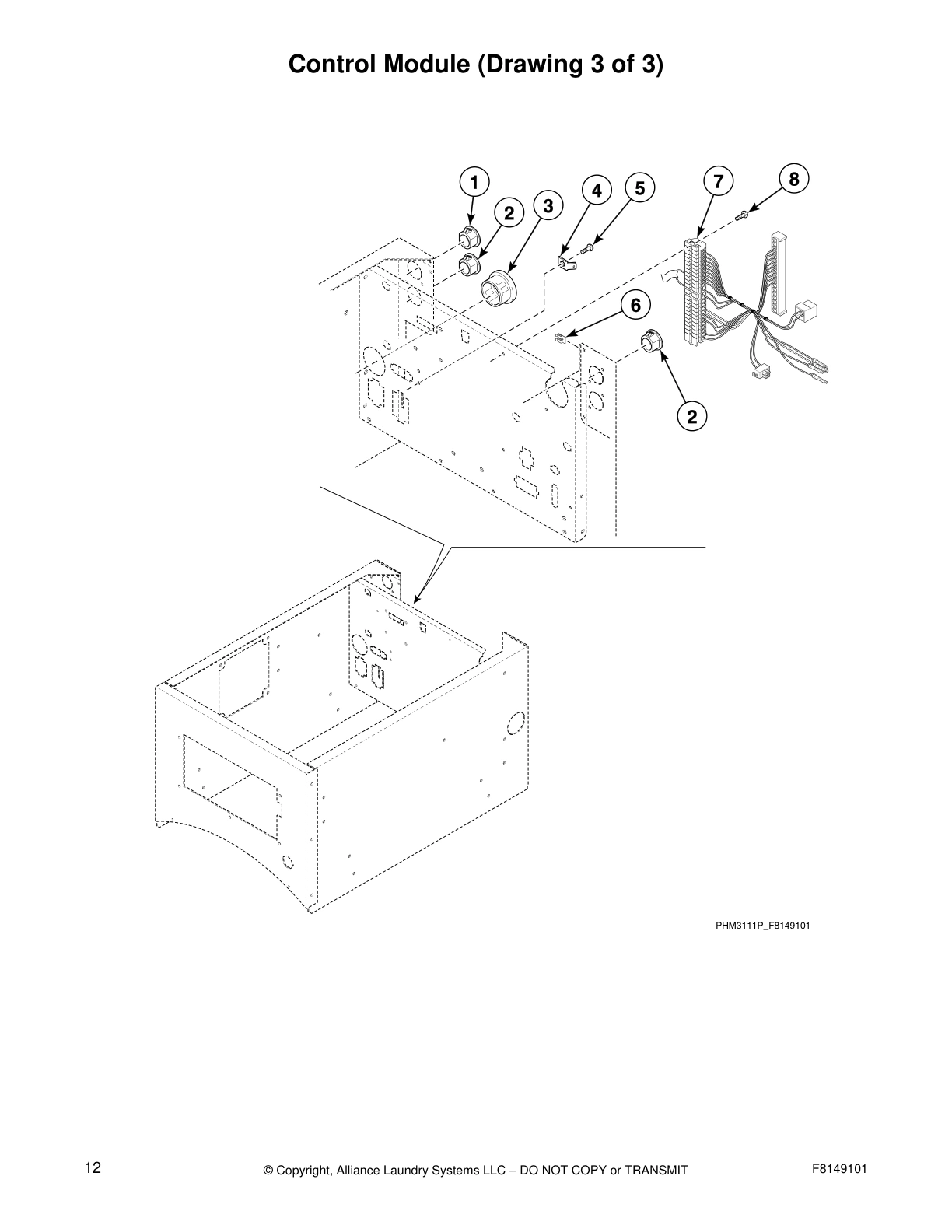

Control Module (Drawing 3 of 3)

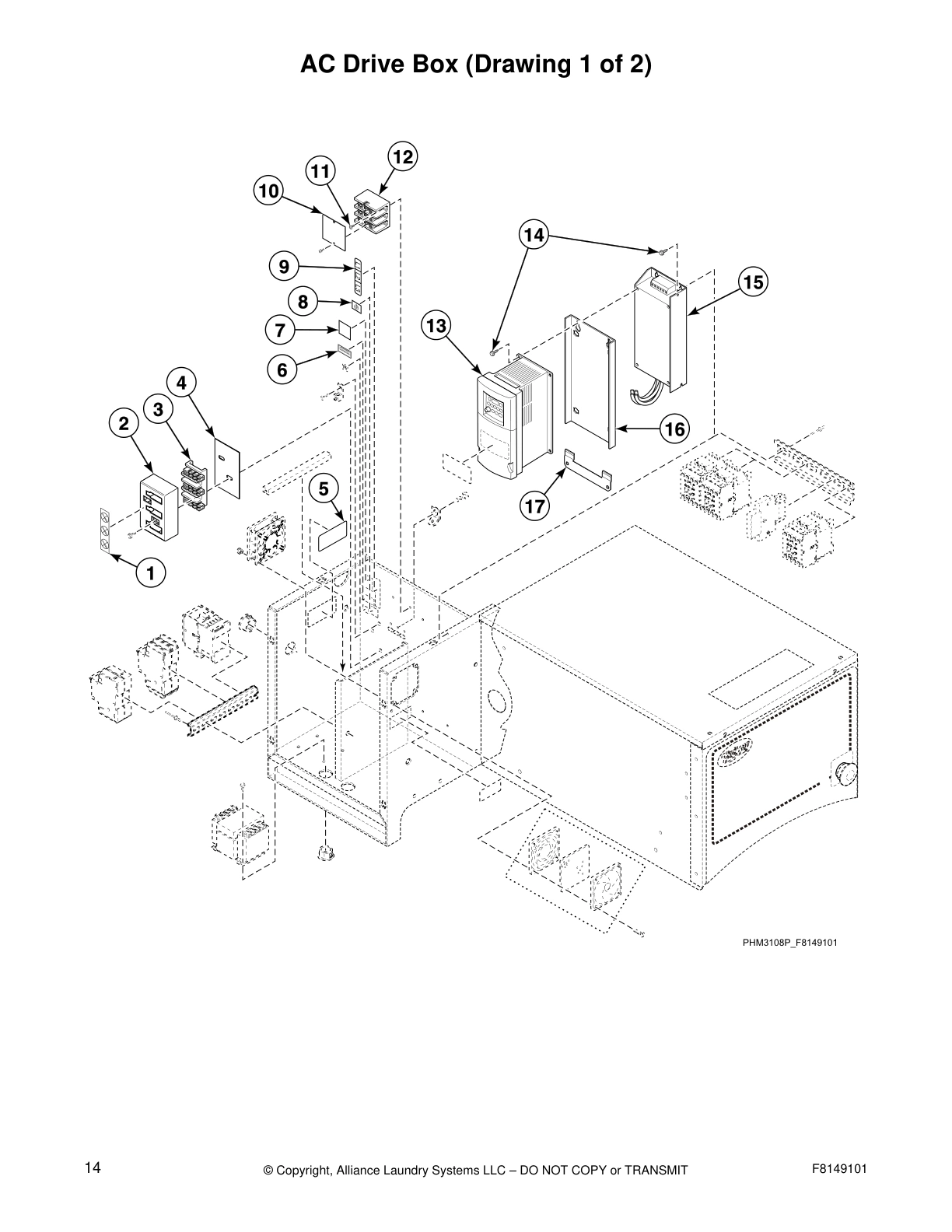

AC Drive Box (Drawing 1 of 2)

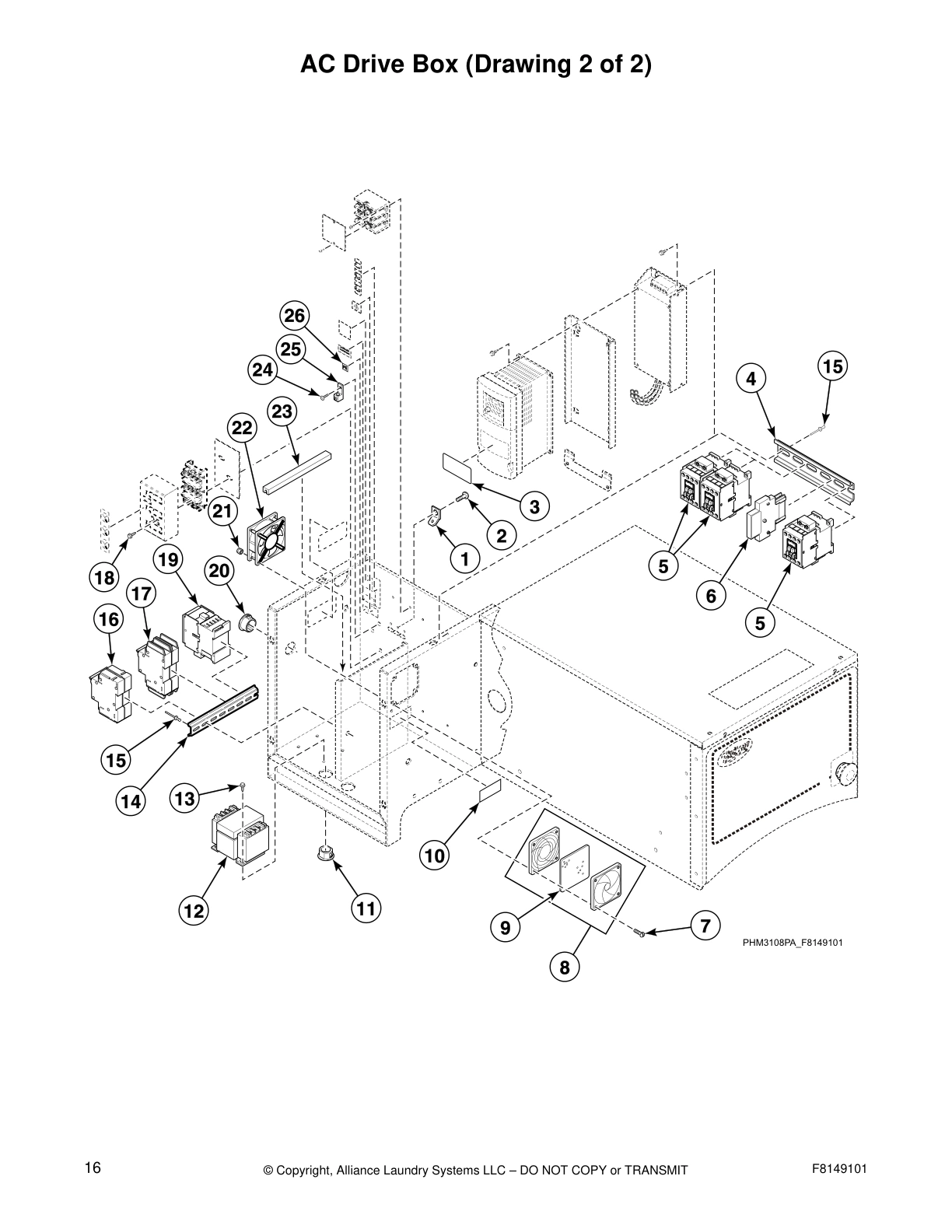

AC Drive Box (Drawing 2 of 2)

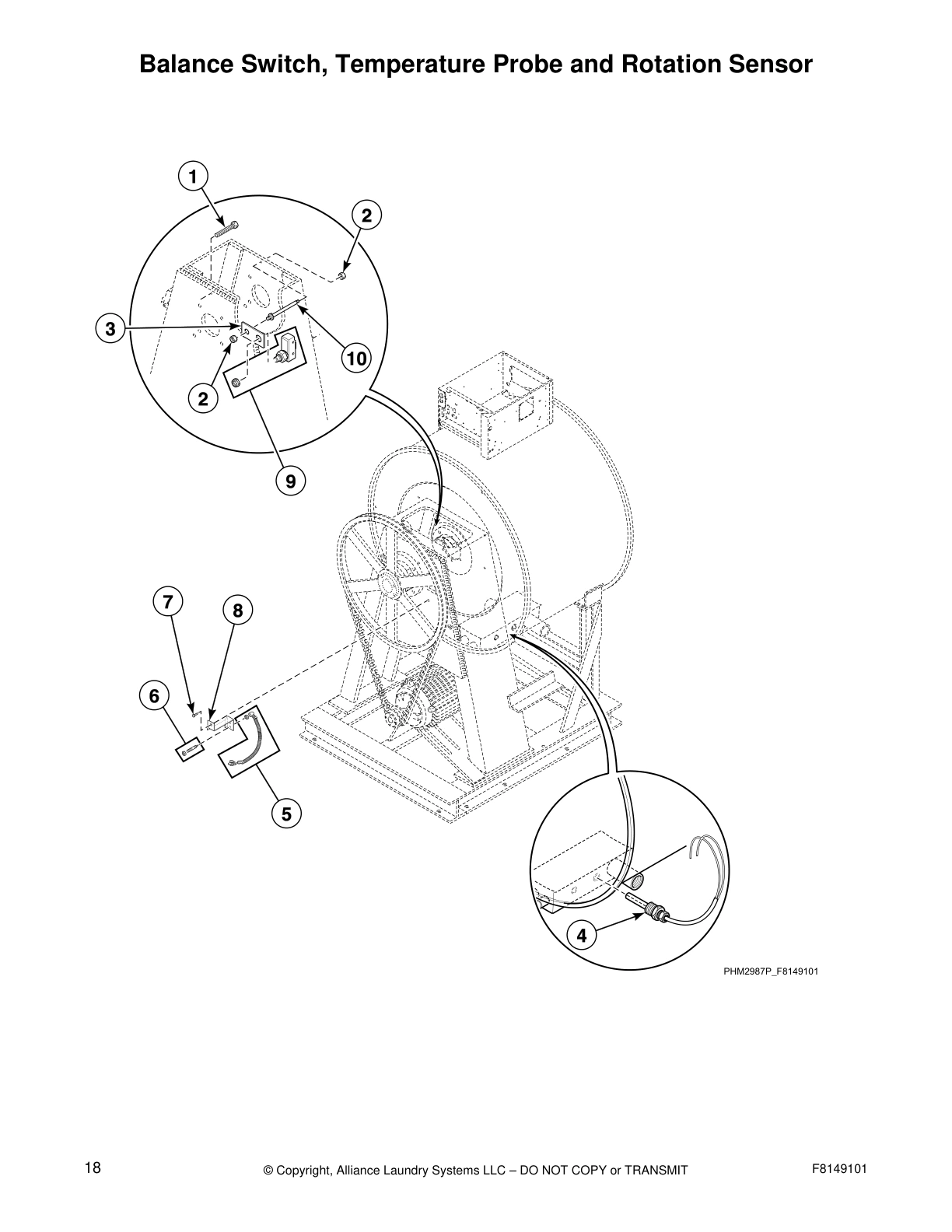

Balance Switch, Temperature Probe and Rotation Sensor

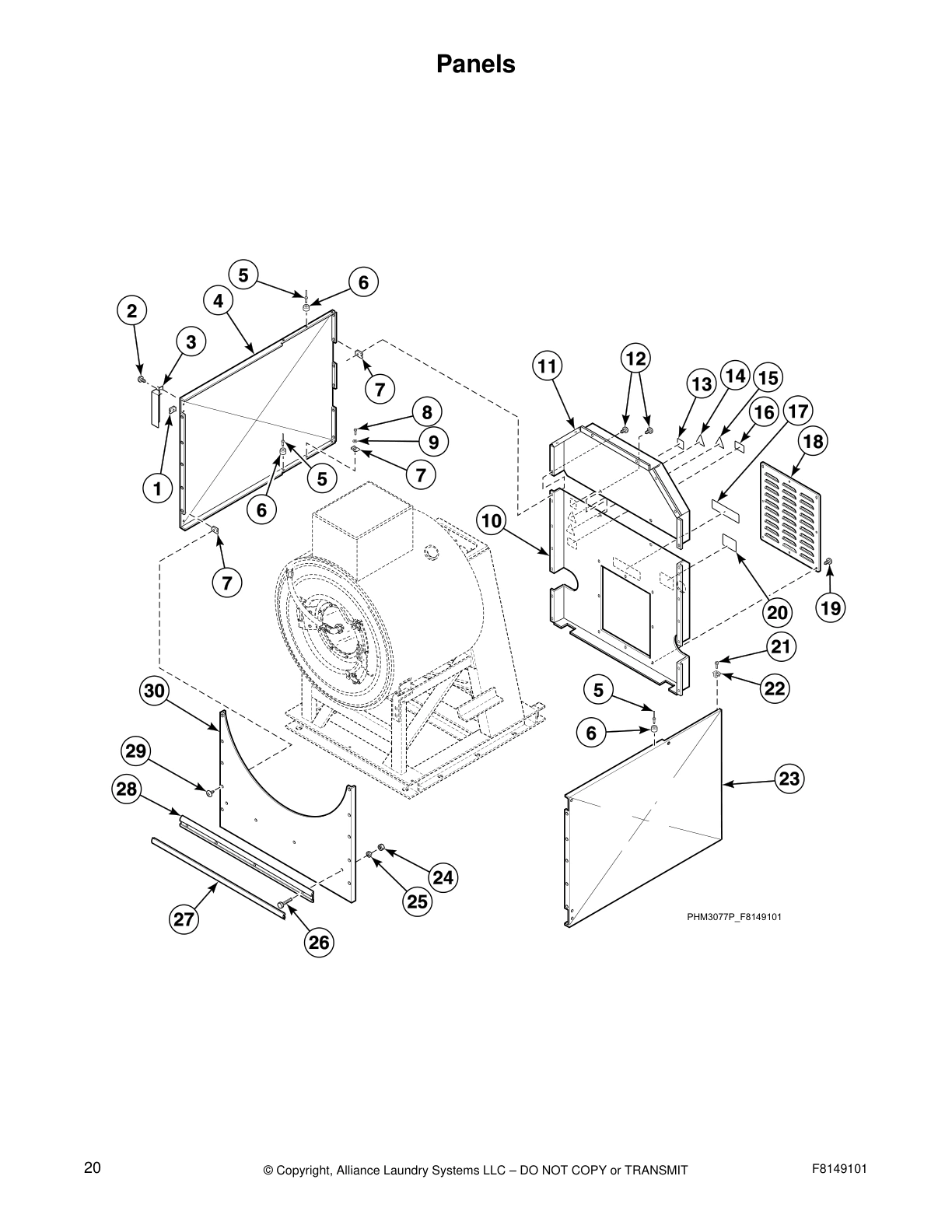

Panels

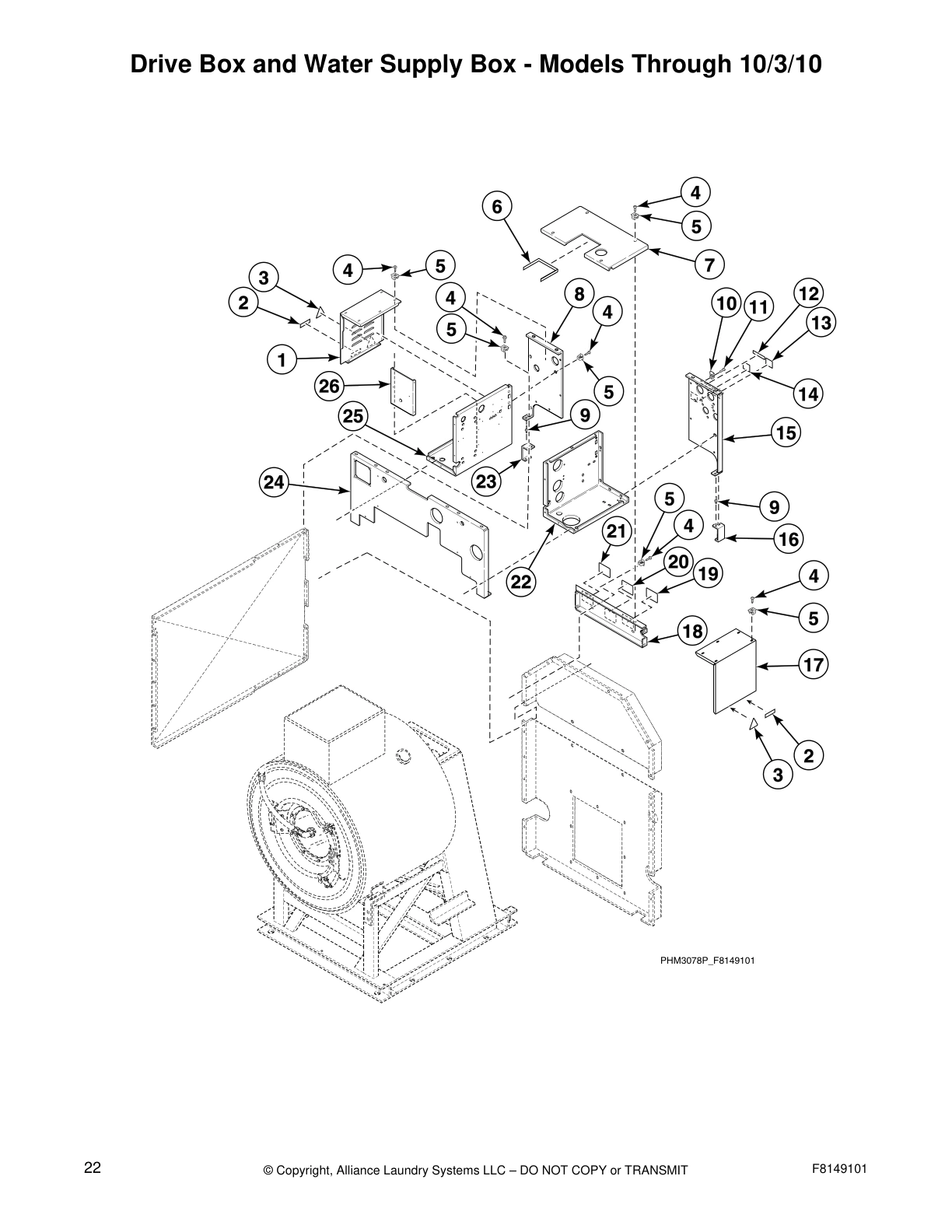

Drive Box and Water Supply Box - Models Through 10/3/10

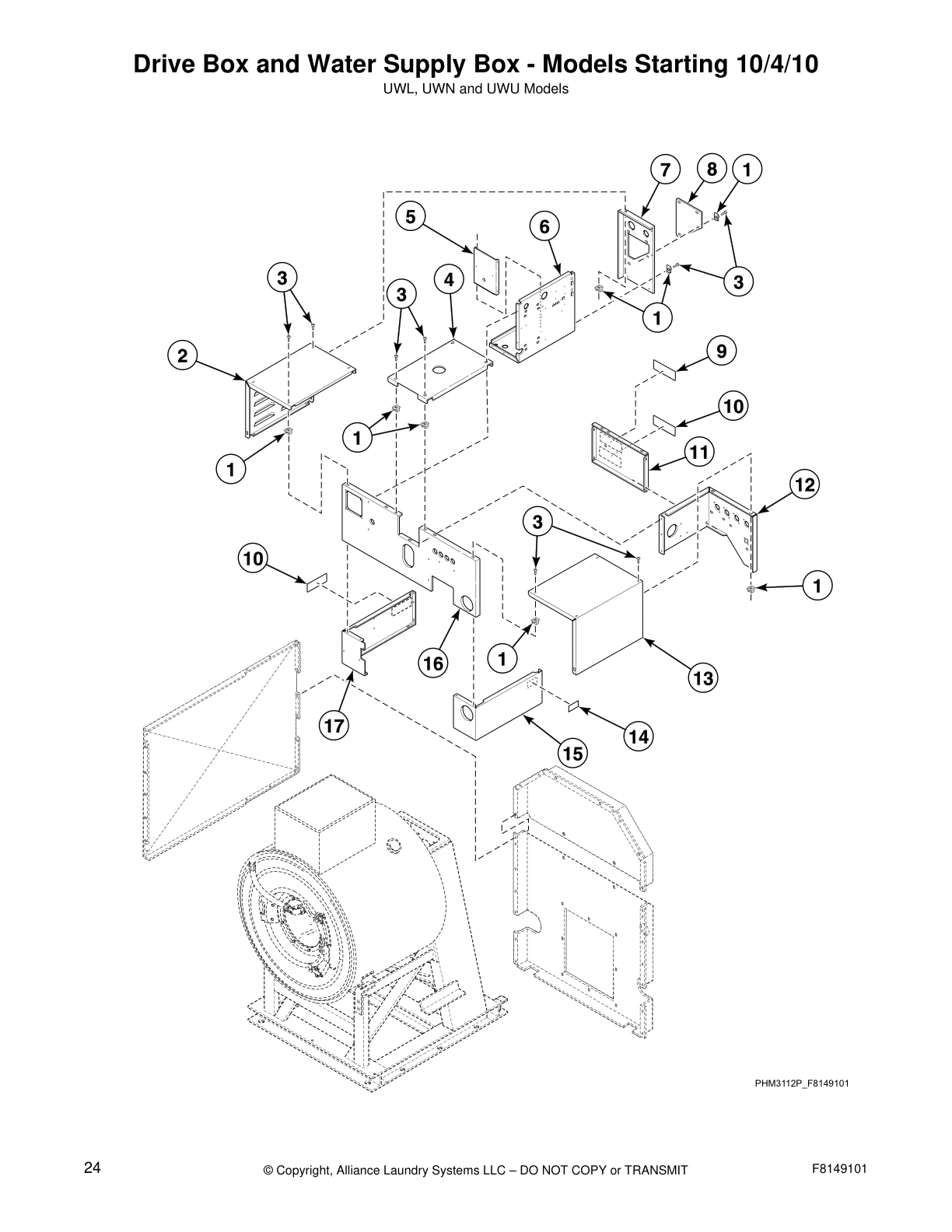

Drive Box and Water Supply Box - Models Starting 10/4/10

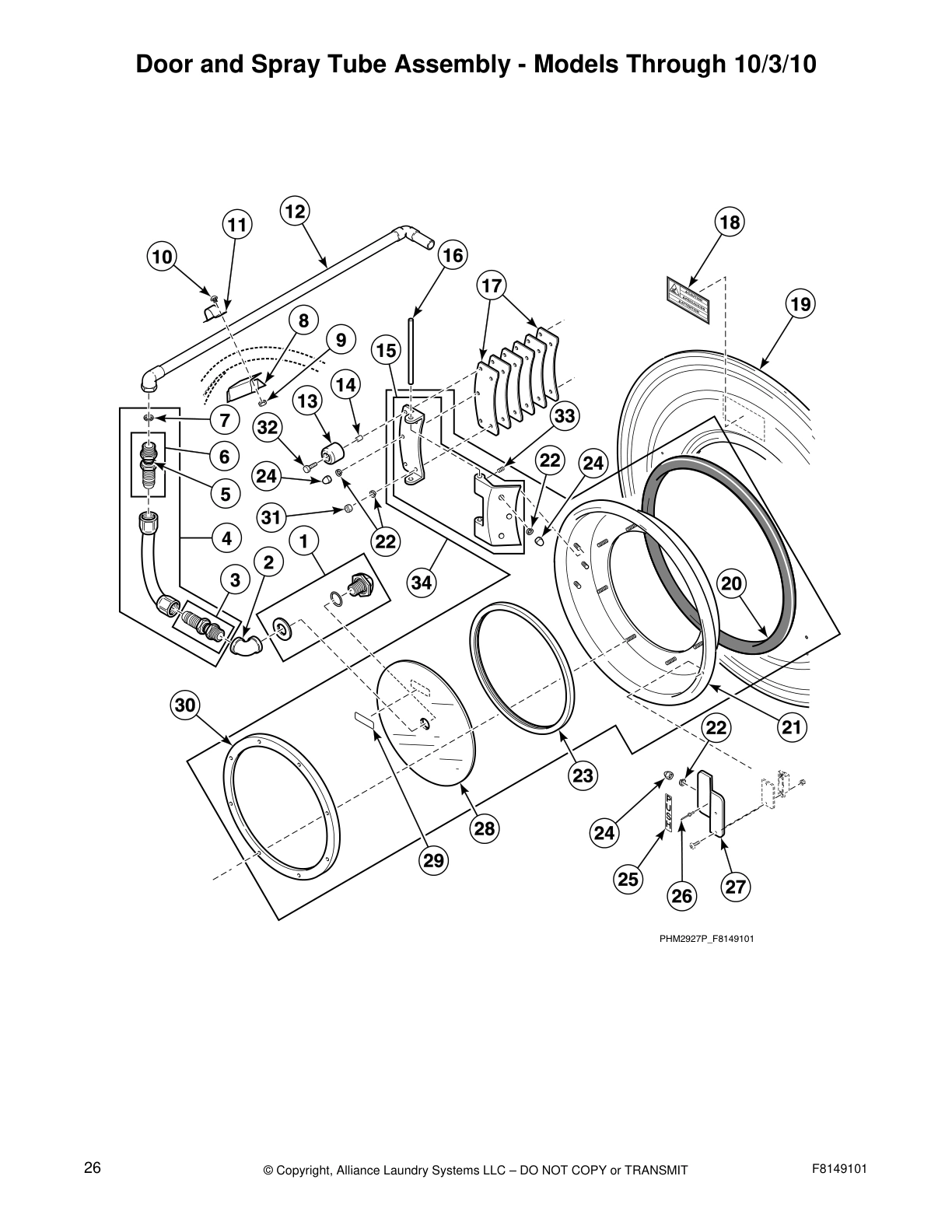

Door and Spray Tube Assembly - Models Through 10/3/10

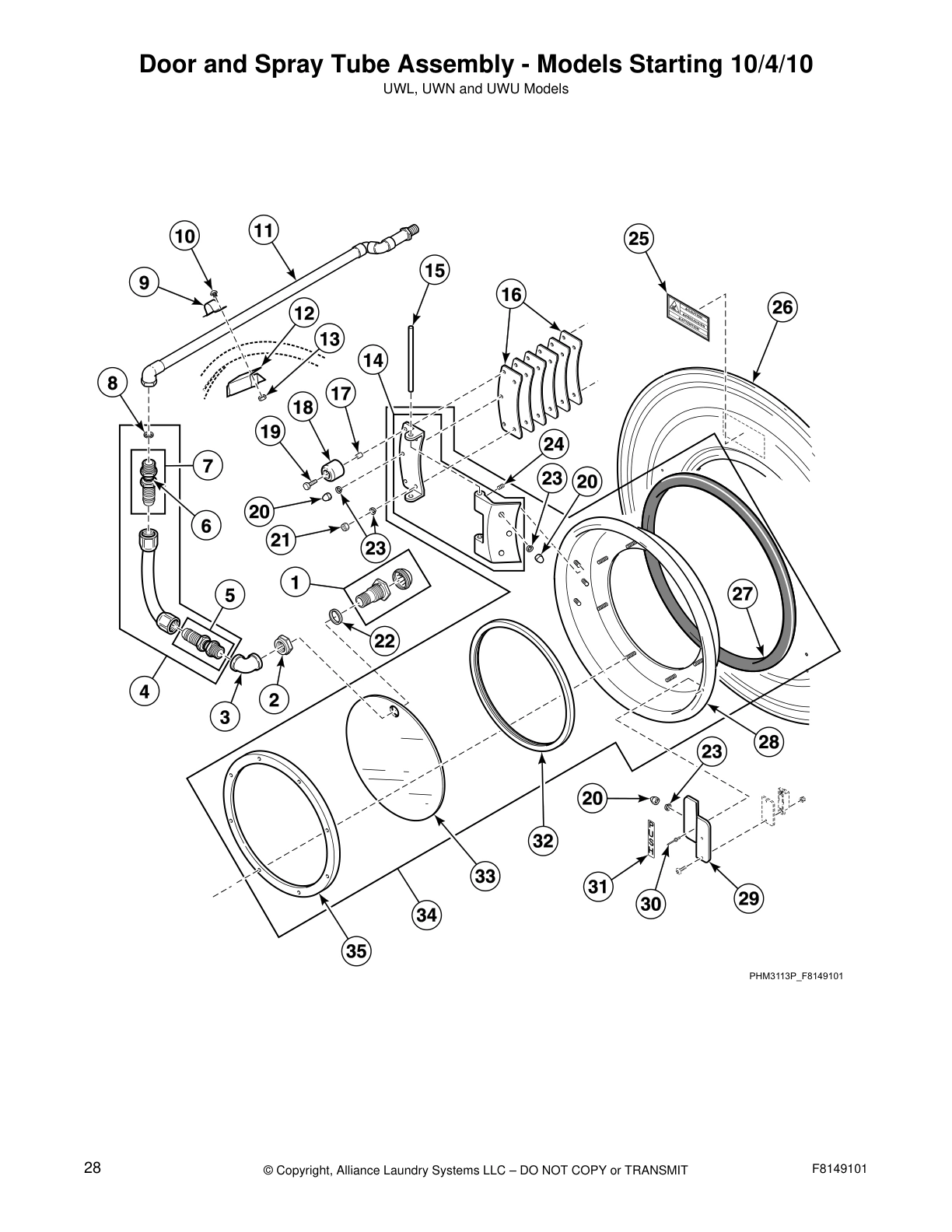

Door and Spray Tube Assembly - Models Starting 10/4/10

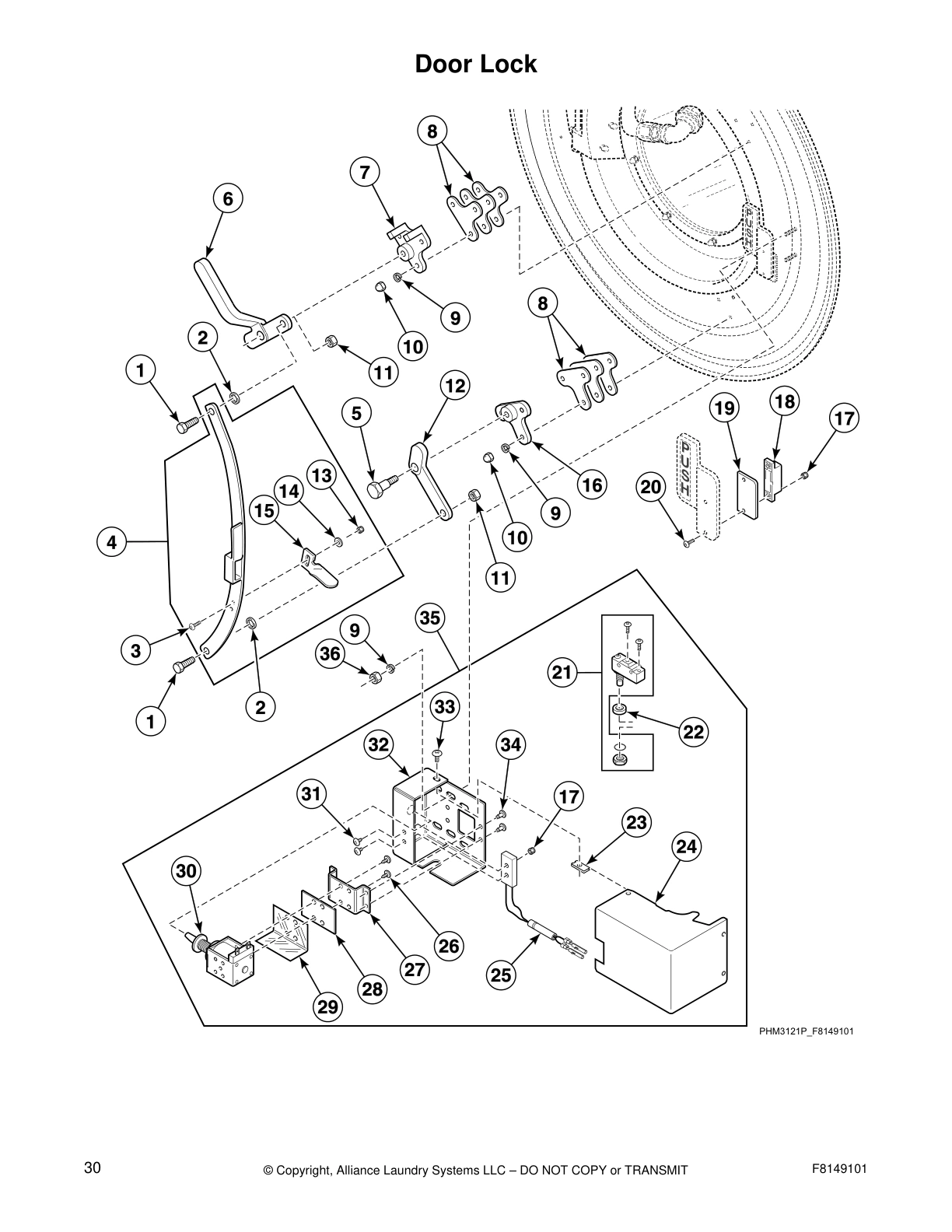

Door Lock

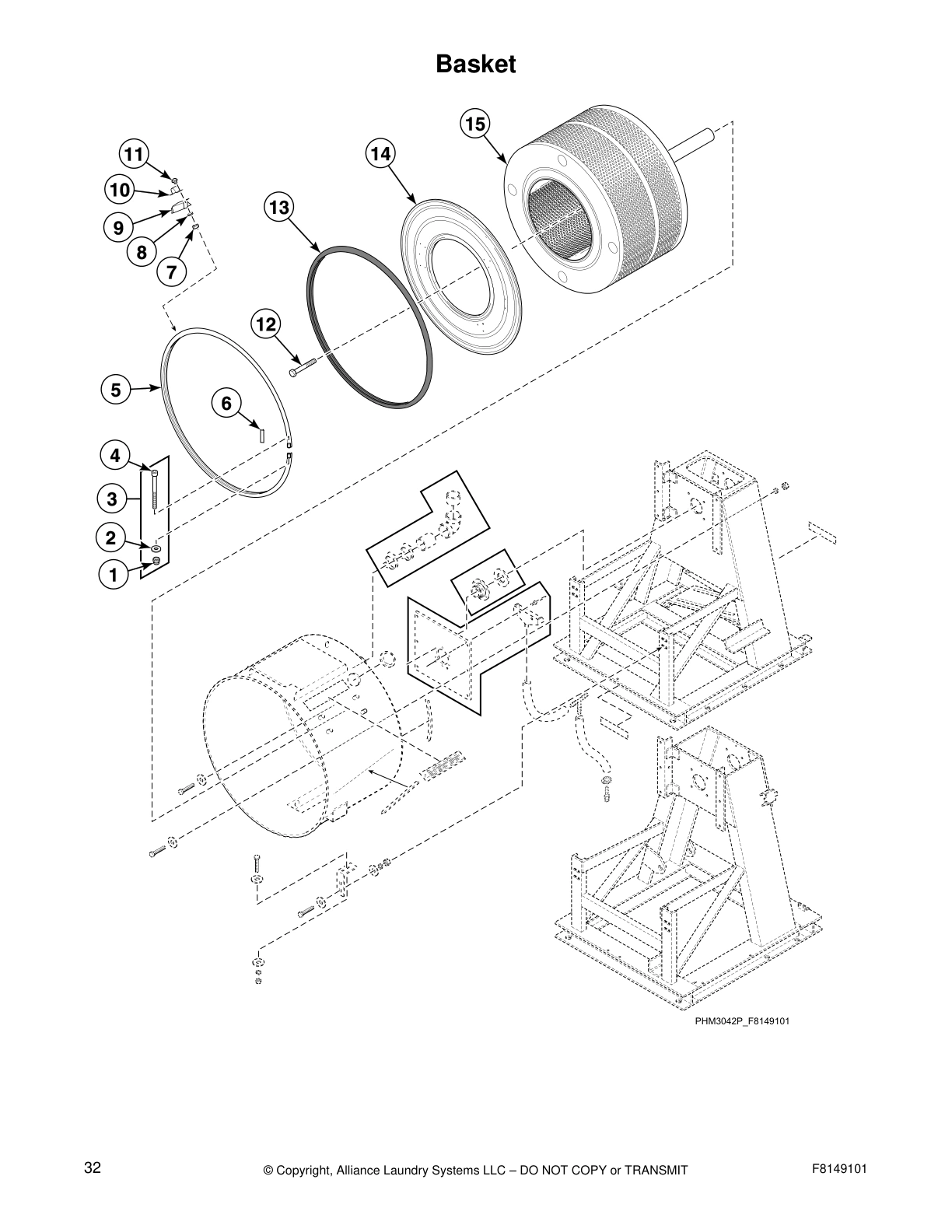

Basket

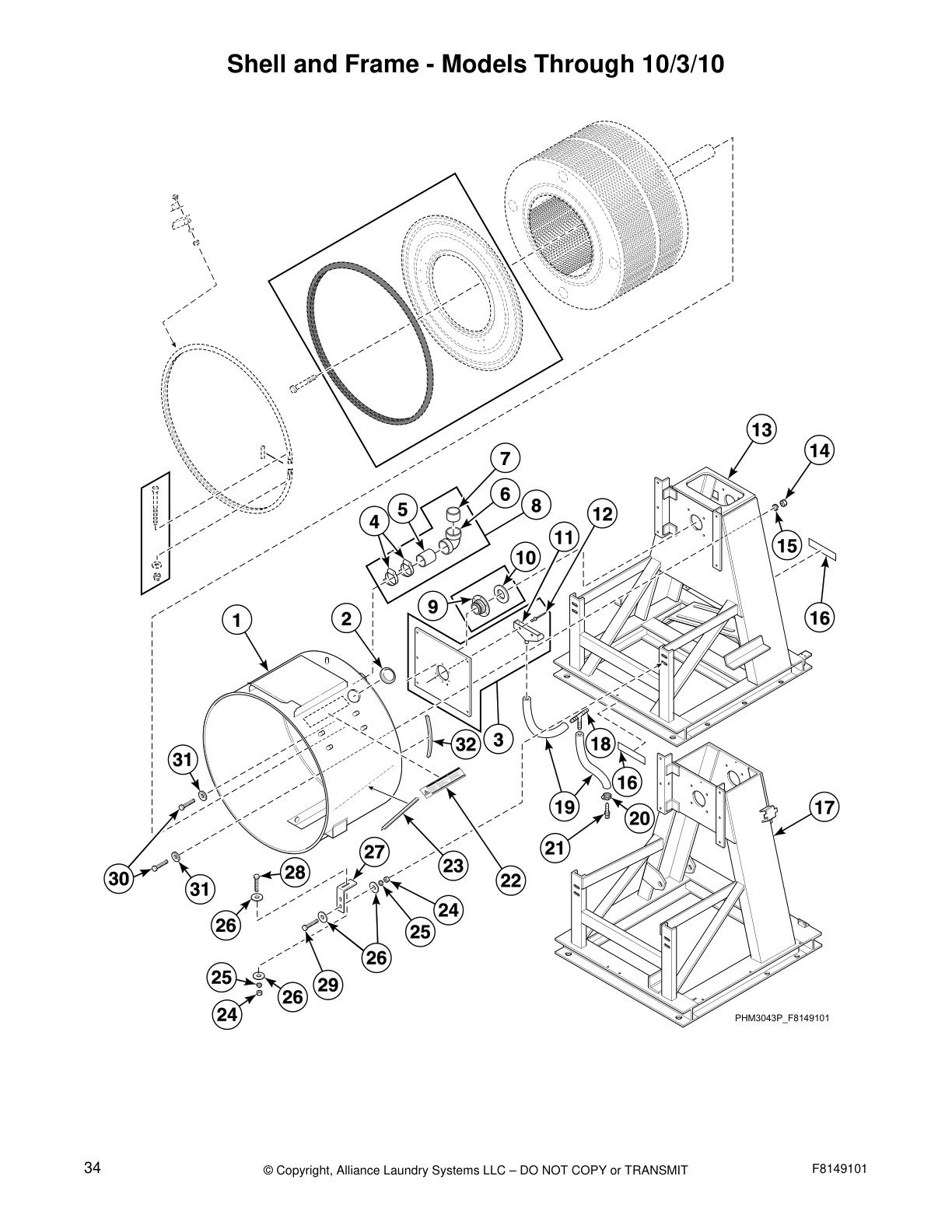

Shell and Frame - Models Through 10/3/10

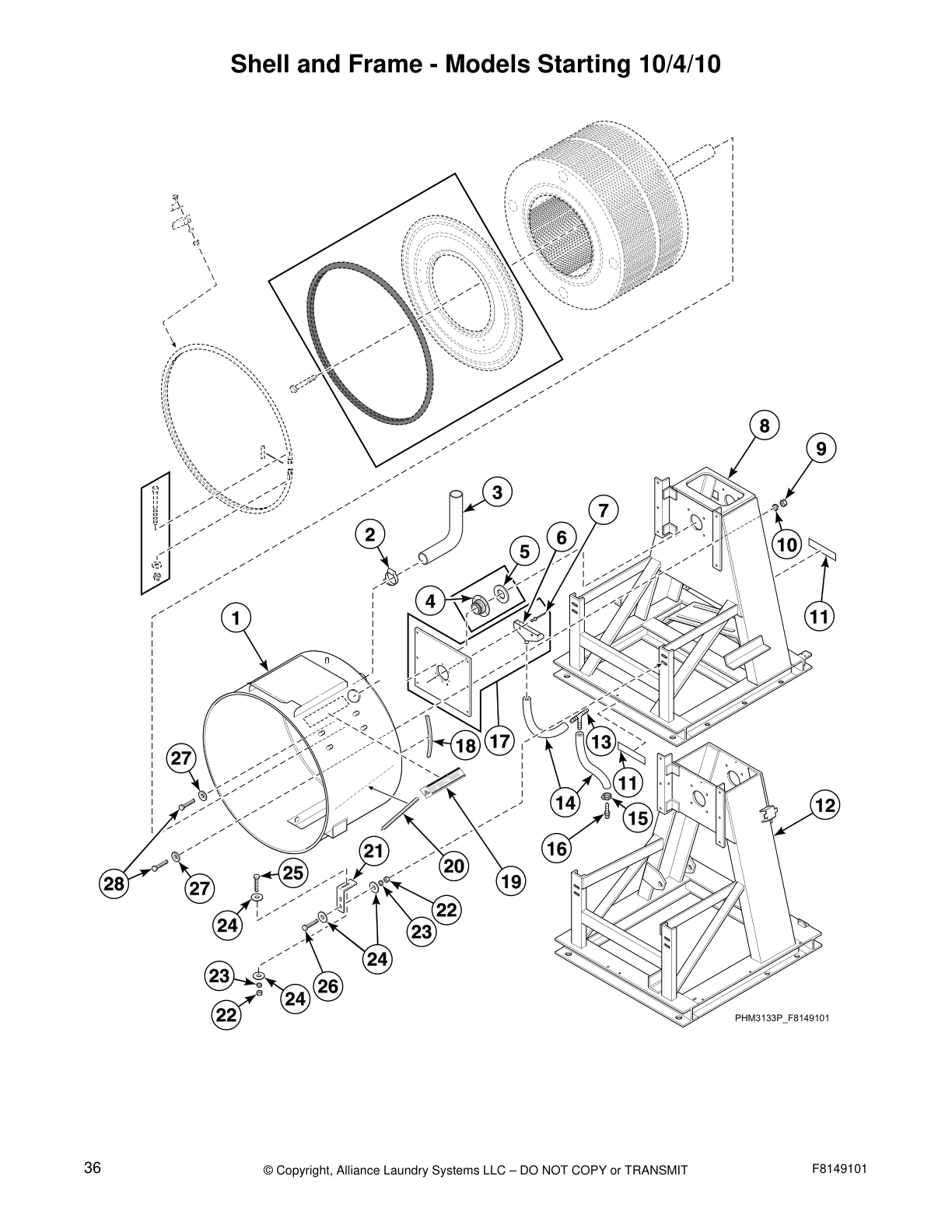

Shell and Frame - Models Starting 10/4/10

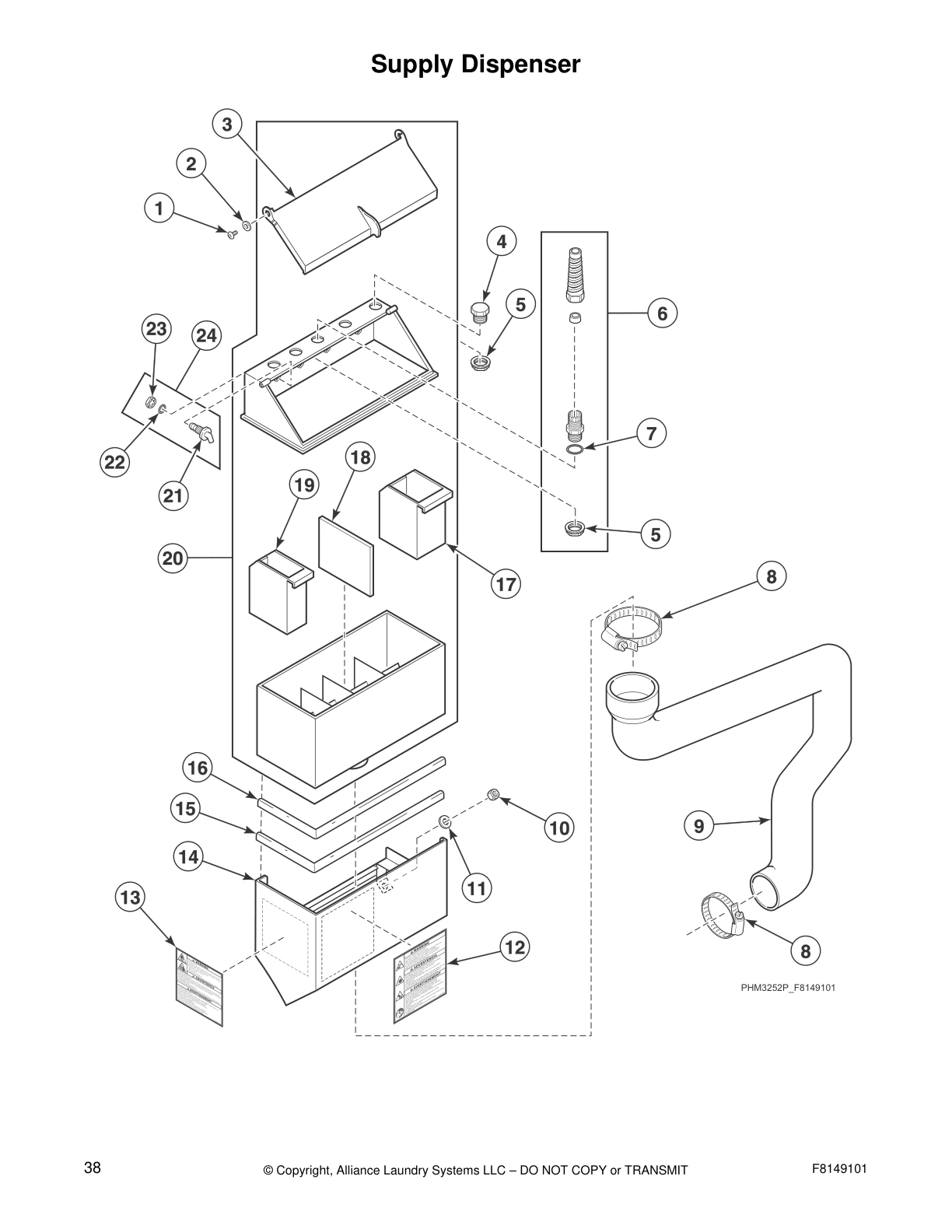

Supply Dispenser

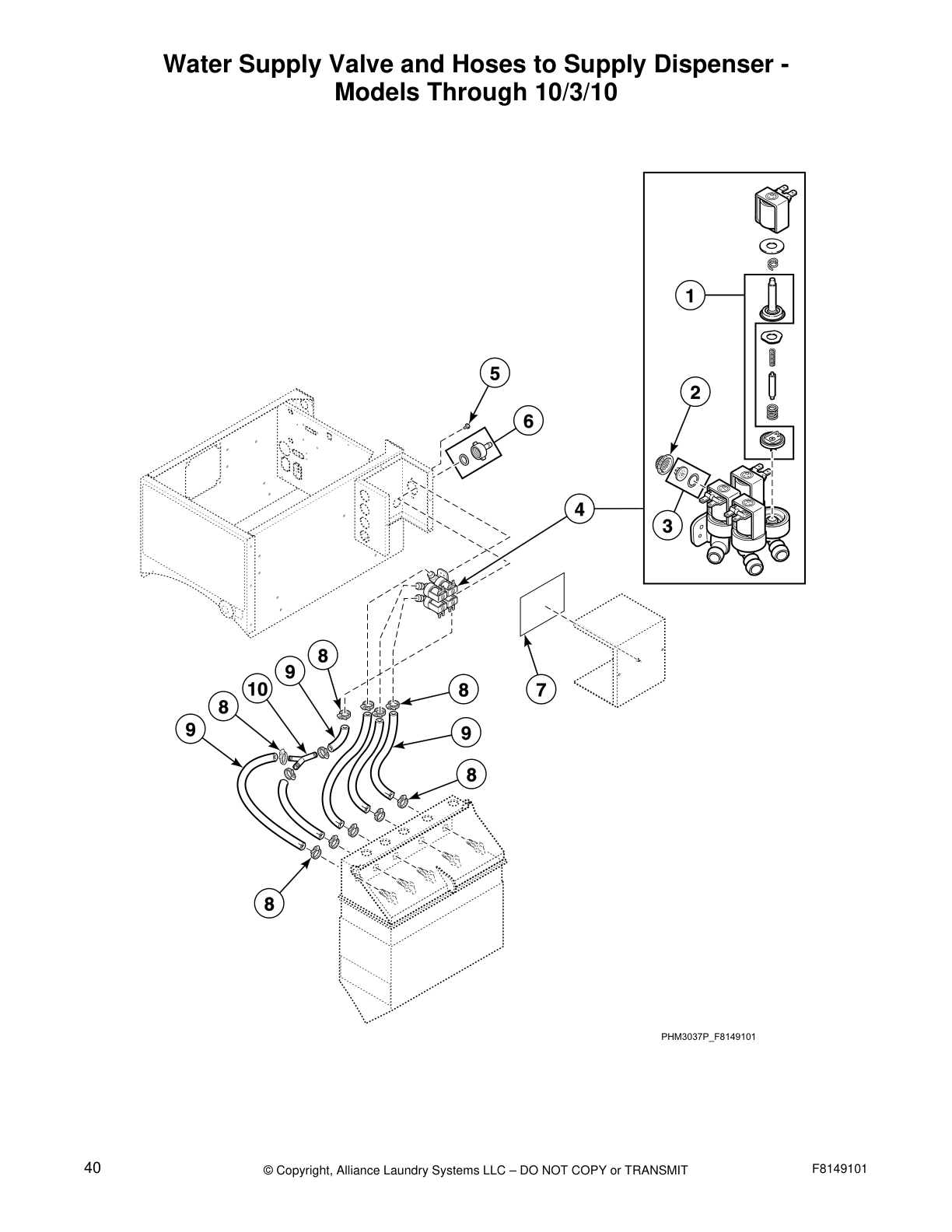

Water Supply Valve and Hoses to Supply Dispenser -
Models Through 10/3/10

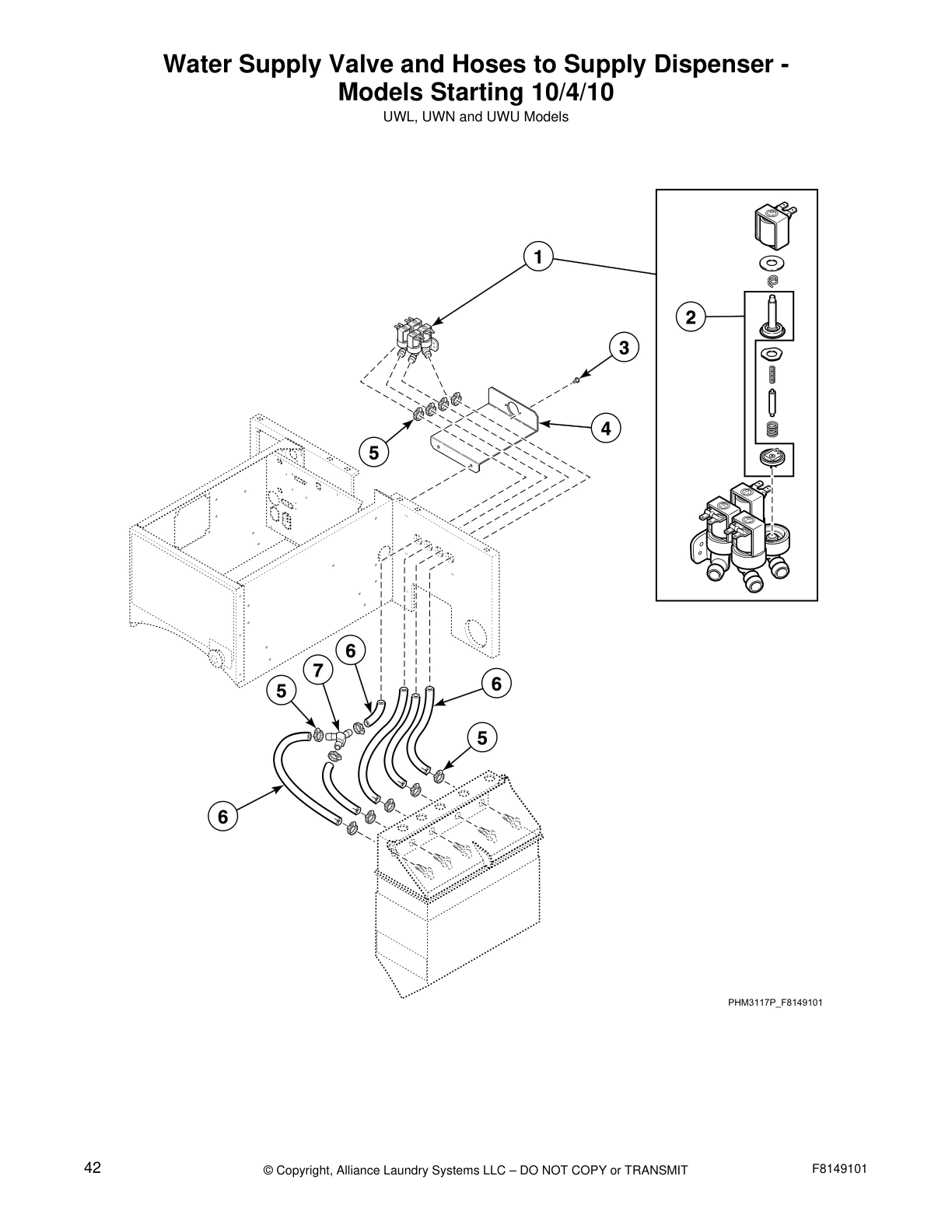

Water Supply Valve and Hoses to Supply Dispenser -
Models Starting 10/4/10

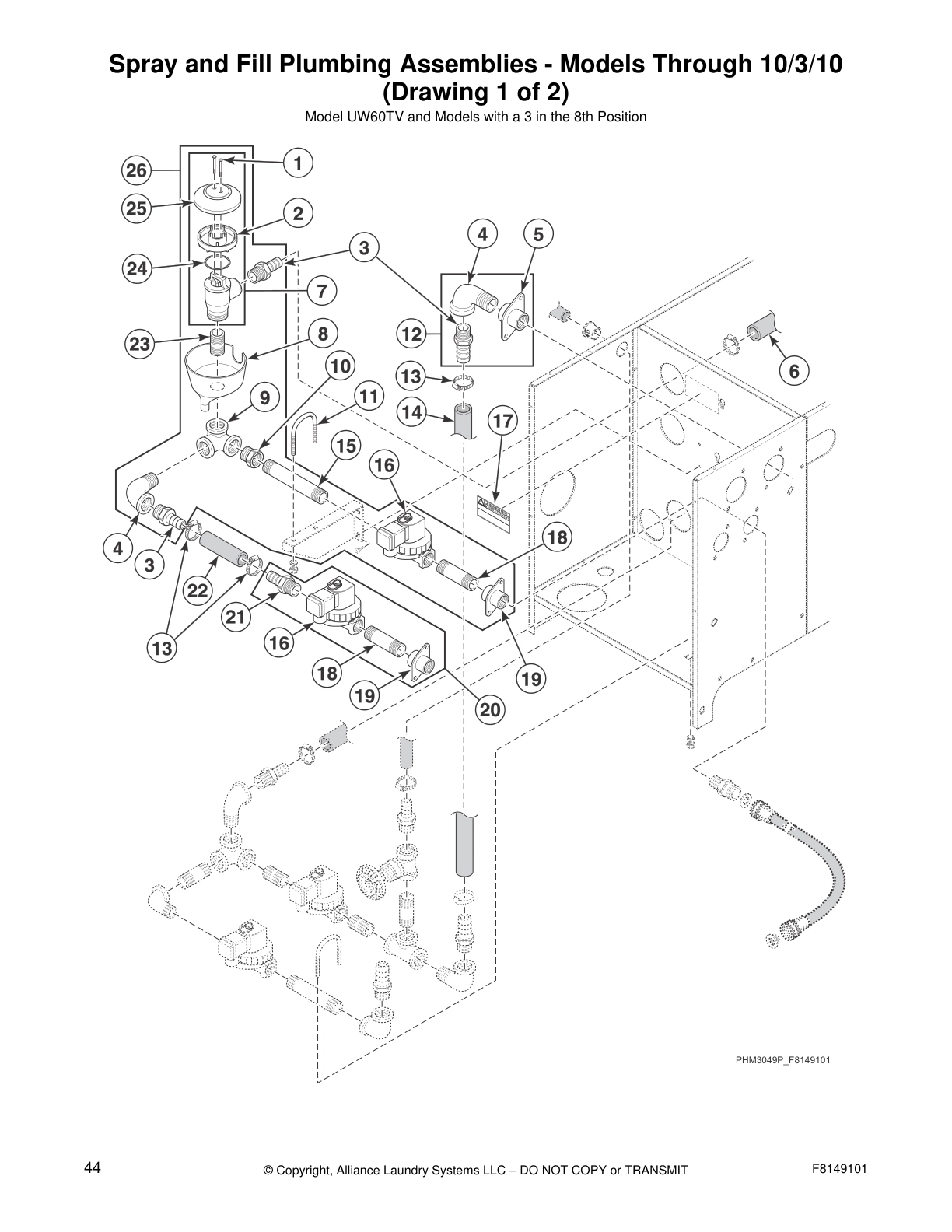

Spray and Fill Plumbing Assemblies - Models Through 10/3/10
(Drawing 1 of 2)

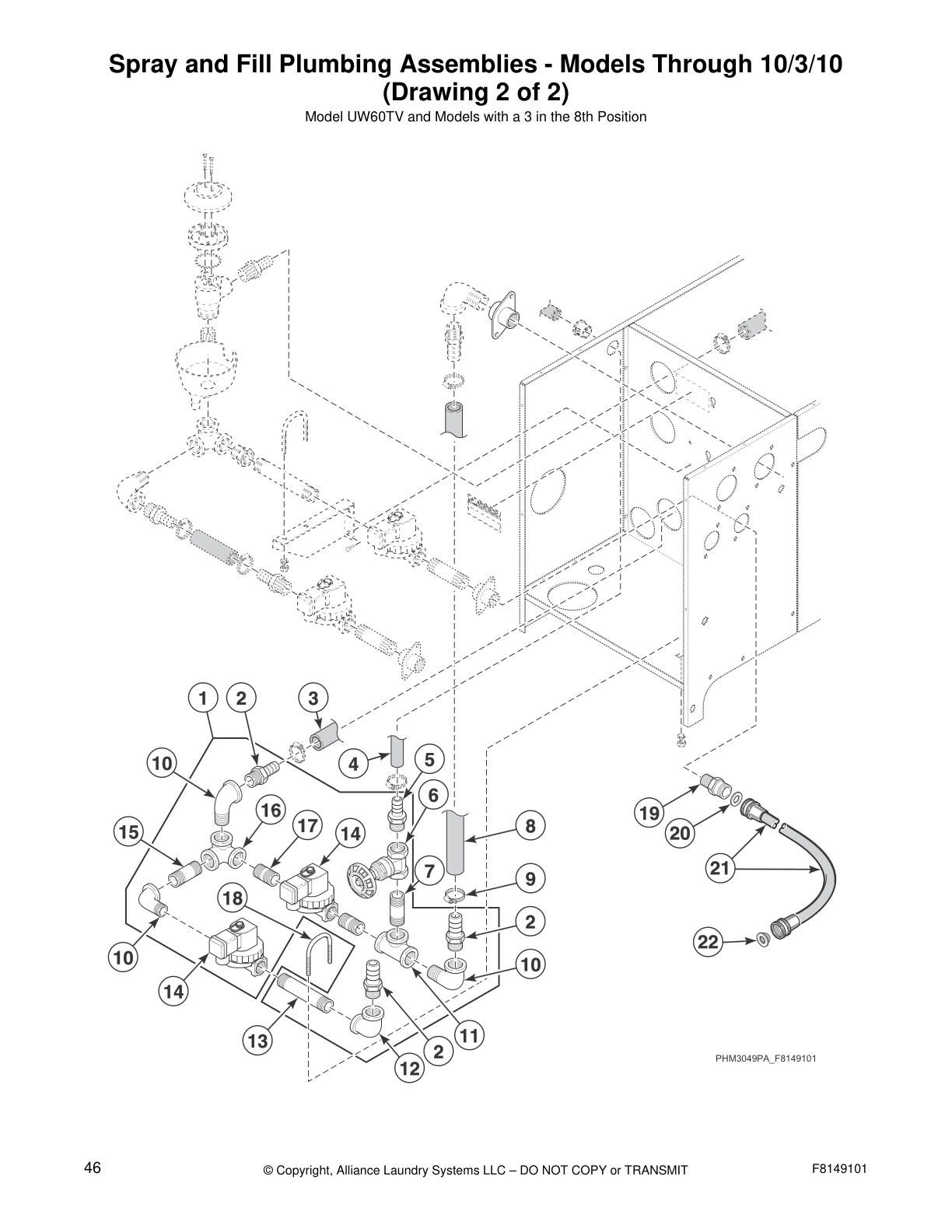

Spray and Fill Plumbing Assemblies - Models Through 10/3/10
(Drawing 2 of 2)

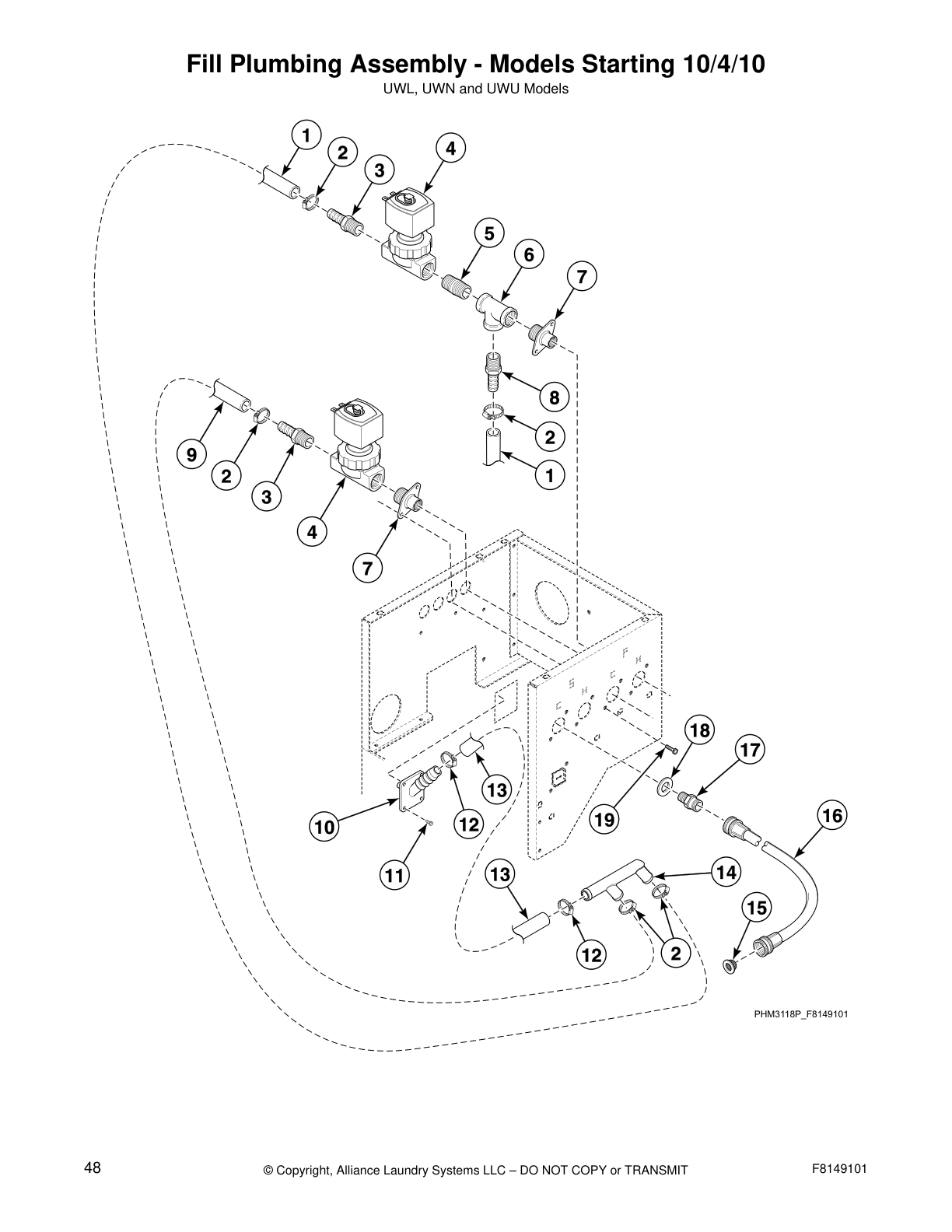

Fill Plumbing Assembly - Models Starting 10/4/10

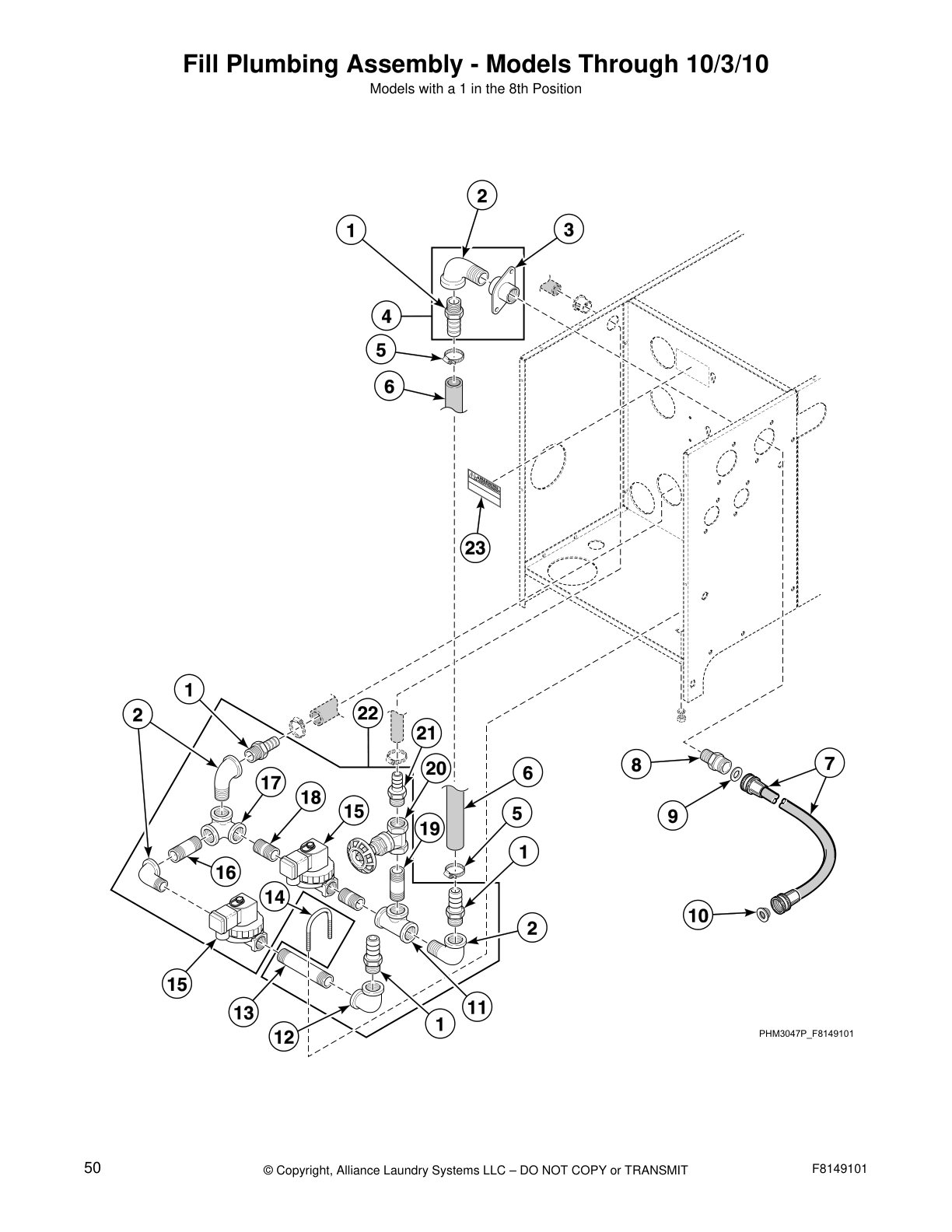

Fill Plumbing Assembly - Models Through 10/3/10

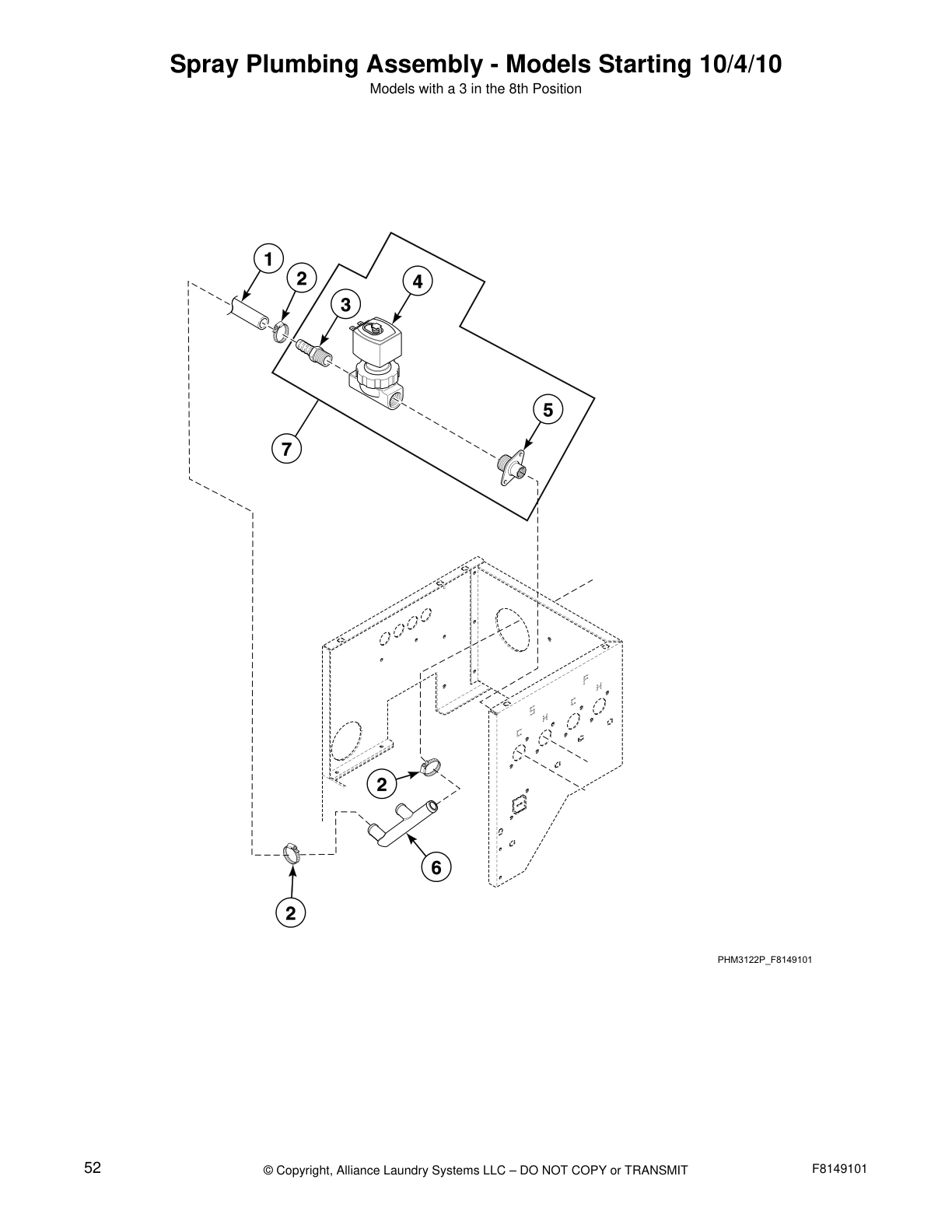

Spray Plumbing Assembly - Models Starting 10/4/10

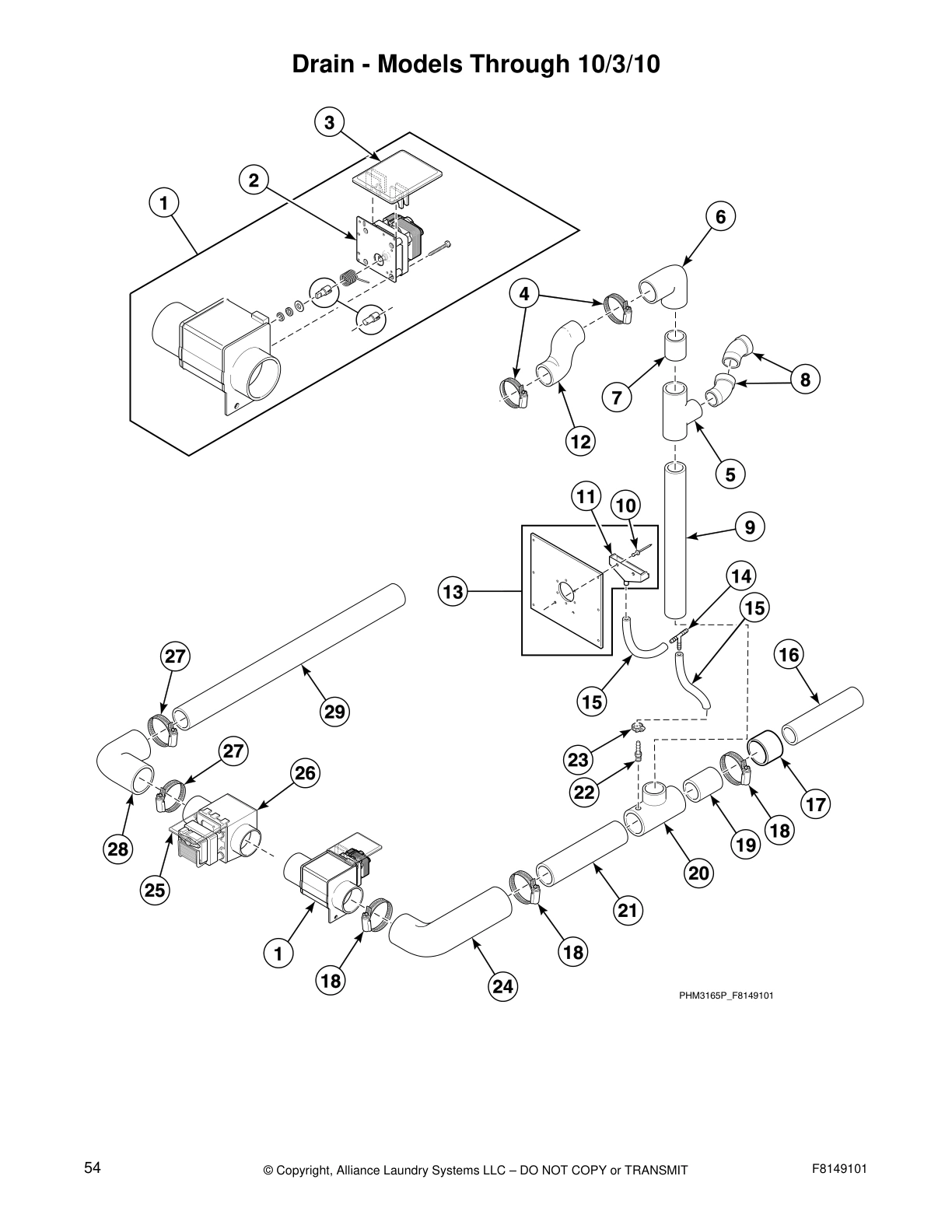

Drain - Models Through 10/3/10

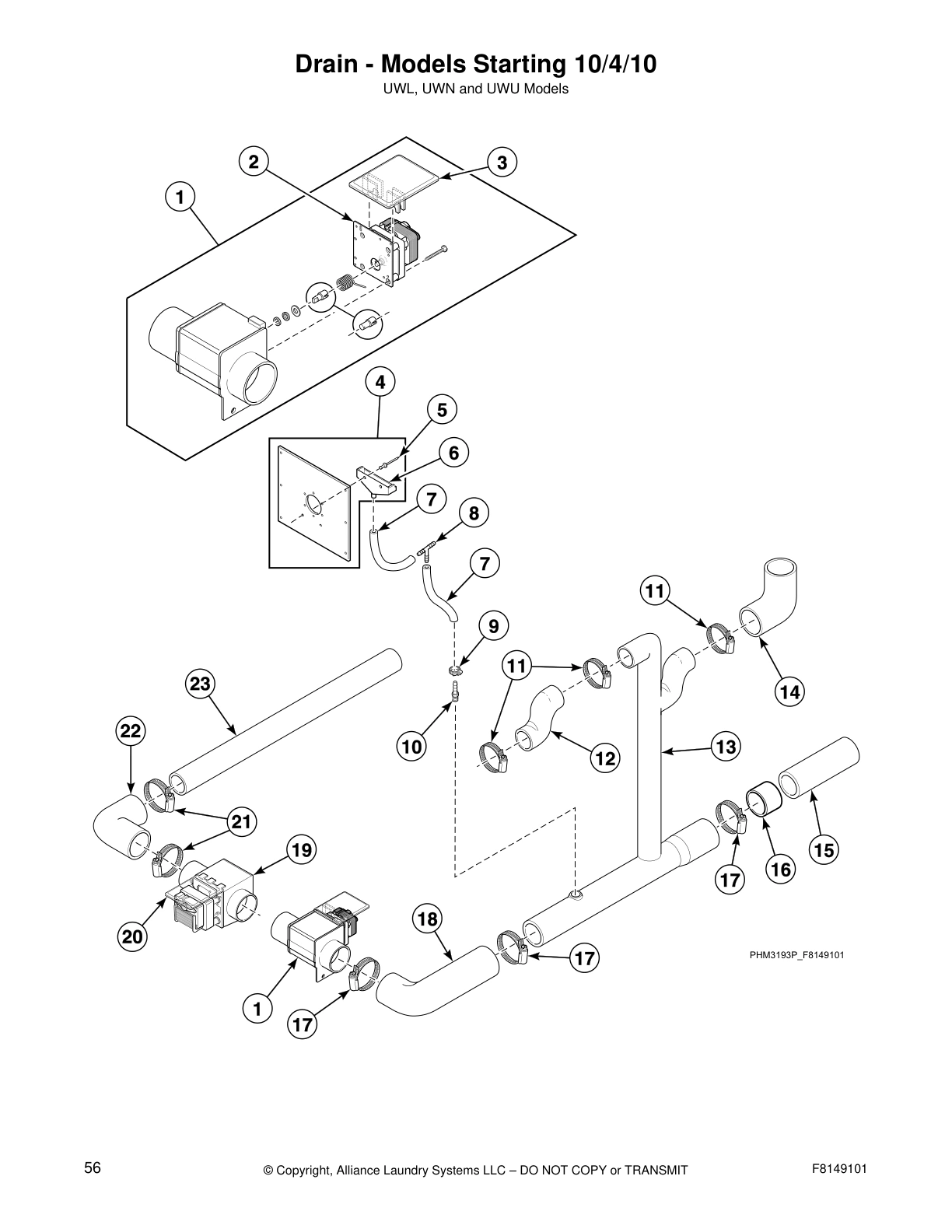

Drain - Models Starting 10/4/10

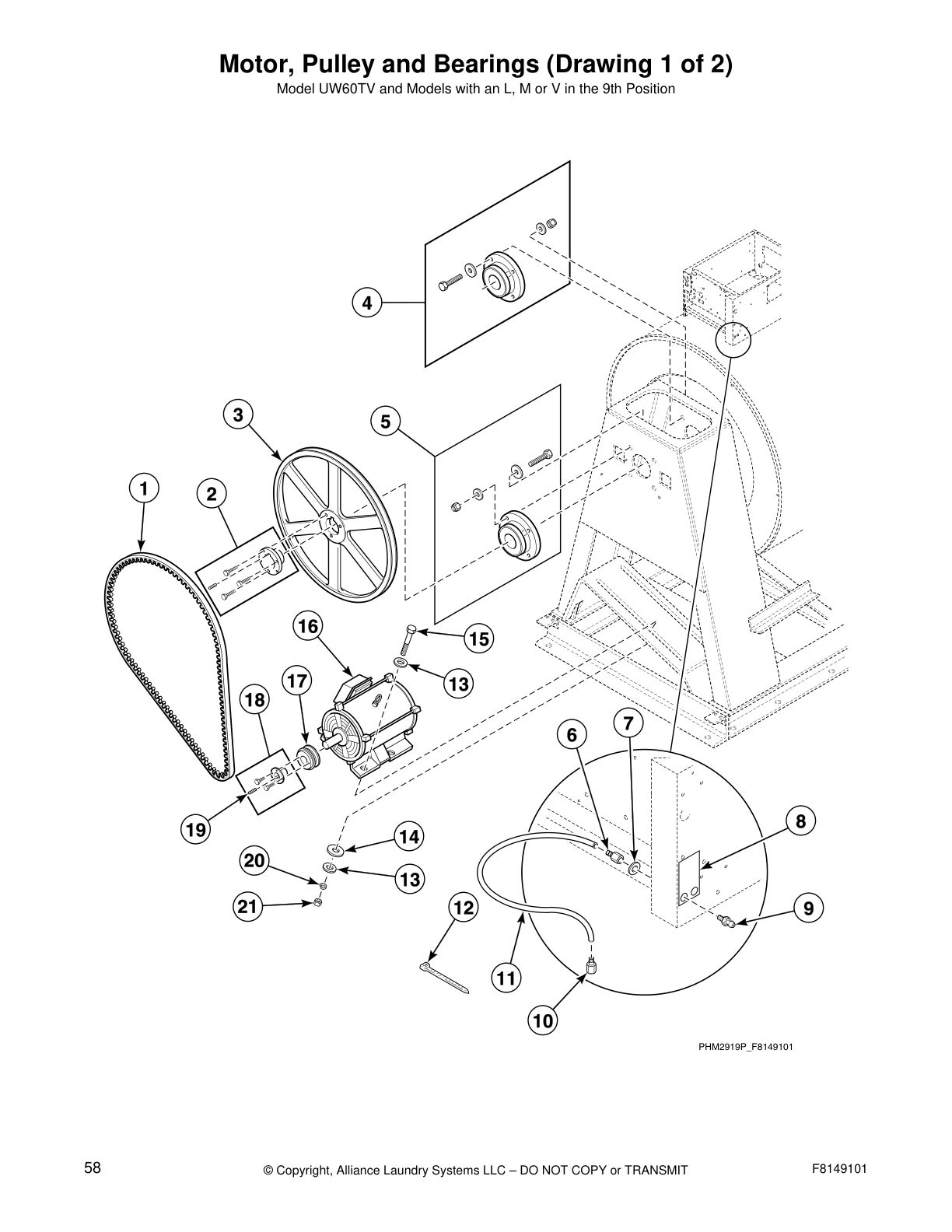

Motor, Pulley and Bearings (Drawing 1 of 2)

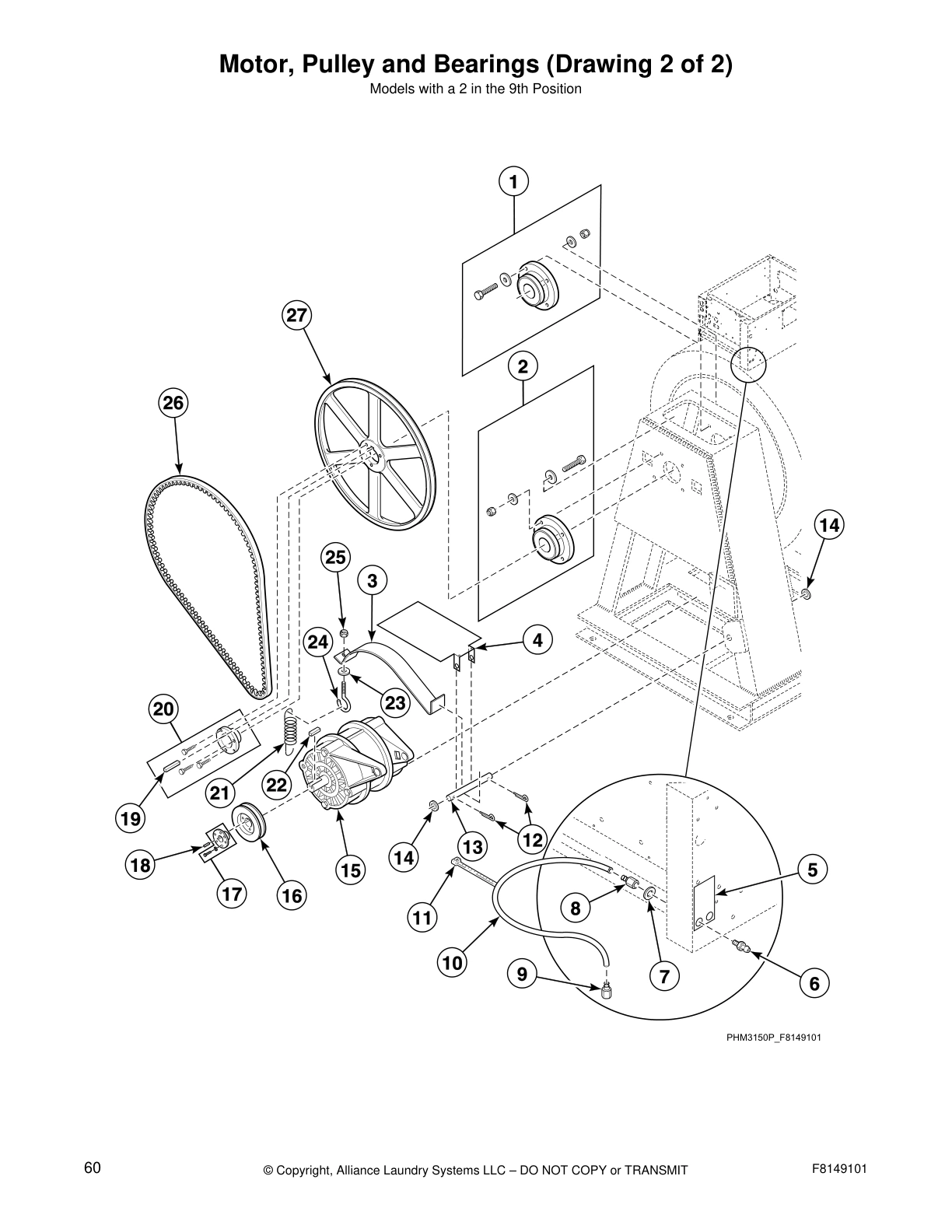

Motor, Pulley and Bearings (Drawing 2 of 2)

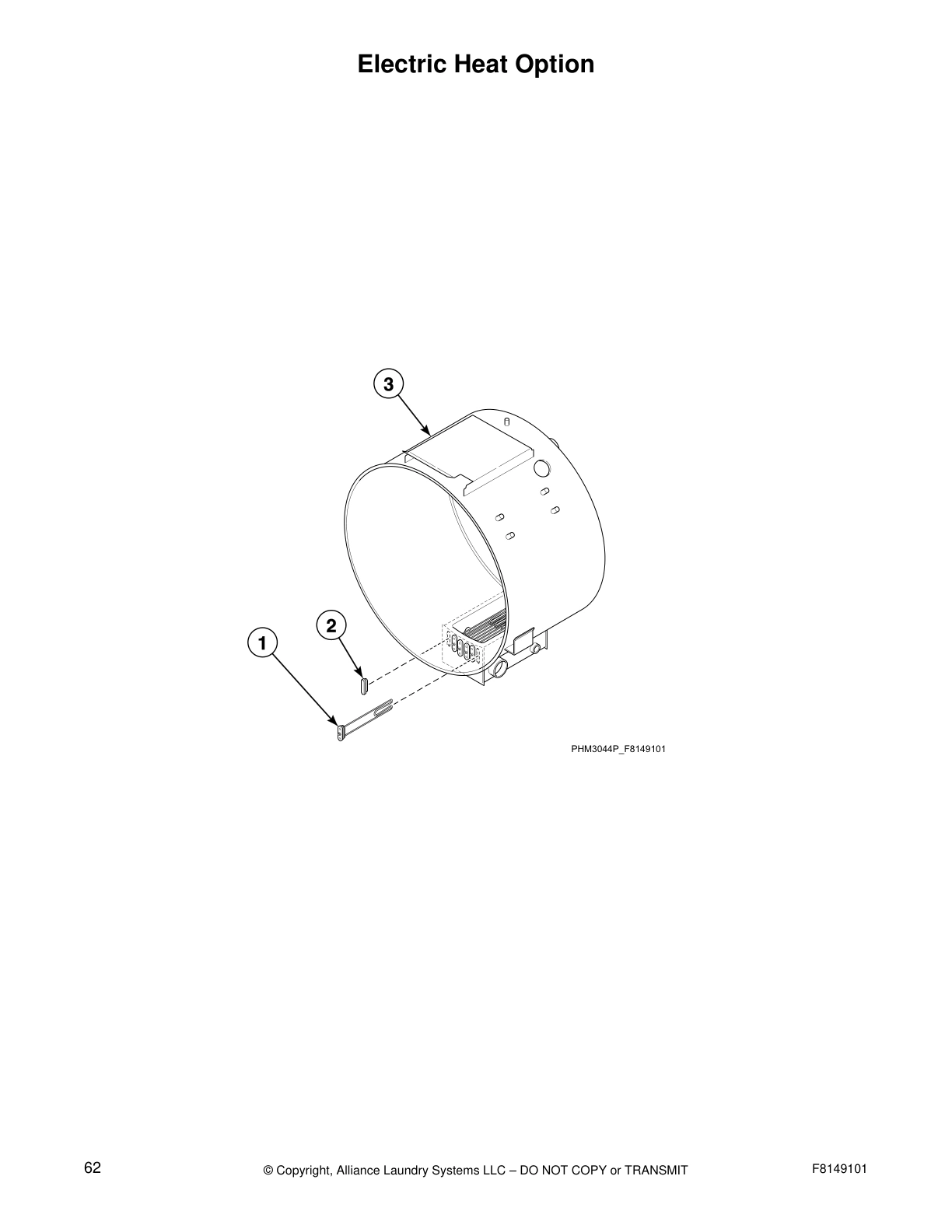

Electric Heat Option

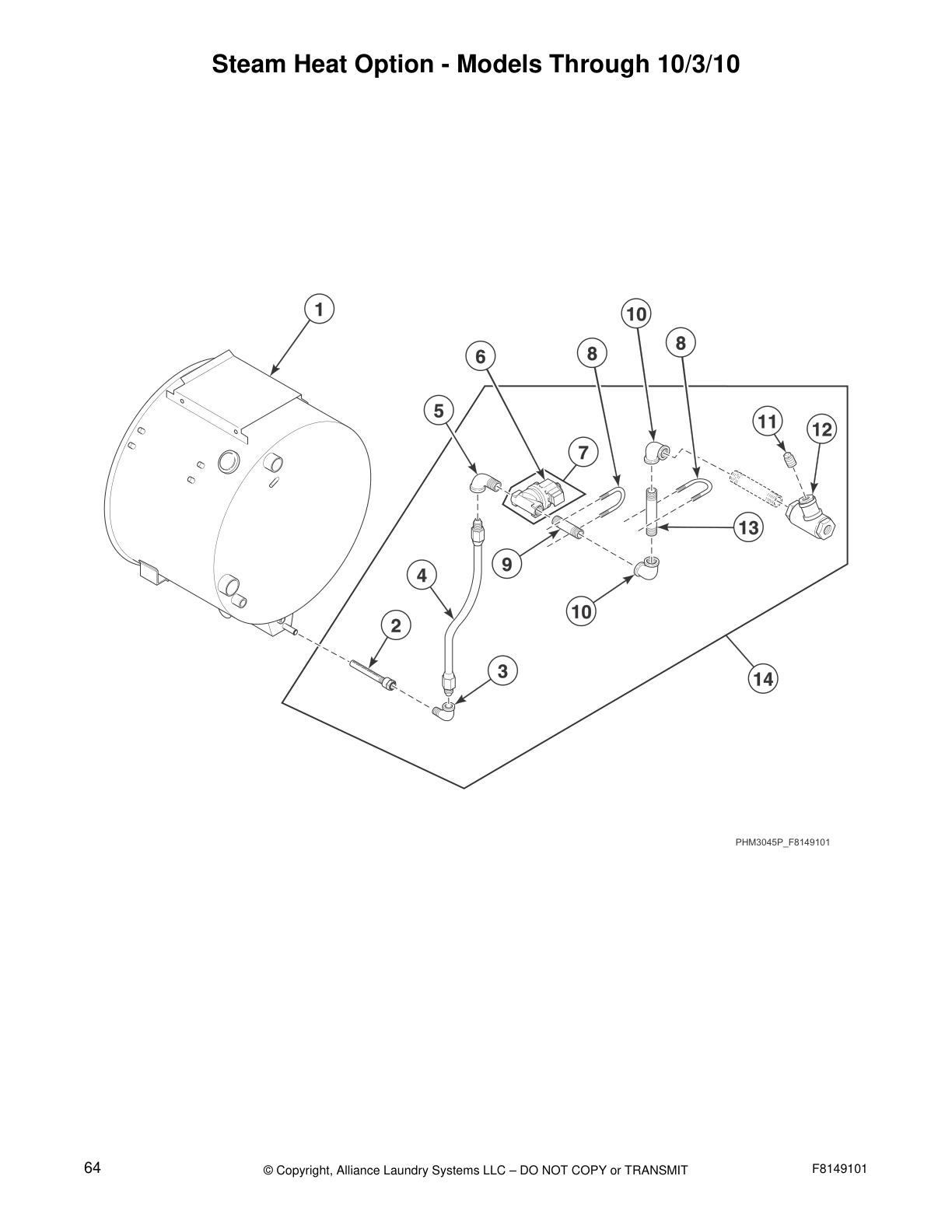

Steam Heat Option - Models Through 10/3/10

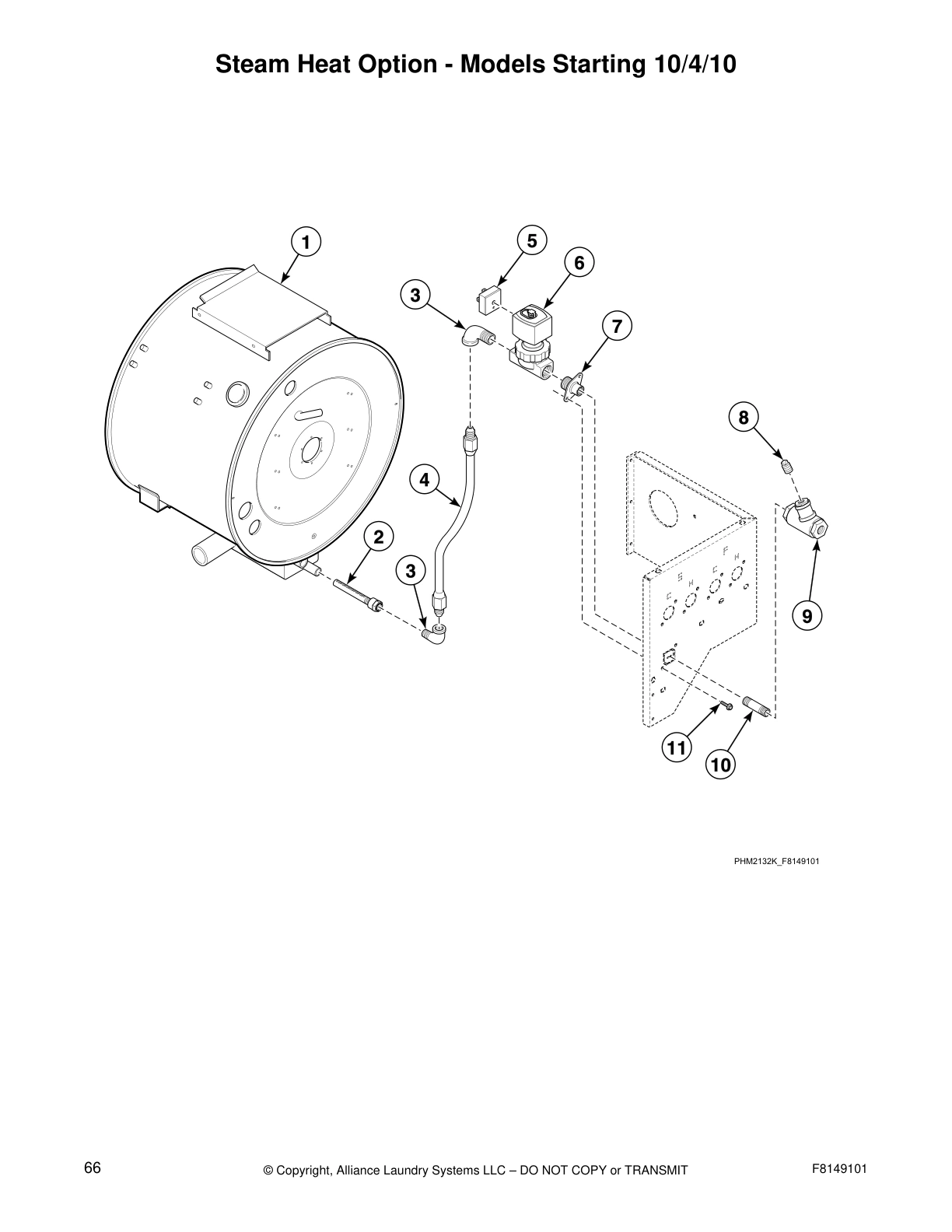

Steam Heat Option - Models Starting 10/4/10

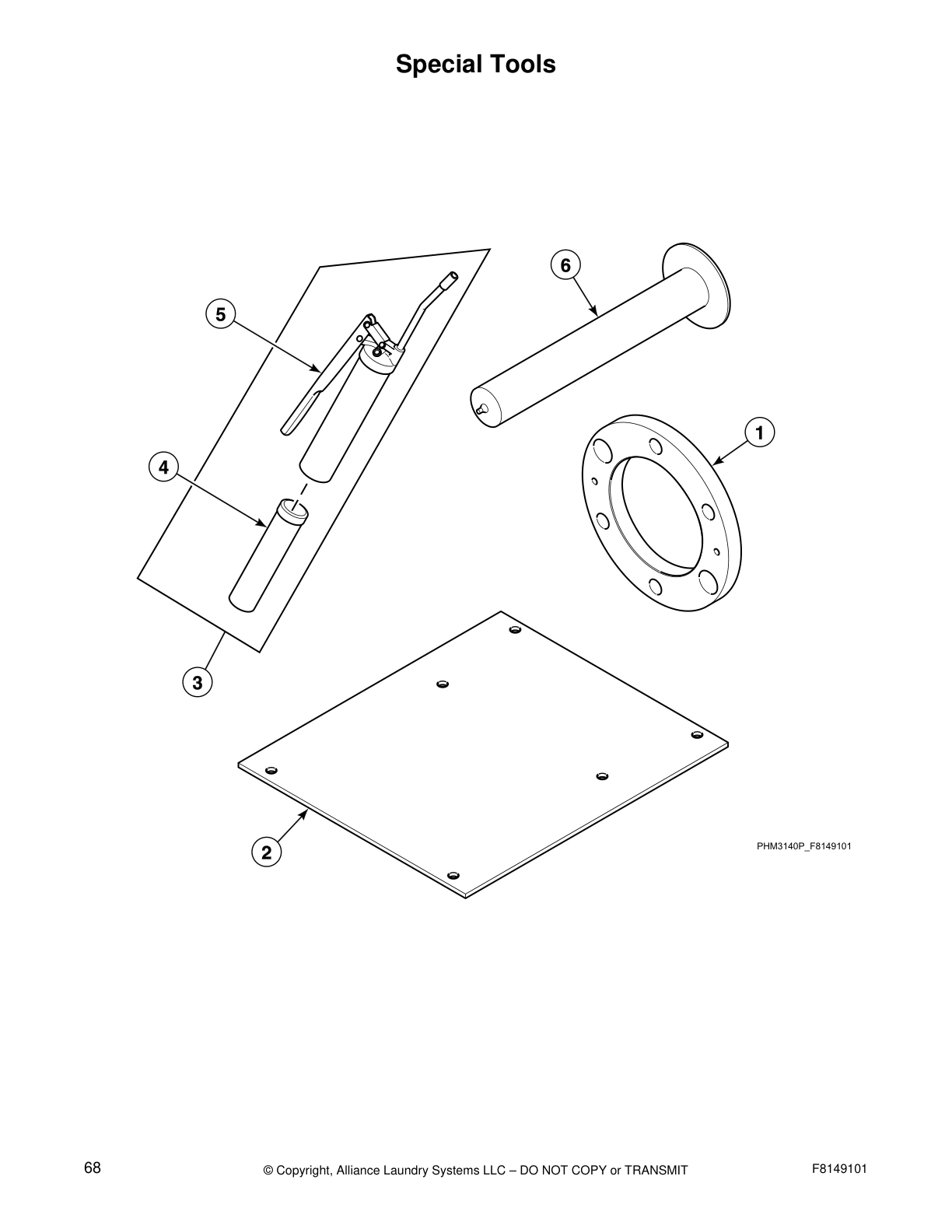

Special Tools
Common parts from model Unimac UWN060T3V Washer
SPQ F220900 SPQ F220900 Contact Us For Availability
SPQ F020014200 SPQ F020014200 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ F8030501P SPQ F8030501P Contact Us For Availability
SPQ F8028401 SPQ F8028401 Contact Us For Availability
SPQ 44088501P SPQ 44088501P Contact Us For Availability
Main Power Harness SPQ F8242201 Contact Us For Availability
Electric Heat Coils Harness SPQ F230739 Contact Us For Availability
SPQ F8060001 SPQ F8060001 Contact Us For Availability
SPQ F8054901 SPQ F8054901 Contact Us For Availability
SPQ F8054602 SPQ F8054602 Contact Us For Availability
SPQ F8115501 SPQ F8115501 Contact Us For Availability
SPQ F8103101 SPQ F8103101 Contact Us For Availability
SPQ F8073801 SPQ F8073801 Contact Us For Availability
SPQ F421909 SPQ F421909 Contact Us For Availability
SPQ F745401 SPQ F745401 Contact Us For Availability
SPQ F8054702 SPQ F8054702 Contact Us For Availability
USB IR Interface Kit SPQ F730055-1 Contact Us For Availability
Reuse Kit SPQ F925P3 Contact Us For Availability
1
Expansion Clip SPQ 70030501 Contact Us For Availability
1
Do Not Tamper Label SPQ F8345901 Contact Us For Availability
1
Ground Lug Connector SPQ M411283 Contact Us For Availability
1
Screw SPQ F8111101 Contact Us For Availability
1
Screw SPQ F430927 Contact Us For Availability
1
Left Side Cover SPQ F8278102 Contact Us For Availability
1
Spray Rinse Nozzle Kit SPQ F730077 Contact Us For Availability
1
Screw SPQ F430917 Contact Us For Availability
1
Door Spray Nozzle Assembly SPQ F8356301 Contact Us For Availability
1
Nut SPQ F430215 Contact Us For Availability
1
Shell Weldment SPQ F8273301 Contact Us For Availability
1
Dispenser Valve Harness SPQ F8347301 Contact Us For Availability
1
Screw SPQ F430938 Contact Us For Availability
1
Hose Barb SPQ F421951 Contact Us For Availability
1
Hose SPQ F8232007 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Belt SPQ F280353 Contact Us For Availability
1
Front Bearing Kit SPQ F798824-00 Contact Us For Availability
1
Electric Heat Harness SPQ F8056701 Contact Us For Availability
1
Shell Weldment SPQ F8366001 Contact Us For Availability
1
Shaft Seal Alignment Fixture SPQ F0100312-00 Contact Us For Availability
2
Nipple SPQ 20290 Contact Us For Availability
2
Right Side Panel SPQ 70240301 Contact Us For Availability
2
Snap Bushing SPQ M400985 Contact Us For Availability
2
EMI Filter SPQ F8129001 Contact Us For Availability
2
Snap Bushing SPQ F8405101 Contact Us For Availability
2
Balance Switch Bracket SPQ 44087301 Contact Us For Availability
2
Screw SPQ F8352602 Contact Us For Availability
2
Washer SPQ F8322601 Contact Us For Availability
2
Interlock Switch Spacer SPQ F430909 Contact Us For Availability
2
Shell Band Fastener Kit SPQ F430317 Contact Us For Availability
2
Drip Rail SPQ F200085500 Contact Us For Availability
2
Injection Nozzle SPQ F431133 Contact Us For Availability
2
Strainer SPQ F270200 Contact Us For Availability
2
4-Way Valve SPQ F8336601 Contact Us For Availability
2
Cold Spray Plumbing Assembly SPQ F0380809-00 Contact Us For Availability
2
Fill Plumbing Assembly SPQ F420105 Contact Us For Availability
2
Pop Rivet SPQ F200133600 Contact Us For Availability
2
Key SPQ F280211P Contact Us For Availability
2
Rear Bearing Kit SPQ F745010 Contact Us For Availability
2
Heating Element SPQ F360203P Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F947P3 Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Rebar Frame Template SPQ F602941 Contact Us For Availability
3
Front Bearing Kit SPQ M400014 Contact Us For Availability
3
Top Cover SPQ F8206901 Contact Us For Availability
3
Electric Shock Danger Label SPQ F110110 Contact Us For Availability
3
Drive Mounting Bracket SPQ F8053902 Contact Us For Availability
3
Temperature Harness
Standard SPQ F8124301 Contact Us For Availability
3
SPQ 70182601 SPQ 70182601 Contact Us For Availability
3
Tee SPQ 20253 Contact Us For Availability
3
Clockwise Spin Rotation Decal SPQ F290200P Contact Us For Availability
3
High Hole Glass SPQ F746201-1 Contact Us For Availability
3
Door Handle Casting SPQ F430916 Contact Us For Availability
3
Shell Band Assembly SPQ F791001 Contact Us For Availability
3
Dual Drain Harness SPQ F200107P Contact Us For Availability
3
Frame Weldment SPQ F430913 Contact Us For Availability
3
Strain Relief Connector SPQ F0150514-00 Contact Us For Availability
3
Diaphragm and Guide Kit SPQ G582P3 Contact Us For Availability
3
Hose Barb SPQ F8110701 Contact Us For Availability
3
Hose SPQ F8100401 Contact Us For Availability
3
SPQ F0602365-11 SPQ F0602365-11 Contact Us For Availability
3
Heating Element Plug SPQ F360202 Contact Us For Availability
3
Street Elbow SPQ F421703 Contact Us For Availability
3
Grease Gun Kit SPQ F798700 Contact Us For Availability
4
Screw SPQ F430948 Contact Us For Availability
4
Screw SPQ 00117 Contact Us For Availability
4
Drive Bracket SPQ F8053901P Contact Us For Availability
4
Temperature Harness
Electric heat SPQ F8028223 Contact Us For Availability
4
SPQ F8096101P SPQ F8096101P Contact Us For Availability
4
Water Hose SPQ F8233501 Contact Us For Availability
4
Control Box Partition SPQ F8374101 Contact Us For Availability
4
Swivel Coupling SPQ F8350601 Contact Us For Availability
4
SPQ F746803 SPQ F746803 Contact Us For Availability
4
Shell Gasket Shield SPQ F430518 Contact Us For Availability
4
SPQ F8137401 SPQ F8137401 Contact Us For Availability
4
Bearing SPQ 20274 Contact Us For Availability
4
SPQ F8363601 SPQ F8363601 Contact Us For Availability
4
Strain Relief Adapter Kit SPQ F190304 Contact Us For Availability
4
Dispenser Valve Harness SPQ F8091601P Contact Us For Availability
4
SPQ F8119201 SPQ F8119201 Contact Us For Availability
4
Steam Hose SPQ F200197 Contact Us For Availability
4
Bearing Grease SPQ F210206P Contact Us For Availability
5
4-Way Valve SPQ F381723P Contact Us For Availability
5
Drive Box Rear Panel SPQ F8117601 Contact Us For Availability
5
Terminal Block Shield SPQ F8386901 Contact Us For Availability
5
Thermistor Sensor SPQ F8028221P Contact Us For Availability
5
SPQ F8099602P SPQ F8099602P Contact Us For Availability
5
Drive Mounting Box SPQ F8351801 Contact Us For Availability
5
Ring Retainer SPQ F601239 Contact Us For Availability
5
SPQ F430168 SPQ F430168 Contact Us For Availability
5
Spray Rinse Bracket Assembly SPQ F603344P Contact Us For Availability
5
SPQ 36801 SPQ 36801 Contact Us For Availability
5
SPQ F8162201 SPQ F8162201 Contact Us For Availability
5
Hose Clamp SPQ F140340P Contact Us For Availability
5
Valve Mounting Bracket SPQ F8331901 Contact Us For Availability
5
Adapter SPQ F8154502 Contact Us For Availability
5
Valve SPQ F8322803P Contact Us For Availability
5
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
5
SPQ F0602365-20 SPQ F0602365-20 Contact Us For Availability
5
Grease Gun SPQ F210207P Contact Us For Availability
6
External Supply Harness SPQ M400984 Contact Us For Availability
6
Terminal Block SPQ F8322402 Contact Us For Availability
6
Reducer Bushing SPQ F370609 Contact Us For Availability
6
SPQ M412763 SPQ M412763 Contact Us For Availability
6
Back Electrical Panel SPQ F8346401 Contact Us For Availability
6
Ring Retainer SPQ F730539 Contact Us For Availability
6
Spray Rinse Strap SPQ F8379701 Contact Us For Availability
6
SPQ F150203 SPQ F150203 Contact Us For Availability
6
SPQ F601216 SPQ F601216 Contact Us For Availability
6
SPQ F8162101 SPQ F8162101 Contact Us For Availability
6
SPQ F0603139-03 SPQ F0603139-03 Contact Us For Availability
6
Chemical Supply Hose SPQ F749802 Contact Us For Availability
6
Supply/Fill Module Harness SPQ F200104P Contact Us For Availability
6
Hose Adapter SPQ F8117101 Contact Us For Availability
6
Supply/Fill Module Harness SPQ F8339501 Contact Us For Availability
6
Valve SPQ F8322801P Contact Us For Availability
6
Coupling SPQ F8362702 Contact Us For Availability
6
SPQ F8257002 SPQ F8257002 Contact Us For Availability
6
Connector SPQ F422114 Contact Us For Availability
6
DIN Valve Kit SPQ H86070034 Contact Us For Availability
6
Alignment Shaft Assembly SPQ F633426 Contact Us For Availability
7
SPQ 56079 SPQ 56079 Contact Us For Availability
7
Interlock Switch Harness SPQ F8153901 Contact Us For Availability
7
DIN Valve Adapter Kit SPQ F200222 Contact Us For Availability
7
SPQ F8029501P SPQ F8029501P Contact Us For Availability
7
Insulator SPQ 70333001 Contact Us For Availability
7
Filter Retainer Guard SPQ F8113901 Contact Us For Availability
7
Rotation Sensor Harness SPQ F421936 Contact Us For Availability
7
SPQ F170404 SPQ F170404 Contact Us For Availability
7
Electrical Access Panel SPQ F8352401 Contact Us For Availability
7
Spray Rinse Bracket Assembly SPQ F730026 Contact Us For Availability
7
SPQ F422109 SPQ F422109 Contact Us For Availability
7
SPQ F431022 SPQ F431022 Contact Us For Availability
7
SPQ F150201P SPQ F150201P Contact Us For Availability
7
SPQ F422900 SPQ F422900 Contact Us For Availability
7
SPQ F798819-00 SPQ F798819-00 Contact Us For Availability
7
SPQ F170215 SPQ F170215 Contact Us For Availability
7
Water Hose SPQ F200110P Contact Us For Availability
7
SPQ F380800P SPQ F380800P Contact Us For Availability
7
SPQ F200165 SPQ F200165 Contact Us For Availability
7
Valve Kit SPQ F421921 Contact Us For Availability
7
Coupling SPQ F8362701 Contact Us For Availability
7
Manifold SPQ F8333201 Contact Us For Availability
7
SPQ F8257001P SPQ F8257001P Contact Us For Availability
7
Manual Bearing Greasing R SPQ F100150P Contact Us For Availability
7
DIN Valve Kit SPQ F380987P Contact Us For Availability
8
Warning Label SPQ 430642 Contact Us For Availability
8
Drive Control Harness SPQ F8246601 Contact Us For Availability
8
SPQ F8136601 SPQ F8136601 Contact Us For Availability
8
Filter SPQ F8152703 Contact Us For Availability
8
Rotation Sensor SPQ F8066401 Contact Us For Availability
8
SPQ F8099201 SPQ F8099201 Contact Us For Availability
8
SPQ F8359201 SPQ F8359201 Contact Us For Availability
8
SPQ F170201 SPQ F170201 Contact Us For Availability
8
SPQ F602058 SPQ F602058 Contact Us For Availability
8
SPQ F431113 SPQ F431113 Contact Us For Availability
8
SPQ F0602364-04 SPQ F0602364-04 Contact Us For Availability
8
SPQ F100203 SPQ F100203 Contact Us For Availability
8
Water Valve Assembly Decal SPQ F230754 Contact Us For Availability
8
SPQ F8118401 SPQ F8118401 Contact Us For Availability
8
SPQ F8137502 SPQ F8137502 Contact Us For Availability
8
Valve SPQ F8521801 Contact Us For Availability
8
SPQ F422208 SPQ F422208 Contact Us For Availability
8
SPQ F8257101 SPQ F8257101 Contact Us For Availability
8
SPQ F8028301P SPQ F8028301P Contact Us For Availability
8
SPQ J1408004 SPQ J1408004 Contact Us For Availability
8
Plug SPQ F420409 Contact Us For Availability
9
Output Auxiliary Power Harness SPQ F8339601 Contact Us For Availability
9
SPQ 51780 SPQ 51780 Contact Us For Availability
9
Rotation Sensor Bracket SPQ F8066201 Contact Us For Availability
9
SPQ F431100 SPQ F431100 Contact Us For Availability
9
SPQ F8278202 SPQ F8278202 Contact Us For Availability
9
SPQ F422108 SPQ F422108 Contact Us For Availability
9
SPQ F602901P SPQ F602901P Contact Us For Availability
9
SPQ F8261301 SPQ F8261301 Contact Us For Availability
9
SPQ F8265501 SPQ F8265501 Contact Us For Availability
9
SPQ F200166 SPQ F200166 Contact Us For Availability
9
U-Bolt Clamp SPQ F8521501 Contact Us For Availability
9
Steam Filter SPQ F270307 Contact Us For Availability
10
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
10
Nut SPQ F8122701 Contact Us For Availability
10
Nut SPQ 70030401 Contact Us For Availability
10
Belt Guard Assembly SPQ F8244201P Contact Us For Availability
10
Spray Rinse Strap SPQ F602880 Contact Us For Availability
10
Hose Barb SPQ F421929 Contact Us For Availability
10
Elbow SPQ F8351501 Contact Us For Availability
10
Reducer Bushing SPQ F8100301 Contact Us For Availability
10
Fill Port SPQ F8351601 Contact Us For Availability
10
Tubing SPQ C000628P Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
11
Screw SPQ 39733 Contact Us For Availability
11
Plug SPQ F8223901 Contact Us For Availability
11
Screw SPQ F8244101 Contact Us For Availability
11
Center Back Panel SPQ F8346501 Contact Us For Availability
11
Spray Pipe Assembly SPQ F8126201 Contact Us For Availability
11
Nut SPQ F431011 Contact Us For Availability
11
Hose Clamp SPQ F200213 Contact Us For Availability
11
Warning Label SPQ 70142 Contact Us For Availability
11
Washer SPQ F431147 Contact Us For Availability
11
Tee SPQ F420402 Contact Us For Availability
11
Screw SPQ 70442301 Contact Us For Availability
11
Cable Tie SPQ F140605 Contact Us For Availability
11
Plug SPQ 70079601 Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
12
Power Distribution Block SPQ M413865 Contact Us For Availability
12
Bushing SPQ 201616P Contact Us For Availability
12
Transformer SPQ F360157P Contact Us For Availability
12
Water Line Caution Decal SPQ F230734 Contact Us For Availability
12
Back Water Panel SPQ F8346301 Contact Us For Availability
12
Lower Door Latch Casting SPQ F150204 Contact Us For Availability
12
Shell Band Gasket SPQ 70391101 Contact Us For Availability
12
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
12
Elbow SPQ F420503 Contact Us For Availability
12
Overflow Hose SPQ F0150488-00 Contact Us For Availability
13
Tee SPQ 44324001 Contact Us For Availability
13
Output Assembly SPQ 803527P Contact Us For Availability
13
Washer SPQ F430231 Contact Us For Availability
13
AC Drive SPQ F8169604 Contact Us For Availability
13
Right Side Cover SPQ F8352601 Contact Us For Availability
13
Shell Front Weldment SPQ F8302001 Contact Us For Availability
13
Washer SPQ M400081 Contact Us For Availability
13
Spin Warning Decal SPQ F200085100 Contact Us For Availability
13
Nipple SPQ F420108 Contact Us For Availability
13
Manifold SPQ F8232006 Contact Us For Availability
13
Molded Drain SPQ F8351301 Contact Us For Availability
14
Male Tab Terminal SPQ 70346501 Contact Us For Availability
14
AC Drive SPQ F8169603 Contact Us For Availability
14
DIN Rail SPQ F8134001 Contact Us For Availability
14
Door Hinge Strap Kit SPQ F200030600P Contact Us For Availability
14
Basket Assembly SPQ F8135801P Contact Us For Availability
14
Extension Arm Tab SPQ F431108 Contact Us For Availability
14
Soap Dispenser Shroud Weldment SPQ F8024301 Contact Us For Availability
14
Drain Hose SPQ F8261303 Contact Us For Availability
14
Screw SPQ F430300 Contact Us For Availability
14
Steam Heat Kit SPQ 70263801 Contact Us For Availability
15
Water Hose SPQ 803615 Contact Us For Availability
15
Snap Bushing SPQ F8108501P Contact Us For Availability
15
Drive Control Harness SPQ F8030201P Contact Us For Availability
15
Water Box Rear Panel SPQ F8278201 Contact Us For Availability
15
Front Bulkhead Panel SPQ F8359001 Contact Us For Availability
15
Door Hinge Pin SPQ F601815 Contact Us For Availability
15
Lower Door Latch Bracket Casting SPQ F601639 Contact Us For Availability
15
Washer SPQ F632015 Contact Us For Availability
15
Trim SPQ F170400RP Contact Us For Availability
15
Nipple SPQ F8110601 Contact Us For Availability
15
Water Valve Repair Kit SPQ F380991P Contact Us For Availability
15
Reducer Bushing SPQ F200165100 Contact Us For Availability
15
Motor Kit SPQ F430993 Contact Us For Availability
16
Drive Power Harness SPQ F8027802 Contact Us For Availability
16
Circuit Breaker SPQ F8303001P Contact Us For Availability
16
Support Bracket SPQ F8302601 Contact Us For Availability
16
Side Electrical Panel SPQ F8346201 Contact Us For Availability
16
Door Butt Shim SPQ F0610695-00 Contact Us For Availability
16
Magnet SPQ F150202 Contact Us For Availability
16
Gasket SPQ F170158P Contact Us For Availability
16
Drain Valve Motor SPQ F422602 Contact Us For Availability
16
Motor SPQ F8356401 Contact Us For Availability
16
Pulley SPQ F280146P Contact Us For Availability
17
Door Switch SPQ F8390801 Contact Us For Availability
17
Harness SPQ F8030002P Contact Us For Availability
17
Right Side Cover SPQ F8278101 Contact Us For Availability
17
Left Side Cover SPQ F8352501 Contact Us For Availability
17
Door Bumper Bushing SPQ F430416 Contact Us For Availability
17
Chemical Supply Cup SPQ F150386 Contact Us For Availability
17
Drain Valve Cover SPQ F200201 Contact Us For Availability
17
Motor Harness SPQ F8334601P Contact Us For Availability
18
Control Assembly Kit SPQ M405340 Contact Us For Availability
18
Step Down Power Harness SPQ F8030001 Contact Us For Availability
18
Top Support Brace SPQ F8099301 Contact Us For Availability
18
Door Bumper Moulding SPQ F150366 Contact Us For Availability
18
Interlock Switch SPQ F431118 Contact Us For Availability
18
Supply Dispenser Spacer SPQ F0150525-00 Contact Us For Availability
18
Coupling SPQ F420103 Contact Us For Availability
18
Street Elbow SPQ F8110201 Contact Us For Availability
18
Pipe SPQ F150438 Contact Us For Availability
18
Pulley SPQ F8049201 Contact Us For Availability
18
Key SPQ F430802 Contact Us For Availability
19
Fuse SPQ F430232 Contact Us For Availability
19
Contactor SPQ 70256901P Contact Us For Availability
19
Expansion Clip SPQ F8117501 Contact Us For Availability
19
Spray Nozzle Gasket SPQ F430103 Contact Us For Availability
19
Dispenser Assembly SPQ F150385 Contact Us For Availability
19
Gate Valve SPQ F420509 Contact Us For Availability
19
Containment Device SPQ F8154501 Contact Us For Availability
19
Shell Reinforcement Plate Ass SPQ F380933P Contact Us For Availability
19
Pipe SPQ F0602365-07 Contact Us For Availability
20
Muffin Fan SPQ F980P3 Contact Us For Availability
20
Hole Plug SPQ 51783 Contact Us For Availability
20
Door Lock Cover SPQ F8165201 Contact Us For Availability
20
Hose Clamp SPQ F0200237-00 Contact Us For Availability
20
O-Ring SPQ F0150512-00P Contact Us For Availability
20
Hose Barb SPQ F8116801 Contact Us For Availability
20
Warning Label SPQ F420101 Contact Us For Availability
20
Hose Barb SPQ F422802 Contact Us For Availability
20
Scupper SPQ F0602365-27 Contact Us For Availability
20
Bushing SPQ F280409P Contact Us For Availability
21
Filter Retainer Guard SPQ 802493 Contact Us For Availability
21
Nut SPQ F8322001 Contact Us For Availability
21
Nut SPQ F330188P Contact Us For Availability
21
Extrusion Insert SPQ F8246401 Contact Us For Availability
21
Water Box Bottom Panel SPQ F8614301 Contact Us For Availability
21
Shell Front Weldment SPQ F431005 Contact Us For Availability
21
Reed Switch Assembly SPQ F340900 Contact Us For Availability
21
Washer SPQ F150364 Contact Us For Availability
21
Water Hose SPQ F8084201 Contact Us For Availability
21
Coupling SPQ F420502 Contact Us For Availability
21
Drain Valve Cover SPQ F060236531 Contact Us For Availability
22
Muffin Fan SPQ F430903 Contact Us For Availability
22
Pop Rivet SPQ 802492 Contact Us For Availability
22
Rub Rail SPQ M411072 Contact Us For Availability
22
Front Bulkhead Panel SPQ F8278401 Contact Us For Availability
22
Door Gasket SPQ F8322701 Contact Us For Availability
22
Solenoid Mount Bracket SPQ F601055 Contact Us For Availability
22
Tee SPQ F431215 Contact Us For Availability
22
Screw SPQ F601806 Contact Us For Availability
22
Vacuum Breaker Cap SPQ F8137504 Contact Us For Availability
22
Fill Plumbing Connection SPQ F380500 Contact Us For Availability
22
Grease Fitting SPQ F280410 Contact Us For Availability
23
Door Lock Solenoid Shim SPQ F430264 Contact Us For Availability
23
Filter SPQ F140938 Contact Us For Availability
23
Drive Fan Harness SPQ M402542 Contact Us For Availability
23
Drive Box Bottom Panel SPQ F8302602 Contact Us For Availability
23
Drain Valve Harness SPQ F150389 Contact Us For Availability
23
Dispenser Lid SPQ 802292 Contact Us For Availability
23
Hose Clamp SPQ F421964 Contact Us For Availability
24
Plug Cap SPQ F730168 Contact Us For Availability
24
Expansion Clip SPQ F8079401 Contact Us For Availability
24
Trim SPQ F8223801 Contact Us For Availability
24
Front Panel SPQ F8099601P Contact Us For Availability
24
Control Box Partition SPQ F8278301 Contact Us For Availability
24
Push Handle Kit SPQ F430502 Contact Us For Availability
24
Door Lock Dielectric Shield SPQ F8127601 Contact Us For Availability
24
Street Elbow SPQ F0170221-00 Contact Us For Availability
25
Left Side Panel SPQ F430211 Contact Us For Availability
25
Expansion Clip SPQ F8282401 Contact Us For Availability
25
Door Lock Solenoid SPQ F8066801P Contact Us For Availability
25
Vacuum Breaker Valve SPQ F0380808-00 Contact Us For Availability
26
Trim SPQ F8077601 Contact Us For Availability
26
Lock Bracket SPQ F430995 Contact Us For Availability
26
Slinger SPQ F430924 Contact Us For Availability
26
Catch Basin SPQ F8074701 Contact Us For Availability
27
Panel Locator SPQ F430921 Contact Us For Availability
27
Elbow SPQ F170145 Contact Us For Availability
27
Pop Rivet SPQ F8127501 Contact Us For Availability
27
Scupper SPQ F431116 Contact Us For Availability
27
Air Coupling SPQ F190701 Contact Us For Availability
28
SPQ F150397 SPQ F150397 Contact Us For Availability
28
Pop Rivet SPQ F017014501 Contact Us For Availability
28
Door Lock Assembly SPQ F8133601 Contact Us For Availability
28
Pop Rivet SPQ F431112 Contact Us For Availability
28
SPQ F422803 SPQ F422803 Contact Us For Availability
29
Nut SPQ 685846 Contact Us For Availability
29
Connector SPQ F430910 Contact Us For Availability
29
SPQ F150408 SPQ F150408 Contact Us For Availability
29
Door Glass Gasket SPQ F730307 Contact Us For Availability
29
Extension Arm Kit SPQ F8135301 Contact Us For Availability
29
SPQ F422901 SPQ F422901 Contact Us For Availability
30
SPQ F8098301 SPQ F8098301 Contact Us For Availability
30
Door Assembly SPQ F609427 Contact Us For Availability
30
No-Swivel Coupling SPQ F230652 Contact Us For Availability
30
Top Latch Bracket Casting SPQ F300129P Contact Us For Availability
32
Door Glass Retainer SPQ F422319 Contact Us For Availability
32
Door Lock Harness SPQ F8127401 Contact Us For Availability
33
SPQ F430956 SPQ F430956 Contact Us For Availability
34
No-Swivel Coupling SPQ F170117 Contact Us For Availability
34
SPQ F431210 SPQ F431210 Contact Us For Availability
35
O-Ring SPQ F8350501P Contact Us For Availability
35
SPQ F8127701 SPQ F8127701 Contact Us For Availability
36
SPQ 802337 SPQ 802337 Contact Us For Availability
NI
SPQ F200318900P SPQ F200318900P Contact Us For Availability
NI
Control Box Top Panel SPQ F430174 Contact Us For Availability
NI
SPQ F8170601 SPQ F8170601 Contact Us For Availability
NI
SPQ F8055001 SPQ F8055001 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
SPQ 00177 SPQ 00177 Contact Us For Availability
NI
CFG Harness SPQ F8223001P Contact Us For Availability
NI
Network Wire Harness Assembly SPQ F422500 Contact Us For Availability
NI
SPQ M413507 SPQ M413507 Contact Us For Availability
NI
SPQ F8060401P SPQ F8060401P Contact Us For Availability
NI
SPQ F8030101P SPQ F8030101P Contact Us For Availability
NI
SPQ F8028109 SPQ F8028109 Contact Us For Availability
NI
SPQ F8367801 SPQ F8367801 Contact Us For Availability
NI
Use Copper Conductors Only Caution Label SPQ M413862 Contact Us For Availability
NI
Logic Supply Power Harness SPQ F230630 Contact Us For Availability
NI
Electric Heat Harness SPQ F8060301 Contact Us For Availability
NI
SPQ F8054903 SPQ F8054903 Contact Us For Availability
NI
SPQ F8054603 SPQ F8054603 Contact Us For Availability
NI
SPQ F8054601 SPQ F8054601 Contact Us For Availability
NI
SPQ 70058501 SPQ 70058501 Contact Us For Availability
NI
SPQ F8151201 SPQ F8151201 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ F310206 SPQ F310206 Contact Us For Availability
NI
SPQ F8029101 SPQ F8029101 Contact Us For Availability
NI
SPQ F8273302 SPQ F8273302 Contact Us For Availability
NI
SPQ M400013 SPQ M400013 Contact Us For Availability
NI
Shell Weldment SPQ F8351502 Contact Us For Availability
NI
SPQ F150469 SPQ F150469 Contact Us For Availability
NI
Y Connector SPQ F422816 Contact Us For Availability
NI
Valve Kit SPQ F200401P Contact Us For Availability
NI
SPQ F8073701P SPQ F8073701P Contact Us For Availability
NI
SPQ F8073601P SPQ F8073601P Contact Us For Availability
NI
SPQ F200164 SPQ F200164 Contact Us For Availability
NI
SPQ F8265701 SPQ F8265701 Contact Us For Availability
NI
SPQ F421908 SPQ F421908 Contact Us For Availability
NI
Fill/Supply Harness SPQ F8347501 Contact Us For Availability
NI
SPQ C002662 SPQ C002662 Contact Us For Availability
NI
SPQ F8347102 SPQ F8347102 Contact Us For Availability
NI
SPQ F8379501P SPQ F8379501P Contact Us For Availability
NI
Fill Plumbing Assembly SPQ F8288404 Contact Us For Availability
NI
Fill Valve Harness SPQ F8347104 Contact Us For Availability
NI
SPQ F431134 SPQ F431134 Contact Us For Availability
NI
SPQ F8436801P SPQ F8436801P Contact Us For Availability
NI
SPQ F8054701P SPQ F8054701P Contact Us For Availability
NI
Steam Heat Kit SPQ F943P3 Contact Us For Availability
NI
Steam Assembly SPQ F8394501 Contact Us For Availability
NI
UniLinc PC and PDA Software CD SPQ F8133701 Contact Us For Availability
NI
Mounting Bolt Kit SPQ F8133301 Contact Us For Availability
NI
Wet-Clean Kit SPQ 203346 Contact Us For Availability
NI
Concrete Hardware Kit SPQ F924P3 Contact Us For Availability
NI
SPQ 1113P SPQ 1113P Contact Us For Availability
× ![]()
