Model Unimac UWL080T3V Washer – Common Parts & Diagrams

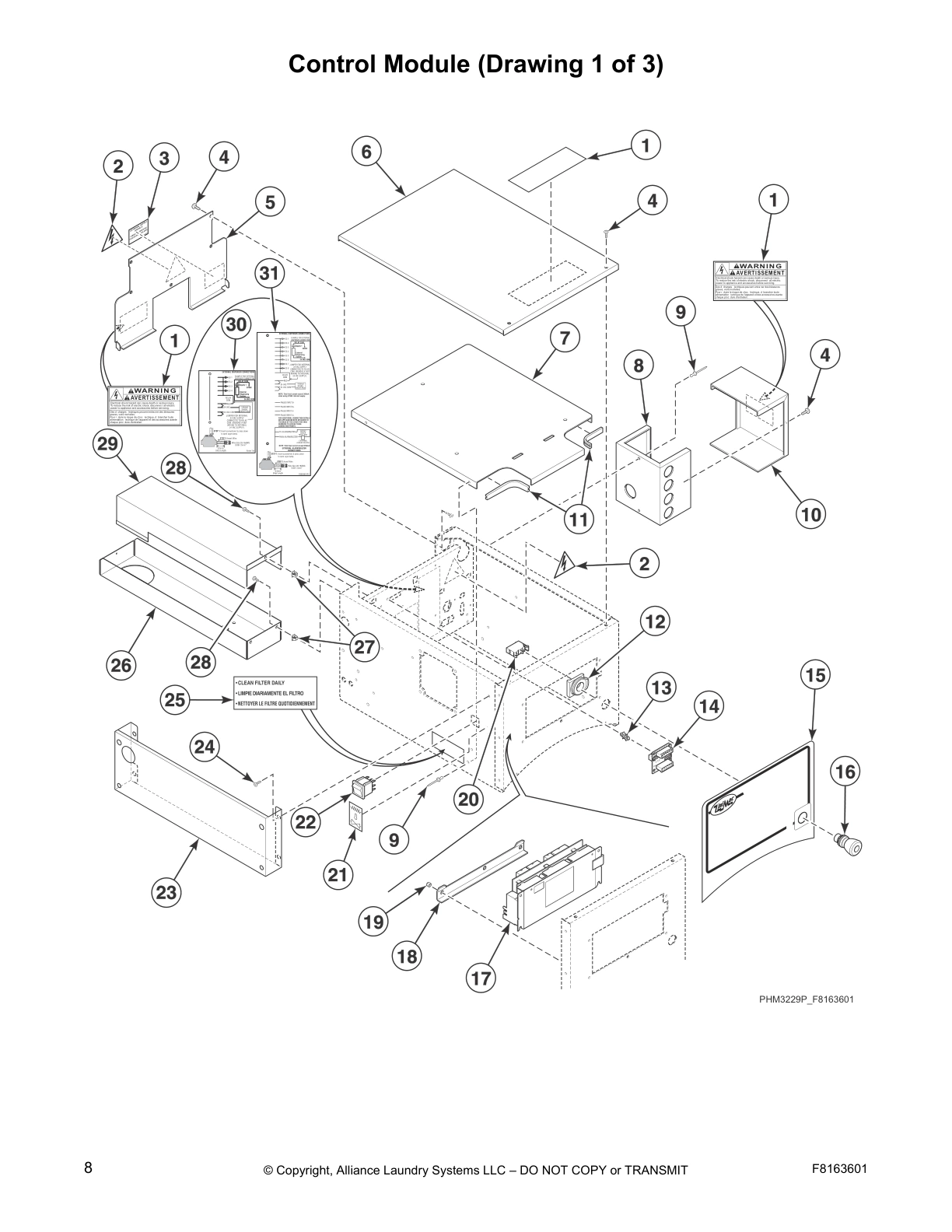

Control Module (Drawing 1 of 3)

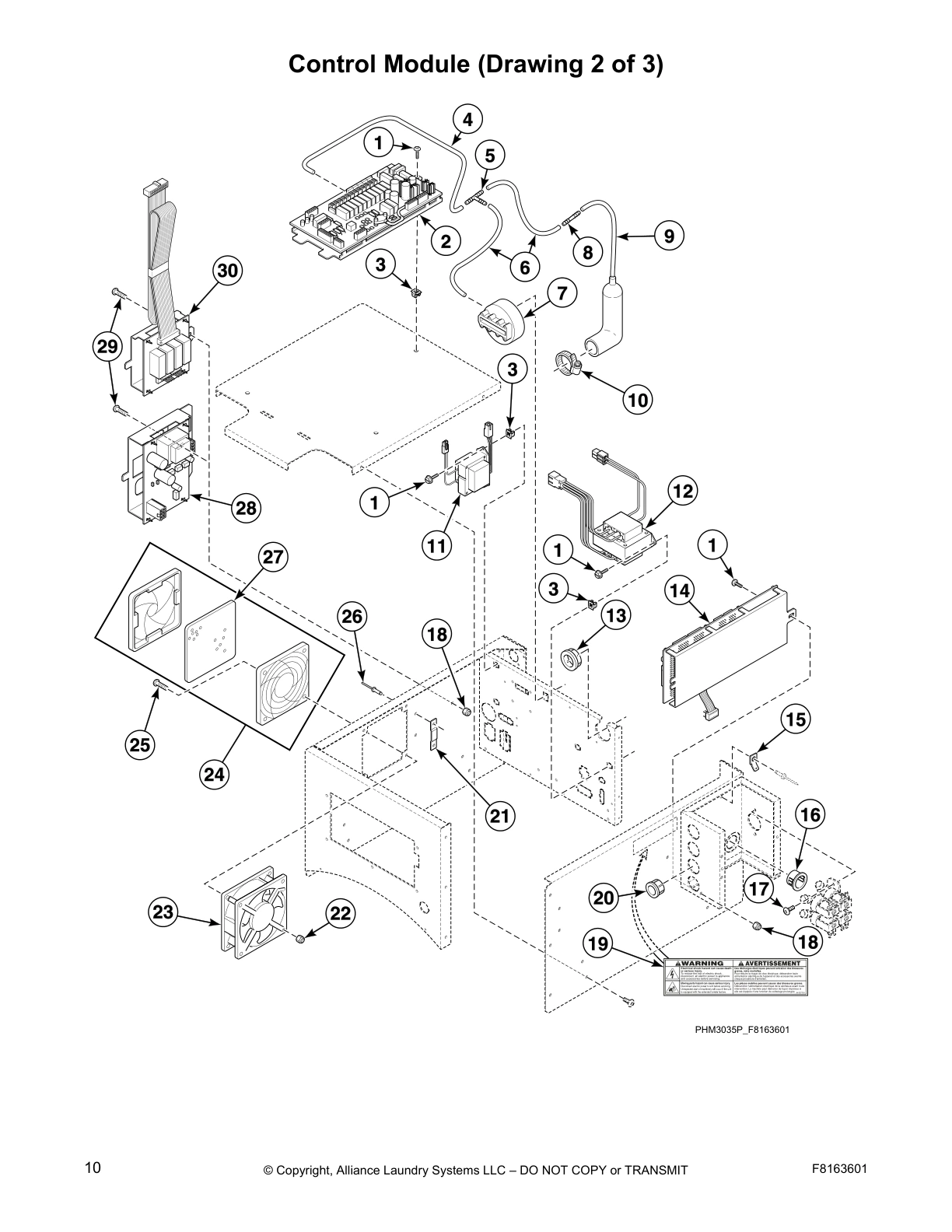

Control Module (Drawing 2 of 3)

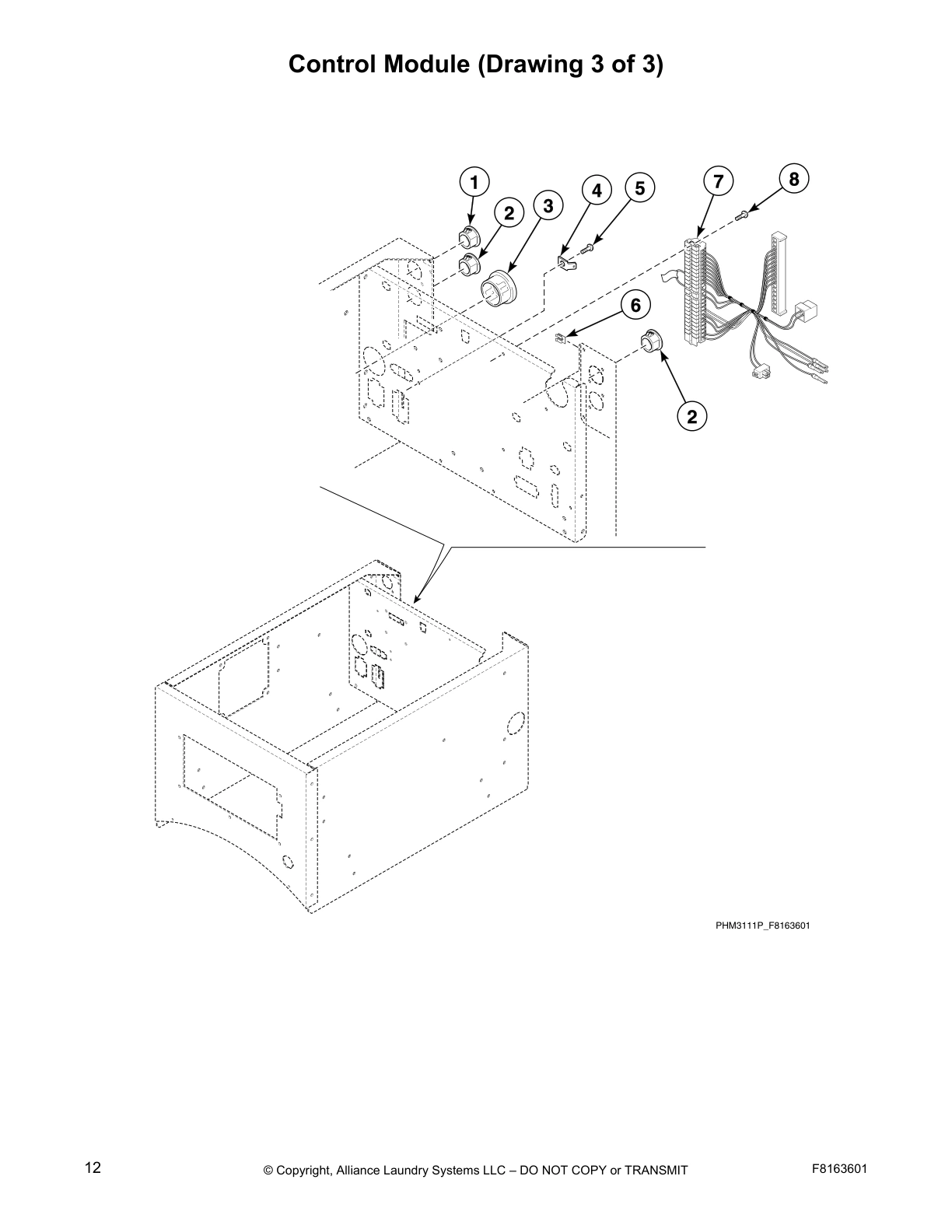

Control Module (Drawing 3 of 3)

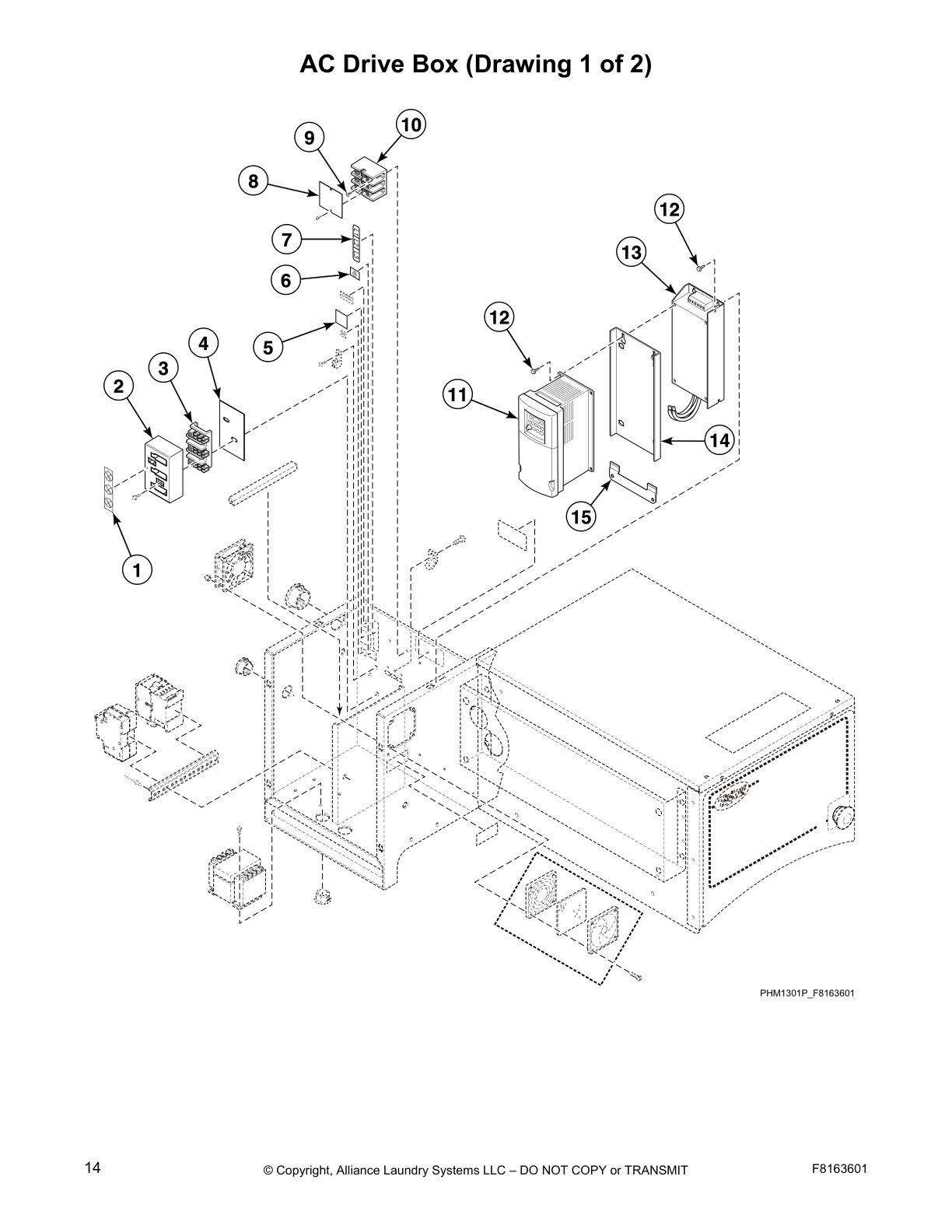

AC Drive Box (Drawing 1 of 2)

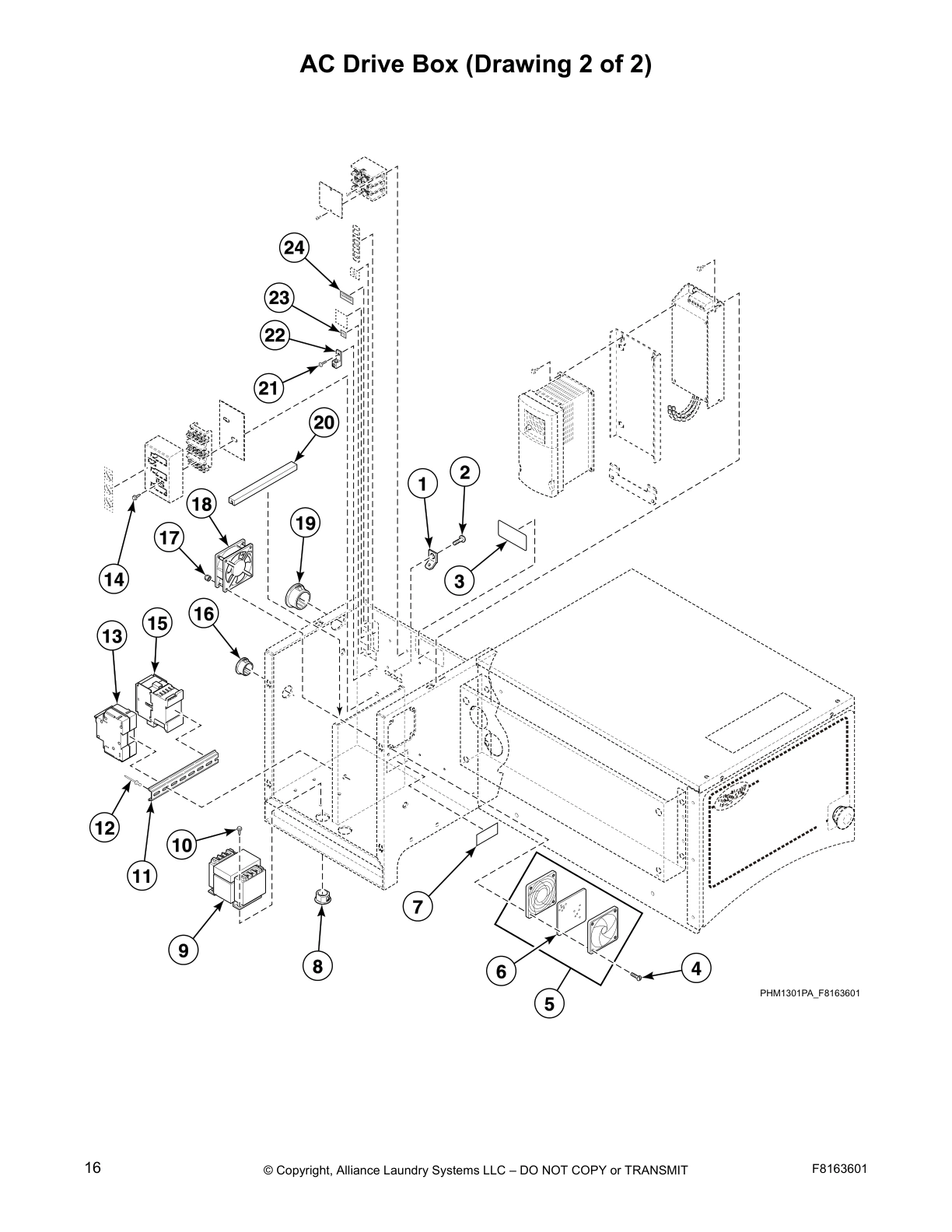

AC Drive Box (Drawing 2 of 2)

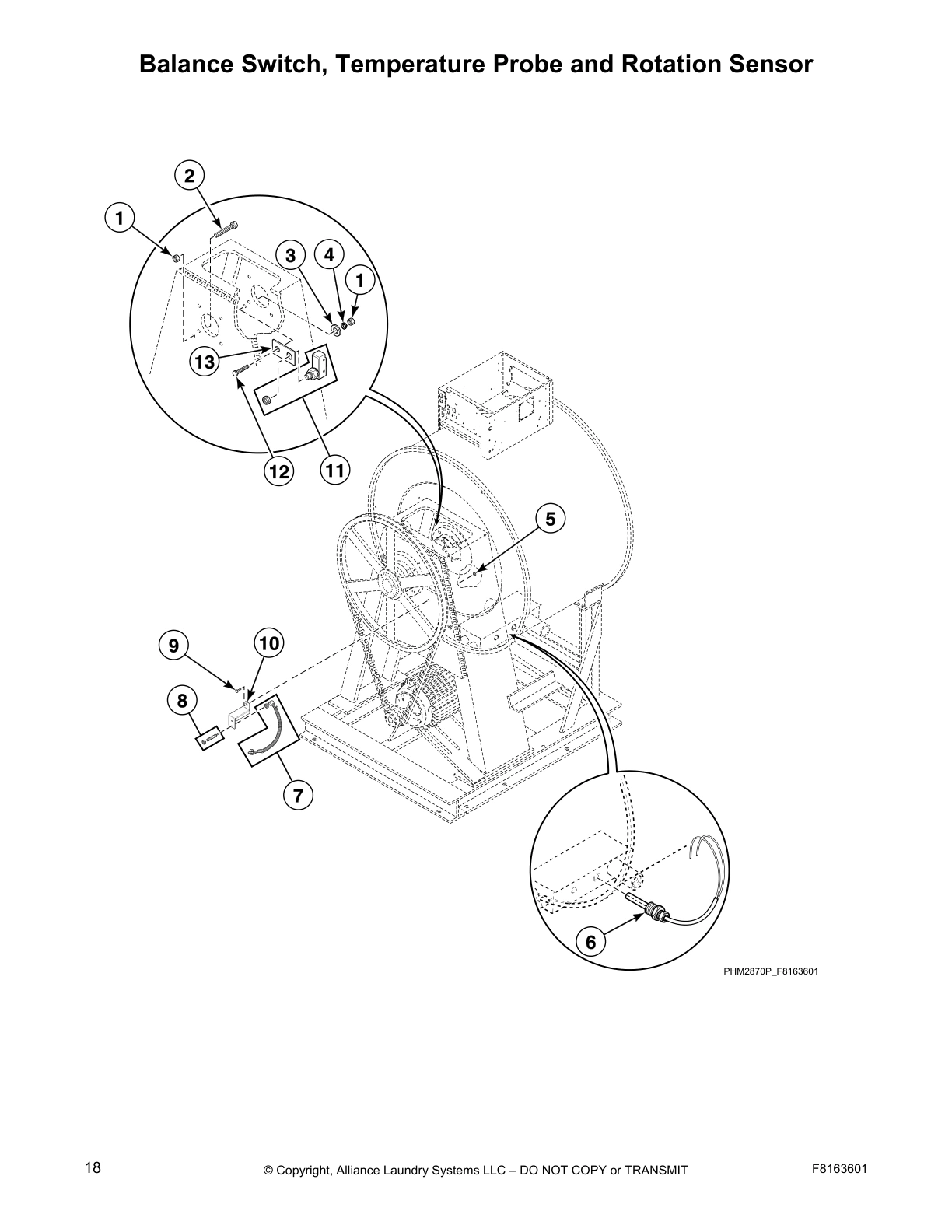

Balance Switch, Temperature Probe and Rotation Sensor

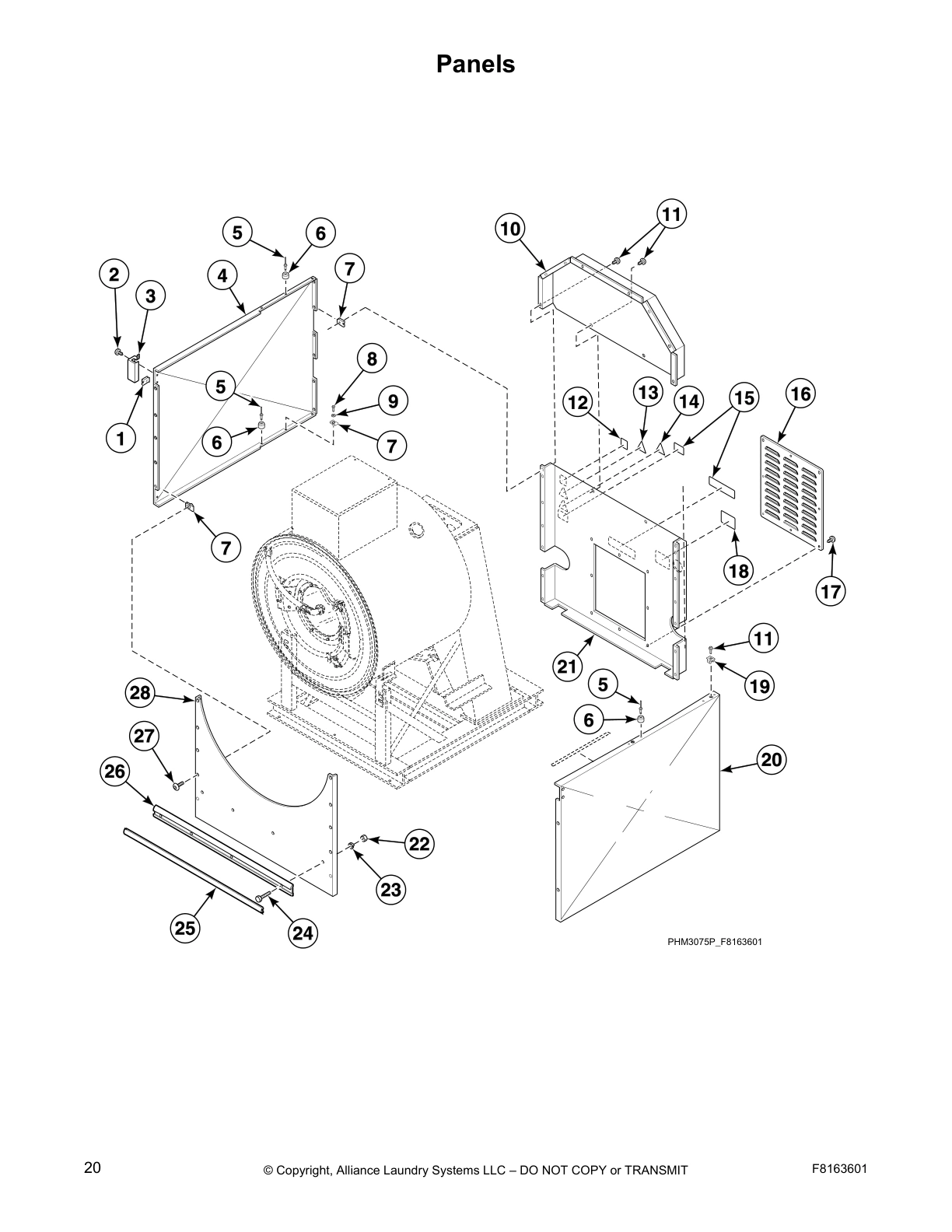

Panels

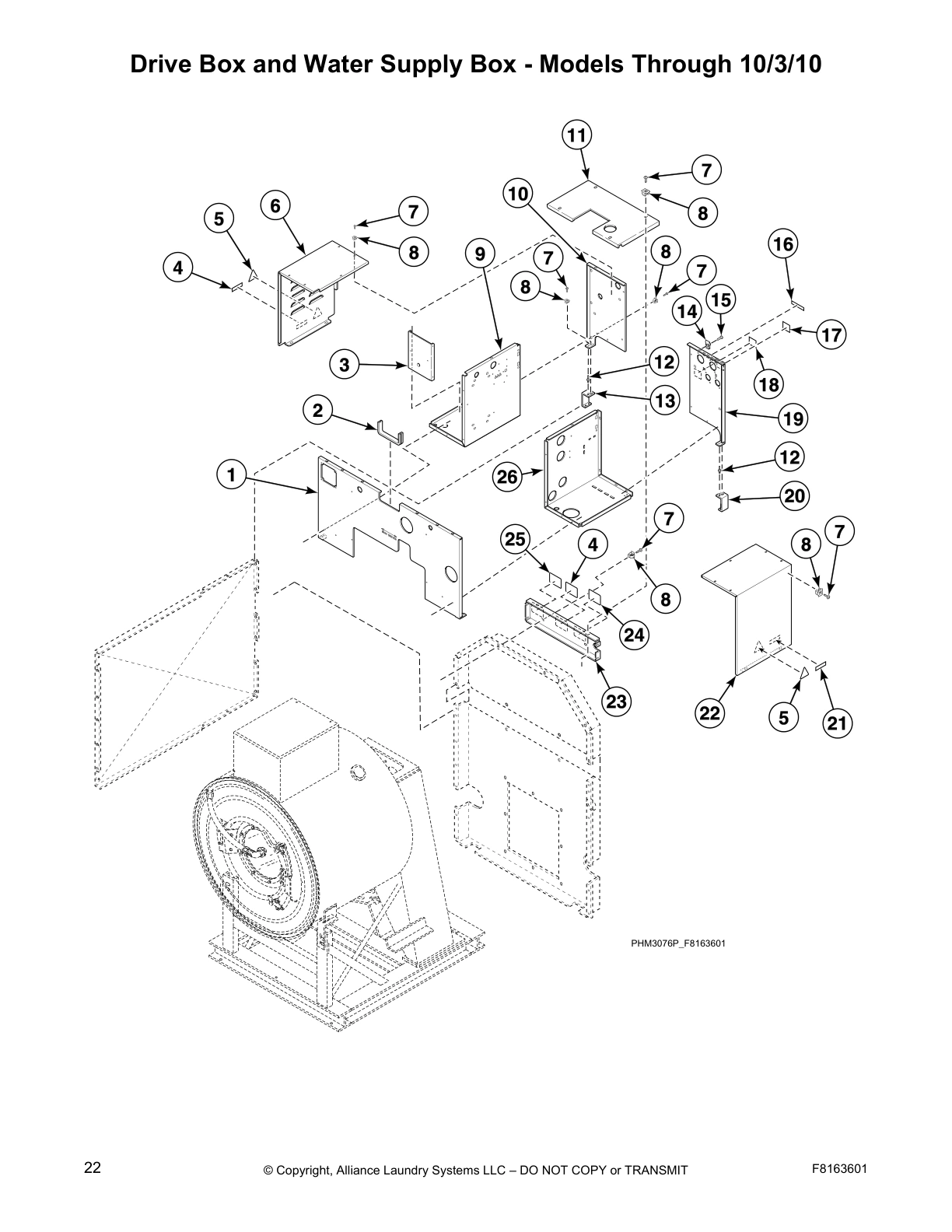

Drive Box and Water Supply Box - Models Through 10/3/10

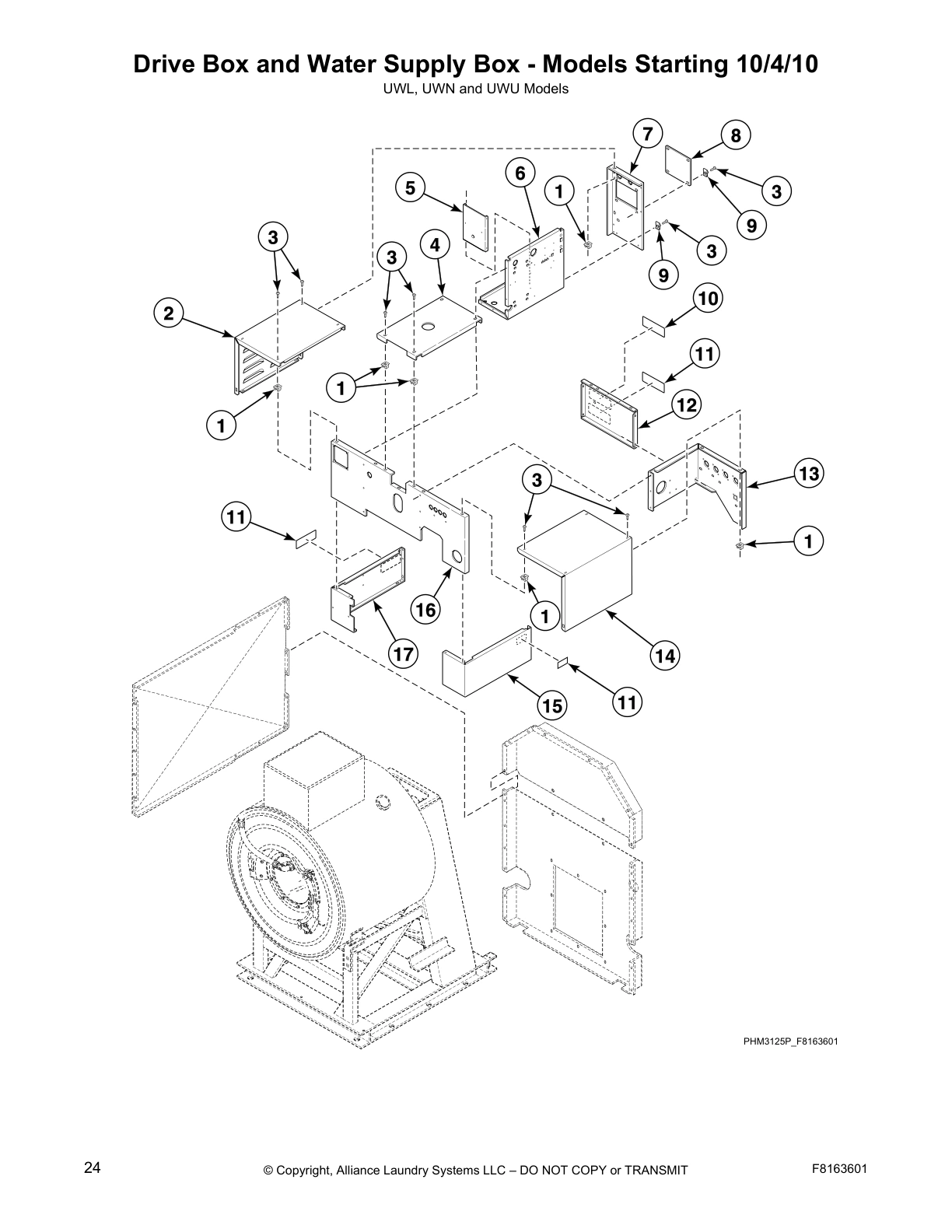

Drive Box and Water Supply Box - Models Starting 10/4/10

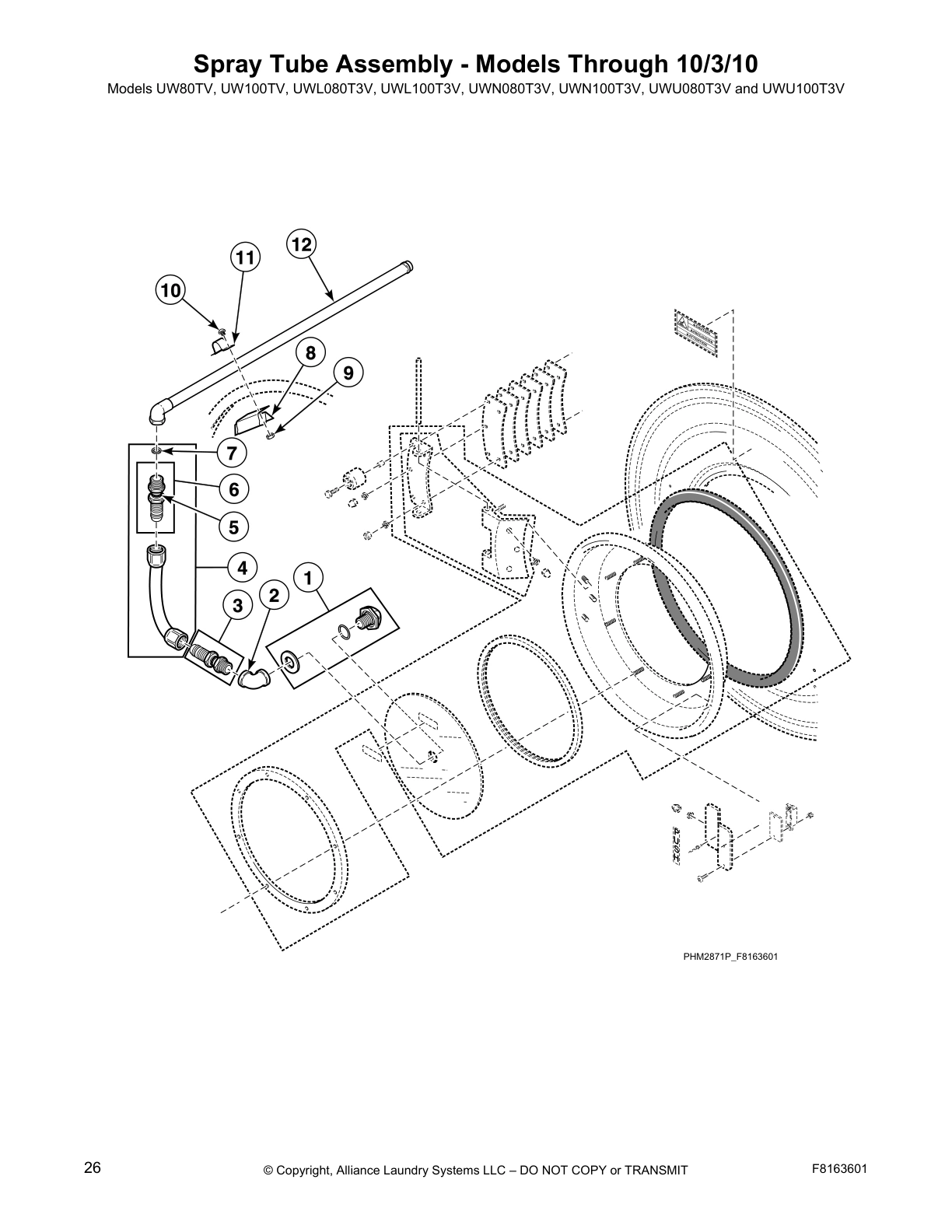

Spray Tube Assembly - Models Through 10/3/10

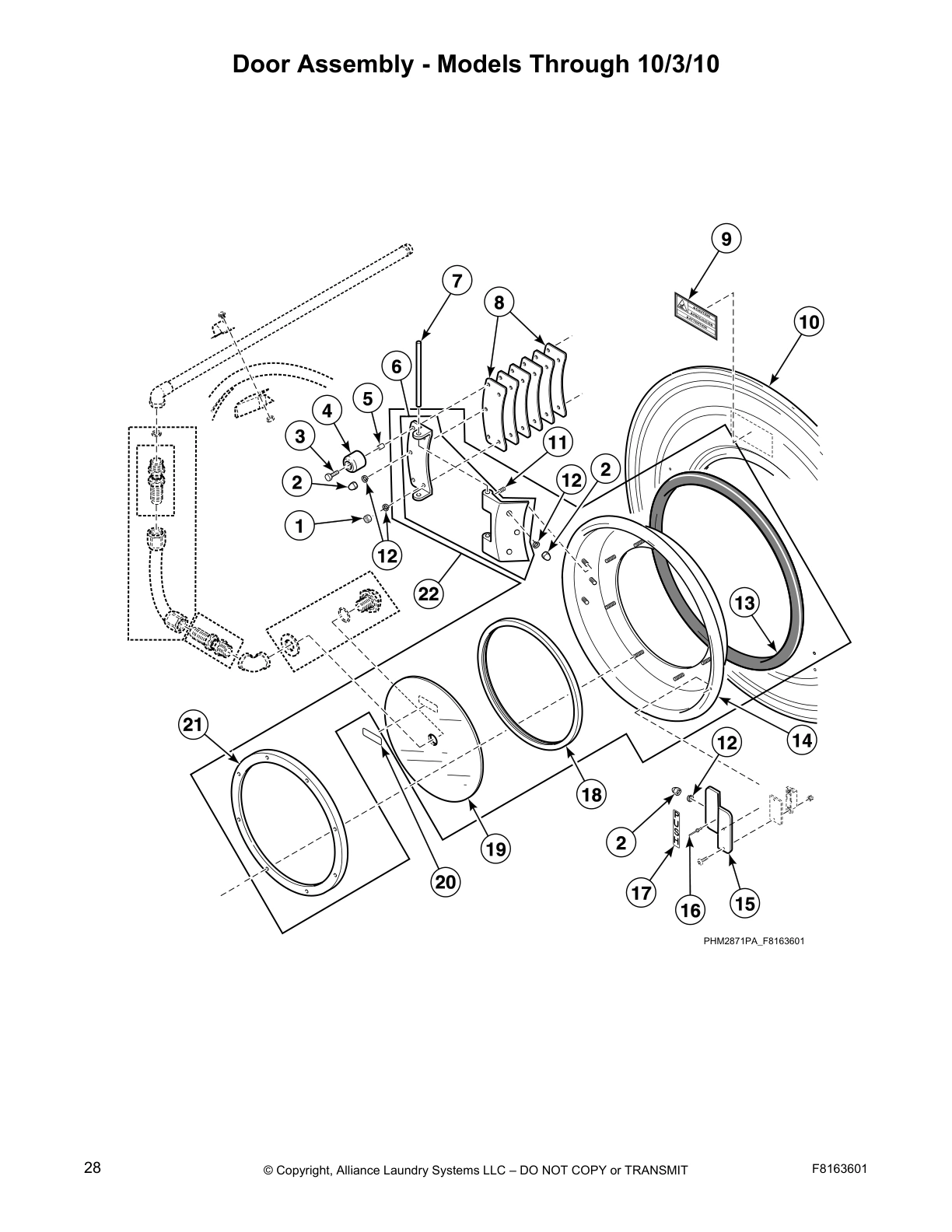

Door Assembly - Models Through 10/3/10

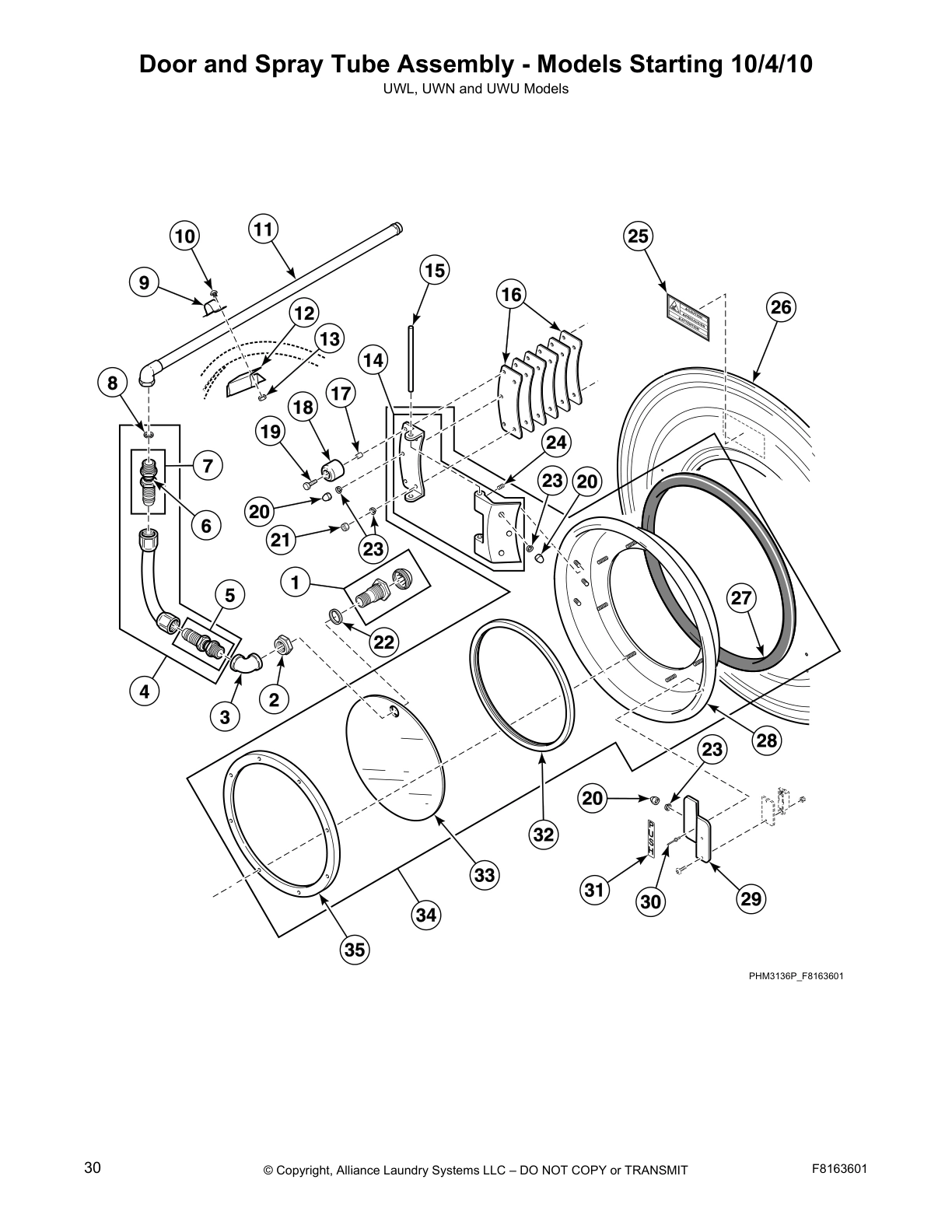

Door and Spray Tube Assembly - Models Starting 10/4/10

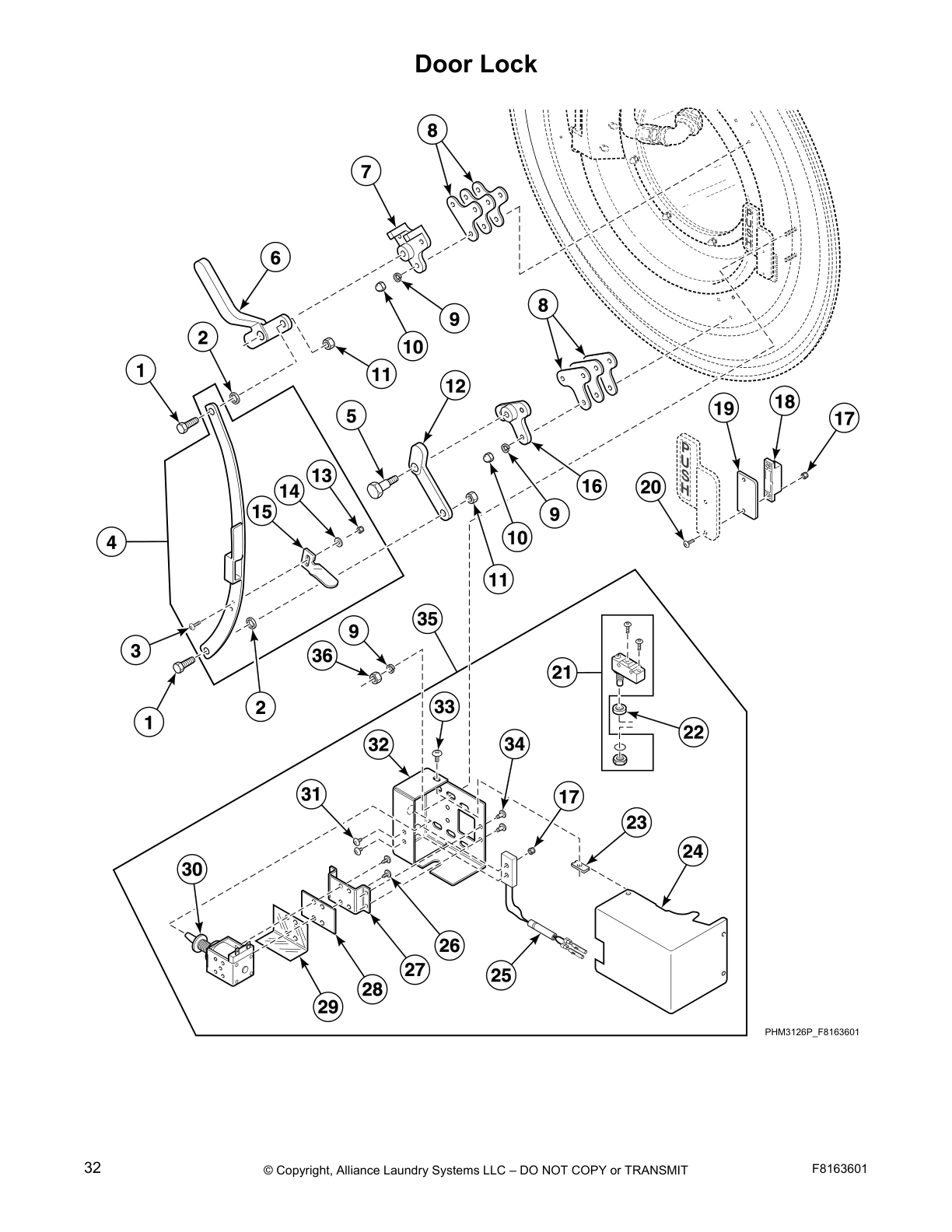

Door Lock

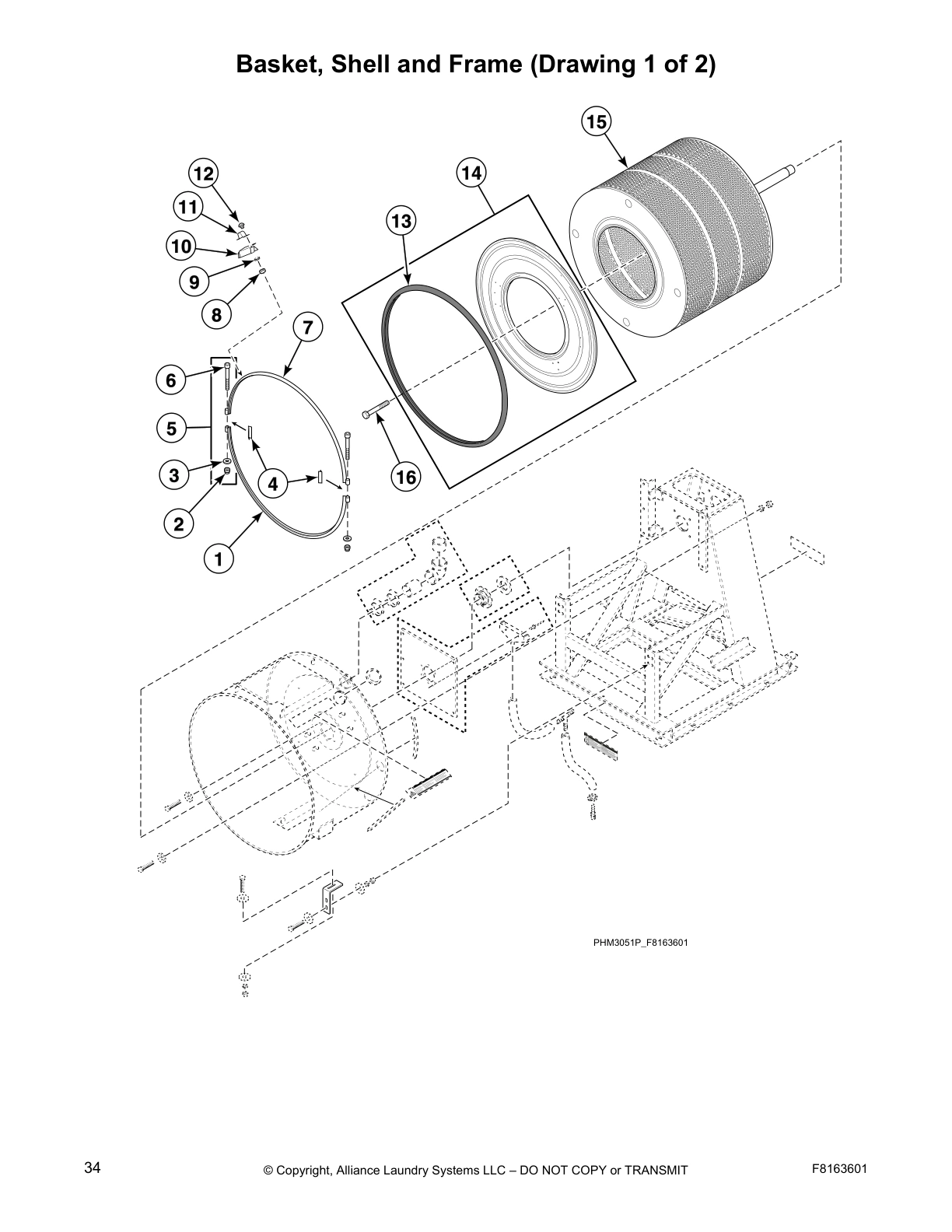

Basket, Shell and Frame (Drawing 1 of 2)

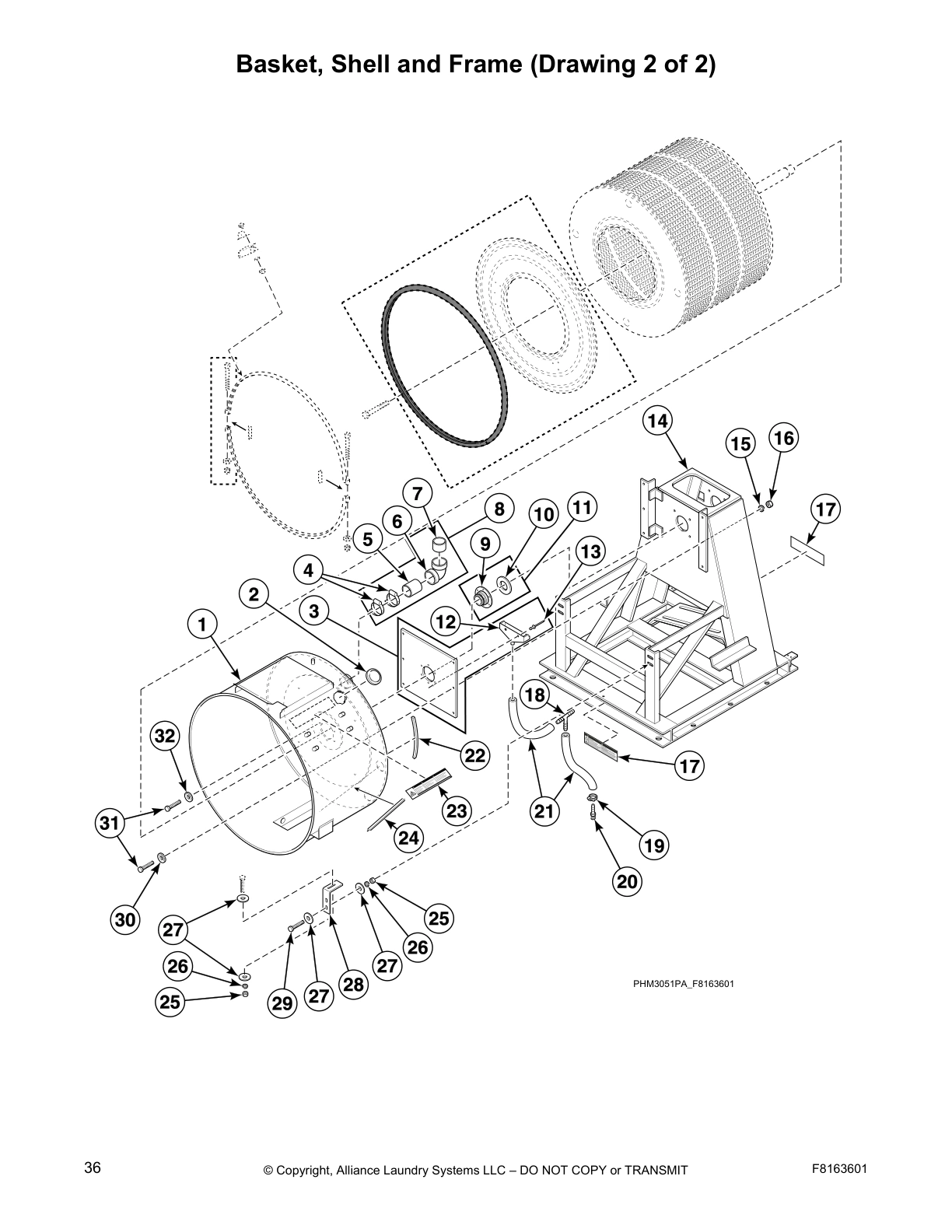

Basket, Shell and Frame (Drawing 2 of 2)

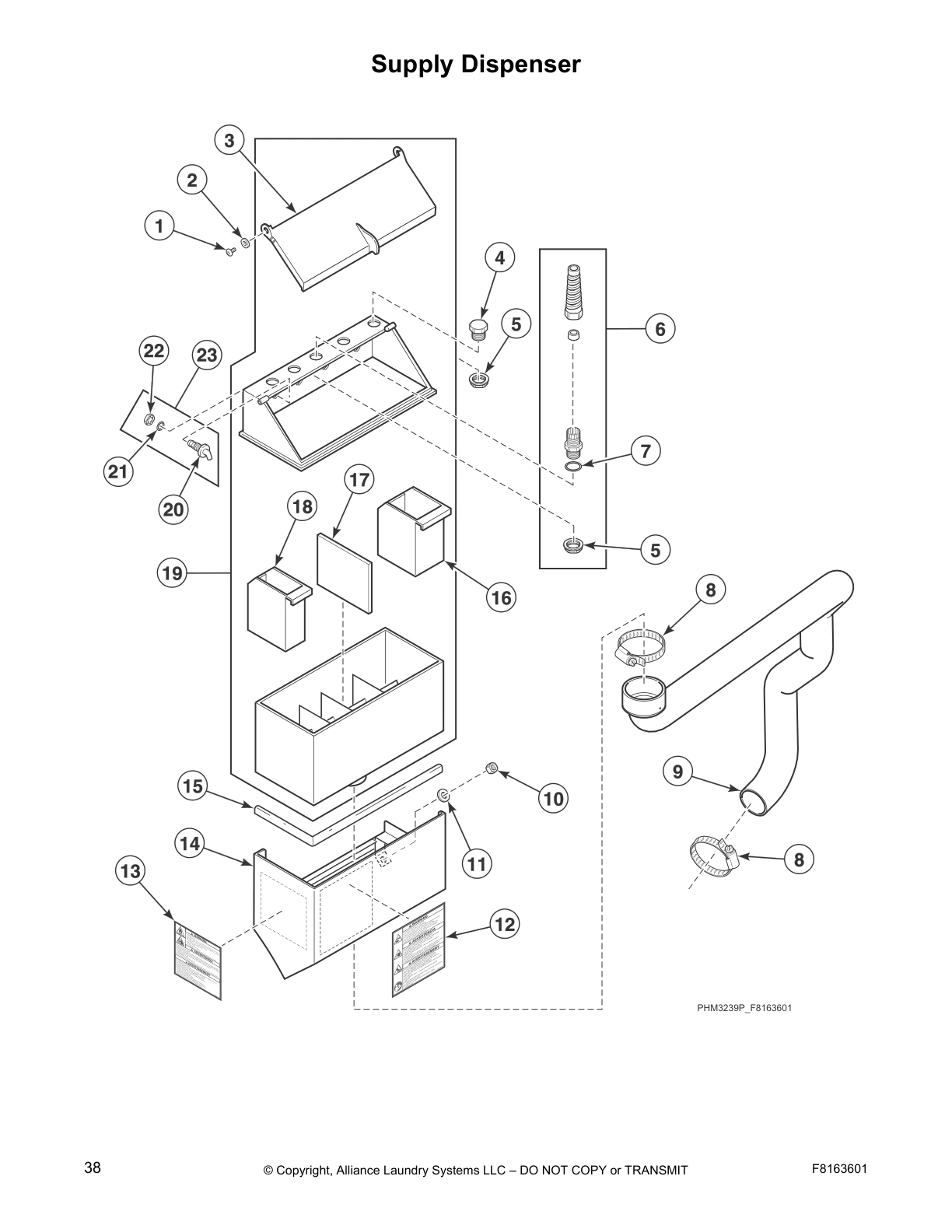

Supply Dispenser

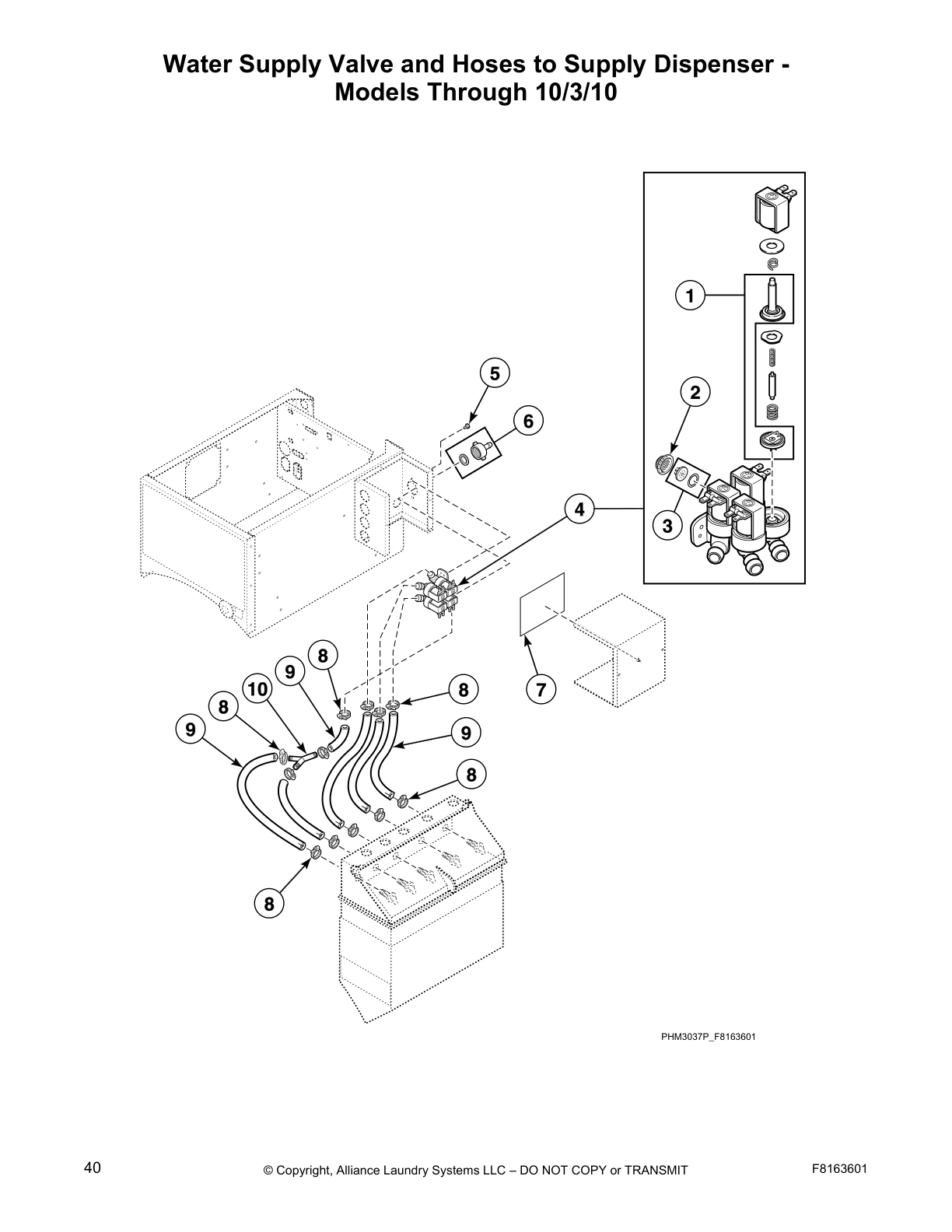

Water Supply Valve and Hoses to Supply Dispenser -
Models Through 10/3/10

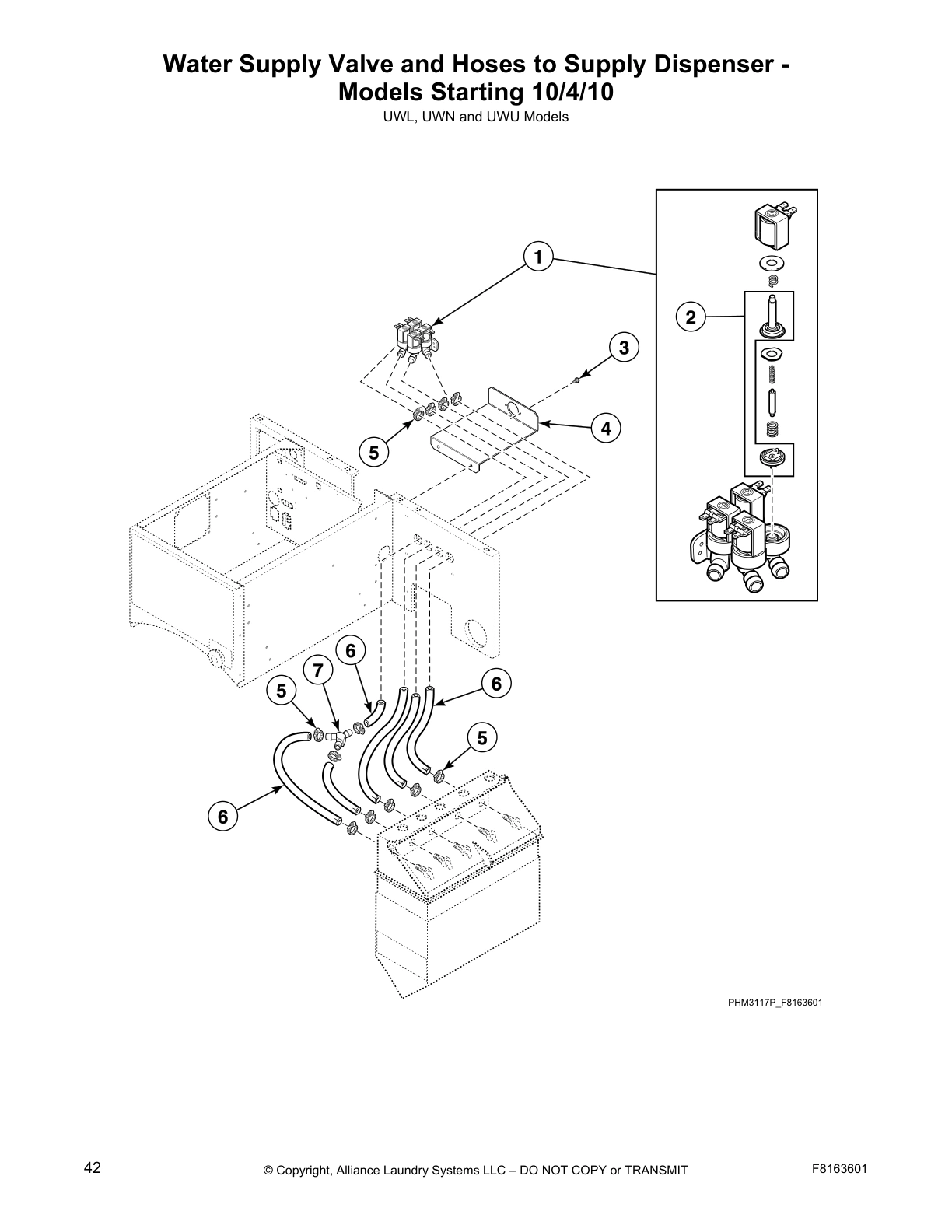

Water Supply Valve and Hoses to Supply Dispenser -
Models Starting 10/4/10

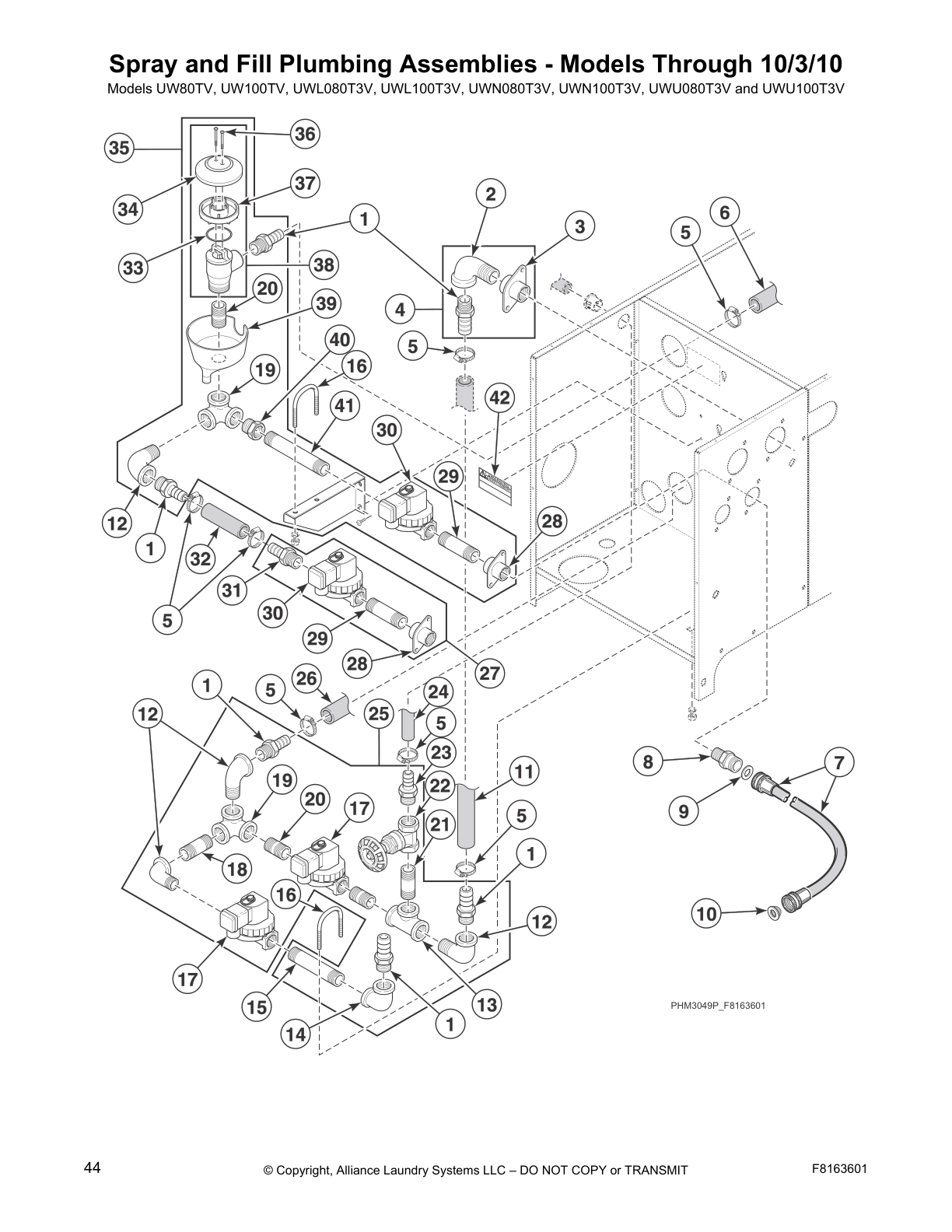

Spray and Fill Plumbing Assemblies - Models Through 10/3/10

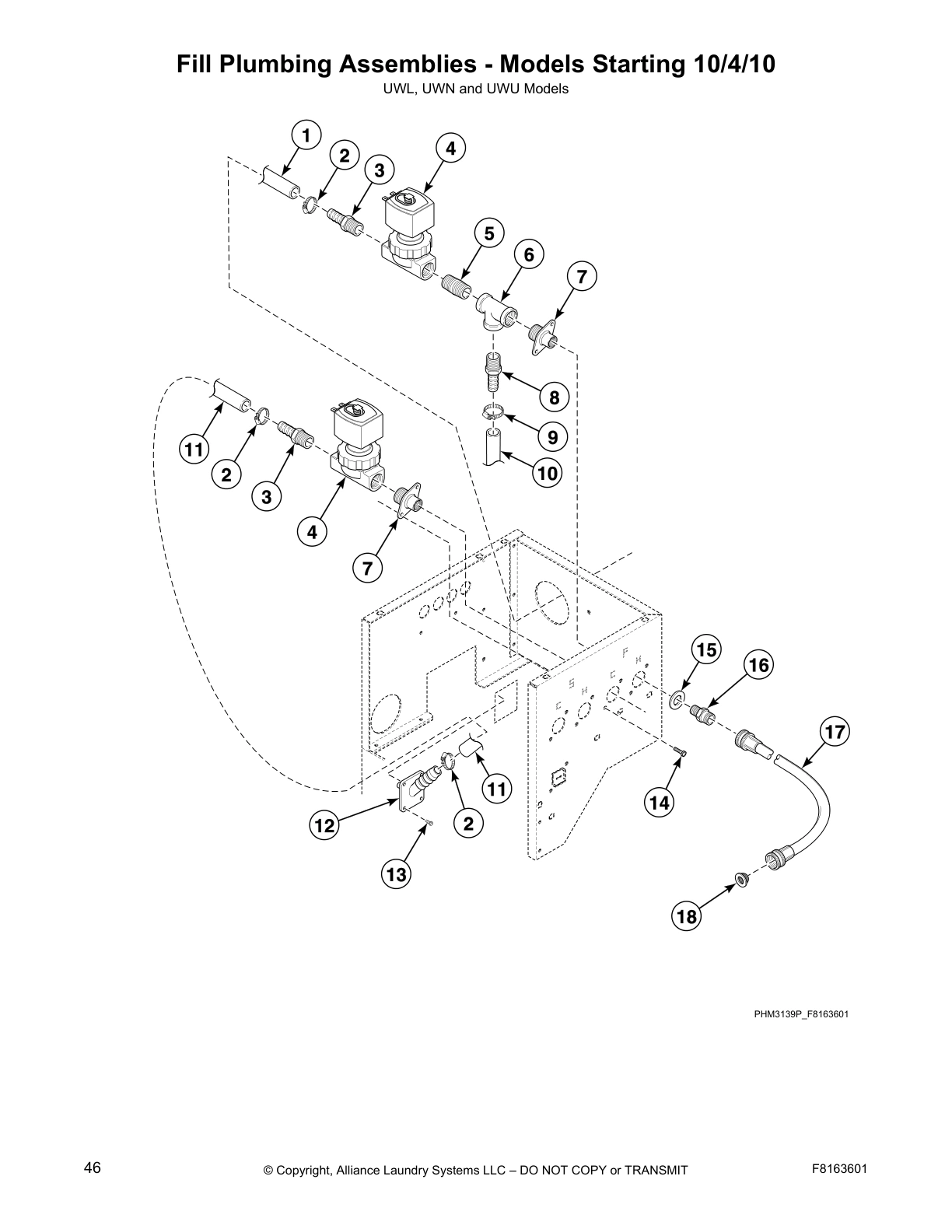

Fill Plumbing Assemblies - Models Starting 10/4/10

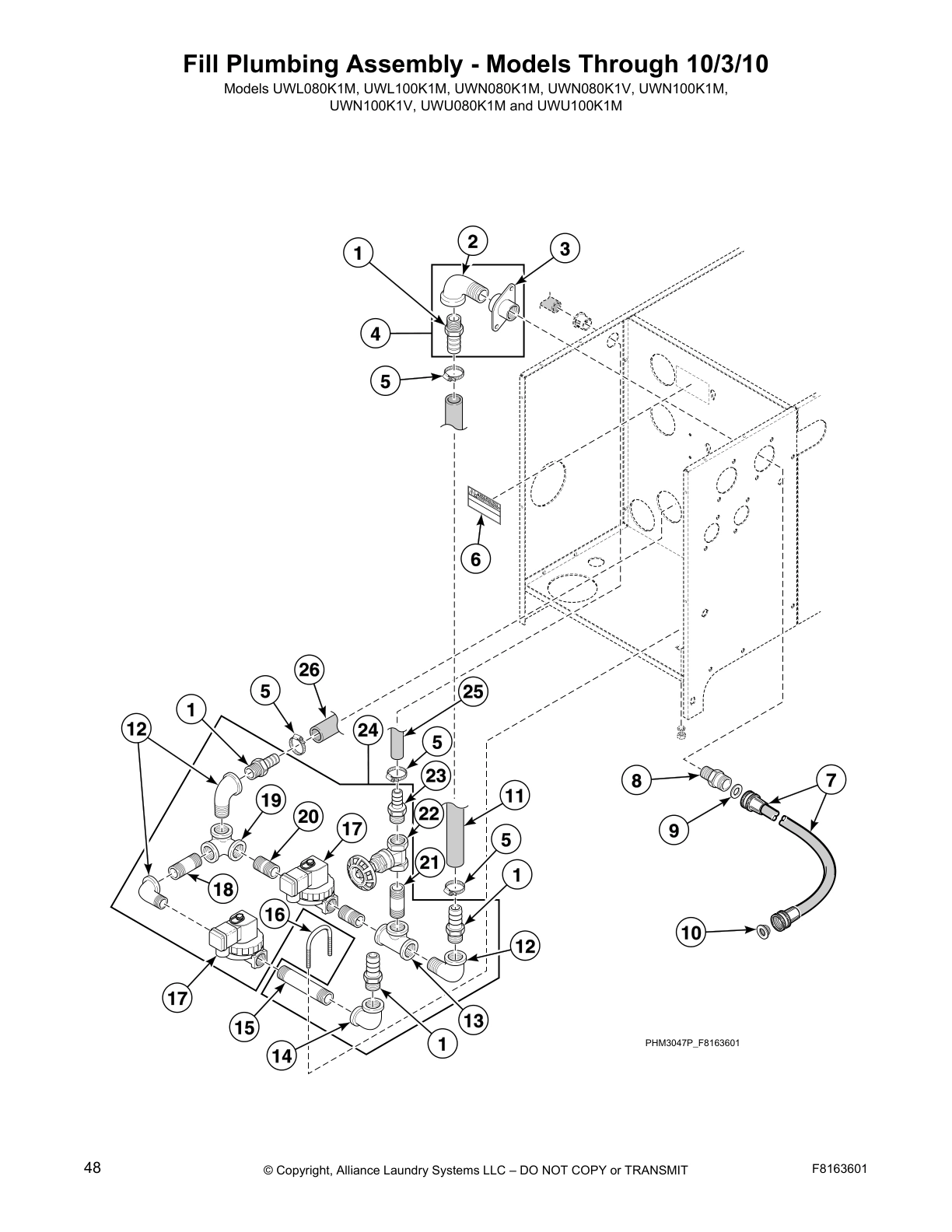

Fill Plumbing Assembly - Models Through 10/3/10

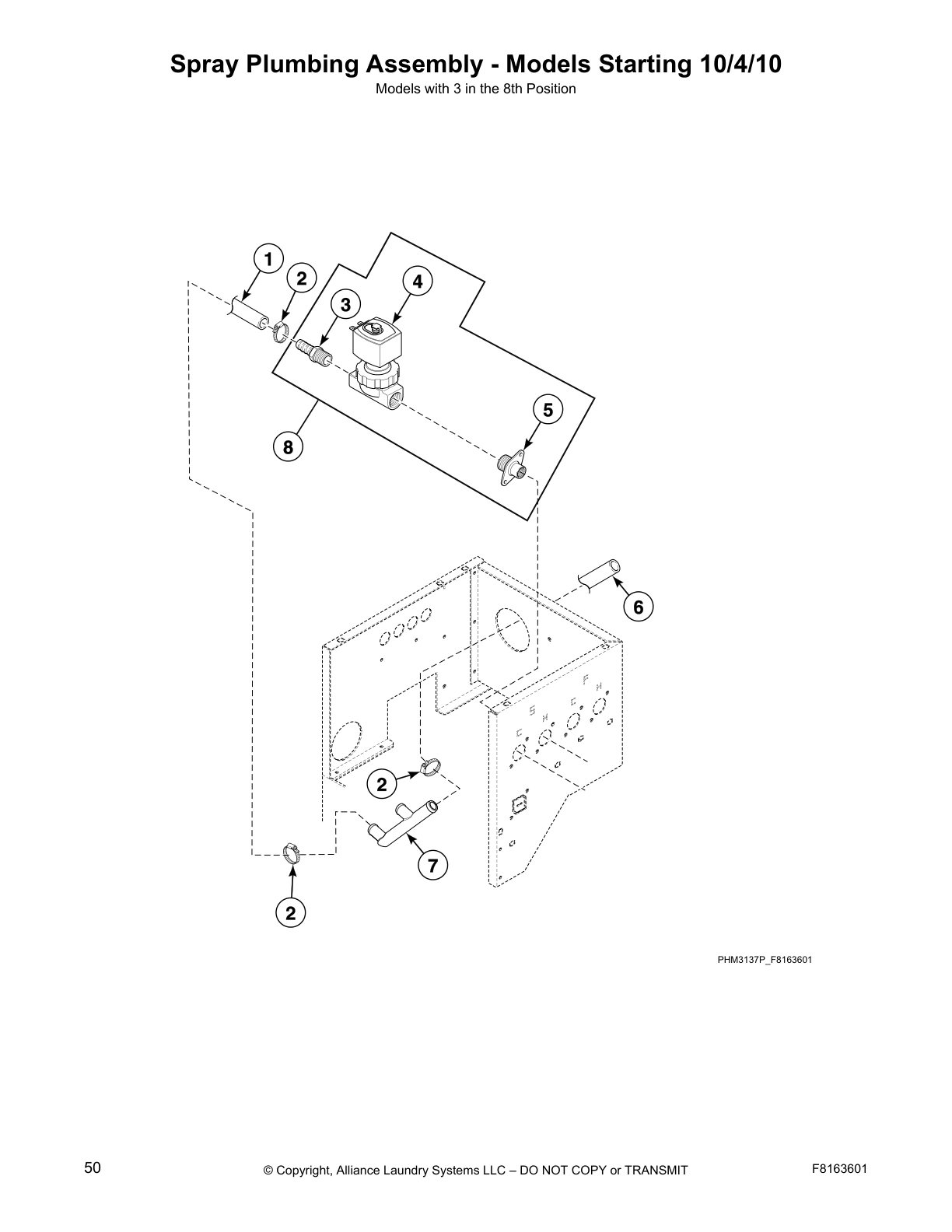

Spray Plumbing Assembly - Models Starting 10/4/10

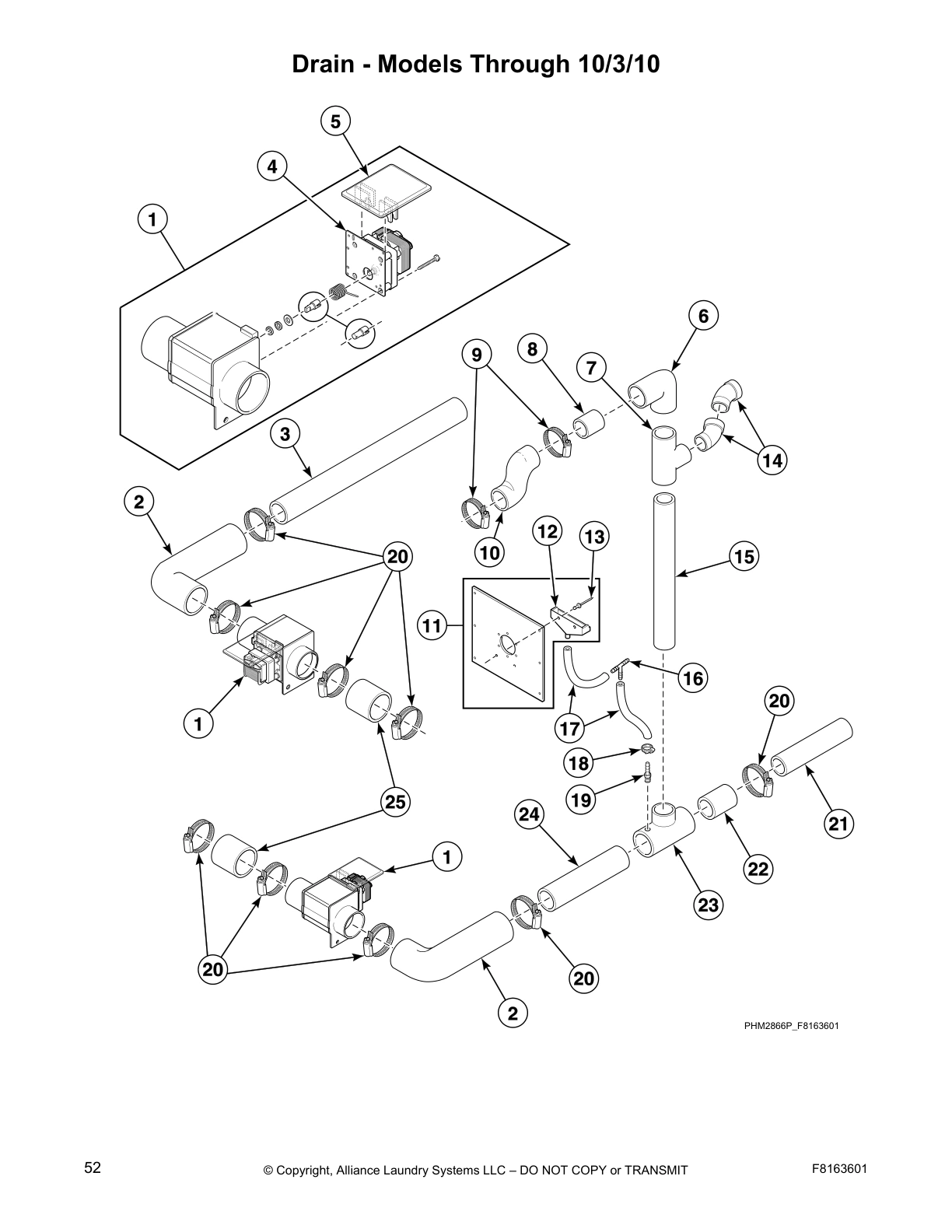

Drain - Models Through 10/3/10

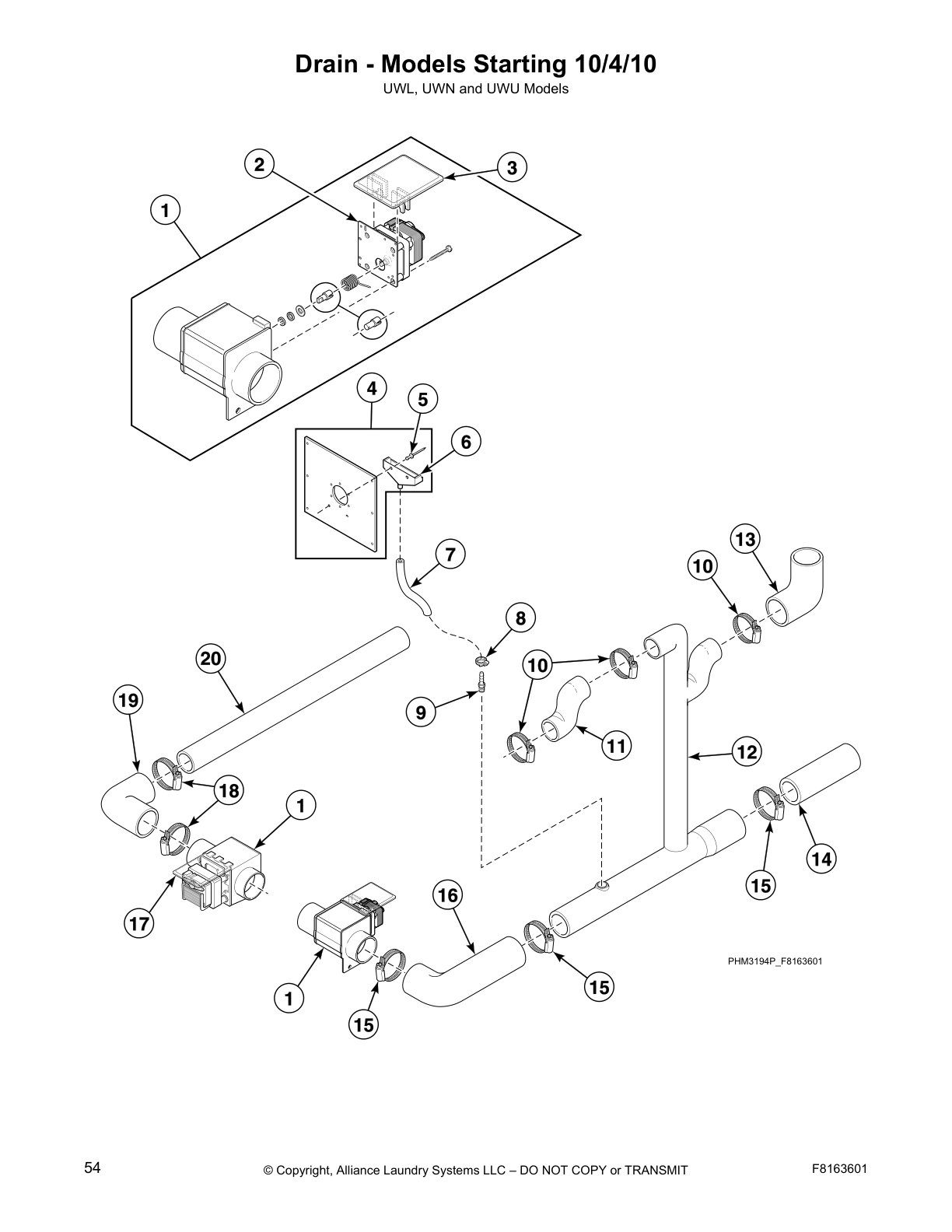

Drain - Models Starting 10/4/10

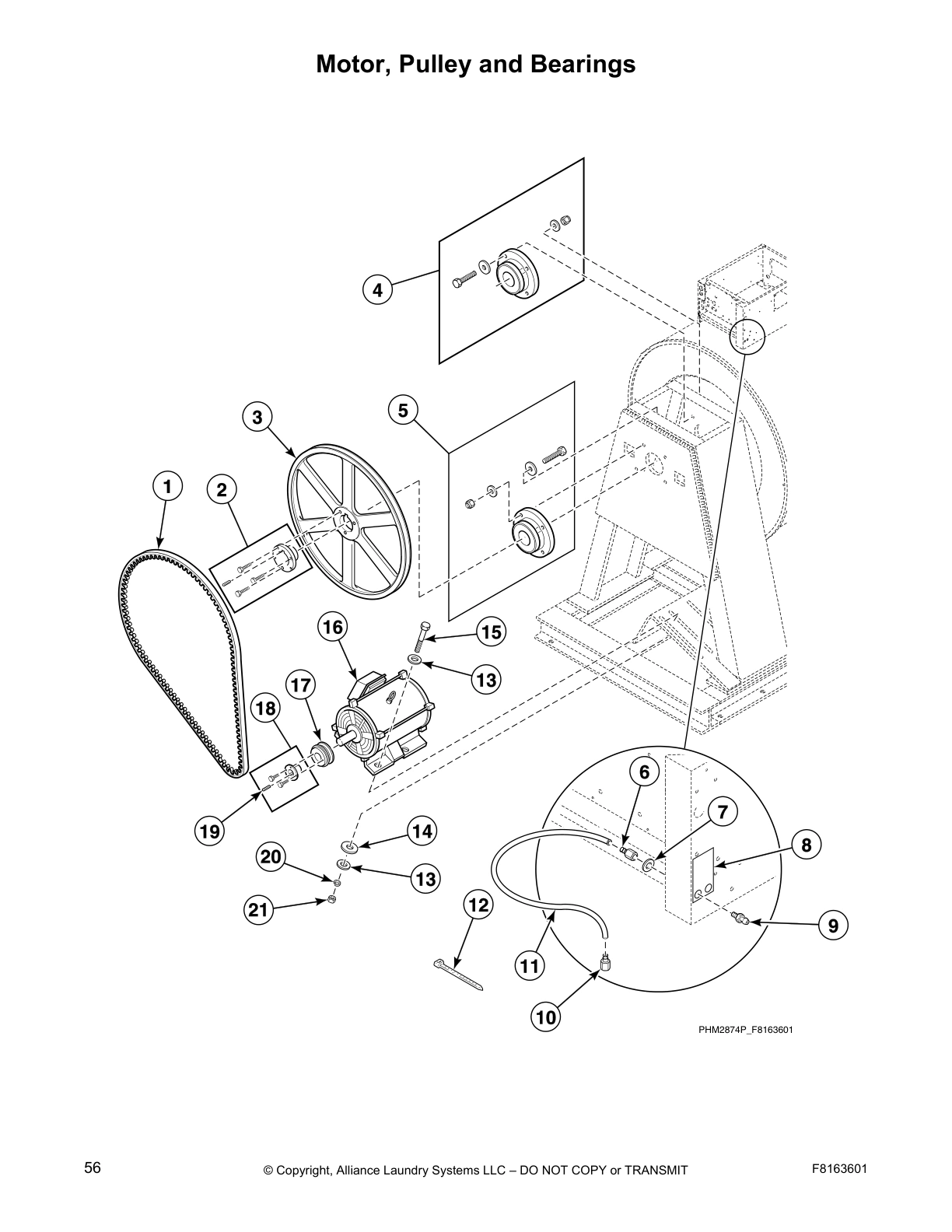

Motor, Pulley and Bearings

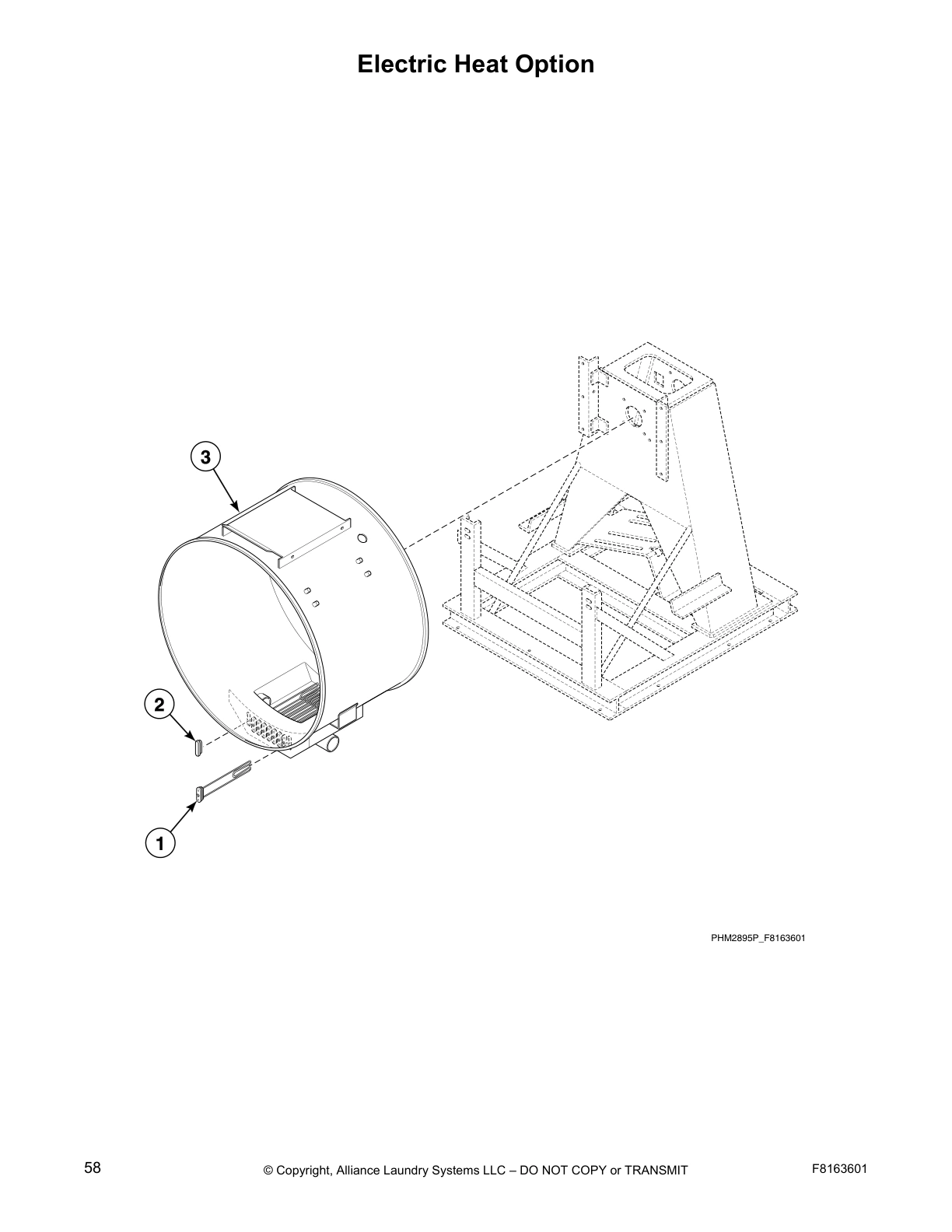

Electric Heat Option

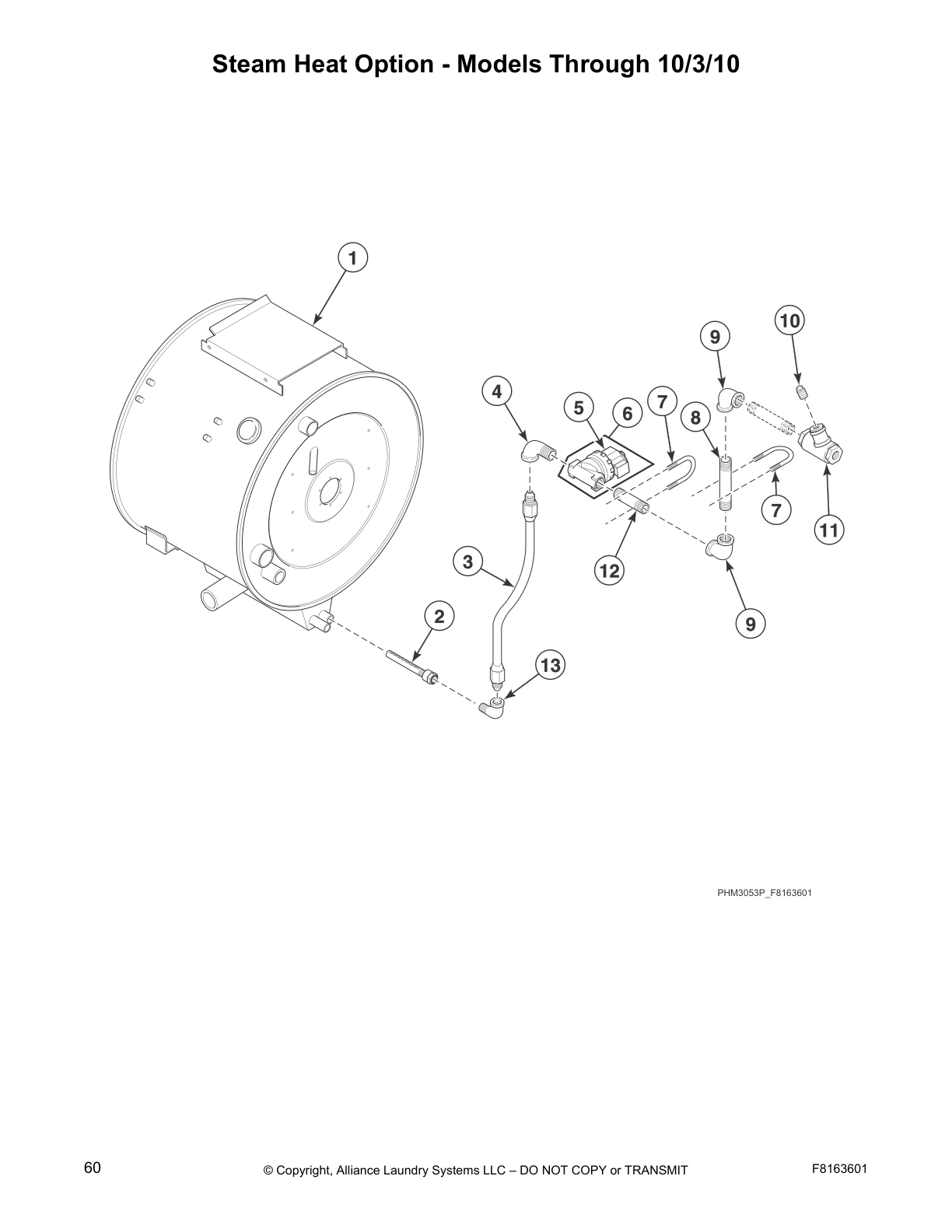

Steam Heat Option - Models Through 10/3/10

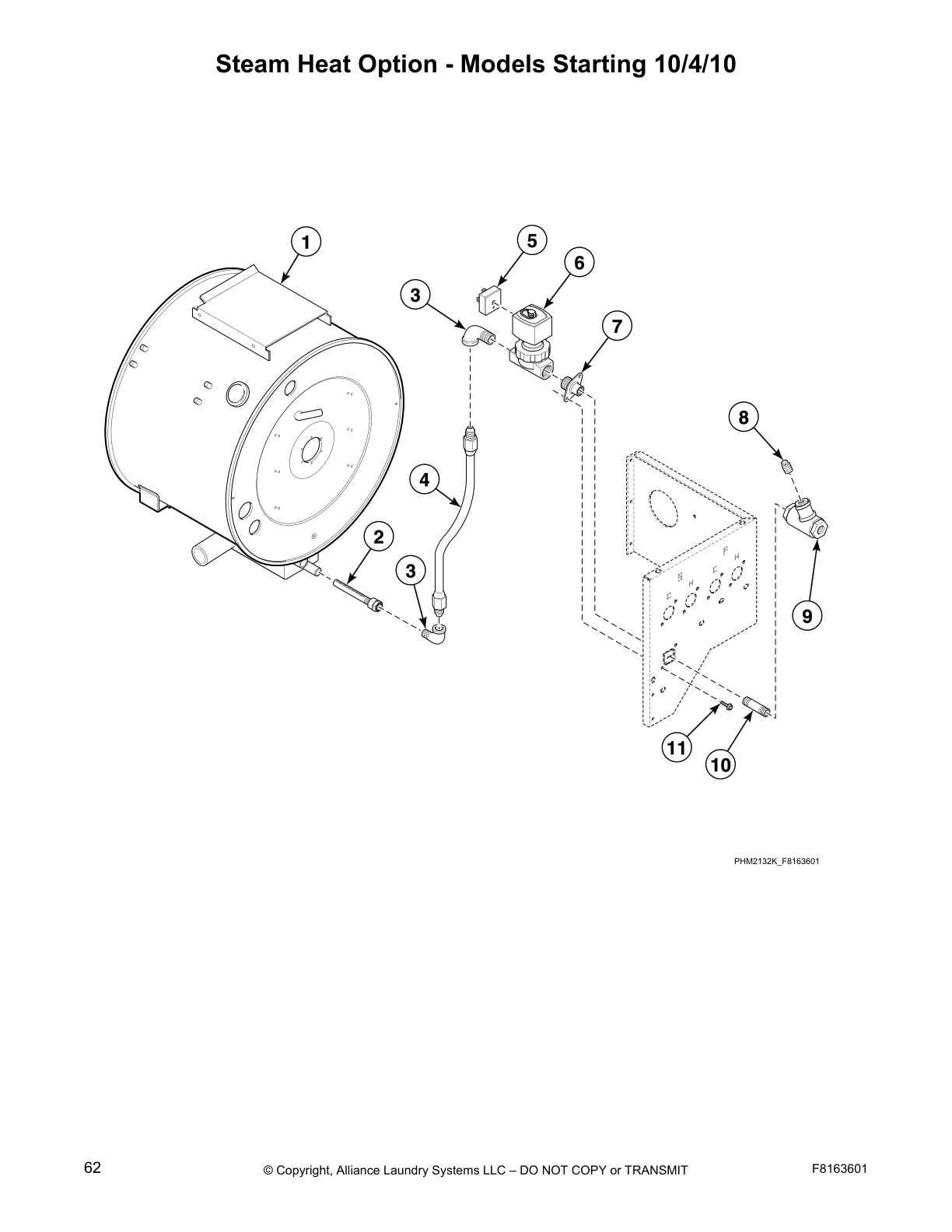

Steam Heat Option - Models Starting 10/4/10

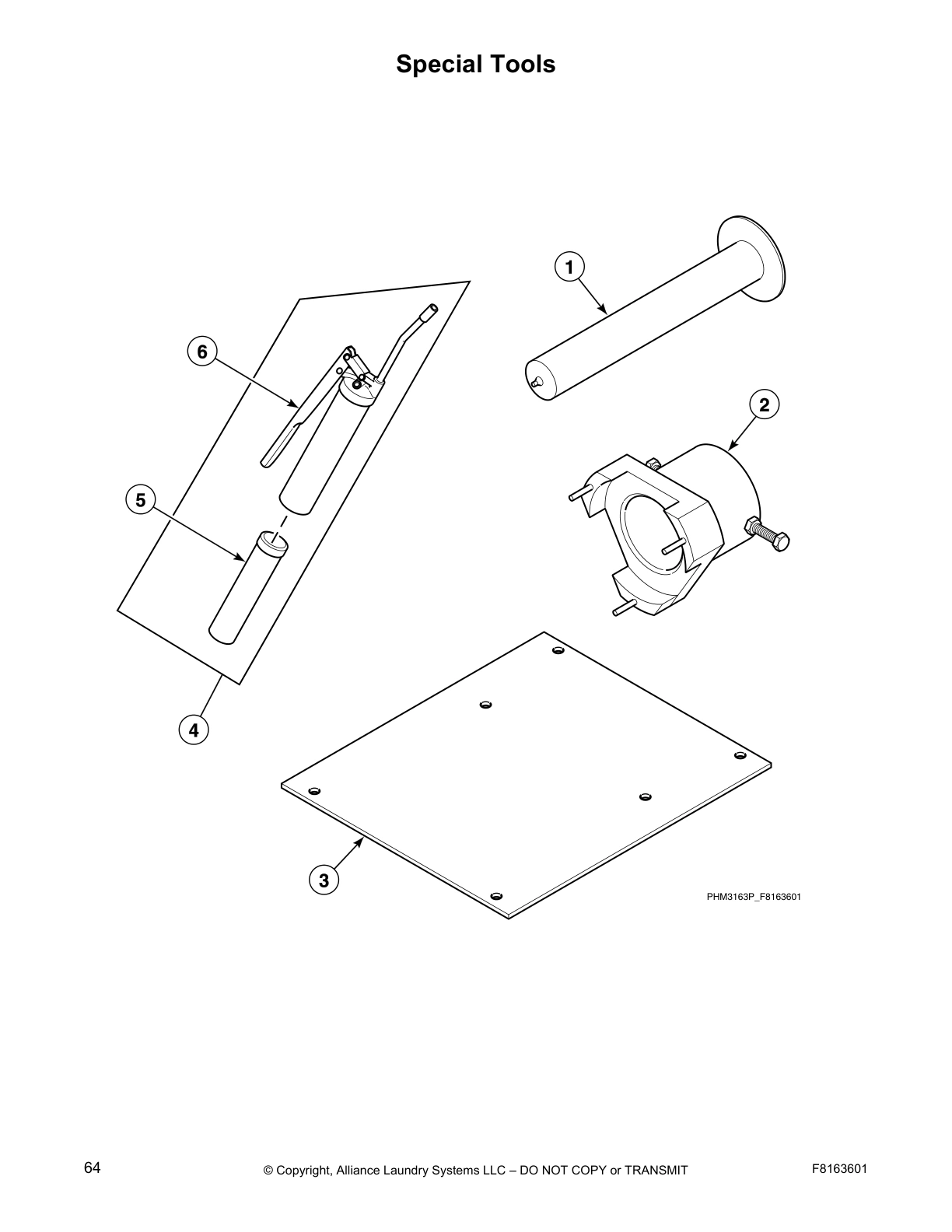

Special Tools
Common parts from model Unimac UWL080T3V Washer
SPQ F0270321-00P SPQ F0270321-00P Contact Us For Availability
SPQ F020014200 SPQ F020014200 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ F8030501P SPQ F8030501P Contact Us For Availability
SPQ F8028401 SPQ F8028401 Contact Us For Availability
SPQ 44088501P SPQ 44088501P Contact Us For Availability
Logic Supply Power Harness SPQ F230739 Contact Us For Availability
SPQ F8060001 SPQ F8060001 Contact Us For Availability
SPQ F8054901 SPQ F8054901 Contact Us For Availability
SPQ F8054602 SPQ F8054602 Contact Us For Availability
SPQ F8151201 SPQ F8151201 Contact Us For Availability
SPQ F8066201 SPQ F8066201 Contact Us For Availability
SPQ F8261301 SPQ F8261301 Contact Us For Availability
SPQ F8273402 SPQ F8273402 Contact Us For Availability
SPQ F745401 SPQ F745401 Contact Us For Availability
Mounting Bolt Kit SPQ F8133301 Contact Us For Availability
Wet-Clean Kit SPQ 203346 Contact Us For Availability
Concrete Hardware Kit SPQ F924P3 Contact Us For Availability
1
Do Not Tamper Label SPQ F8345901 Contact Us For Availability
1
Ground Lug Connector SPQ M411283 Contact Us For Availability
1
Screw SPQ F430927 Contact Us For Availability
1
Front Bulkhead Panel SPQ F8283601 Contact Us For Availability
1
Spray Rinse Nozzle Kit SPQ F730077 Contact Us For Availability
1
Screw SPQ F430917 Contact Us For Availability
1
Door Spray Nozzle Assembly SPQ F8356301 Contact Us For Availability
1
Shell Band Assembly SPQ F603911 Contact Us For Availability
1
Shell Weldment SPQ F8378001 Contact Us For Availability
1
Shell Weldment SPQ F8273401 Contact Us For Availability
1
Dispenser Valve Harness SPQ F8347301 Contact Us For Availability
1
Hose Barb SPQ F421951 Contact Us For Availability
1
Hose SPQ F8137505 Contact Us For Availability
1
Hose SPQ F8232007 Contact Us For Availability
1
Drain Valve Kit SPQ F200166402 Contact Us For Availability
1
Belt SPQ F8061401 Contact Us For Availability
1
Electric Heat Harness SPQ F8056702P Contact Us For Availability
1
Shaft Assembly SPQ F633430 Contact Us For Availability
2
Snap Bushing SPQ M400985 Contact Us For Availability
2
EMI Filter SPQ F8129001 Contact Us For Availability
2
Washer SPQ F8111101 Contact Us For Availability
2
Lower Belt Guard Assemb SPQ F8246401 Contact Us For Availability
2
Gasket SPQ F170402P Contact Us For Availability
2
Left Side Cover SPQ F8365002 Contact Us For Availability
2
Washer SPQ F8322601 Contact Us For Availability
2
Door Lock Cover SPQ F430909 Contact Us For Availability
2
Washer SPQ F430215 Contact Us For Availability
2
Water Hose SPQ F8084201 Contact Us For Availability
2
O-Ring SPQ F8195301 Contact Us For Availability
2
4-Way Valve SPQ F8336601 Contact Us For Availability
2
Fill Plumbing Assembly SPQ F420509 Contact Us For Availability
2
Drain Hose SPQ F150437 Contact Us For Availability
2
Pulley SPQ F8061301P Contact Us For Availability
2
Heating Element SPQ F8056701 Contact Us For Availability
2
Steam Injector Tube Assembly SPQ F8368201 Contact Us For Availability
2
Shaft Seal Alignment Fixture SPQ F0100314-00 Contact Us For Availability
3
Air Trap Hose SPQ F200318900P Contact Us For Availability
3
Screw SPQ F8206901 Contact Us For Availability
3
Drive Mounting Bracket SPQ F8054002 Contact Us For Availability
3
Use Copper Conductors Only Caution Label SPQ F8223801 Contact Us For Availability
3
SPQ F150409 SPQ F150409 Contact Us For Availability
3
Left Side Cover SPQ F8120201 Contact Us For Availability
3
High Hole Glass SPQ F730307 Contact Us For Availability
3
Top Latch Bracket Casting SPQ F300129P Contact Us For Availability
3
Shell Gasket Shield SPQ F430317 Contact Us For Availability
3
Drain Valve Harness SPQ F150389 Contact Us For Availability
3
Strain Relief Connector SPQ F0150514-00 Contact Us For Availability
3
Diaphragm and Guide Kit SPQ G582P3 Contact Us For Availability
3
DIN Valve Adapter Kit SPQ F8154502 Contact Us For Availability
3
Hose Barb SPQ F421930 Contact Us For Availability
3
Nut SPQ F280294P Contact Us For Availability
3
Heating Element Plug SPQ F360203P Contact Us For Availability
3
Street Elbow SPQ F421703 Contact Us For Availability
3
Seal Alignment Fixture Assembly SPQ F200284800 Contact Us For Availability
4
Electric Shock Danger Label SPQ F430903 Contact Us For Availability
4
Screw SPQ F430948 Contact Us For Availability
4
Drive Bracket SPQ F8054001 Contact Us For Availability
4
SPQ 70182601 SPQ 70182601 Contact Us For Availability
4
Top Cover Panel SPQ F8352702 Contact Us For Availability
4
Spray Rinse Hose Kit SPQ F730024 Contact Us For Availability
4
Door Bumper Moulding SPQ F730540P Contact Us For Availability
4
Ring Retainer SPQ F8350701 Contact Us For Availability
4
SPQ F430168 SPQ F430168 Contact Us For Availability
4
Shell Band Fastener Kit SPQ F601216 Contact Us For Availability
4
SPQ F431116 SPQ F431116 Contact Us For Availability
4
Dual Drain Harness SPQ F200107P Contact Us For Availability
4
Strain Relief Adapter Kit SPQ F190304 Contact Us For Availability
4
Dispenser Valve Harness SPQ F8091601P Contact Us For Availability
4
Supply/Fill Module Harness SPQ F8117101 Contact Us For Availability
4
Valve SPQ F8322803P Contact Us For Availability
4
Steam Hose SPQ F200197 Contact Us For Availability
4
Rebar Frame Template SPQ F601648 Contact Us For Availability
5
4-Way Valve SPQ F381723P Contact Us For Availability
5
SPQ F200222 SPQ F200222 Contact Us For Availability
5
Terminal Block Shield SPQ F8386902 Contact Us For Availability
5
Filter Retainer Guard SPQ F8152703 Contact Us For Availability
5
SPQ F8096201P SPQ F8096201P Contact Us For Availability
5
Drive Box Partition SPQ F8375901 Contact Us For Availability
5
Spray Rinse Strap SPQ F601239 Contact Us For Availability
5
SPQ F150203 SPQ F150203 Contact Us For Availability
5
SPQ F791001 SPQ F791001 Contact Us For Availability
5
SPQ F430913 SPQ F430913 Contact Us For Availability
5
Rear Bearing Kit SPQ F430205 Contact Us For Availability
5
Hose Clamp SPQ F140340P Contact Us For Availability
5
Valve Mounting Bracket SPQ F8331901 Contact Us For Availability
5
DIN Valve Adapter Kit SPQ F8382301 Contact Us For Availability
5
DIN Coil SPQ H86070034 Contact Us For Availability
5
Grease Gun Kit SPQ F798700 Contact Us For Availability
6
Terminal Block SPQ F8322402 Contact Us For Availability
6
Rotation Sensor Harness SPQ F8028223 Contact Us For Availability
6
SPQ F8098401 SPQ F8098401 Contact Us For Availability
6
Drive Box Bottom Panel SPQ F8283902 Contact Us For Availability
6
SPQ F8233501 SPQ F8233501 Contact Us For Availability
6
Drive Mounting Box SPQ F8375601 Contact Us For Availability
6
SPQ F150201P SPQ F150201P Contact Us For Availability
6
SPQ F430518 SPQ F430518 Contact Us For Availability
6
SPQ F431112 SPQ F431112 Contact Us For Availability
6
SPQ F421929 SPQ F421929 Contact Us For Availability
6
Chemical Supply Hose SPQ F749802 Contact Us For Availability
6
SPQ F200104P SPQ F200104P Contact Us For Availability
6
Manifold SPQ F8137503 Contact Us For Availability
6
SPQ F422901 SPQ F422901 Contact Us For Availability
6
Air Coupling SPQ F280412 Contact Us For Availability
6
DIN Valve Kit SPQ F380987P Contact Us For Availability
6
Valve SPQ F8322801P Contact Us For Availability
6
Bearing Grease SPQ F210206P Contact Us For Availability
7
Interlock Switch Harness SPQ F8153901 Contact Us For Availability
7
SPQ F8029501P SPQ F8029501P Contact Us For Availability
7
Rotation Sensor SPQ F8028221P Contact Us For Availability
7
SPQ F8105702P SPQ F8105702P Contact Us For Availability
7
Drive Box Rear Panel SPQ F8376001 Contact Us For Availability
7
SPQ F8379801 SPQ F8379801 Contact Us For Availability
7
SPQ F602058 SPQ F602058 Contact Us For Availability
7
SPQ F603910 SPQ F603910 Contact Us For Availability
7
SPQ F170215 SPQ F170215 Contact Us For Availability
7
Water Hose SPQ F200110P Contact Us For Availability
7
SPQ F200166 SPQ F200166 Contact Us For Availability
7
Valve SPQ F8521801 Contact Us For Availability
7
Coupling SPQ F8362701 Contact Us For Availability
7
Fill Plumbing Assembly SPQ F8333201 Contact Us For Availability
7
SPQ F422803 SPQ F422803 Contact Us For Availability
7
SPQ F8257002 SPQ F8257002 Contact Us For Availability
7
Manual Bearing Greasing Retrofit Kit SPQ F798831-00 Contact Us For Availability
8
Drive Control Harness SPQ F8246601 Contact Us For Availability
8
SPQ F8117601 SPQ F8117601 Contact Us For Availability
8
Transformer SPQ 00177 Contact Us For Availability
8
SPQ F8136601 SPQ F8136601 Contact Us For Availability
8
Insulator SPQ 70333001 Contact Us For Availability
8
SPQ F370609 SPQ F370609 Contact Us For Availability
8
SPQ M412763 SPQ M412763 Contact Us For Availability
8
SPQ F431100 SPQ F431100 Contact Us For Availability
8
Electrical Access Panel SPQ F8377601 Contact Us For Availability
8
SPQ F422109 SPQ F422109 Contact Us For Availability
8
SPQ F431022 SPQ F431022 Contact Us For Availability
8
SPQ F0603139-03 SPQ F0603139-03 Contact Us For Availability
8
Water Valve Assembly Decal SPQ F230754 Contact Us For Availability
8
SPQ F200164 SPQ F200164 Contact Us For Availability
8
DIN Valve Adapter Kit SPQ F8288301 Contact Us For Availability
8
SPQ F0602365-16 SPQ F0602365-16 Contact Us For Availability
8
SPQ F8257101 SPQ F8257101 Contact Us For Availability
8
Plug SPQ F420409 Contact Us For Availability
9
Nut SPQ F430264 Contact Us For Availability
9
Ground Decal SPQ 430642 Contact Us For Availability
9
Output Auxiliary Power Harness SPQ F8153902 Contact Us For Availability
9
SPQ F8242201 SPQ F8242201 Contact Us For Availability
9
SPQ F421936 SPQ F421936 Contact Us For Availability
9
SPQ F422108 SPQ F422108 Contact Us For Availability
9
SPQ F8029101 SPQ F8029101 Contact Us For Availability
9
SPQ F431113 SPQ F431113 Contact Us For Availability
9
SPQ F422900 SPQ F422900 Contact Us For Availability
9
SPQ F8265601 SPQ F8265601 Contact Us For Availability
9
SPQ F8265701 SPQ F8265701 Contact Us For Availability
9
Elbow SPQ F200401P Contact Us For Availability
9
SPQ C000417 SPQ C000417 Contact Us For Availability
9
SPQ F8028301P SPQ F8028301P Contact Us For Availability
9
Grease Fitting SPQ F745006 Contact Us For Availability
10
Power Distribution Block SPQ M413865 Contact Us For Availability
10
Screw SPQ M411072 Contact Us For Availability
10
Rotation Sensor Bracket SPQ F8103101 Contact Us For Availability
10
Upper Belt Guard SPQ F8392901 Contact Us For Availability
10
Drive Box Rear Panel SPQ F8283802 Contact Us For Availability
10
Spray Rinse Bracket Assembly SPQ F602901P Contact Us For Availability
10
Hose Clamp SPQ F200213 Contact Us For Availability
10
Fill Port SPQ C002658 Contact Us For Availability
10
Connector SPQ J1408004 Contact Us For Availability
10
Steam Heat Kit SPQ F947P3 Contact Us For Availability
10
Pipe Nipple SPQ 901403 Contact Us For Availability
11
Drive Control Harness SPQ F8030201P Contact Us For Availability
11
DIN Rail SPQ F8134101 Contact Us For Availability
11
Screw SPQ F8244301P Contact Us For Availability
11
Top Cover Panel SPQ F8105401 Contact Us For Availability
11
Spray Rinse Strap SPQ F602880 Contact Us For Availability
11
Spray Pipe Assembly SPQ F8126202 Contact Us For Availability
11
Nut SPQ F430202 Contact Us For Availability
11
Washer SPQ F431147 Contact Us For Availability
11
Hose SPQ F8137502 Contact Us For Availability
11
Overflow Hose SPQ F8386201 Contact Us For Availability
11
Tubing SPQ C000628P Contact Us For Availability
11
Screw SPQ 70321501 Contact Us For Availability
12
Drive Power Harness SPQ F8027802 Contact Us For Availability
12
Screw SPQ F8122701 Contact Us For Availability
12
Rear Center Panel SPQ F8346502 Contact Us For Availability
12
Lower Door Latch Casting SPQ F150204 Contact Us For Availability
12
Hot Water and Chemical Caution Decal SPQ F200085300 Contact Us For Availability
12
Street Elbow SPQ F420502 Contact Us For Availability
12
Washer SPQ F8351601 Contact Us For Availability
12
Molded Drain SPQ F8351301 Contact Us For Availability
12
Cable Tie SPQ F140605 Contact Us For Availability
13
Washer SPQ F430231 Contact Us For Availability
13
AC Drive SPQ F8169666 Contact Us For Availability
13
Circuit Breaker SPQ F8303001P Contact Us For Availability
13
Balance Switch Bracket SPQ F8124301 Contact Us For Availability
13
Support Bracket SPQ F8302602 Contact Us For Availability
13
Back Water Panel SPQ F8374901 Contact Us For Availability
13
Shell Band Gasket SPQ F8302002 Contact Us For Availability
13
Pop Rivet SPQ F100204 Contact Us For Availability
13
Spin Warning Decal SPQ F200085100 Contact Us For Availability
13
Tee SPQ F420402 Contact Us For Availability
13
Adapter SPQ 70442301 Contact Us For Availability
13
Drain Hose SPQ F8261303 Contact Us For Availability
14
Male Tab Terminal SPQ 70346501 Contact Us For Availability
14
Screw SPQ F8169667 Contact Us For Availability
14
Harness SPQ F8030002P Contact Us For Availability
14
Hose Adapter SPQ 20253 Contact Us For Availability
14
Nut SPQ 70030401 Contact Us For Availability
14
Right Side Cover SPQ F8365001 Contact Us For Availability
14
Door Hinge Strap Kit SPQ F200030600P Contact Us For Availability
14
Shell Front Kit SPQ F8011301P Contact Us For Availability
14
Extension Arm Tab SPQ F431108 Contact Us For Availability
14
Frame Weldment SPQ F798827-00 Contact Us For Availability
14
Soap Dispenser Shroud Weldment SPQ F8024301 Contact Us For Availability
14
Elbow SPQ F420503 Contact Us For Availability
14
Elbow SPQ F8119201 Contact Us For Availability
14
Drain Valve Cover SPQ F200165100 Contact Us For Availability
14
Screw SPQ F430300 Contact Us For Availability
15
Snap Bushing SPQ F8108501P Contact Us For Availability
15
Step Down Power Harness SPQ F8030001 Contact Us For Availability
15
Side Water Box Panel SPQ F8364801 Contact Us For Availability
15
Door Hinge Pin SPQ F601815 Contact Us For Availability
15
Lower Door Latch Bracket Casting SPQ F601639 Contact Us For Availability
15
Basket Assembly SPQ F632403 Contact Us For Availability
15
Trim SPQ F170400RP Contact Us For Availability
15
Nipple SPQ F420108 Contact Us For Availability
15
Pipe SPQ F0602365-20 Contact Us For Availability
15
Drain Valve Motor SPQ F200201 Contact Us For Availability
15
Motor SPQ F430993 Contact Us For Availability
16
Contactor SPQ 70256901P Contact Us For Availability
16
Front Bulkhead Panel SPQ F8376101 Contact Us For Availability
16
Door Butt Shim SPQ F0610695-00 Contact Us For Availability
16
Magnet SPQ F150202 Contact Us For Availability
16
Nut SPQ 70391101 Contact Us For Availability
16
Tee SPQ F8137401 Contact Us For Availability
16
Chemical Supply Cup SPQ F150386 Contact Us For Availability
16
Pipe SPQ F150438 Contact Us For Availability
16
Motor Retrofit Kit SPQ F8334701P Contact Us For Availability
17
Door Switch SPQ F8390801 Contact Us For Availability
17
Warning Label SPQ M405340 Contact Us For Availability
17
Snap Bushing SPQ F8405101 Contact Us For Availability
17
Side Electrical Box Panel SPQ F8364901 Contact Us For Availability
17
Door Bumper Bushing SPQ F430416 Contact Us For Availability
17
Warning Label SPQ F8088701 Contact Us For Availability
17
Supply Dispenser Spacer SPQ F0150525-00 Contact Us For Availability
17
Water Valve Rebuild Kit SPQ F380995P Contact Us For Availability
17
Shell Reinforcement Plate Assembly SPQ F200133600 Contact Us For Availability
17
Motor Harness SPQ F8356403 Contact Us For Availability
18
Plug SPQ 51783 Contact Us For Availability
18
Expansion Clip SPQ F8117501 Contact Us For Availability
18
Door Bumper Moulding SPQ F150366 Contact Us For Availability
18
Pop Rivet SPQ F746202-1 Contact Us For Availability
18
Interlock Switch Spacer SPQ F431118 Contact Us For Availability
18
Tee SPQ M400013 Contact Us For Availability
18
Dispenser Assembly SPQ F150385 Contact Us For Availability
18
Pop Rivet SPQ F380933P Contact Us For Availability
18
Sheave Pulley SPQ F8049202 Contact Us For Availability
19
Fuse SPQ F430232 Contact Us For Availability
19
Nut SPQ F330188P Contact Us For Availability
19
Water Box Rear Panel SPQ F8283801 Contact Us For Availability
19
Spray Nozzle Gasket SPQ F430103 Contact Us For Availability
19
Hose Clamp SPQ 70142 Contact Us For Availability
19
Injection Nozzle SPQ F0150512-00P Contact Us For Availability
19
Gate Valve SPQ F8110201 Contact Us For Availability
19
Scupper SPQ F0602365-27 Contact Us For Availability
20
Muffin Fan SPQ F980P3 Contact Us For Availability
20
Drive Fan Harness SPQ F8223901 Contact Us For Availability
20
Reed Switch Assembly SPQ F8165201 Contact Us For Availability
20
Warning Label SPQ F8302601 Contact Us For Availability
20
Hose Barb SPQ F431215 Contact Us For Availability
20
Water Hose SPQ F420105 Contact Us For Availability
20
Motor Bushing SPQ F280181 Contact Us For Availability
21
Shell Front Kit SPQ F431005 Contact Us For Availability
21
Clockwise Spin Rotation Decal SPQ F290200P Contact Us For Availability
21
Solenoid Mount Bracket SPQ F601055 Contact Us For Availability
21
Coupling SPQ F420101 Contact Us For Availability
21
Basket Pulley Bushing SPQ F280242 Contact Us For Availability
22
Pop Rivet SPQ 802492 Contact Us For Availability
22
Trim SPQ F110110 Contact Us For Availability
22
Rub Rail SPQ F8105701P Contact Us For Availability
22
Top Support Brace SPQ F8283901 Contact Us For Availability
22
Door Glass Retainer SPQ F230652 Contact Us For Availability
22
Shell Front Assembly SPQ F8322701 Contact Us For Availability
22
Trim SPQ F0200237-00 Contact Us For Availability
22
Fill Plumbing Connection SPQ F380500 Contact Us For Availability
22
Drain Valve Cover SPQ F0602365-18 Contact Us For Availability
23
Plug Cap SPQ F730168 Contact Us For Availability
23
Filter SPQ F140938 Contact Us For Availability
23
Front Panel SPQ F8244402 Contact Us For Availability
23
Hot Surface Warning Label SPQ F8099301 Contact Us For Availability
23
Door Lock Dielectric Shield SPQ F8132201 Contact Us For Availability
23
Hose Clamp SPQ F421964 Contact Us For Availability
23
Drain Valve Harness SPQ F422802 Contact Us For Availability
24
Network Board Assembly SPQ F8079401 Contact Us For Availability
24
Male Tab Terminal SPQ F8113901 Contact Us For Availability
24
Side Panel Cover SPQ F8244401P Contact Us For Availability
24
Door Kit SPQ F430502 Contact Us For Availability
24
Door Lock Solenoid SPQ F8066801P Contact Us For Availability
24
Warning Label SPQ F8100401 Contact Us For Availability
25
Left Side Panel SPQ F430211 Contact Us For Availability
25
Water Box Bottom Panel SPQ F8614301 Contact Us For Availability
25
Lock Bracket SPQ F430995 Contact Us For Availability
25
Adapter SPQ F200165 Contact Us For Availability
25
Dual Drain Harness SPQ F200275800 Contact Us For Availability
26
Partition SPQ F8283701 Contact Us For Availability
26
Pop Rivet SPQ F8127501 Contact Us For Availability
26
Screw SPQ F200085500 Contact Us For Availability
26
Hose Adapter SPQ C002657 Contact Us For Availability
27
Tee SPQ F220900 Contact Us For Availability
27
Panel Locator SPQ F430921 Contact Us For Availability
27
Elbow SPQ F200120000 Contact Us For Availability
27
Door Lock Assembly SPQ F8133601 Contact Us For Availability
27
Shell Reinforcement Plate Assembly SPQ F150364 Contact Us For Availability
27
Containment Device SPQ F8116801 Contact Us For Availability
28
Water Pressure Switch SPQ F430910 Contact Us For Availability
28
SPQ F150397 SPQ F150397 Contact Us For Availability
28
Pop Rivet SPQ F170145 Contact Us For Availability
28
Extension Arm Assembly SPQ F8135301 Contact Us For Availability
28
Vacuum Breaker Valve SPQ F8154501 Contact Us For Availability
29
Door Glass Gasket SPQ F017014501 Contact Us For Availability
29
Door Handle Casting SPQ F430916 Contact Us For Availability
29
Catch Basin SPQ F420103 Contact Us For Availability
30
Door Assembly SPQ F746201-1 Contact Us For Availability
30
Vent Hose SPQ F601806 Contact Us For Availability
30
Reducer Bushing SPQ F8521501 Contact Us For Availability
31
Door Lock Harness SPQ F8127401 Contact Us For Availability
31
Face Seal SPQ F430924 Contact Us For Availability
32
Door Glass Retainer SPQ F422319 Contact Us For Availability
32
Hose Clamp SPQ F8137504 Contact Us For Availability
33
SPQ F431210 SPQ F431210 Contact Us For Availability
33
Adapter SPQ F0170221-00 Contact Us For Availability
34
No-Swivel Coupling SPQ F170117 Contact Us For Availability
34
SPQ F8127703P SPQ F8127703P Contact Us For Availability
34
Hose Adapter SPQ F0380808-00 Contact Us For Availability
35
Swivel Coupling SPQ F8350501P Contact Us For Availability
35
Fill/Spray Valve Harness SPQ F8074701 Contact Us For Availability
36
SPQ F8062001 SPQ F8062001 Contact Us For Availability
36
Supply/Fill Module Harness SPQ F430938 Contact Us For Availability
37
SPQ F0380809-00 SPQ F0380809-00 Contact Us For Availability
38
SPQ F380800P SPQ F380800P Contact Us For Availability
39
SPQ F8118401 SPQ F8118401 Contact Us For Availability
40
SPQ F8100301 SPQ F8100301 Contact Us For Availability
41
SPQ F8110601 SPQ F8110601 Contact Us For Availability
NI
CFG Harness SPQ F8223001P Contact Us For Availability
NI
Network Wire Harness Assembly SPQ F422500 Contact Us For Availability
NI
SPQ F8060401P SPQ F8060401P Contact Us For Availability
NI
SPQ F8030101P SPQ F8030101P Contact Us For Availability
NI
SPQ F8028110 SPQ F8028110 Contact Us For Availability
NI
SPQ F8367801 SPQ F8367801 Contact Us For Availability
NI
Power Distribution Block Cover SPQ M413862 Contact Us For Availability
NI
Main Power Harness SPQ F230630 Contact Us For Availability
NI
Electric Heat Coils Harness SPQ 44014901P Contact Us For Availability
NI
Output/Logic Harness SPQ F8060301 Contact Us For Availability
NI
SPQ F8054903 SPQ F8054903 Contact Us For Availability
NI
SPQ F8054603 SPQ F8054603 Contact Us For Availability
NI
SPQ F8054601 SPQ F8054601 Contact Us For Availability
NI
SPQ F8028701 SPQ F8028701 Contact Us For Availability
NI
SPQ F8115501 SPQ F8115501 Contact Us For Availability
NI
SPQ F8144101 SPQ F8144101 Contact Us For Availability
NI
SPQ F360157P SPQ F360157P Contact Us For Availability
NI
SPQ F8066401 SPQ F8066401 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ F8284001 SPQ F8284001 Contact Us For Availability
NI
SPQ F310206 SPQ F310206 Contact Us For Availability
NI
SPQ F8378002 SPQ F8378002 Contact Us For Availability
NI
SPQ F0602364-04 SPQ F0602364-04 Contact Us For Availability
NI
SPQ F8161901 SPQ F8161901 Contact Us For Availability
NI
SPQ F8162001 SPQ F8162001 Contact Us For Availability
NI
Y Connector SPQ F422816 Contact Us For Availability
NI
SPQ F8110701 SPQ F8110701 Contact Us For Availability
NI
SPQ F421909 SPQ F421909 Contact Us For Availability
NI
SPQ F421908 SPQ F421908 Contact Us For Availability
NI
SPQ F8073701P SPQ F8073701P Contact Us For Availability
NI
SPQ F8073601P SPQ F8073601P Contact Us For Availability
NI
SPQ F8362702 SPQ F8362702 Contact Us For Availability
NI
Fill Valve Harness SPQ F8347501 Contact Us For Availability
NI
SPQ F8347102 SPQ F8347102 Contact Us For Availability
NI
Shaft Lift Tool Kit SPQ F422114 Contact Us For Availability
NI
SPQ F431134 SPQ F431134 Contact Us For Availability
NI
SPQ F190701 SPQ F190701 Contact Us For Availability
NI
SPQ F8436801P SPQ F8436801P Contact Us For Availability
NI
Shell Weldment SPQ F360202 Contact Us For Availability
NI
SPQ F8054705 SPQ F8054705 Contact Us For Availability
NI
SPQ F8054704P SPQ F8054704P Contact Us For Availability
NI
DIN Valve Adapter Kit SPQ 70263801 Contact Us For Availability
NI
SPQ 70079601 SPQ 70079601 Contact Us For Availability
NI
Steam Heat Kit SPQ F943P3 Contact Us For Availability
NI
Steam Assembly SPQ F8394501 Contact Us For Availability
NI
Grease Gun SPQ F210207P Contact Us For Availability
NI
UniLinc PC and PDA Software CD SPQ F8133701 Contact Us For Availability
NI
USB IR Interface Kit SPQ F730055-1 Contact Us For Availability
NI
Reuse Kit SPQ F925P3 Contact Us For Availability
NI
Rebar Frame Kit SPQ 1113P Contact Us For Availability
NI
SPQ F798772 SPQ F798772 Contact Us For Availability
× ![]()
