Model UniMac UT075D Dryer – Common Parts & Diagrams

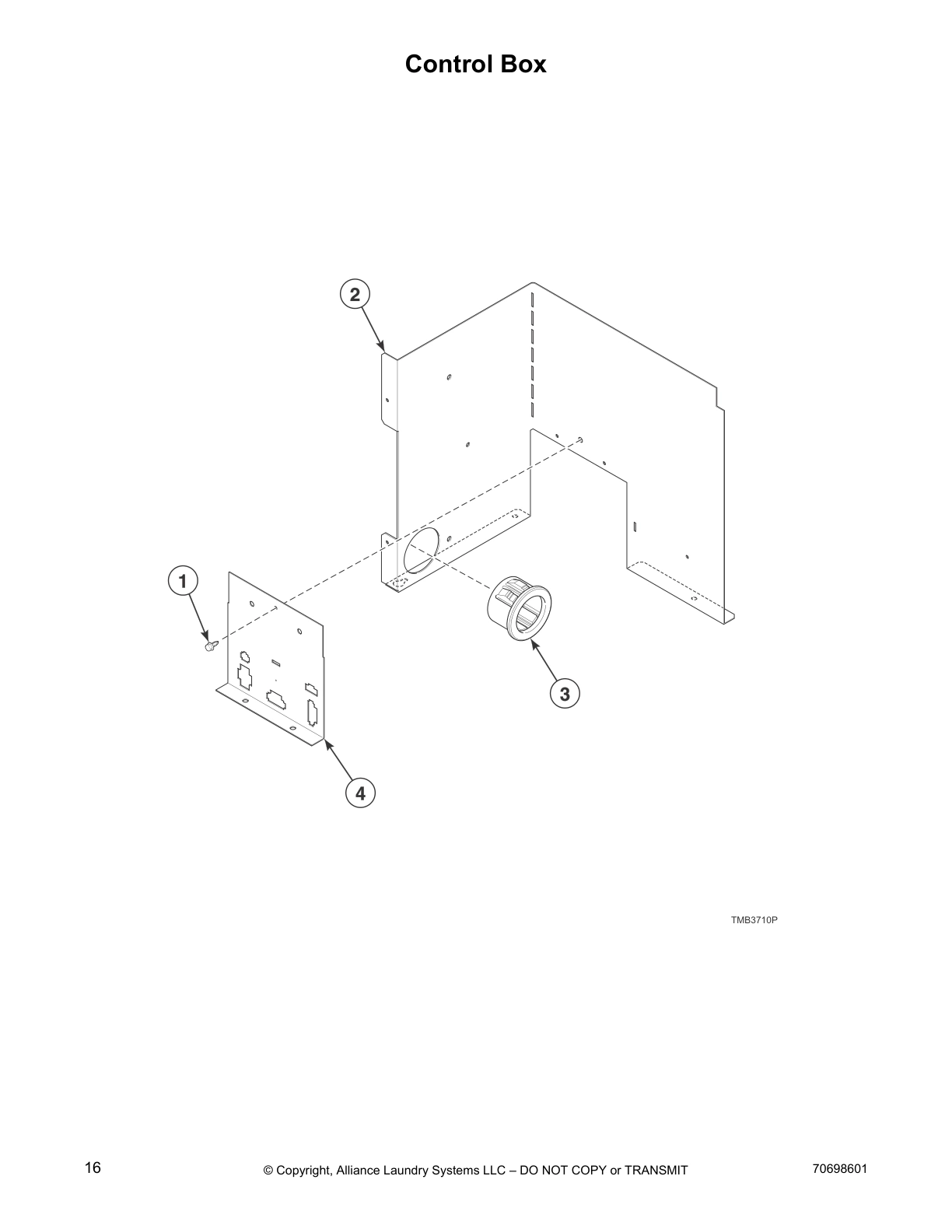

Control Box

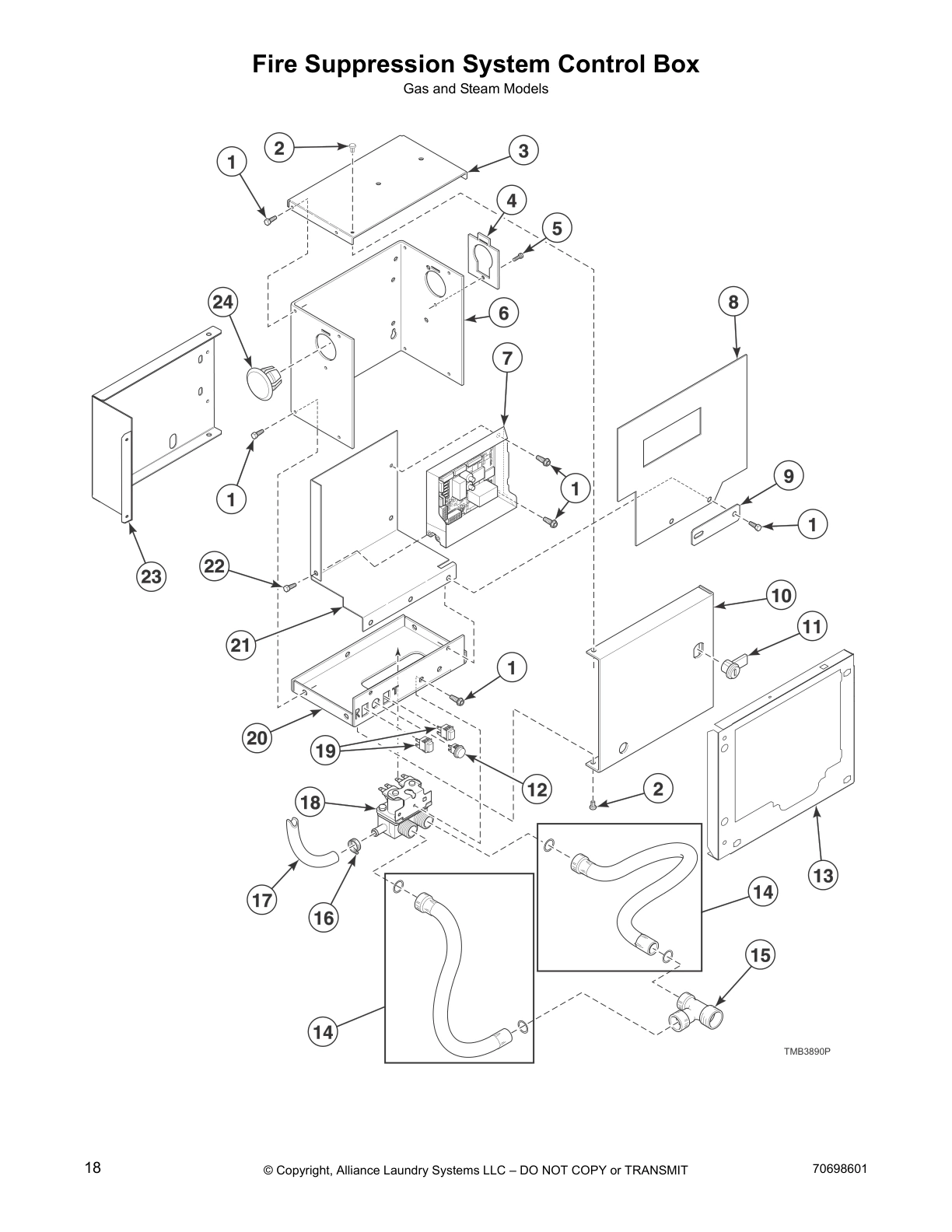

Fire Suppression System Control Box
Dual Digital Control
Electronic Display Control - Vend Models with N or W in the 7th
Position
Electronic Display Control - OPL Models with N in the 7th Position
3.5 Inch Graphical Control
Touch Control - Vend Models with V in the 7th Position
Touch Control - OPL Models with V in the 7th Position
Network Board Components
Cabinet Front Components
Control Panels and Nameplates
Front Panel Assemblies
Lower Cabinet Front Components
Lint Panel Components
Cabinet Components (Drawing 1 of 2)
Cabinet Components (Drawing 2 of 2)
Rear Panel and Belt Guard Components
Door Components
Hinge Components
Cylinder and Trunnion Components
Bearing Components
Moisture Sensing Components
Drive Motor Components
Blower and Exhaust Components
Inverter Tray Components
Airflow Switch Assembly
Gas Heater Components - All Models with D, F, N and W in the 7th
Position and U Models with V in the 7th Position
Gas Heater Components - Models with V in the 7th Position
Gas Heater Components - Models with C in the 16th Position
Burner Orifices - All Models with D, F, N and W in the 7th Position
and U Models with V in the 7th Position
Burner Orifices - Models with V in the 7th Position
Electric Heater Components
Control Tray
Accessory Box - Electric 200-240 Volt Models
Accessory Box - Electric 380-480 Volt Models
Common parts from model UniMac UT075D Dryer
SPQ 70482901 SPQ 70482901 Contact Us For Availability
SPQ 70413301 SPQ 70413301 Contact Us For Availability
Wireless Control Label SPQ 44374701 Contact Us For Availability
Wireless Control Label SPQ 204692 Contact Us For Availability
SPQ 44052542LG SPQ 44052542LG Contact Us For Availability
SPQ 44052539W SPQ 44052539W Contact Us For Availability
SPQ 44052538 SPQ 44052538 Contact Us For Availability
SPQ 44052533W SPQ 44052533W Contact Us For Availability
SPQ 70030301 SPQ 70030301 Contact Us For Availability
SPQ 70297601 SPQ 70297601 Contact Us For Availability
SPQ M401402 SPQ M401402 Contact Us For Availability
SPQ 44195702P SPQ 44195702P Contact Us For Availability
SPQ 44336302 SPQ 44336302 Contact Us For Availability
SPQ 70635405 SPQ 70635405 Contact Us For Availability
SPQ 70684105 SPQ 70684105 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Front Panel SPQ 44346308 Contact Us For Availability
1
Control Door Latch SPQ 431318 Contact Us For Availability
1
Cylinder Kit SPQ 44057301P Contact Us For Availability
1
Screw SPQ M400063 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Wireway Channel SPQ 44239101 Contact Us For Availability
1
Insulator SPQ M413862 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Burner Support SPQ 44110301 Contact Us For Availability
1
High Voltage Suppression Cable SPQ 44239704 Contact Us For Availability
1
Burner Orifice SPQ 70684109 Contact Us For Availability
1
Central Pay Control Assembly SPQ 204779 Contact Us For Availability
1
Plug SPQ 70180001 Contact Us For Availability
2
Ground Lug Connector SPQ 430642 Contact Us For Availability
2
Wireless Network Control Assembly SPQ 807211 Contact Us For Availability
2
Control Panel SPQ 44040015W Contact Us For Availability
2
Thermistor Plate SPQ 44068102 Contact Us For Availability
2
Pipe Bracket SPQ 44327601 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 44198301P Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Rib Wire SPQ 44208601 Contact Us For Availability
2
Bolt SPQ F8440701 Contact Us For Availability
2
Washer SPQ F431131 Contact Us For Availability
2
Screw SPQ 44154505 Contact Us For Availability
3
Door Seal Kit SPQ 70211902P Contact Us For Availability
3
Nut SPQ 70261401 Contact Us For Availability
3
Nut SPQ 44166601 Contact Us For Availability
3
Roller Catch Arm SPQ 44293604W Contact Us For Availability
3
Coin Box SPQ 44068101 Contact Us For Availability
3
Control Tray Guard SPQ 44363801 Contact Us For Availability
3
Felt Pad SPQ 44198302 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
3
Igniter Cover SPQ 44135201 Contact Us For Availability
4
Front Panel SPQ 44346307 Contact Us For Availability
4
Roller Catch Wheel SPQ 44293603W Contact Us For Availability
4
Lint Bracket SPQ 44325301 Contact Us For Availability
4
Latch Mounting Bracket SPQ 44003201 Contact Us For Availability
4
Coin Chute Assembly SPQ F160673P Contact Us For Availability
4
Upper Guard SPQ 44374301 Contact Us For Availability
4
Door Glass SPQ 44008401P Contact Us For Availability
4
Pop Rivet SPQ 70596614W Contact Us For Availability
4
Trunnion Assembly SPQ 44191202 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Blower Inlet Cone SPQ 70303101 Contact Us For Availability
4
SPQ M411283 SPQ M411283 Contact Us For Availability
4
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
Screw SPQ M401223 Contact Us For Availability
5
Roller Catch Spacer SPQ 44293603LG Contact Us For Availability
5
Lint Clip Bracket SPQ 44140202 Contact Us For Availability
5
Insulation SPQ 44150102 Contact Us For Availability
5
Thermistor SPQ 70296401 Contact Us For Availability
5
Lower Guard SPQ 44363501 Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
5
Key SPQ M402144 Contact Us For Availability
5
Slip Ring Holder SPQ 44224401 Contact Us For Availability
5
Key SPQ M413826 Contact Us For Availability
5
Exhaust Pipe Assembly SPQ 44327901 Contact Us For Availability
5
Burner Assembly SPQ M402797 Contact Us For Availability
6
Panel Locator SPQ 44057801W Contact Us For Availability
6
Roller Bracket Assembly SPQ 44293602 Contact Us For Availability
6
Top Panel Bracket SPQ 44368201 Contact Us For Availability
6
Guard SPQ 44373501 Contact Us For Availability
6
SPQ 44088001 SPQ 44088001 Contact Us For Availability
6
Nut SPQ M414215 Contact Us For Availability
6
Nut SPQ 44208001 Contact Us For Availability
6
Inverter to Motor Harness SPQ M400008 Contact Us For Availability
6
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
6
Spark Electrode SPQ 70356301 Contact Us For Availability
6
Airflow Switch Arm SPQ 70319202 Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
7
Expansion Clip SPQ 44057801B Contact Us For Availability
7
Top Cover Pan SPQ 44129301P Contact Us For Availability
7
SPQ 44363902 SPQ 44363902 Contact Us For Availability
7
Door Handle SPQ 44263801 Contact Us For Availability
7
Nut SPQ 70442101 Contact Us For Availability
7
SPQ 44349101 SPQ 44349101 Contact Us For Availability
7
Washer SPQ 44207901 Contact Us For Availability
7
Inverter Power Conversion Harness SPQ F8449502 Contact Us For Availability
7
SPQ 70319401 SPQ 70319401 Contact Us For Availability
8
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
8
Overlay SPQ 70595401 Contact Us For Availability
8
Pushbutton Switch SPQ 44057801LG Contact Us For Availability
8
SPQ 70289101P SPQ 70289101P Contact Us For Availability
8
Lint Screen Clip SPQ H96418413 Contact Us For Availability
8
SPQ 44363901 SPQ 44363901 Contact Us For Availability
8
Fan Motor SPQ 44354903 Contact Us For Availability
8
Gas Burner SPQ 70396201P Contact Us For Availability
9
SPQ 44041901P SPQ 44041901P Contact Us For Availability
9
Jumper Harness SPQ M400977 Contact Us For Availability
9
Spray Paint SPQ 44150105 Contact Us For Availability
9
SPQ 44377301 SPQ 44377301 Contact Us For Availability
9
SPQ M400661 SPQ M400661 Contact Us For Availability
9
SPQ 70071401 SPQ 70071401 Contact Us For Availability
9
Harness Strap SPQ M400035 Contact Us For Availability
9
SPQ 44135605 SPQ 44135605 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Screw SPQ 70033502 Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Pop Rivet SPQ M400003 Contact Us For Availability
10
Drive Access Cover SPQ 70202501 Contact Us For Availability
10
Cylinder Assembly SPQ 44057201P Contact Us For Availability
10
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
10
V-Belt SPQ 44309402 Contact Us For Availability
11
Screw SPQ 70155602 Contact Us For Availability
11
Screw SPQ F8206901 Contact Us For Availability
11
Screw SPQ 70247701 Contact Us For Availability
11
Rear Guard SPQ 44373401 Contact Us For Availability
11
Shaft Wire SPQ 44208702 Contact Us For Availability
12
Pop Rivet SPQ 44089302P Contact Us For Availability
12
Magnet SPQ 70343101 Contact Us For Availability
12
Micro V Pulley SPQ 44374001 Contact Us For Availability
12
Inverter Control Assembly SPQ 70603201 Contact Us For Availability
12
I/O Control Assembly SPQ 70671701 Contact Us For Availability
13
Door Latch SPQ 70182601 Contact Us For Availability
13
Side Panel SPQ 44367802W Contact Us For Availability
13
Top Guard SPQ 44364001 Contact Us For Availability
13
Door Hinge Assembly SPQ 70436301 Contact Us For Availability
13
Shaft Collar SPQ 70467001 Contact Us For Availability
13
Bushing SPQ 70346501 Contact Us For Availability
13
Plug SPQ 70167601 Contact Us For Availability
13
Gas Valve SPQ 44154502P Contact Us For Availability
14
Panel Locator SPQ 70126401 Contact Us For Availability
14
Blower Assembly SPQ 70302201P Contact Us For Availability
14
Wire Clip SPQ F8449501 Contact Us For Availability
15
Kickplate SPQ 70126301 Contact Us For Availability
15
Pop Rivet SPQ 70603001 Contact Us For Availability
16
Drive Motor SPQ 44355006 Contact Us For Availability
16
Damper Assembly SPQ 44280301 Contact Us For Availability
16
Pop Rivet SPQ 685837 Contact Us For Availability
17
Spark Electrode SPQ 44154506 Contact Us For Availability
18
Lint Panel SPQ 70117607 Contact Us For Availability
18
Terminal Block SPQ 70333001 Contact Us For Availability
18
Spark Electrode SPQ 70548701P Contact Us For Availability
19
Gasket SPQ 70117619 Contact Us For Availability
19
Extension Spring SPQ 44355005 Contact Us For Availability
20
Reed Switch Assembly SPQ 70154415 Contact Us For Availability
20
Bearing SPQ M400650 Contact Us For Availability
21
Blind Rivet SPQ 44293605 Contact Us For Availability
21
Washer SPQ M413923P Contact Us For Availability
23
Ball Bearing SPQ 805213 Contact Us For Availability
NI
SPQ M410541P SPQ M410541P Contact Us For Availability
NI
App Pay Overlay Kit SPQ 44087101 Contact Us For Availability
NI
Wireless Network Harness SPQ F8674006 Contact Us For Availability
NI
Wireless Network Kit SPQ 70609701 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
Door Catch Kit SPQ 70275801 Contact Us For Availability
NI
SPQ M411072 SPQ M411072 Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
SPQ 44366201 SPQ 44366201 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44040015LG SPQ 44040015LG Contact Us For Availability
NI
Label SPQ 44052542W Contact Us For Availability
NI
SPQ 44052541 SPQ 44052541 Contact Us For Availability
NI
SPQ 44052539LG SPQ 44052539LG Contact Us For Availability
NI
SPQ 44052536W SPQ 44052536W Contact Us For Availability
NI
SPQ 70472801 SPQ 70472801 Contact Us For Availability
NI
SPQ F8245101 SPQ F8245101 Contact Us For Availability
NI
SPQ 70132301 SPQ 70132301 Contact Us For Availability
NI
SPQ 70030201 SPQ 70030201 Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 44367702W Contact Us For Availability
NI
SPQ 44363601 SPQ 44363601 Contact Us For Availability
NI
SPQ M404992 SPQ M404992 Contact Us For Availability
NI
SPQ 44195705P SPQ 44195705P Contact Us For Availability
NI
SPQ 44195706 SPQ 44195706 Contact Us For Availability
NI
SPQ M4644P3 SPQ M4644P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 44336301 SPQ 44336301 Contact Us For Availability
NI
SPQ 44344702 SPQ 44344702 Contact Us For Availability
NI
SPQ 70635406 SPQ 70635406 Contact Us For Availability
NI
SPQ 44333202 SPQ 44333202 Contact Us For Availability
NI
SPQ 44354901 SPQ 44354901 Contact Us For Availability
NI
SPQ 51783 SPQ 51783 Contact Us For Availability
NI
SPQ 70671001 SPQ 70671001 Contact Us For Availability
NI
SPQ 44375701 SPQ 44375701 Contact Us For Availability
NI
SPQ 44328802 SPQ 44328802 Contact Us For Availability
NI
SPQ 44355202 SPQ 44355202 Contact Us For Availability
NI
Burner Orifice SPQ 70684107 Contact Us For Availability
NI
High Altitude Orifice Kit SPQ 70684110 Contact Us For Availability
NI
SPQ 44357504 SPQ 44357504 Contact Us For Availability
NI
SPQ 70696807 SPQ 70696807 Contact Us For Availability
NI
SPQ 70696803 SPQ 70696803 Contact Us For Availability
× ![]()
