Model LG UPWS3044ST – Common Parts & Diagrams
0
1
2
3
4

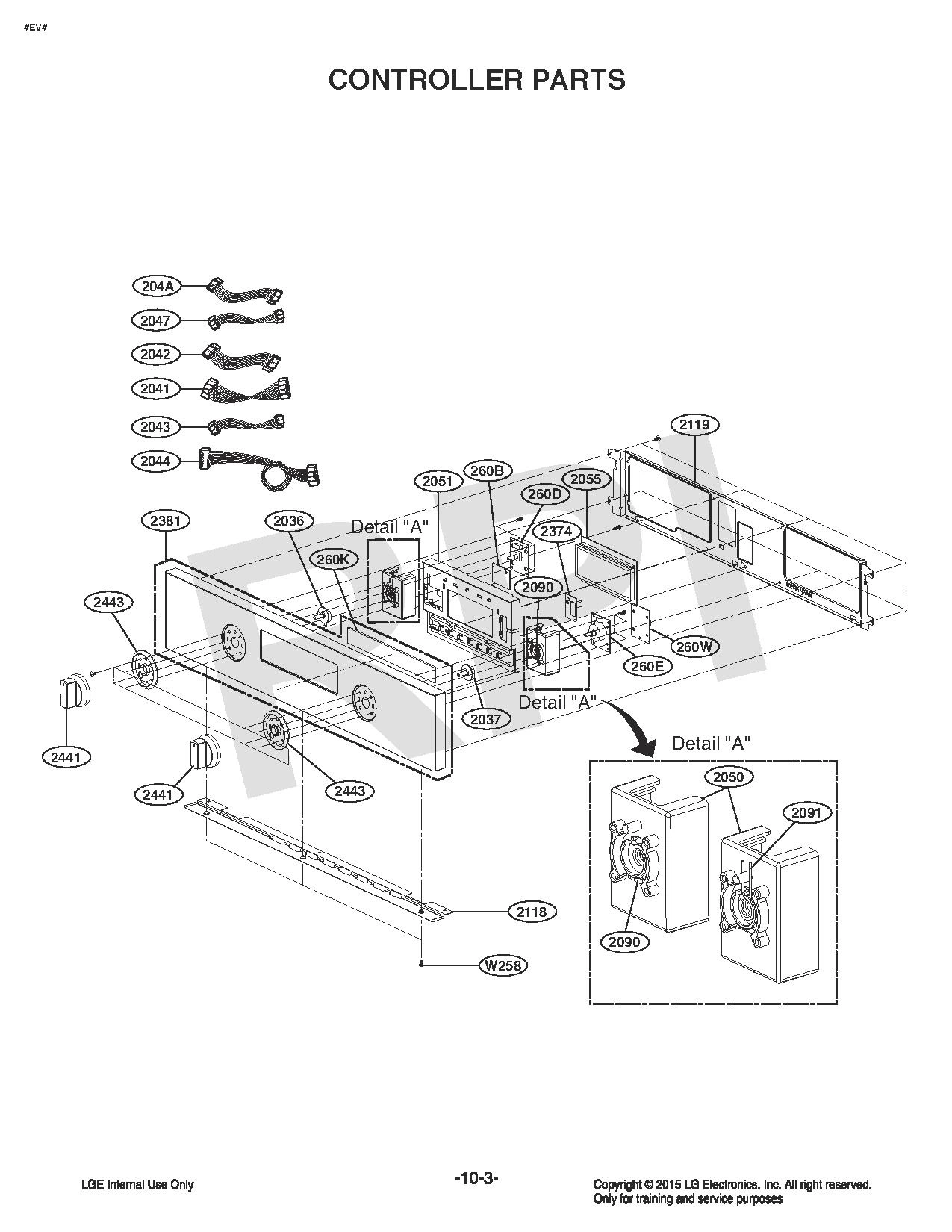

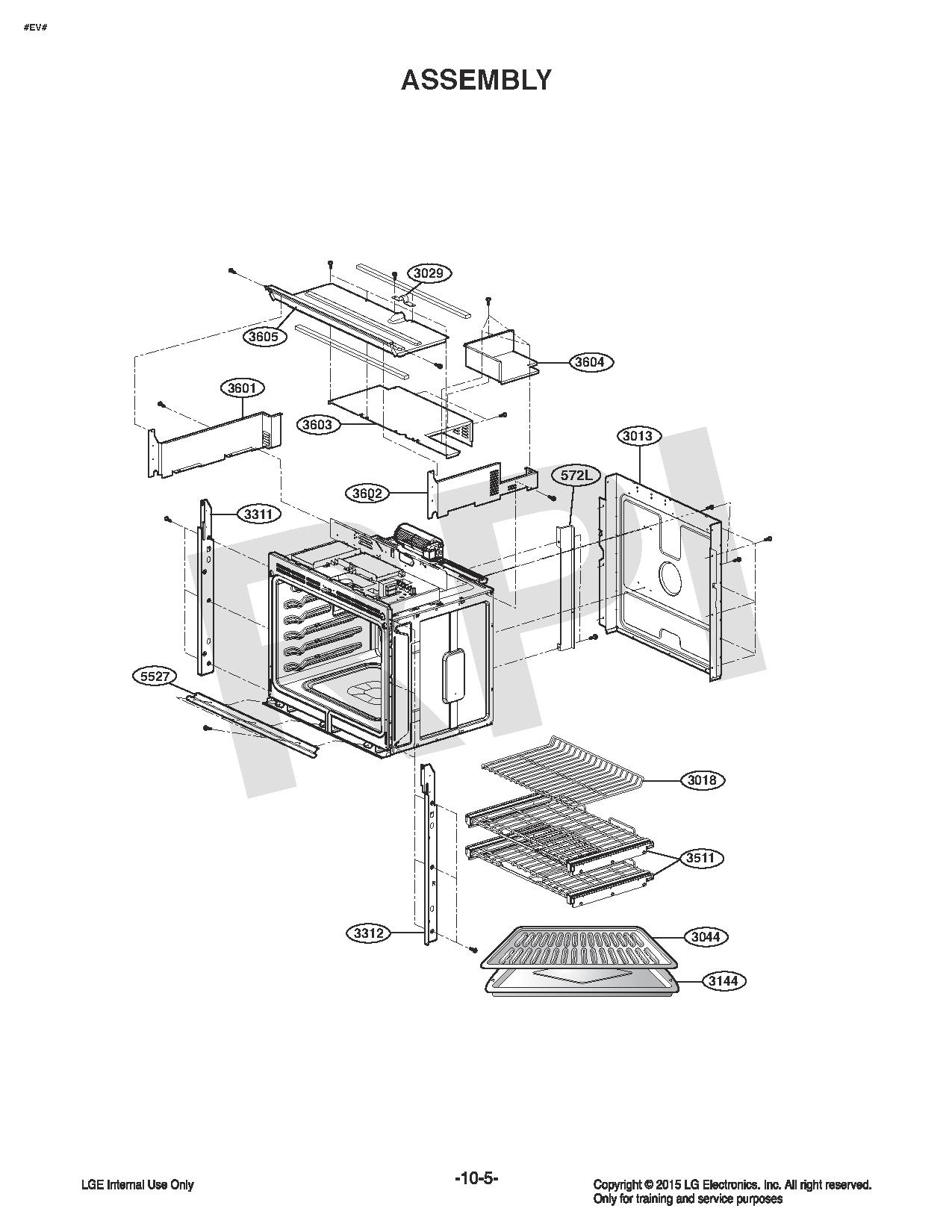

Common parts from model LG UPWS3044ST
260B
PCB Assembly,Option LGE EBR76332902 Contact Us For Availability
260D
PCB Assembly,Sub LGE EBR80595801 Contact Us For Availability
260E
PCB Assembly,Option LGE EBR80327001 Contact Us For Availability
507P
PCB Assembly,Power LGE EBR64624604 Contact Us For Availability
572L
Barrier LGE MAL41753602 Contact Us For Availability
1000
Frame Assembly,Door LGE ADV34868803 Contact Us For Availability
1018
Window,Glass LGE 4890W1N005A Contact Us For Availability
1023
Insulator LGE MEV63330702 Contact Us For Availability
1040
Cap,Protector LGE 5006841001A Contact Us For Availability
1120
Cover,Inner LGE MCK40417601 Contact Us For Availability
1121
Cover,Inner LGE MCK47161201 Contact Us For Availability
1401
Supporter,Handle LGE MJH65513101 Contact Us For Availability
1402
Supporter LGE MJH55321601 Contact Us For Availability
1703
Bracket,Mount LGE MAZ55266201 Contact Us For Availability
2036
Supporter LGE MJH63756901 Contact Us For Availability
2037
Supporter LGE MJH63756902 Contact Us For Availability
2042
Harness,Single LGE EAD34822923 Contact Us For Availability
2044
Harness,Single LGE EAD62349808 Contact Us For Availability
2050
Supporter,PCB LGE MJH63756801 Contact Us For Availability
2051
Supporter,PCB LGE MJH63893301 Contact Us For Availability
2055
VFD LGE EAJ62608102 Contact Us For Availability
2090
Spring LGE MHY64083701 Contact Us For Availability
2091
Spring,Coil LGE MHY64023901 Contact Us For Availability
3013
Cover,Rear LGE MCK40420102 Contact Us For Availability
3018
Shelf LGE MHL49207701 Contact Us For Availability
3029
Bracket,Mount LGE MAZ47162501 Contact Us For Availability
3044
Tray,Metal LGE MJS61849903 Contact Us For Availability
3062
Motor Assembly,AC,Synchronous LGE EAU43957801 Contact Us For Availability
3144
Tray,Metal LGE MJS61850003 Contact Us For Availability
3311
Grille LGE MDX40418804 Contact Us For Availability
3312
Grille LGE MDX40418604 Contact Us For Availability
3511
Shelf Assembly LGE AHT54382601 Contact Us For Availability
3601
Cover,Top LGE MCK40423001 Contact Us For Availability
3602
Cover,Top LGE MCK41754101 Contact Us For Availability
3603
Cover,Top LGE MCK41753701 Contact Us For Availability
3604
Cover,Top LGE MCK41754301 Contact Us For Availability
3605
Cover,Top LGE MCK40423201 Contact Us For Availability
4002
Switch,Tact LGE EBF60663403 Contact Us For Availability
5014
Harness,Single LGE EAD51439105 Contact Us For Availability
5021
Thermistor,PTC LGE EBG61305805 Contact Us For Availability
5080
Sensor,Temperature LGE EBD51431001 Contact Us For Availability
5090
Jack,DC Power LGE EAG43128001 Contact Us For Availability
5116
Thermostat LGE EBG51439303 Contact Us For Availability
5124
Fan Assembly LGE 5901W1E002G Contact Us For Availability
5407
Fan,Convection LGE 5900W1N004B Contact Us For Availability
5414
Housing,Motor LGE 4681W1N002B Contact Us For Availability
5505
Supporter LGE 4980W1N013A Contact Us For Availability
5508
Connector,Terminal Block LGE 6640000045A Contact Us For Availability
5516
Packing,Gasket LGE MFZ40418402 Contact Us For Availability
5550
Lamp,Halogen LGE 6912W3H001F Contact Us For Availability
5561
Lamp,Halogen LGE EAQ43128702 Contact Us For Availability
5611
Supporter,PCB LGE MJH41754001 Contact Us For Availability
W225
Washer,Customized LGE 1WZZW3Z003B Contact Us For Availability
W232
Washer,Customized LGE 1WZZ81N001A Contact Us For Availability
W233
Nut,Common LGE 1NHB0500032 Contact Us For Availability
W235
Screw,Taptite LGE 1ATF0502610 Contact Us For Availability
W236
Washer,Common LGE 4H00056C Contact Us For Availability
W241
Nut,Customized LGE 1NZZW1N002A Contact Us For Availability
W256
Screw,Customized LGE 1SZZW5N001F Contact Us For Availability
W258
Screw,Tapping LGE FAB30103101 Contact Us For Availability
W301
Screw,Customized LGE 1SZZW1N006D Contact Us For Availability
W321
Screw,Customized LGE 1SZZW5N001D Contact Us For Availability
× ![]()
